0-66 — GENERATOR (#5689) — 157 parça

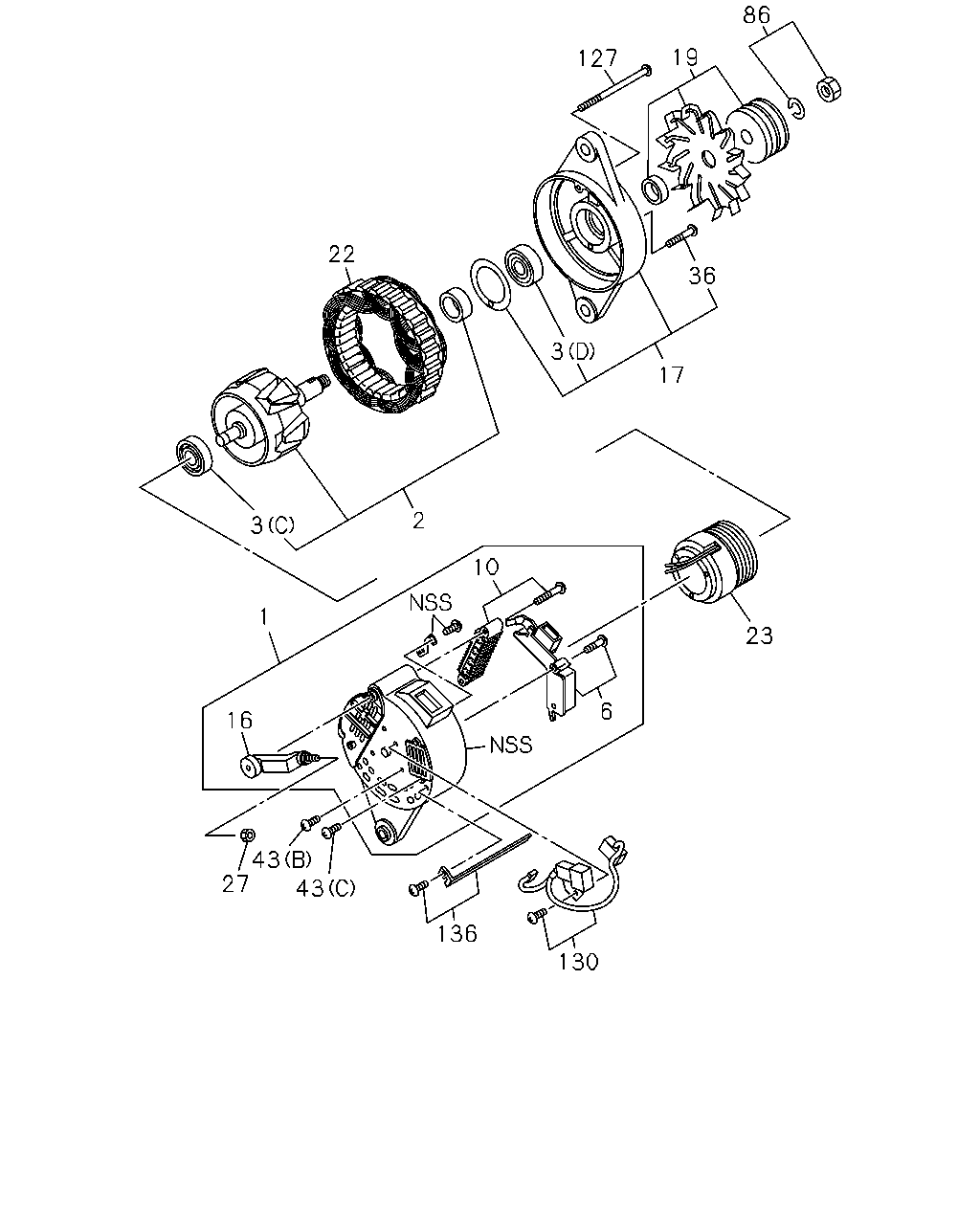

86 19 127 22 36 3 17 2 3 10 1 23 6 16 43 27 43 136 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-416-4	1-81214-294-1	01	1	-
1	COVER ASM; RR,GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81222-135-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-98013-462-2	8-98040-684-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-416-4	1-81211-125-0	01	1	-
2	ROTOR; GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81221-102-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-98013-462-2	8-98040-638-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-416-4	1-81229-393-0	01	1	-
3	BEARING; ROTOR,GEN (E) ASM PART: D = 8-98013-462-2	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-416-4	1-81229-739-0	01	1	-
3	BEARING; ROTOR,GEN (F) ASM PART: D = 8-98013-462-2	1-81229-758-0	01	1	-
3	BEARING; ROTOR,GEN (C), TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (D), TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-770-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-416-4	1-81260-007-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81260-017-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-98013-462-2	8-98040-688-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 1-81200-416-4	1-81219-107-0	01	1	-
10	RECTIFIER; GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81219-126-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 8-98013-462-2	8-98040-686-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-804-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-416-4	1-81213-092-0	01	1	-
17	COVER ASM; FRT,GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81213-101-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98013-462-2	8-97382-872-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-416-4	1-81222-122-0	01	1	9901-
19	PULLEY; GEN ASM PART: A = 1-81200-416-4	1-81222-124-0	01	1	-9812
19	PULLEY; GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81222-130-0	01	1	-
19	PULLEY; GEN ASM PART: D = 8-98013-462-2	8-98040-641-0	01	1	-
22	STATOR; GEN ASM PART: A = 1-81200-416-4	1-81211-106-1	01	1	-
22	STATOR; GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81211-129-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-98013-462-2	8-98040-640-0	01	1	-
23	COIL; ROTOR GEN ASM PART: A = 1-81200-416-4	1-81212-011-0	01	1	-
23	COIL; ROTOR GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN ASM PART: D = 8-98013-462-2	8-98040-645-0	01	1	-
27	NUT; RECTIFIER,GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-772-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: D = 8-98013-462-2	8-98040-687-0	01	1	-
36	SCREW; FRT COVER TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-768-0	01	1	-
43	SCREW; RR END COVER (D) ASM PART: D = 8-98013-462-2	1-81229-476-0	03	1	-
43	SCREW; RR END COVER (A) ASM PART: A = 1-81200-416-4	1-81229-477-0	03	1	-
43	SCREW; RR END COVER (B), TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (C), TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-774-0	01	1	-
86	NUT SET; PULLEY,GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	8-97178-134-0	01	1	-
127	BOLT SET; GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-767-0	01	1	-
130	CONNECTOR; GEN TAI ASM PART: C = 1-81200-577-0	1-81229-808-0	01	1	-
130	CONNECTOR; GEN ASM PART: B = 1-81200-521-0	1-81229-810-0	01	1	-
136	CLAMP; GENERATOR TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-775-0	01	1	-

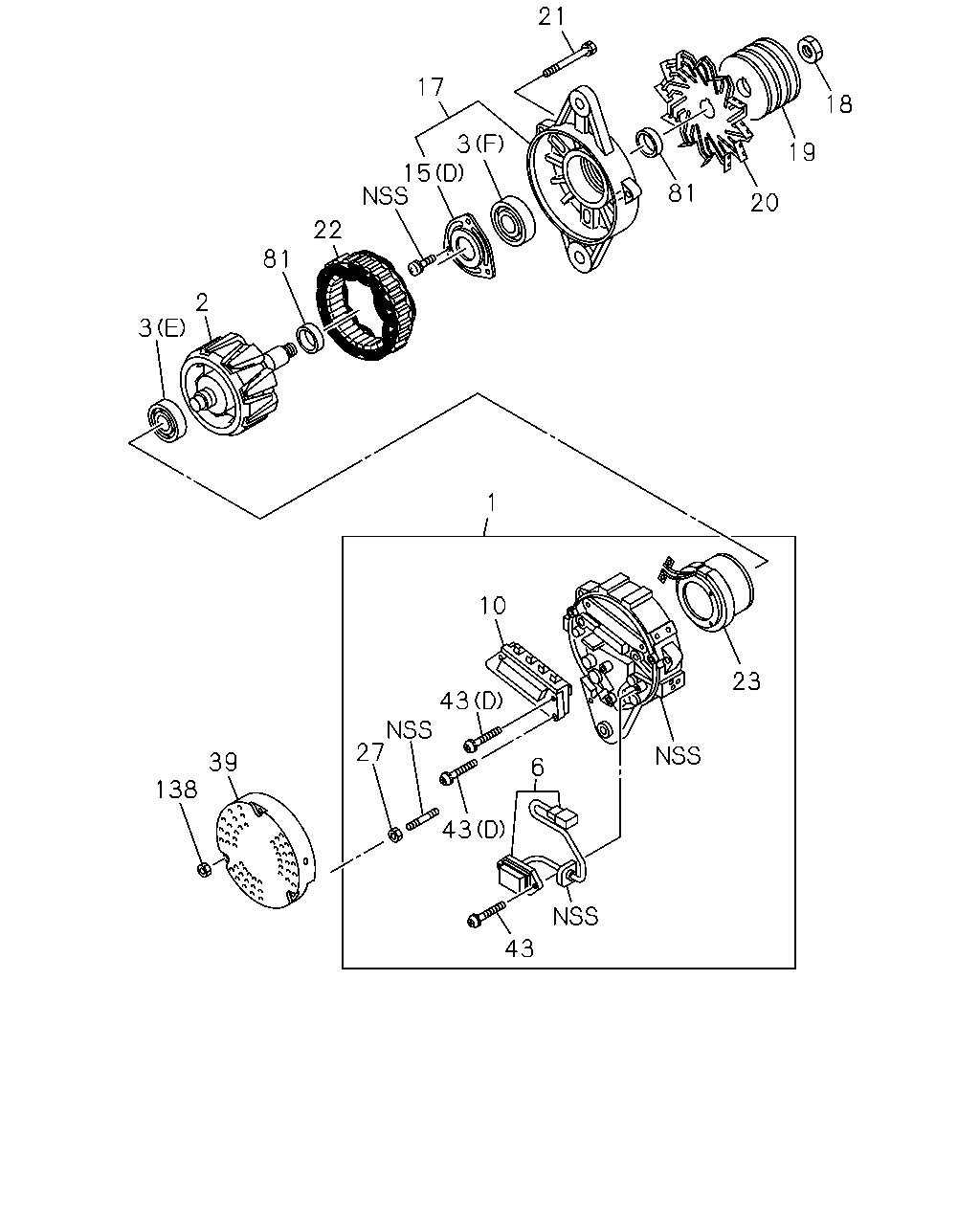

21 17 18 3 15 19 81 20 22 81 2 3 1 10 23 43 27 39 6 138 43 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-416-4	1-81214-294-1	01	1	-
1	COVER ASM; RR,GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81222-135-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-98013-462-2	8-98040-684-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-416-4	1-81211-125-0	01	1	-
2	ROTOR; GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81221-102-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-98013-462-2	8-98040-638-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-416-4	1-81229-393-0	01	1	-
3	BEARING; ROTOR,GEN (E) ASM PART: D = 8-98013-462-2	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-416-4	1-81229-739-0	01	1	-
3	BEARING; ROTOR,GEN (F) ASM PART: D = 8-98013-462-2	1-81229-758-0	01	1	-
3	BEARING; ROTOR,GEN (C), TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (D), TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-770-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-416-4	1-81260-007-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81260-017-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-98013-462-2	8-98040-688-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 1-81200-416-4	1-81219-107-0	01	1	-
10	RECTIFIER; GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81219-126-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 8-98013-462-2	8-98040-686-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 1-81200-416-4	1-81229-376-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 1-81200-416-4	1-81229-526-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: A = 1-81200-416-4	1-81229-643-0	01	1	-
15	RETAINER; ROTOR,GEN (D) ASM PART: D = 8-98013-462-2	1-81229-760-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-416-4	1-81213-092-0	01	1	-
17	COVER ASM; FRT,GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81213-101-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98013-462-2	8-97382-872-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 1-81200-416-4	1-81229-474-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: D = 8-98013-462-2	8-98040-643-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-416-4	1-81222-122-0	01	1	9901-
19	PULLEY; GEN ASM PART: A = 1-81200-416-4	1-81222-124-0	01	1	-9812
19	PULLEY; GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81222-130-0	01	1	-
19	PULLEY; GEN ASM PART: D = 8-98013-462-2	8-98040-641-0	01	1	-
20	FAN; GEN ASM PART: A = 1-81200-416-4	1-81223-016-0	01	1	-
20	FAN; GEN ASM PART: D = 8-98013-462-2	8-97382-874-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 1-81200-416-4, D = 8-98013-462-2	1-81229-382-0	03	1	-
22	STATOR; GEN ASM PART: A = 1-81200-416-4	1-81211-106-1	01	1	-
22	STATOR; GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81211-129-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-98013-462-2	8-98040-640-0	01	1	-
23	COIL; ROTOR GEN ASM PART: A = 1-81200-416-4	1-81212-011-0	01	1	-
23	COIL; ROTOR GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN ASM PART: D = 8-98013-462-2	8-98040-645-0	01	1	-
27	NUT; RECTIFIER,GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-772-0	01	1	-
27	NUT; RECTIFIER,GEN ASM PART: D = 8-98013-462-2	8-98040-687-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: D = 8-98013-462-2	8-98040-689-0	01	1	-
43	SCREW; RR END COVER (D) ASM PART: D = 8-98013-462-2	1-81229-476-0	03	1	-
43	SCREW; RR END COVER (A) ASM PART: A = 1-81200-416-4	1-81229-477-0	03	1	-
43	SCREW; RR END COVER (B), TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (C), TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-774-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: A = 1-81200-416-4	1-81229-642-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: D = 8-98013-462-2	8-97382-870-0	02	1	-
138	NUT; COVER,GENERATOR ASM PART: D = 8-98013-462-2	8-98040-690-0	03	1	-

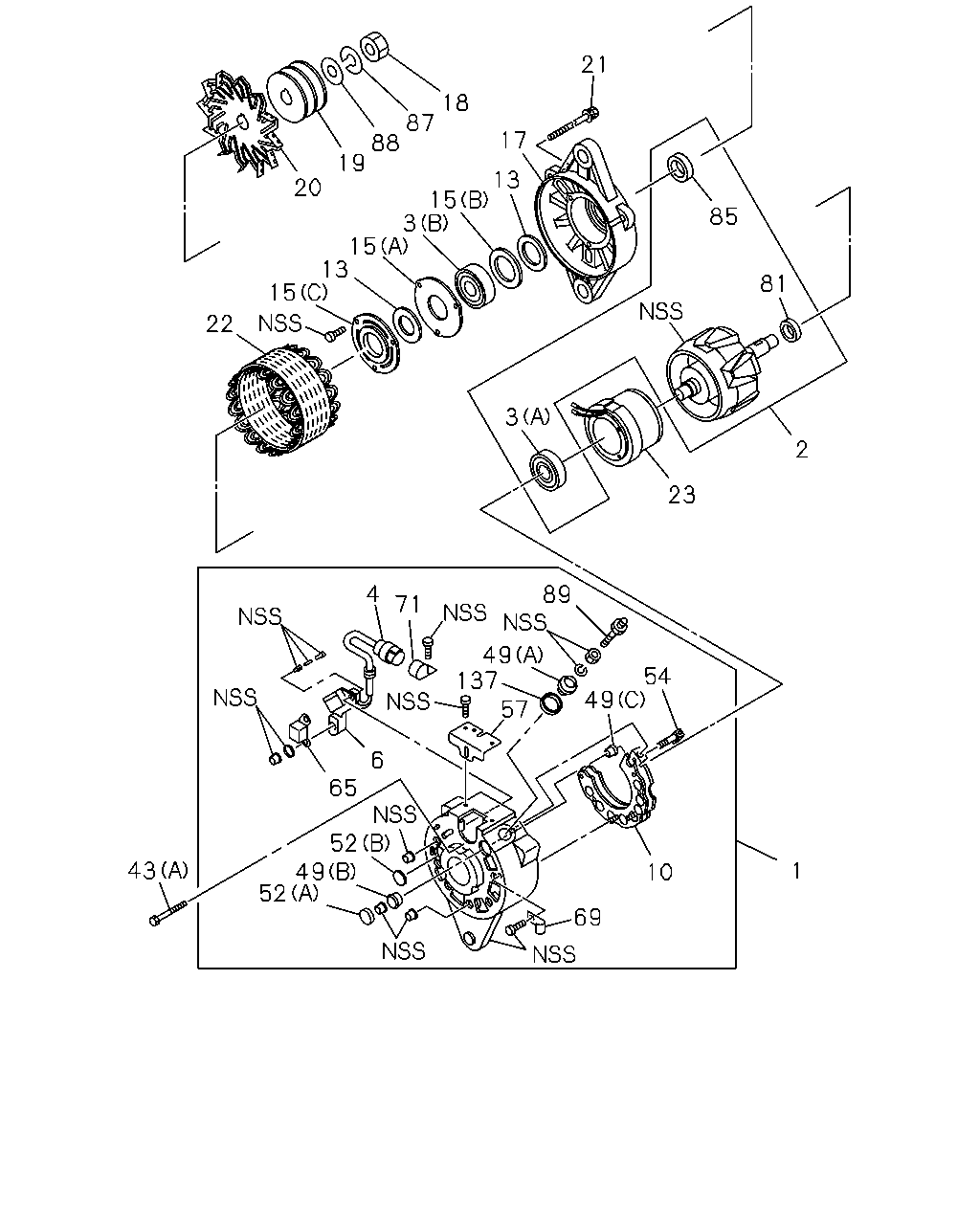

21 18 87 88 19 17 13 15 3 20 85 15 13 15 81 22 3 2 23 4 89 71 49 137 57 54 49 6 65 52 49 52 43 1 10 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-416-4	1-81214-294-1	01	1	-
1	COVER ASM; RR,GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81222-135-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 8-98013-462-2	8-98040-684-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-416-4	1-81211-125-0	01	1	-
2	ROTOR; GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81221-102-0	01	1	-
2	ROTOR; GEN ASM PART: D = 8-98013-462-2	8-98040-638-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-416-4	1-81229-393-0	01	1	-
3	BEARING; ROTOR,GEN (E) ASM PART: D = 8-98013-462-2	1-81229-723-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-416-4	1-81229-739-0	01	1	-
3	BEARING; ROTOR,GEN (F) ASM PART: D = 8-98013-462-2	1-81229-758-0	01	1	-
3	BEARING; ROTOR,GEN (C), TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-769-0	01	1	-
3	BEARING; ROTOR,GEN (D), TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-770-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: A = 1-81200-416-4	1-81229-517-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-416-4	1-81260-007-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81260-017-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-98013-462-2	8-98040-688-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 1-81200-416-4	1-81219-107-0	01	1	-
10	RECTIFIER; GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81219-126-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 8-98013-462-2	8-98040-686-0	01	1	-
13	GASKET; ROTOR,GEN ASM PART: A = 1-81200-416-4	1-81229-644-0	02	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 1-81200-416-4	1-81229-376-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 1-81200-416-4	1-81229-526-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: A = 1-81200-416-4	1-81229-643-0	01	1	-
15	RETAINER; ROTOR,GEN (D) ASM PART: D = 8-98013-462-2	1-81229-760-1	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-416-4	1-81213-092-0	01	1	-
17	COVER ASM; FRT,GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81213-101-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 8-98013-462-2	8-97382-872-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 1-81200-416-4	1-81229-474-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: D = 8-98013-462-2	8-98040-643-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-416-4	1-81222-122-0	01	1	9901-
19	PULLEY; GEN ASM PART: A = 1-81200-416-4	1-81222-124-0	01	1	-9812
19	PULLEY; GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81222-130-0	01	1	-
19	PULLEY; GEN ASM PART: D = 8-98013-462-2	8-98040-641-0	01	1	-
20	FAN; GEN ASM PART: A = 1-81200-416-4	1-81223-016-0	01	1	-
20	FAN; GEN ASM PART: D = 8-98013-462-2	8-97382-874-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 1-81200-416-4, D = 8-98013-462-2	1-81229-382-0	03	1	-
22	STATOR; GEN ASM PART: A = 1-81200-416-4	1-81211-106-1	01	1	-
22	STATOR; GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81211-129-0	01	1	-
22	STATOR; GEN ASM PART: D = 8-98013-462-2	8-98040-640-0	01	1	-
23	COIL; ROTOR GEN ASM PART: A = 1-81200-416-4	1-81212-011-0	01	1	-
23	COIL; ROTOR GEN TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81212-016-0	01	1	-
23	COIL; ROTOR GEN ASM PART: D = 8-98013-462-2	8-98040-645-0	01	1	-
43	SCREW; RR END COVER (D) ASM PART: D = 8-98013-462-2	1-81229-476-0	03	1	-
43	SCREW; RR END COVER (A) ASM PART: A = 1-81200-416-4	1-81229-477-0	03	1	-
43	SCREW; RR END COVER (B), TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-773-0	01	1	-
43	SCREW; RR END COVER (C), TAI ASM PART: B = 1-81200-521-0, C = 1-81200-577-0	1-81229-774-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: A = 1-81200-416-4	1-81229-648-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: A = 1-81200-416-4	1-81229-649-0	01	1	-
49	BUSHING; RECTIFIER,GEN (C) ASM PART: A = 1-81200-416-4	1-81229-650-0	01	1	-
52	CAP; RUBBER,TERMINAL (A) ASM PART: A = 1-81200-416-4	1-81229-652-0	01	1	-
52	CAP; RUBBER,TERMINAL (B) ASM PART: A = 1-81200-416-4	1-81229-653-0	01	1	-
54	BOLT; RECTIFIER,GEN ASM PART: A = 1-81200-416-4	1-81229-647-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: A = 1-81200-416-4	1-81214-296-0	01	1	-
65	CONDENSER; GEN ASM PART: A = 1-81200-416-4	1-84132-008-0	01	1	-
69	CLIP; WIRE,GEN ASM PART: A = 1-81200-416-4	1-81229-516-0	01	1	-
71	HOLDER; TERMINAL,GEN ASM PART: A = 1-81200-416-4	1-81217-053-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: A = 1-81200-416-4	1-81229-642-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: D = 8-98013-462-2	8-97382-870-0	02	1	-
85	SPACER; PULLEY,GEN ASM PART: A = 1-81200-416-4	1-81229-642-0	01	1	-
87	WASHER; PULLEY,GEN ASM PART: A = 1-81200-416-4	1-81229-479-0	01	1	-
88	WASHER; PL,PULLEY GEN ASM PART: A = 1-81200-416-4	1-81229-478-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: A = 1-81200-416-4	1-81229-646-0	01	1	-
137	GASKET; RECTIFIER,GENERATOR ASM PART: A = 1-81200-416-4	1-81229-651-0	01	1	-
