Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11325 - EXZ MIDDLE EAST WITH 3STEPS
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶
8-21 — METER ASM
(#56889) — 56 parça
◀

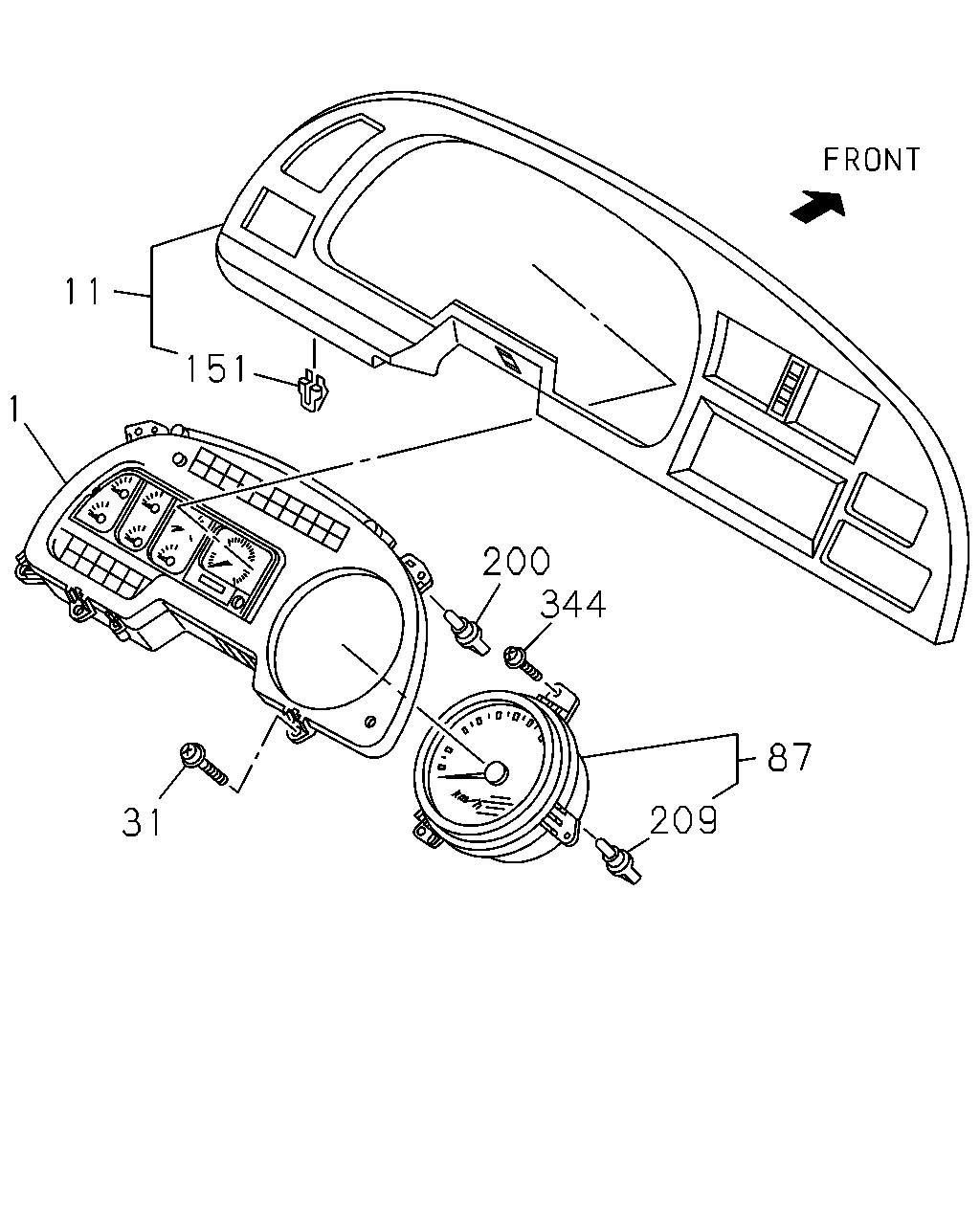

[821A] FIXING (12 parça)

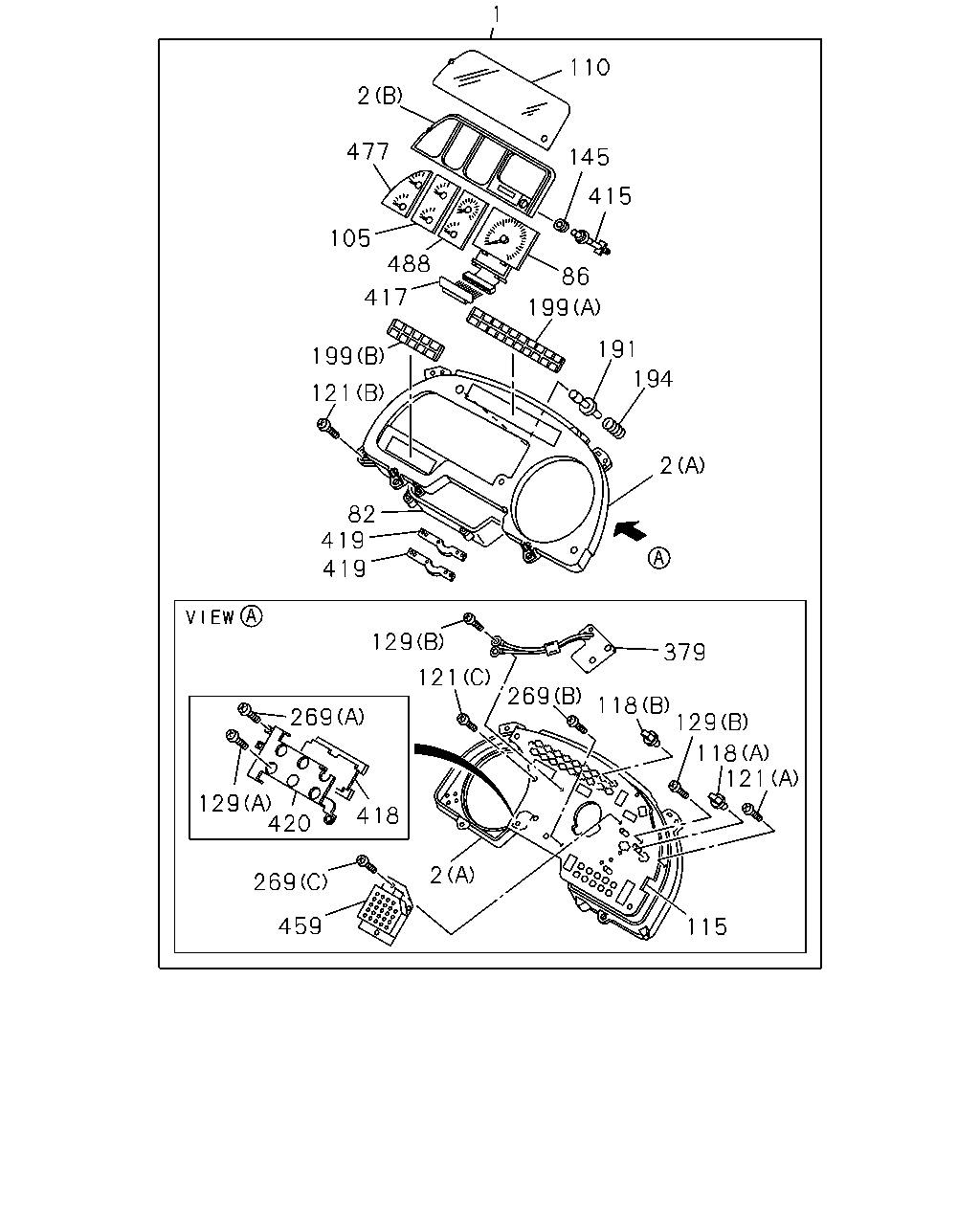

[821A] COMPONENT (44 parça)
▶
11
151
1
31
200
344
87
209
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
8-98146-463-0
01
1
1008-1103
1
METER COMPL; CLUSTER
8-97638-845-0
01
1
1104-1105
1
METER COMPL; CLUSTER
8-98195-538-0
01
1
1106-1205
1
METER COMPL; CLUSTER
8-98221-615-0
01
1
1206-1306
1
METER COMPL; CLUSTER
8-98214-934-0
01
1
1307-
11
CLUSTER ASM; METER
1-72418-022-7
01
1
1008-
31
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
0-74160-620-0
04
1
1008-1306
87
SPEEDOMETER
8-98039-481-0
01
1
1008-
151
CLIP; METER CLUSTER
8-97217-066-0
10
1
1008-
200
BULB; WARNING LAMP
24V 1.8W BROWN SOCKET
1-82194-062-0
01
1
1008-1306
209
BULB; SPEEDOMETER
24V 3W GREEN SOCKET
1-82194-061-0
01
1
1008-
344
SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER
0-74160-620-0
03
1
1008-
2
194
191
199
86
415
145
110
1
2
477
105
488
417
199
121
82
419
419
129
121
379
269
118
129
118
121
115
2
418
269
129
420
269
459
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
8-98146-463-0
01
1
1008-1103
1
METER COMPL; CLUSTER
8-97638-845-0
01
1
1104-1105
1
METER COMPL; CLUSTER
8-98195-538-0
01
1
1106-1205
1
METER COMPL; CLUSTER
8-98221-615-0
01
1
1206-1306
1
METER COMPL; CLUSTER
8-98214-934-0
01
1
1307-
2
PANEL; CLUSTER
(A)
1-83119-644-0
01
1
1008-
2
PANEL; CLUSTER
(B)
1-83119-682-0
01
1
1008-
82
CASE ASM; CLUSTER METER
1-83119-653-0
01
1
1008-
86
TACHOMETER; CLUSTER METER
1-83120-921-0
01
1
1008-
105
GAUGE; THERMO & FUEL,CLUSTER METER
1-83180-281-0
01
1
1008-1103
105
GAUGE; THERMO & FUEL,CLUSTER METER
8-98185-065-0
01
1
1104-
110
GLASS; CLUSTER METER
1-83119-646-0
01
1
1008-
115
CIRCUIT; PRINTED,CLUSTER METER
1-83189-475-0
01
1
1008-1105
115
CIRCUIT; PRINTED,CLUSTER METER
8-98194-994-0
01
1
1106-
118
BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET
1-82194-061-0
04
1
1008-
118
BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET
1-82194-062-0
26
1
1008-1306
118
BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET
1-82194-062-0
28
1
1307-
121
SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING
1-83119-084-0
01
1
1008-
121
SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING
1-83119-442-0
05
1
1008-
121
SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING
1-83119-676-0
02
1
1008-
129
SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING
1-83119-657-0
09
1
1008-
129
SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING
1-83119-675-0
06
1
1008-
145
GROMMET; GLASS,KNOB HOLE,CLUSTER METER
1-83119-680-0
01
1
1008-
191
KNOB; BULB CHECK
1-83119-672-0
01
1
1008-
194
SPRING; BULB CHECK KNOB
1-83119-673-0
01
1
1008-
199
LENS; WARNING LAMP
(B)
1-83119-912-0
01
1
1008-1306
199
LENS; WARNING LAMP
(B)
8-98216-761-0
01
1
1307-
199
LENS; WARNING LAMP
(A)
8-98170-738-0
01
1
1008-
269
SCREW; METER CLUSTER
(A) M3
1-83119-273-0
02
1
1008-
269
SCREW; METER CLUSTER
(C) M3 TAPPING
1-83119-657-0
03
1
1008-
269
SCREW; METER CLUSTER
(B) M3 TAPPING
1-83119-677-0
08
1
1008-
379
CIRCUIT; DROP
1-83189-369-0
01
1
1008-
415
KNOB; TRIP,METER
1-83119-674-0
01
1
1008-
417
DISPLAY; ODO & TRIP,METER
1-83119-671-0
01
1
1008-1105
417
DISPLAY; ODO & TRIP,METER
8-98195-041-0
01
1
1106-
418
CIRCUIT; CONTROL,METER
1-83189-442-0
01
1
1008-
419
SPACER; CIRCUIT,METER
1-83119-678-0
02
1
1008-
420
HEAT SINK; METER
1-83119-679-0
01
1
1008-
459
POWER SUPPLY ASM
1-83119-925-0
01
1
1008-
477
GAUGE; AIR PRESS & VOLTAGE
1-83180-294-0
01
1
1008-1306
477
GAUGE; AIR PRESS & VOLTAGE
8-98216-762-0
01
1
1307-
488
GAUGE; AIR PRESS & OIL PRESS
1-83150-268-0
01
1
1008-1205
488
GAUGE; AIR PRESS & OIL PRESS
8-98221-618-0
01
1
1206-1306
488
GAUGE; AIR PRESS & OIL PRESS
8-98216-750-0
01
1
1307-
