8-15 — FIXING PARTS; WIRING HARNESS (#56887) — 482 parça
çizim 171207
224 1 1 1 1 178 178 178 178 178 178 178 178 5 178 510 530 292
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(A) ID=38.1 L=25 		1-09337-052-0 01 1 1008-1306
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=38.1 L=50 		5-09360-835-0 01 1 1307-
1 SLEEVE; RUBBER
(C) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1008-
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1008-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 1008-1201
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1008-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1008-
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=23 		1-09332-112-0 01 1 1008-1306
178 GROMMET; HARNESS
(H) ID=39 OD=45 T=13 		1-09332-076-0 01 1 1307-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=26 		1-09332-132-0 01 1 1008-1306
178 GROMMET; HARNESS
(I) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1307-
178 GROMMET; HARNESS
(B) ID=32 OD=40 T=18 		1-09891-003-0 02 1 1008-1306
178 GROMMET; HARNESS
(F) ID=28 OD=35 T=17 		9-09956-256-2 03 1 1307-
178 GROMMET; HARNESS
(E) 		1-82699-891-0 01 1 1008-1306
178 GROMMET; HARNESS
(G) ID=19 OD=23 T=18 		9-09956-130-1 01 1 1008-
178 GROMMET; HARNESS
(F) ID=28 OD=35 T=17 		9-09956-256-2 04 1 1008-1306
178 GROMMET; HARNESS
(F) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1307-
224 SLEEVE; RUBBER,HARNESS
ID=6 L=30 		5-09360-352-0 01 1 1008-1306
292 CAP; RUBBER 1-82691-239-0 02 1 1008-1306
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 1008-1202
530 SEAL; HARNESS
180X40 		1-72498-019-1 04 1 1008-1306
530 SEAL; HARNESS
180X40 		1-72498-019-1 12 1 1307-
530 SEAL; HARNESS
180X40 		1-72498-019-1 08 1 1008-1306
530 SEAL; HARNESS
100X40 		1-72498-022-1 01 1 1008-

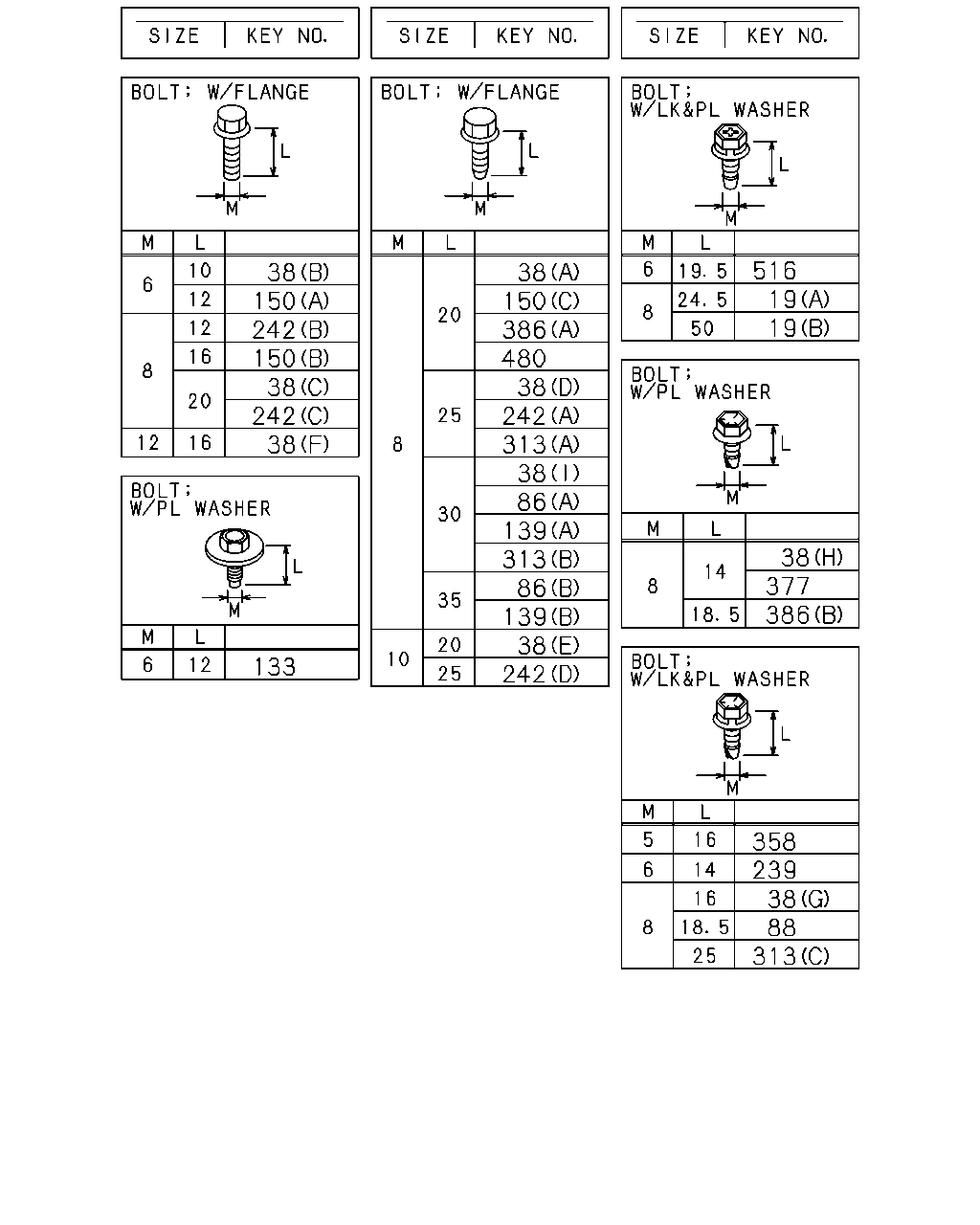

çizim 171228
38 150 242 38 242 38 150 133 242 38 139 86 313 139 86 38 313 242 38 480 386 150 38 516 19 19 38 377 386 358 239 38 88 313
BalonParca AdiParca NoAdetTipApplied Date
19 BOLT; PROTECTOR
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1008-1306
19 BOLT; PROTECTOR
(B) M8X50 W/LK&PL WASHER 		0-50640-850-0 02 1 1307-
38 BOLT; CLIP,HARNESS
(I) M8X30 FLANGE 		0-28650-830-0 01 1 1307-
38 BOLT; CLIP,HARNESS
(I) M8X30 FLANGE 		0-28650-830-0 06 1 1307-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1008-
38 BOLT; CLIP,HARNESS
(B) M6X10 FLANGE 		0-28050-610-0 01 1 1008-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 1008-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 05 1 1008-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1008-1306
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1008-1306
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1008-1306
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1008-1306
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1307-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1307-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1307-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1307-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1307-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1008-1306
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1008-1306
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1307-
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28751-020-0 01 1 1008-
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 1008-1105
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 1008-1201
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-1306
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1307-
86 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1008-1306
86 BOLT; CLIP BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1307-
88 BOLT; DOOR HARNESS EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 1008-
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1008-1306
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1307-
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 05 1 1008-1306
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1307-
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1307-
139 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1008-1306
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1008-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1008-1208
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1209-
150 BOLT; CLIP
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1202-
239 BOLT; GRAND
M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1307-
242 BOLT; BRKT,HARNESS
(D) M10X25 FLANGE 		0-28651-025-0 01 1 1307-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 1008-
242 BOLT; BRKT,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1008-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1008-1306
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1008-1306
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1307-
313 BOLT; BRKT
(C) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 1202-
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1008-
377 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1307-
386 BOLT; GRAND HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1008-1306
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1307-
480 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 1307-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-

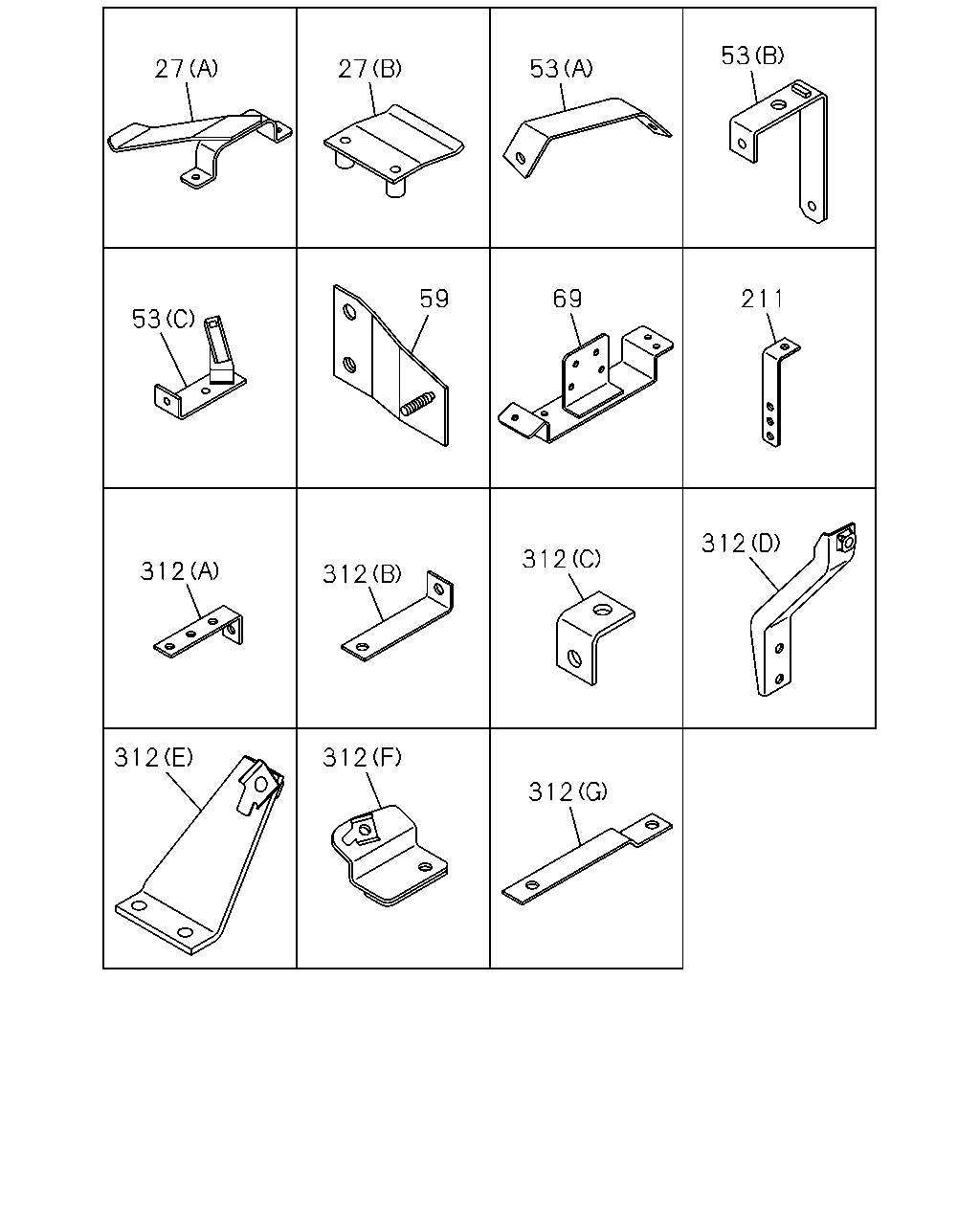

çizim 171253
27 27 53 53 211 69 59 53 312 312 312 312 312 312 312
BalonParca AdiParca NoAdetTipApplied Date
27 PROTECTOR; EDGE
(A) 		8-97618-028-0 01 1 1008-1306
27 PROTECTOR; EDGE
(B) 		8-98201-145-0 01 1 1307-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 02 1 1307-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 02 1 1307-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 04 1 1008-1306
53 BRACKET; HARNESS
(B) 		8-98212-499-0 01 1 1307-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 05 1 1008-1306
53 BRACKET; HARNESS
(C) 		8-98212-500-1 01 1 1307-
59 BRACKET; FRAME HARNESS 8-98061-135-1 01 1 1307-
59 BRACKET; FRAME HARNESS
BURRS AND SHARP EDGES 		8-98201-144-0 01 1 1307-
69 BRACKET; CLIP 8-98171-829-0 01 1 1202-
211 BRACKET; AXLE HARNESS
L=95 		1-82699-085-0 02 1 1008-
312 BRACKET; CLIP HARNESS
(C) 		1-47477-694-0 02 1 1307-
312 BRACKET; CLIP HARNESS
(D) 		8-97636-868-1 02 1 1307-
312 BRACKET; CLIP HARNESS
(E) 		8-98225-560-0 01 1 1307-
312 BRACKET; CLIP HARNESS
(F) 		8-98233-397-0 01 1 1307-
312 BRACKET; CLIP HARNESS
(A) L=120 H=35 		1-82698-088-0 01 1 1008-
312 BRACKET; CLIP HARNESS
(B) 		1-21464-481-0 01 1 1008-1306
312 BRACKET; CLIP HARNESS
(G) 		8-98201-136-0 01 1 1307-
çizim 171264
16 51 104 206 212 305 14 16 104 171 208 228 305 369 380 470 16 14 194 14 16 48 102 194 470 16 51 142 162
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 02 1 1008-1306
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 01 1 1307-
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 01 1 1008-
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 1008-
16 CLIP; HARNESS
(AH) ID=31 H=30 L=35 		1-09700-994-0 01 1 1202-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1106-1306
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 1307-
16 CLIP; HARNESS
(AG) ID=42.7 L=38 		1-09701-313-0 01 1 1008-1201
16 CLIP; HARNESS
(AI) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1202-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 03 1 1008-1306
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1307-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 1008-1306
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 1307-
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 1008-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 1008-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1008-1208
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-1306
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-1306
16 CLIP; HARNESS
(V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1307-
16 CLIP; HARNESS
(V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1307-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 03 1 1008-1208
16 CLIP; HARNESS
(C) ID=11 L=40 		0-95235-075-0 01 1 1008-1306
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 06 1 1307-
16 CLIP; HARNESS
(X) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1008-
16 CLIP; HARNESS
(G) ID=16 L=40 		0-95235-576-0 01 1 1008-1306
16 CLIP; HARNESS
(G) ID=16 L=40 		0-95235-576-0 02 1 1307-
16 CLIP; HARNESS
(V) B=14 ID=19 L=20 		0-95235-832-0 01 1 1008-
16 CLIP; HARNESS
(V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1008-1306
16 CLIP; HARNESS
(X) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1307-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 1008-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1008-1105
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 1106-1306
16 CLIP; HARNESS
(AK) ID=28 L=58 		1-09700-400-0 02 1 1307-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 08 1 1008-1306
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1307-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1008-1105
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1008-1105
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1106-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1106-
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 1008-1306
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 04 1 1307-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 1008-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-1306
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1307-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 1008-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 1008-1306
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1307-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (T) L=350 		1-09707-183-0 01 1 1307-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 1008-1306
16 CLIP; HARNESS
(AJ) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1008-1306
16 CLIP; HARNESS
(AJ) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307-
16 CLIP; HARNESS
(J) L=175 		1-09707-176-1 01 1 1008-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 02 1 1008-1306
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 02 1 1008-1306
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1307-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1307-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 1008-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 1008-1306
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 1307-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 1008-1306
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 1307-1506
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
(R) OD=9 H=13.5 		1-09709-180-0 01 1 1008-
16 CLIP; HARNESS
(W) ID=5-12 L=18 		1-09709-287-0 02 1 1008-
16 CLIP; HARNESS
(AB) ID=13-18 L=18 		1-09709-291-0 01 1 1008-1306
16 CLIP; HARNESS
(AB) ID=13-18 L=18 		1-09709-291-0 01 1 1307-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (AB) ID=13-18 L=18 		1-09709-291-0 01 1 1307-
16 CLIP; HARNESS
(AC) ID=18-24 L=18 		1-09709-294-0 02 1 1008-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 1008-1306
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1307-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1008-1306
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1008-1306
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1307-
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 01 1 1008-1306
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 01 1 1008-1306
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 03 1 1307-
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 03 1 1307-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 1008-
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 1008-1306
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 03 1 1008-
16 CLIP; HARNESS
(AE) ID=19 H=70 L=25 		8-97360-209-0 01 1 1008-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 01 1 1008-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1008-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 01 1 1008-1306
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 06 1 1307-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 05 1 1008-1306
16 CLIP; HARNESS
(AI) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 1307-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 1008-1306
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 1307-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 1008-1306
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1008-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 11 1 1008-1306
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1307-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1307-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1307-
48 CLIP; FRAME HARNESS
(D) ID=11 H=30 L=17 		1-09700-113-0 01 1 1307-
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1307-
51 CLIP; COOLER CMPR
(A) L=180 		1-09707-162-1 01 1 1008-1306
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1307-
51 CLIP; COOLER CMPR
(B) L=140 		5-09707-031-1 01 1 1008-1306
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 1307-
102 CLIP; BAND
L=350 		1-09707-183-0 01 1 1307-
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 1008-1306
104 CLIP; HEADLAMP HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 1008-1306
104 CLIP; HEADLAMP HARNESS
(C) L=250 		5-09707-030-1 02 1 1008-1306
104 CLIP; HEADLAMP HARNESS
(D) L=140 		5-09707-031-1 06 1 1008-1306
104 CLIP; HEADLAMP HARNESS
(D) L=140 		5-09707-031-1 02 1 1307-
142 CLIP; HARNESS,ENG
L=180 		1-09707-162-1 02 1 1008-1207
142 CLIP; HARNESS,ENG
L=180 		8-98216-427-0 02 1 1208-
162 CLIP; SW HARNESS
(A) L=180 		1-09707-162-1 01 1 1008-1306
162 CLIP; SW HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 1307-
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 05 1 1008-1306
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 03 1 1307-
194 CLIP; BAND
(B) L=350 		1-09707-183-0 01 1 1008-1306
194 CLIP; BAND
(B) L=350 		1-09707-183-0 05 1 1307-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 1008-
194 CLIP; BAND
(B) L=350 		1-09707-183-0 04 1 1008-1306
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 1008-
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 01 1 1307-
212 CLIP; HORN HARNESS
L=140 		5-09707-031-1 01 1 1008-1306
228 CLIP; COOLER HARNESS
L=250 		5-09707-030-1 02 1 1008-
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 1008-
305 CLIP; ENG HARNESS
(B) L=250 		5-09707-030-1 03 1 1307-
369 CLIP; BAND EDS HARNESS
L=250 		5-09707-030-1 01 1 1008-1306
380 CLIP; EARTH HARNESS
(B) L=250 		5-09707-030-1 04 1 1008-1306
380 CLIP; EARTH HARNESS
(A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1008-1306
470 CLIP; HARNESS,LICENSE LAMP
(A) L=350 		1-09707-183-0 02 1 1008-1111
470 CLIP; HARNESS,LICENSE LAMP
(C) L=250 		5-09707-030-1 04 1 1112-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=6 L=36 		9-09917-423-0 02 1 1008-1111
çizim 171265
16 48 470 16 16 16 16 16 235 380 16 16 48 16 16 48 223 48 16 16 16 16 16 16 128 16 16 235 16 16 16 421 128
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AH) ID=31 H=30 L=35 		1-09700-994-0 01 1 1202-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1106-1306
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 1307-
16 CLIP; HARNESS
(AG) ID=42.7 L=38 		1-09701-313-0 01 1 1008-1201
16 CLIP; HARNESS
(AI) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1202-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 03 1 1008-1306
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1307-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 1008-1306
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 1307-
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 1008-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 1008-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1008-1208
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-1306
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-1306
16 CLIP; HARNESS
(V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1307-
16 CLIP; HARNESS
(V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1307-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 03 1 1008-1208
16 CLIP; HARNESS
(C) ID=11 L=40 		0-95235-075-0 01 1 1008-1306
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 06 1 1307-
16 CLIP; HARNESS
(X) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1008-
16 CLIP; HARNESS
(G) ID=16 L=40 		0-95235-576-0 01 1 1008-1306
16 CLIP; HARNESS
(G) ID=16 L=40 		0-95235-576-0 02 1 1307-
16 CLIP; HARNESS
(V) B=14 ID=19 L=20 		0-95235-832-0 01 1 1008-
16 CLIP; HARNESS
(V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1008-1306
16 CLIP; HARNESS
(X) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1307-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 1008-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1008-1105
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 1106-1306
16 CLIP; HARNESS
(AK) ID=28 L=58 		1-09700-400-0 02 1 1307-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 08 1 1008-1306
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1307-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1008-1105
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1008-1105
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1106-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1106-
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 1008-1306
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 04 1 1307-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 1008-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-1306
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1307-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 1008-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 1008-1306
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1307-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (T) L=350 		1-09707-183-0 01 1 1307-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 1008-1306
16 CLIP; HARNESS
(AJ) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1008-1306
16 CLIP; HARNESS
(AJ) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307-
16 CLIP; HARNESS
(J) L=175 		1-09707-176-1 01 1 1008-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 02 1 1008-1306
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 02 1 1008-1306
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1307-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1307-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 1008-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 1008-1306
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 1307-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 1008-1306
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 1307-1506
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
(R) OD=9 H=13.5 		1-09709-180-0 01 1 1008-
16 CLIP; HARNESS
(W) ID=5-12 L=18 		1-09709-287-0 02 1 1008-
16 CLIP; HARNESS
(AB) ID=13-18 L=18 		1-09709-291-0 01 1 1008-1306
16 CLIP; HARNESS
(AB) ID=13-18 L=18 		1-09709-291-0 01 1 1307-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (AB) ID=13-18 L=18 		1-09709-291-0 01 1 1307-
16 CLIP; HARNESS
(AC) ID=18-24 L=18 		1-09709-294-0 02 1 1008-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 1008-1306
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1307-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1008-1306
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1008-1306
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1307-
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 01 1 1008-1306
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 01 1 1008-1306
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 03 1 1307-
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 03 1 1307-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 1008-
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 1008-1306
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 03 1 1008-
16 CLIP; HARNESS
(AE) ID=19 H=70 L=25 		8-97360-209-0 01 1 1008-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 01 1 1008-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1008-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 01 1 1008-1306
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 06 1 1307-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 05 1 1008-1306
16 CLIP; HARNESS
(AI) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 1307-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 1008-1306
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 1307-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 1008-1306
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 1008-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 11 1 1008-1306
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1307-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1307-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 03 1 1307-
48 CLIP; FRAME HARNESS
(D) ID=11 H=30 L=17 		1-09700-113-0 01 1 1307-
48 CLIP; FRAME HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1307-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 1008-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 1008-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 1008-1306
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1307-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=10 H=25 L=20 		1-09700-519-0 01 1 1008-1306
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=11 L=28 		9-09917-544-0 01 1 1307-
380 CLIP; EARTH HARNESS
(B) L=250 		5-09707-030-1 04 1 1008-1306
380 CLIP; EARTH HARNESS
(A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1008-1306
421 CLIP; FLOOR HARNESS
ID=21 L=28 		1-09700-673-1 02 1 1008-1202
470 CLIP; HARNESS,LICENSE LAMP
(A) L=350 		1-09707-183-0 02 1 1008-1111
470 CLIP; HARNESS,LICENSE LAMP
(C) L=250 		5-09707-030-1 04 1 1112-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=6 L=36 		9-09917-423-0 02 1 1008-1111
çizim 171267
119 64 340 515 524 24 219 294 340 515 515 423
BalonParca AdiParca NoAdetTipApplied Date
24 NUT; HARNESS
M8 FLANGE 		0-91180-108-0 01 1 1008-1306
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 1008-1202
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 1008-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1008-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1008-
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 1307-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1008-
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 1008-1306
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 1008-1306
219 NUT
M8 FLANGE 		0-91180-108-0 06 1 1307-
294 NUT
M8 FLANGE 		0-91180-108-0 03 1 1008-1306
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 1307-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1008-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1008-
340 NUT; HARNESS CAB TO FRAME
(A) M8 FLANGE 		0-91180-108-0 02 1 1008-1306
340 NUT; HARNESS CAB TO FRAME
(B) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 1307-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 1008-1306
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 1307-
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1307-
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1307-
515 NUT; BRKT
(C) M8 CUTTING NUT W/FLANGE 		1-09985-340-0 06 1 1307-
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 1008-1306
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1307-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 1008-1306
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 1307-

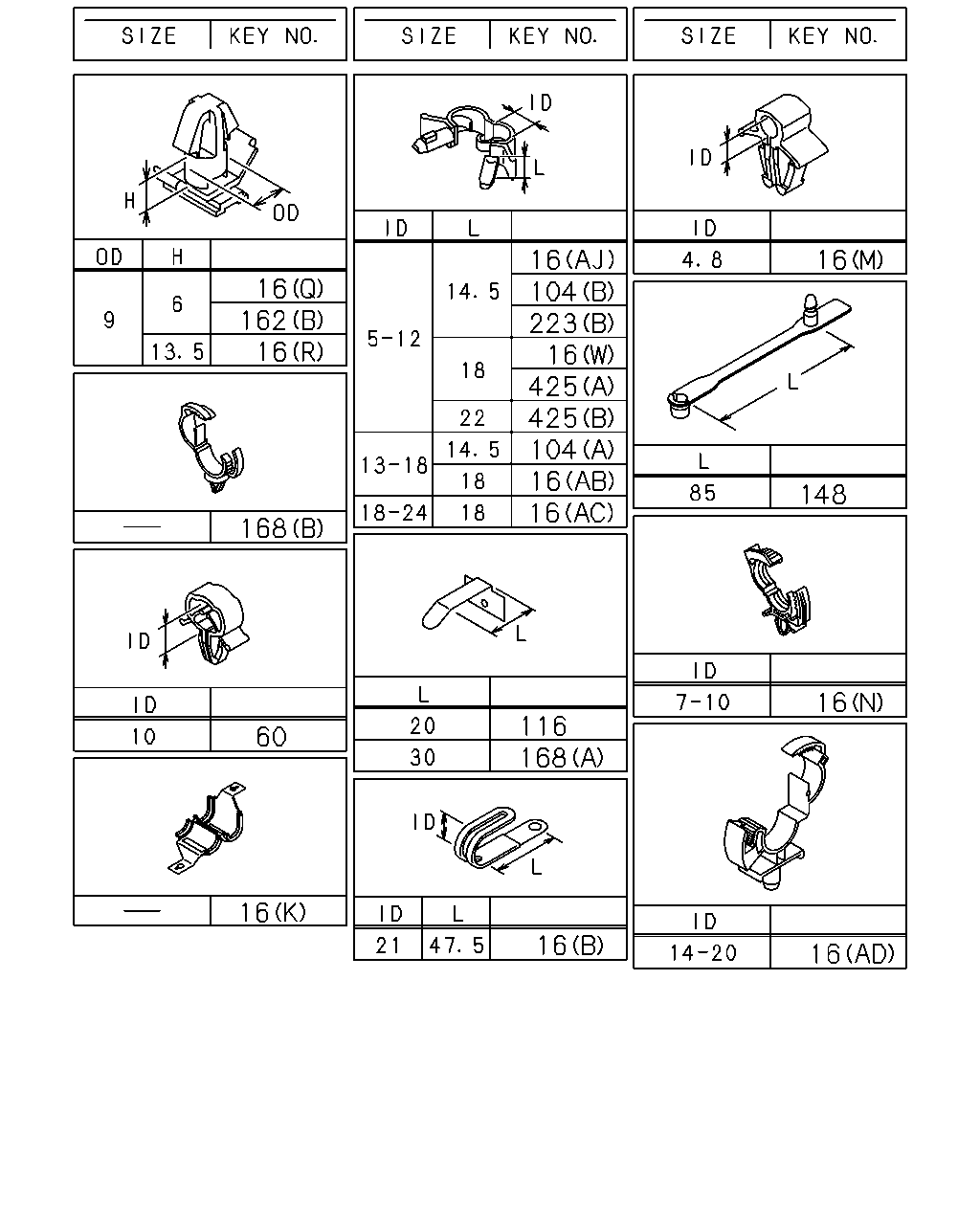

çizim 171280
16 148 16 16 16 168 16 116 16 104 16 16 104 425 223 425 16 60 168 16 16 162
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AH) ID=31 H=30 L=35 		1-09700-994-0 01 1 1202-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1106-1306
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 1307-
16 CLIP; HARNESS
(AG) ID=42.7 L=38 		1-09701-313-0 01 1 1008-1201
16 CLIP; HARNESS
(AI) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1202-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 03 1 1008-1306
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 1307-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 1008-1306
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 1307-
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 1008-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 1008-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1008-1208
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-1306
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-1306
16 CLIP; HARNESS
(V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1307-
16 CLIP; HARNESS
(V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1307-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 03 1 1008-1208
16 CLIP; HARNESS
(C) ID=11 L=40 		0-95235-075-0 01 1 1008-1306
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 06 1 1307-
16 CLIP; HARNESS
(X) T=0.8 ID=16 L=20 		0-95235-535-0 01 1 1008-
16 CLIP; HARNESS
(G) ID=16 L=40 		0-95235-576-0 01 1 1008-1306
16 CLIP; HARNESS
(G) ID=16 L=40 		0-95235-576-0 02 1 1307-
16 CLIP; HARNESS
(V) B=14 ID=19 L=20 		0-95235-832-0 01 1 1008-
16 CLIP; HARNESS
(V) B=18 ID=19 L=20 		0-95235-836-0 01 1 1008-1306
16 CLIP; HARNESS
(X) T=1.2 ID=16 L=20 		0-95235-536-0 01 1 1307-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 1008-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1008-1105
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 1106-1306
16 CLIP; HARNESS
(AK) ID=28 L=58 		1-09700-400-0 02 1 1307-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 08 1 1008-1306
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1307-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1008-1105
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 03 1 1008-1105
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1106-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 1106-
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 1008-1306
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 04 1 1307-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 1008-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 1008-
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1008-1306
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1307-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 1008-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 1008-1306
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1307-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (T) L=350 		1-09707-183-0 01 1 1307-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 1008-1306
16 CLIP; HARNESS
(AJ) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1008-1306
16 CLIP; HARNESS
(AJ) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307-
16 CLIP; HARNESS
(J) L=175 		1-09707-176-1 01 1 1008-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 02 1 1008-1306
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 02 1 1008-1306
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1307-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 1307-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 1008-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 1008-1306
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 1307-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 1008-1306
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 1307-1506
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 1507-
16 CLIP; HARNESS
(R) OD=9 H=13.5 		1-09709-180-0 01 1 1008-
16 CLIP; HARNESS
(W) ID=5-12 L=18 		1-09709-287-0 02 1 1008-
16 CLIP; HARNESS
(AB) ID=13-18 L=18 		1-09709-291-0 01 1 1008-1306
16 CLIP; HARNESS
(AB) ID=13-18 L=18 		1-09709-291-0 01 1 1307-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (AB) ID=13-18 L=18 		1-09709-291-0 01 1 1307-
16 CLIP; HARNESS
(AC) ID=18-24 L=18 		1-09709-294-0 02 1 1008-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 1008-1306
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1307-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1008-1306
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 1008-1306
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1307-
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 01 1 1008-1306
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 01 1 1008-1306
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 03 1 1307-
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 03 1 1307-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 1008-
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 1008-1306
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 03 1 1008-
16 CLIP; HARNESS
(AE) ID=19 H=70 L=25 		8-97360-209-0 01 1 1008-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 01 1 1008-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 1008-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 01 1 1008-1306
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 06 1 1307-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 05 1 1008-1306
16 CLIP; HARNESS
(AI) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 1307-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 1008-1306
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 1307-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 1008-1306
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 1008-
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 1008-1306
104 CLIP; HEADLAMP HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 1008-1306
104 CLIP; HEADLAMP HARNESS
(C) L=250 		5-09707-030-1 02 1 1008-1306
104 CLIP; HEADLAMP HARNESS
(D) L=140 		5-09707-031-1 06 1 1008-1306
104 CLIP; HEADLAMP HARNESS
(D) L=140 		5-09707-031-1 02 1 1307-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 1008-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 01 1 1008-
162 CLIP; SW HARNESS
(A) L=180 		1-09707-162-1 01 1 1008-1306
162 CLIP; SW HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 1307-
168 CLIP; DASH HARNESS
HEATER & DEFROSTER(C41) (A) L=30 SET=10 PIECE 		1-09987-265-0 01 1 1307-
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 02 1 1008-1306
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 02 1 1307-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 1008-1306
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 03 1 1307-
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307-
425 CLIP; MODULATOR
(A) ID=5-12 L=18 		1-09709-287-0 01 1 1008-1306
425 CLIP; MODULATOR
(B) ID=5-12 L=22 		1-09709-288-0 01 1 1307-
çizim 363945
334 335 342 375
BalonParca AdiParca NoAdetTipApplied Date
334 BRACKET 8-98160-717-1 01 1 1008-1306
334 BRACKET 8-98212-895-0 01 1 1307-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 1008-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 1008-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 1008-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
