◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11325 - EXZ MIDDLE EAST WITH 3STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#56884) — 59 parça
çizim 171193
250 255 254 256 257 253
BalonParca AdiParca NoAdetTipApplied Date
250 LAMP ASM; SEARCH LIGHT 1-82180-012-0 01 1 1008-
253 BULB; SEARCH LIGHT 9-82691-605-0 01 1 1008-
254 LENS; SEARCH LIGHT 9-82681-207-0 01 1 1008-
255 GASKET; SEARCH LIGHT 9-82681-706-0 01 1 1008-
256 RIM; SEARCH LIGHT 9-82681-402-0 01 1 1008-
257 NUT; SEARCH LIGHT
M10 FLANGE 		0-91180-110-0 01 1 1008-

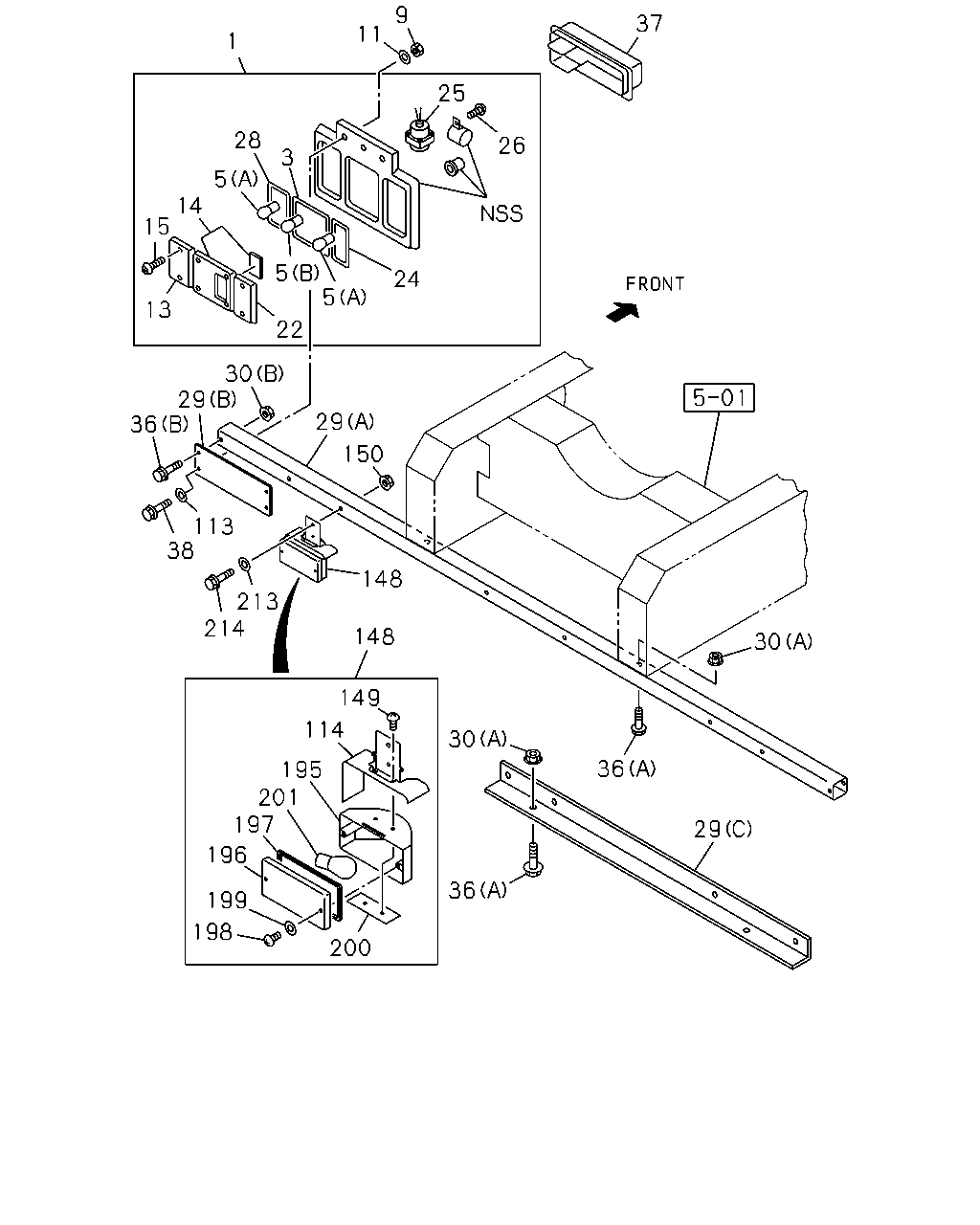

çizim 171194
1 11 9 37 25 26 28 5 3 14 15 13 22 5 24 5 30 29 36 113 38 29 213 214 148 148 30 36 29 36 30 149 114 195 201 197 196 199 198 200 150
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB 1-82230-208-0 01 1 1008-
1 LAMP ASM; RR COMB 1-82230-209-0 01 1 1008-
3 GASKET; RR COMB LAMP 8-94257-505-0 02 1 1008-
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 04 1 1008-
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 02 1 1008-
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 1008-
11 WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18 		0-91610-706-0 04 1 1008-
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 1008-
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 1008-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 1008-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 1008-
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 1008-
22 LENS; BACKUP,RR COMB LAMP
CLEAR 		8-94257-512-1 02 1 1008-
24 GASKET; BACK,LAMP 8-94257-506-0 02 1 1008-
25 HORN ASM; BACK 8-94257-518-0 01 1 1008-
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 1008-
26 SCREW; BACK HORN
M4X12 TAPPING 		9-07076-412-0 02 1 1008-
28 GASKET; TURN,LAMP 8-94257-507-0 02 1 1008-
29 BRACKET; LAMP,RR COMB
(A) 		8-98153-159-0 01 1 1008-1306
29 BRACKET; LAMP,RR COMB
(C) 		1-53487-021-1 01 1 1307-
29 BRACKET; LAMP,RR COMB
(B) 		8-98162-777-0 02 1 1008-1306
30 NUT; BRKT,RR COMB
(B) M6 		0-91110-506-0 04 1 1008-1306
30 NUT; BRKT,RR COMB
(A) M10 FLANGE 		0-91180-210-0 02 1 1008-
36 BOLT; BRKT,RR COMB
(B) M6X70 FLANGE 		0-28050-670-0 04 1 1008-1306
36 BOLT; BRKT,RR COMB
(A) M10X40 FLANGE 		0-28651-040-0 02 1 1307-
36 BOLT; BRKT,RR COMB
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1008-1306
37 COVER; RR COMB LAMP 1-82239-008-0 01 1 1008-
37 COVER; RR COMB LAMP 1-82239-007-0 01 1 1008-
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 1008-
113 WASHER; PL,BRKT,RR COMB
ID=5.1 		0-91510-505-0 04 1 1008-1106
113 WASHER; PL,BRKT,RR COMB
ID=6.4 OD=18 		0-91610-706-0 04 1 1008-1306
114 BRACKET; RR FOG LAMP 8-97108-583-0 01 1 1008-1306
148 LAMP ASM; RR FOG 1-82110-477-0 01 1 1008-1306
149 SCREW; BRKT TO LAMP BODY 8-94336-372-0 02 1 1008-1306
150 NUT; RR FOG LAMP
M6 		0-91110-506-0 01 1 1008-1306
195 LAMP UNIT; RR FOG 8-94336-322-0 01 1 1008-1306
196 LENS; RR FOG LAMP 8-94336-325-0 01 1 1008-1306
197 GASKET; RR FOG LAMP 8-94336-324-0 01 1 1008-1306
198 SCREW; LENS TO BODY 0-71190-416-0 02 1 1008-1306
199 WASHER; LENS,RR FOG LAMP 8-94336-326-0 02 1 1008-1306
200 PLATE; SET,RR FOG LAMP 8-94336-323-0 01 1 1008-1306
201 BULB; RR FOG LAMP
24V 21W 		1-82194-036-0 01 1 1008-1306
213 WASHER; PL,RR FOG LAMP
ID=5.1 		0-91510-505-0 01 1 1008-1106
213 WASHER; PL,RR FOG LAMP
ID=6.4 OD=18 		0-91610-706-0 01 1 1008-1306
214 BOLT; RR FOG LAMP
M6X70 FLANGE 		0-28050-670-0 01 1 1008-1306

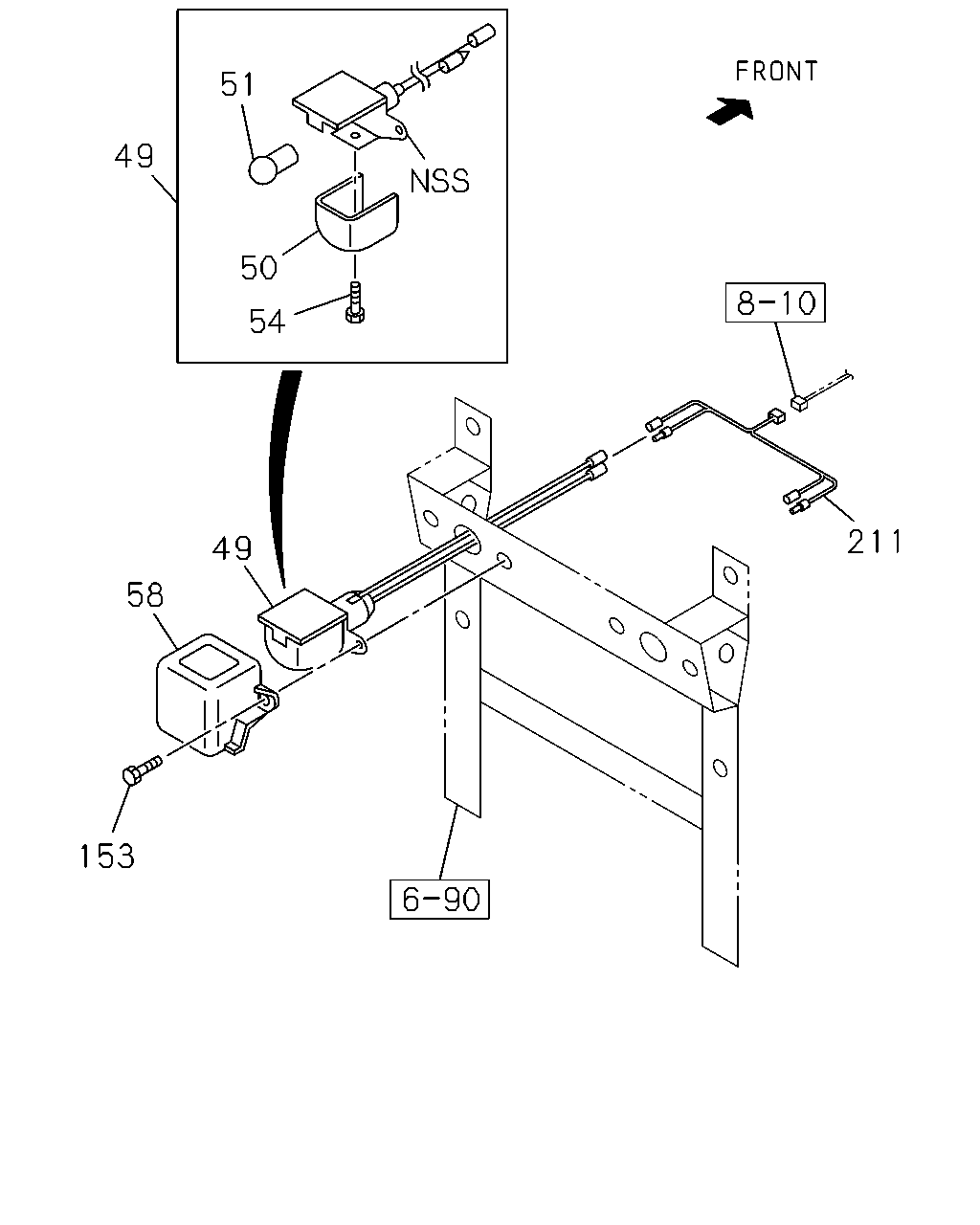

çizim 171290
49 51 50 54 49 58 153 211
BalonParca AdiParca NoAdetTipApplied Date
49 LAMP; LICENSE PLATE
24V 5W 		8-97105-380-0 02 1 1008-1509
49 LAMP; LICENSE PLATE
24V 5W 		8-98329-430-0 02 1 1510-
50 LENS; LICENSE PLATE LAMP 8-97108-212-0 02 1 1008-
51 BULB; LICENSE PLATE LAMP
24V 5W 		1-82194-039-0 02 1 1008-
54 SCREW; LICENSE PLATE LAMP
M4X8 		8-94419-312-0 02 1 1008-
58 COVER; LICENSE PLATE LAMP 8-97076-590-1 02 1 1008-
153 BOLT; LICENSE PLATE LAMP
M5X20 		9-93490-520-0 04 1 1008-
211 HARNESS; EXT 8-98131-066-0 01 1 1008-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
