Sayfa 7-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11325 - EXZ MIDDLE EAST WITH 3STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶

7-50 — FRONT SEAT (#56880) — 183 parça

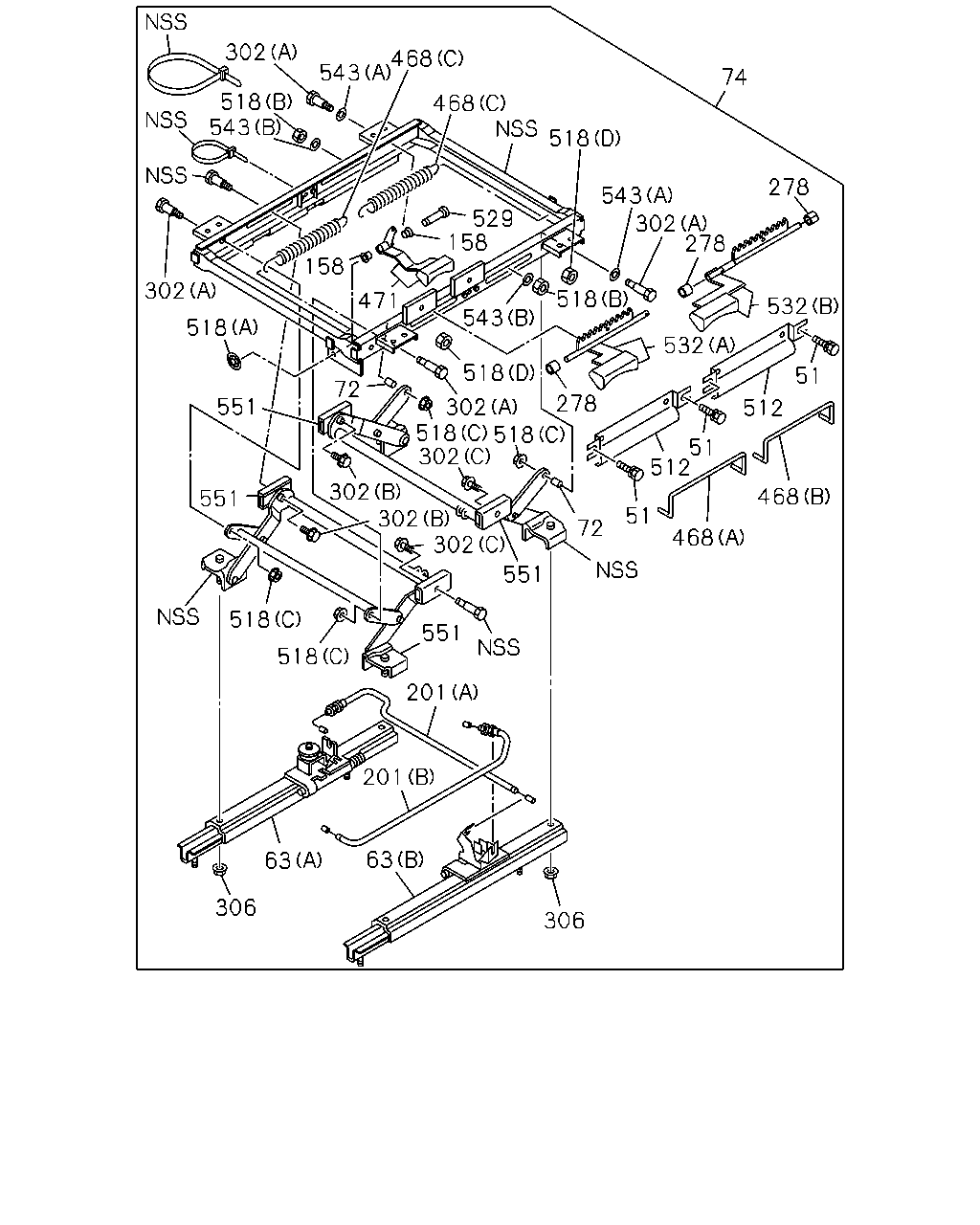

302 543 468 468 518 543 302 278 74 278 532 51 512 51 468 468 51 512 532 278 518 72 529 158 543 518 302 518 518 302 302 302 302 551 551 201 201 63 306 63 306 518 518 551 72 471 158 518 551 302 543 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER	1-75518-325-1	04	1	1008-
63	ADJUSTER; SEAT SLIDE (A)	1-75518-227-1	01	1	1008-
63	ADJUSTER; SEAT SLIDE (B)	1-75518-324-0	01	1	1008-
72	SPACER; SEAT ADJ	1-75518-334-1	02	1	1008-1502
72	SPACER; SEAT ADJ	8-98291-668-0	02	1	1503-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-331-3	01	1	1008-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-646-0	01	1	1503-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1008-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1008-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1008-
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	1008-
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-266-2	02	1	1008-
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-1	04	1	1008-1502
302	BOLT; ADJ,HEIGHT CONT (A)	8-98291-667-0	04	1	1503-
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-336-1	02	1	1008-
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	1008-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1008-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1008-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1008-
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1008-1306
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	1307-
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	1008-
512	COVER; LEVER	1-75518-245-1	02	1	1008-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1008-
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1008-
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1008-
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1008-
529	PIN; LINK	1-75518-262-0	01	1	1008-
532	LEVER ASM; TILT (A)	1-75518-221-0	01	1	1008-
532	LEVER ASM; TILT (B)	1-75518-222-1	01	1	1008-
543	WASHER; HEIGHT ADJUSTER (A)	1-75518-335-0	02	1	1008-1502
543	WASHER; HEIGHT ADJUSTER (A) ID=13 OD=19	8-98291-669-0	02	1	1503-
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	1008-
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	1008-

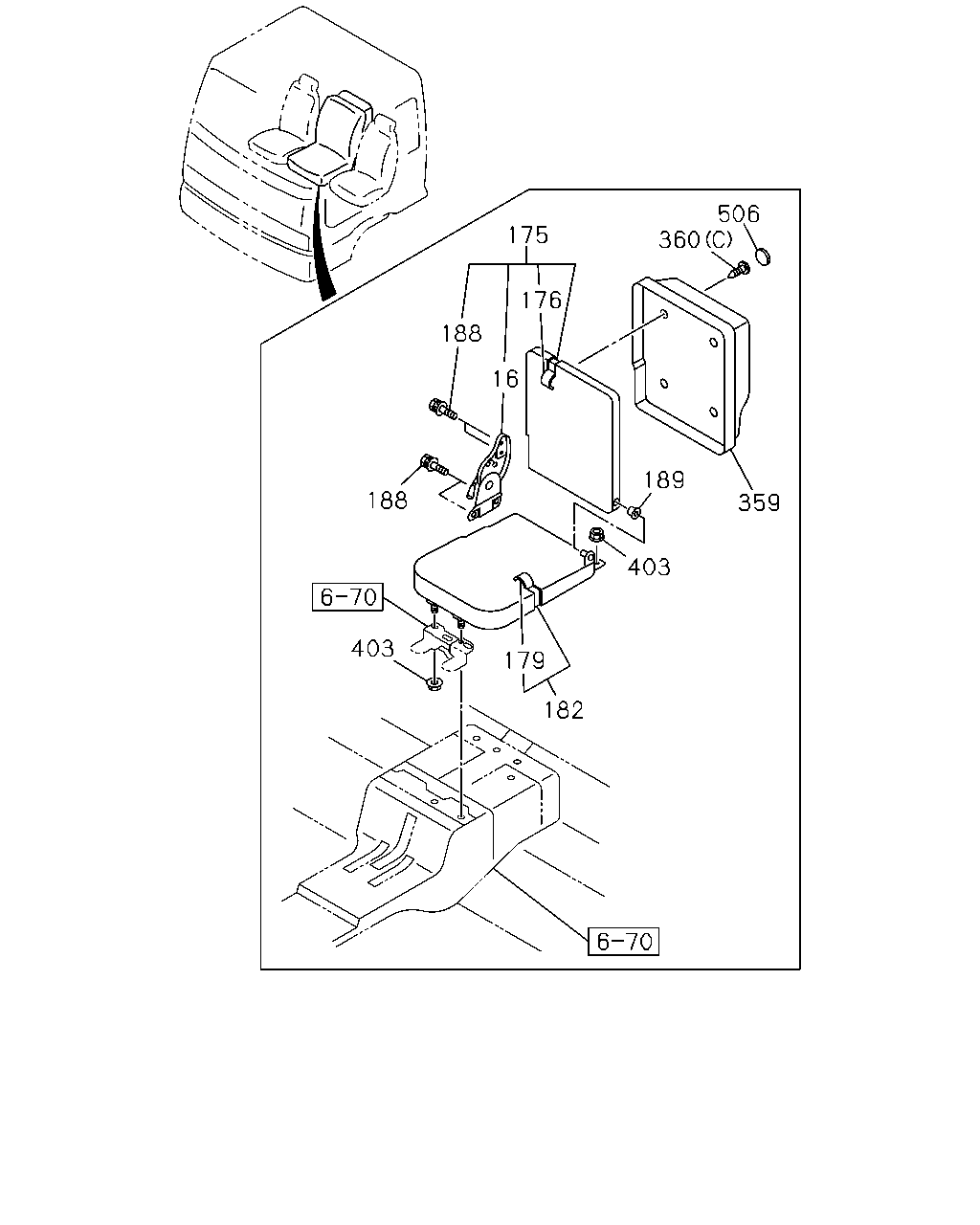

506 360 175 188 189 359 403 188 16 176 403 179 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING CENTER SEAT(SA1)	1-75418-062-1	01	1	1008-
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1)	1-75207-602-3	01	1	1008-1011
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1)	8-98168-328-1	01	1	1012-1306
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1)	8-98210-861-0	01	1	1307-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1)	1-75127-156-2	01	1	1008-1011
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1)	8-98168-331-0	01	1	1012-1306
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1)	8-98210-862-0	01	1	1307-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1)	1-75127-164-1	01	1	1008-1011
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1)	8-98168-325-0	01	1	1012-1306
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1)	8-98210-860-0	01	1	1307-
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1)	1-75207-644-1	01	1	1008-1011
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1)	8-98168-317-2	01	1	1012-1306
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1)	8-98210-859-1	01	1	1307-
188	BOLT; BACK TO CUSHION CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1008-
189	BUSHING; HINGE,CENTER SEAT BACK CENTER SEAT(SA1)	8-97854-900-0	01	1	1008-
359	BOX; PARCEL CENTER SEAT(SA1)	8-98145-114-0	01	1	1008-
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1008-1104
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1008-
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1008-
403	NUT; CENTER SEAT CENTER SEAT(SA1) M8 FLANGE	0-91180-108-0	04	1	1008-
506	CAP; PARCEL BOX CENTER SEAT(SA1)	1-09983-180-3	02	1	1008-

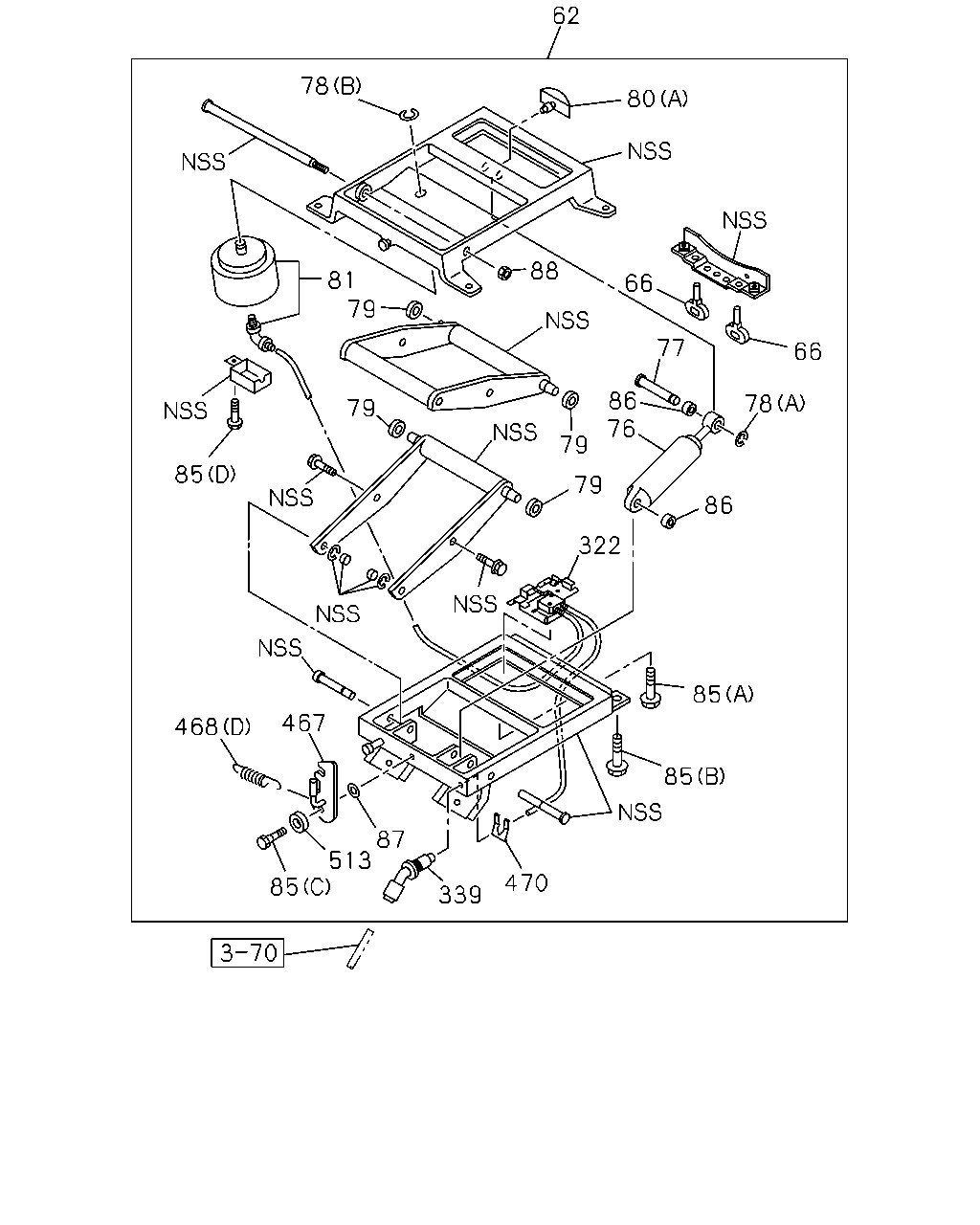

62 80 78 81 79 88 66 66 77 86 78 76 86 79 79 322 79 85 85 85 470 339 85 513 87 468 467

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP	1-75537-263-7	01	1	1008-1306
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-8	01	1	1307-1403
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-453-0	01	1	1404-
66	RUBBER; LWR STOPPER	1-75538-145-0	02	1	1008-1306
66	RUBBER; LWR STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	1307-
76	DAMPER; AIR SUSP	1-75537-230-2	01	1	1008-1306
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-230-2	01	1	1307-
77	PIN; DAMPER	1-75538-138-2	01	1	1008-1306
77	PIN; DAMPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	1307-
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	1008-1306
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	1307-
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	1008-1306
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15	9-09185-415-0	01	1	1307-
79	ROLLER ASM; AIR SUSP	1-75538-159-0	04	1	1008-1306
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	1307-1403
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-489-0	04	1	1404-
80	RUBBER; STOPPER (A)	1-09987-123-0	01	1	1008-1306
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	1307-
80	RUBBER; STOPPER CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1008-
81	SPRING; AIR	1-75538-151-2	01	1	1008-1306
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-151-2	01	1	1307-1312
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98242-816-0	01	1	1401-
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-
85	BOLT; AIR SUSP (C)	1-09980-577-0	01	1	1008-1306
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-1	01	1	1307-
85	BOLT; AIR SUSP (A) M6X12	1-75538-208-0	02	1	1008-1306
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12	1-75538-208-1	02	1	1307-
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1008-1306
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1307-1312
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1008-1306
86	BUSHING; GUIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1307-
87	WASHER; AIR SUSP ID=8.2	0-91510-508-0	01	1	1008-1306
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	0-91510-508-0	01	1	1307-
88	NUT; AIR SUSP M10	1-75537-273-1	01	1	1008-1306
88	NUT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	1-75537-273-1	01	1	1307-
322	VALVE; AIR SPRING	1-75538-187-2	01	1	1008-1306
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-187-3	01	1	1307-
339	UNION; DRIVER SEAT	1-75538-131-3	01	1	1008-1306
339	UNION; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-3	01	1	1307-
467	LEVER; LOCK	1-75538-134-0	01	1	1008-1306
467	LEVER; LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	1307-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1008-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1008-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1008-
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1008-1306
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	1307-
470	CLIP; HOSE	1-75538-137-0	01	1	1008-1306
470	CLIP; HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	1307-
513	SPACER; LEVER	1-75538-133-0	01	1	1008-1306
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	1307-

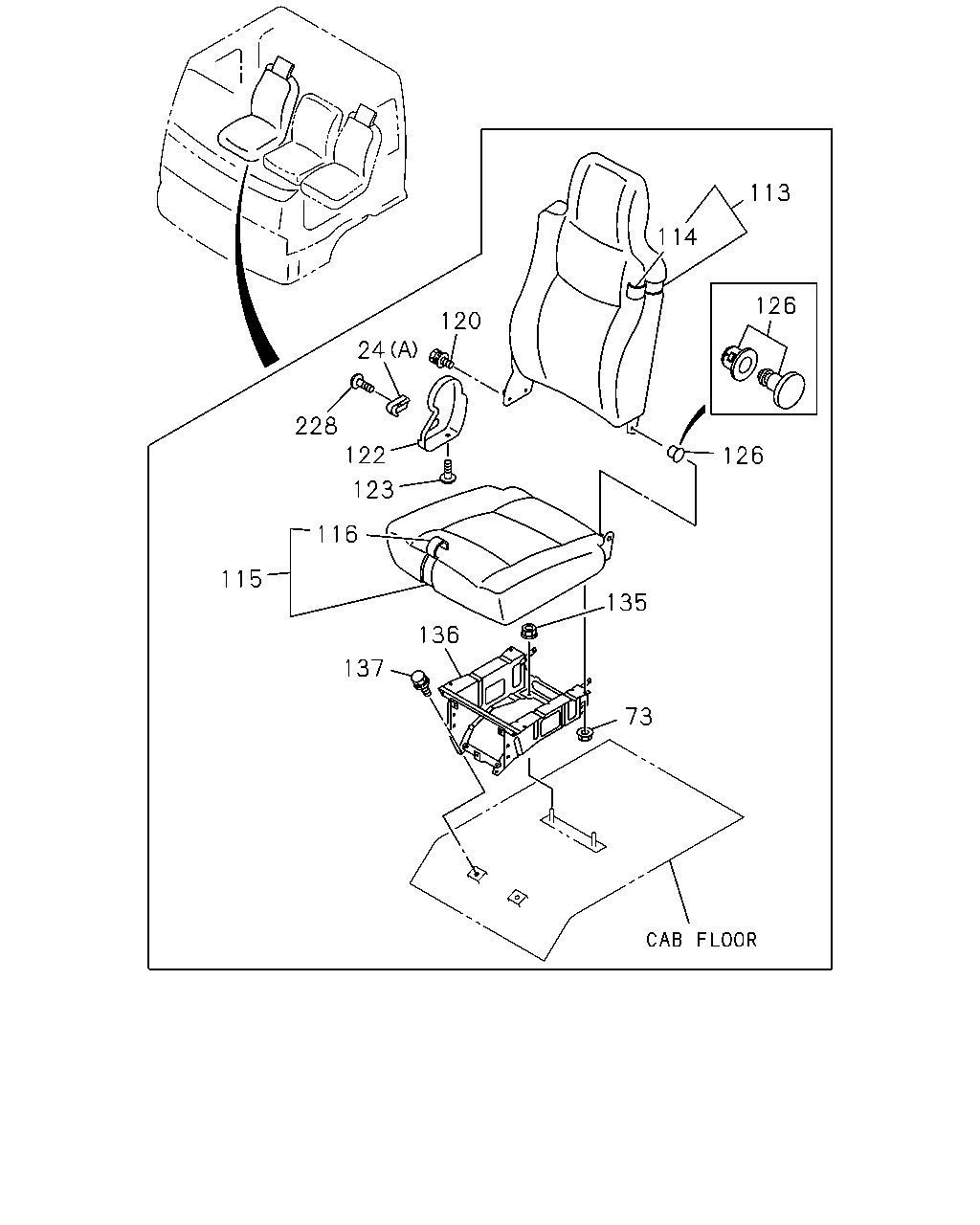

113 114 126 126 135 73 136 137 115 116 123 122 228 24 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-066-0	01	1	1008-
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	1008-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	1008-
113	BACK ASM; SEAT	8-98124-118-0	01	1	1008-1011
113	BACK ASM; SEAT	8-98168-297-0	01	1	1012-1306
113	BACK ASM; SEAT	8-98210-856-0	01	1	1307-
114	COVER; TRIM,PASSENGER SEAT,BACK	8-98124-122-0	01	1	1008-1011
114	COVER; TRIM,PASSENGER SEAT,BACK	8-98168-298-0	01	1	1012-1306
114	COVER; TRIM,PASSENGER SEAT,BACK	8-98210-857-0	01	1	1307-
115	CUSHION ASM; PASSENGER SEAT	1-75207-642-1	01	1	1008-1011
115	CUSHION ASM; PASSENGER SEAT	8-98168-127-0	01	1	1012-1306
115	CUSHION ASM; PASSENGER SEAT	8-98210-854-0	01	1	1307-
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75127-162-1	01	1	1008-1011
116	COVER; TRIM,PASSENGER SEAT,CUSHION	8-98168-140-0	01	1	1012-1306
116	COVER; TRIM,PASSENGER SEAT,CUSHION	8-98210-855-0	01	1	1307-
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	1008-
122	COVER; ADJ,RECLINING DARK GRAY	8-97867-020-0	01	1	1008-
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	1008-
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	1008-
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	1008-
136	STAND; PASSENGER SEAT	1-75558-602-3	01	1	1008-1305
136	STAND; PASSENGER SEAT	8-98242-299-0	01	1	1306-
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	1008-
228	SCREW; KNOB M4	8-98062-662-0	01	1	1008-
228	SCREW; KNOB M4	8-98062-662-0	01	1	1008-

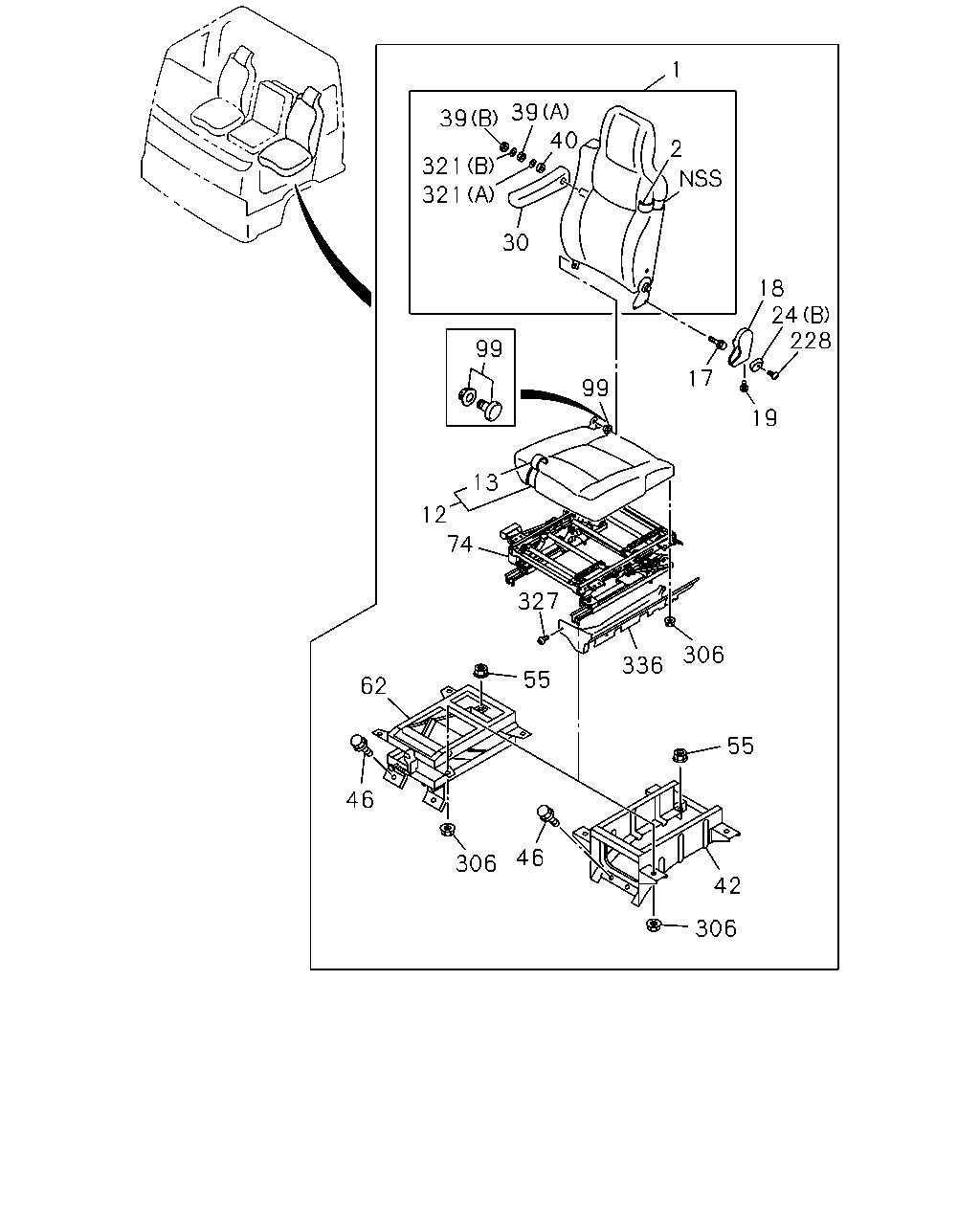

306 46 42 306 306 336 55 74 62 46 12 13 99 17 19 228 24 18 99 30 2 1 39 39 321 321 55 40 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT	8-98124-116-0	01	1	1008-1011
1	BACK ASM; SEAT	8-98168-073-0	01	1	1012-1306
1	BACK ASM; SEAT	8-98210-851-0	01	1	1307-
2	COVER; TRIM,FRT SEAT,BACK	8-98124-120-0	01	1	1008-1011
2	COVER; TRIM,FRT SEAT,BACK	8-98168-090-0	01	1	1012-1306
2	COVER; TRIM,FRT SEAT,BACK	8-98210-852-0	01	1	1307-
12	CUSHION; SEAT,FRT	1-75207-640-2	01	1	1008-1011
12	CUSHION; SEAT,FRT	8-98168-044-0	01	1	1012-1306
12	CUSHION; SEAT,FRT	8-98210-849-0	01	1	1307-
13	COVER; TRIM,FRT SEAT,CUSHION	1-75127-160-2	01	1	1008-1011
13	COVER; TRIM,FRT SEAT,CUSHION	8-98168-075-0	01	1	1012-1306
13	COVER; TRIM,FRT SEAT,CUSHION	8-98210-850-0	01	1	1307-
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	1008-
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	1008-
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	1008-
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-066-0	01	1	1008-
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-067-0	01	1	1008-
30	REST ASM; ARM,FRT SEAT	8-98147-307-0	01	1	1008-1306
30	REST ASM; ARM,FRT SEAT	8-98230-584-0	01	1	1307-
39	NUT; ARM REST (B) M8	1-75147-657-0	01	1	1008-
39	NUT; ARM REST (A) M10	9-09110-410-0	01	1	1008-
40	SPACER; ARM REST	8-94285-921-0	02	1	1008-
42	STAND; DRIVER SEAT RIGID SEAT W/ARM REST(SGC)	1-75558-604-2	01	1	1307-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1008-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	1008-
62	DAMPER ASM; SEAT SUSP	1-75537-263-7	01	1	1008-1306
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-263-8	01	1	1307-1403
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-453-0	01	1	1404-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-331-3	01	1	1008-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-646-0	01	1	1503-
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	1008-
228	SCREW; KNOB M4	8-98062-662-0	01	1	1008-
228	SCREW; KNOB M4	8-98062-662-0	01	1	1008-
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	1008-
321	WASHER; PL,ARM REST (A) ID=10.5 OD=22	9-09160-610-0	01	1	1008-
321	WASHER; PL,ARM REST (B) ID=8.4 OD=22	9-09164-708-0	01	1	1008-
327	CLIP; COVER	1-09987-273-0	01	1	1008-
336	COVER; DRIVER SEAT	1-75518-313-0	01	1	1008-

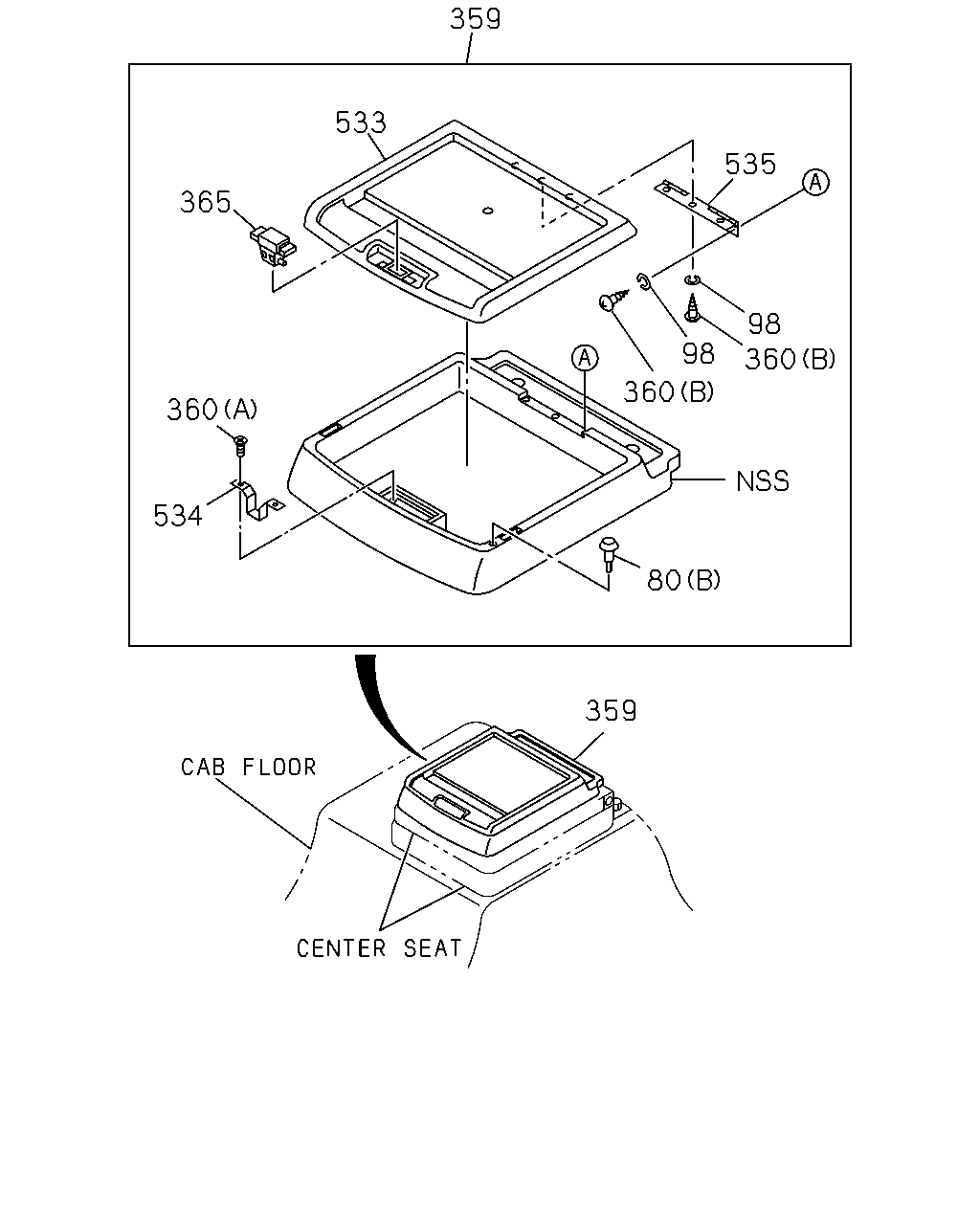

80 359 534 360 365 533 359 535 98 98 360 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	RUBBER; STOPPER (A)	1-09987-123-0	01	1	1008-1306
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	1307-
80	RUBBER; STOPPER CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1008-
98	WASHER; HINGE CENTER SEAT(SA1) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	1008-
359	BOX; PARCEL CENTER SEAT(SA1)	8-98145-114-0	01	1	1008-
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1008-1104
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1008-
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1008-
365	LOCK ASM; SEAT CENTER SEAT(SA1)	1-72538-180-0	01	1	1008-
533	LID; PARCEL BOX CENTER SEAT(SA1)	8-98145-118-0	01	1	1008-
534	STRIKER; PARCEL BOX CENTER SEAT(SA1)	1-72538-190-0	01	1	1008-
535	HINGE; PARCEL BOX CENTER SEAT(SA1)	1-72447-391-1	01	1	1008-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
