0-65 — STARTER (#5688) — 79 parça

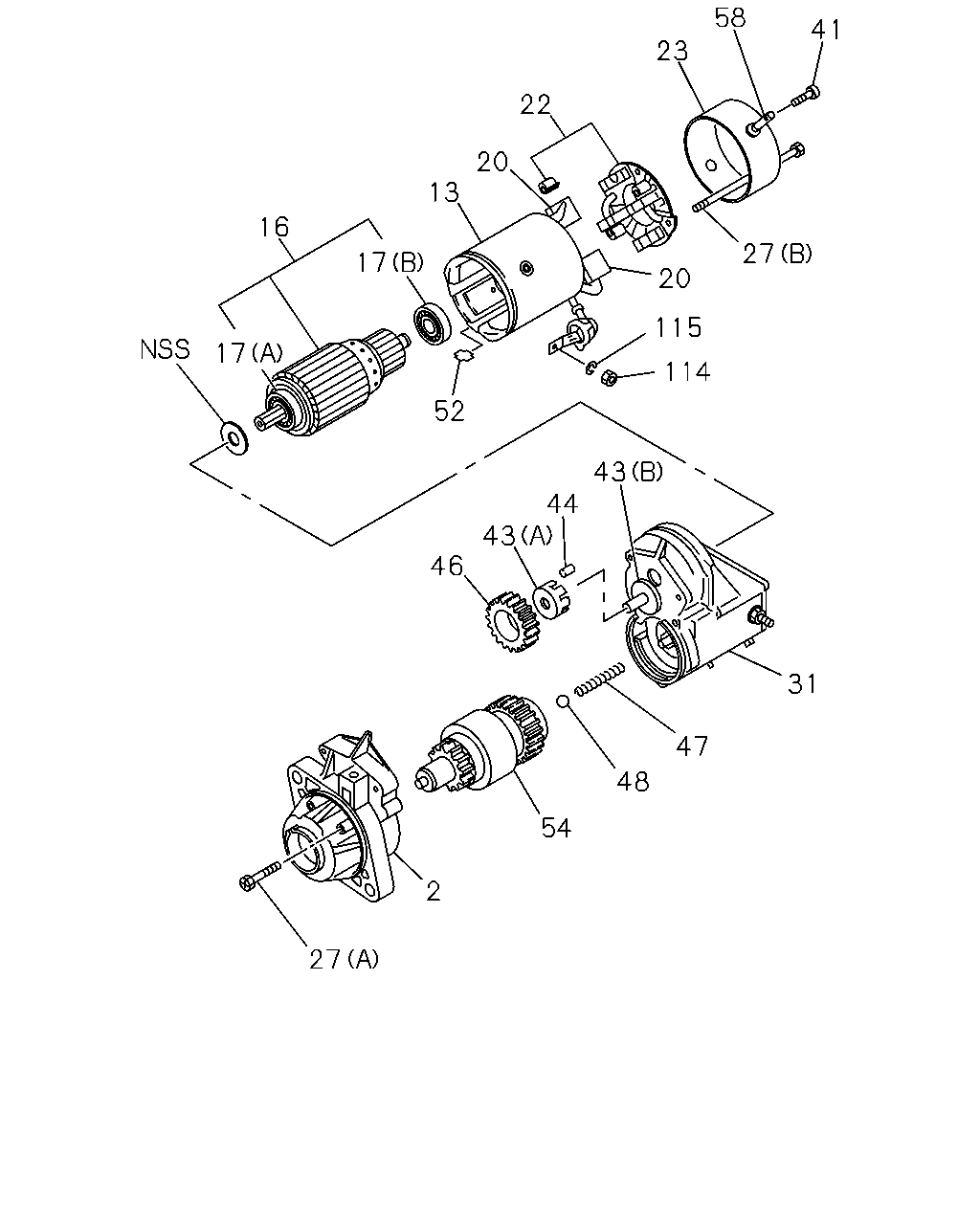

58 41 23 22 20 13 16 27 17 20 115 17 114 52 43 44 43 46 31 47 48 54 2 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: C = 8-94399-159-4	1-81114-036-2	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81123-053-0	01	1	-
13	YOKE; STARTER ASM PART: C = 8-94399-159-4	1-81111-009-0	01	1	-
13	YOKE; STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2	1-81129-766-0	01	1	-
13	YOKE; STARTER MITSUBISHI ASM PART: D = 8-98060-854-0	8-98060-836-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 8-94399-159-4	1-81121-055-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81121-075-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: C = 8-94399-159-4	1-81129-626-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81129-837-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: C = 8-94399-159-4	5-09800-081-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81116-066-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: C = 8-94399-159-4	8-94171-853-0	02	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81121-066-0	01	1	-
22	HOLDER; BRUSH STARTER DENSO ASM PART: C = 8-94399-159-4	5-81118-013-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81115-229-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: C = 8-94399-159-4	1-81129-701-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: C = 8-94399-159-4	1-81129-625-0	03	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: C = 8-94399-159-4	1-81129-698-0	02	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81129-769-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 8-94399-159-4	1-81151-088-2	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2	1-81151-110-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-98060-854-0	8-98060-832-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: C = 8-94399-159-4	1-81129-703-0	02	1	-
43	RETAINER; PINION STARTER (A) ASM PART: C = 8-94399-159-4	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) ASM PART: C = 8-94399-159-4	5-81129-127-0	01	1	-
44	ROLLER; PINION STARTER ASM PART: C = 8-94399-159-4	5-81129-120-0	05	1	-
46	GEAR; CLU STARTER ASM PART: C = 8-94399-159-4	5-81123-018-0	01	1	-
46	GEAR; CLU STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	8-97178-153-0	01	1	-
47	SPRING; PINION STARTER ASM PART: C = 8-94399-159-4	5-81129-119-0	01	1	-
48	BALL; PINION,STARTER USA ASM PART: C = 8-94399-159-4	5-81129-092-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	8-97116-515-0	01	1	-
52	PLATE; LK,STARTER ASM PART: C = 8-94399-159-4	5-81129-136-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 8-94399-159-4	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81129-761-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: C = 8-94399-159-4	1-81129-677-0	01	1	-
114	NUT; TERMINAL ASM PART: C = 8-94399-159-4	5-81129-126-0	01	1	-
115	WASHER; TERMINAL ASM PART: C = 8-94399-159-4	5-81129-134-0	01	1	-

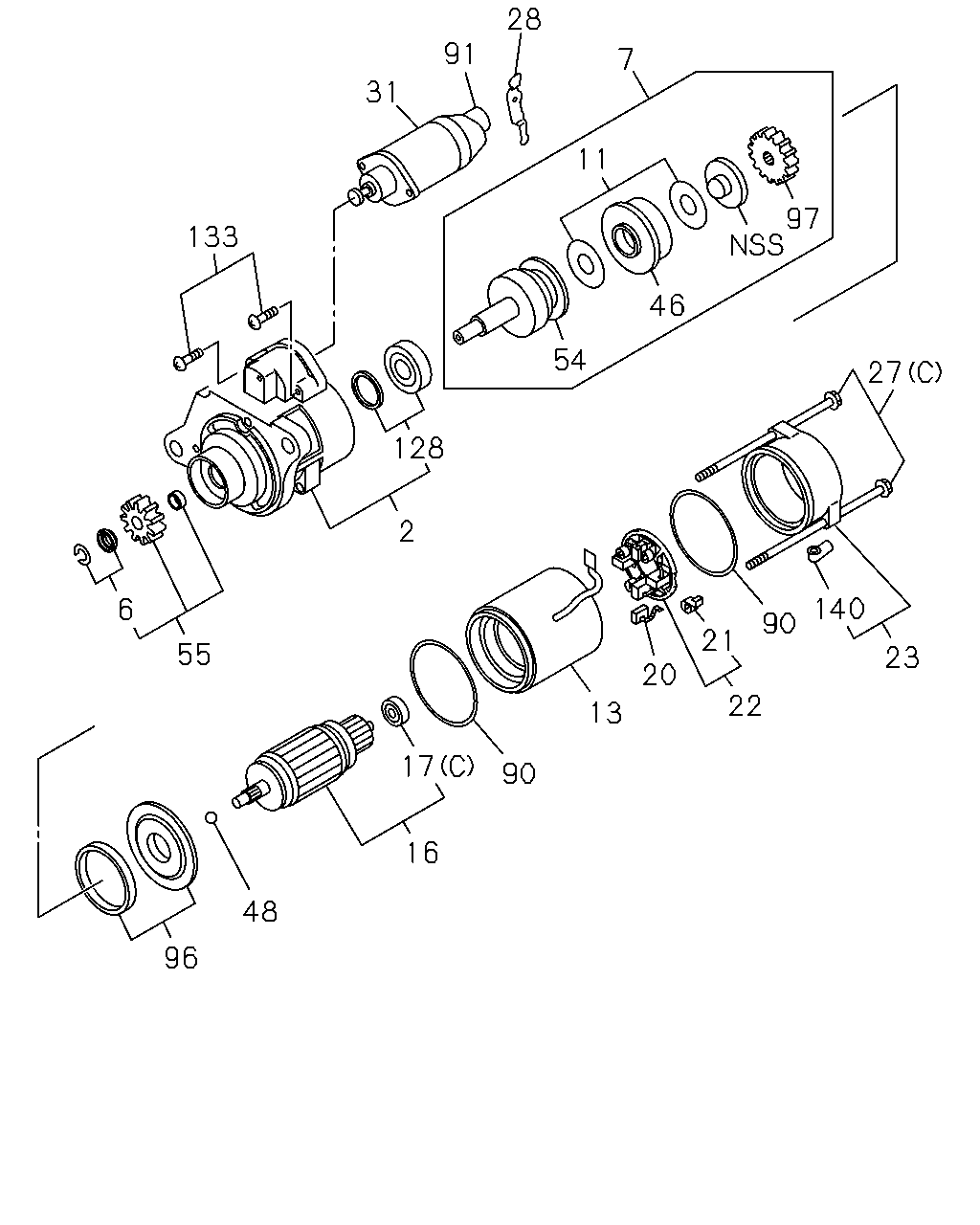

28 91 7 31 11 97 133 46 54 27 128 2 140 6 90 21 55 23 20 22 13 17 90 16 48 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: C = 8-94399-159-4	1-81114-036-2	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81123-053-0	01	1	-
6	STOPPER; PINION STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	8-94475-688-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81129-759-0	01	1	-
11	WASHER; GEAR SHAFT STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	8-97116-484-0	01	1	-
13	YOKE; STARTER ASM PART: C = 8-94399-159-4	1-81111-009-0	01	1	-
13	YOKE; STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2	1-81129-766-0	01	1	-
13	YOKE; STARTER MITSUBISHI ASM PART: D = 8-98060-854-0	8-98060-836-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 8-94399-159-4	1-81121-055-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81121-075-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: C = 8-94399-159-4	1-81129-626-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81129-837-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: C = 8-94399-159-4	5-09800-081-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81116-066-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: C = 8-94399-159-4	8-94171-853-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81129-768-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81121-066-0	01	1	-
22	HOLDER; BRUSH STARTER DENSO ASM PART: C = 8-94399-159-4	5-81118-013-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81115-229-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: C = 8-94399-159-4	1-81129-701-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: C = 8-94399-159-4	1-81129-625-0	03	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: C = 8-94399-159-4	1-81129-698-0	02	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81129-769-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81129-762-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 8-94399-159-4	1-81151-088-2	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2	1-81151-110-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-98060-854-0	8-98060-832-0	01	1	-
46	GEAR; CLU STARTER ASM PART: C = 8-94399-159-4	5-81123-018-0	01	1	-
46	GEAR; CLU STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	8-97178-153-0	01	1	-
48	BALL; PINION,STARTER USA ASM PART: C = 8-94399-159-4	5-81129-092-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	8-97116-515-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 8-94399-159-4	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81129-761-0	01	1	-
55	PINION; CLU,STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2	1-81129-763-0	01	1	-
55	PINION; CLU,STARTER ASM PART: D = 8-98060-854-0	8-98060-835-0	01	1	-
90	GASKET; ARMATURE ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81129-767-0	02	1	-
91	COVER; STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81129-764-0	01	1	-
96	GASKET; FRT CASE ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	8-97116-489-0	01	1	-
97	GEAR; STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	8-97116-490-0	04	1	-
128	BEARING; STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81129-758-0	01	1	-
133	SCREW SET; STARTER ASM PART: A = 1-81100-319-1, B = 1-81100-414-2, D = 8-98060-854-0	1-81129-765-0	01	1	-
140	GROMMET; RR COVER ASM PART: B = 1-81100-414-2, D = 8-98060-854-0	8-97376-390-0	01	1	-
