7-43 — SUN VISOR AND ASSIST GRIP (#56878) — 88 parça

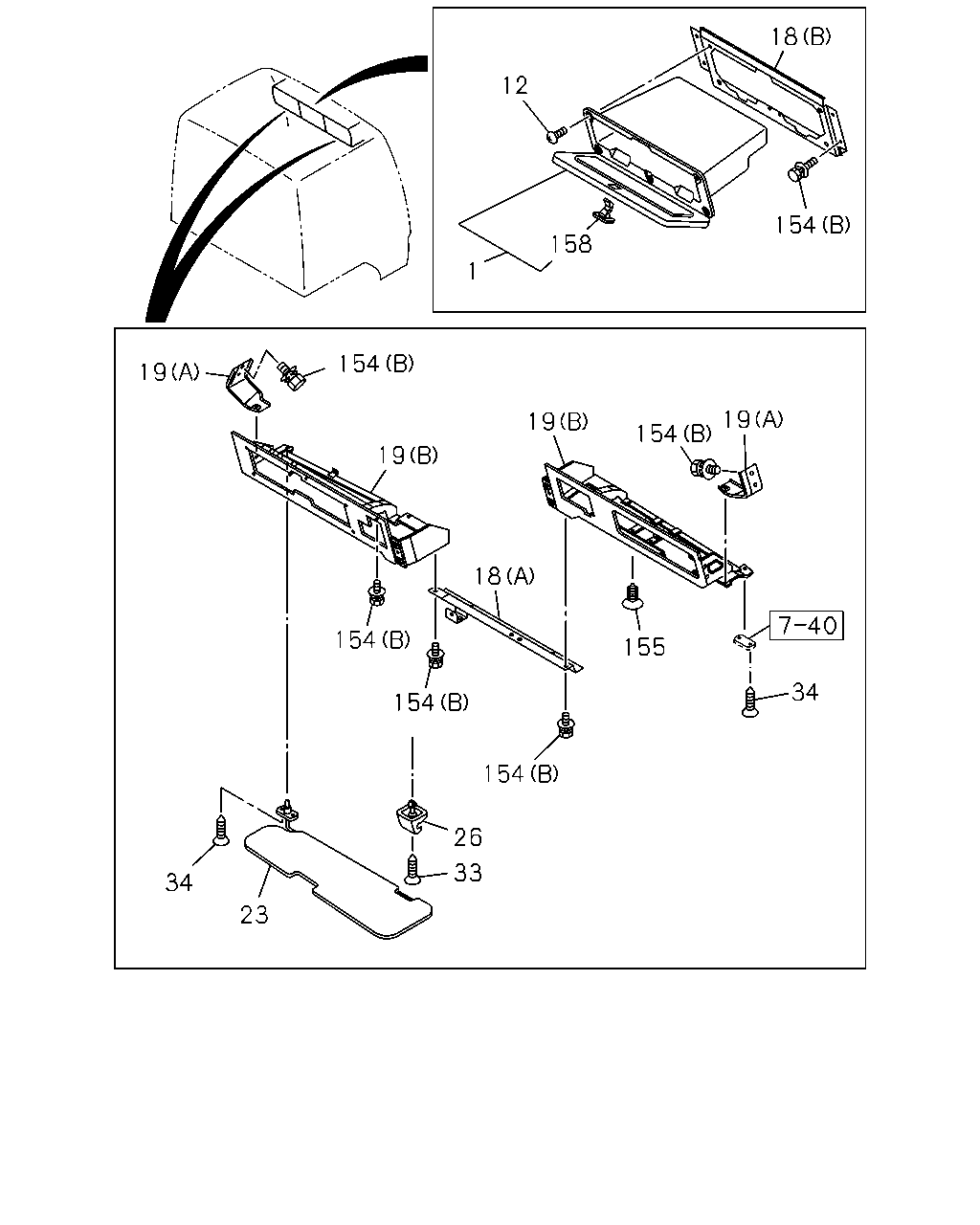

12 1 158 18 154 19 154 34 23 19 154 154 26 33 18 154 19 155 154 19 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF	1-72447-968-0	01	1	1008-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	1008-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	1008-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-937-0	01	1	1008-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-938-4	01	1	1008-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	1008-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	1008-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	1008-
23	SUN VISOR	1-73138-157-1	01	1	1008-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	1008-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	1008-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	1008-
154	BOLT; SUPPORT GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1403-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1403-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1008-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1008-1306
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1307-1402
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1403-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1008-1306
155	FASTENER; HOLDER	1-09983-181-0	01	1	1008-
158	LOCK; HEADER SHELF	1-72538-312-0	01	1	1008-

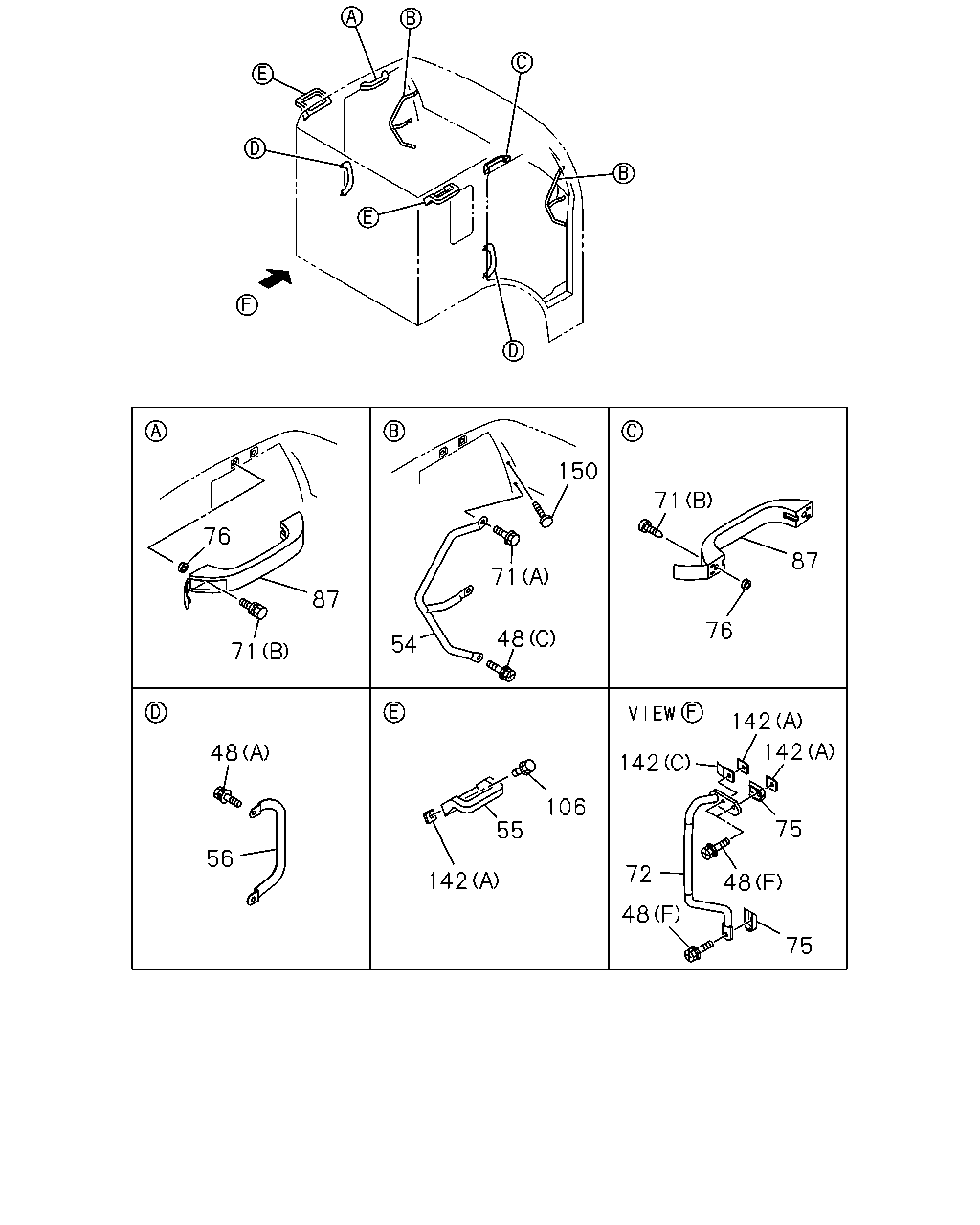

76 87 71 48 56 54 71 150 48 71 76 87 142 55 106 142 72 48 48 75 142 142 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1008-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1008-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1008-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1008-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1008-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	1008-1306
48	BOLT; ASSIST GRIP (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	1307-
54	GRIP; ASSIST,QUARTER SIDE	8-98139-071-2	01	1	1008-
54	GRIP; ASSIST,QUARTER SIDE	8-98139-070-2	01	1	1008-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	01	1	1403-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE,DRIVER & PASSENGER<W63>	1-73618-169-1	02	1	1403-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	1008-1306
55	GRIP; ASSIST,CAB SIDE UPR EXC. GRIP OUT SIDE<W52>	1-73618-169-1	01	1	1008-1306
56	GRIP; ASSIST,SIDE SILL	8-98139-073-1	01	1	1008-
56	GRIP; ASSIST,SIDE SILL	8-98139-072-1	01	1	1008-
71	SCREW (B) M6X30 W/LK WASHER	5-09981-064-0	04	1	1008-
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	1008-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-543-0	01	1	1008-1306
72	GRIP; ASSIST,CAB ENTRY,BACK	1-71907-543-0	01	1	1307-
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	02	1	1008-1306
75	SHEET; ASSIST GRIP,CAB ENTRY	1-71997-548-0	02	1	1307-
76	SPACER; ASSIST GRIP OD=13 T=4.5	8-94230-464-1	04	1	1008-
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	02	1	1008-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	02	1	1403-
106	SCREW; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1403-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1008-1306
106	SCREW; ASSIST GRIP EXC. GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	02	1	1008-1306
142	SEAL; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) 25X25	8-94272-533-0	04	1	1403-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (C)	1-71997-691-1	01	1	1008-1306
142	SEAL; ASSIST GRIP (C)	1-71997-691-1	01	1	1307-
142	SEAL; ASSIST GRIP (A) 25X25	8-94272-533-0	02	1	1008-1402
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	1403-
142	SEAL; ASSIST GRIP (A) 25X25	8-94272-533-0	02	1	1403-
142	SEAL; ASSIST GRIP (B) OD=25 BLACK	1-76798-019-0	01	1	1008-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	1008-1306
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	1008-

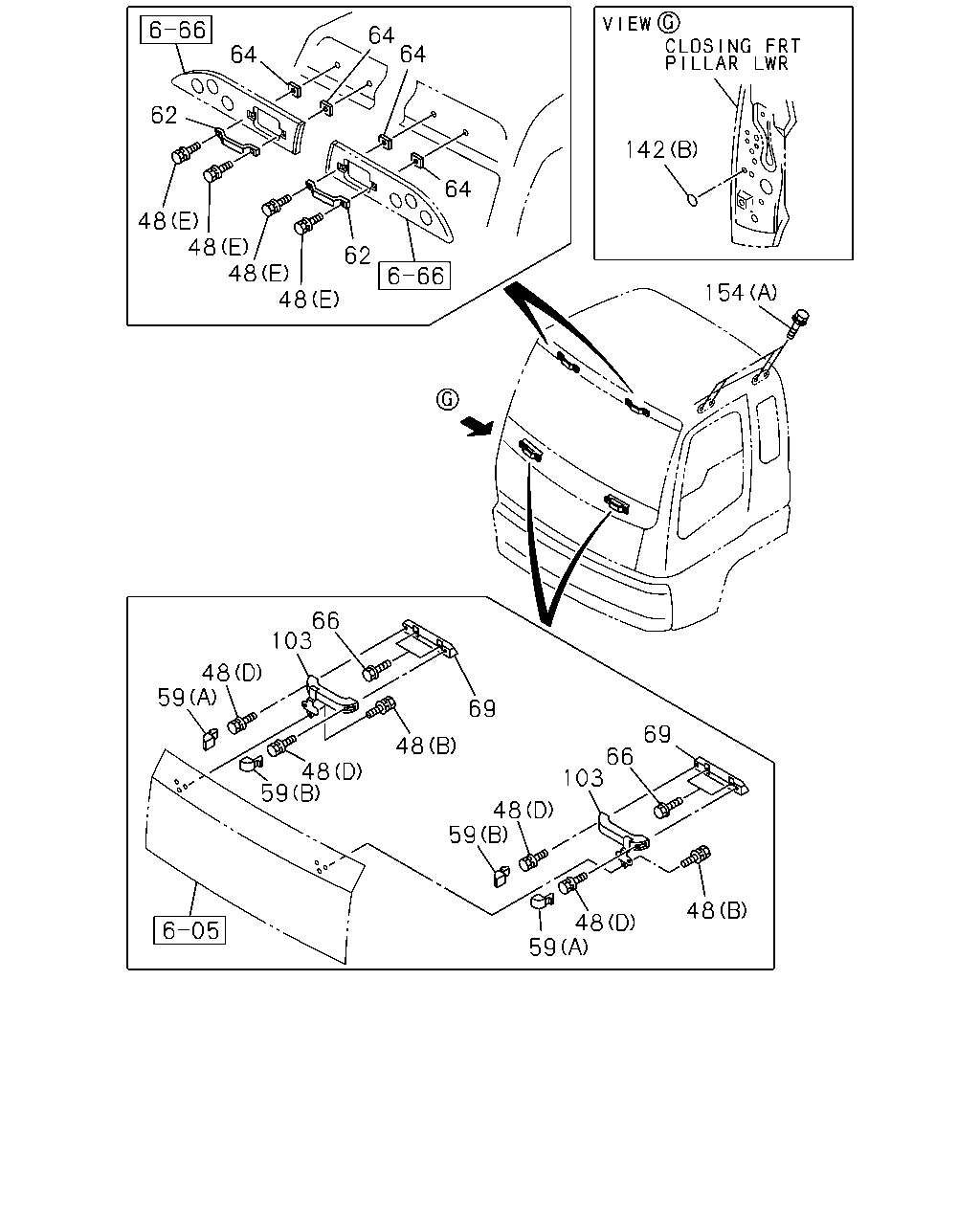

62 48 48 64 64 64 62 48 48 64 59 103 48 59 48 59 69 48 66 103 59 48 48 69 48 142 154 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	1008-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	1008-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	1008-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	1008-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1008-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	1008-1306
48	BOLT; ASSIST GRIP (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	1307-
59	COVER; ASSIST GRIP (A)	1-71998-789-2	02	1	1008-
59	COVER; ASSIST GRIP (B)	1-71998-790-2	02	1	1008-
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	1008-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	1008-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	1008-
69	BRACKET; ASSIST GRIP	1-65570-243-0	01	1	1008-
69	BRACKET; ASSIST GRIP	1-65570-242-0	01	1	1008-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	1008-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	1008-
142	SEAL; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) 25X25	8-94272-533-0	04	1	1403-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (C)	1-71997-691-1	01	1	1008-1306
142	SEAL; ASSIST GRIP (C)	1-71997-691-1	01	1	1307-
142	SEAL; ASSIST GRIP (A) 25X25	8-94272-533-0	02	1	1008-1402
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	1403-
142	SEAL; ASSIST GRIP (A) 25X25	8-94272-533-0	02	1	1403-
142	SEAL; ASSIST GRIP (B) OD=25 BLACK	1-76798-019-0	01	1	1008-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	1008-1306
154	BOLT; SUPPORT GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1403-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1403-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	1008-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	1008-1306
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	1307-1402
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1403-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	1008-1306
