◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11325 - EXZ MIDDLE EAST WITH 3STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#56877) — 102 parça

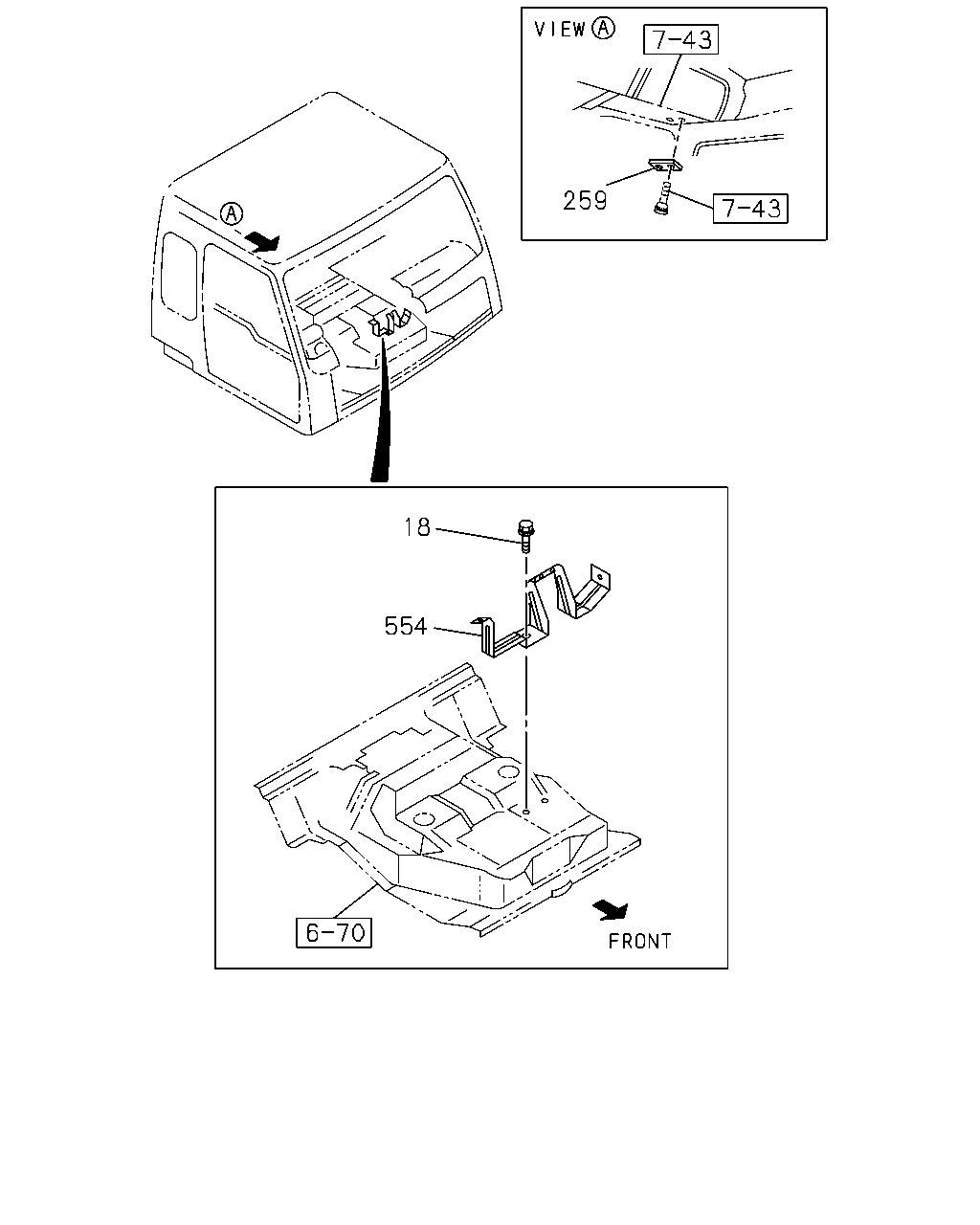

çizim 171169
259 554 18
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1008-1306
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1307-
259 PLATE; STUFF,SUN VISOR 1-73317-410-0 01 1 1008-
554 BRACKET; CENTER BEZEL 1-65671-733-1 01 1 1008-

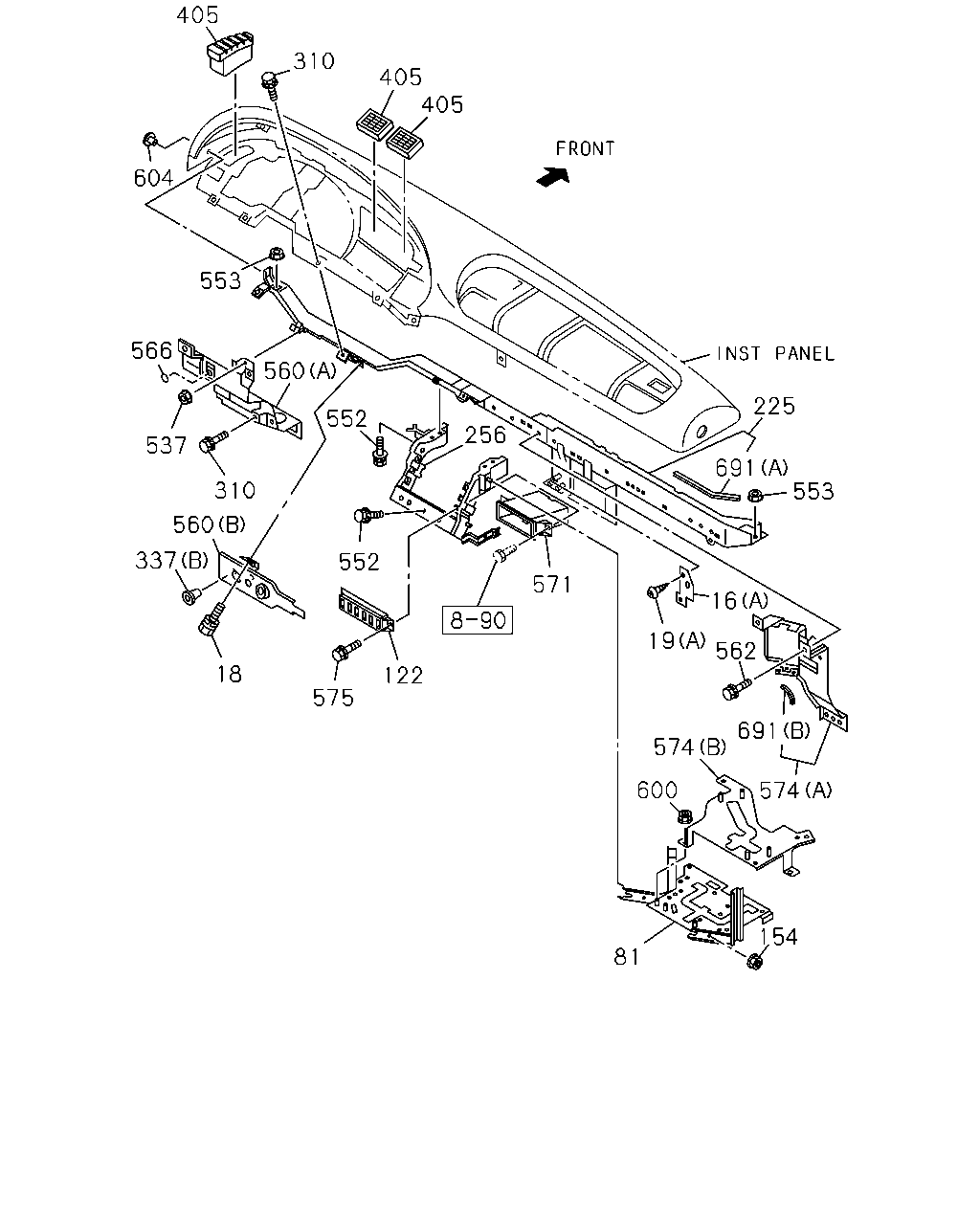

çizim 171179
310 405 405 405 604 552 553 566 537 310 560 337 18 575 122 571 256 552 225 691 553 560 154 574 691 19 562 574 600 16 81
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 1008-
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 1008-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1008-1306
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1307-
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 1008-
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 1008-
81 BRACKET; ELEC CONT UNIT 1-73907-648-4 01 1 1008-1306
81 BRACKET; ELEC CONT UNIT 8-98217-886-1 01 1 1307-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 1008-
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 1008-
225 FRAME; FACIA 1-65671-727-5 01 1 1008-
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 1008-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 1008-
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 1008-1306
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 1307-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 1307-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1008-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 1008-
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 1008-
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 1008-
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1008-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1008-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 1008-
560 BRACKET
(A) 		1-65681-243-0 01 1 1008-
560 BRACKET
(B) 		1-65681-217-1 01 1 1008-1306
560 BRACKET
(B) 		1-65671-787-2 01 1 1307-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1008-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1008-
571 BEZEL; POCKET 1-72438-151-3 01 1 1008-
571 BEZEL; POCKET 1-72438-151-3 01 1 1008-
574 PANEL; RELAY BOX
(B) 		1-73907-647-3 01 1 1008-1108
574 PANEL; RELAY BOX
(B) 		8-98183-937-0 01 1 1109-
574 PANEL; RELAY BOX
(A) 		1-73907-737-2 01 1 1008-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 1008-
604 CLIP; INST PAD 1-09983-123-0 01 1 1008-
691 FINISHER; HARNESS PROTECTOR
(A) L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 1008-1306
691 FINISHER; HARNESS PROTECTOR
(A) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1307-
691 FINISHER; HARNESS PROTECTOR
(B) L=50 		8-94270-377-1 01 1 1008-

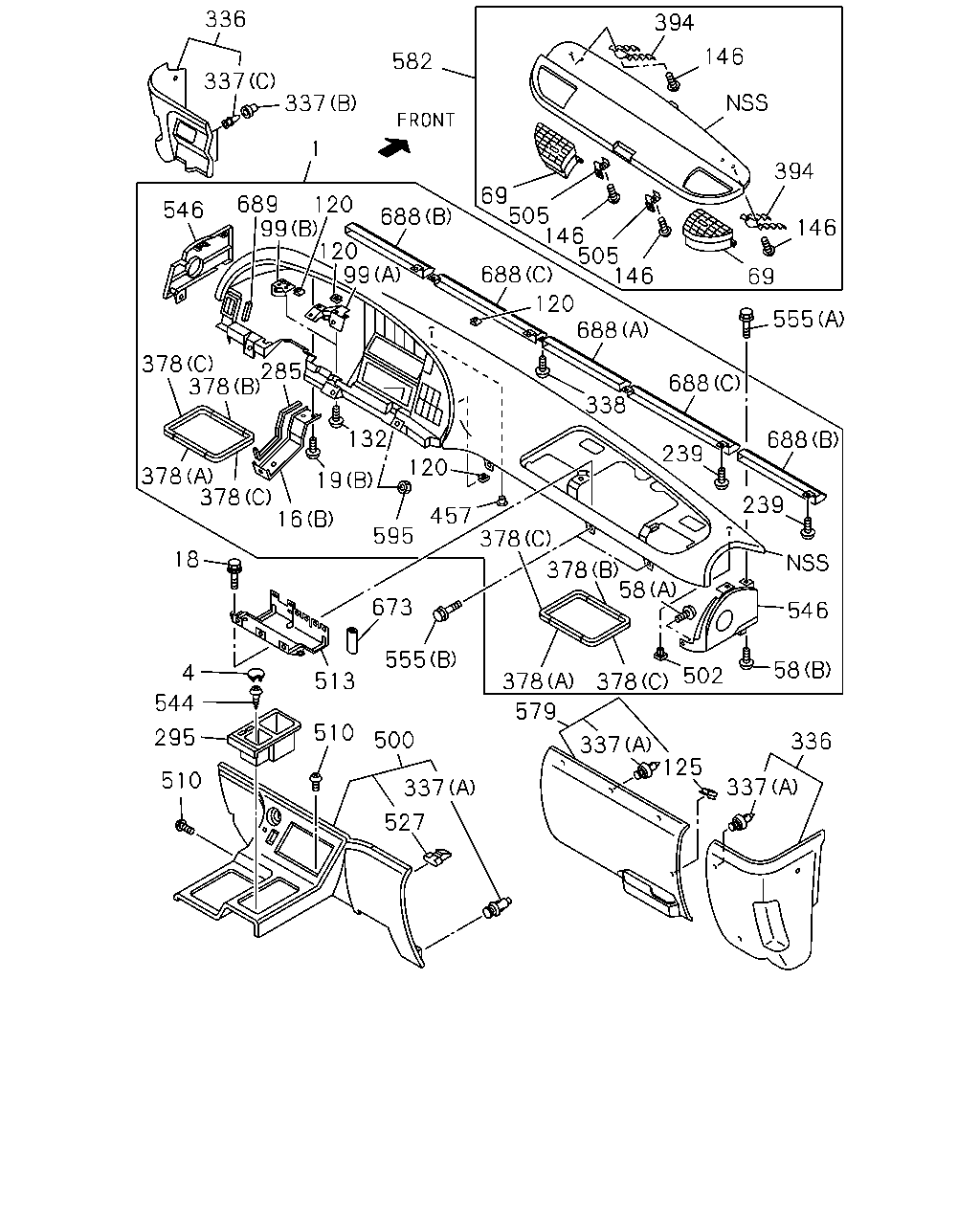

çizim 171210
336 337 582 394 394 146 555 688 239 337 546 120 689 688 688 688 688 120 378 285 378 16 378 18 4 544 295 510 527 510 513 673 555 579 337 125 337 336 337 500 378 378 502 546 58 239 338 378 132 19 595 120 457 378 378 58 146 69 146 505 146 505 69 1 120 99 99
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST 1-72317-370-2 01 1 1008-
4 COVER; INST PNL 1-72537-106-0 01 1 1008-
16 BRACKET; INST PNL
(B) 		1-72317-360-3 01 1 1008-
16 BRACKET; INST PNL
(A) 		1-73908-023-2 01 1 1008-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 1008-1306
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1307-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1307-
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 1008-
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 1008-
58 SCREW; INST PANEL
(A) M3X10 TAPPING 		0-71040-310-0 01 1 1008-
58 SCREW; INST PANEL
(B) M5X12 TAPPING 		9-07076-512-0 06 1 1008-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 1008-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 1008-
99 BRACKET; METER MTG,INST PNL
(A) 		1-72317-361-1 01 1 1008-
99 BRACKET; METER MTG,INST PNL
(B) 		1-72317-362-2 01 1 1008-
120 NUT; SPIRE,INST PNL
M5 		1-09984-196-0 09 1 1008-
125 CLIP; INST PANEL 8-97217-066-0 01 1 1008-
132 SCREW; BRKT,INST PANEL
M5X12 TAPPING 		9-07076-512-0 04 1 1008-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 1008-
239 SCREW; DEFROSTER
M5X12 TAPPING 		9-07076-512-0 10 1 1008-
285 FINISHER; INST PANEL
SERVICED BY L=190 		1-71998-300-0 02 1 1008-1306
285 FINISHER; INST PANEL
SERVICED BY L=190 SERVICED BY L=314 		8-94262-845-0 02 1 1307-
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 1008-
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 1008-
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 1008-
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 1008-1306
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 1307-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 1307-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 1008-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 1008-
338 SCREW; COVER
M5X12 TAPPING 		9-07076-512-0 02 1 1008-
378 SEAL; INST PANEL
(A) 		1-72437-672-2 02 1 1008-
378 SEAL; INST PANEL
(B) 		1-72437-673-0 02 1 1008-
378 SEAL; INST PANEL
(C) 		1-72437-674-0 04 1 1008-
394 HOLDER; PANEL 1-72558-048-0 02 1 1008-
457 PLATE; INST PANEL 1-72317-363-2 08 1 1008-
500 CLUSTER; INST CENTER 1-72437-642-1 01 1 1008-
502 GROMMET; SCREW,CENTER,CLUSTER 8-94430-318-1 04 1 1008-
505 LOCK; LID 1-72558-024-2 02 1 1008-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 1008-
513 BRACKET; RELAY 8-97865-168-3 01 1 1008-
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 1008-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 1008-
546 PANEL; INST,SUB 1-72317-354-4 01 1 1008-
546 PANEL; INST,SUB 1-72317-355-4 01 1 1008-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1008-
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 1008-
579 COVER; INST PNL 1-72438-195-1 01 1 1008-
582 LID; FUSE & RELAY 1-72548-146-1 01 1 1008-
595 NUT; HOOK 1-72418-013-0 06 1 1008-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 1008-
688 NOZZLE; DEFROSTER
(A) 		1-76377-184-1 01 1 1008-
688 NOZZLE; DEFROSTER
(B) 		1-76378-335-2 01 1 1008-
688 NOZZLE; DEFROSTER
(B) 		1-76378-352-1 01 1 1008-
688 NOZZLE; DEFROSTER
(C) 		1-76378-378-6 01 1 1008-
688 NOZZLE; DEFROSTER
(C) 		1-76378-381-3 01 1 1008-
689 SEAL; INST 1-72317-364-0 01 1 1008-
