Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11325 - EXZ MIDDLE EAST WITH 3STEPS
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-10 - CAUTION PLATE AND LABEL
▶
7-10 — CAUTION PLATE AND LABEL
(#56874) — 28 parça
◀
[710A] NO.4 (5 parça)
[710A] NO.2 (7 parça)
[710A] NO.1 (8 parça)
[710A] NO.3 (5 parça)
[710A] NO.5 (3 parça)
▶
4
4
5
5
289
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

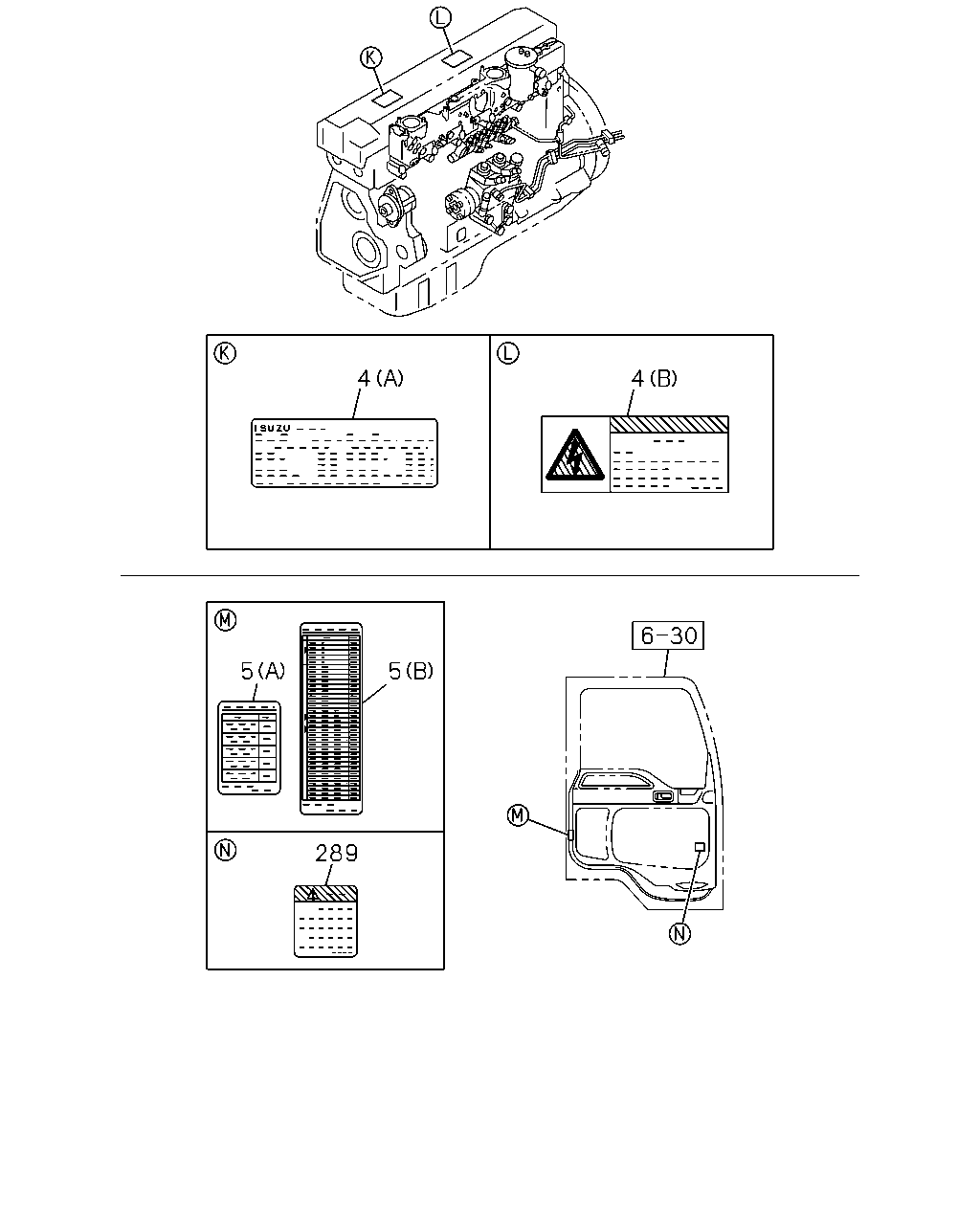

4
LABEL; ENG MAINTENANCE
(B)
8-98088-627-0
01
1
1008-
4
LABEL; ENG MAINTENANCE
(A)
8-98088-630-0
01
1
1008-
5
LABEL; TIRE AIR PRESSURE
(A)
1-85880-814-0
01
1
1008-1306
5
LABEL; TIRE AIR PRESSURE
(B)
1-85880-778-0
01
1
1307-
289
PLATE; CAUTION,DRIVING
8-98093-472-0
01
1
1008-
60
260
144
263
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

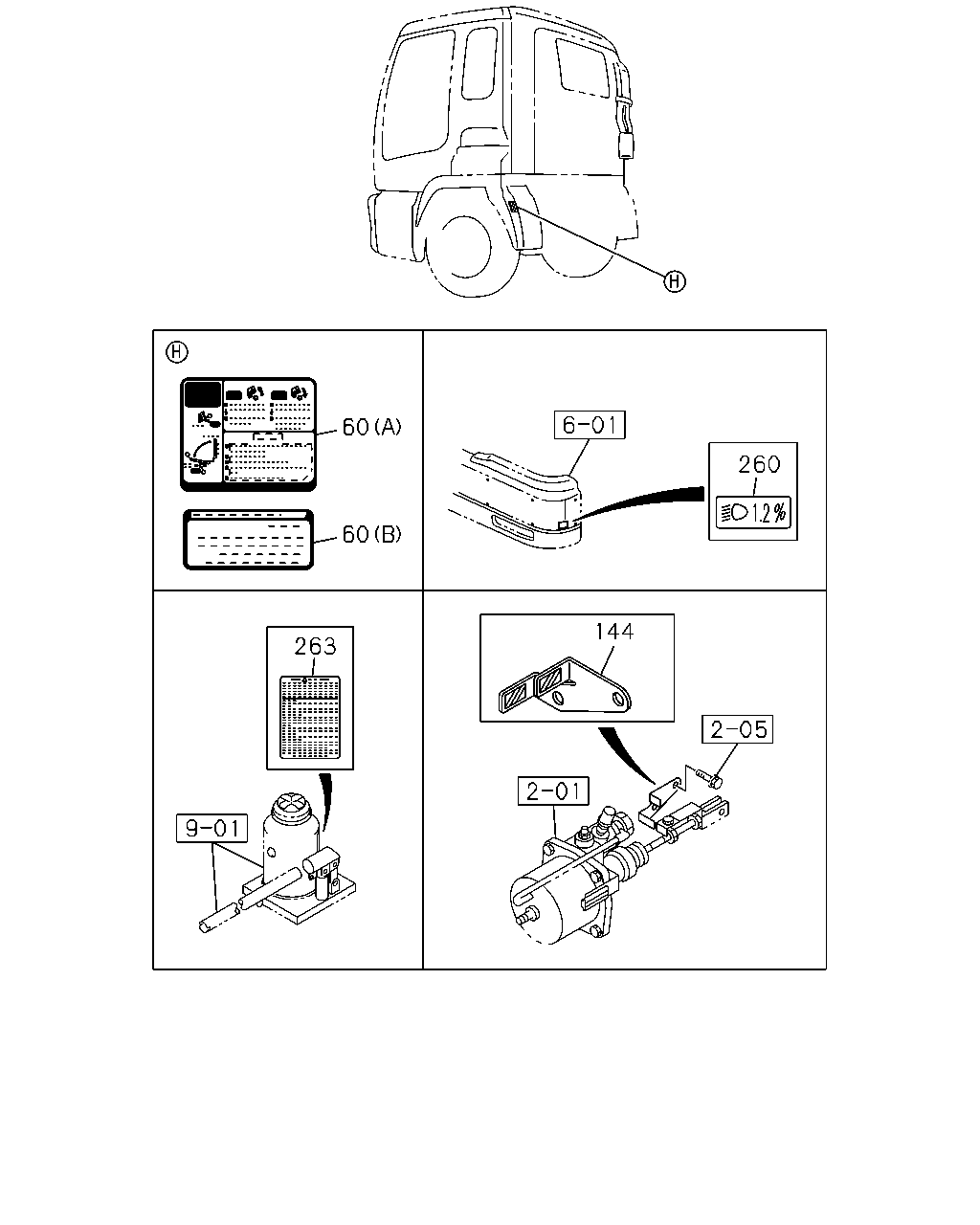

60
PLATE; CAUTION,CAB TILT
(A)
1-85883-181-0
01
1
1008-1306
60
PLATE; CAUTION,CAB TILT
(A)
8-98192-182-0
01
1
1307-
60
PLATE; CAUTION,CAB TILT
(B)
8-98192-184-0
01
1
1307-
144
PLATE; CAUTION,CLU
1-85878-345-0
01
1
1008-
260
PLATE; CAUTION,HEAD LAMP LEVELING
1-85878-416-1
01
1
1008-1306
263
PLATE; CAUTION,JACK
TOOL B KIT<SL1>
8-98094-561-0
01
1
1008-1306
263
PLATE; CAUTION,JACK
8-98094-561-0
01
1
1307-
119
49
51
74
51
252
74
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

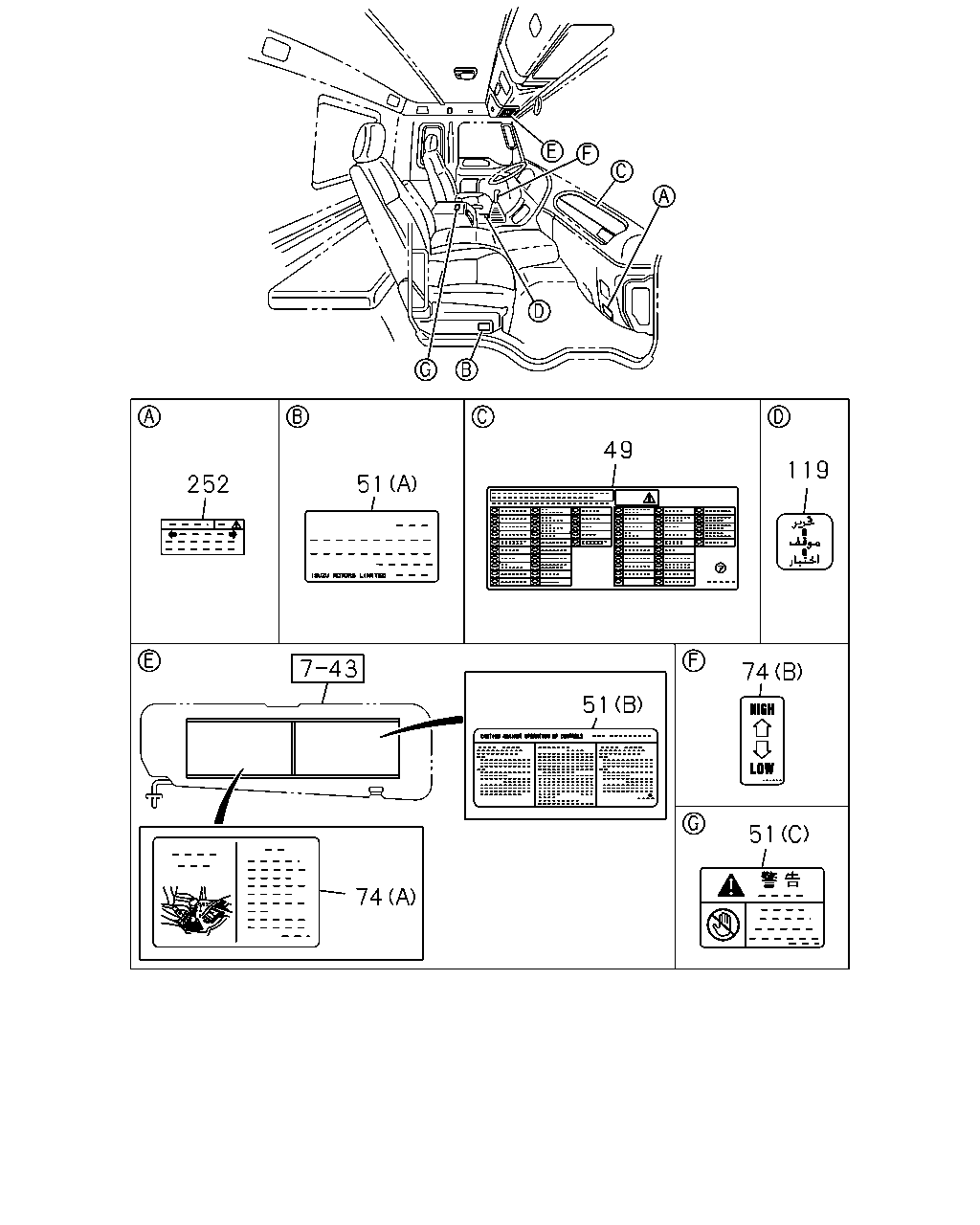

49
PLATE; CAUTION,FUSE BOX
8-97624-086-0
01
1
1008-
51
PLATE; CAUTION,WARNING
(B)
1-85880-787-0
01
1
1008-
51
PLATE; CAUTION,WARNING
(A)
8-97624-052-0
01
1
1008-
51
PLATE; CAUTION,WARNING
EXC. SILENCER SINGLE VERTICAL<N28> (C)
1-85878-571-0
01
1
1307-
74
PLATE; CAUTION,CHANGE LEV
(B)
8-98118-493-0
01
1
1008-
74
PLATE; CAUTION,CHANGE LEV
(A)
8-98124-445-0
01
1
1008-
119
PLATE; CAUTION,HAND BRK LEVER
1-85881-980-0
01
1
1008-
252
PLATE; CAUTION,HARNESS
8-97623-996-0
01
1
1008-
180
6
180
180
180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

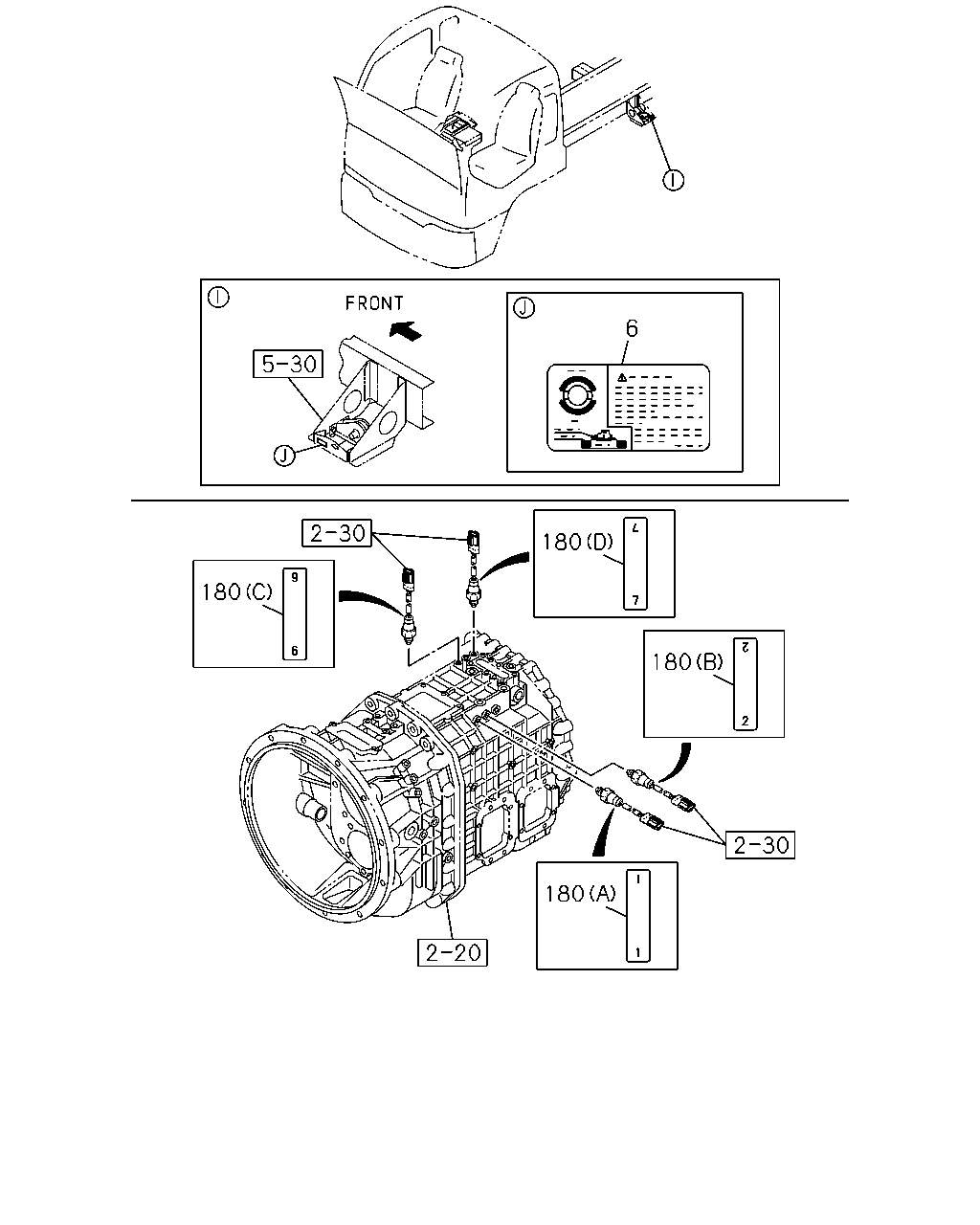

6
PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13>
8-98082-441-0
01
1
1008-
180
PLATE; CAUTION,SWITCH
(C)
1-85881-880-0
01
1
1507-
180
PLATE; CAUTION,SWITCH
(D)
1-85881-881-0
01
1
1507-
180
PLATE; CAUTION,SWITCH
(A)
1-85881-871-0
01
1
1307-1506
180
PLATE; CAUTION,SWITCH
(B)
1-85881-872-0
01
1
1507-
181
181
162
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
162
PLATE; CAUTION,FUEL
8-98083-160-0
01
1
1008-
181
PLATE; CAUTION,AIR CLEANER
(A)
1-85886-796-1
01
1
1008-
181
PLATE; CAUTION,AIR CLEANER
(B)
1-85886-813-1
01
1
1008-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
