0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#5687) — 162 parça

25 79 9 80 26 24 71 27 28 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	CLIP; BATTERY CABLE FVR MIDDLE CHASSIS(FV****) ID=14 L=44	9-09917-427-0	01	1	9811-9906	●
9	CLIP; BATTERY CABLE FVR MIDDLE CHASSIS(FV****) ID=14 L=44	9-09917-427-0	01	1	9907-0610		●
9	CLIP; BATTERY CABLE ID=14 L=44	9-09917-427-0	01	1	0611-			●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	05	1	0611-			●
24	BOLT; BRKT TO FRAME FRR MIDDLE CHASSIS(FR****) M8X30 FLANGE	0-28680-830-0	04	1	9811-9811	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	04	1	9812-9906	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	04	1	9907-0512		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	04	1	0601-0610		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	04	1	0611-				●
24	BOLT; BRKT TO FRAME FVR MIDDLE CHASSIS(FV****) M8X30 FLANGE	0-28680-830-0	05	1	9811-9811	●
25	CLIP; BATTERY CABLE TO BRKT ID=15 L=28	1-09701-216-0	05	1	0611-			●
25	CLIP; BATTERY CABLE TO BRKT ID=15 L=28	1-09701-216-0	04	1	9811-9906	●
25	CLIP; BATTERY CABLE TO BRKT ID=15 L=28	1-09701-216-0	04	1	9907-0610		●
25	CLIP; BATTERY CABLE TO BRKT ID=15 L=28	1-09701-216-0	04	1	0611-				●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X25 FLANGE	0-28650-825-0	05	1	0611-			●
26	BOLT; BATTERY CABLE CLIP TO BRKT FRR MIDDLE CHASSIS(FR****) M8X25 FLANGE	0-28680-825-0	04	1	9811-9811	●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X25 FLANGE	0-28680-825-0	04	1	9812-9906	●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X25 FLANGE	0-28680-825-0	04	1	9907-0512		●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-0610		●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X25 FLANGE	0-28650-825-0	04	1	0611-				●
26	BOLT; BATTERY CABLE CLIP TO BRKT FVR MIDDLE CHASSIS(FV****) M8X25 FLANGE	0-28680-825-0	05	1	9811-9811	●
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91180-108-0	05	1	0611-			●
27	NUT; BATTERY CABLE CLIP TO BRKT FRR MIDDLE CHASSIS(FR****) M8 FLANGE	0-91150-108-0	04	1	9811-9811	●
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91150-108-0	04	1	9812-9906	●
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91150-108-0	04	1	9907-0602		●
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91180-108-0	04	1	0603-0610		●
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91180-108-0	04	1	0611-				●
27	NUT; BATTERY CABLE CLIP TO BRKT FVR MIDDLE CHASSIS(FV****) M8 FLANGE	0-91150-108-0	05	1	9811-9811	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	05	1	0611-			●
28	NUT; BRKT TO FRAME FRR MIDDLE CHASSIS(FR****) M8 FLANGE	0-91150-108-0	04	1	9811-9811	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	04	1	9812-9906	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	04	1	9907-0602		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	04	1	0603-0610		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	04	1	0611-				●
28	NUT; BRKT TO FRAME FVR MIDDLE CHASSIS(FV****) M8 FLANGE	0-91150-108-0	05	1	9811-9811	●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28081-020-0	01	1	9811-9906	●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28081-020-0	01	1	9907-0512		●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28051-020-0	01	1	0601-0610		●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28051-020-0	01	1	0611-			●	●
79	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	9811-9906	●
79	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	9907-0610		●
79	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	0611-			●	●
80	BOLT; BATTERY CABLE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9811-9906	●
80	BOLT; BATTERY CABLE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9907-0512		●
80	BOLT; BATTERY CABLE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-0610		●
80	BOLT; BATTERY CABLE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0611-			●	●
107	CLIP; BAND L=140	5-09707-031-1	01	1	0611-			●	●

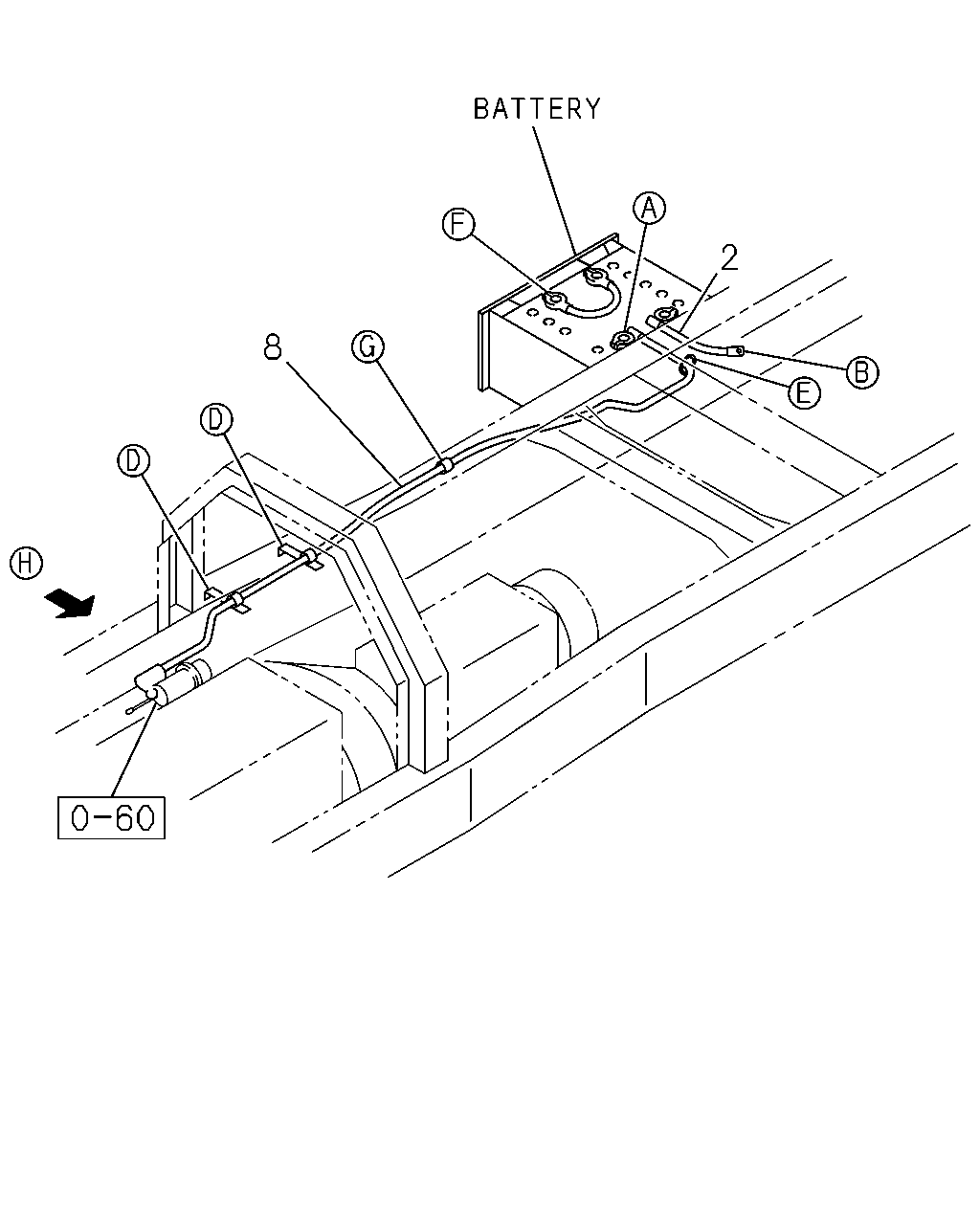

2 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	CABLE; BATTERY EXC. BAT 115E41R NS120<W73> L=240	1-82650-403-1	01	1	0611-			●
2	CABLE; BATTERY L=185 TAI	8-97530-326-0	01	1	9811-9906	●
2	CABLE; BATTERY L=185 TAI	8-97530-326-0	01	1	9907-0610		●
2	CABLE; BATTERY BAT 115E41R NS120<W73> L=380 TAI	8-97604-629-1	01	1	0611-			●
2	CABLE; BATTERY L=380 TAI	8-97604-629-1	01	1	0611-				●
8	CABLE; BATTERY,STARTER WB 5000MM(50W) L=2250 TAI	8-97530-325-0	01	1	9811-9906	●
8	CABLE; BATTERY,STARTER FRR MIDDLE CHASSIS(FR****) L=1700 TAI	8-97530-323-0	01	1	9811-9906	●
8	CABLE; BATTERY,STARTER FRR MIDDLE CHASSIS(FR****) L=1800 TAI	8-97531-007-0	01	1	9907-0610		●
8	CABLE; BATTERY,STARTER TAI	8-97604-618-1	01	1	0611-				●
8	CABLE; BATTERY,STARTER FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) L=2300 TAI	8-97530-324-0	01	1	9811-9906	●
8	CABLE; BATTERY,STARTER FVR MIDDLE CHASSIS(FV****) L=2400 TAI	8-97531-008-0	01	1	9907-0610		●
8	CABLE; BATTERY,STARTER TAI	8-97610-267-0	01	1	0611-			●

114 11 10 33 115 8 112 2 26 28 25 13 1 23 27 24 79 9 71 80 1 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CABLE; BATTERY EXC. BAT 115E41R NS120<W73> L=280	8-97230-719-2	01	1	0611-			●
1	CABLE; BATTERY L=180	1-82650-265-0	01	1	9811-9906	●
1	CABLE; BATTERY L=180	1-82650-265-0	01	1	9907-0610		●
1	CABLE; BATTERY BAT 115E41R NS120<W73> L=450 TAI	1-82650-389-1	01	1	0611-			●
1	CABLE; BATTERY L=450 TAI	1-82650-389-1	01	1	0611-				●
2	CABLE; BATTERY EXC. BAT 115E41R NS120<W73> L=240	1-82650-403-1	01	1	0611-			●
2	CABLE; BATTERY L=185 TAI	8-97530-326-0	01	1	9811-9906	●
2	CABLE; BATTERY L=185 TAI	8-97530-326-0	01	1	9907-0610		●
2	CABLE; BATTERY BAT 115E41R NS120<W73> L=380 TAI	8-97604-629-1	01	1	0611-			●
2	CABLE; BATTERY L=380 TAI	8-97604-629-1	01	1	0611-				●
8	CABLE; BATTERY,STARTER WB 5000MM(50W) L=2250 TAI	8-97530-325-0	01	1	9811-9906	●
8	CABLE; BATTERY,STARTER FRR MIDDLE CHASSIS(FR****) L=1700 TAI	8-97530-323-0	01	1	9811-9906	●
8	CABLE; BATTERY,STARTER FRR MIDDLE CHASSIS(FR****) L=1800 TAI	8-97531-007-0	01	1	9907-0610		●
8	CABLE; BATTERY,STARTER TAI	8-97604-618-1	01	1	0611-				●
8	CABLE; BATTERY,STARTER FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) L=2300 TAI	8-97530-324-0	01	1	9811-9906	●
8	CABLE; BATTERY,STARTER FVR MIDDLE CHASSIS(FV****) L=2400 TAI	8-97531-008-0	01	1	9907-0610		●
8	CABLE; BATTERY,STARTER TAI	8-97610-267-0	01	1	0611-			●
9	CLIP; BATTERY CABLE FVR MIDDLE CHASSIS(FV****) ID=14 L=44	9-09917-427-0	01	1	9811-9906	●
9	CLIP; BATTERY CABLE FVR MIDDLE CHASSIS(FV****) ID=14 L=44	9-09917-427-0	01	1	9907-0610		●
9	CLIP; BATTERY CABLE ID=14 L=44	9-09917-427-0	01	1	0611-			●
10	BOLT; BATTERY CABLE CLIP M10X30 W/LK&PL WASHER	8-97087-206-0	01	1	9811-9903	●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	9904-0610	●	●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0611-			●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22	9-09160-610-0	01	1	9811-9903	●
11	WASHER; BATTERY CABLE EARTH ID=10.5	1-09503-265-0	01	1	9904-0610	●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5	1-09503-265-0	01	1	0611-			●	●
13	GROMMET; BATTERY CABLE FRR MIDDLE CHASSIS(FR****) ID=28 OD=35 T=17	9-09956-256-1	01	1	9811-9906	●
13	GROMMET; BATTERY CABLE FRR MIDDLE CHASSIS(FR****) ID=28 OD=35 T=17	9-09956-256-2	01	1	9907-0610		●
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=17	9-09956-256-2	01	1	0611-				●
13	GROMMET; BATTERY CABLE FVR MIDDLE CHASSIS(FV****) ID=28 OD=35 T=25	1-09332-011-1	01	1	9811-9906	●
13	GROMMET; BATTERY CABLE FVR MIDDLE CHASSIS(FV****) ID=28 OD=35 T=25	1-09332-011-1	01	1	9907-0610		●
13	GROMMET; BATTERY CABLE ID=28 OD=35 T=25	1-09332-011-1	01	1	0611-			●
23	BRACKET; CABLE CLIP TO FRAME (A) L=145	1-47475-655-0	01	1	0611-			●
23	BRACKET; CABLE CLIP TO FRAME (B) L=55 TAI	1-47475-304-0	01	1	0611-				●
23	BRACKET; CABLE CLIP TO FRAME (A) L=95	1-82699-085-0	04	1	0611-			●
23	BRACKET; CABLE CLIP TO FRAME (A) L=95	1-82699-085-0	04	1	9811-9906	●
23	BRACKET; CABLE CLIP TO FRAME (A) L=95	1-82699-085-0	04	1	9907-0610		●
23	BRACKET; CABLE CLIP TO FRAME (A) L=95	1-82699-085-0	03	1	0611-				●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	05	1	0611-			●
24	BOLT; BRKT TO FRAME FRR MIDDLE CHASSIS(FR****) M8X30 FLANGE	0-28680-830-0	04	1	9811-9811	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	04	1	9812-9906	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	04	1	9907-0512		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	04	1	0601-0610		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	04	1	0611-				●
24	BOLT; BRKT TO FRAME FVR MIDDLE CHASSIS(FV****) M8X30 FLANGE	0-28680-830-0	05	1	9811-9811	●
25	CLIP; BATTERY CABLE TO BRKT ID=15 L=28	1-09701-216-0	05	1	0611-			●
25	CLIP; BATTERY CABLE TO BRKT ID=15 L=28	1-09701-216-0	04	1	9811-9906	●
25	CLIP; BATTERY CABLE TO BRKT ID=15 L=28	1-09701-216-0	04	1	9907-0610		●
25	CLIP; BATTERY CABLE TO BRKT ID=15 L=28	1-09701-216-0	04	1	0611-				●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X25 FLANGE	0-28650-825-0	05	1	0611-			●
26	BOLT; BATTERY CABLE CLIP TO BRKT FRR MIDDLE CHASSIS(FR****) M8X25 FLANGE	0-28680-825-0	04	1	9811-9811	●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X25 FLANGE	0-28680-825-0	04	1	9812-9906	●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X25 FLANGE	0-28680-825-0	04	1	9907-0512		●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-0610		●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X25 FLANGE	0-28650-825-0	04	1	0611-				●
26	BOLT; BATTERY CABLE CLIP TO BRKT FVR MIDDLE CHASSIS(FV****) M8X25 FLANGE	0-28680-825-0	05	1	9811-9811	●
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91180-108-0	05	1	0611-			●
27	NUT; BATTERY CABLE CLIP TO BRKT FRR MIDDLE CHASSIS(FR****) M8 FLANGE	0-91150-108-0	04	1	9811-9811	●
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91150-108-0	04	1	9812-9906	●
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91150-108-0	04	1	9907-0602		●
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91180-108-0	04	1	0603-0610		●
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91180-108-0	04	1	0611-				●
27	NUT; BATTERY CABLE CLIP TO BRKT FVR MIDDLE CHASSIS(FV****) M8 FLANGE	0-91150-108-0	05	1	9811-9811	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	05	1	0611-			●
28	NUT; BRKT TO FRAME FRR MIDDLE CHASSIS(FR****) M8 FLANGE	0-91150-108-0	04	1	9811-9811	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	04	1	9812-9906	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	04	1	9907-0602		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	04	1	0603-0610		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	04	1	0611-				●
28	NUT; BRKT TO FRAME FVR MIDDLE CHASSIS(FV****) M8 FLANGE	0-91150-108-0	05	1	9811-9811	●
33	CAP; INSULATOR	1-82699-431-0	01	1	9811-9906	●
33	CAP; INSULATOR	1-82699-431-0	01	1	9907-0610		●
33	CAP; INSULATOR	1-82699-431-0	01	1	0611-			●	●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28081-020-0	01	1	9811-9906	●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28081-020-0	01	1	9907-0512		●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28051-020-0	01	1	0601-0610		●
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28051-020-0	01	1	0611-			●	●
79	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	9811-9906	●
79	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	9907-0610		●
79	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	0611-			●	●
80	BOLT; BATTERY CABLE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9811-9906	●
80	BOLT; BATTERY CABLE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9907-0512		●
80	BOLT; BATTERY CABLE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-0610		●
80	BOLT; BATTERY CABLE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0611-			●	●
112	TERMINAL; BATTERY <+>	1-82695-003-0	01	1	9811-9906	●
112	TERMINAL; BATTERY <+>	1-82695-003-0	01	1	9907-0403		●
112	TERMINAL; BATTERY <+>	1-82695-175-0	01	1	0404-0610		●
112	TERMINAL; BATTERY <+>	1-82695-169-1	01	1	0611-			●	●
114	NUT; CABLE,BATTERY TERMINAL M10	9-09110-510-0	01	1	9811-9906	●
114	NUT; CABLE,BATTERY TERMINAL M10	9-09110-510-0	01	1	9907-0512		●
114	NUT; CABLE,BATTERY TERMINAL M10	0-91110-510-0	01	1	0601-0610		●
114	NUT; CABLE,BATTERY TERMINAL M8	0-91110-508-0	01	1	0611-			●	●
115	WASHER; LK,CABLE,BATTERY ID=10.2	9-09150-510-0	01	1	9811-9906	●
115	WASHER; LK,CABLE,BATTERY ID=10.2	9-09150-510-0	01	1	9907-0603		●
115	WASHER; LK,CABLE,BATTERY ID=10.2	0-91510-510-0	01	1	0604-0610		●
115	WASHER; LK,CABLE,BATTERY ID=8.2	0-91510-508-0	01	1	0611-			●	●

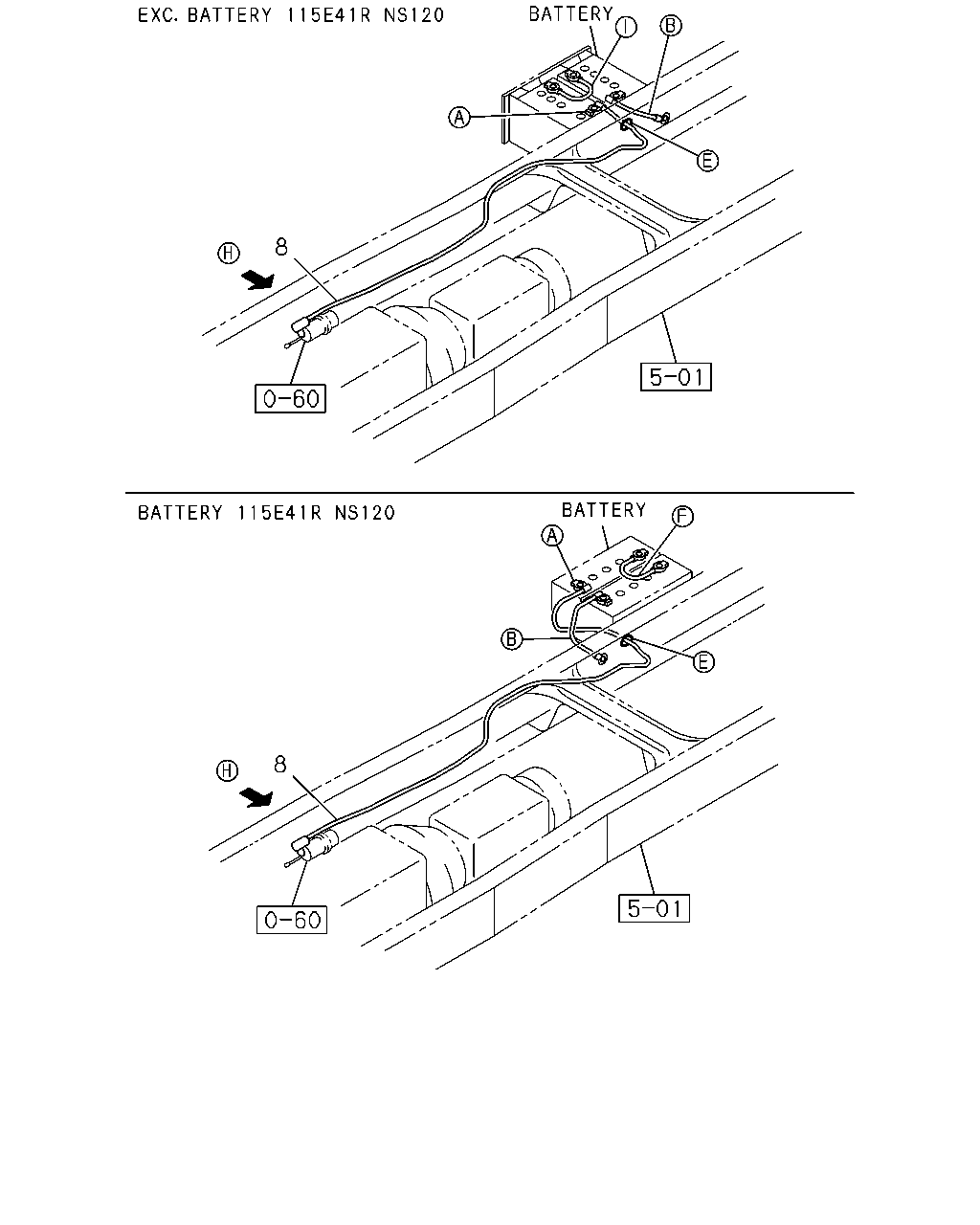

8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	CABLE; BATTERY,STARTER WB 5000MM(50W) L=2250 TAI	8-97530-325-0	01	1	9811-9906	●
8	CABLE; BATTERY,STARTER FRR MIDDLE CHASSIS(FR****) L=1700 TAI	8-97530-323-0	01	1	9811-9906	●
8	CABLE; BATTERY,STARTER FRR MIDDLE CHASSIS(FR****) L=1800 TAI	8-97531-007-0	01	1	9907-0610		●
8	CABLE; BATTERY,STARTER TAI	8-97604-618-1	01	1	0611-				●
8	CABLE; BATTERY,STARTER FVR MIDDLE CHASSIS(FV****) WB 5500MM(55W) L=2300 TAI	8-97530-324-0	01	1	9811-9906	●
8	CABLE; BATTERY,STARTER FVR MIDDLE CHASSIS(FV****) L=2400 TAI	8-97531-008-0	01	1	9907-0610		●
8	CABLE; BATTERY,STARTER TAI	8-97610-267-0	01	1	0611-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
