Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11325 - EXZ MIDDLE EAST WITH 3STEPS
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

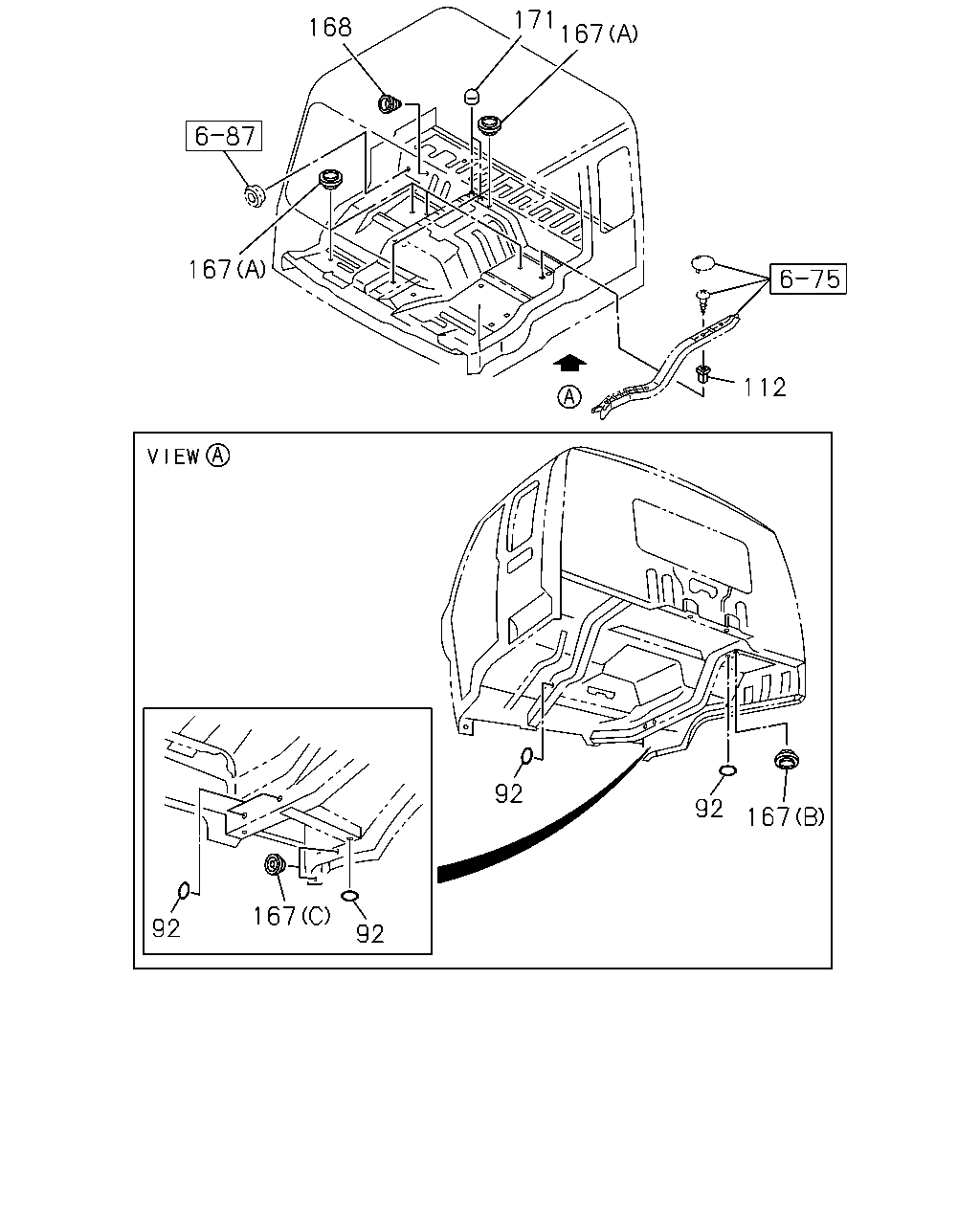

6-78 - FLOOR HOLE PLUG
▶
6-78 — FLOOR HOLE PLUG
(#56867) — 13 parça
92
167
92
167
92
92
112
167
171
167
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
11
1
1307-
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
14
1
1008-1306
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
03
1
1307-
92
SEAL; LOCATION HOLE
CENTER SEAT DELETE(SP9) OD=25 BLACK
1-76798-019-0
02
1
1008-1306
92
SEAL; LOCATION HOLE
HEATER & DEFROSTER(C41) OD=25 BLACK
1-76798-019-0
02
1
1307-
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
1008-
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
04
1
1307-
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
07
1
1008-1306
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
03
1
1307-
167
GROMMET; LOCATION HOLE
(B) OD=35
8-94122-971-0
06
1
1008-
167
GROMMET; LOCATION HOLE
(C) OD=15.0
8-94279-040-0
02
1
1008-
168
COVER; HOLE,ANNTENA CABLE
1-79998-891-1
01
1
1008-
171
CAP; STUD
CENTER SEAT DELETE(SP9)
1-71736-200-0
02
1
1008-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
