11321 - EXZ MIDDLE EAST WITH 2STEPS
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

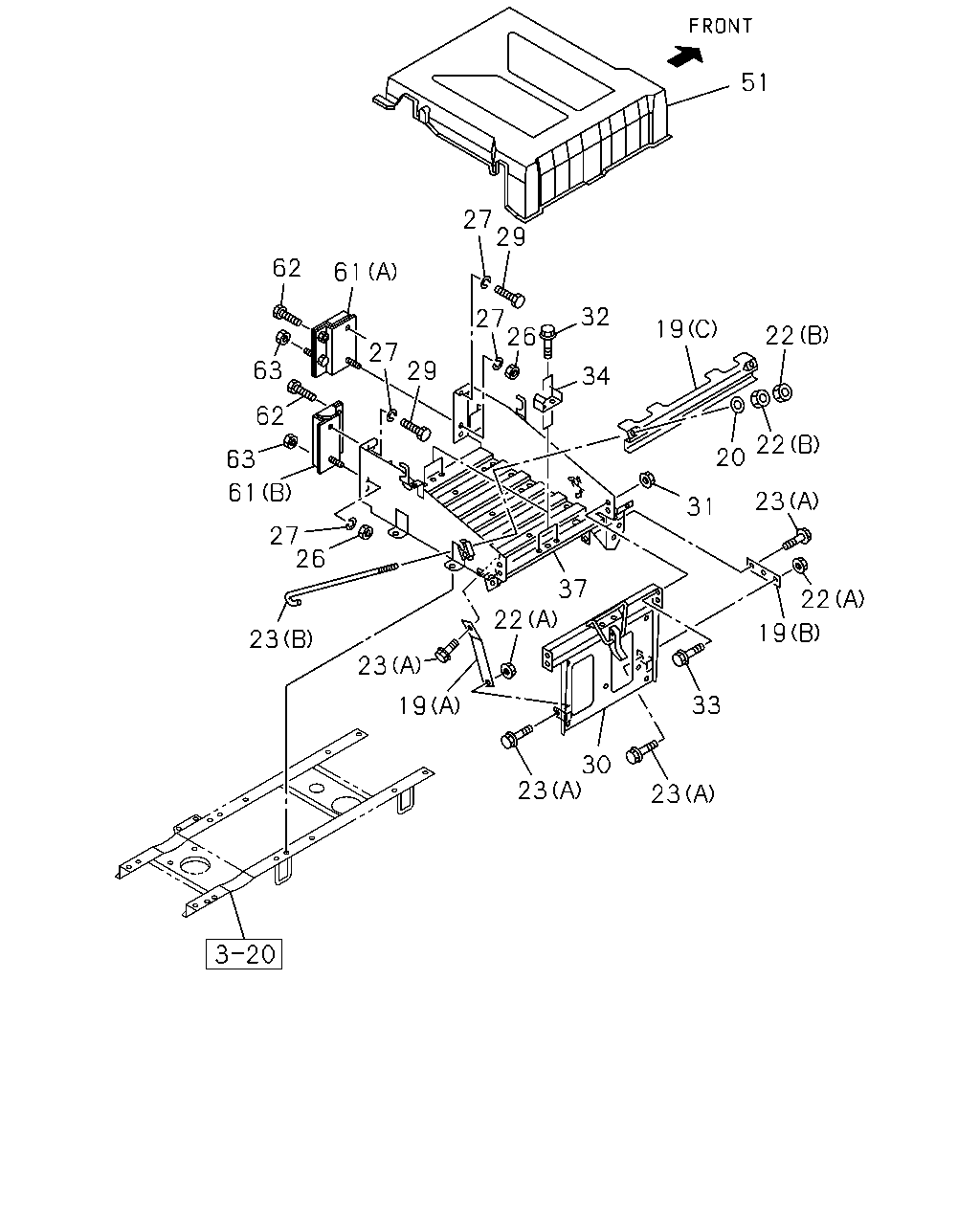

5-20 — BATTERY CARRIER
(#56863) — 25 parça
51
27
29
62
61
32
27
26
19
63
22
27
29
34
62
22
20
63
61
23
31
27
26
37
22
22
19
23
23
33
19
30
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
(B)
1-47479-118-0
01
1
0811-
19
STAY; BATTERY
(A)
1-47479-874-0
01
1
0811-
19
STAY; BATTERY
(C)
1-53618-039-2
01
1
0811-
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
0811-
22
NUT; STAY
(B) M8
0-91110-508-0
04
1
0811-
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
02
1
0811-
23
BOLT; STAY
(A) M8X20 FLANGE
0-28650-820-0
04
1
0811-
23
BOLT; STAY
(B) L=250
1-53616-108-0
02
1
0811-
26
NUT; BRKT
M14
0-91110-514-0
02
1
0811-
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
04
1
0811-
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
08
1
0811-
29
BOLT; BRKT TO FRAME
M14X30
0-20851-430-0
02
1
0811-
30
PLATE; BATTERY
1-53619-148-1
01
1
0811-
31
NUT; PLATE
M8 FLANGE
0-91180-108-0
04
1
0811-
32
BOLT; PLATE TO SPACER
BATTERY 115F51 N120<SJ3> M8X16 FLANGE
0-28050-816-0
04
1
0811-
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0811-1007
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1008-
34
SPACER; BATTERY BRKT
BATTERY 115F51 N120<SJ3>
1-53619-084-0
02
1
0811-
37
BRACKET; BATTERY
1-53610-159-2
01
1
0811-
51
COVER; BATTERY
1-53612-068-0
01
1
0811-
61
DISTANCE; BRKT,BATTERY
(A)
1-53613-504-0
01
1
0811-
61
DISTANCE; BRKT,BATTERY
(B)
1-53613-505-0
01
1
0811-
62
BOLT; DIST TO FRAME,BATTERY
M14X45
1-09000-764-0
02
1
0811-
62
BOLT; DIST TO FRAME,BATTERY
M14X60
1-09000-778-0
02
1
0811-
63
NUT; DIST TO FRAME
M14
1-09440-072-0
04
1
0811-
