◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#5686) — 198 parça

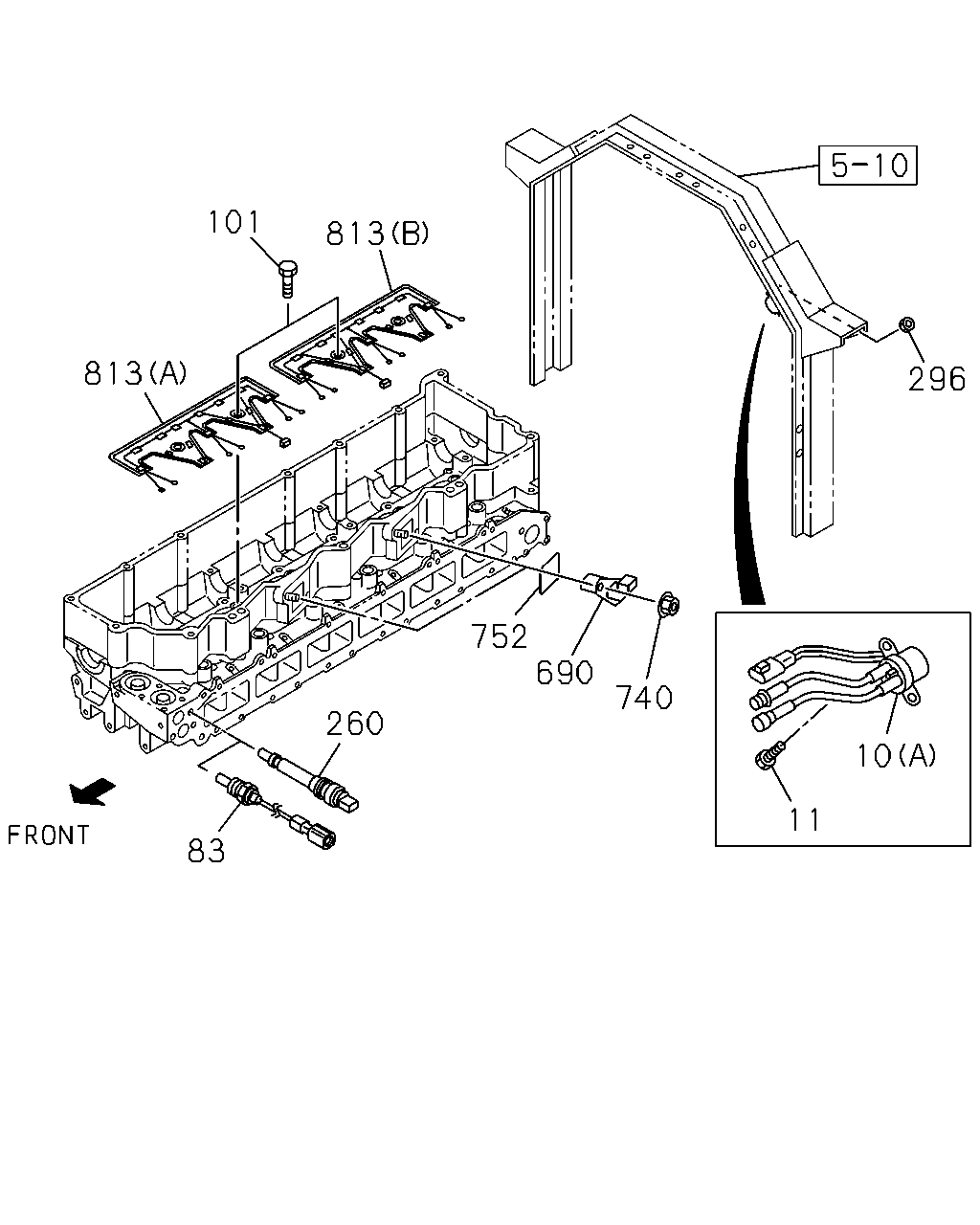

çizim 26029
101 813 813 296 752 690 740 260 10 11 83
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 RELAY; STARTER
(A) DENSO 		1-81171-070-0 01 1 9811-9906 ●
10 RELAY; STARTER
(A) DENSO 		1-81171-070-0 01 1 9907-0610 ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-0 01 1 0611- ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 9811-9906 ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 9907-0512 ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 0601-0610 ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 9811-9906 ●
101 BOLT; HARNESS
M8X40 FLANGE 		0-28680-840-0 04 1 9907-0512 ●
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 0601-0610 ●
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 0611- ● ●
260 SENSOR; WATER TEMP 1-80210-005-1 01 1 9907-0610 ●
260 SENSOR; WATER TEMP
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0611- ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9811-9906 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9907-0602 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0603-0610 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0611- ● ●
690 CONNECTOR 8-94390-858-1 02 1 9907-0610 ●
690 CONNECTOR 8-94390-858-1 02 1 0611- ● ●
740 NUT
M8 FLANGE 		0-91150-108-0 04 1 9907-0602 ●
740 NUT
M8 FLANGE 		0-91180-108-0 04 1 0603-0610 ●
740 NUT
M8 FLANGE 		0-91180-108-0 04 1 0611- ● ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 9907-0610 ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0611- ● ●
813 HARNESS; INJECTOR
(A) FRONT 		8-94391-302-3 01 1 9907-0610 ●
813 HARNESS; INJECTOR
(A) FRONT 		8-97602-748-2 01 1 0611- ● ●
813 HARNESS; INJECTOR
(B) REAR 		8-94391-303-3 01 1 9907-0610 ●
813 HARNESS; INJECTOR
(B) REAR 		8-97602-749-2 01 1 0611- ● ●

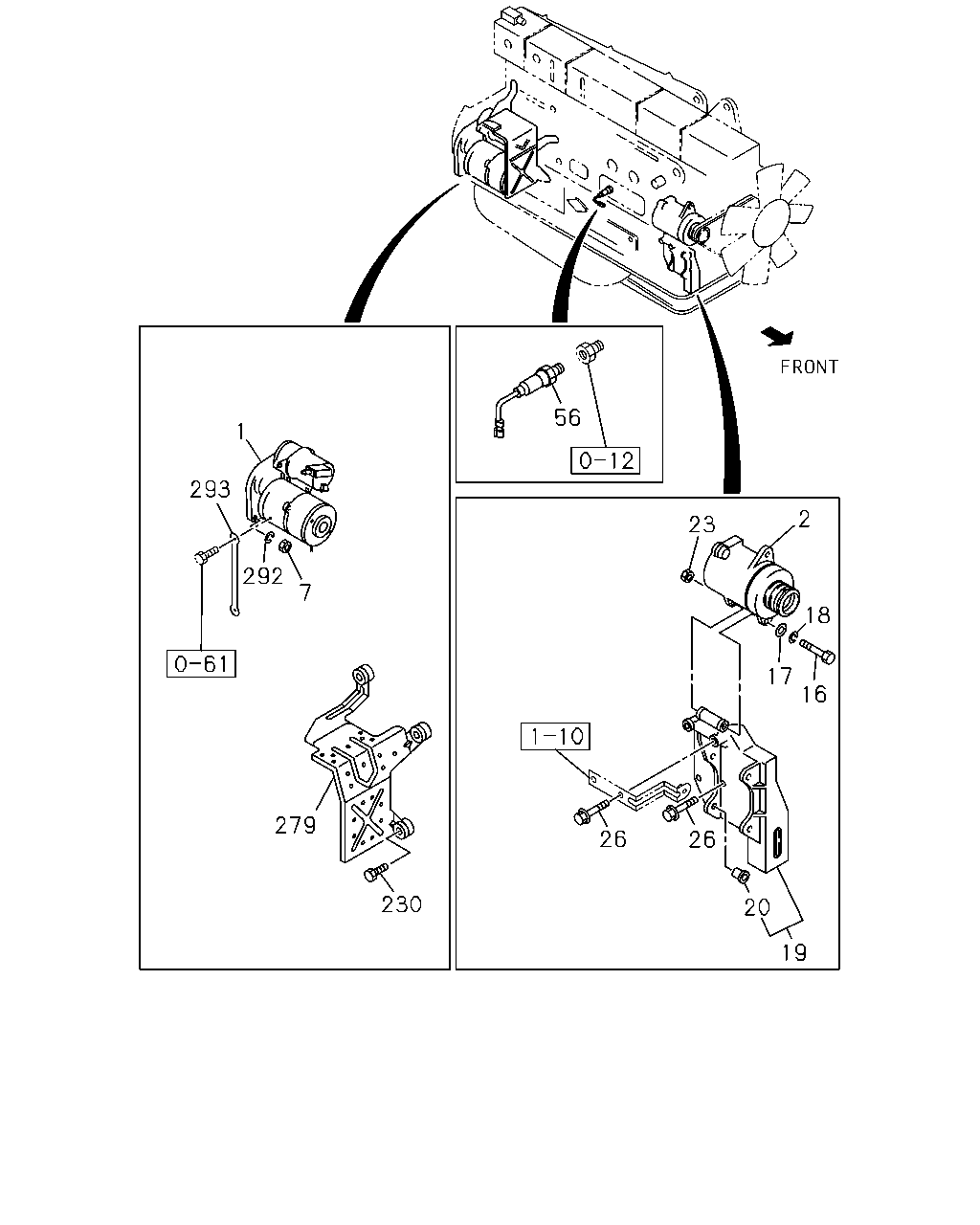

çizim 26242
56 1 293 2 23 292 7 18 17 16 279 26 26 230 20 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94399-159-4 01 1 9811-9906 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		1-81100-319-1 01 1 9907-0002 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI TAI 		1-81100-414-2 01 1 0003-0609 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98060-854-0 01 1 0610-0610 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98060-854-0 01 1 0611- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9811-9906 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9907-0610 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO 		8-98013-462-2 01 1 0611- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9904-9905 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI TAI 		1-81200-577-0 01 1 9906-9907 ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9811-9906 ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9907-0512 ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0601-0610 ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0611- ● ●
16 BOLT; GEN
M6X10 FLANGE 		0-28050-610-0 02 1 0611-0611 ● ●
16 BOLT; GEN
M6X10 FLANGE 		0-28050-610-0 02 1 0612- ● ●
16 BOLT; GEN
M6X10 FLANGE 		0-28050-610-0 02 1 0612- ●
16 BOLT; GEN
A/C MAN CONT(C60) M6X10 FLANGE 		0-28050-610-0 02 1 0612- ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9811-9906 ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9907-0610 ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0611- ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9811-9906 ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9907-0605 ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606-0610 ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0611- ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9811-9906 ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9907-0603 ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0604-0610 ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0611- ● ●
19 BRACKET; GEN 8-94395-470-2 01 1 9811-9906 ●
19 BRACKET; GEN 8-94395-470-3 01 1 9907-0610 ●
19 BRACKET; GEN 8-94390-589-1 01 1 0611-0704 ● ●
19 BRACKET; GEN 8-97609-149-0 01 1 0705- ● ●
20 COLLAR; BRKT,GEN 8-94201-057-1 02 1 9811-9906 ●
20 COLLAR; BRKT,GEN 8-94201-057-1 02 1 9907-0610 ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9811-9906 ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9907-0512 ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0601-0610 ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0611- ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 02 1 9811-9906 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 02 1 9907-0512 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 02 1 0601-0610 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 02 1 0611- ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9811-9906 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9907-0512 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0601-0610 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0611- ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 9811-9906 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 9907-0610 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0611- ● ●
230 BOLT; HEAT PROTECTOR
M8X28 FLANGE 		0-28080-828-0 01 1 9811-9906 ●
230 BOLT; HEAT PROTECTOR
M10X30 FLANGE 		0-28181-030-0 01 1 9811-9906 ●
279 PROTECTOR; STARTER 8-94394-501-0 01 1 9811-9906 ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9811-9906 ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9907-0603 ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 0604-0610 ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 0611- ● ●
293 CABLE; STARTER EARTH
L=360 		1-82650-230-1 01 1 9811-9906 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-266-0 01 1 9907-9910 ●
293 CABLE; STARTER EARTH
FVR MIDDLE CHASSIS(FV****) L=350 		1-82650-266-0 01 1 9911-0610 ●
293 CABLE; STARTER EARTH
FRR MIDDLE CHASSIS(FR****) L=320 		1-82650-324-0 01 1 9911-0610 ●
293 CABLE; STARTER EARTH
L=320 		1-82650-324-0 01 1 0611- ● ●

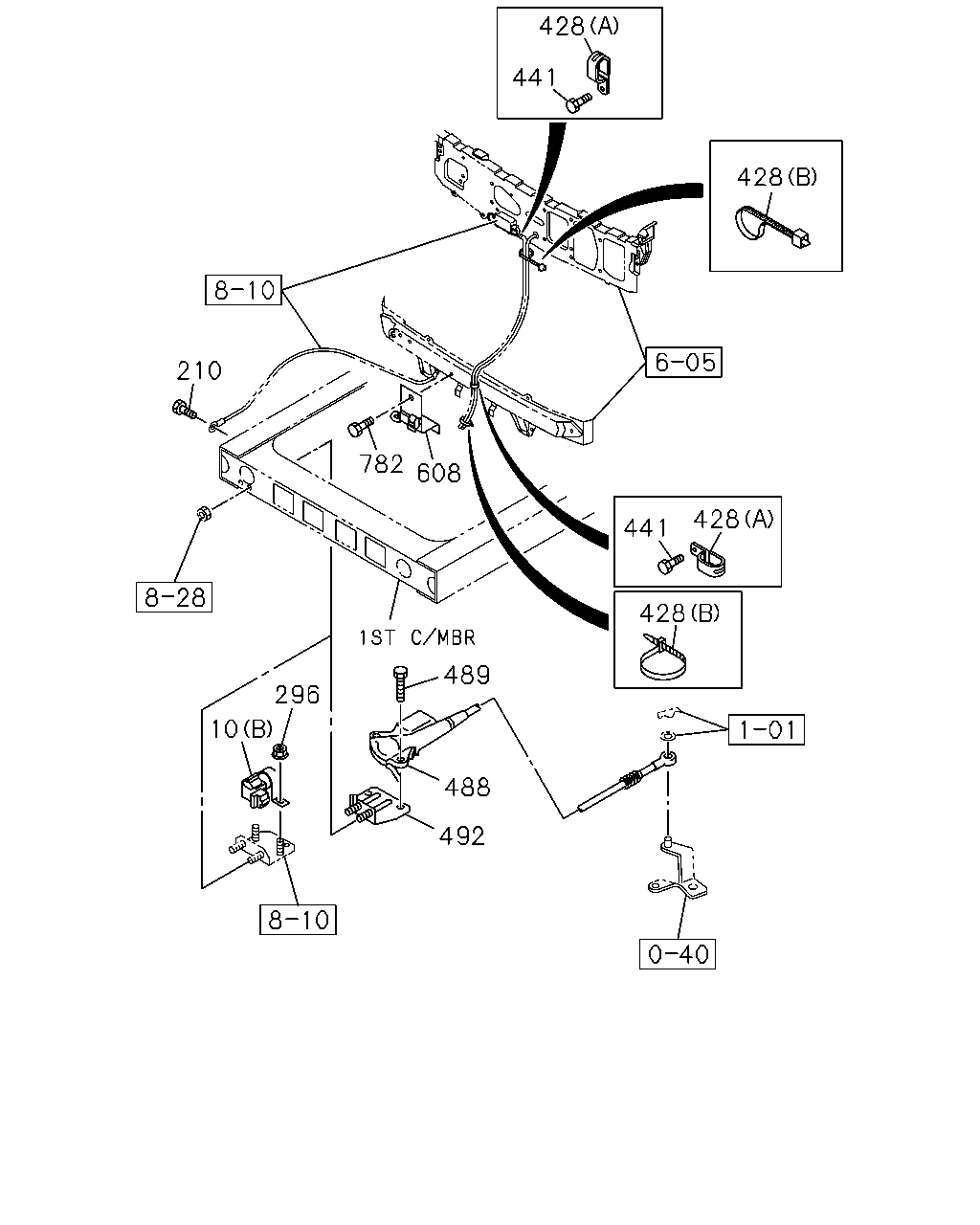

çizim 26277
428 441 428 210 782 608 428 441 428 489 296 10 488 492
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 RELAY; STARTER
(A) DENSO 		1-81171-070-0 01 1 9811-9906 ●
10 RELAY; STARTER
(A) DENSO 		1-81171-070-0 01 1 9907-0610 ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-0 01 1 0611- ● ●
210 BOLT; CABLE FIX
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9811-9903 ●
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-0610 ●
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0611- ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9811-9906 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 9907-0602 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0603-0610 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0611- ● ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 9811-9906 ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 9907-0610 ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 0611- ● ●
428 CLIP; HARNESS
(B) L=300 USA 		1-09707-001-1 07 1 9907-0610 ●
428 CLIP; HARNESS
(B) L=300 USA 		1-09707-001-1 03 1 0611- ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 9811-9906 ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 9907-0512 ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0601-0610 ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0611- ● ●
488 STOPPER; ENG 1-82840-128-2 01 1 9811-9906 ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9811-9906 ●
492 BRACKET; ENG STOPPER
FRR MIDDLE CHASSIS(FR****) 		1-82849-067-0 01 1 9811-9906 ●
492 BRACKET; ENG STOPPER
FVR MIDDLE CHASSIS(FV****) TAI 		8-97530-309-0 01 1 9811-9906 ●
608 SENSOR; TEMP 1-83544-031-0 01 1 9907-0610 ●
782 BOLT; SENSOR
M8X20.5 W/LK&PL WASHER TAI 		8-94279-207-0 01 1 9907-0610 ●
782 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 0611- ● ●

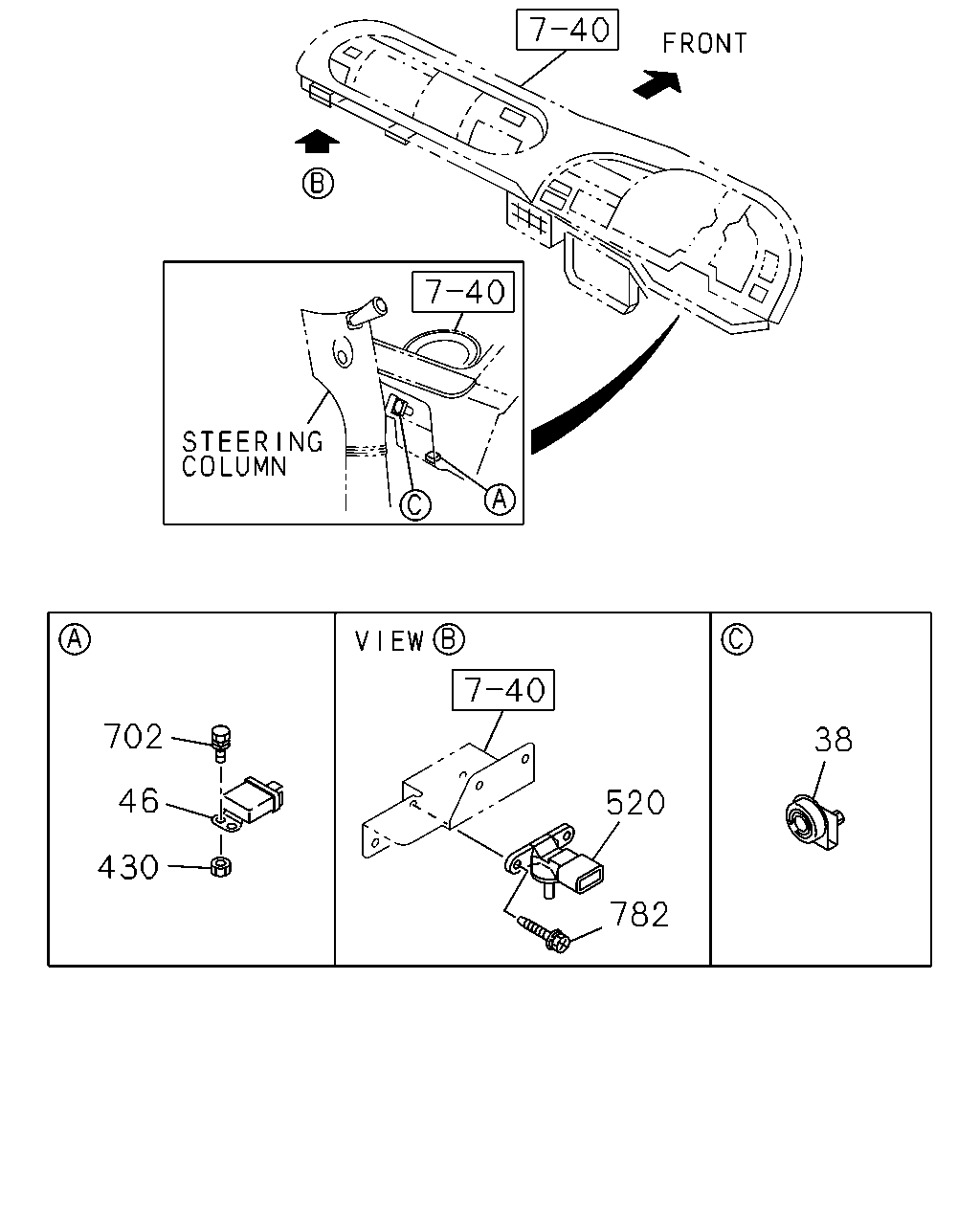

çizim 26278
702 38 46 520 430 782
BalonParca AdiParca NoAdetTipApplied Date A B C D
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 9811-9906 ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 9907-0610 ●
46 RELAY; GLOW PLUG
TAI 		8-94258-014-0 01 1 9811-9906 ●
46 RELAY; GLOW PLUG
TAI 		8-94258-014-0 01 1 9907-0610 ●
46 RELAY; GLOW PLUG
TAI 		8-94258-014-0 01 1 0611- ● ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91150-106-0 01 1 9811-9906 ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91150-106-0 01 1 9907-0602 ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91180-106-0 01 1 0603-0610 ●
430 NUT; RELAY FIX
M6 FLANGE 		0-91180-106-0 01 1 0611- ● ●
520 SENSOR; PRESSURE 8-98020-514-0 01 1 0611- ● ●
702 BOLT; RELAY
M6X19.5 W/LK&PL WASHER TAI 		8-94279-201-0 01 1 0611-0611 ● ●
782 BOLT; SENSOR
M8X20.5 W/LK&PL WASHER TAI 		8-94279-207-0 01 1 9907-0610 ●
782 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 0611- ● ●

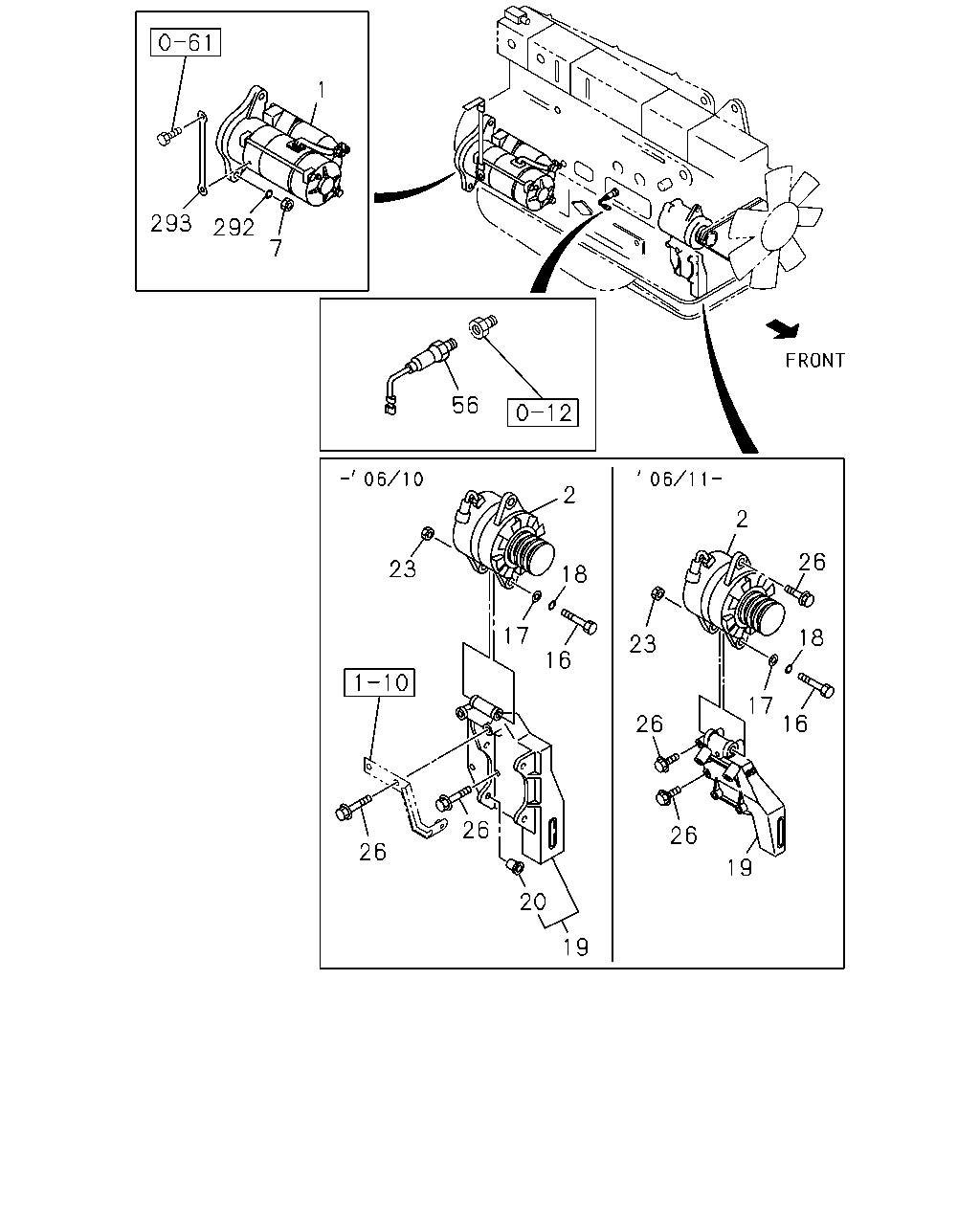

çizim 26411
1 293 292 7 56 2 2 26 23 18 17 18 23 16 17 16 26 26 26 26 19 20 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94399-159-4 01 1 9811-9906 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		1-81100-319-1 01 1 9907-0002 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI TAI 		1-81100-414-2 01 1 0003-0609 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98060-854-0 01 1 0610-0610 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98060-854-0 01 1 0611- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9811-9906 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO 		1-81200-416-4 01 1 9907-0610 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO 		8-98013-462-2 01 1 0611- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI 		1-81200-521-0 01 1 9904-9905 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI TAI 		1-81200-577-0 01 1 9906-9907 ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9811-9906 ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9907-0512 ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0601-0610 ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0611- ● ●
16 BOLT; GEN
M6X10 FLANGE 		0-28050-610-0 02 1 0611-0611 ● ●
16 BOLT; GEN
M6X10 FLANGE 		0-28050-610-0 02 1 0612- ● ●
16 BOLT; GEN
M6X10 FLANGE 		0-28050-610-0 02 1 0612- ●
16 BOLT; GEN
A/C MAN CONT(C60) M6X10 FLANGE 		0-28050-610-0 02 1 0612- ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9811-9906 ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9907-0610 ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0611- ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9811-9906 ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9907-0605 ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606-0610 ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0611- ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9811-9906 ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9907-0603 ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0604-0610 ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0611- ● ●
19 BRACKET; GEN 8-94395-470-2 01 1 9811-9906 ●
19 BRACKET; GEN 8-94395-470-3 01 1 9907-0610 ●
19 BRACKET; GEN 8-94390-589-1 01 1 0611-0704 ● ●
19 BRACKET; GEN 8-97609-149-0 01 1 0705- ● ●
20 COLLAR; BRKT,GEN 8-94201-057-1 02 1 9811-9906 ●
20 COLLAR; BRKT,GEN 8-94201-057-1 02 1 9907-0610 ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9811-9906 ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 9907-0512 ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0601-0610 ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0611- ● ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 02 1 9811-9906 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28181-040-0 02 1 9907-0512 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 02 1 0601-0610 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 02 1 0611- ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9811-9906 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9907-0512 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0601-0610 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0611- ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 9811-9906 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 9907-0610 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0611- ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9811-9906 ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9907-0603 ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 0604-0610 ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 0611- ● ●
293 CABLE; STARTER EARTH
L=360 		1-82650-230-1 01 1 9811-9906 ●
293 CABLE; STARTER EARTH
L=350 		1-82650-266-0 01 1 9907-9910 ●
293 CABLE; STARTER EARTH
FVR MIDDLE CHASSIS(FV****) L=350 		1-82650-266-0 01 1 9911-0610 ●
293 CABLE; STARTER EARTH
FRR MIDDLE CHASSIS(FR****) L=320 		1-82650-324-0 01 1 9911-0610 ●
293 CABLE; STARTER EARTH
L=320 		1-82650-324-0 01 1 0611- ● ●

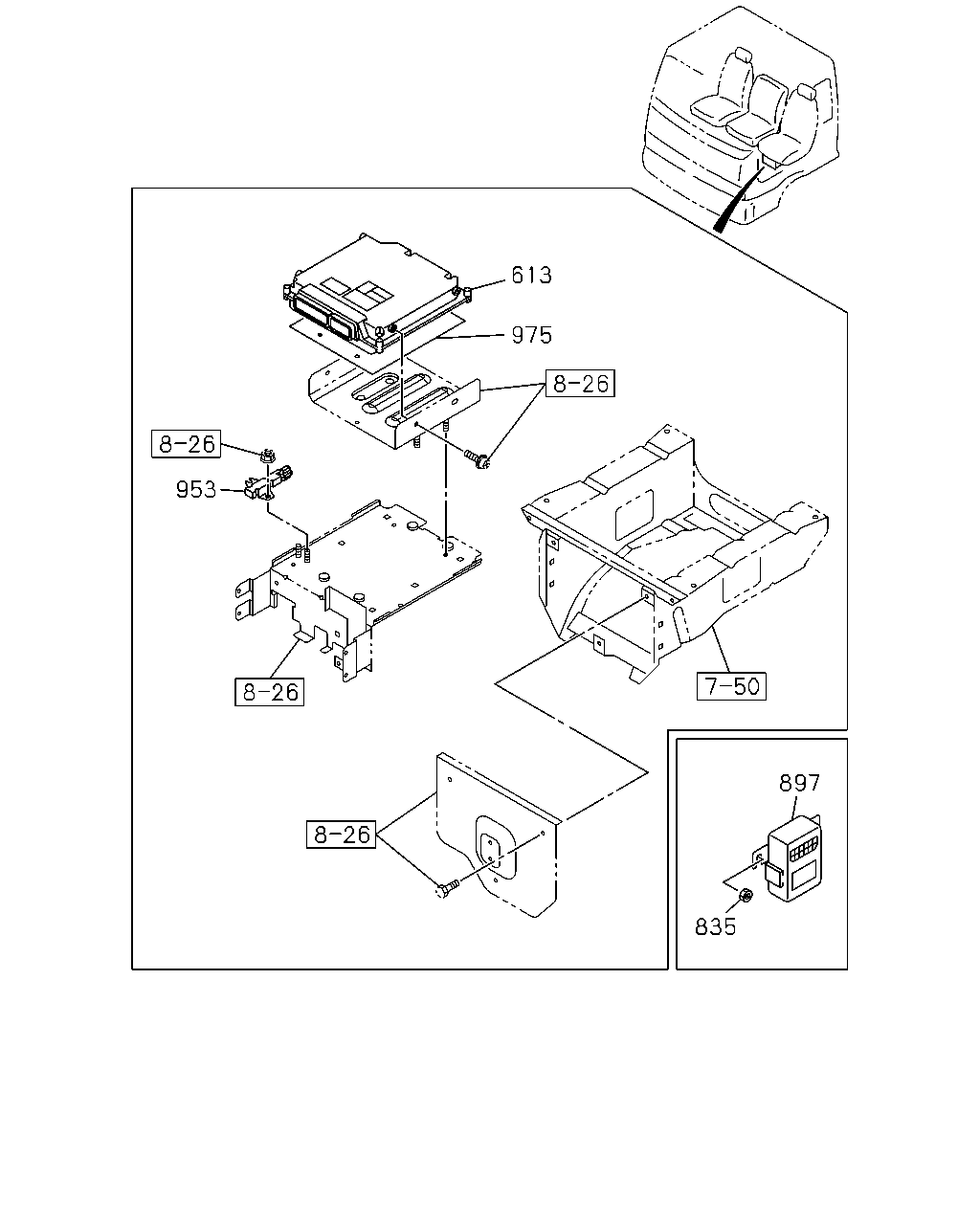

çizim 26580
613 975 953 897 835
BalonParca AdiParca NoAdetTipApplied Date A B C D
613 CONTROL UNIT; ENG 8-97616-517-2 01 1 0611-0702 ●
613 CONTROL UNIT; ENG 8-98072-058-0 01 1 0703-0706 ●
613 CONTROL UNIT; ENG 8-98088-404-2 01 1 0707- ●
613 CONTROL UNIT; ENG 8-97616-519-2 01 1 0611-0702 ●
613 CONTROL UNIT; ENG 8-98072-067-0 01 1 0703-0706 ●
613 CONTROL UNIT; ENG 8-98088-407-2 01 1 0707- ●
835 NUT; ECU
M6 FLANGE 		0-91180-106-0 02 1 0611- ● ●
897 DRM 8-98013-144-7 01 1 0611- ● ●
953 RESISTOR; CONT UNIT 8-97357-613-0 01 1 0611- ● ●
975 SHEET; DRM 8-98038-647-0 01 1 0611- ● ●

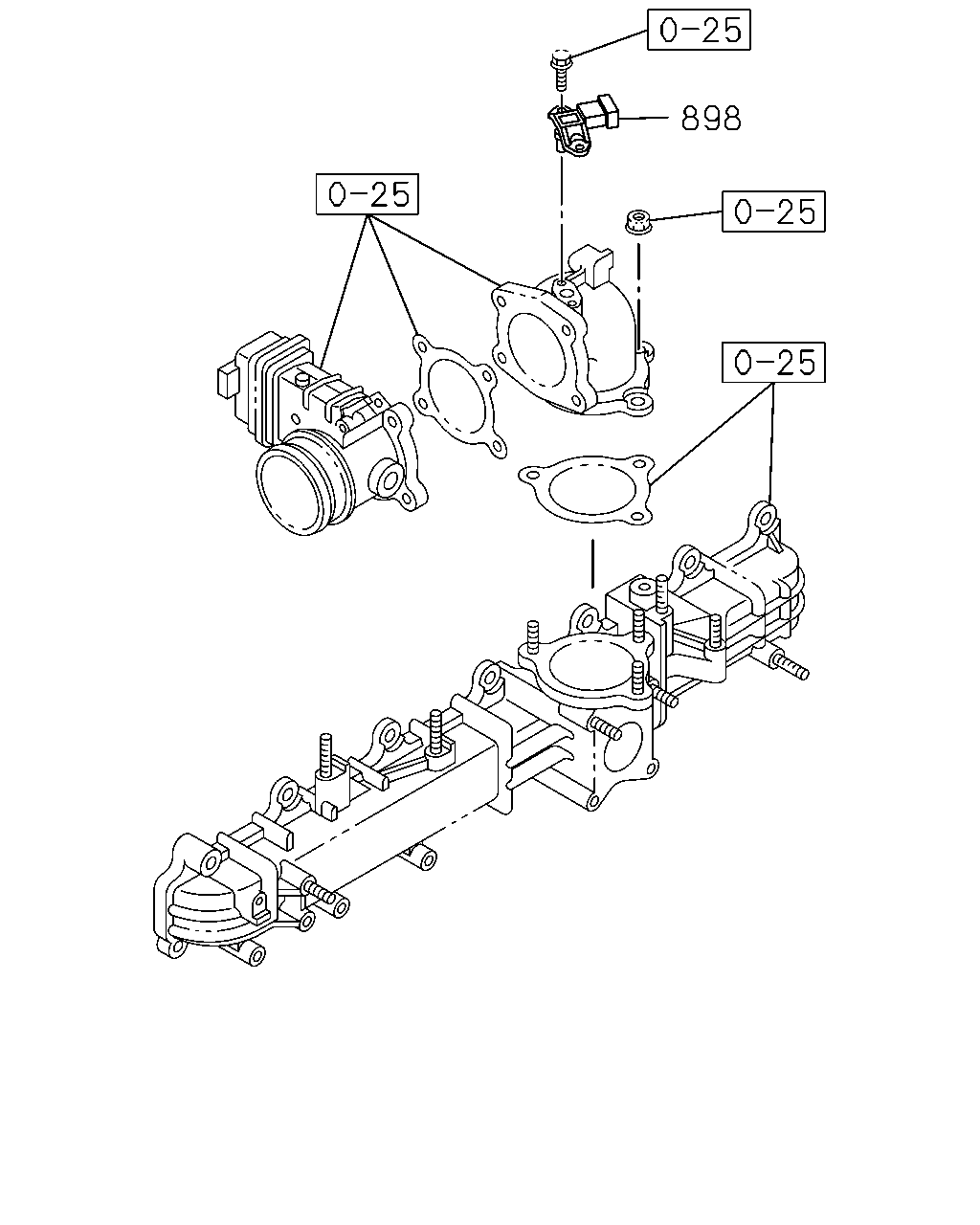

çizim 99341
898
BalonParca AdiParca NoAdetTipApplied Date A B C D
898 SENSOR; BOOST 8-98009-418-0 01 1 0611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
