Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11321 - EXZ MIDDLE EAST WITH 2STEPS
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

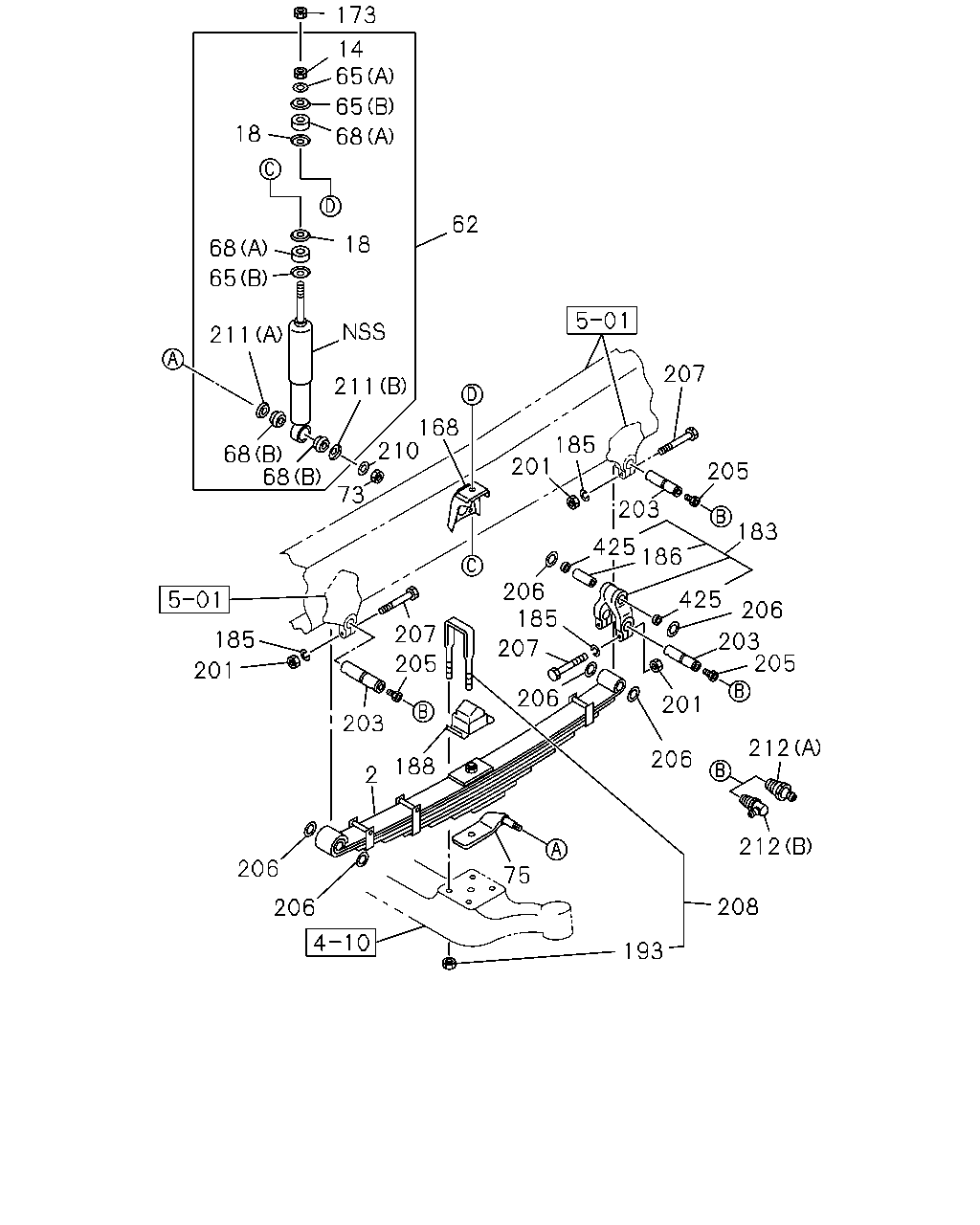

4-50 — FRONT SUSPENSION
(#56853) — 35 parça
173
14
65
65
18
68
62
18
68
65
211
207
211
168
210
185
201
68
68
205
73
203
183
425
186
206
185
425
206
207
185
203
205
207
205
201
206
201
203
212
206
188
2
212
206
75
208
206
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-97614-072-0
02
1
0811-0912
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98159-659-0
02
1
1001-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
0811-
18
WASHER; CENTERING,S/ABS
ID=24
1-51631-067-0
04
1
0811-
62
ABSORBER ASM; SHOCK,FRT
1-51630-512-0
02
1
0811-
65
WASHER; S/ABS
(A) ID=16.5
1-09503-266-0
02
1
0811-
65
WASHER; S/ABS
(B) ID=16.5
1-51631-068-0
04
1
0811-
68
BUSHING; S/ABS
(A) ID=16 T=25
1-51631-069-0
04
1
0811-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
0811-
73
NUT; BRKT,SHOCK
M20
9-99110-520-0
02
1
0811-
75
BRACKET; FRT S/ABS
1-51681-826-1
01
1
0811-
75
BRACKET; FRT S/ABS
1-51681-825-1
01
1
0811-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
0811-
173
NUT; S/ABS
M14
0-91111-514-0
02
1
0811-
183
SHACKLE; FRT SUSP
1-51162-071-0
02
1
0811-1005
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1006-
185
WASHER; LK,PIN
ID=12.2
0-91510-612-0
12
1
0811-
186
BUSHING; SHACKLE
OD=42
1-51351-044-0
02
1
0811-1005
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1006-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-096-2
02
1
0811-
193
NUT; U BOLT
M22
0-91112-822-0
08
1
0811-1206
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1207-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
0811-
203
PIN; SPR TO SHACKLE
1-51161-031-0
06
1
0811-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
0811-
206
WASHER; LK,SPRING PIN
ID=32.4
1-51169-018-0
12
1
0811-
207
BOLT; SPR TO SHACKLE
M12X80
0-10856-280-0
12
1
0811-
208
U-BOLT SET; FRT SPRING
L=250
1-87870-343-1
04
1
0811-1206
208
U-BOLT SET; FRT SPRING
L=250
1-87870-494-0
04
1
1207-
210
WASHER; S/ABS,OUTER
ID=21
9-09160-520-0
02
1
0811-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
0811-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
0811-
212
NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
0811-
212
NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW
0-90301-610-0
04
1
0811-
425
SEAL; DUST
1-51177-321-0
04
1
0811-1005
