◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11321 - EXZ MIDDLE EAST WITH 2STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#56850) — 14 parça

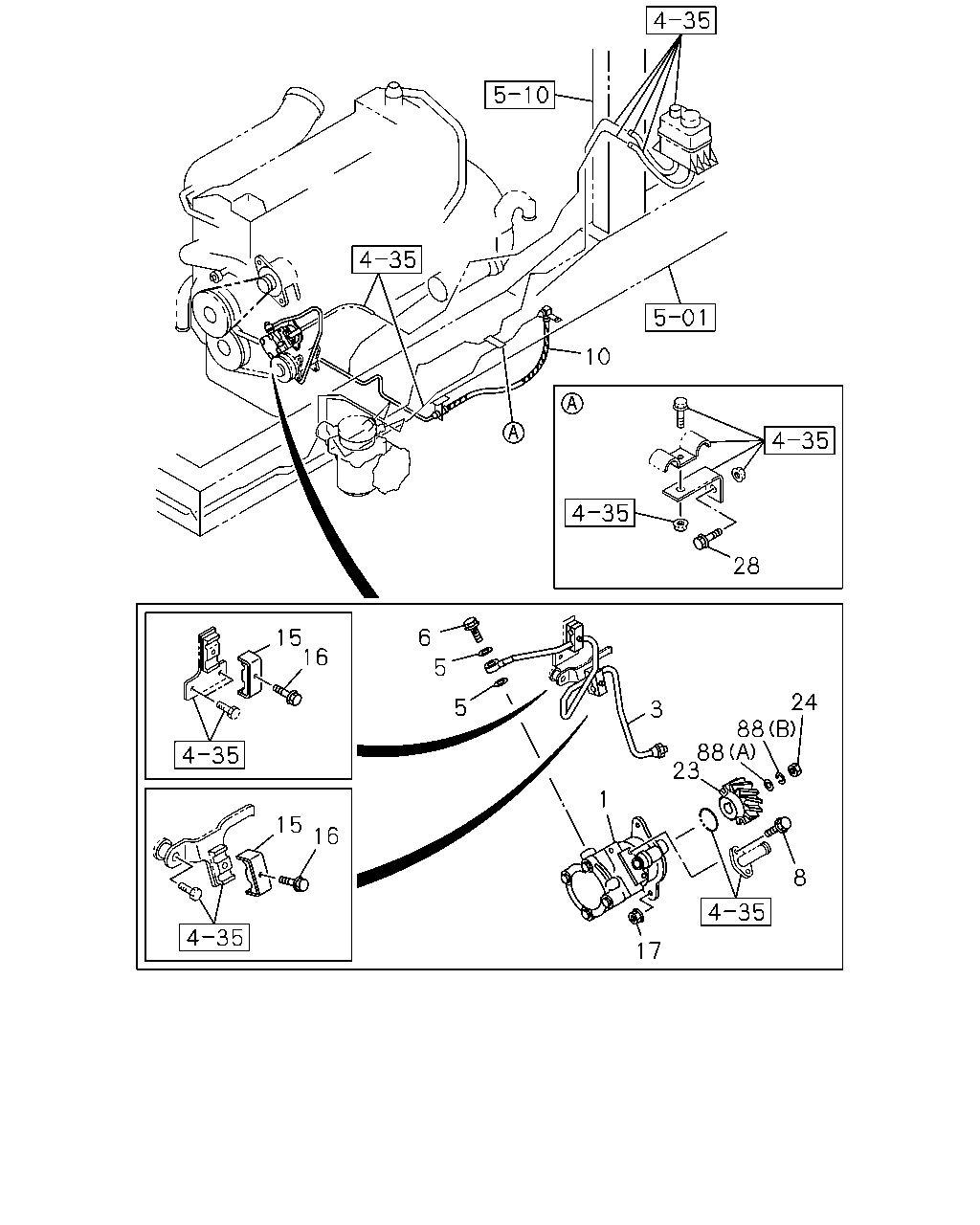

çizim 133733
10 28 15 16 6 5 24 88 88 23 5 3 1 15 16 8 17
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-561-3 01 1 0812-
3 PIPE; OIL,CHARGE,P/S 1-13313-773-1 01 1 0812-
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 02 1 0812-
6 BOLT; EYE,P/S PIPE
M18X36 		1-09675-205-0 01 1 0812-
8 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0812-
10 HOSE; FLEX,P/S OIL PUMP,INL
L=430 		1-09365-045-0 01 1 0811-
15 CLIP; OIL PIPE SUCTION 1-09701-195-3 02 1 0812-
16 BOLT; STAY,P/S OIL PUMP
M6X35 FLANGE 		0-28650-635-0 02 1 0812-
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91180-110-0 02 1 0812-
23 GEAR; OIL PUMP
Z=20 		1-19581-041-0 01 1 0812-
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0812-
28 BOLT; BRKT,FLEX HOSE,P/S
M8X30 FLANGE 		0-28650-830-0 01 1 0811-
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 0812-
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 0812-
