4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#56849) — 95 parça

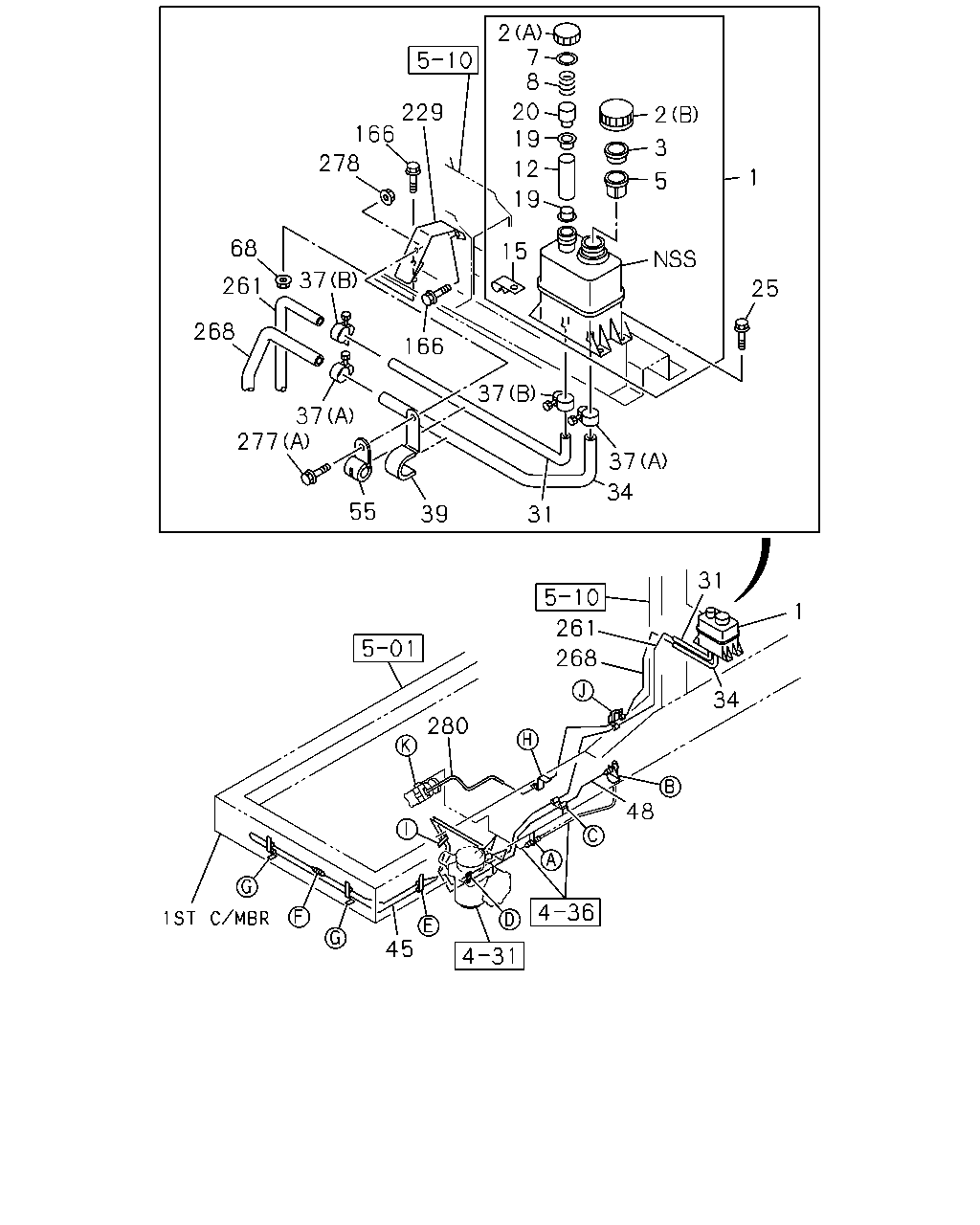

2 7 8 20 19 229 166 2 3 278 12 1 5 19 68 15 37 261 25 268 166 37 37 277 37 34 55 39 31 31 1 261 268 34 280 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0811-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0811-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0811-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0811-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0811-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0811-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0811-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0811-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0811-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0811-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0811-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0811-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0811-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0811-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0811-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	0811-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	0811-
45	PIPE; OIL,P/S UNIT TO UNION L=2442	1-21117-934-0	01	1	0811-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=1984	1-21117-933-0	01	1	0811-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0811-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0811-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0811-0811
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0811-
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	0811-
261	PIPE; OIL,UNION TO HOSE L=3000	1-21117-935-0	01	1	0811-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1276	1-21117-830-0	01	1	0811-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0811-0811
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28651-025-0	01	1	0811-
278	NUT; HOSE CLIP M10 FLANGE	0-91180-210-0	01	1	0811-
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	0811-

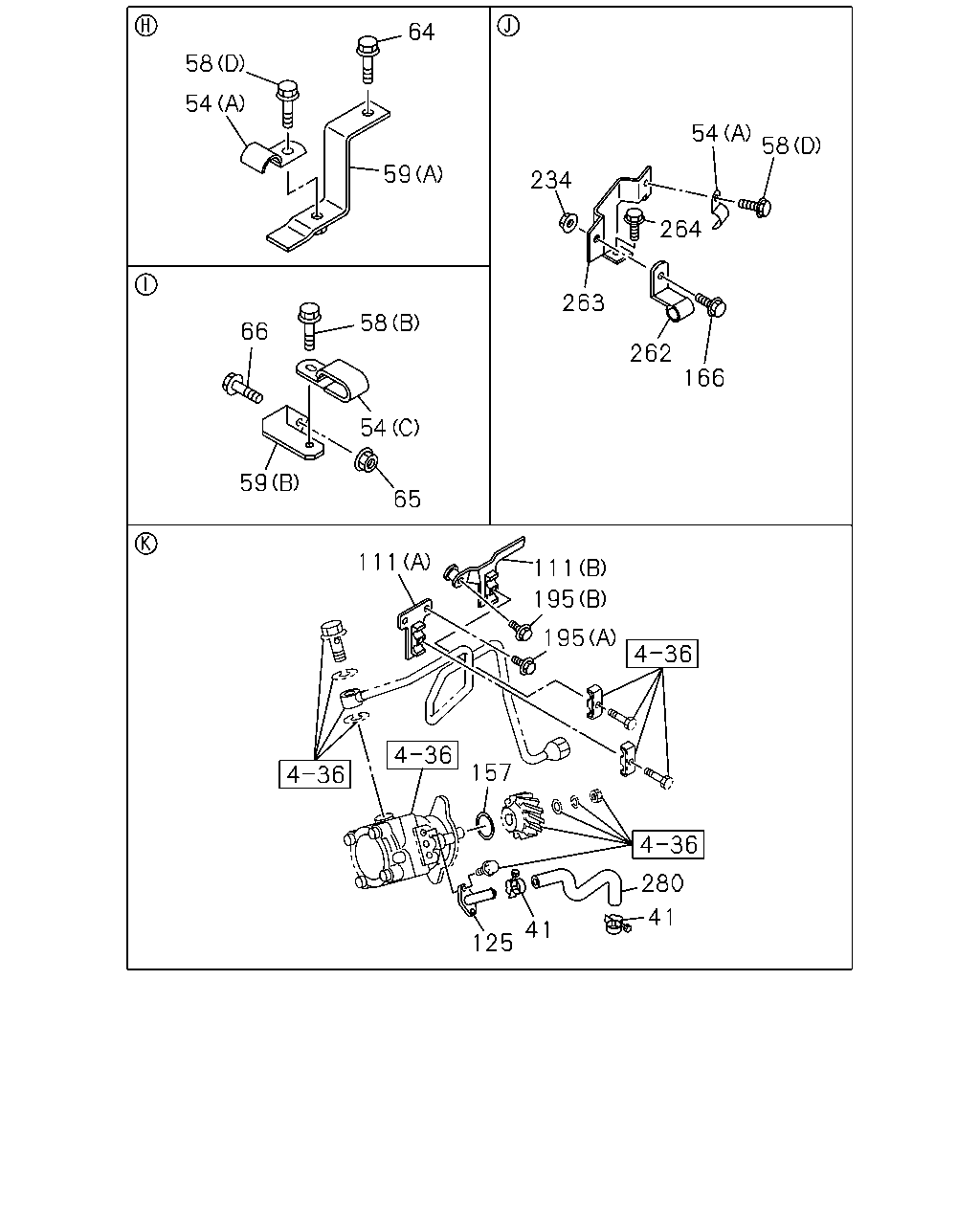

64 58 54 54 58 59 234 264 263 58 66 262 166 54 59 65 111 111 195 195 157 280 41 41 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0811-
54	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0811-0811
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-536-0	02	1	0811-0907
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-535-0	02	1	0908-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0811-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	06	1	0811-0811
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0811-0811
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0811-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0811-
58	BOLT; CLIP (C) M8X30 FLANGE	0-28650-830-0	01	1	0811-0811
58	BOLT; CLIP (D) M10X25 FLANGE	0-28651-025-0	02	1	0811-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	0811-
59	BRACKET; CLIP,OIL PIPE (B)	1-53441-537-0	01	1	0811-
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28050-830-0	01	1	0811-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0811-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0811-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0812-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0812-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0812-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0812-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0811-0811
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0811-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0811-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0812-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0812-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0811-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0811-
263	BRACKET; P/S PIPE	1-47476-483-2	01	1	0811-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0811-
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	0811-

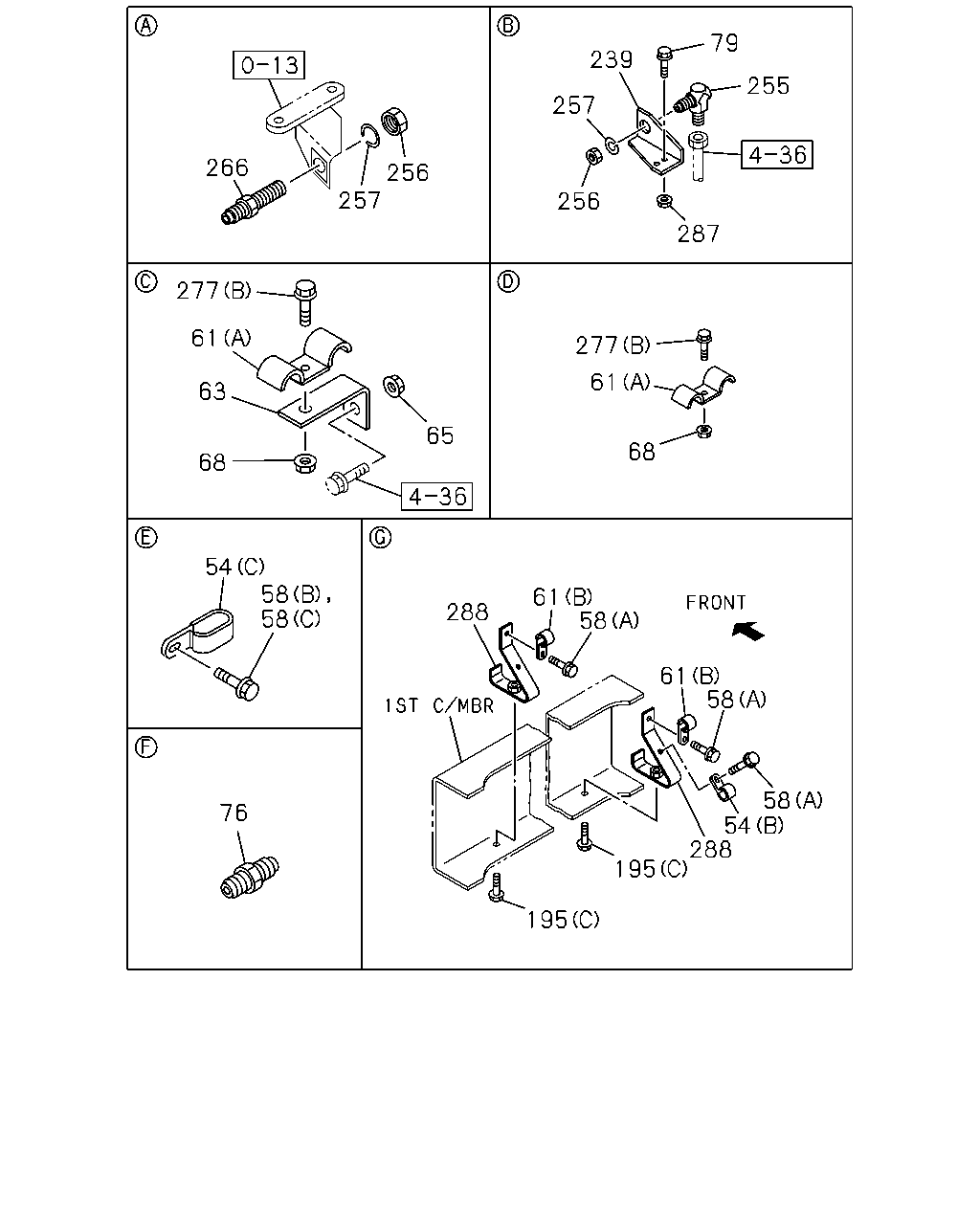

79 239 255 257 266 256 257 256 287 277 61 277 61 63 65 68 68 54 58 58 61 58 288 61 58 58 54 288 195 76 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0811-0811
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-536-0	02	1	0811-0907
54	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-535-0	02	1	0908-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0811-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	06	1	0811-0811
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0811-0811
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0811-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0811-
58	BOLT; CLIP (C) M8X30 FLANGE	0-28650-830-0	01	1	0811-0811
58	BOLT; CLIP (D) M10X25 FLANGE	0-28651-025-0	02	1	0811-
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	04	1	0811-0811
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0811-0811
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	0811-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0811-
63	BRACKET; CLIP,P/S L=115 B=25	1-47476-758-0	01	1	0811-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0811-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0811-
76	UNION; OIL PIPE M22	0-92123-015-0	01	1	0811-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0811-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0811-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0812-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0812-
239	BRACKET; FLEX HOSE	1-47479-664-0	01	1	0811-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	0811-
256	NUT; UNION M22	0-91111-522-0	01	1	0811-0811
256	NUT; UNION M22	0-91111-522-0	01	1	0812-
256	NUT; UNION M22	0-91111-522-0	01	1	0812-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0811-0811
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0812-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0812-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0812-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0811-0811
277	BOLT; HOSE CLIP (A) M10X25 FLANGE	0-28651-025-0	01	1	0811-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0811-0811
288	BRACKET; CLIP,P/S	1-47479-521-0	02	1	0811-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
