4-20 — REAR AXLE CASE AND SHAFT (#56844) — 43 parça

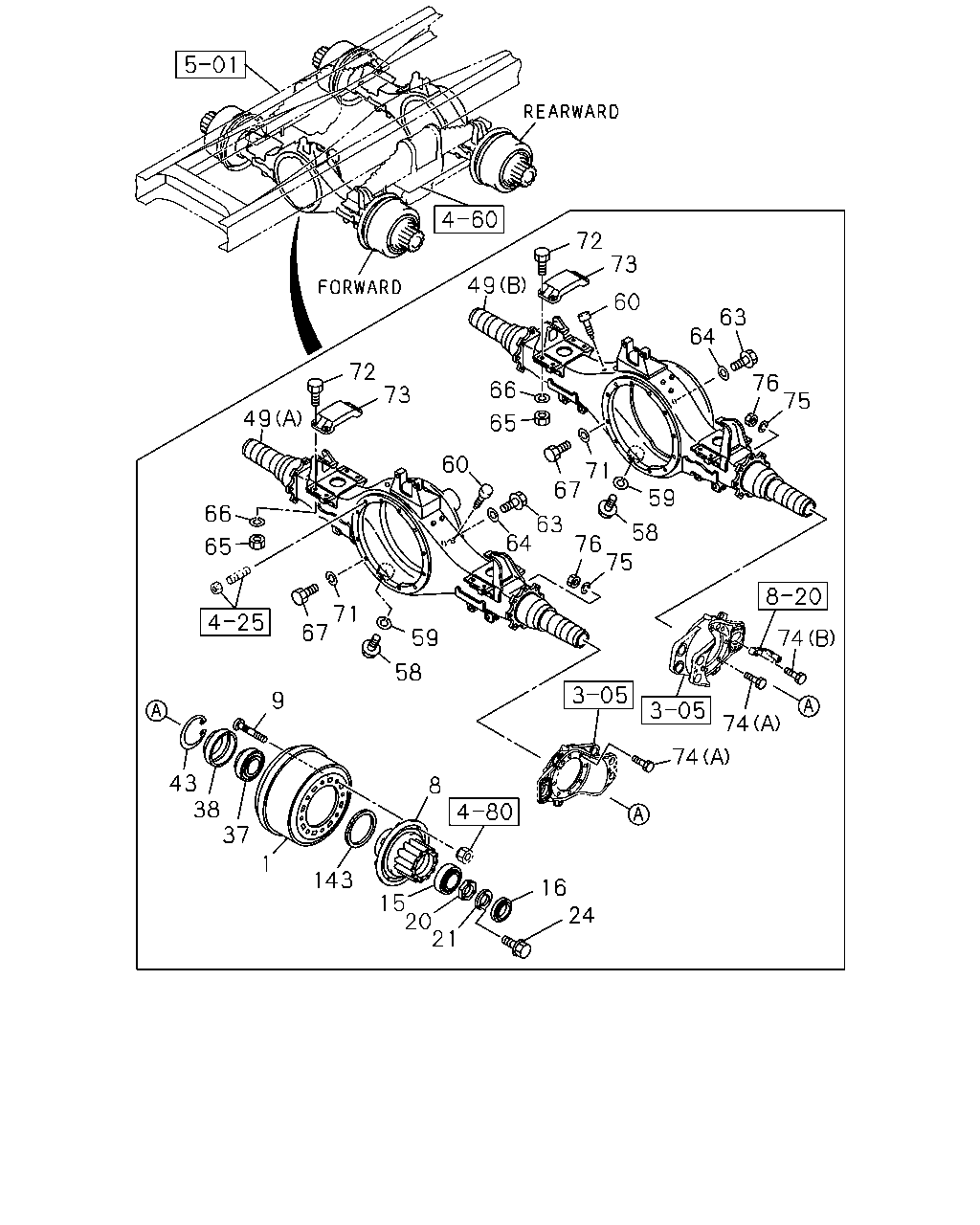

72 73 49 60 63 64 72 73 76 75 66 49 65 60 71 67 59 66 63 64 58 76 75 65 71 67 59 74 58 9 74 74 43 38 37 8 1 143 16 24 15 20 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR	1-42315-377-2	04	1	0811-
8	HUB; RR AXLE FORWARD	1-42311-085-0	02	1	0811-
8	HUB; RR AXLE REARWARD	1-42311-094-0	02	1	0811-
9	PIN; WHEEL,RR AXLE M22X93 RH THREAD	1-42337-066-2	40	1	0811-
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	04	1	0811-
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	04	1	0811-
20	NUT; BRG,RR HUB M88	9-09843-062-2	04	1	0811-
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	04	1	0811-
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	12	1	0811-
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	04	1	0811-
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	04	1	0811-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	04	1	0811-
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	04	1	0811-
49	CASE; RR AXLE (A)	1-42190-514-3	01	1	0811-
49	CASE; RR AXLE (B)	1-42190-538-2	01	1	0811-
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	02	1	0811-
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	02	1	0811-
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	0811-1412
60	BREATHER; RR AXLE CASE	1-09893-003-0	02	1	1501-
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	02	1	0811-
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	02	1	0811-
65	NUT M14	0-91110-514-0	16	1	0811-
66	WASHER; LK ID=14.2	0-91510-814-0	16	1	0811-
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	08	1	0811-
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	15	1	0811-
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	24	1	0811-
72	BOLT; PAD FIX M14X40	0-20951-440-0	16	1	0811-
73	PAD; RR SPR CONTACT	1-42124-101-0	04	1	0811-
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	28	1	0811-
74	BOLT; RR BRK ASM SETTING (B) M14X80	9-92621-480-0	04	1	0811-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	32	1	0811-
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	32	1	0811-
143	RING; EXCITER	1-42319-173-0	02	1	0811-

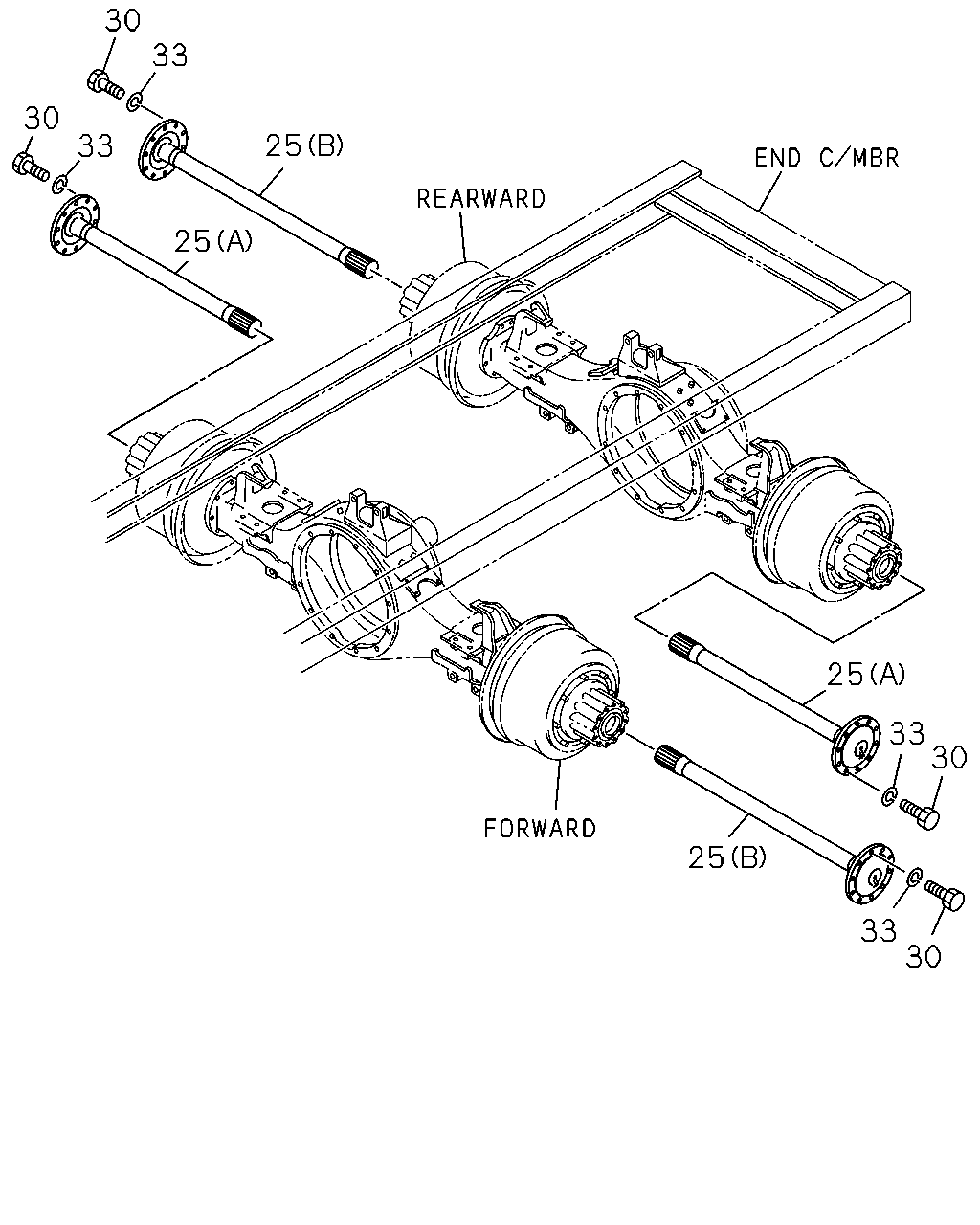

30 33 30 25 33 25 25 33 30 25 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SHAFT; AXLE,RR (A) L=976	1-42171-356-0	02	1	0811-0910
25	SHAFT; AXLE,RR (A) L=990	8-98146-166-0	02	1	0911-
25	SHAFT; AXLE,RR (B) L=1106	1-42171-357-0	02	1	0811-0910
25	SHAFT; AXLE,RR (B) L=1110	8-98146-167-0	02	1	0911-
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	40	1	0811-
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	40	1	0811-
