4-01 — PROPELLER SHAFT (#56841) — 26 parça

56 95 9 8 1 17 9 17 8 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP L=840	1-37125-313-0	01	1	0811-
8	YOKE; FLANGE,PROP SHAFT	1-37211-083-0	02	1	0811-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	0811-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-118-0	02	1	0811-
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0811-
17	NIPPLE; GREASE,PROP SHAFT (A)	1-37319-013-0	02	1	0811-
56	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	0811-
71	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	0811-
95	BOLT; YOKE,FINAL M14X50	1-09000-645-0	04	1	0811-

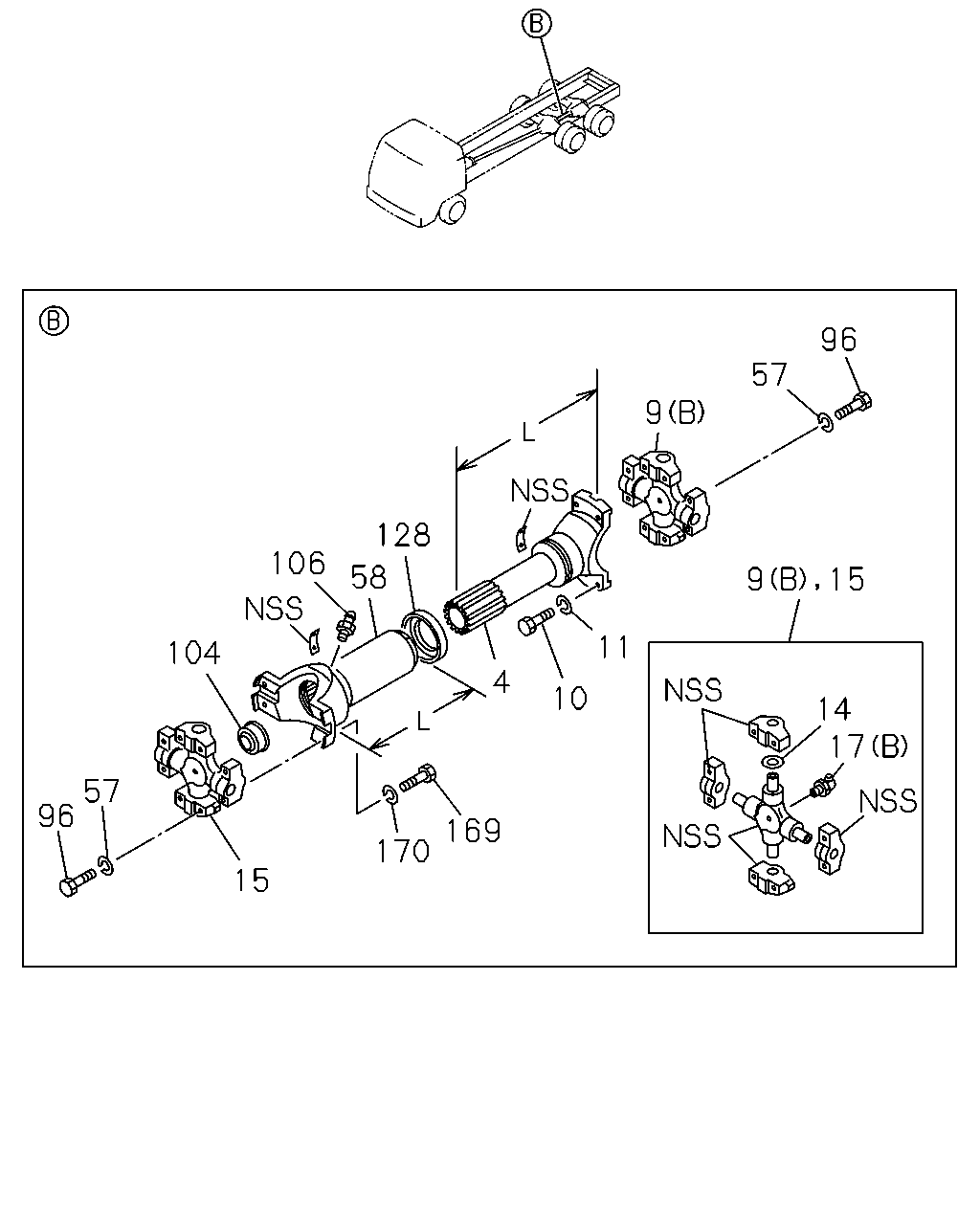

96 57 9 128 106 58 9 15 11 104 4 10 14 17 57 96 169 170 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	SHAFT; PROP L=348	1-37171-127-2	01	1	0811-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	0811-
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-118-0	02	1	0811-
10	BOLT; UJT M12X45	8-98036-382-0	04	1	0811-
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	0-91510-612-0	04	1	0811-
14	COVER; DUST,SPIDER	1-37319-004-0	08	1	0811-
15	UNIVERSAL CENTER	1-37300-100-1	01	1	0811-
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0811-
17	NIPPLE; GREASE,PROP SHAFT (A)	1-37319-013-0	02	1	0811-
57	WASHER; LK,YOKE ID=12.2	0-91510-612-0	08	1	0811-
58	FLANGE; SPLINED L=265	1-37245-317-0	01	1	0811-
96	BOLT; PROP SHAFT M12X45	8-98036-382-0	08	1	0811-
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	0811-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	0811-
128	SEAL; SLEEVE	8-97603-618-0	01	1	0811-
169	BOLT; YOKE,SLEEVE M12X45	8-98036-382-0	04	1	0811-
170	WASHER; LK,YOKE,SLEEVE ID=12.2	0-91510-612-0	04	1	0811-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
