Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#5684) — 217 parça

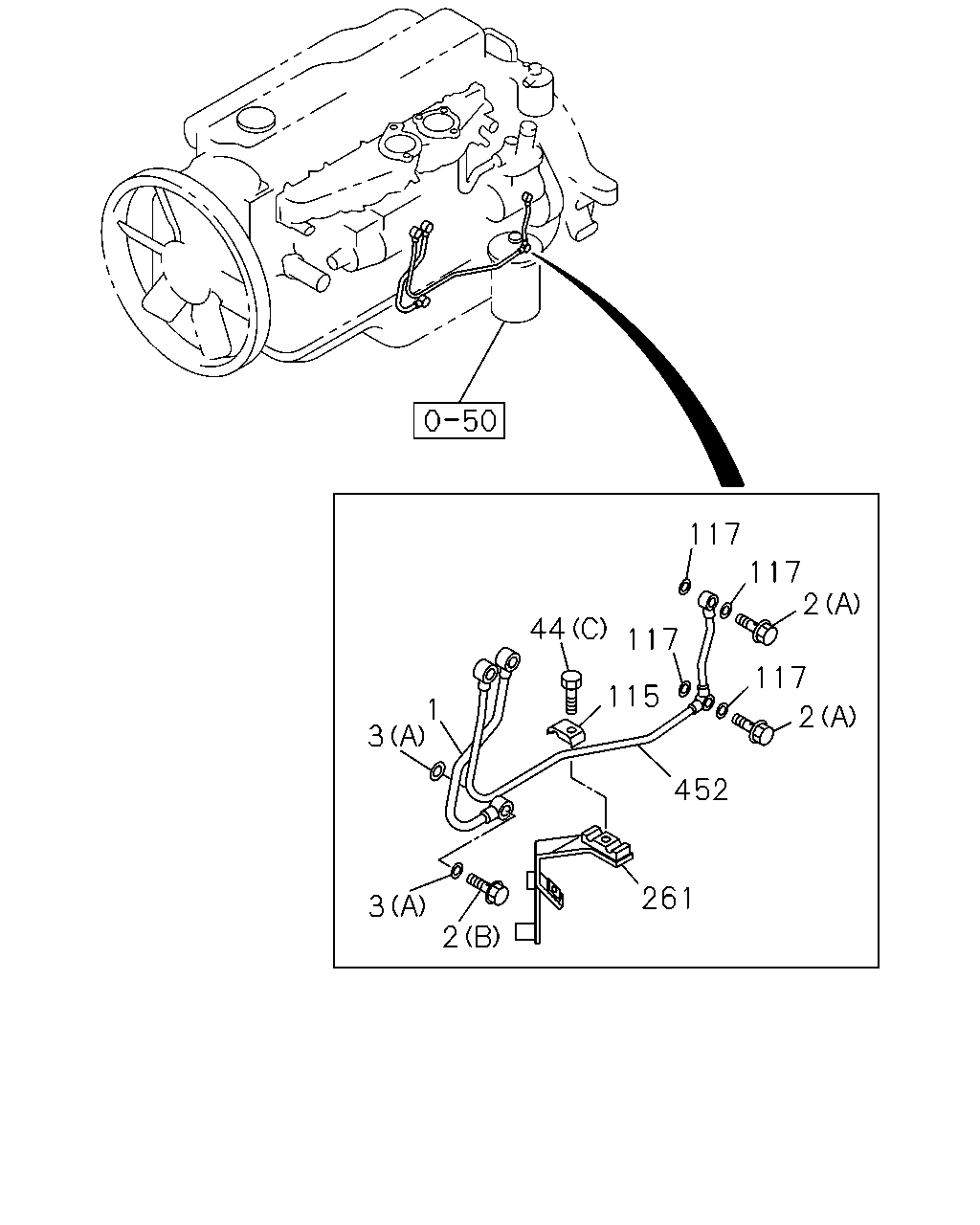

117 117 2 44 117 117 115 1 2 3 452 261 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9811-9906	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	9907-0610		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9811-9906	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9907-0610		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0611-			●	●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9811-9906	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9907-0610		●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0611-			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9811-9906	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9907-0610		●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	0611-			●	●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9811-9906	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	06	1	9811-9906	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9907-0610		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	0611-			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.8	1-09623-274-0	01	1	9907-0610		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	9907-0610		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	0611-			●	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9811-9906	●
44	BOLT; CLIP,OIL PIPE (A) M8X15	1-09000-114-0	01	1	9907-0206		●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9811-9812	●
44	BOLT; CLIP,OIL PIPE (B) M6X35 FLANGE	0-28680-635-0	02	1	9901-9906	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	9811-9812	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9901-9906	●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9907-0206		●
44	BOLT; CLIP,OIL PIPE (B) M6X35 FLANGE	0-28680-635-0	01	1	0207-0512		●
44	BOLT; CLIP,OIL PIPE (B) M6X35 FLANGE	0-28650-635-0	01	1	0601-0610		●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	9811-9906	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9811-9906	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9907-0610		●
261	BRACKET; CLIP,OIL PIPE	8-94394-410-3	01	1	9811-9906	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-94390-073-0	01	1	9811-9906	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-94391-113-0	01	1	9907-9907		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-570-0	01	1	9907-0610		●

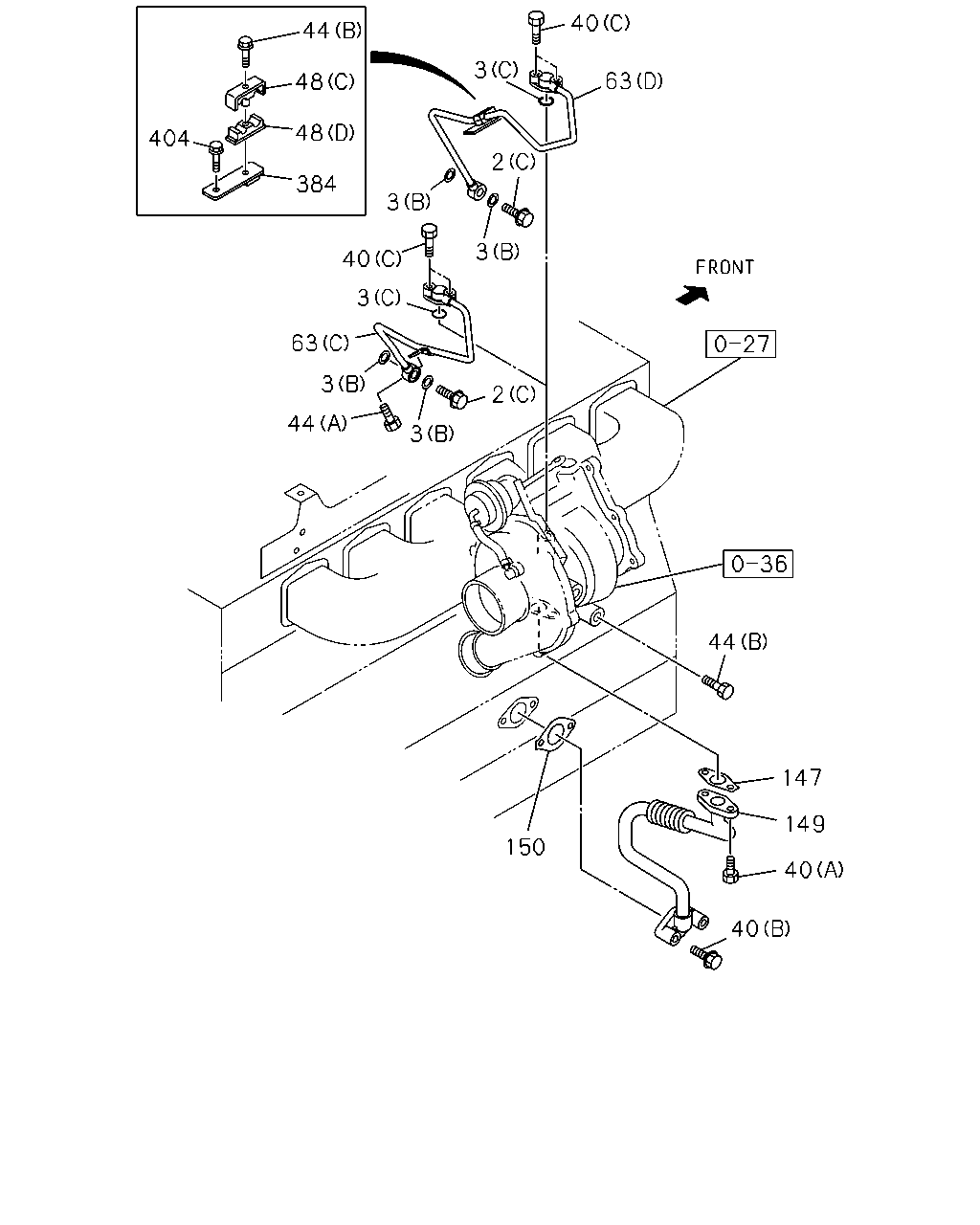

63 44 2 3 3 48 44 404 384 63 48 3 44 3 2 147 149 40 150 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9811-9906	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9907-0610		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0611-			●	●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9811-9906	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9907-0610		●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0611-			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9811-9906	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9907-0610		●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	0611-			●	●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9811-9906	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	06	1	9811-9906	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9907-0610		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	0611-			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.8	1-09623-274-0	01	1	9907-0610		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	9907-0610		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	0611-			●	●
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28080-840-0	02	1	9811-9906	●
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28080-840-0	02	1	9907-0512		●
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-0610		●
40	BOLT; OIL PIPE (C) M8X30 FLANGE	0-28650-830-0	02	1	0611-			●	●
40	BOLT; OIL PIPE (A) M10X22 FLANGE	0-28181-022-0	02	1	9811-9906	●
40	BOLT; OIL PIPE (C) M8X30 FLANGE	0-28080-830-0	02	1	9907-0512		●
40	BOLT; OIL PIPE (C) M8X30 FLANGE	0-28050-830-0	02	1	0601-0610		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	9907-0512		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0610		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0611-			●	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9811-9906	●
44	BOLT; CLIP,OIL PIPE (A) M8X15	1-09000-114-0	01	1	9907-0206		●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9811-9812	●
44	BOLT; CLIP,OIL PIPE (B) M6X35 FLANGE	0-28680-635-0	02	1	9901-9906	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	9811-9812	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9901-9906	●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9907-0206		●
44	BOLT; CLIP,OIL PIPE (B) M6X35 FLANGE	0-28680-635-0	01	1	0207-0512		●
44	BOLT; CLIP,OIL PIPE (B) M6X35 FLANGE	0-28650-635-0	01	1	0601-0610		●
48	CLIP; OIL PIPE (A)	1-09701-265-0	01	1	9901-9906	●
48	CLIP; OIL PIPE (B)	8-94396-860-0	01	1	9901-9906	●
48	CLIP; OIL PIPE (C)	1-09701-228-2	01	1	0207-0610		●
48	CLIP; OIL PIPE (D)	1-09701-229-1	01	1	0207-0610		●
63	PIPE; OIL,TURBOCHARGER FEED (B)	8-94301-581-0	01	1	9811-9812	●
63	PIPE; OIL,TURBOCHARGER FEED (B)	8-97600-198-0	01	1	9901-9906	●
63	PIPE; OIL,TURBOCHARGER FEED (A)	8-94395-102-0	01	1	9811-9906	●
63	PIPE; OIL,TURBOCHARGER FEED (C)	8-94390-642-1	01	1	9907-0206		●
63	PIPE; OIL,TURBOCHARGER FEED (D)	8-97602-629-0	01	1	0207-0610		●
63	PIPE; OIL,TURBOCHARGER FEED (E)	8-97606-204-0	01	1	0611-			●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-1	01	1	9811-9906	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	9907-0610		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0611-			●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94395-380-0	01	1	9811-9906	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-643-1	01	1	9907-0610		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-3	01	1	0611-			●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9811-9906	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9907-0610		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0611-			●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	8-97600-199-0	01	1	9901-9906	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	1-13319-041-0	01	1	0207-0610		●
404	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9901-9906	●
404	BOLT; BRKT M8X15	1-09000-114-0	01	1	0207-0610		●

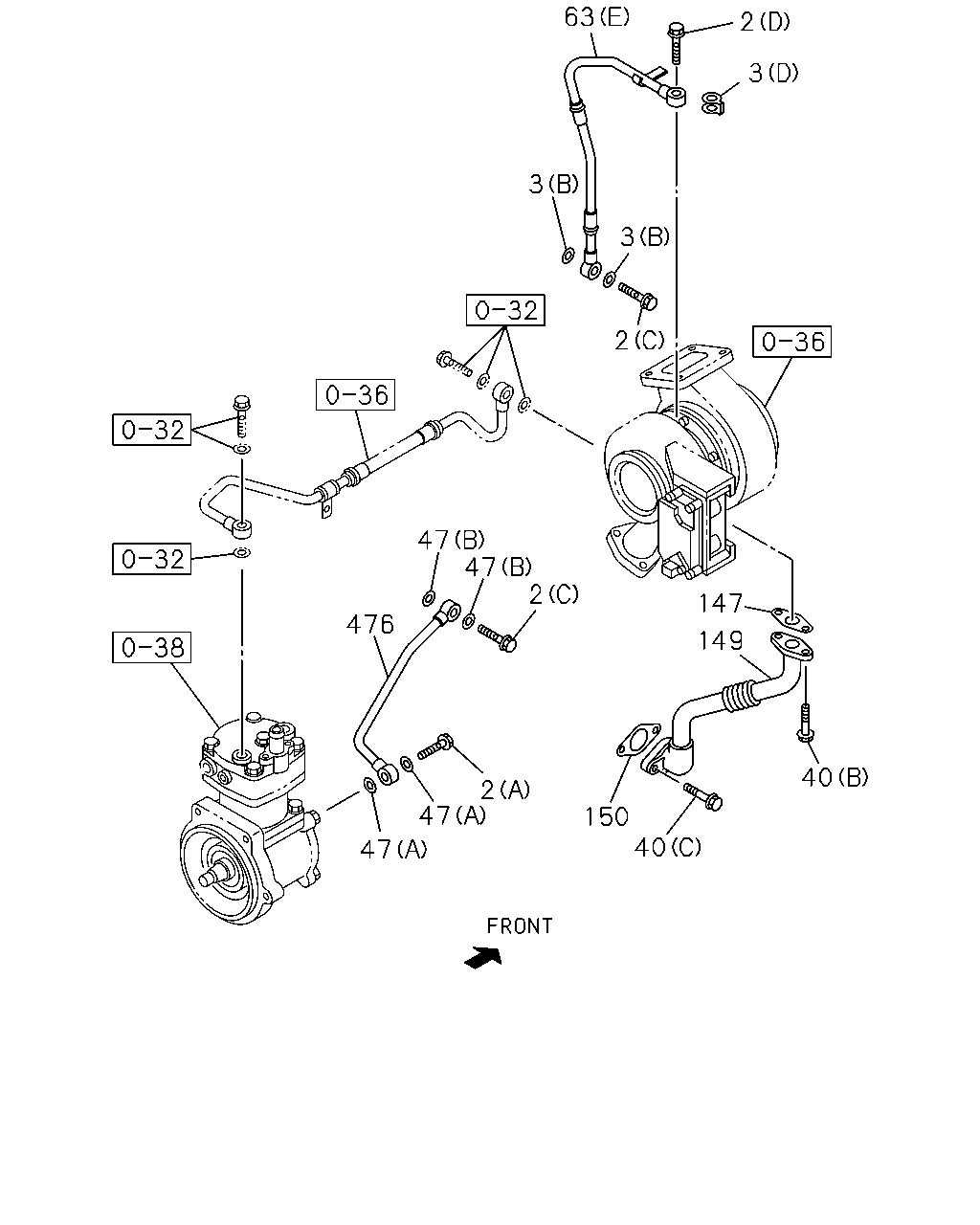

63 2 3 3 3 2 47 47 2 147 476 149 40 2 47 150 40 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9811-9906	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9907-0610		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0611-			●	●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9811-9906	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9907-0610		●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0611-			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9811-9906	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9907-0610		●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	0611-			●	●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9811-9906	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	06	1	9811-9906	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9907-0610		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	0611-			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.8	1-09623-274-0	01	1	9907-0610		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	9907-0610		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	0611-			●	●
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28080-840-0	02	1	9811-9906	●
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28080-840-0	02	1	9907-0512		●
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-0610		●
40	BOLT; OIL PIPE (C) M8X30 FLANGE	0-28650-830-0	02	1	0611-			●	●
40	BOLT; OIL PIPE (A) M10X22 FLANGE	0-28181-022-0	02	1	9811-9906	●
40	BOLT; OIL PIPE (C) M8X30 FLANGE	0-28080-830-0	02	1	9907-0512		●
40	BOLT; OIL PIPE (C) M8X30 FLANGE	0-28050-830-0	02	1	0601-0610		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	9907-0512		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0610		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0611-			●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0611-			●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	0611-			●	●
63	PIPE; OIL,TURBOCHARGER FEED (B)	8-94301-581-0	01	1	9811-9812	●
63	PIPE; OIL,TURBOCHARGER FEED (B)	8-97600-198-0	01	1	9901-9906	●
63	PIPE; OIL,TURBOCHARGER FEED (A)	8-94395-102-0	01	1	9811-9906	●
63	PIPE; OIL,TURBOCHARGER FEED (C)	8-94390-642-1	01	1	9907-0206		●
63	PIPE; OIL,TURBOCHARGER FEED (D)	8-97602-629-0	01	1	0207-0610		●
63	PIPE; OIL,TURBOCHARGER FEED (E)	8-97606-204-0	01	1	0611-			●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-1	01	1	9811-9906	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	9907-0610		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0611-			●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94395-380-0	01	1	9811-9906	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-643-1	01	1	9907-0610		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-3	01	1	0611-			●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9811-9906	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9907-0610		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0611-			●	●
476	PIPE; OIL,C/BL TO AIR CMPR	8-97608-935-0	01	1	0611-			●	●

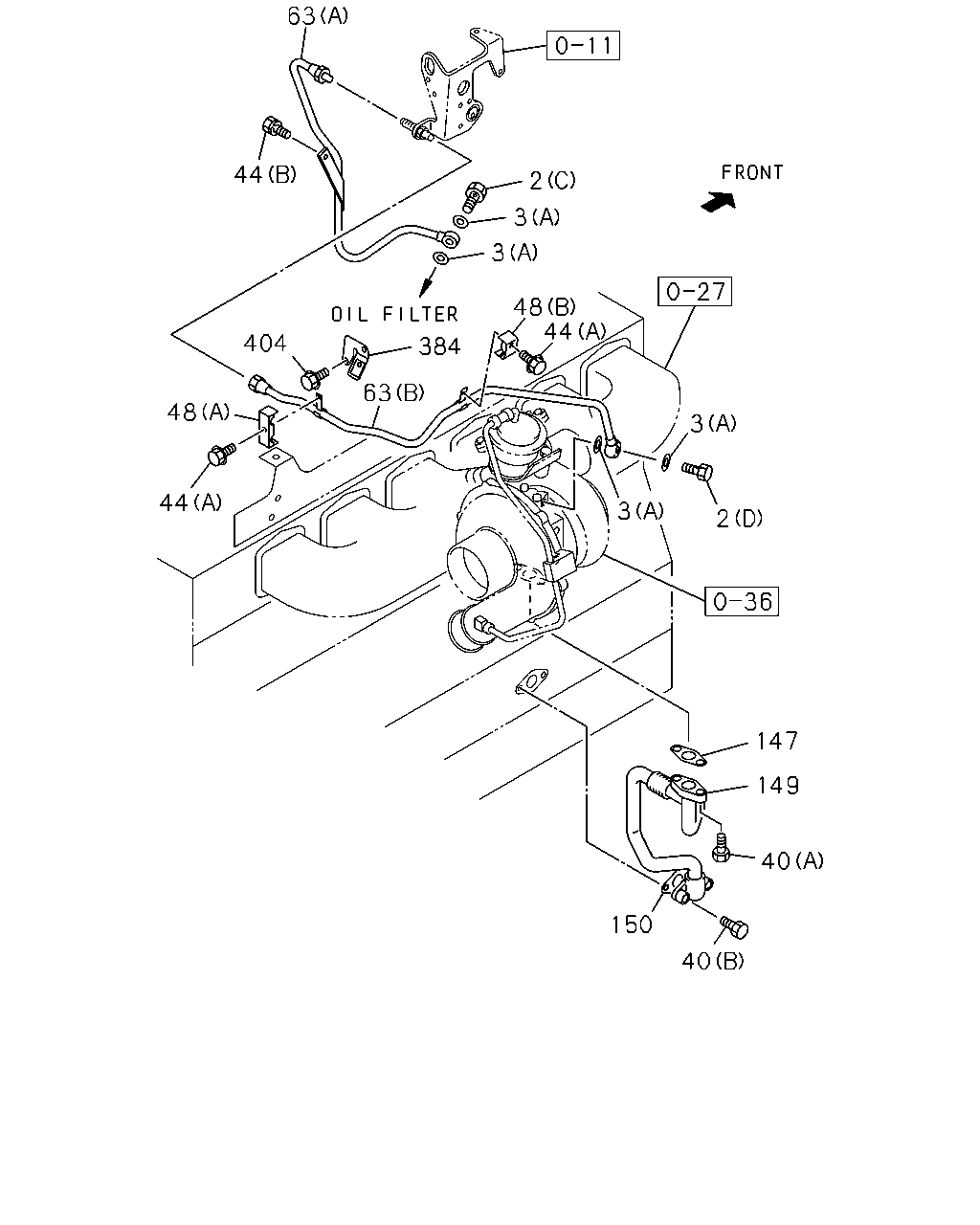

40 44 3 63 48 48 404 2 384 3 3 40 3 63 3 2 44 3 44 147 149 150 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9811-9906	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9907-0610		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0611-			●	●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9811-9906	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9907-0610		●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0611-			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9811-9906	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9907-0610		●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	0611-			●	●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9811-9906	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	06	1	9811-9906	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9907-0610		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	0611-			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.8	1-09623-274-0	01	1	9907-0610		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	9907-0610		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	0611-			●	●
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28080-840-0	02	1	9811-9906	●
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28080-840-0	02	1	9907-0512		●
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-0610		●
40	BOLT; OIL PIPE (C) M8X30 FLANGE	0-28650-830-0	02	1	0611-			●	●
40	BOLT; OIL PIPE (A) M10X22 FLANGE	0-28181-022-0	02	1	9811-9906	●
40	BOLT; OIL PIPE (C) M8X30 FLANGE	0-28080-830-0	02	1	9907-0512		●
40	BOLT; OIL PIPE (C) M8X30 FLANGE	0-28050-830-0	02	1	0601-0610		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	9907-0512		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0610		●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0611-			●	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9811-9906	●
44	BOLT; CLIP,OIL PIPE (A) M8X15	1-09000-114-0	01	1	9907-0206		●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9811-9812	●
44	BOLT; CLIP,OIL PIPE (B) M6X35 FLANGE	0-28680-635-0	02	1	9901-9906	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	9811-9812	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9901-9906	●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9907-0206		●
44	BOLT; CLIP,OIL PIPE (B) M6X35 FLANGE	0-28680-635-0	01	1	0207-0512		●
44	BOLT; CLIP,OIL PIPE (B) M6X35 FLANGE	0-28650-635-0	01	1	0601-0610		●
48	CLIP; OIL PIPE (A)	1-09701-265-0	01	1	9901-9906	●
48	CLIP; OIL PIPE (B)	8-94396-860-0	01	1	9901-9906	●
48	CLIP; OIL PIPE (C)	1-09701-228-2	01	1	0207-0610		●
48	CLIP; OIL PIPE (D)	1-09701-229-1	01	1	0207-0610		●
63	PIPE; OIL,TURBOCHARGER FEED (B)	8-94301-581-0	01	1	9811-9812	●
63	PIPE; OIL,TURBOCHARGER FEED (B)	8-97600-198-0	01	1	9901-9906	●
63	PIPE; OIL,TURBOCHARGER FEED (A)	8-94395-102-0	01	1	9811-9906	●
63	PIPE; OIL,TURBOCHARGER FEED (C)	8-94390-642-1	01	1	9907-0206		●
63	PIPE; OIL,TURBOCHARGER FEED (D)	8-97602-629-0	01	1	0207-0610		●
63	PIPE; OIL,TURBOCHARGER FEED (E)	8-97606-204-0	01	1	0611-			●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-1	01	1	9811-9906	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	9907-0610		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0611-			●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94395-380-0	01	1	9811-9906	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-643-1	01	1	9907-0610		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-3	01	1	0611-			●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9811-9906	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9907-0610		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0611-			●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	8-97600-199-0	01	1	9901-9906	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	1-13319-041-0	01	1	0207-0610		●
404	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9901-9906	●
404	BOLT; BRKT M8X15	1-09000-114-0	01	1	0207-0610		●

117 117 2 117 1 2 117 452 3 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9811-9906	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	9907-0610		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9811-9906	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9907-0610		●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0611-			●	●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9811-9906	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9907-0610		●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0611-			●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9811-9906	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9907-0610		●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	0611-			●	●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9811-9906	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	06	1	9811-9906	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9907-0610		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	0611-			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.8	1-09623-274-0	01	1	9907-0610		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	9907-0610		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	0611-			●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9811-9906	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9907-0610		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-94390-073-0	01	1	9811-9906	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-94391-113-0	01	1	9907-9907		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-570-0	01	1	9907-0610		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
