3-70 — BRAKE PIPING; AIR,AIR MASTER (#56835) — 160 parça

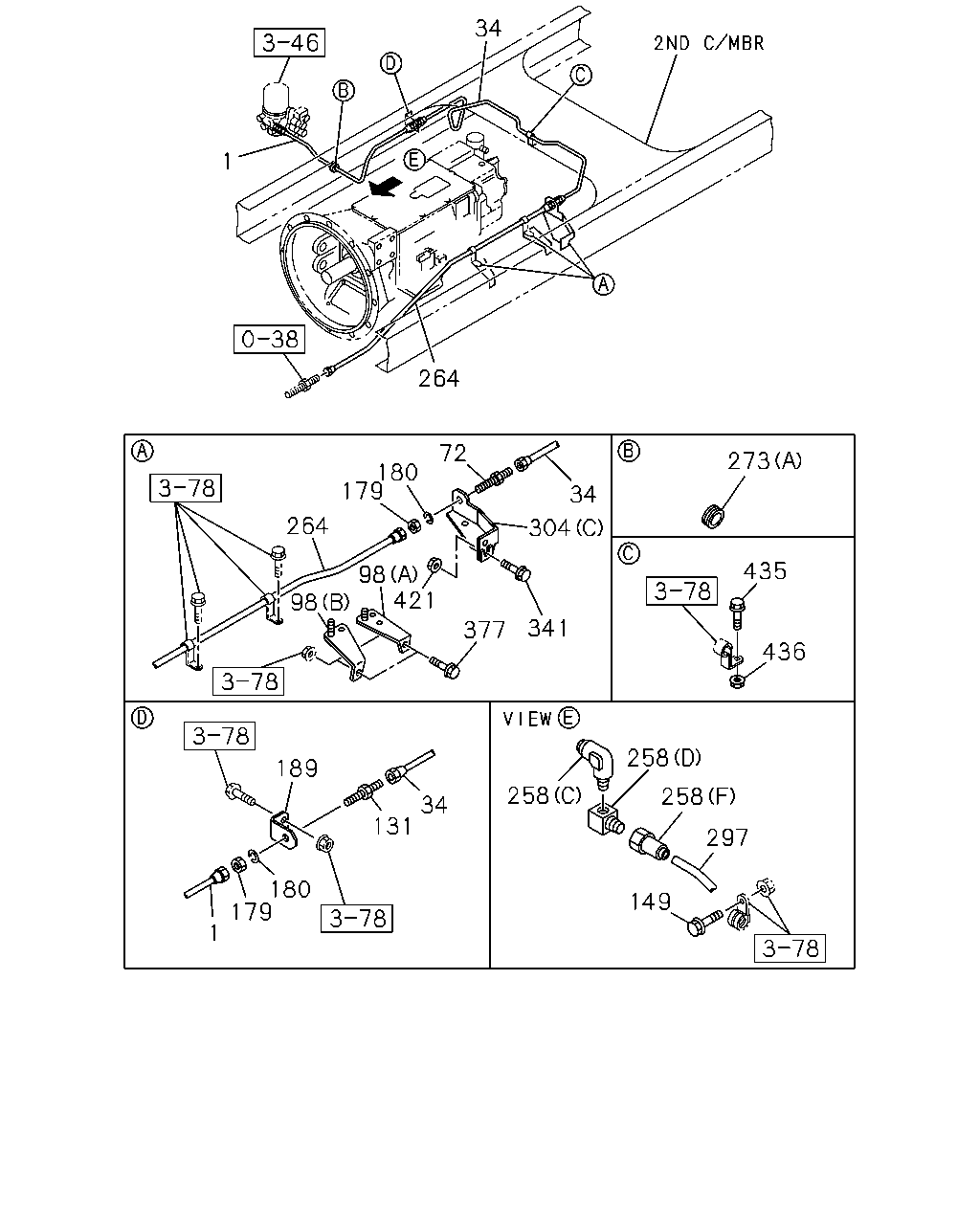

çizim 133694
34 1 264 72 273 180 179 34 264 304 435 98 98 421 341 377 436 258 189 258 258 34 131 297 180 179 149 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1350 		1-09363-925-0 01 1 0811-
34 PIPE; AIR
L=1114 		1-49124-668-0 01 1 0811-
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 0811-
98 BRACKET; AIR PIPE
(B) 		1-47479-639-0 01 1 0811-
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 0811-
131 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 0811-
149 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0811-
179 NUT; UNION
M22 		0-91111-522-0 02 1 0811-
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0811-
189 BRACKET; FLEX HOSE 1-47479-473-0 01 1 0811-
258 CONNECTOR; NYLON TUBE
(F) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0811-
258 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0811-
258 CONNECTOR; NYLON TUBE
(G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0811-
258 CONNECTOR; NYLON TUBE
(D) 		1-09661-303-0 01 1 0811-
258 CONNECTOR; NYLON TUBE
(E) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0811-
258 CONNECTOR; NYLON TUBE
(A) PT3/8 4WAY 		1-09661-489-0 01 1 0811-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0811-
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 0811-
273 GROMMET
(B) 		1-09332-102-0 01 1 0811-
273 GROMMET
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0811-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0811-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0811-
304 BRACKET; UNION
(C) 		1-47471-262-0 01 1 0811-
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 0811-
304 BRACKET; UNION
(B) 		1-71117-210-0 01 1 0811-
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0811-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0811-
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0811-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0811-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0811-

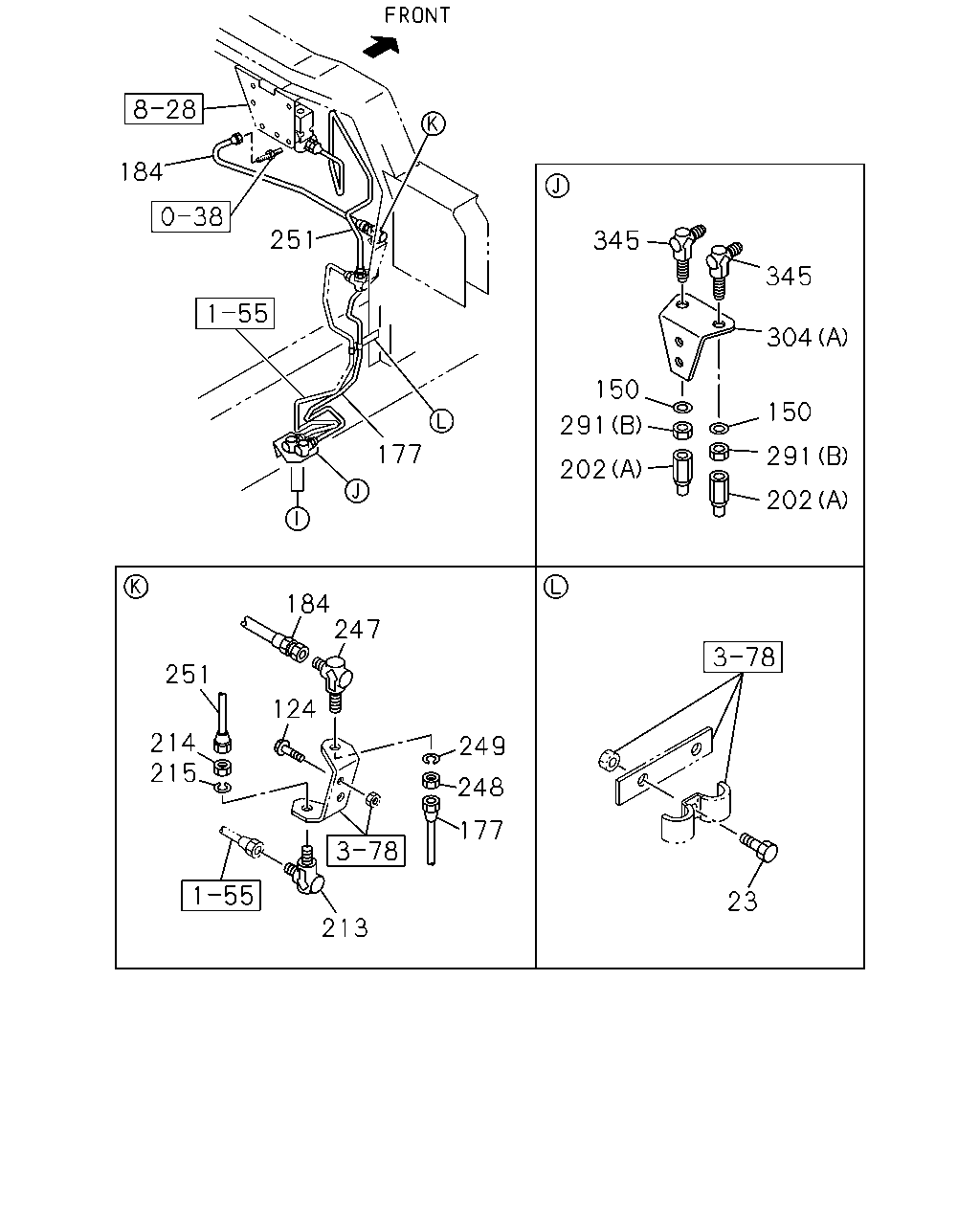

çizim 133695
184 251 345 345 304 150 150 291 177 291 202 202 184 247 251 124 214 215 249 248 177 23 213
BalonParca AdiParca NoAdetTipApplied Date
23 BOLT; BRKT,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0811-
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0811-
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0811-
177 PIPE; AIR,UNION TO UNION
L=807 SERVICED BY L=900 		1-47428-813-0 01 1 0811-
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0811-
202 ADAPTER
(B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0811-
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0811-
213 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0811-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0811-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0811-
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0811-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0811-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0811-
251 PIPE; AIR,UNION TO MAG VLV 1-49121-779-0 01 1 0811-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0811-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0811-
304 BRACKET; UNION
(C) 		1-47471-262-0 01 1 0811-
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 0811-
304 BRACKET; UNION
(B) 		1-71117-210-0 01 1 0811-
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0811-

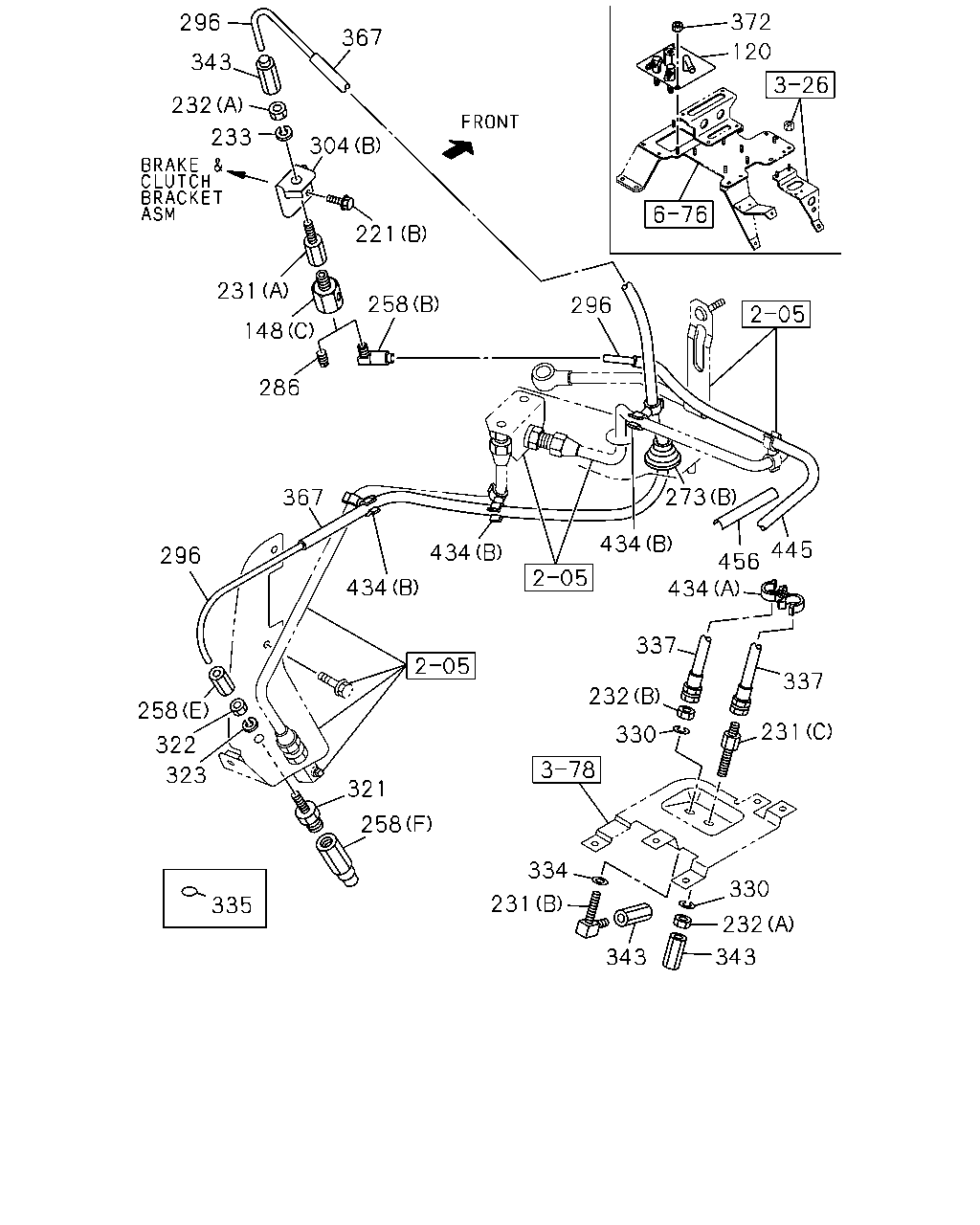

çizim 133699
372 296 367 120 343 232 233 304 221 231 258 296 148 286 273 367 434 445 434 296 456 434 434 337 337 232 258 231 330 322 323 321 258 334 330 231 335 232 343 343
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-557-0 01 1 0811-
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0811-
148 CONNECTOR; UNION
(C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0811-
148 CONNECTOR; UNION
(A) 		8-94338-417-0 01 1 0811-
221 BOLT; BRKT
(A) M10X40 FLANGE 		0-28651-040-0 02 1 0811-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0811-
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 0811-
231 UNION; AIR PIPE
(C) M10 STRAIGHT 		1-09654-361-0 01 1 0811-
231 UNION; AIR PIPE
(A) 		1-09656-713-2 01 1 0811-
232 NUT; UNION,AIR PIPE
(B) M10 		0-91110-510-0 01 1 0811-
232 NUT; UNION,AIR PIPE
(A) M10 H=8 		1-09400-029-0 01 1 0811-
233 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 01 1 0811-
258 CONNECTOR; NYLON TUBE
(F) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0811-
258 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0811-
258 CONNECTOR; NYLON TUBE
(G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0811-
258 CONNECTOR; NYLON TUBE
(D) 		1-09661-303-0 01 1 0811-
258 CONNECTOR; NYLON TUBE
(E) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0811-
258 CONNECTOR; NYLON TUBE
(A) PT3/8 4WAY 		1-09661-489-0 01 1 0811-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0811-
273 GROMMET
(B) 		1-09332-102-0 01 1 0811-
273 GROMMET
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0811-
286 PLUG; AIR PIPE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 0811-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0811-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0811-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0811-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0811-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0811-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0811-
304 BRACKET; UNION
(C) 		1-47471-262-0 01 1 0811-
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 0811-
304 BRACKET; UNION
(B) 		1-71117-210-0 01 1 0811-
321 JOINT; FLEX HOSE
M12 L=66.5 		0-92113-306-0 01 1 0811-
322 NUT; JOINT,FLEX HOSE
M12 		9-09840-280-0 01 1 0811-
323 WASHER; LK,JOINT
ID=12.2 		0-91510-512-0 01 1 0811-
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0811-
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 0811-
335 SEAL; UNION
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0811-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0811-
343 UNION; NYLON TUBE 1-09660-796-1 01 1 0811-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 0811-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0811-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0811-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0811-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0811-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0811-
434 CLIP
(A) ID=10 & 10 		1-09709-221-0 01 1 0811-
434 CLIP
(B) ID=8.3 & 8.3 		8-94426-175-0 03 1 0811-
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=520 ID=7.4 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0811-
456 SEAL; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40 		1-72498-022-1 01 1 0811-

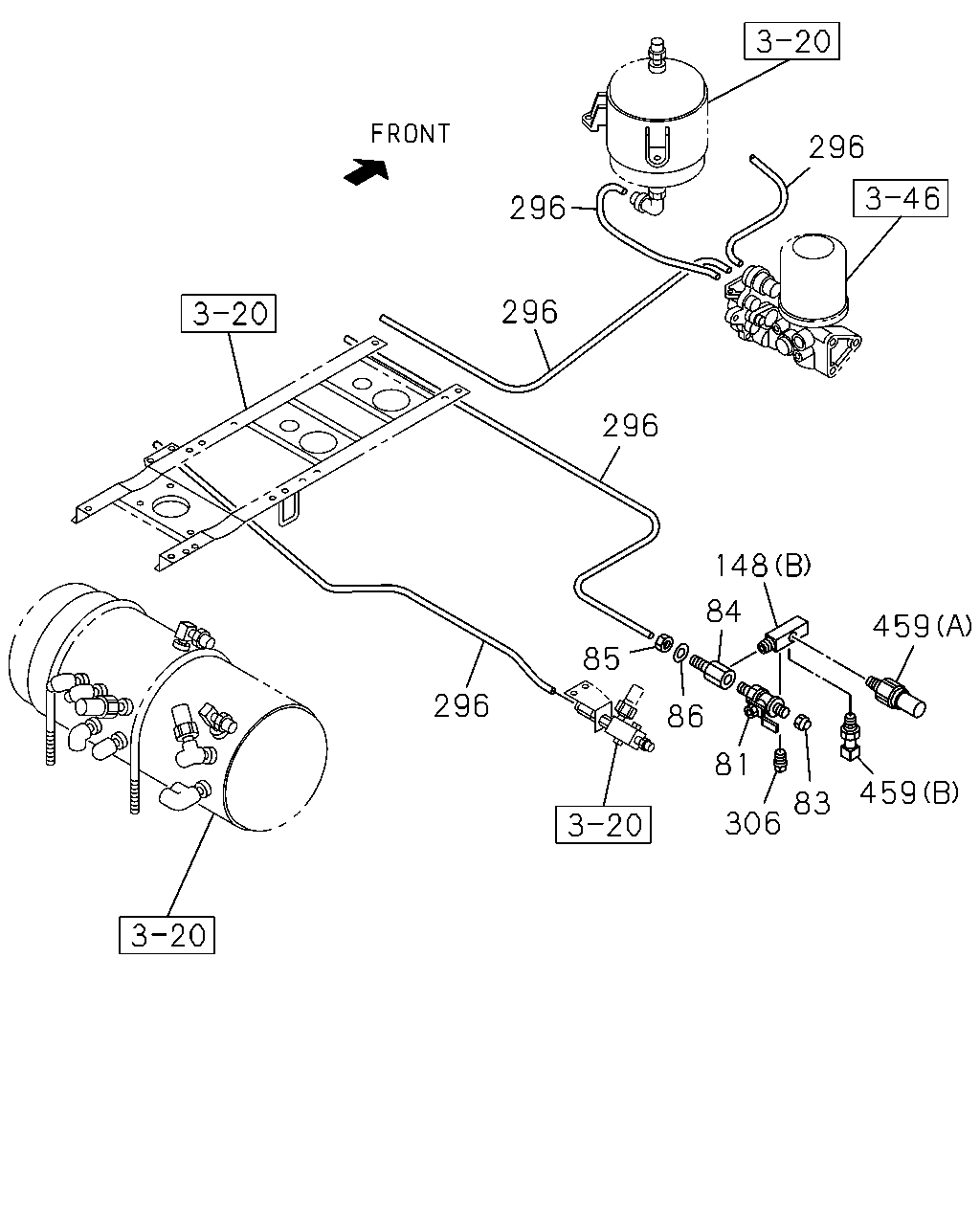

çizim 133703
296 296 296 296 148 84 459 85 296 86 81 459 83 306
BalonParca AdiParca NoAdetTipApplied Date
81 COCK; AIR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 0811-
83 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 0811-
84 UNION; NYLON TUBE 1-09661-092-0 01 1 0811-
85 NUT; UNION
M18 		0-91110-518-0 01 1 0811-
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 0811-
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0811-
148 CONNECTOR; UNION
(C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0811-
148 CONNECTOR; UNION
(A) 		8-94338-417-0 01 1 0811-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0811-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0811-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0811-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0811-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0811-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0811-
306 PLUG; NYLON TUBE
TIRE INFLATOR DEVICE<SG4> PT1/4 		9-99204-513-0 01 1 0811-
306 PLUG; NYLON TUBE
EXC. TIRE INFLATOR DEVICE<SG4> PT1/4 		9-99204-513-0 02 1 0811-
459 SWITCH; PRESS
(A) 		1-48340-058-2 01 1 0811-
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 0811-

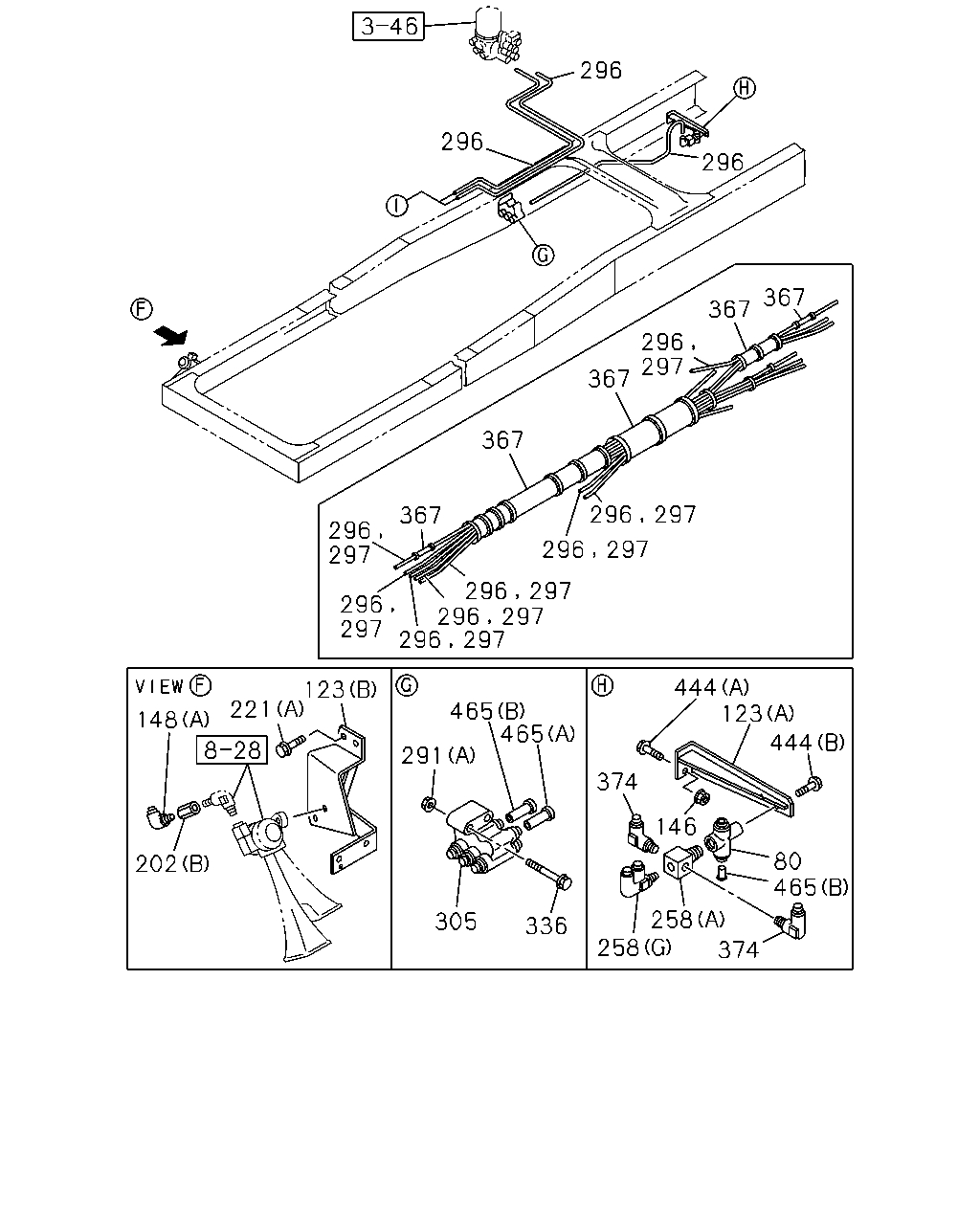

çizim 133704
296 296 296 367 367 296 297 367 367 367 296 297 296 297 444 123 123 221 465 465 148 444 291 374 146 80 465 202 258 258 305 336 374 296 297 297 296 297 296 296 297 297 296
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0811-
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 0811-
123 BRACKET; UNION
(B) 		1-53457-161-0 01 1 0811-
146 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 0811-
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0811-
148 CONNECTOR; UNION
(C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0811-
148 CONNECTOR; UNION
(A) 		8-94338-417-0 01 1 0811-
202 ADAPTER
(B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0811-
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0811-
221 BOLT; BRKT
(A) M10X40 FLANGE 		0-28651-040-0 02 1 0811-
221 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0811-
258 CONNECTOR; NYLON TUBE
(F) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0811-
258 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0811-
258 CONNECTOR; NYLON TUBE
(G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0811-
258 CONNECTOR; NYLON TUBE
(D) 		1-09661-303-0 01 1 0811-
258 CONNECTOR; NYLON TUBE
(E) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0811-
258 CONNECTOR; NYLON TUBE
(A) PT3/8 4WAY 		1-09661-489-0 01 1 0811-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0811-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0811-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0811-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0811-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0811-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0811-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0811-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0811-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0811-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0811-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0811-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 0811-
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 0811-0906
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 0907-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0811-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0811-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0811-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0811-
374 CONNECTOR
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0811-
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0811-
444 BOLT; UNION
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0811-
465 PLUG
(B) OD=6 L=27 		1-09661-615-0 01 1 0811-0901
465 PLUG
(B) OD=6 L=27 		1-09661-615-0 01 1 0811-0901
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) OD=6 L=27 		1-09661-615-0 01 1 0902-
465 PLUG
(B) OD=6 L=27 		1-09661-615-0 01 1 0902-
465 PLUG
(A) OD=8 		1-09661-616-0 01 1 0811-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
