Isuzu WW
▶
TRUCKS
▶
FRR
▶
10775 - FRR/FVR(TAIWAN)
▶
0 - Engine, Emission, Engine Electrical
▶
0-51 - OIL PUMP AND OIL STRAINER
▶

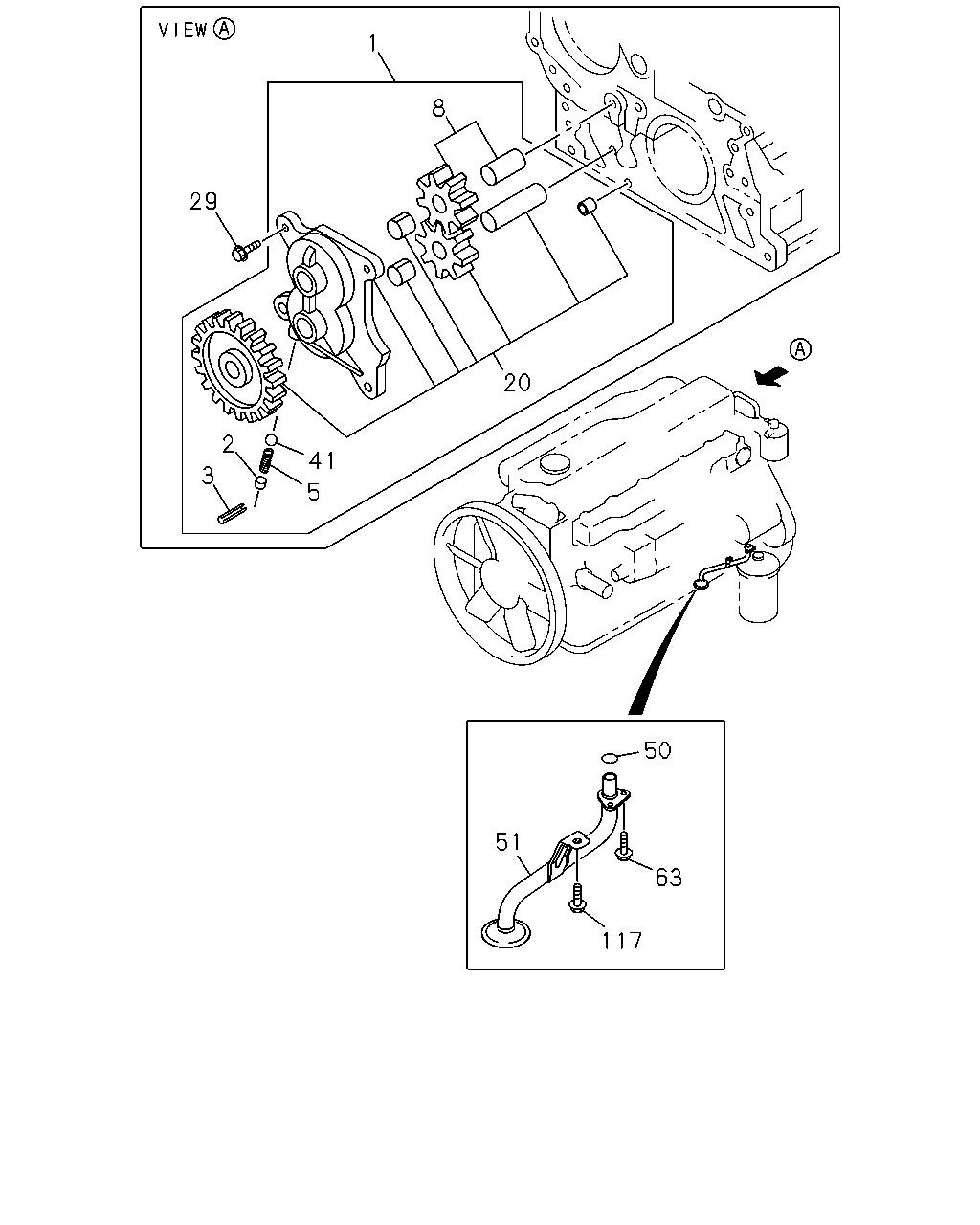

0-51 — OIL PUMP AND OIL STRAINER
(#5683) — 39 parça
Tümü
A - 6HE1 TC ENG
B - 6HK1 TCS ENG
C - 6HK1 TCC ENG
D - 6HK1 TCN ENG
1
8
29
20
2
41
3
5
50
51
63
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
PUMP ASM; OIL
8-94395-564-1
01
1
9811-9906
●
1
PUMP ASM; OIL
8-94395-564-1
01
1
9907-0610
●
1
PUMP ASM; OIL
8-94390-414-3
01
1
0611-
●
●
2
SEAT; SPR
5-13165-004-0
01
1
9811-9906
●
2
SEAT; SPR
5-13165-004-0
01
1
9907-0610
●
2
SEAT; SPR
5-13165-004-0
01
1
0611-
●
●
3
PIN; SPLIT
L=30
9-08104-030-0
01
1
9811-9906
●
3
PIN; SPLIT
L=30
9-08104-030-0
01
1
9907-0610
●
3
PIN; SPLIT
L=30
9-08104-030-0
01
1
0611-
●
●
5
SPRING; COIL
5-09580-098-0
01
1
9811-9906
●
5
SPRING; COIL
5-09580-098-0
01
1
9907-0610
●
5
SPRING; COIL
5-09580-098-0
01
1
0611-
●
●
8
GEAR; DRIVEN,OIL PUMP
8-94392-559-0
01
1
9811-9906
●
8
GEAR; DRIVEN,OIL PUMP
8-94392-559-0
01
1
9907-0610
●
8
GEAR; DRIVEN,OIL PUMP
8-97602-115-0
01
1
0611-
●
●
20
GEAR; DRIVE,OIL PUMP
8-94392-557-0
01
1
9811-9906
●
20
GEAR; DRIVE,OIL PUMP
8-94392-557-0
01
1
9907-0610
●
20
GEAR; DRIVE,OIL PUMP
8-97602-132-1
01
1
0611-
●
●
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28080-825-0
04
1
9811-9906
●
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28080-825-0
04
1
9907-0512
●
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28050-825-0
04
1
0601-0610
●
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28050-825-0
04
1
0611-
●
●
41
BALL; OIL RELIEF VLV
5-09843-003-0
01
1
9811-9906
●
41
BALL; OIL RELIEF VLV
5-09843-003-0
01
1
9907-0610
●
41
BALL; OIL RELIEF VLV
5-09843-003-0
01
1
0611-
●
●
50
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-183-0
01
1
9811-9906
●
50
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-183-0
01
1
9907-0112
●
50
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
0201-0610
●
50
GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
0611-
●
●
51
STRAINER & PIPE ASM; OIL
8-98045-646-3
01
1
0611-
●
51
STRAINER & PIPE ASM; OIL
8-94392-597-0
01
1
9811-9906
●
51
STRAINER & PIPE ASM; OIL
8-94392-597-0
01
1
9907-0610
●
51
STRAINER & PIPE ASM; OIL
8-94392-597-0
01
1
0611-
●
63
BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE
0-28080-814-0
02
1
9811-9906
●
63
BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE
0-28080-814-0
02
1
9907-0610
●
63
BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE
0-28080-814-0
02
1
0611-
●
●
117
BOLT; STAY TO CRANKCASE
M10X75 FLANGE
8-94399-669-1
01
1
9811-9906
●
117
BOLT; STAY TO CRANKCASE
M10X75 FLANGE
8-94399-669-1
01
1
9907-0610
●
117
BOLT; STAY TO CRANKCASE
M10X75 FLANGE
8-94399-669-1
01
1
0611-
●
●
