0-42 — FUEL PUMP AND PIPE (#5681) — 73 parça

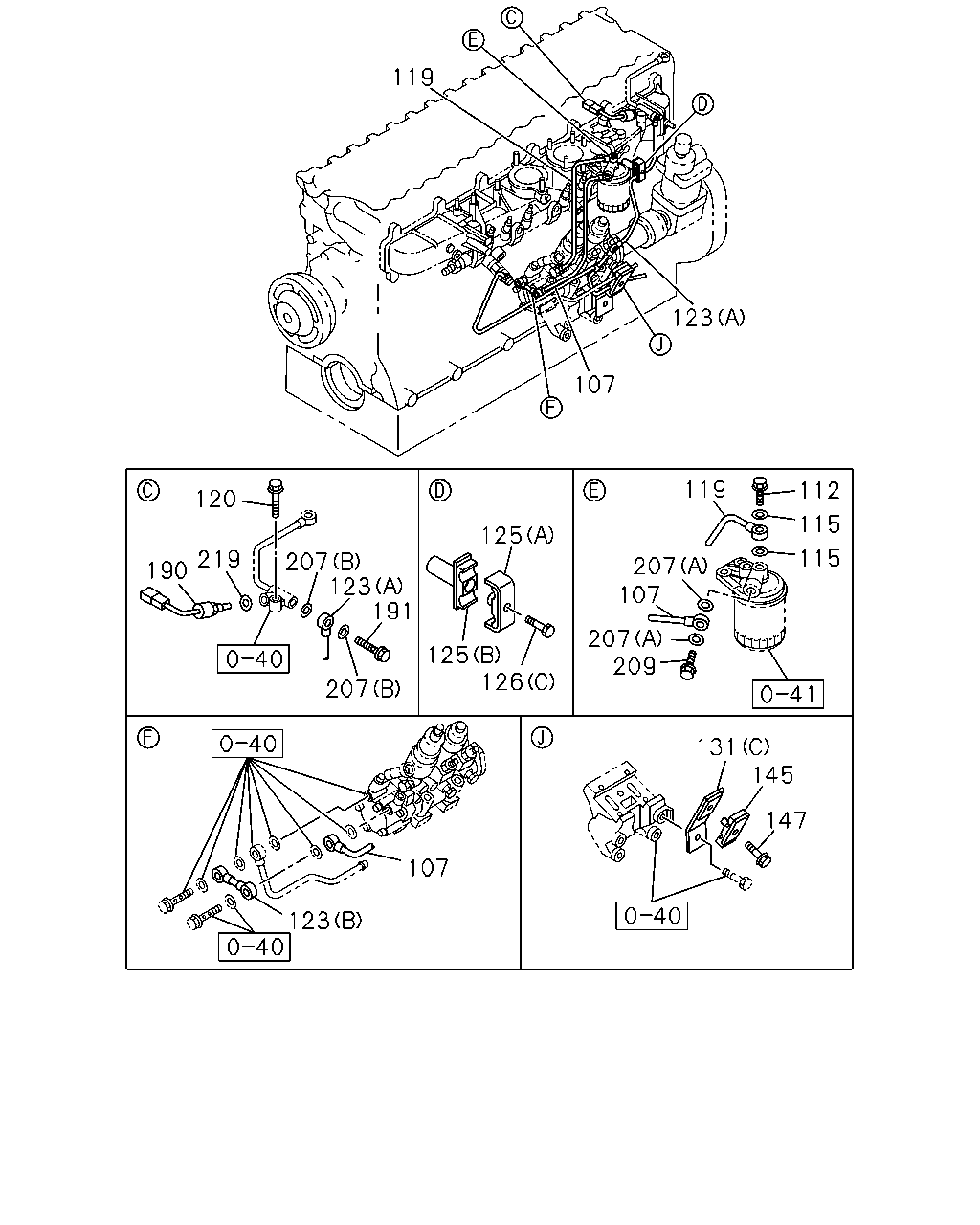

119 123 107 119 112 120 115 125 115 219 190 207 123 191 207 107 207 209 125 126 207 131 145 147 107 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-179-0	01	1	9811-9906	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94390-827-0	01	1	9907-0610		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9811-9906	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9907-0610		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	9811-9906	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	9907-0610		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94396-802-1	01	1	9811-9906	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-820-0	01	1	9907-0610		●
120	BOLT; STAY M8X12 FLANGE	0-28080-812-0	01	1	9811-9906	●
120	BOLT; STAY M8X40 FLANGE	0-28080-840-0	01	1	9907-0512		●
120	BOLT; STAY M8X40 FLANGE	0-28050-840-0	01	1	0601-0610		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-409-1	01	1	9811-9906	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-94391-513-0	01	1	9907-0610		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97600-387-0	01	1	9907-0610		●
125	CLIP; FUEL PIPE (A)	1-09701-172-2	01	1	9907-0610		●
125	CLIP; FUEL PIPE (B)	8-94391-370-0	01	1	9907-0610		●
126	BOLT; CLIP,FUEL PIPE (B) M6X35 FLANGE	0-28650-635-0	03	1	0611-			●	●
126	BOLT; CLIP,FUEL PIPE (C) M6X60 FLANGE	0-28080-660-0	01	1	9907-0512		●
126	BOLT; CLIP,FUEL PIPE (C) M6X60 FLANGE	0-28050-660-0	01	1	0601-0610		●
126	BOLT; CLIP,FUEL PIPE (A) M10X25 FLANGE	0-28151-025-0	01	1	0611-			●	●
131	BRACKET; FUEL PIPE CLIP (B)	8-98032-179-2	01	1	0611-			●	●
131	BRACKET; FUEL PIPE CLIP (C)	8-94390-958-0	01	1	9907-0610		●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-391-1	01	1	0611-			●	●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	9907-9909		●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	02	1	9910-0610		●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	9907-9909		●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	9910-0512		●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-0610		●
190	SENSOR; FUEL TEMP	1-81535-035-3	01	1	9907-0610		●
191	BOLT; EYE,FUEL PIPE M10X21 FLANGE	8-94396-711-0	01	1	9907-0610		●
207	GASKET; EYE BOLT (B) ID=10.2 OD=15.2	1-09630-083-0	02	1	9907-0610		●
207	GASKET; EYE BOLT (A) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	9907-0112		●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	9907-0112		●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	9907-0610		●

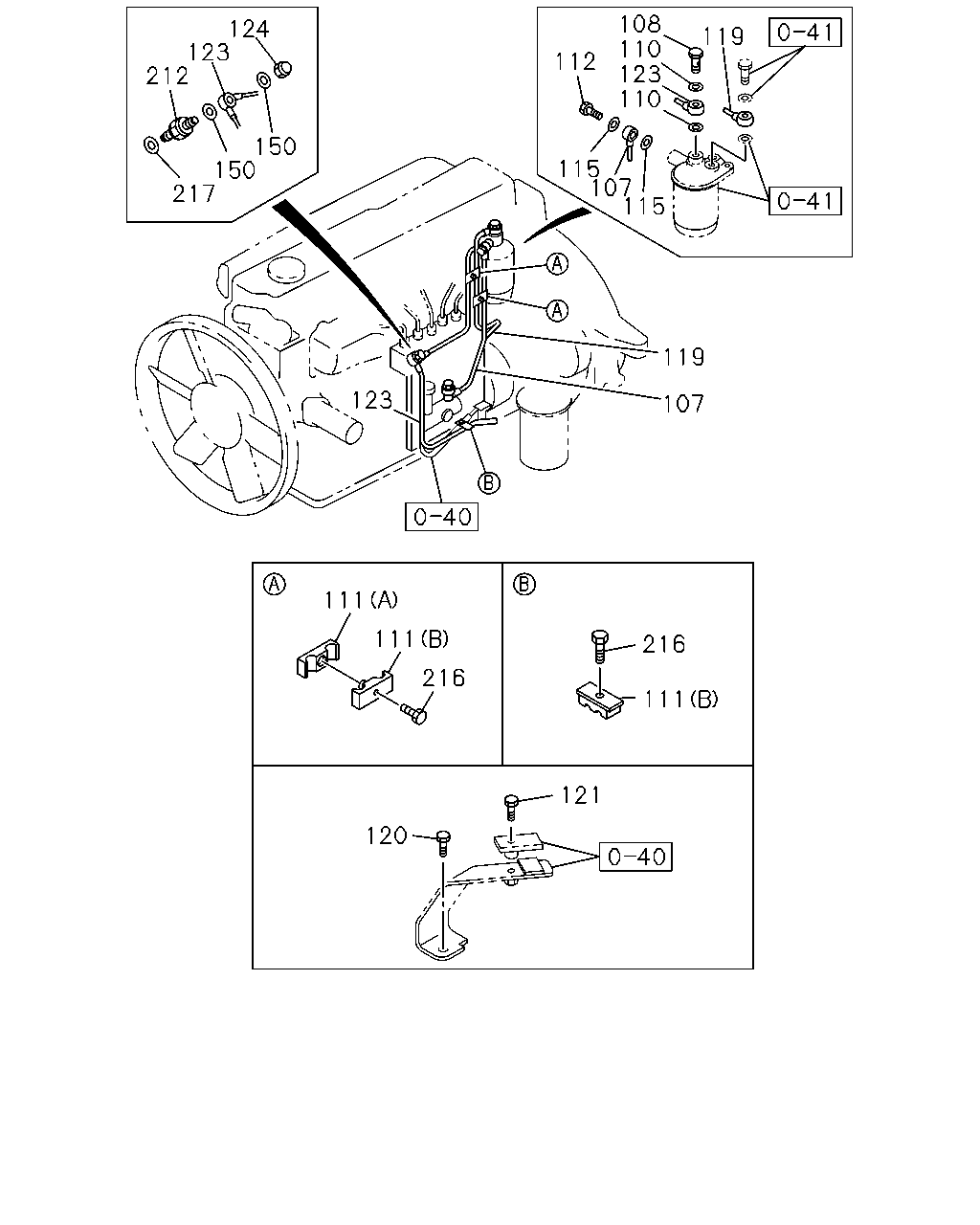

108 110 123 110 124 123 212 119 112 150 150 217 115 107 115 119 123 107 111 111 216 216 111 120 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-179-0	01	1	9811-9906	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94390-827-0	01	1	9907-0610		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9811-9906	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-0610		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	9811-9906	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	0201-0610		●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9811-9906	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	02	1	9811-9906	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9811-9906	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9907-0610		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	9811-9906	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	9907-0610		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94396-802-1	01	1	9811-9906	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-820-0	01	1	9907-0610		●
120	BOLT; STAY M8X12 FLANGE	0-28080-812-0	01	1	9811-9906	●
120	BOLT; STAY M8X40 FLANGE	0-28080-840-0	01	1	9907-0512		●
120	BOLT; STAY M8X40 FLANGE	0-28050-840-0	01	1	0601-0610		●
121	BOLT; CLIP M6X25 FLANGE	0-28080-625-0	01	1	9811-9906	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-409-1	01	1	9811-9906	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-94391-513-0	01	1	9907-0610		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97600-387-0	01	1	9907-0610		●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9811-9906	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	9811-9906	●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9811-9906	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9811-9906	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 TAI	1-09630-085-0	01	1	9811-9906	●

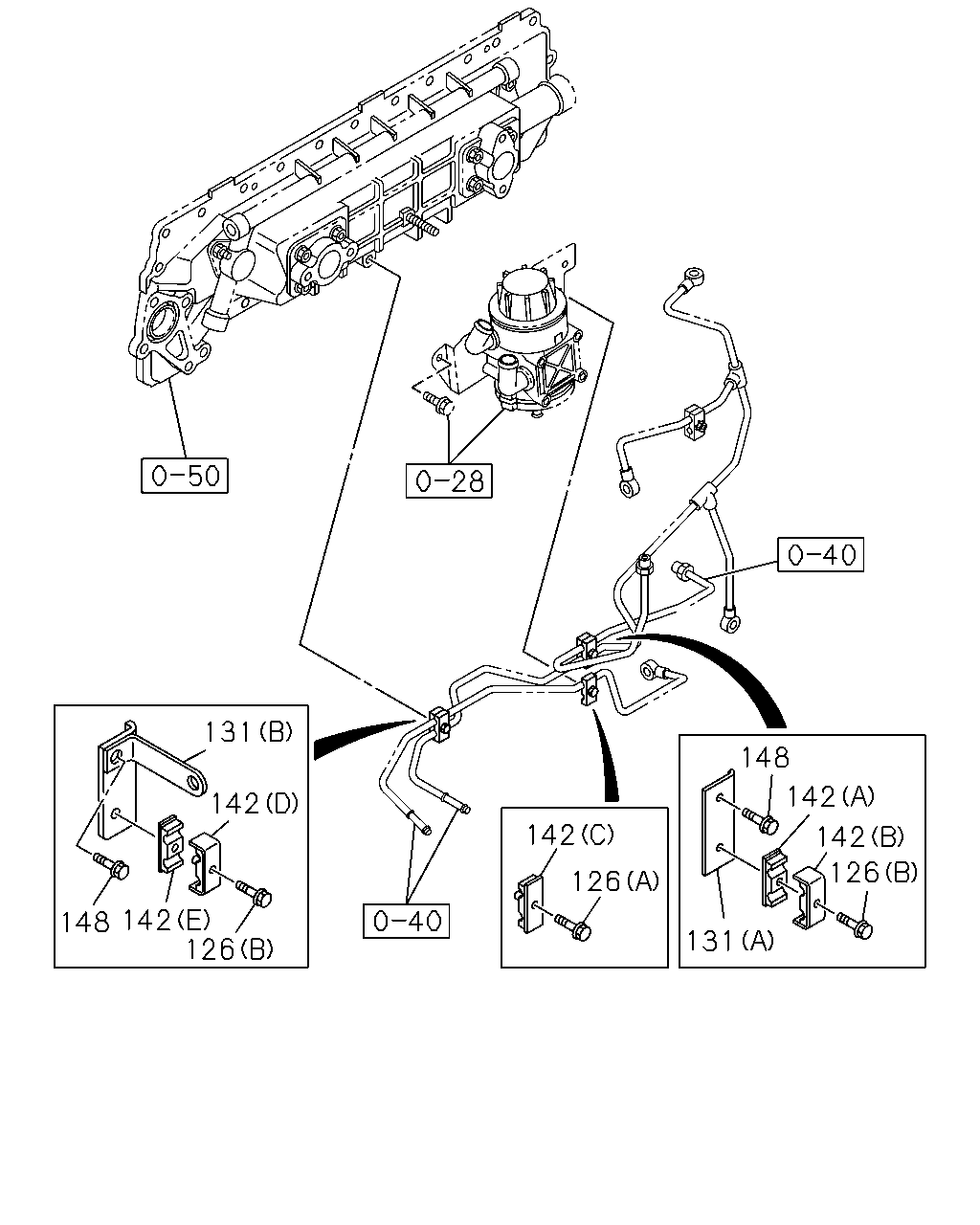

131 148 142 142 142 142 126 126 142 126 148 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
126	BOLT; CLIP,FUEL PIPE (B) M6X35 FLANGE	0-28650-635-0	03	1	0611-		●	●
126	BOLT; CLIP,FUEL PIPE (C) M6X60 FLANGE	0-28080-660-0	01	1	9907-0512	●
126	BOLT; CLIP,FUEL PIPE (C) M6X60 FLANGE	0-28050-660-0	01	1	0601-0610	●
126	BOLT; CLIP,FUEL PIPE (A) M10X25 FLANGE	0-28151-025-0	01	1	0611-		●	●
131	BRACKET; FUEL PIPE CLIP (B)	8-98032-179-2	01	1	0611-		●	●
131	BRACKET; FUEL PIPE CLIP (C)	8-94390-958-0	01	1	9907-0610	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-391-1	01	1	0611-		●	●
142	CLIP; FUEL PIPE (C)	1-09701-180-0	01	1	0611-		●	●
142	CLIP; FUEL PIPE (E) L=48	5-09709-103-0	01	1	0611-		●	●
142	CLIP; FUEL PIPE (D) ID=10 & 10 L=25	8-94393-280-3	01	1	0611-		●	●
142	CLIP; FUEL PIPE (B)	8-98000-010-2	01	1	0611-		●	●
142	CLIP; FUEL PIPE (A)	8-98000-011-2	01	1	0611-		●	●
148	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0611-		●	●
