2-05 — CLUTCH PIPING (#56806) — 31 parça

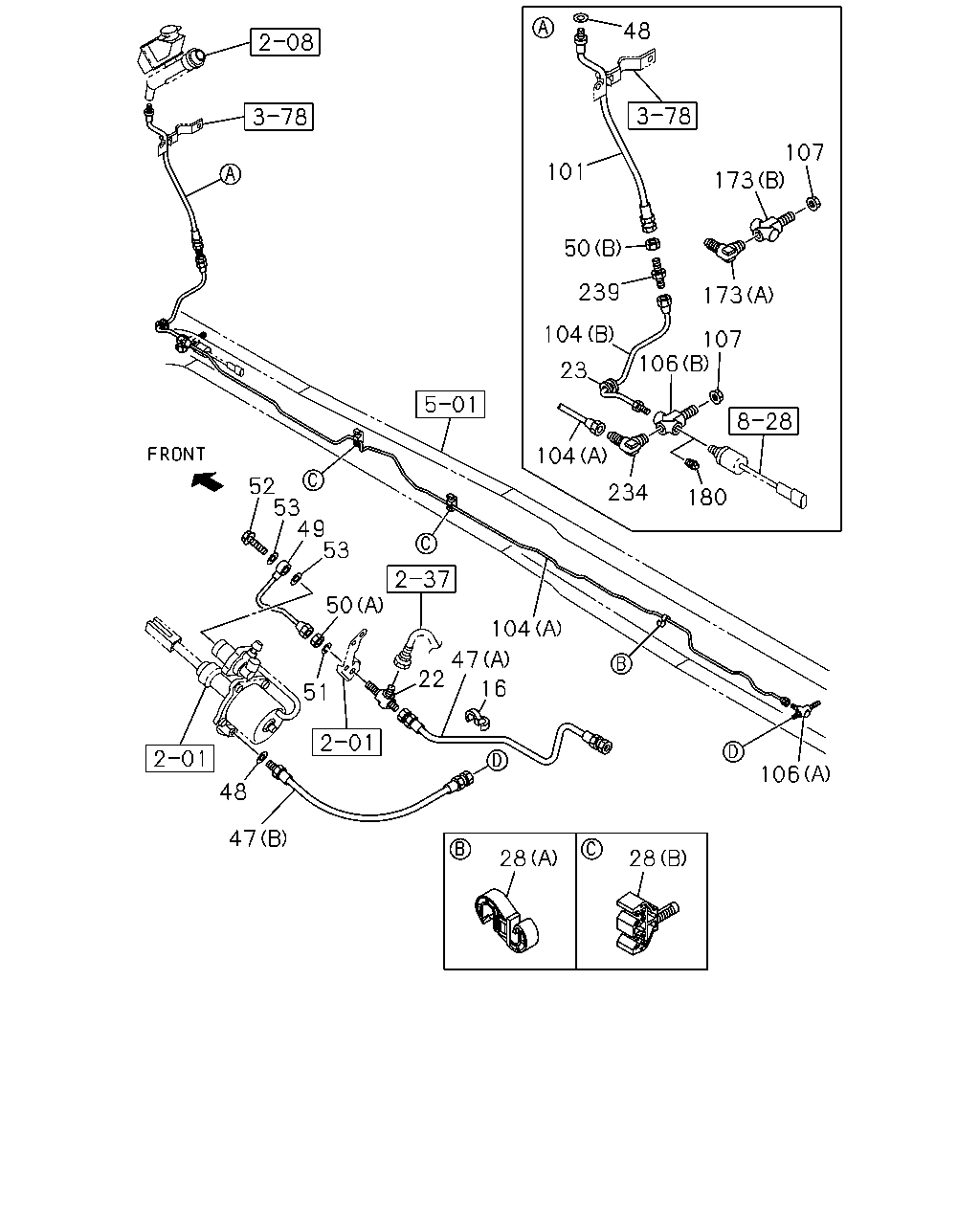

çizim 165671
48 101 107 173 50 239 173 104 107 106 104 234 23 180 52 53 49 53 50 51 48 47 104 47 22 16 106 28 28
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 02 1 0906- ● ●
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 0906- ● ●
23 GROMMET; CLU PIPE
ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0906- ● ●
28 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 01 1 0906- ● ●
28 CLIP; OIL PIPE
(B) 		8-98012-254-1 04 1 0906- ● ●
47 HOSE; FLEX,CLU CONT
(B) L=550 		8-98080-979-0 01 1 0906- ● ●
47 HOSE; FLEX,CLU CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (A) L=560 		1-09363-914-0 01 1 0906- ● ●
47 HOSE; FLEX,CLU CONT
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=580 		1-09363-613-1 01 1 0906- ● ●
47 HOSE; FLEX,CLU CONT
MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=660 		1-09363-719-0 01 1 0906- ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0906- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=239 		1-49117-401-0 01 1 0906- ● ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0906-1005 ● ●
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 		0-91111-512-0 01 1 1006-1009 ● ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1010- ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0906- ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0906- ● ●
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 0906- ● ●
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 0906- ● ●
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0906-1312 ● ●
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=500 		8-98072-350-0 01 1 0906- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=583 SERVICED BY L=600 		1-47428-725-0 01 1 0906- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=3024 SERVICED BY L=3200 		1-47428-745-0 01 1 0906- ● ●
106 UNION; OIL PIPE
(A) M12 2WAY 		1-09654-059-2 01 1 0906- ● ●
106 UNION; OIL PIPE
(B) 		8-98067-169-0 01 1 0906- ● ●
107 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 0906- ● ●
173 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0911- ● ●
173 CONNECTOR
(B) 		8-98150-686-0 01 1 0911- ● ●
180 PLUG; PIPE 9-09204-510-0 01 1 0906- ● ●
234 CONNECTOR; ELBOW
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906- ● ●
239 UNION; CLU HOSE
M12 L=66.5 		0-92113-306-0 01 1 0906- ● ●
