◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11238 - FSR-RHD(EU)SPACE EU5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#56801) — 213 parça

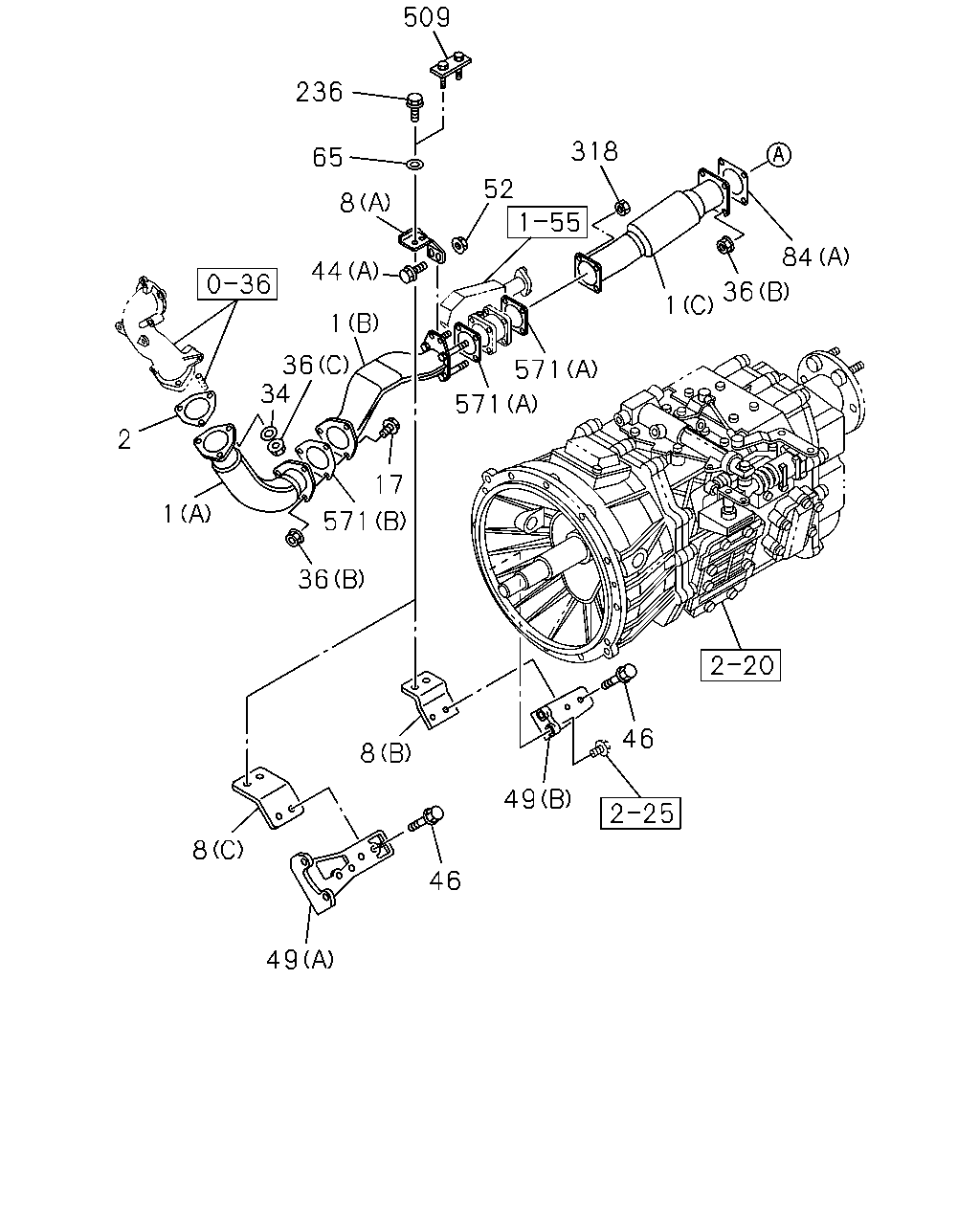

çizim 165634
49 8 46 8 49 46 36 1 571 17 2 34 36 1 44 571 571 1 36 84 318 52 8 65 236 509
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(C) 		1-22123-882-1 01 1 0906- ● ●
1 PIPE; EXH
(B) 		8-98056-495-1 01 1 0906-1209 ● ●
1 PIPE; EXH
(B) 		8-98220-314-0 01 1 1210-1301 ● ●
1 PIPE; EXH
(B) 		8-98234-517-0 01 1 1302- ● ●
1 PIPE; EXH
(A) 		8-98120-560-0 01 1 0906-1209 ● ●
1 PIPE; EXH
(A) 		8-98215-406-0 01 1 1210- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 0906- ● ●
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (A) 		8-98233-349-0 01 1 1302- ● ●
8 BRACKET; EXH PIPE
(A) 		8-98089-801-0 01 1 0906-1301 ● ●
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (A) 		8-98233-346-0 01 1 1302- ● ●
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B) 		8-98114-389-0 01 1 0906-1301 ● ●
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B) 		8-98233-342-0 01 1 1302-1310 ● ●
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B) 		8-98259-868-0 01 1 1311- ● ●
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (C) 		8-98122-675-0 01 1 0906-1301 ● ●
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (C) 		8-98233-340-0 01 1 1302-1310 ● ●
8 BRACKET; EXH PIPE
MZW6P M/T(RSZ) (C) 		8-98259-862-0 01 1 1311- ● ●
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28051-235-0 04 1 1204- ● ●
17 BOLT; EXH PIPE
M12X35 FLANGE 		0-28051-235-0 03 1 0906- ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0906- ● ●
36 NUT; EXH PIPE
(A) M10 		0-91110-510-0 04 1 0906- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0906- ● ●
36 NUT; EXH PIPE
(C) M12 		1-09400-010-0 03 1 0906- ● ●
44 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0906-0907 ● ●
44 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0908- ● ●
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 08 1 0906- ● ●
46 BOLT; BRKT,EXH PIPE
M10X30 FLANGE 		0-28051-030-0 02 1 0906- ● ●
49 BRACKET; EXH PIPE TO TRANS
MLD6W M/T(Y2C) (B) 		8-98113-008-0 01 1 0906- ● ●
49 BRACKET; EXH PIPE TO TRANS
MZW6P M/T(RSZ) (A) 		8-98122-671-0 01 1 0906- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0906- ● ●
65 WASHER; PL
ID=10.5 		8-98073-091-0 02 1 0906- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0906- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0906- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 02 1 0906- ● ●
236 BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE 		0-28051-035-0 02 1 0906-1301 ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0906- ● ●
509 STUD; BRKT 8-98233-625-0 01 1 1302-1311 ● ●
509 STUD; BRKT 8-98259-983-0 01 1 1312- ● ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0906- ● ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 0906- ● ●

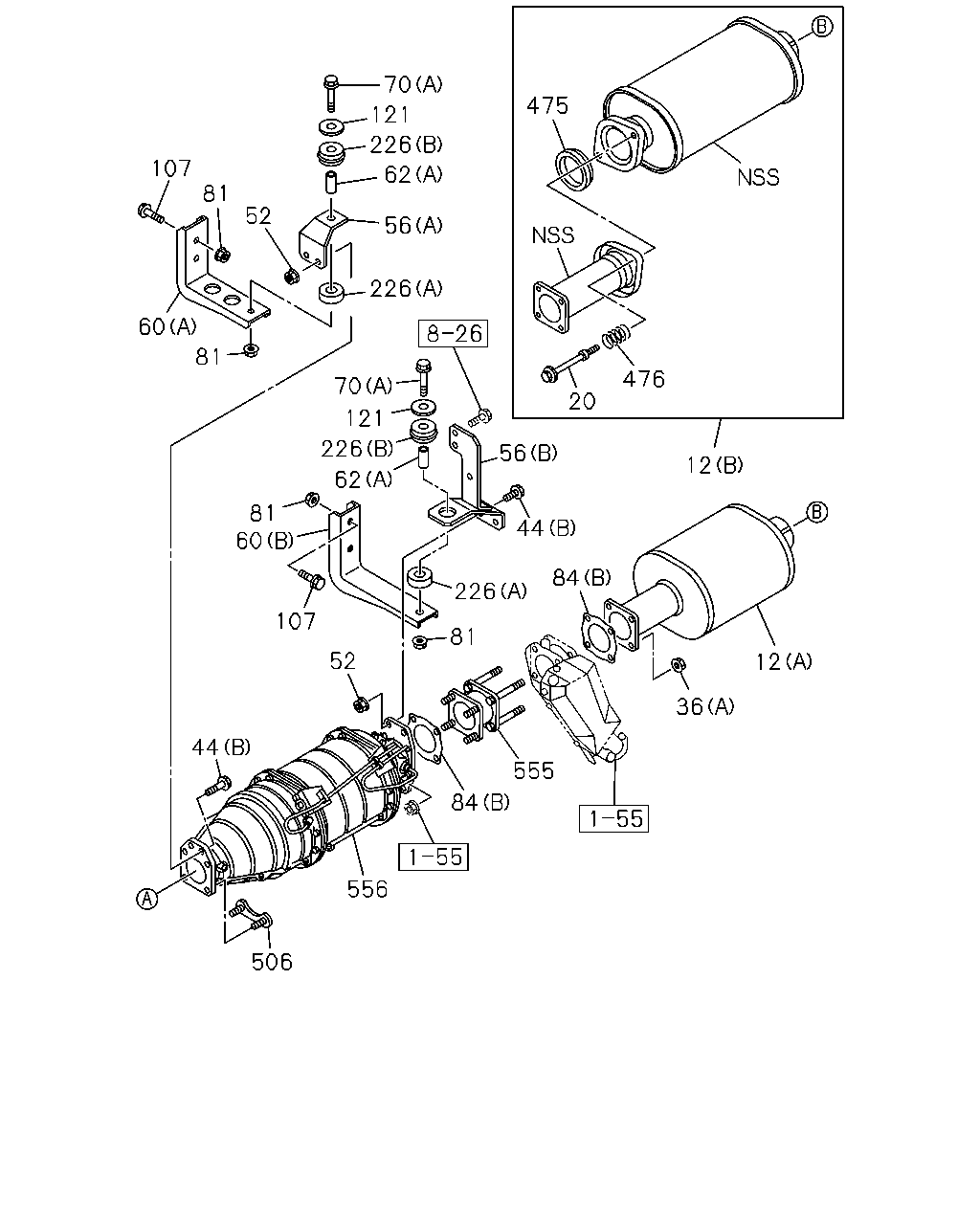

çizim 165639
70 107 121 81 60 52 81 226 56 62 226 70 475 476 20 121 226 81 62 60 107 52 81 56 226 44 12 84 12 36 555 84 556 506 44
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH
(A) 		8-98041-924-1 01 1 0906-1301 ● ●
12 SILENCER ASM; EXH
(B) 		8-98234-506-0 01 1 1302- ● ●
20 BOLT; FLANGE,EXH PIPE 8-98233-481-0 02 1 1302- ● ●
36 NUT; EXH PIPE
(A) M10 		0-91110-510-0 04 1 0906- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0906- ● ●
36 NUT; EXH PIPE
(C) M12 		1-09400-010-0 03 1 0906- ● ●
44 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0906-0907 ● ●
44 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0908- ● ●
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 08 1 0906- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0906- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4900MM(49W) (D) 		8-98059-754-0 01 1 0906-1301 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4900MM(49W) (F) 		8-98233-508-0 01 1 1302- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22131-584-0 01 1 0906-1301 ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22131-584-0 01 1 1302-1309 ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98245-522-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98059-729-0 01 1 0906- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-824-1 01 1 0906- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (D) 		8-98059-758-0 01 1 0906-1301 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (G) 		8-98233-506-0 01 1 1302- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4600MM(46W) (E) 		8-98079-810-0 01 1 0906-1301 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4600MM(46W) (H) 		8-98233-468-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (F) 		8-98234-144-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4900MM(49W) (C) 		8-98059-753-1 01 1 0906-1301 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (C) 		8-98059-753-1 01 1 0906-1301 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4900MM(49W) (C) 		8-98233-509-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 0906- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0906- ● ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98070-640-0 01 1 0906-1301 ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98070-640-0 01 1 1302-1309 ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98245-521-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4600MM(46W) (D) 		8-98079-809-0 01 1 0906-1301 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4600MM(46W) (G) 		8-97645-576-0 01 1 1302- ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0906-0906 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-1301 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1302- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0906- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0906- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0906- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0906-1301 ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1302- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-1301 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-1301 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-1301 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0906-0907 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0908-1003 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1004-1005 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1006-1301 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0906- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 01 1 0906- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 02 1 0906- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0906- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0906- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0906- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0906- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0906- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE 8-98233-479-0 01 1 1302- ● ●
476 SPRING; VIBNON,EXH PIPE 8-98233-482-0 02 1 1302- ● ●
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 0906-1203 ● ●
555 PIPE; EXH,DPD 8-98073-334-0 01 1 0906- ● ●
556 DPD ASM 8-97613-331-6 01 1 0906-1010 ● ●
556 DPD ASM 8-97622-883-3 01 1 1011- ● ●

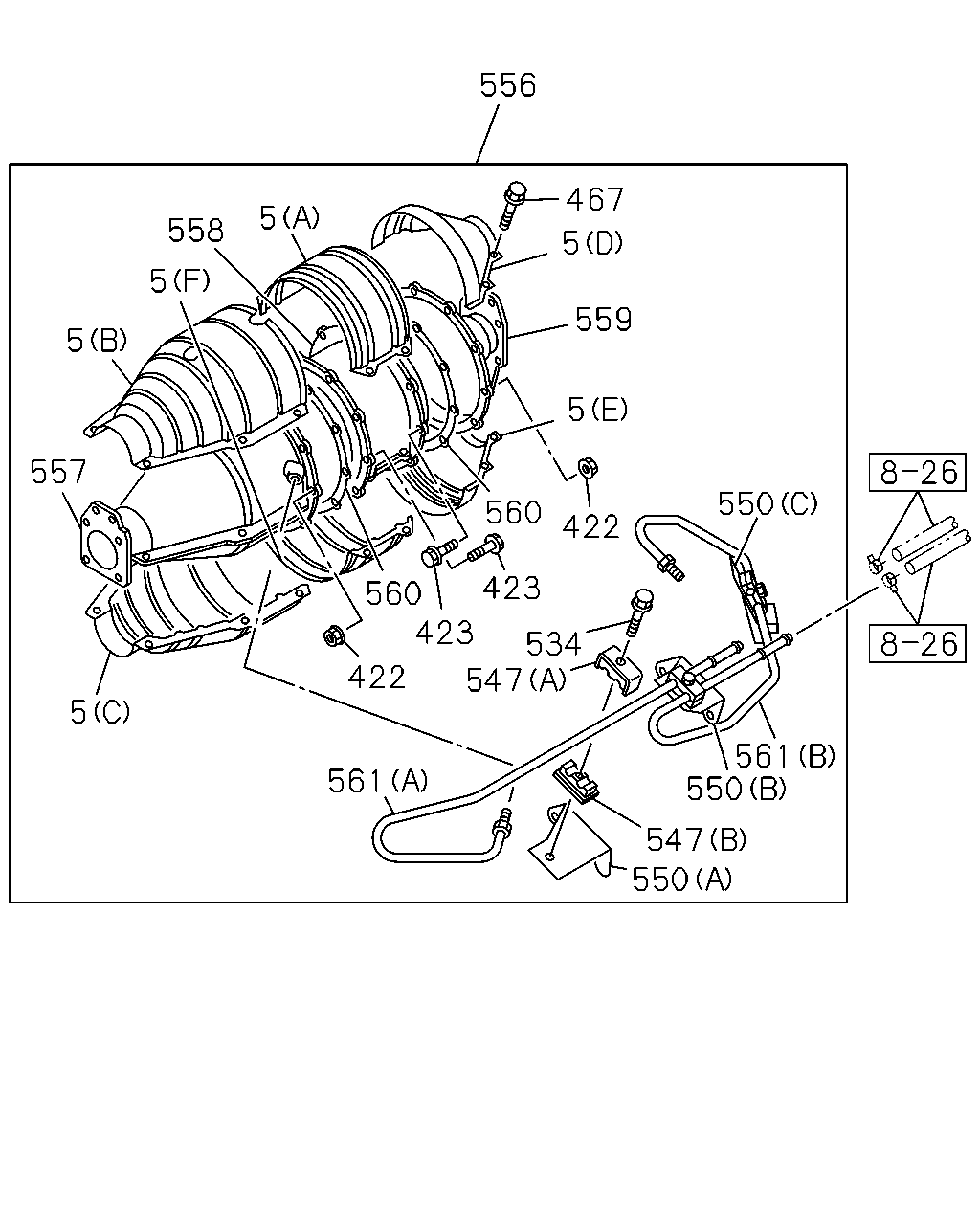

çizim 165640
556 467 5 558 5 5 559 5 5 557 550 560 422 423 560 423 534 547 422 5 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0906- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0906- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0906- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0906- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0906- ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0906- ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0906- ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0906- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0906- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0906- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0906- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0906- ● ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0906- ● ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0906- ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0906- ● ●
556 DPD ASM 8-97613-331-6 01 1 0906-1010 ● ●
556 DPD ASM 8-97622-883-3 01 1 1011- ● ●
557 CATALYST ASM 8-97608-055-7 01 1 0906- ● ●
558 FILTER ASM 8-97608-057-3 01 1 0906- ● ●
559 COVER; RR 8-97611-078-0 01 1 0906-1010 ● ●
559 COVER; RR 8-97622-887-0 01 1 1011- ● ●
560 GASKET; DPD 8-97611-080-0 02 1 0906- ● ●
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 0906-1010 ● ●
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1011- ● ●
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 0906-1010 ● ●
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1011- ● ●

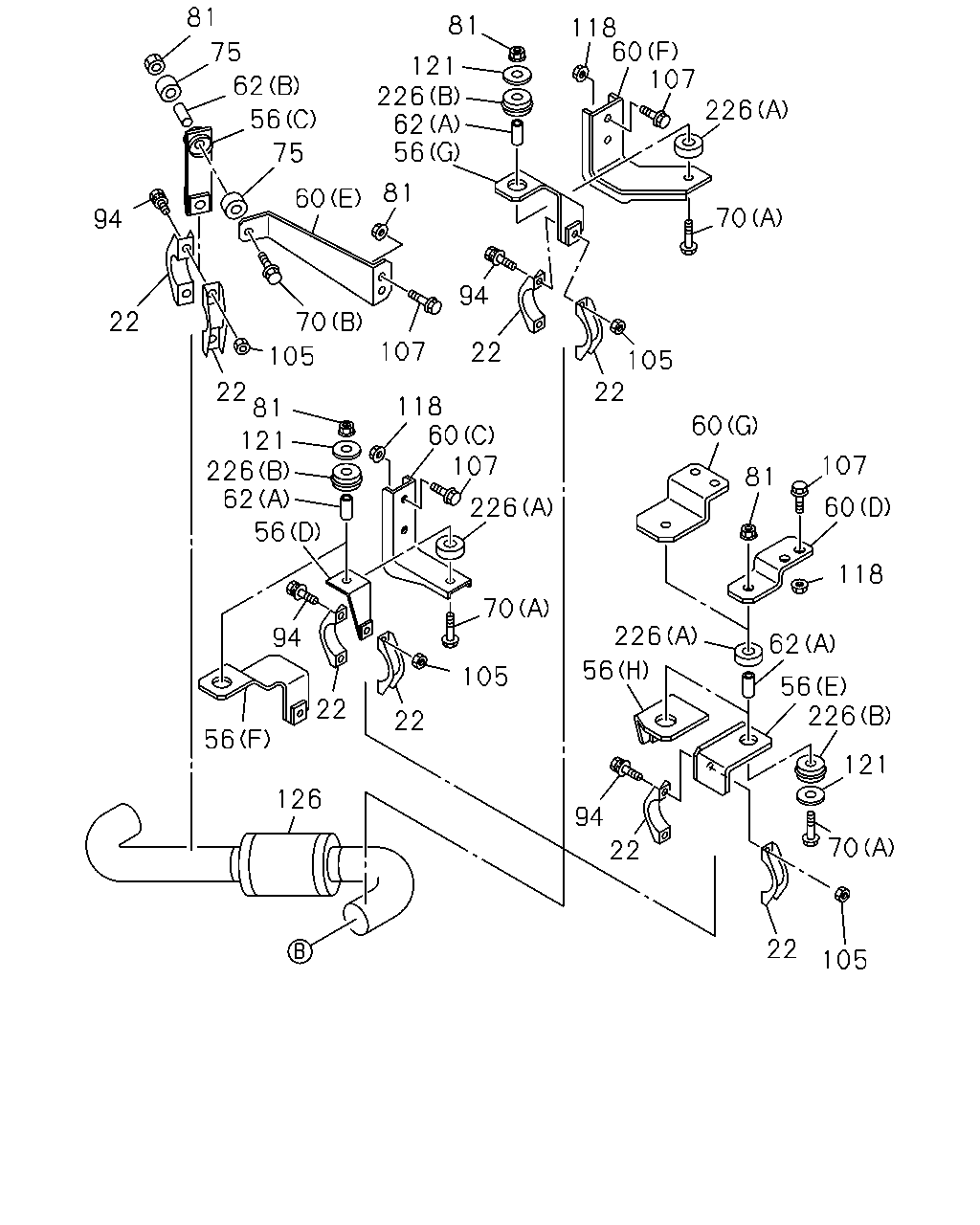

çizim 165644
126 56 22 22 22 22 105 70 121 226 56 62 226 56 118 60 107 60 81 94 22 105 70 226 107 60 118 81 121 226 56 62 81 94 22 81 62 75 56 60 75 94 22 22 226 105 70 81 121 107 62 118 56 60 226 107 70 105 94
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0906- ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0906- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4900MM(49W) (D) 		8-98059-754-0 01 1 0906-1301 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4900MM(49W) (F) 		8-98233-508-0 01 1 1302- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22131-584-0 01 1 0906-1301 ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22131-584-0 01 1 1302-1309 ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98245-522-0 01 1 1310- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98059-729-0 01 1 0906- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-824-1 01 1 0906- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (D) 		8-98059-758-0 01 1 0906-1301 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3700MM(37W) (G) 		8-98233-506-0 01 1 1302- ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4600MM(46W) (E) 		8-98079-810-0 01 1 0906-1301 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4600MM(46W) (H) 		8-98233-468-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (F) 		8-98234-144-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4900MM(49W) (C) 		8-98059-753-1 01 1 0906-1301 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3700MM(37W) (C) 		8-98059-753-1 01 1 0906-1301 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4900MM(49W) (C) 		8-98233-509-0 01 1 1302- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 0906- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-712-1 01 1 0906- ● ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98070-640-0 01 1 0906-1301 ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98070-640-0 01 1 1302-1309 ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98245-521-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4600MM(46W) (D) 		8-98079-809-0 01 1 0906-1301 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4600MM(46W) (G) 		8-97645-576-0 01 1 1302- ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0906-0906 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-1301 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1302- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0906- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0906- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 01 1 0906- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0906-1301 ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1302- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 0906-1301 ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 1302- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-1301 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-1301 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-1301 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1302- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0906-0907 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0908-1003 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1004-1005 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1006-1301 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0906- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0906- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0906- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0906- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0906- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0906- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0906- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0906- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 0906- ● ●
126 PIPE; EXH,RR 8-98043-365-2 01 1 0906-1301 ● ●
126 PIPE; EXH,RR 8-97645-571-0 01 1 1302- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
