Sayfa 1-41 - Isuzu EPC

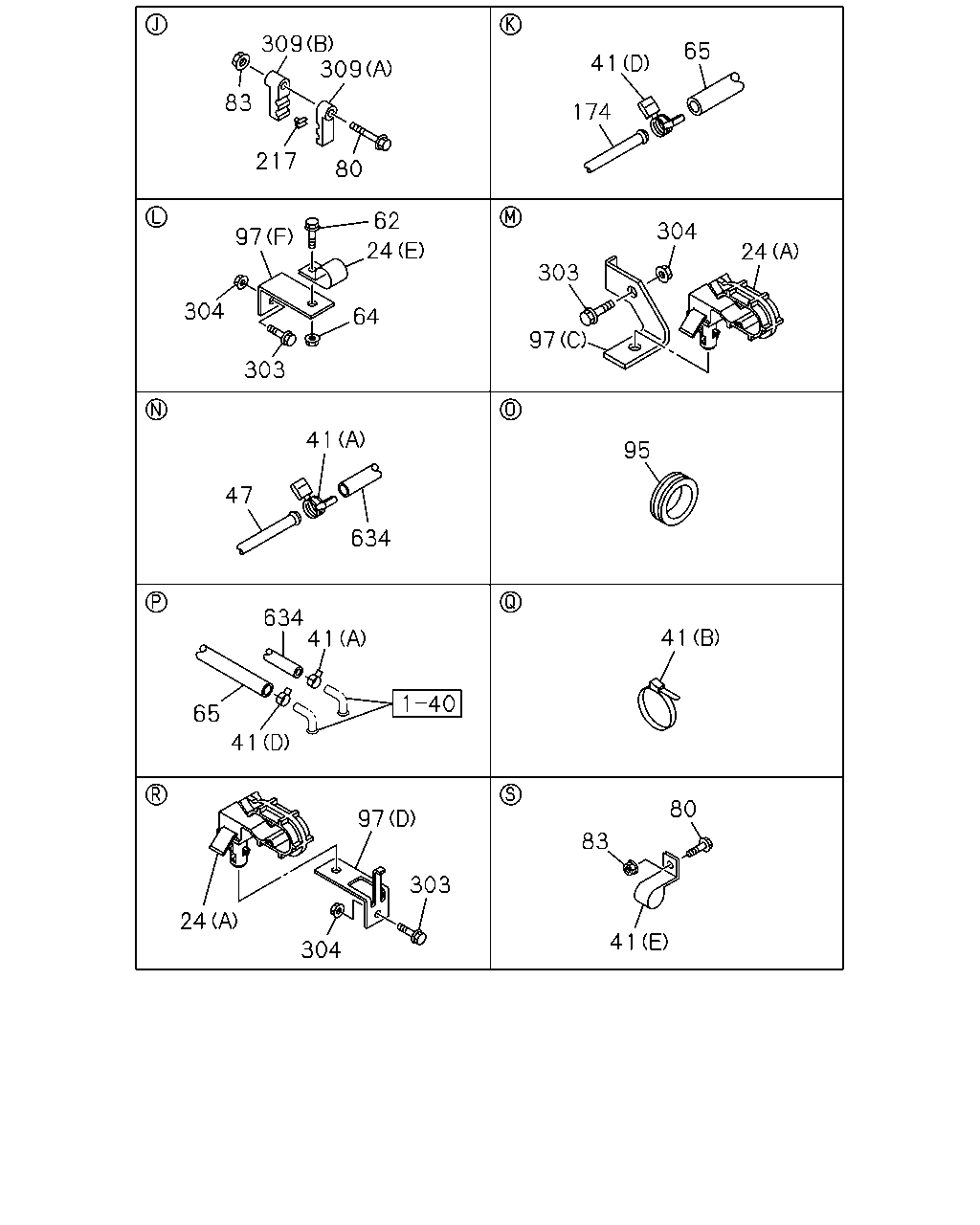

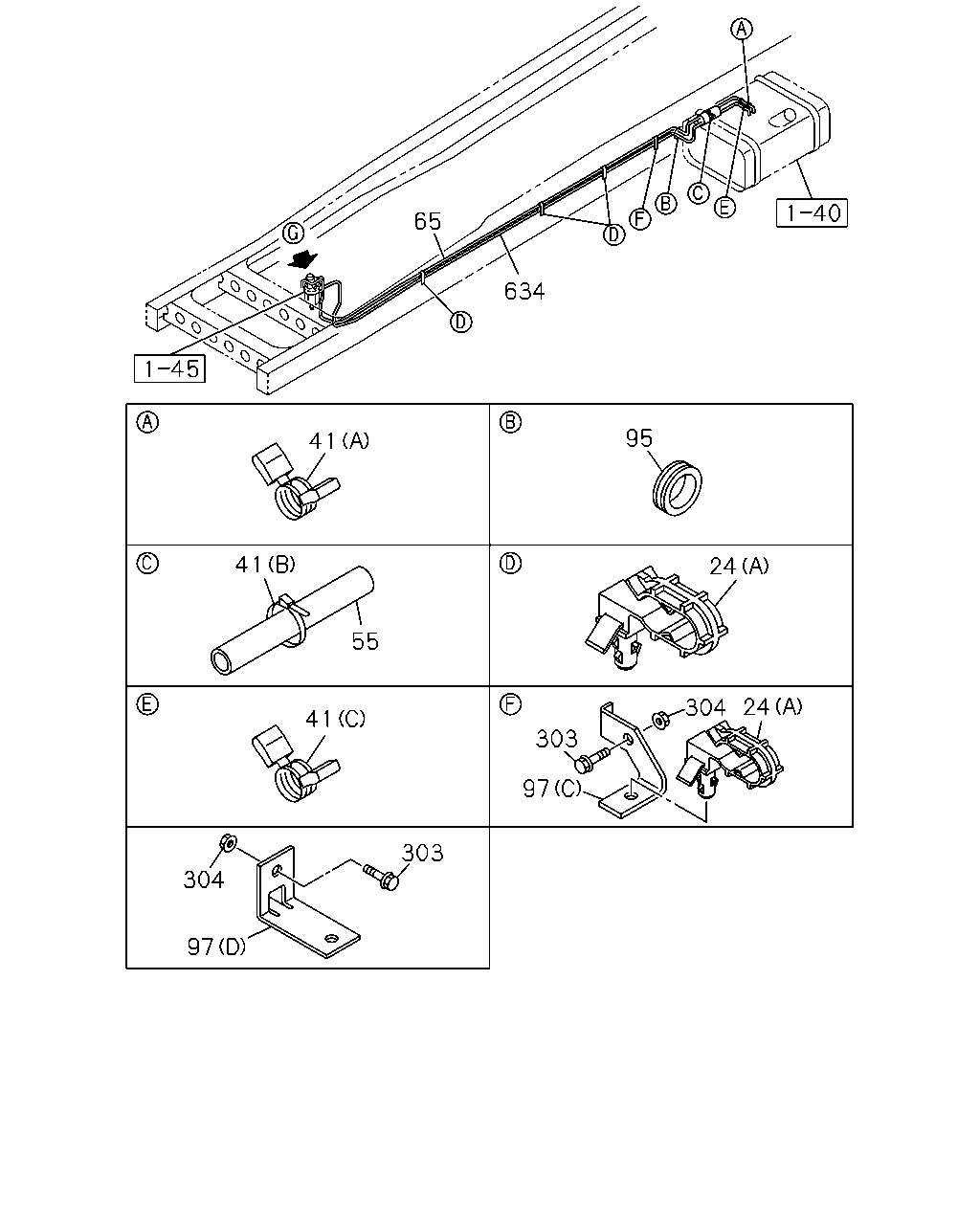

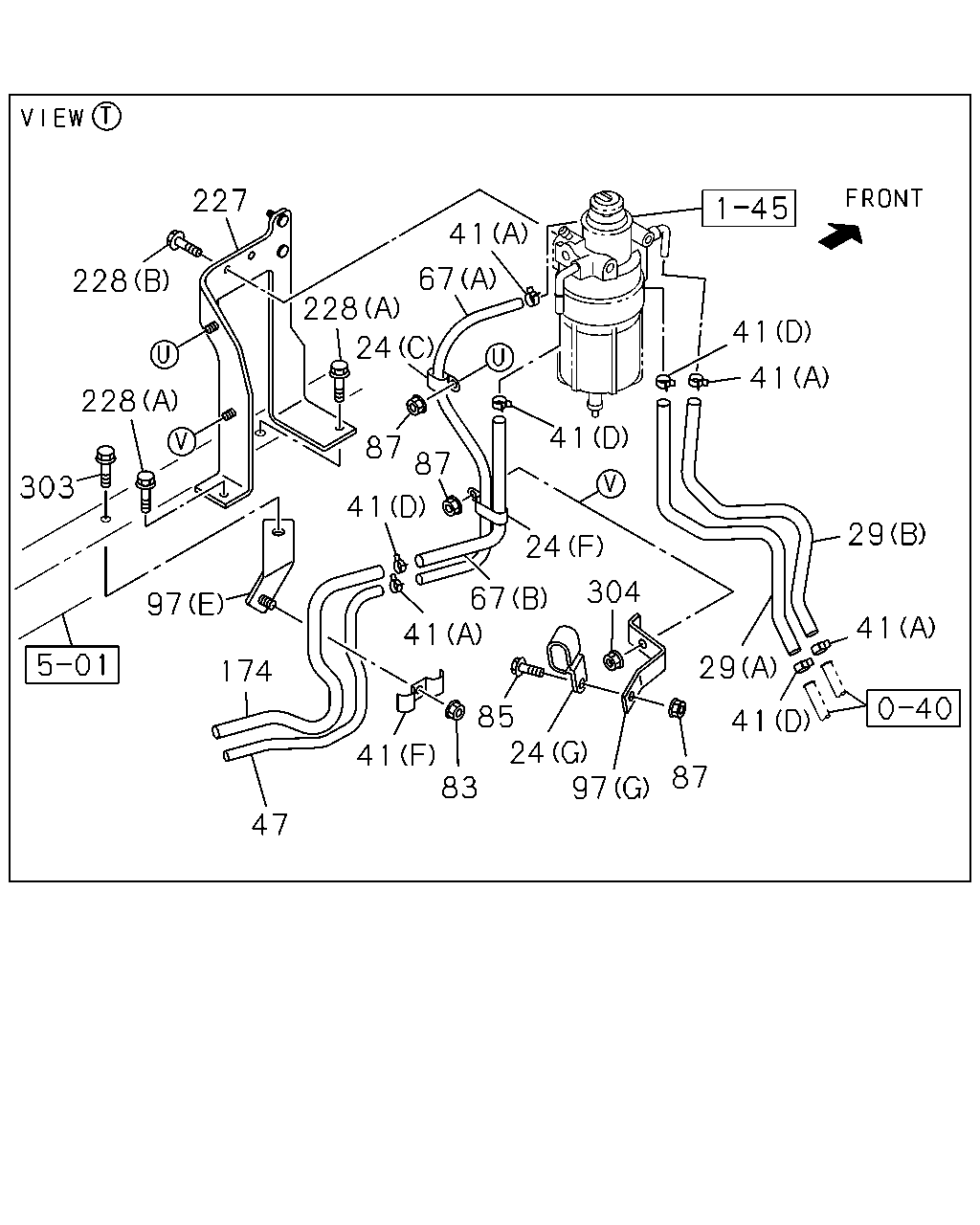

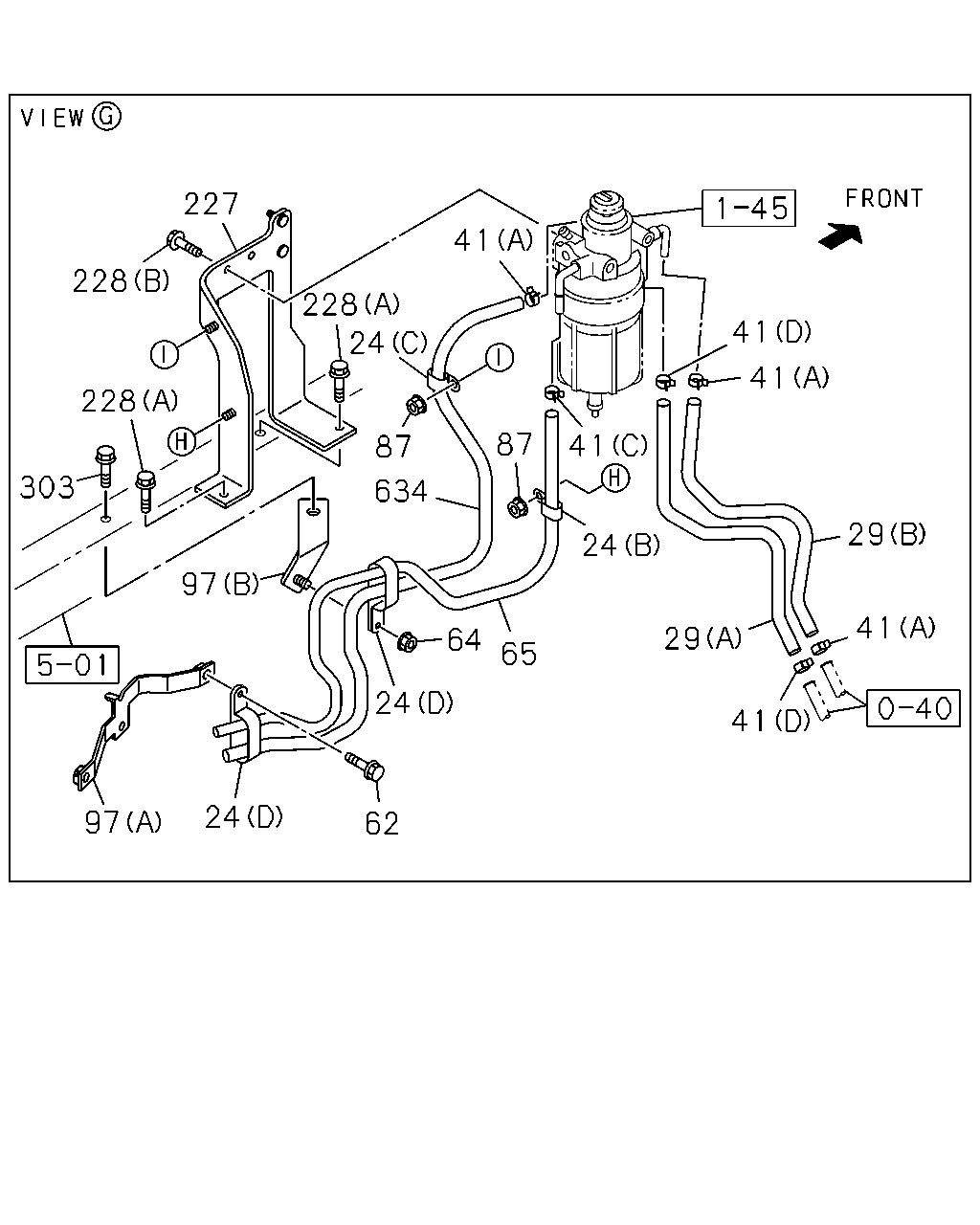

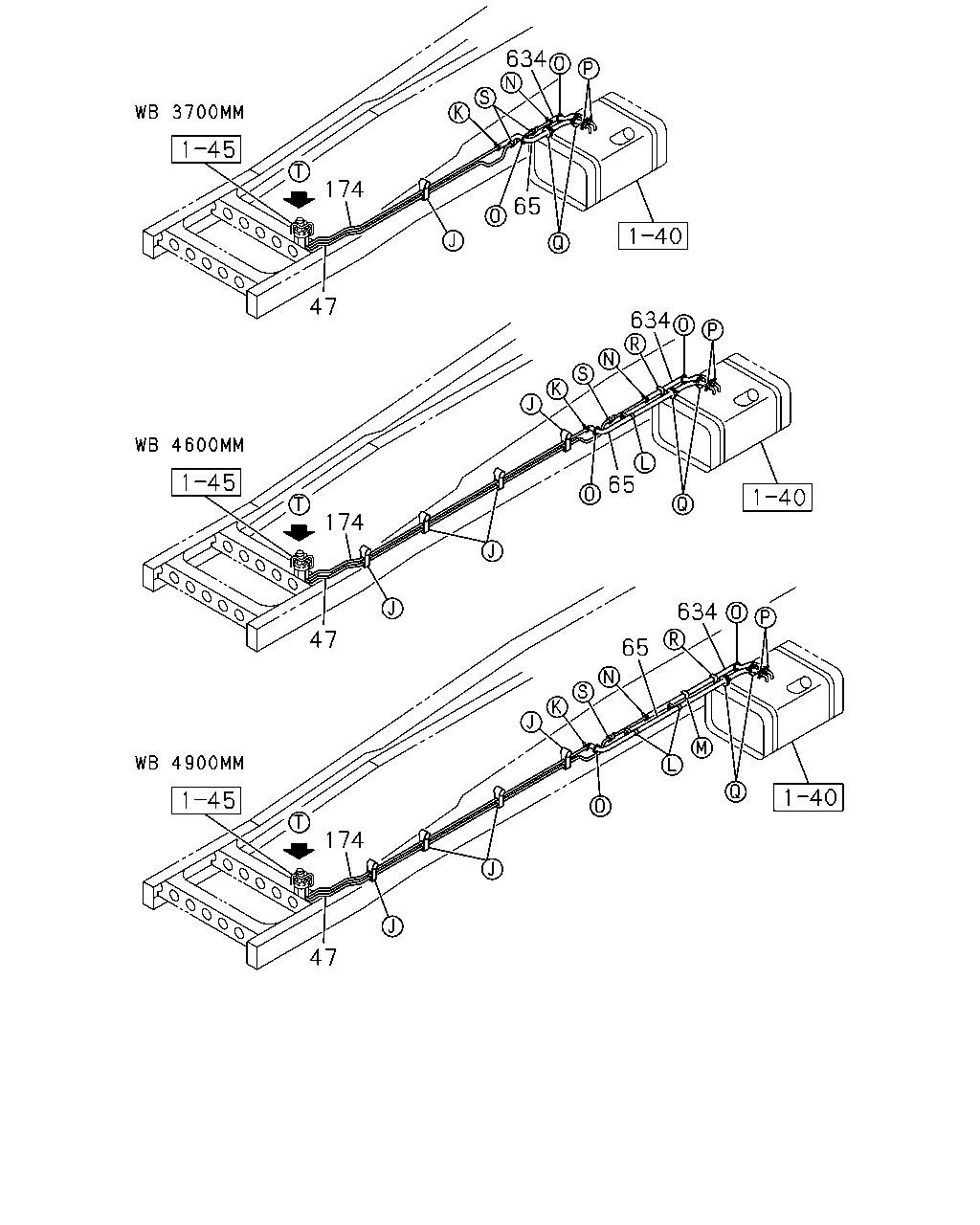

1-41 — FUEL PIPING; CHASSIS (#56799) — 517 parça

65 634 95 41 41 24 55 24 304 41 303 97 303 304 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (E) ID=18 L=25	8-94121-004-1	02	1	1004-1004	●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (E) ID=21 L=24	8-98019-191-0	02	1	1005-	●
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (F) ID=32 L=50	1-09701-055-1	01	1	1004-1004	●	●
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1005-1107	●	●
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (G) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1108-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> (E) ID=21 L=24	8-98019-191-0	01	1	1004-		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	06	1	1004-		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0906-1003		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1004-		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0906-1003	●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1004-	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) EXC. BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1004-		●
24	CLIP; FUEL HOSE (D) ID=16X2 L=20	0-95325-535-0	03	1	0906-1003	●	●
24	CLIP; FUEL HOSE EXC. BIO DIESEL FUEL B10<8NV> (D) ID=16X2 L=20	0-95325-535-0	03	1	1004-	●	●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0906-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0906-1003	●	●
24	CLIP; FUEL HOSE EXC. BIO DIESEL FUEL B10<8NV> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1004-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	0906-1003		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1004-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (B) L=250	5-09707-030-1	02	1	1004-1004	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (B) L=250	5-09707-030-1	01	1	1005-1009	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	1005-1009	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (B) L=250	5-09707-030-1	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (B) L=250	5-09707-030-1	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (A) ID=13	8-94238-571-0	08	1	1006-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (E) ID=8 H=20 L=20	1-09700-604-0	01	1	1004-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> (E) ID=8 H=20 L=20	1-09700-604-0	01	1	1004-		●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (F) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (D) ID=16	8-94238-568-0	04	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (A) ID=13	8-94238-571-0	04	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> (E) ID=8 H=20 L=20	1-09700-604-0	02	1	1004-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0906-1003	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14	1-09704-102-0	02	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0906-1004	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0906-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	0906-1003	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (A) ID=13	8-94238-571-0	06	1	1004-	●	●
55	COVER; PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> ID=27 L=500	8-98119-327-0	01	1	1004-1004	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0906-1003	●	●
55	COVER; PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1004-1009	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1010-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> SERVICED BY L=3000	0-01859-300-0	01	1	1004-1004	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> L=1550	8-98172-295-0	01	1	1005-1107	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> L=1550	8-98183-313-0	01	1	1108-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> SERVICED BY L=3000	0-01859-300-0	01	1	1004-1004		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> L=870	8-98172-296-0	01	1	1005-1107		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> L=870	8-98183-314-0	01	1	1108-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> SERVICED BY L=3000	0-01859-300-0	01	1	1004-1004		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> L=1200	8-98172-294-0	01	1	1005-1107		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> L=1200	8-98183-312-0	01	1	1108-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	0906-1003	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	1004-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0906-1003		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EXC. BIO DIESEL FUEL B10<8NV> L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1004-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) L=3100 SERVICED BY L=10000	0-01260-000-0	01	1	0906-1003		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> L=3100 SERVICED BY L=10000	0-01260-000-0	01	1	1004-		●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> ID=19 OD=23 T=18	9-09956-130-1	01	1	1004-1004		●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> ID=24 OD=30 T=17	9-09956-092-1	01	1	1005-		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-1003	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1004-	●	●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> ID=28 OD=35 T=17	9-09956-256-2	01	1	1004-	●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> ID=28 OD=35 T=17	9-09956-256-2	01	1	1004-		●
97	BRACKET; CLIP BIO DIESEL FUEL B10<8NV> (G)	8-98187-394-0	01	1	1108-	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (F) L=55	1-47476-177-0	02	1	1004-	●
97	BRACKET; CLIP BIO DIESEL FUEL B10<8NV> (E)	8-98156-578-0	01	1	1004-	●	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> (F) L=55	1-47476-177-0	01	1	1004-		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (C)	8-98083-349-0	01	1	0906-	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (D)	8-98109-768-0	01	1	0906-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (D)	8-98109-768-0	01	1	0906-		●
97	BRACKET; CLIP (A)	8-98070-115-0	01	1	0906-1003	●	●
97	BRACKET; CLIP EXC. BIO DIESEL FUEL B10<8NV> (A)	8-98070-115-0	01	1	1004-	●	●
97	BRACKET; CLIP (B)	8-98082-343-0	01	1	0906-1003	●	●
97	BRACKET; CLIP EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98082-343-0	01	1	1004-	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	01	1	1004-1004	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	01	1	1004-1004		●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M10X30 FLANGE	0-28651-030-0	01	1	1005-	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	01	1	1005-		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	1005-		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	02	1	1004-1004		●
303	BOLT; BRKT EXC. BIO DIESEL FUEL B10<8NV> M8X30 FLANGE	0-28650-830-0	02	1	1004-	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M10X30 FLANGE	0-28651-030-0	01	1	0906-1003	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	0906-1003		●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	03	1	1004-1004	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	02	1	1005-	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0906-1003	●	●
303	BOLT; BRKT BIO DIESEL FUEL B10<8NV> M8X30 FLANGE	0-28650-830-0	01	1	1004-1109	●	●
303	BOLT; BRKT BIO DIESEL FUEL B10<8NV> M8X30 FLANGE	0-28650-830-0	01	1	1004-1109	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M8X30 FLANGE	0-28650-830-0	01	1	1004-1109	●
303	BOLT; BRKT BIO DIESEL FUEL B10<8NV> M8X30 FLANGE	0-28650-830-0	01	1	1110-	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M8X30 FLANGE	0-28650-830-0	01	1	1110-	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	01	1	1004-1004	●
304	NUT; BRKT WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	01	1	1004-1004		●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M10 FLANGE	0-91180-210-0	01	1	1005-	●
304	NUT; BRKT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	01	1	1005-		●
304	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	1005-		●
304	NUT; BRKT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	02	1	1004-1004		●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M10 FLANGE	0-91180-210-0	01	1	0906-1003	●
304	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	0906-1003		●
304	NUT; BRKT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	03	1	1004-1004	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	02	1	1005-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0906-1003	●	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	0906-1003	●
304	NUT; BRKT EXC. BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	01	1	1004-1107	●	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	1004-1107	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1108-	●	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	1108-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> L=1450 SERVICED BY L=3000	0-01558-300-0	01	1	1004-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> L=580 SERVICED BY L=3000	0-01558-300-0	01	1	1004-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> L=1050 SERVICED BY L=3000	0-01558-300-0	01	1	1004-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) L=3800 SERVICED BY L=7000	0-01558-700-0	01	1	0906-1003	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> L=3800 SERVICED BY L=7000	0-01558-700-0	01	1	1004-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0906-1003		●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) EXC. BIO DIESEL FUEL B10<8NV> L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	1004-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=3400 SERVICED BY L=7000	0-01558-700-0	01	1	0906-1003		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> L=3400 SERVICED BY L=7000	0-01558-700-0	01	1	1004-		●

227 41 228 228 24 41 41 228 87 41 87 303 634 29 24 97 41 29 64 65 41 24 24 97 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (E) ID=18 L=25	8-94121-004-1	02	1	1004-1004	●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (E) ID=21 L=24	8-98019-191-0	02	1	1005-	●
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (F) ID=32 L=50	1-09701-055-1	01	1	1004-1004	●	●
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1005-1107	●	●
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (G) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1108-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> (E) ID=21 L=24	8-98019-191-0	01	1	1004-		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	06	1	1004-		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0906-1003		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1004-		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0906-1003	●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1004-	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) EXC. BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1004-		●
24	CLIP; FUEL HOSE (D) ID=16X2 L=20	0-95325-535-0	03	1	0906-1003	●	●
24	CLIP; FUEL HOSE EXC. BIO DIESEL FUEL B10<8NV> (D) ID=16X2 L=20	0-95325-535-0	03	1	1004-	●	●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0906-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0906-1003	●	●
24	CLIP; FUEL HOSE EXC. BIO DIESEL FUEL B10<8NV> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1004-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	0906-1003		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1004-	●
29	HOSE; FUEL BIO DIESEL FUEL B10<8NV> (A)	8-98156-579-0	01	1	1004-	●	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0906-1003	●	●
29	HOSE; FUEL EXC. BIO DIESEL FUEL B10<8NV> (A)	8-98078-196-2	01	1	1004-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0906-	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (B) L=250	5-09707-030-1	02	1	1004-1004	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (B) L=250	5-09707-030-1	01	1	1005-1009	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	1005-1009	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (B) L=250	5-09707-030-1	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (B) L=250	5-09707-030-1	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (A) ID=13	8-94238-571-0	08	1	1006-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (E) ID=8 H=20 L=20	1-09700-604-0	01	1	1004-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> (E) ID=8 H=20 L=20	1-09700-604-0	01	1	1004-		●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (F) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (D) ID=16	8-94238-568-0	04	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (A) ID=13	8-94238-571-0	04	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> (E) ID=8 H=20 L=20	1-09700-604-0	02	1	1004-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0906-1003	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14	1-09704-102-0	02	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0906-1004	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0906-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	0906-1003	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (A) ID=13	8-94238-571-0	06	1	1004-	●	●
62	BOLT; CLIP FIX WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M8X20 FLANGE	0-28650-820-0	01	1	1004-		●
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0906-1003	●	●
62	BOLT; CLIP FIX EXC. BIO DIESEL FUEL B10<8NV> M8X20 FLANGE	0-28650-820-0	02	1	1004-	●	●
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M8X20 FLANGE	0-28650-820-0	02	1	1004-	●
64	NUT; CLIP EXC. BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	01	1	1004-	●	●
64	NUT; CLIP WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	01	1	1004-		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0906-1003	●	●
64	NUT; CLIP WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	02	1	1004-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> SERVICED BY L=3000	0-01859-300-0	01	1	1004-1004	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> L=1550	8-98172-295-0	01	1	1005-1107	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> L=1550	8-98183-313-0	01	1	1108-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> SERVICED BY L=3000	0-01859-300-0	01	1	1004-1004		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> L=870	8-98172-296-0	01	1	1005-1107		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> L=870	8-98183-314-0	01	1	1108-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> SERVICED BY L=3000	0-01859-300-0	01	1	1004-1004		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> L=1200	8-98172-294-0	01	1	1005-1107		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> L=1200	8-98183-312-0	01	1	1108-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	0906-1003	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	1004-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0906-1003		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EXC. BIO DIESEL FUEL B10<8NV> L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1004-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) L=3100 SERVICED BY L=10000	0-01260-000-0	01	1	0906-1003		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> L=3100 SERVICED BY L=10000	0-01260-000-0	01	1	1004-		●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
97	BRACKET; CLIP BIO DIESEL FUEL B10<8NV> (G)	8-98187-394-0	01	1	1108-	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (F) L=55	1-47476-177-0	02	1	1004-	●
97	BRACKET; CLIP BIO DIESEL FUEL B10<8NV> (E)	8-98156-578-0	01	1	1004-	●	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> (F) L=55	1-47476-177-0	01	1	1004-		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (C)	8-98083-349-0	01	1	0906-	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (D)	8-98109-768-0	01	1	0906-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (D)	8-98109-768-0	01	1	0906-		●
97	BRACKET; CLIP (A)	8-98070-115-0	01	1	0906-1003	●	●
97	BRACKET; CLIP EXC. BIO DIESEL FUEL B10<8NV> (A)	8-98070-115-0	01	1	1004-	●	●
97	BRACKET; CLIP (B)	8-98082-343-0	01	1	0906-1003	●	●
97	BRACKET; CLIP EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98082-343-0	01	1	1004-	●	●
227	BRACKET; FUEL SEDIMENTER	8-98093-028-1	01	1	0906-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0906-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0906-	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	01	1	1004-1004	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	01	1	1004-1004		●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M10X30 FLANGE	0-28651-030-0	01	1	1005-	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	01	1	1005-		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	1005-		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	02	1	1004-1004		●
303	BOLT; BRKT EXC. BIO DIESEL FUEL B10<8NV> M8X30 FLANGE	0-28650-830-0	02	1	1004-	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M10X30 FLANGE	0-28651-030-0	01	1	0906-1003	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	0906-1003		●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	03	1	1004-1004	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	02	1	1005-	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0906-1003	●	●
303	BOLT; BRKT BIO DIESEL FUEL B10<8NV> M8X30 FLANGE	0-28650-830-0	01	1	1004-1109	●	●
303	BOLT; BRKT BIO DIESEL FUEL B10<8NV> M8X30 FLANGE	0-28650-830-0	01	1	1004-1109	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M8X30 FLANGE	0-28650-830-0	01	1	1004-1109	●
303	BOLT; BRKT BIO DIESEL FUEL B10<8NV> M8X30 FLANGE	0-28650-830-0	01	1	1110-	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M8X30 FLANGE	0-28650-830-0	01	1	1110-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> L=1450 SERVICED BY L=3000	0-01558-300-0	01	1	1004-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> L=580 SERVICED BY L=3000	0-01558-300-0	01	1	1004-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> L=1050 SERVICED BY L=3000	0-01558-300-0	01	1	1004-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) L=3800 SERVICED BY L=7000	0-01558-700-0	01	1	0906-1003	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> L=3800 SERVICED BY L=7000	0-01558-700-0	01	1	1004-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0906-1003		●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) EXC. BIO DIESEL FUEL B10<8NV> L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	1004-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=3400 SERVICED BY L=7000	0-01558-700-0	01	1	0906-1003		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> L=3400 SERVICED BY L=7000	0-01558-700-0	01	1	1004-		●

227 228 228 303 97 174 47 228 41 67 41 41 29 41 41 29 87 97 24 85 83 41 41 67 24 304 41 24 87 41 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (E) ID=18 L=25	8-94121-004-1	02	1	1004-1004	●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (E) ID=21 L=24	8-98019-191-0	02	1	1005-	●
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (F) ID=32 L=50	1-09701-055-1	01	1	1004-1004	●	●
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1005-1107	●	●
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (G) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1108-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> (E) ID=21 L=24	8-98019-191-0	01	1	1004-		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	06	1	1004-		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0906-1003		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1004-		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0906-1003	●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1004-	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) EXC. BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1004-		●
24	CLIP; FUEL HOSE (D) ID=16X2 L=20	0-95325-535-0	03	1	0906-1003	●	●
24	CLIP; FUEL HOSE EXC. BIO DIESEL FUEL B10<8NV> (D) ID=16X2 L=20	0-95325-535-0	03	1	1004-	●	●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0906-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0906-1003	●	●
24	CLIP; FUEL HOSE EXC. BIO DIESEL FUEL B10<8NV> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1004-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	0906-1003		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1004-	●
29	HOSE; FUEL BIO DIESEL FUEL B10<8NV> (A)	8-98156-579-0	01	1	1004-	●	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0906-1003	●	●
29	HOSE; FUEL EXC. BIO DIESEL FUEL B10<8NV> (A)	8-98078-196-2	01	1	1004-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0906-	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (B) L=250	5-09707-030-1	02	1	1004-1004	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (B) L=250	5-09707-030-1	01	1	1005-1009	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	1005-1009	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (B) L=250	5-09707-030-1	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (B) L=250	5-09707-030-1	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (A) ID=13	8-94238-571-0	08	1	1006-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (E) ID=8 H=20 L=20	1-09700-604-0	01	1	1004-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> (E) ID=8 H=20 L=20	1-09700-604-0	01	1	1004-		●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (F) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (D) ID=16	8-94238-568-0	04	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (A) ID=13	8-94238-571-0	04	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> (E) ID=8 H=20 L=20	1-09700-604-0	02	1	1004-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0906-1003	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14	1-09704-102-0	02	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0906-1004	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0906-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	0906-1003	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (A) ID=13	8-94238-571-0	06	1	1004-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> L=1974	8-98169-330-0	01	1	1004-1107	●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> L=1974	8-98169-330-0	01	1	1004-1107		●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> L=1943	8-98179-760-0	01	1	1108-	●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> L=1943	8-98179-760-0	01	1	1108-		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> L=1253	8-98169-351-0	01	1	1004-1107		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> L=1222	8-98179-762-0	01	1	1108-		●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> (B) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1004-	●	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> (A) L=440 SERVICED BY L=3000	0-01558-300-0	01	1	1004-1107	●	●
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> (A) L=430 SERVICED BY L=3000	0-01558-300-0	01	1	1108-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	06	1	1004-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	06	1	1004-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	04	1	1004-		●
85	BOLT; CLIP,FUEL HOSE BIO DIESEL FUEL B10<8NV> M8X25 FLANGE	0-28650-825-0	01	1	1108-	●	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
97	BRACKET; CLIP BIO DIESEL FUEL B10<8NV> (G)	8-98187-394-0	01	1	1108-	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (F) L=55	1-47476-177-0	02	1	1004-	●
97	BRACKET; CLIP BIO DIESEL FUEL B10<8NV> (E)	8-98156-578-0	01	1	1004-	●	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> (F) L=55	1-47476-177-0	01	1	1004-		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (C)	8-98083-349-0	01	1	0906-	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (D)	8-98109-768-0	01	1	0906-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (D)	8-98109-768-0	01	1	0906-		●
97	BRACKET; CLIP (A)	8-98070-115-0	01	1	0906-1003	●	●
97	BRACKET; CLIP EXC. BIO DIESEL FUEL B10<8NV> (A)	8-98070-115-0	01	1	1004-	●	●
97	BRACKET; CLIP (B)	8-98082-343-0	01	1	0906-1003	●	●
97	BRACKET; CLIP EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98082-343-0	01	1	1004-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV>	8-98169-751-0	01	1	1004-1107	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV>	8-98169-751-0	01	1	1004-1107		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV>	8-98179-759-0	01	1	1108-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV>	8-98179-759-0	01	1	1108-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV>	8-98169-752-0	01	1	1004-1107		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV>	8-98179-761-0	01	1	1108-		●
227	BRACKET; FUEL SEDIMENTER	8-98093-028-1	01	1	0906-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0906-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0906-	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	01	1	1004-1004	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	01	1	1004-1004		●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M10X30 FLANGE	0-28651-030-0	01	1	1005-	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	01	1	1005-		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	1005-		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	02	1	1004-1004		●
303	BOLT; BRKT EXC. BIO DIESEL FUEL B10<8NV> M8X30 FLANGE	0-28650-830-0	02	1	1004-	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M10X30 FLANGE	0-28651-030-0	01	1	0906-1003	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	0906-1003		●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	03	1	1004-1004	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	02	1	1005-	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0906-1003	●	●
303	BOLT; BRKT BIO DIESEL FUEL B10<8NV> M8X30 FLANGE	0-28650-830-0	01	1	1004-1109	●	●
303	BOLT; BRKT BIO DIESEL FUEL B10<8NV> M8X30 FLANGE	0-28650-830-0	01	1	1004-1109	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M8X30 FLANGE	0-28650-830-0	01	1	1004-1109	●
303	BOLT; BRKT BIO DIESEL FUEL B10<8NV> M8X30 FLANGE	0-28650-830-0	01	1	1110-	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M8X30 FLANGE	0-28650-830-0	01	1	1110-	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	01	1	1004-1004	●
304	NUT; BRKT WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	01	1	1004-1004		●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M10 FLANGE	0-91180-210-0	01	1	1005-	●
304	NUT; BRKT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	01	1	1005-		●
304	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	1005-		●
304	NUT; BRKT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	02	1	1004-1004		●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M10 FLANGE	0-91180-210-0	01	1	0906-1003	●
304	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	0906-1003		●
304	NUT; BRKT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	03	1	1004-1004	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	02	1	1005-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0906-1003	●	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	0906-1003	●
304	NUT; BRKT EXC. BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	01	1	1004-1107	●	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	1004-1107	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1108-	●	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	1108-	●

634 174 65 47 634 65 174 634 47 65 174 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> L=1974	8-98169-330-0	01	1	1004-1107	●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> L=1974	8-98169-330-0	01	1	1004-1107		●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> L=1943	8-98179-760-0	01	1	1108-	●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> L=1943	8-98179-760-0	01	1	1108-		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> L=1253	8-98169-351-0	01	1	1004-1107		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> L=1222	8-98179-762-0	01	1	1108-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> SERVICED BY L=3000	0-01859-300-0	01	1	1004-1004	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> L=1550	8-98172-295-0	01	1	1005-1107	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> L=1550	8-98183-313-0	01	1	1108-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> SERVICED BY L=3000	0-01859-300-0	01	1	1004-1004		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> L=870	8-98172-296-0	01	1	1005-1107		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> L=870	8-98183-314-0	01	1	1108-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> SERVICED BY L=3000	0-01859-300-0	01	1	1004-1004		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> L=1200	8-98172-294-0	01	1	1005-1107		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> L=1200	8-98183-312-0	01	1	1108-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	0906-1003	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	1004-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0906-1003		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EXC. BIO DIESEL FUEL B10<8NV> L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1004-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) L=3100 SERVICED BY L=10000	0-01260-000-0	01	1	0906-1003		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> L=3100 SERVICED BY L=10000	0-01260-000-0	01	1	1004-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV>	8-98169-751-0	01	1	1004-1107	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV>	8-98169-751-0	01	1	1004-1107		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV>	8-98179-759-0	01	1	1108-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV>	8-98179-759-0	01	1	1108-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV>	8-98169-752-0	01	1	1004-1107		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV>	8-98179-761-0	01	1	1108-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> L=1450 SERVICED BY L=3000	0-01558-300-0	01	1	1004-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> L=580 SERVICED BY L=3000	0-01558-300-0	01	1	1004-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> L=1050 SERVICED BY L=3000	0-01558-300-0	01	1	1004-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) L=3800 SERVICED BY L=7000	0-01558-700-0	01	1	0906-1003	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> L=3800 SERVICED BY L=7000	0-01558-700-0	01	1	1004-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0906-1003		●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) EXC. BIO DIESEL FUEL B10<8NV> L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	1004-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=3400 SERVICED BY L=7000	0-01558-700-0	01	1	0906-1003		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> L=3400 SERVICED BY L=7000	0-01558-700-0	01	1	1004-		●

309 309 65 41 83 174 217 80 62 304 97 24 24 303 304 64 97 303 41 95 47 634 634 41 41 65 41 80 97 83 303 24 41 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (E) ID=18 L=25	8-94121-004-1	02	1	1004-1004	●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (E) ID=21 L=24	8-98019-191-0	02	1	1005-	●
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (F) ID=32 L=50	1-09701-055-1	01	1	1004-1004	●	●
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1005-1107	●	●
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (G) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1108-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> (E) ID=21 L=24	8-98019-191-0	01	1	1004-		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	06	1	1004-		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0906-1003		●
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1004-		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0906-1003	●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1004-	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) EXC. BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1004-		●
24	CLIP; FUEL HOSE (D) ID=16X2 L=20	0-95325-535-0	03	1	0906-1003	●	●
24	CLIP; FUEL HOSE EXC. BIO DIESEL FUEL B10<8NV> (D) ID=16X2 L=20	0-95325-535-0	03	1	1004-	●	●
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0906-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0906-1003	●	●
24	CLIP; FUEL HOSE EXC. BIO DIESEL FUEL B10<8NV> (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1004-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	0906-1003		●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> (A) ID=14.5 & 14.5	1-09701-246-1	08	1	1004-	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (B) L=250	5-09707-030-1	02	1	1004-1004	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (B) L=250	5-09707-030-1	01	1	1005-1009	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	1005-1009	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (B) L=250	5-09707-030-1	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (B) L=250	5-09707-030-1	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	1010-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (A) ID=13	8-94238-571-0	08	1	1006-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (E) ID=8 H=20 L=20	1-09700-604-0	01	1	1004-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> (E) ID=8 H=20 L=20	1-09700-604-0	01	1	1004-		●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (F) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (D) ID=16	8-94238-568-0	04	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (A) ID=13	8-94238-571-0	04	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> (E) ID=8 H=20 L=20	1-09700-604-0	02	1	1004-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0906-1003	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14	1-09704-102-0	02	1	1004-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0906-1004	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0906-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	0906-1003	●	●
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (A) ID=13	8-94238-571-0	06	1	1004-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> L=1974	8-98169-330-0	01	1	1004-1107	●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> L=1974	8-98169-330-0	01	1	1004-1107		●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> L=1943	8-98179-760-0	01	1	1108-	●
47	PIPE; FUEL,RETURN WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> L=1943	8-98179-760-0	01	1	1108-		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> L=1253	8-98169-351-0	01	1	1004-1107		●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> L=1222	8-98179-762-0	01	1	1108-		●
62	BOLT; CLIP FIX WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M8X20 FLANGE	0-28650-820-0	01	1	1004-		●
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0906-1003	●	●
62	BOLT; CLIP FIX EXC. BIO DIESEL FUEL B10<8NV> M8X20 FLANGE	0-28650-820-0	02	1	1004-	●	●
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M8X20 FLANGE	0-28650-820-0	02	1	1004-	●
64	NUT; CLIP EXC. BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	01	1	1004-	●	●
64	NUT; CLIP WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	01	1	1004-		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0906-1003	●	●
64	NUT; CLIP WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	02	1	1004-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> SERVICED BY L=3000	0-01859-300-0	01	1	1004-1004	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> L=1550	8-98172-295-0	01	1	1005-1107	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> L=1550	8-98183-313-0	01	1	1108-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> SERVICED BY L=3000	0-01859-300-0	01	1	1004-1004		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> L=870	8-98172-296-0	01	1	1005-1107		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> L=870	8-98183-314-0	01	1	1108-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> SERVICED BY L=3000	0-01859-300-0	01	1	1004-1004		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> L=1200	8-98172-294-0	01	1	1005-1107		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> L=1200	8-98183-312-0	01	1	1108-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	0906-1003	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	1004-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0906-1003		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EXC. BIO DIESEL FUEL B10<8NV> L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1004-		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) L=3100 SERVICED BY L=10000	0-01260-000-0	01	1	0906-1003		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> L=3100 SERVICED BY L=10000	0-01260-000-0	01	1	1004-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M8X50 FLANGE	0-28050-850-0	04	1	1004-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M8X50 FLANGE	0-28050-850-0	04	1	1004-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M8X25 FLANGE	0-28650-825-0	01	1	1004-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M8X25 FLANGE	0-28650-825-0	01	1	1004-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> M8X50 FLANGE	0-28050-850-0	01	1	1004-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> M8X25 FLANGE	0-28650-825-0	02	1	1004-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	06	1	1004-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	06	1	1004-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	04	1	1004-		●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> ID=19 OD=23 T=18	9-09956-130-1	01	1	1004-1004		●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> ID=24 OD=30 T=17	9-09956-092-1	01	1	1005-		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-1003	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1004-	●	●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> ID=28 OD=35 T=17	9-09956-256-2	01	1	1004-	●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> ID=28 OD=35 T=17	9-09956-256-2	01	1	1004-		●
97	BRACKET; CLIP BIO DIESEL FUEL B10<8NV> (G)	8-98187-394-0	01	1	1108-	●	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (F) L=55	1-47476-177-0	02	1	1004-	●
97	BRACKET; CLIP BIO DIESEL FUEL B10<8NV> (E)	8-98156-578-0	01	1	1004-	●	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> (F) L=55	1-47476-177-0	01	1	1004-		●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (C)	8-98083-349-0	01	1	0906-	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (D)	8-98109-768-0	01	1	0906-	●
97	BRACKET; CLIP WHEEL BASE 4600MM(46W) (D)	8-98109-768-0	01	1	0906-		●
97	BRACKET; CLIP (A)	8-98070-115-0	01	1	0906-1003	●	●
97	BRACKET; CLIP EXC. BIO DIESEL FUEL B10<8NV> (A)	8-98070-115-0	01	1	1004-	●	●
97	BRACKET; CLIP (B)	8-98082-343-0	01	1	0906-1003	●	●
97	BRACKET; CLIP EXC. BIO DIESEL FUEL B10<8NV> (B)	8-98082-343-0	01	1	1004-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV>	8-98169-751-0	01	1	1004-1107	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV>	8-98169-751-0	01	1	1004-1107		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV>	8-98179-759-0	01	1	1108-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV>	8-98179-759-0	01	1	1108-		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV>	8-98169-752-0	01	1	1004-1107		●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV>	8-98179-761-0	01	1	1108-		●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> ID=8	1-47459-011-0	04	1	1004-	●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> ID=8	1-47459-011-0	04	1	1004-		●
217	COLLAR; FUEL PIPE FIX WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> ID=8	1-47459-011-0	01	1	1004-		●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	01	1	1004-1004	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	01	1	1004-1004		●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M10X30 FLANGE	0-28651-030-0	01	1	1005-	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	01	1	1005-		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	1005-		●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	02	1	1004-1004		●
303	BOLT; BRKT EXC. BIO DIESEL FUEL B10<8NV> M8X30 FLANGE	0-28650-830-0	02	1	1004-	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M10X30 FLANGE	0-28651-030-0	01	1	0906-1003	●
303	BOLT; BRKT WHEEL BASE 4600MM(46W) M10X30 FLANGE	0-28651-030-0	01	1	0906-1003		●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	03	1	1004-1004	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M10X30 FLANGE	0-28651-030-0	02	1	1005-	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0906-1003	●	●
303	BOLT; BRKT BIO DIESEL FUEL B10<8NV> M8X30 FLANGE	0-28650-830-0	01	1	1004-1109	●	●
303	BOLT; BRKT BIO DIESEL FUEL B10<8NV> M8X30 FLANGE	0-28650-830-0	01	1	1004-1109	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M8X30 FLANGE	0-28650-830-0	01	1	1004-1109	●
303	BOLT; BRKT BIO DIESEL FUEL B10<8NV> M8X30 FLANGE	0-28650-830-0	01	1	1110-	●	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) M8X30 FLANGE	0-28650-830-0	01	1	1110-	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	01	1	1004-1004	●
304	NUT; BRKT WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	01	1	1004-1004		●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M10 FLANGE	0-91180-210-0	01	1	1005-	●
304	NUT; BRKT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	01	1	1005-		●
304	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	1005-		●
304	NUT; BRKT WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	02	1	1004-1004		●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M10 FLANGE	0-91180-210-0	01	1	0906-1003	●
304	NUT; BRKT WHEEL BASE 4600MM(46W) M10 FLANGE	0-91180-210-0	01	1	0906-1003		●
304	NUT; BRKT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	03	1	1004-1004	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> M10 FLANGE	0-91180-210-0	02	1	1005-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0906-1003	●	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	0906-1003	●
304	NUT; BRKT EXC. BIO DIESEL FUEL B10<8NV> M8 FLANGE	0-91180-108-0	01	1	1004-1107	●	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	1004-1107	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1108-	●	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	1108-	●
309	CLIP; PIPE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (A) ID=10 & 10	1-09709-241-0	04	1	1004-	●
309	CLIP; PIPE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> (A) ID=10 & 10	1-09709-241-0	04	1	1004-		●
309	CLIP; PIPE WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> (B) ID=10 & 10	1-09709-243-0	04	1	1004-	●
309	CLIP; PIPE WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> (B) ID=10 & 10	1-09709-243-0	04	1	1004-		●
309	CLIP; PIPE WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> (A) ID=10 & 10	1-09709-241-0	01	1	1004-		●
309	CLIP; PIPE WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> (B) ID=10 & 10	1-09709-243-0	01	1	1004-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) BIO DIESEL FUEL B10<8NV> L=1450 SERVICED BY L=3000	0-01558-300-0	01	1	1004-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) BIO DIESEL FUEL B10<8NV> L=580 SERVICED BY L=3000	0-01558-300-0	01	1	1004-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) BIO DIESEL FUEL B10<8NV> L=1050 SERVICED BY L=3000	0-01558-300-0	01	1	1004-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) L=3800 SERVICED BY L=7000	0-01558-700-0	01	1	0906-1003	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) EXC. BIO DIESEL FUEL B10<8NV> L=3800 SERVICED BY L=7000	0-01558-700-0	01	1	1004-	●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0906-1003		●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) EXC. BIO DIESEL FUEL B10<8NV> L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	1004-		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=3400 SERVICED BY L=7000	0-01558-700-0	01	1	0906-1003		●
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) EXC. BIO DIESEL FUEL B10<8NV> L=3400 SERVICED BY L=7000	0-01558-700-0	01	1	1004-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
