Isuzu WW
▶
TRUCKS
▶
FSR
▶
11238 - FSR-RHD(EU)SPACE EU5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#56793) — 52 parça
◀

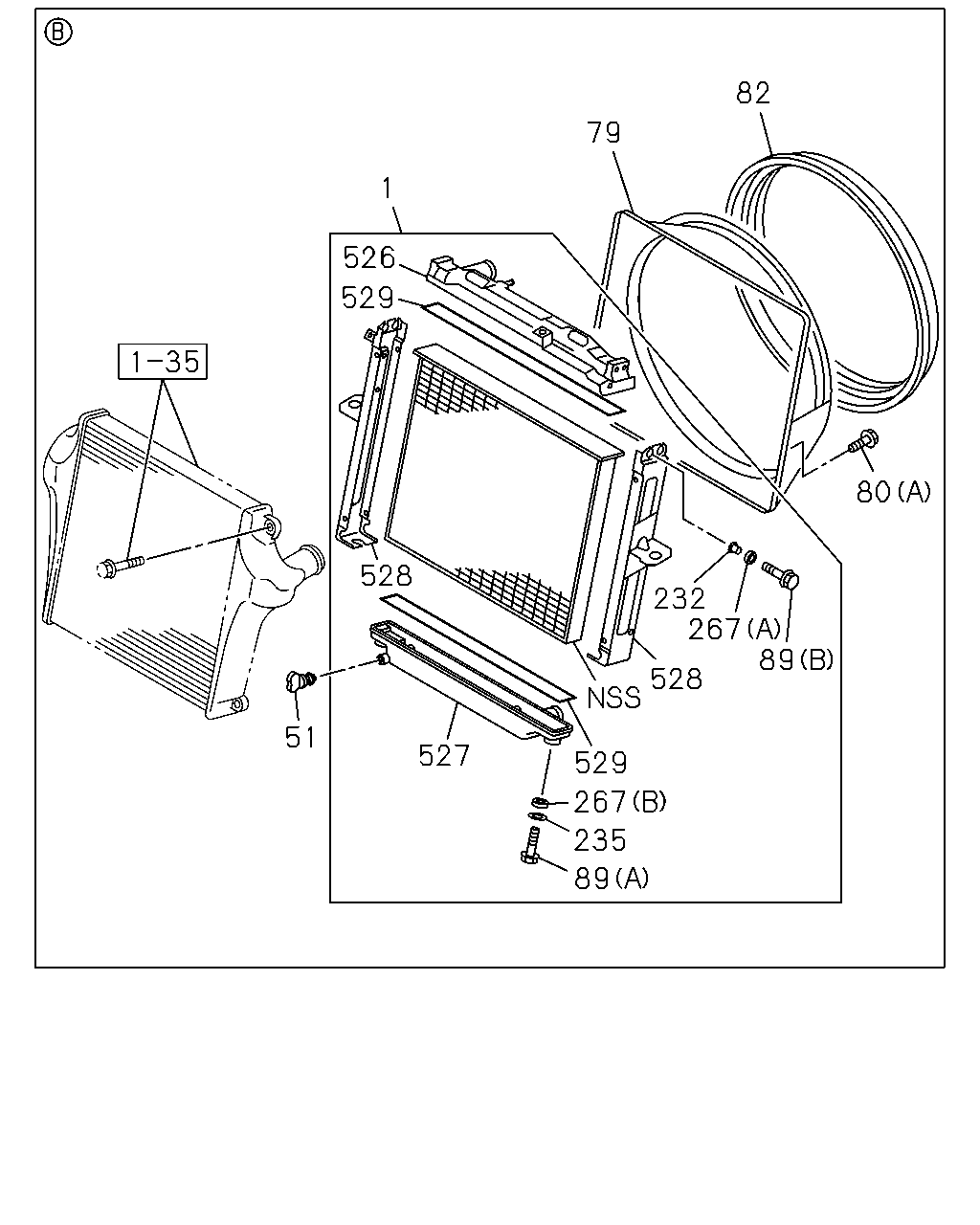

[110A] NO.2 (17 parça)

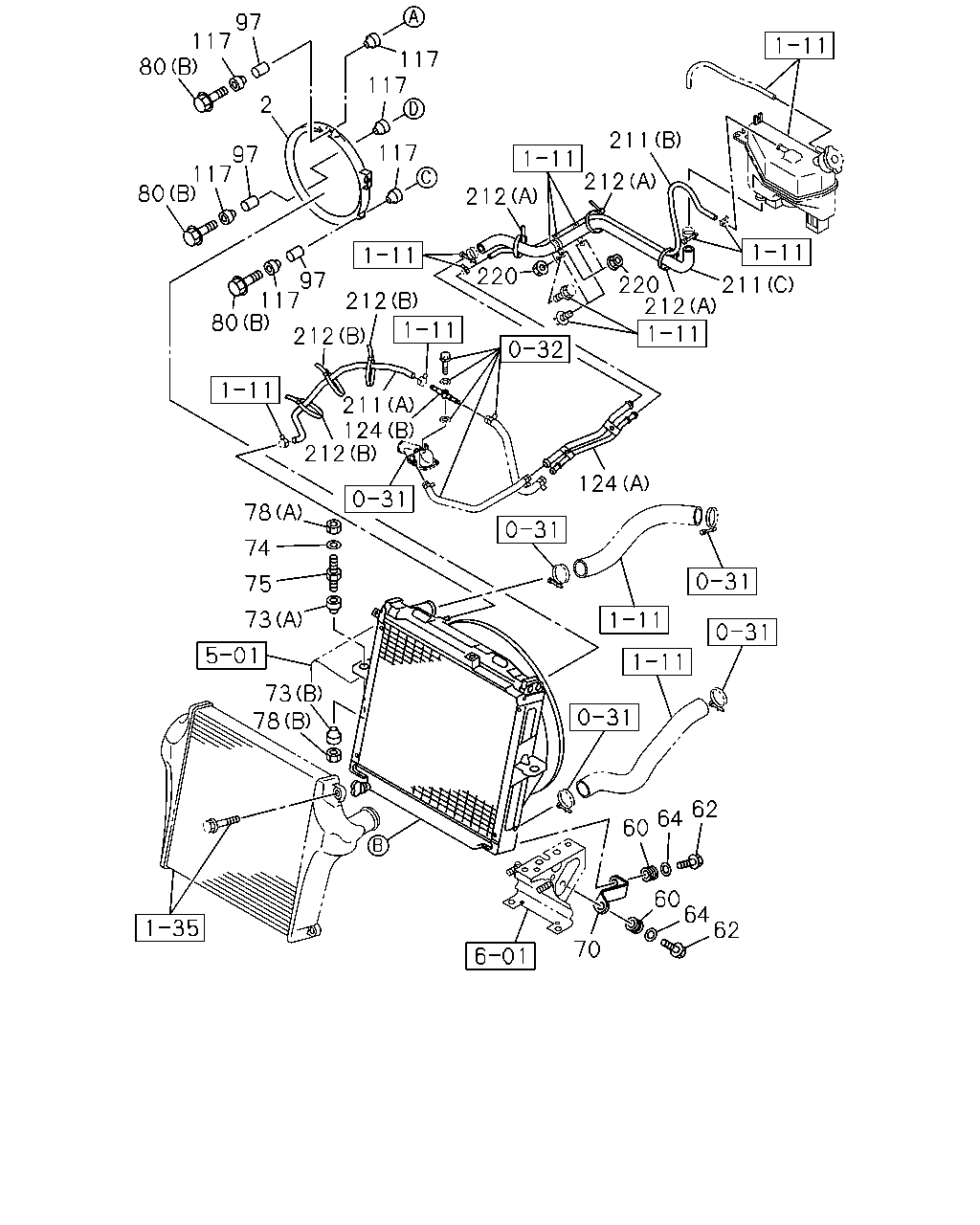

[110A] NO.1 (25 parça)

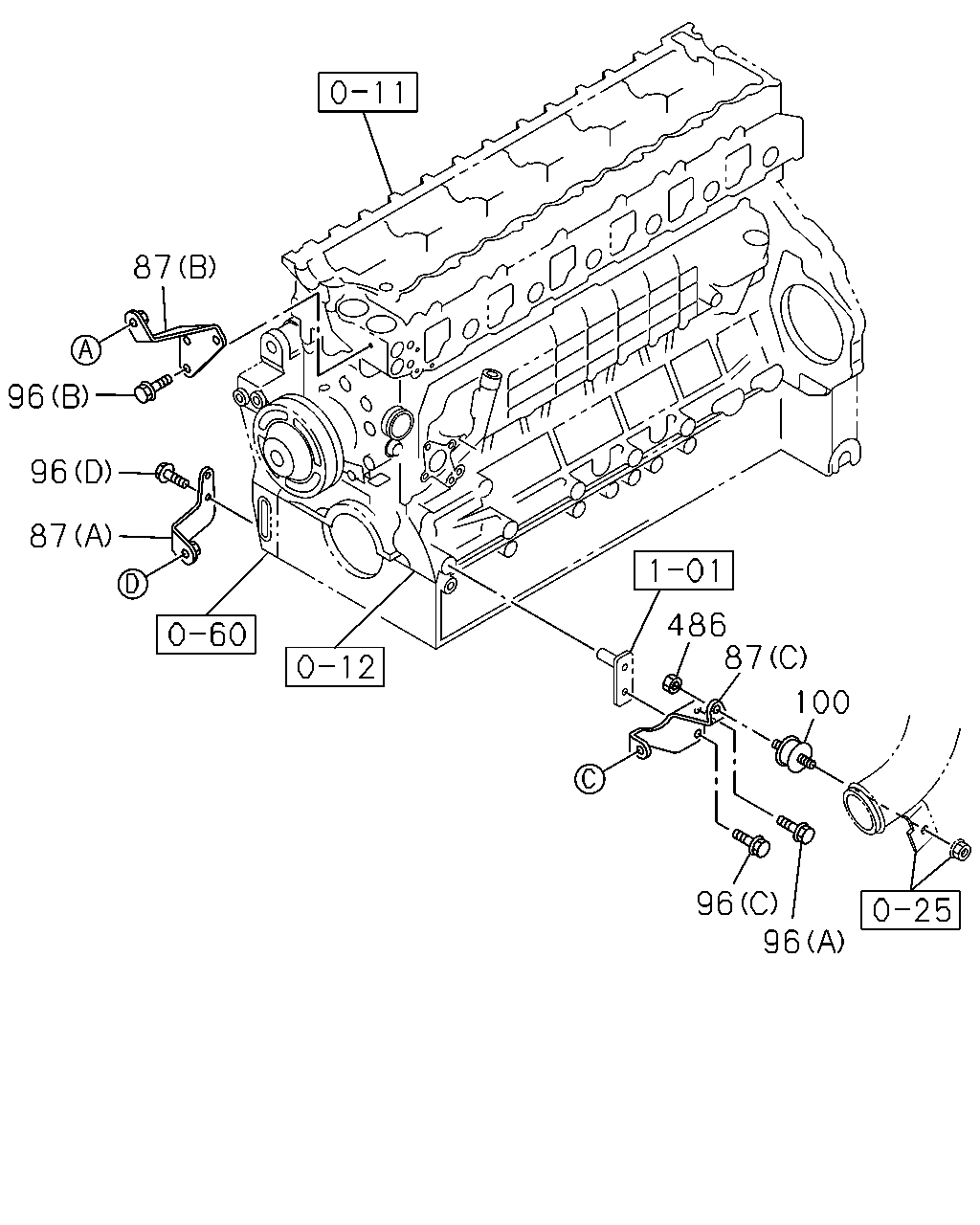

[110A] NO.3 (10 parça)
▶
82
79
1
526
529
80
528
232
267
89
528
51
527
529
267
235
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98096-675-0
01
1
0906-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
0906-
79
GUIDE; FAN,RAD
8-98010-383-0
01
1
0906-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
0906-
80
BOLT; FAN GUIDE
(A) M8X14
8-98046-222-0
04
1
0906-
82
COVER; FAN,RAD
8-98010-385-0
01
1
0906-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
0906-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
0906-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
0906-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
0906-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
0906-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
0906-
526
TANK; UPR,RADIATOR CORE
8-98010-363-1
01
1
0906-
527
TANK; LWR,RADIATOR CORE
8-98004-203-0
01
1
0906-
528
PLATE; SIDE,RADIATOR CORE
8-98010-369-1
01
1
0906-
528
PLATE; SIDE,RADIATOR CORE
8-98089-602-0
01
1
0906-
529
GASKET; CORE,RADIATOR
8-98004-206-0
02
1
0906-
97
117
117
117
117
80
2
97
117
80
212
97
117
80
212
212
211
220
211
212
211
220
212
124
212
124
78
74
75
73
73
78
70
60
64
62
60
64
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-94393-779-1
01
1
0906-
60
GROMMET
1-09332-117-0
04
1
0906-
62
BOLT; STAY
M8X30
1-09009-020-1
02
1
0906-
62
BOLT; STAY
M8X26
1-09009-175-0
02
1
0906-
64
WASHER; STAY TO RAD
ID=12.5 OD=26
0-91610-612-0
04
1
0906-
70
STAY; RAD
8-98083-604-0
01
1
0906-
70
STAY; RAD
8-98083-605-0
01
1
0906-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
0906-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
0906-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
0906-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
0906-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-210-0
02
1
0906-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
0906-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
0906-
80
BOLT; FAN GUIDE
(A) M8X14
8-98046-222-0
04
1
0906-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
0906-
117
RUBBER; MTG,FAN GUIDE
OD=32
8-94395-766-0
06
1
0906-
124
PIPE; WATER,TANK TO RAD
(B)
8-94390-681-0
01
1
0906-
124
PIPE; WATER,TANK TO RAD
(A)
8-98051-795-0
01
1
0906-
211
HOSE; RAD TO PIPE
(A) L=560 SERVICED BY L=3000
0-03557-300-0
01
1
0906-
211
HOSE; RAD TO PIPE
(C)
8-98011-274-3
01
1
0906-
211
HOSE; RAD TO PIPE
(B)
8-98119-374-0
01
1
0906-
212
CLIP; HOSE
(A) L=190
1-09707-116-0
03
1
0906-
212
CLIP; HOSE
(B) L=250
5-09707-030-1
03
1
0906-
220
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0906-
87
96
96
87
486
87
100
96
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
STAY; FAN GUIDE
(B)
8-97608-497-0
01
1
0906-
87
STAY; FAN GUIDE
(C)
8-97608-499-0
01
1
0906-
87
STAY; FAN GUIDE
(A)
8-97608-500-0
01
1
0906-
96
BOLT; STAY FIX
(A) M10X60 FLANGE
0-28151-060-0
01
1
0906-
96
BOLT; STAY FIX
(D) M8X20 FLANGE
0-28650-820-0
02
1
0906-
96
BOLT; STAY FIX
(C) M10X25 FLANGE
0-28751-025-0
01
1
0906-
96
BOLT; STAY FIX
(B) M12X30 FLANGE
0-28751-230-0
03
1
0906-
100
RUBBER; MTG
8-94394-268-1
01
1
0906-0910
100
RUBBER; MTG
8-98148-109-0
01
1
0911-
486
NUT; MTG RUBBER
M8 FLANGE
0-91180-108-0
01
1
0906-
