0-40 — FUEL INJECTION SYSTEM (#5679) — 348 parça

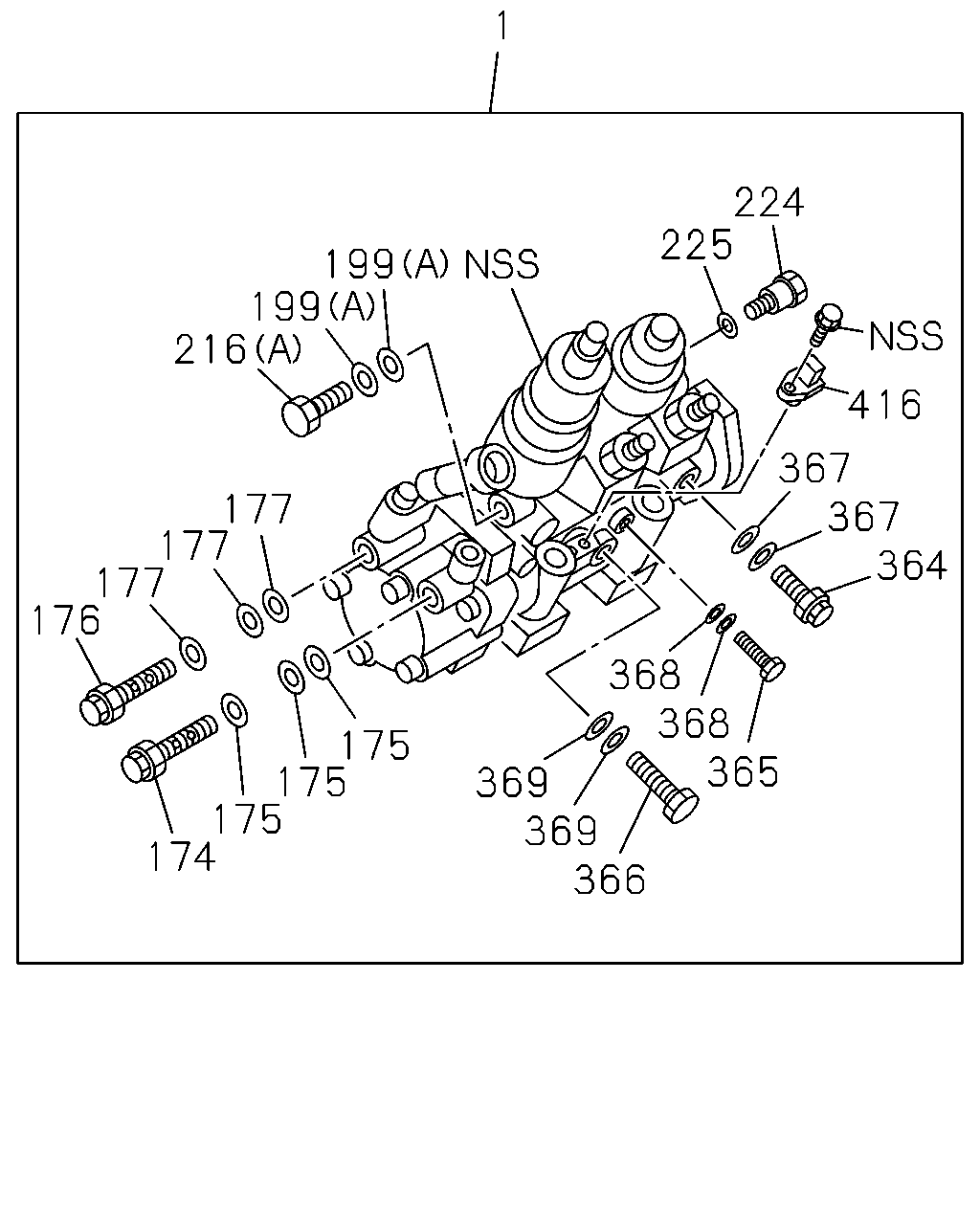

çizim 25176
1 224 225 199 199 216 416 367 367 364 177 177 177 176 368 368 365 175 175 175 174 369 369 366
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94395-919-2 01 1 9811-9906 ●
1 PUMP ASM; INJ 8-94392-714-5 01 1 9907-0610 ●
1 PUMP ASM; INJ 8-97605-946-6 01 1 0611- ● ●
174 BOLT; EYE,FUEL OUTLET,FEED PUMP 1-15619-499-0 01 1 9907-0610 ●
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP 1-15619-501-0 03 1 9907-0610 ●
176 BOLT; EYE,FEED PUMP 1-15619-498-0 01 1 9907-0610 ●
177 GASKET; EYE BOLT,INL,FUEL FEED PUMP 1-15619-501-0 03 1 9907-0610 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-501-0 02 1 9907-0610 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-15619-507-0 02 1 0611- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0107-0610 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0611- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0611- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 9907-0610 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0611- ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0107-0610 ●
216 BOLT; EYE
(D) 		8-97351-388-0 01 1 0611- ● ●
224 PLUG; INJ PUMP 1-15619-500-0 01 1 9907-0610 ●
225 GASKET; PLUG 1-15619-502-0 01 1 9907-0610 ●
364 VALVE; OVER FLOW,INJ PUMP 1-15619-496-0 01 1 9907-0610 ●
365 BOLT; EYE,OIL INLET 9-88130-088-0 01 1 9907-0610 ●
366 BOLT; EYE,OIL OUTLET 1-15619-497-0 01 1 9907-0610 ●
367 GASKET; VALVE,OVER FLOW 1-15619-501-0 02 1 9907-0610 ●
368 GASKET; EYE BOLT,OIL INLET 1-15619-503-0 02 1 9907-0610 ●
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-504-0 02 1 9907-0610 ●
416 SENSOR; POSITION,PUMP 8-97174-899-0 01 1 9907-0610 ●
çizim 25808
31 32 58 140 44 43 146 33 35
BalonParca AdiParca NoAdetTipApplied Date A B C D
31 NOZZLE ASM; INJ 8-94392-261-3 06 1 9907-0610 ●
31 NOZZLE ASM; INJ 8-97609-788-6 06 1 0611- ● ●
31 NOZZLE ASM; INJ 8-94395-923-2 06 1 9811-9906 ●
32 HOLDER ASM; NOZZLE 8-94394-788-0 06 1 9811-9906 ●
33 NOZZLE; INJ 8-94390-399-0 06 1 9811-9906 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 9811-9906 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 9811-9906 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 9811-9906 ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 9811-9906 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-97116-029-0 AR 1 9811-9906 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-97116-032-0 AR 1 9811-9906 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-97116-033-0 AR 1 9811-9906 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-97116-034-0 AR 1 9811-9906 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		8-97116-035-0 AR 1 9811-9906 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.51 		8-97116-036-0 AR 1 9811-9906 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		8-97116-037-0 AR 1 9811-9906 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.53 		8-97116-038-0 AR 1 9811-9906 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		8-97116-039-0 AR 1 9811-9906 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.55 		8-97116-040-0 AR 1 9811-9906 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		8-97116-041-0 AR 1 9811-9906 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.57 		8-97116-042-0 AR 1 9811-9906 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		8-97116-043-0 AR 1 9811-9906 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.59 		8-97116-044-0 AR 1 9811-9906 ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 9811-9906 ●

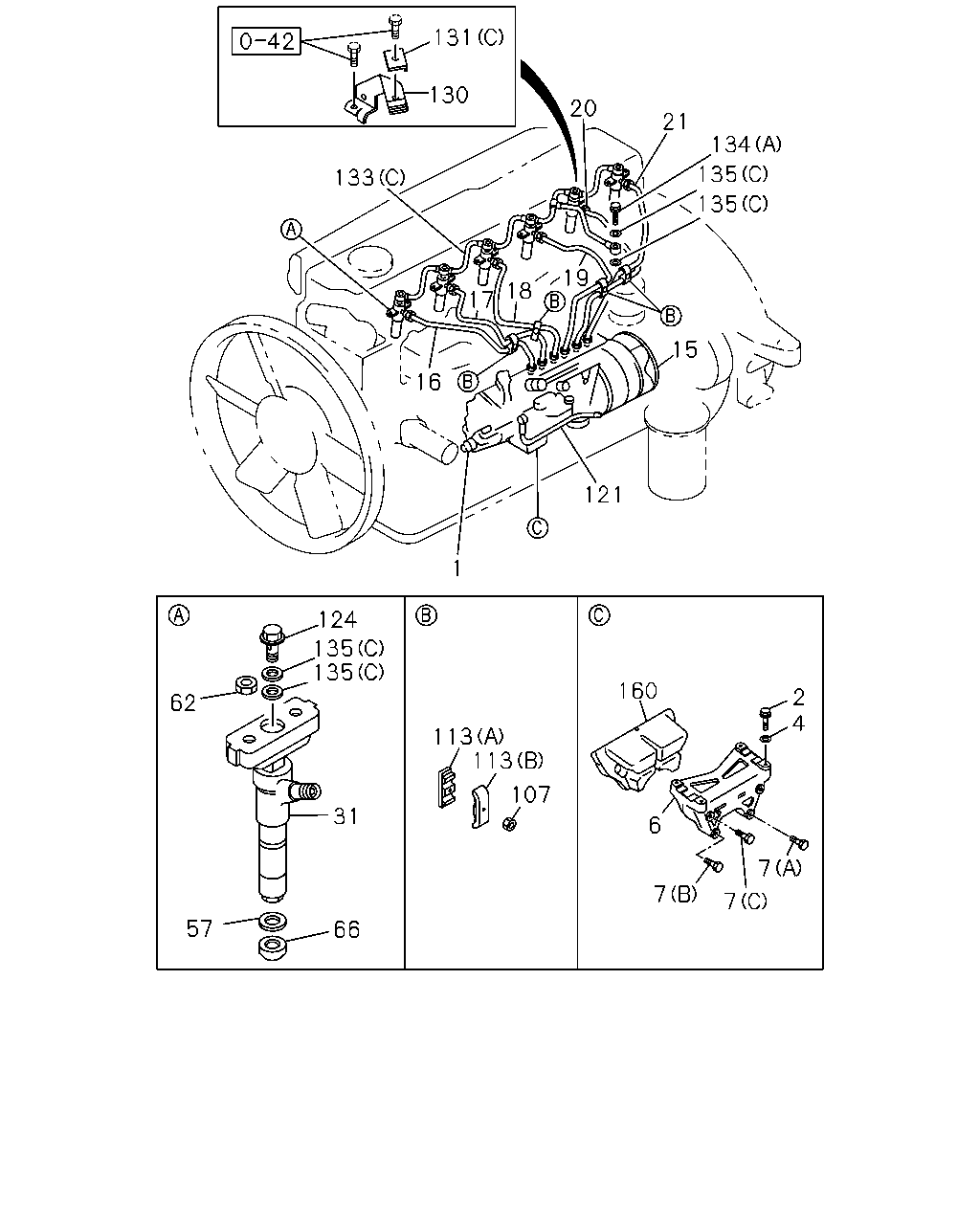

çizim 26345
131 130 20 21 134 135 133 135 19 18 17 15 16 121 1 124 135 135 160 2 4 62 113 113 107 31 6 7 7 7 57 66
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94395-919-2 01 1 9811-9906 ●
1 PUMP ASM; INJ 8-94392-714-5 01 1 9907-0610 ●
1 PUMP ASM; INJ 8-97605-946-6 01 1 0611- ● ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9811-9906 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 9907-0512 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601-0610 ●
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 0611- ● ●
4 WASHER; INJ PUMP
ID=8.5 MITSUBISHI 		9-09851-934-0 04 1 9811-9906 ●
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-1 01 1 0611- ● ●
6 BRACKET; INJ PUMP TO C/BL 8-94393-689-2 01 1 9811-9906 ●
7 BOLT; INJ PUMP BRKT
(A) M10X80 FLANGE 		0-28181-080-0 02 1 9811-9906 ●
7 BOLT; INJ PUMP BRKT
(A) M10X100 FLANGE 		0-28181-000-0 02 1 9907-0512 ●
7 BOLT; INJ PUMP BRKT
(A) M10X100 FLANGE 		0-28151-000-0 02 1 0601-0610 ●
7 BOLT; INJ PUMP BRKT
(B) M10X75 FLANGE 		8-94399-669-1 01 1 9811-9906 ●
7 BOLT; INJ PUMP BRKT
(B) M10X60 FLANGE 		0-28181-060-0 03 1 9907-0512 ●
7 BOLT; INJ PUMP BRKT
(B) M10X60 FLANGE 		0-28151-060-0 03 1 0601-0610 ●
7 BOLT; INJ PUMP BRKT
(C) M10X55 FLANGE 		8-94399-863-1 01 1 9811-9906 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94393-962-2 01 1 9811-9906 ●
15 COUPLING ASM; INJ PUMP 8-94391-467-0 01 1 9907-0610 ●
16 PIPE; INJ NO.1 8-94393-845-1 01 1 9811-9906 ●
16 PIPE; INJ NO.1 8-94390-230-6 01 1 9907-0610 ●
16 PIPE; INJ NO.1 8-98038-936-0 01 1 0611- ● ●
17 PIPE; INJ NO.2 8-94393-846-1 01 1 9811-9906 ●
17 PIPE; INJ NO.2 8-94390-231-6 01 1 9907-0610 ●
17 PIPE; INJ NO.2 8-98039-770-0 01 1 0611- ● ●
18 PIPE; INJ NO.3 8-94393-897-1 01 1 9811-9906 ●
18 PIPE; INJ NO.3 8-94390-232-6 01 1 9907-0610 ●
18 PIPE; INJ NO.3 8-98038-937-0 01 1 0611- ● ●
19 PIPE; INJ NO.4 8-94393-757-1 01 1 9811-9906 ●
19 PIPE; INJ NO.4 8-94390-233-6 01 1 9907-0610 ●
19 PIPE; INJ NO.4 8-98057-085-0 01 1 0611- ● ●
20 PIPE; INJ NO.5 8-94393-758-1 01 1 9811-9906 ●
20 PIPE; INJ NO.5 8-94390-234-6 01 1 9907-0610 ●
20 PIPE; INJ NO.5 8-98038-939-0 01 1 0611- ● ●
21 PIPE; INJ NO.6 8-94393-759-1 01 1 9811-9906 ●
21 PIPE; INJ NO.6 8-94390-235-6 01 1 9907-0610 ●
21 PIPE; INJ NO.6 8-98039-771-0 01 1 0611- ● ●
31 NOZZLE ASM; INJ 8-94392-261-3 06 1 9907-0610 ●
31 NOZZLE ASM; INJ 8-97609-788-6 06 1 0611- ● ●
31 NOZZLE ASM; INJ 8-94395-923-2 06 1 9811-9906 ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09563-215-0 06 1 9811-9906 ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 9811-9906 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97171-333-0 06 1 9811-9906 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-013-1 06 1 9907-0006 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0007-0610 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0611- ● ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 04 1 9811-9906 ●
113 CLIP; INJ PIPE
(A) 		8-94396-793-0 04 1 9811-9906 ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 04 1 9811-9906 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94394-408-0 01 1 9811-9906 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94390-837-2 01 1 9907-0610 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97610-501-0 01 1 0611- ● ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE BOLT 		1-09675-037-1 06 1 9811-9906 ●
130 BRACKET; OVERFLOW TO LEAK OFF 8-94394-456-1 01 1 9811-9906 ●
131 CLIP; OVERFLOW LEAK OFF
(A) 		8-98000-010-2 01 1 0611- ● ●
131 CLIP; OVERFLOW LEAK OFF
(B) 		8-98000-011-2 01 1 0611- ● ●
131 CLIP; OVERFLOW LEAK OFF
(C) 		8-94394-267-0 01 1 9811-9906 ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-94395-145-0 01 1 9811-9906 ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 9907-0610 ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0611- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-94391-356-1 01 1 9907-0610 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-503-0 01 1 0611- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE BOLT 		1-09675-037-1 01 1 9811-9906 ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE BOLT 		1-09675-037-1 06 1 9907-0610 ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE BOLT 		1-09675-037-1 06 1 0611- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 9907-0610 ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0611- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.6 		8-97240-975-0 01 1 0611- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.2 OD=13.2 		1-09630-082-0 14 1 9811-9906 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9907-0610 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0611- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6 		8-94395-214-0 06 1 9907-9910 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 9911-0610 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0611- ● ●
160 SPACER; INJ PUMP 8-94395-673-1 01 1 9811-9906 ●

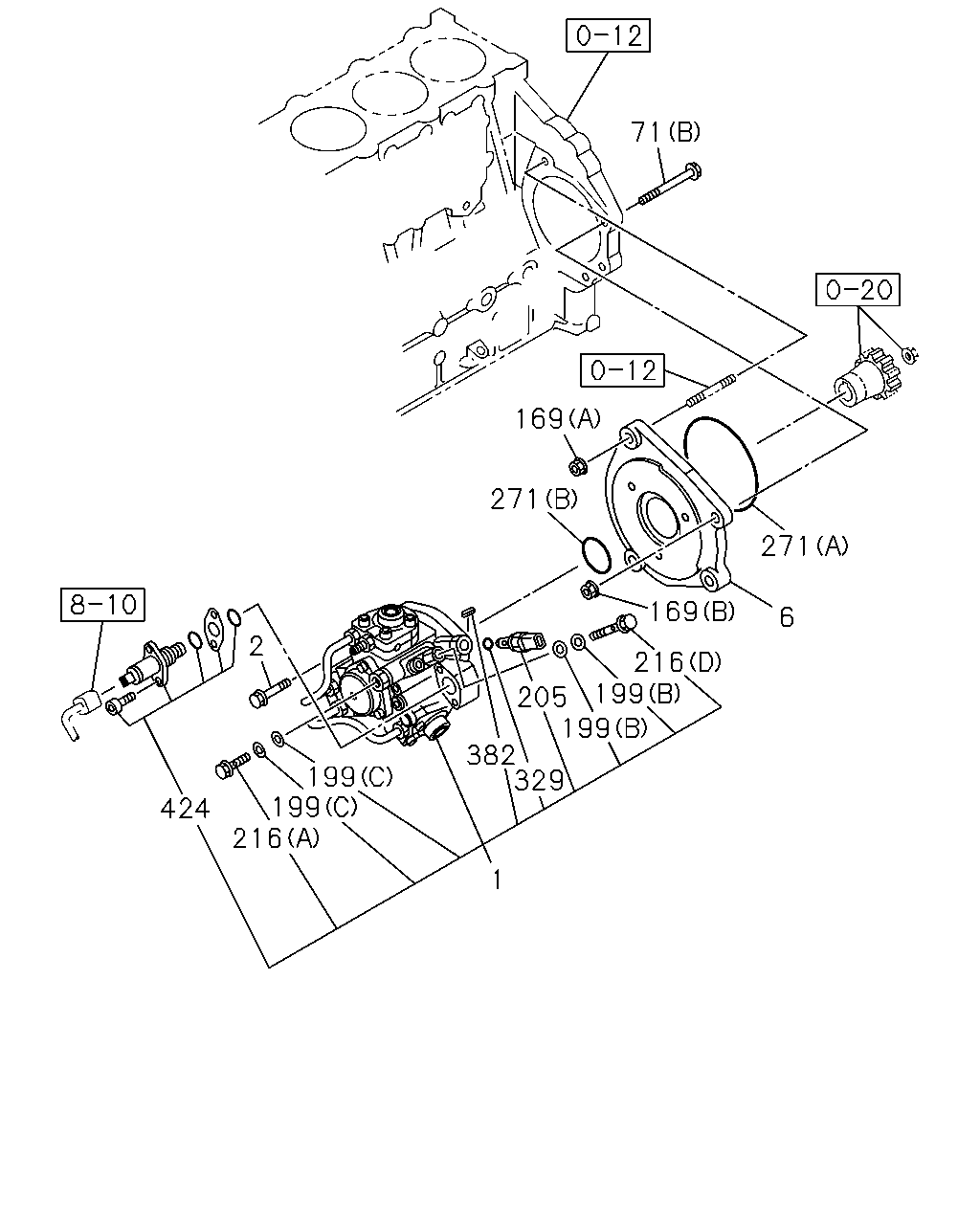

çizim 26458
71 169 271 271 169 6 2 216 199 205 199 382 329 199 199 216 424 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94395-919-2 01 1 9811-9906 ●
1 PUMP ASM; INJ 8-94392-714-5 01 1 9907-0610 ●
1 PUMP ASM; INJ 8-97605-946-6 01 1 0611- ● ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9811-9906 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 9907-0512 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601-0610 ●
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 0611- ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-1 01 1 0611- ● ●
6 BRACKET; INJ PUMP TO C/BL 8-94393-689-2 01 1 9811-9906 ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0611- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0611- ● ●
169 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 0611- ● ●
169 NUT; BRKT
(B) M12 FLANGE 		0-91180-112-0 01 1 0611- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-501-0 02 1 9907-0610 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-15619-507-0 02 1 0611- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0107-0610 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0611- ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0611- ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0611- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 9907-0610 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0611- ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0107-0610 ●
216 BOLT; EYE
(D) 		8-97351-388-0 01 1 0611- ● ●
271 GASKET; INJ PUMP
(A) ID=139.6 		1-09623-464-0 01 1 0611- ● ●
271 GASKET; INJ PUMP
(B) ID=52 		8-98031-844-0 01 1 0611- ● ●
329 GASKET; SENSOR,FUEL TEMP 9-09566-110-0 01 1 0611- ● ●
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0611- ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98143-870-0 01 1 0611- ● ●
çizim 99288
31 154 52
BalonParca AdiParca NoAdetTipApplied Date A B C D
31 NOZZLE ASM; INJ 8-94392-261-3 06 1 9907-0610 ●
31 NOZZLE ASM; INJ 8-97609-788-6 06 1 0611- ● ●
31 NOZZLE ASM; INJ 8-94395-923-2 06 1 9811-9906 ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 9907-0610 ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 0611- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 9907-0610 ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0611- ● ●

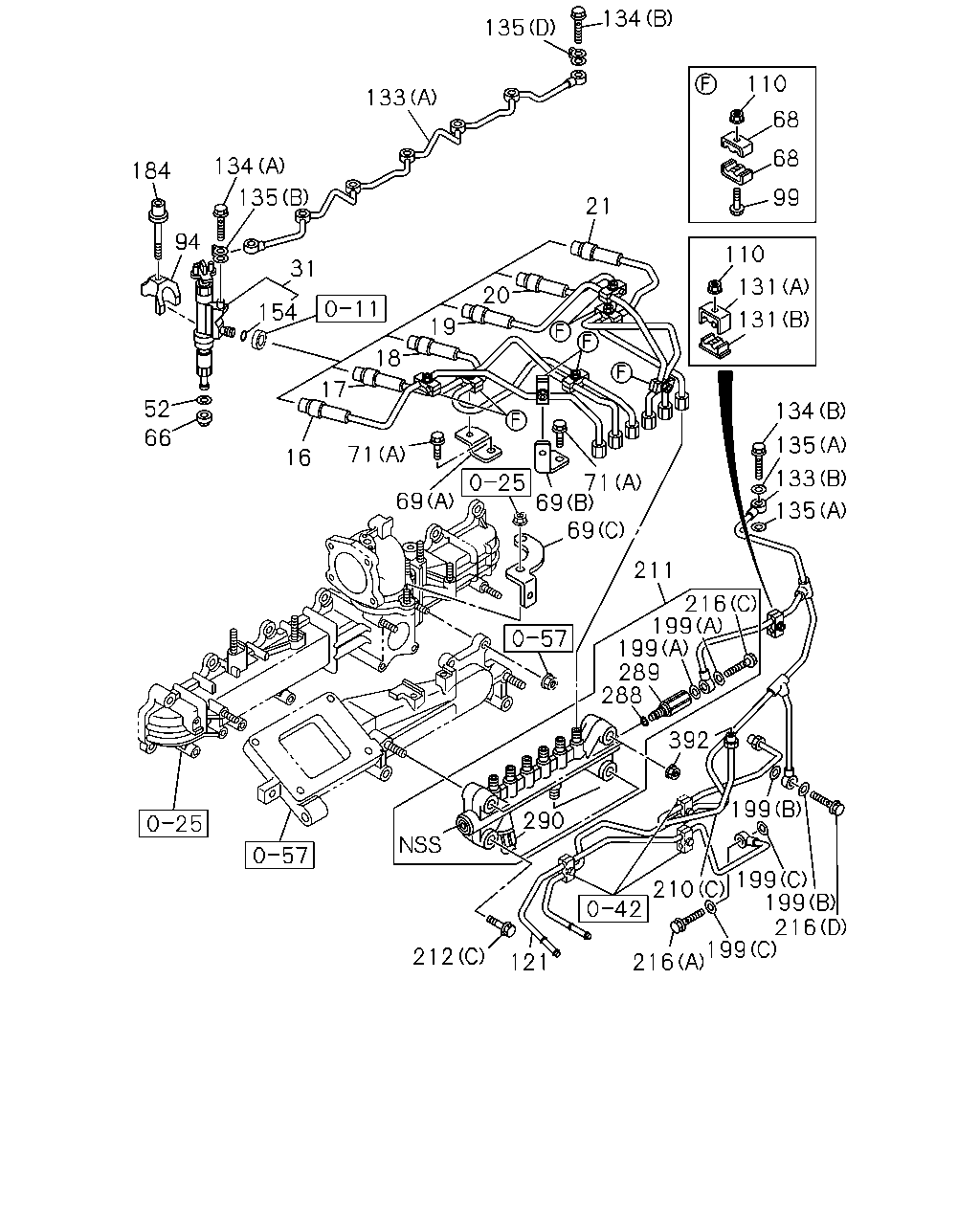

çizim 99291
134 135 110 133 68 68 134 184 135 99 21 94 110 31 131 20 154 131 19 18 17 52 134 66 135 71 16 133 71 69 69 69 135 211 216 199 199 289 288 392 199 290 199 199 216 199 210 212 121 216
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 PIPE; INJ NO.1 8-94393-845-1 01 1 9811-9906 ●
16 PIPE; INJ NO.1 8-94390-230-6 01 1 9907-0610 ●
16 PIPE; INJ NO.1 8-98038-936-0 01 1 0611- ● ●
17 PIPE; INJ NO.2 8-94393-846-1 01 1 9811-9906 ●
17 PIPE; INJ NO.2 8-94390-231-6 01 1 9907-0610 ●
17 PIPE; INJ NO.2 8-98039-770-0 01 1 0611- ● ●
18 PIPE; INJ NO.3 8-94393-897-1 01 1 9811-9906 ●
18 PIPE; INJ NO.3 8-94390-232-6 01 1 9907-0610 ●
18 PIPE; INJ NO.3 8-98038-937-0 01 1 0611- ● ●
19 PIPE; INJ NO.4 8-94393-757-1 01 1 9811-9906 ●
19 PIPE; INJ NO.4 8-94390-233-6 01 1 9907-0610 ●
19 PIPE; INJ NO.4 8-98057-085-0 01 1 0611- ● ●
20 PIPE; INJ NO.5 8-94393-758-1 01 1 9811-9906 ●
20 PIPE; INJ NO.5 8-94390-234-6 01 1 9907-0610 ●
20 PIPE; INJ NO.5 8-98038-939-0 01 1 0611- ● ●
21 PIPE; INJ NO.6 8-94393-759-1 01 1 9811-9906 ●
21 PIPE; INJ NO.6 8-94390-235-6 01 1 9907-0610 ●
21 PIPE; INJ NO.6 8-98039-771-0 01 1 0611- ● ●
31 NOZZLE ASM; INJ 8-94392-261-3 06 1 9907-0610 ●
31 NOZZLE ASM; INJ 8-97609-788-6 06 1 0611- ● ●
31 NOZZLE ASM; INJ 8-94395-923-2 06 1 9811-9906 ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 9907-0610 ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 0611- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97171-333-0 06 1 9811-9906 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-013-1 06 1 9907-0006 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0007-0610 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0611- ● ●
68 CLIP; INJ PIPE 8-98039-293-0 14 1 0611- ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 0611- ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 0611- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 0611- ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0611- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0611- ● ●
94 BRACKET; INJ NOZZLE 8-94390-988-0 06 1 9907-0410 ●
94 BRACKET; INJ NOZZLE 8-97306-074-1 06 1 0411-0606 ●
94 BRACKET; INJ NOZZLE 8-98028-999-0 06 1 0607-0610 ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 0611- ● ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 03 1 0611- ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 0611- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94394-408-0 01 1 9811-9906 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94390-837-2 01 1 9907-0610 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97610-501-0 01 1 0611- ● ●
131 CLIP; OVERFLOW LEAK OFF
(A) 		8-98000-010-2 01 1 0611- ● ●
131 CLIP; OVERFLOW LEAK OFF
(B) 		8-98000-011-2 01 1 0611- ● ●
131 CLIP; OVERFLOW LEAK OFF
(C) 		8-94394-267-0 01 1 9811-9906 ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-94395-145-0 01 1 9811-9906 ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 9907-0610 ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0611- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-94391-356-1 01 1 9907-0610 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-503-0 01 1 0611- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE BOLT 		1-09675-037-1 01 1 9811-9906 ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE BOLT 		1-09675-037-1 06 1 9907-0610 ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE BOLT 		1-09675-037-1 06 1 0611- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 9907-0610 ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0611- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.6 		8-97240-975-0 01 1 0611- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.2 OD=13.2 		1-09630-082-0 14 1 9811-9906 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9907-0610 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0611- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6 		8-94395-214-0 06 1 9907-9910 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 9911-0610 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0611- ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 9907-0610 ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0611- ● ●
184 BOLT; NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 0611- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-501-0 02 1 9907-0610 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-15619-507-0 02 1 0611- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0107-0610 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0611- ● ●
210 PIPE; INJ,C/R
(A) 		8-94390-824-3 01 1 9907-0610 ●
210 PIPE; INJ,C/R
(C) 		8-97608-480-1 01 1 0611- ● ●
210 PIPE; INJ,C/R
(B) 		8-94390-825-3 01 1 9907-0610 ●
211 RAIL ASM; COMMON 8-94392-863-0 01 1 9907-0101 ●
211 RAIL ASM; COMMON 8-97601-512-2 01 1 0102-0610 ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 0611- ● ●
212 BOLT; RAIL ASM
(A) M8X130 FLANGE 		0-28085-813-0 02 1 9907-0512 ●
212 BOLT; RAIL ASM
(A) M8X130 FLANGE 		0-28055-813-0 02 1 0601-0610 ●
212 BOLT; RAIL ASM
(C) M10X50 FLANGE 		8-97372-243-0 02 1 0611- ● ●
212 BOLT; RAIL ASM
(B) M8X130 		1-09000-200-1 02 1 9907-0610 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0611- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 9907-0610 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0611- ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0107-0610 ●
216 BOLT; EYE
(D) 		8-97351-388-0 01 1 0611- ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 07 1 0102-0610 ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0611- ● ●
289 LIMITER; FUEL PRESS 8-97601-515-0 01 1 0102-0110 ●
289 LIMITER; FUEL PRESS 8-97602-325-0 01 1 0111-0610 ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0611- ● ●
290 SENSOR; PRESS 1-80220-012-0 01 1 0102-0610 ●
290 SENSOR; PRESS 8-97318-684-0 01 1 0611- ● ●
392 NUT; RAIL ASM
M10 FLANGE 		0-91180-110-0 02 1 0611- ● ●

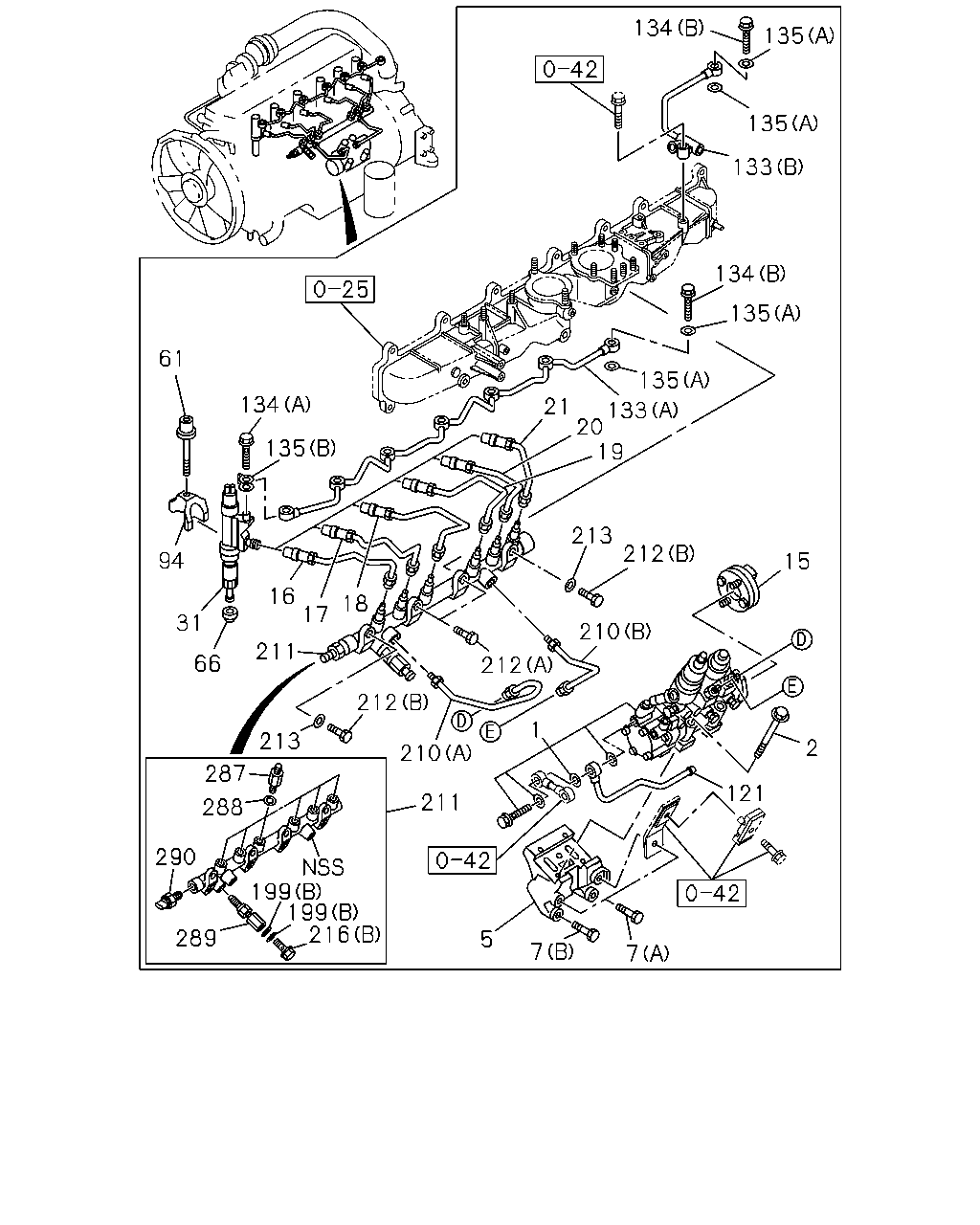

çizim 99293
134 135 135 133 134 135 61 135 134 21 133 20 19 135 213 212 94 15 16 18 17 31 210 211 66 212 212 1 213 2 210 287 121 211 288 290 199 199 216 289 5 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94395-919-2 01 1 9811-9906 ●
1 PUMP ASM; INJ 8-94392-714-5 01 1 9907-0610 ●
1 PUMP ASM; INJ 8-97605-946-6 01 1 0611- ● ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9811-9906 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28080-880-0 04 1 9907-0512 ●
2 BOLT; INJ PUMP
M8X80 FLANGE 		0-28050-880-0 04 1 0601-0610 ●
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 0611- ● ●
5 BRACKET; INJ PUMP 8-94390-661-0 01 1 9907-0610 ●
7 BOLT; INJ PUMP BRKT
(A) M10X80 FLANGE 		0-28181-080-0 02 1 9811-9906 ●
7 BOLT; INJ PUMP BRKT
(A) M10X100 FLANGE 		0-28181-000-0 02 1 9907-0512 ●
7 BOLT; INJ PUMP BRKT
(A) M10X100 FLANGE 		0-28151-000-0 02 1 0601-0610 ●
7 BOLT; INJ PUMP BRKT
(B) M10X75 FLANGE 		8-94399-669-1 01 1 9811-9906 ●
7 BOLT; INJ PUMP BRKT
(B) M10X60 FLANGE 		0-28181-060-0 03 1 9907-0512 ●
7 BOLT; INJ PUMP BRKT
(B) M10X60 FLANGE 		0-28151-060-0 03 1 0601-0610 ●
7 BOLT; INJ PUMP BRKT
(C) M10X55 FLANGE 		8-94399-863-1 01 1 9811-9906 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94393-962-2 01 1 9811-9906 ●
15 COUPLING ASM; INJ PUMP 8-94391-467-0 01 1 9907-0610 ●
16 PIPE; INJ NO.1 8-94393-845-1 01 1 9811-9906 ●
16 PIPE; INJ NO.1 8-94390-230-6 01 1 9907-0610 ●
16 PIPE; INJ NO.1 8-98038-936-0 01 1 0611- ● ●
17 PIPE; INJ NO.2 8-94393-846-1 01 1 9811-9906 ●
17 PIPE; INJ NO.2 8-94390-231-6 01 1 9907-0610 ●
17 PIPE; INJ NO.2 8-98039-770-0 01 1 0611- ● ●
18 PIPE; INJ NO.3 8-94393-897-1 01 1 9811-9906 ●
18 PIPE; INJ NO.3 8-94390-232-6 01 1 9907-0610 ●
18 PIPE; INJ NO.3 8-98038-937-0 01 1 0611- ● ●
19 PIPE; INJ NO.4 8-94393-757-1 01 1 9811-9906 ●
19 PIPE; INJ NO.4 8-94390-233-6 01 1 9907-0610 ●
19 PIPE; INJ NO.4 8-98057-085-0 01 1 0611- ● ●
20 PIPE; INJ NO.5 8-94393-758-1 01 1 9811-9906 ●
20 PIPE; INJ NO.5 8-94390-234-6 01 1 9907-0610 ●
20 PIPE; INJ NO.5 8-98038-939-0 01 1 0611- ● ●
21 PIPE; INJ NO.6 8-94393-759-1 01 1 9811-9906 ●
21 PIPE; INJ NO.6 8-94390-235-6 01 1 9907-0610 ●
21 PIPE; INJ NO.6 8-98039-771-0 01 1 0611- ● ●
31 NOZZLE ASM; INJ 8-94392-261-3 06 1 9907-0610 ●
31 NOZZLE ASM; INJ 8-97609-788-6 06 1 0611- ● ●
31 NOZZLE ASM; INJ 8-94395-923-2 06 1 9811-9906 ●
61 BOLT; CLAMP NOZZLE HOLDER 8-94390-989-1 06 1 9907-0412 ●
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 0501-0610 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97171-333-0 06 1 9811-9906 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-15315-013-1 06 1 9907-0006 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0007-0610 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0611- ● ●
94 BRACKET; INJ NOZZLE 8-94390-988-0 06 1 9907-0410 ●
94 BRACKET; INJ NOZZLE 8-97306-074-1 06 1 0411-0606 ●
94 BRACKET; INJ NOZZLE 8-98028-999-0 06 1 0607-0610 ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 0611- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94394-408-0 01 1 9811-9906 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94390-837-2 01 1 9907-0610 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97610-501-0 01 1 0611- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(C) 		8-94395-145-0 01 1 9811-9906 ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 9907-0610 ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0611- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-94391-356-1 01 1 9907-0610 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-503-0 01 1 0611- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE BOLT 		1-09675-037-1 01 1 9811-9906 ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE BOLT 		1-09675-037-1 06 1 9907-0610 ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE BOLT 		1-09675-037-1 06 1 0611- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 9907-0610 ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0611- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.6 		8-97240-975-0 01 1 0611- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.2 OD=13.2 		1-09630-082-0 14 1 9811-9906 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9907-0610 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0611- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6 		8-94395-214-0 06 1 9907-9910 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 9911-0610 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0611- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-501-0 02 1 9907-0610 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-15619-507-0 02 1 0611- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 02 1 0107-0610 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0611- ● ●
210 PIPE; INJ,C/R
(A) 		8-94390-824-3 01 1 9907-0610 ●
210 PIPE; INJ,C/R
(C) 		8-97608-480-1 01 1 0611- ● ●
210 PIPE; INJ,C/R
(B) 		8-94390-825-3 01 1 9907-0610 ●
211 RAIL ASM; COMMON 8-94392-863-0 01 1 9907-0101 ●
211 RAIL ASM; COMMON 8-97601-512-2 01 1 0102-0610 ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 0611- ● ●
212 BOLT; RAIL ASM
(A) M8X130 FLANGE 		0-28085-813-0 02 1 9907-0512 ●
212 BOLT; RAIL ASM
(A) M8X130 FLANGE 		0-28055-813-0 02 1 0601-0610 ●
212 BOLT; RAIL ASM
(C) M10X50 FLANGE 		8-97372-243-0 02 1 0611- ● ●
212 BOLT; RAIL ASM
(B) M8X130 		1-09000-200-1 02 1 9907-0610 ●
213 WASHER; RAIL ASM
ID=8.4 OD=18 		9-09160-608-0 02 1 9907-0605 ●
213 WASHER; RAIL ASM
ID=8.4 OD=18 		0-91610-608-0 02 1 0606-0610 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0611- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 9907-0610 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0611- ● ●
216 BOLT; EYE
(B) 		8-97602-173-0 01 1 0107-0610 ●
216 BOLT; EYE
(D) 		8-97351-388-0 01 1 0611- ● ●
287 DAMPER; FUEL FLOW 8-97601-514-0 06 1 0102-0610 ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 07 1 0102-0610 ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0611- ● ●
289 LIMITER; FUEL PRESS 8-97601-515-0 01 1 0102-0110 ●
289 LIMITER; FUEL PRESS 8-97602-325-0 01 1 0111-0610 ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0611- ● ●
290 SENSOR; PRESS 1-80220-012-0 01 1 0102-0610 ●
290 SENSOR; PRESS 8-97318-684-0 01 1 0611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
