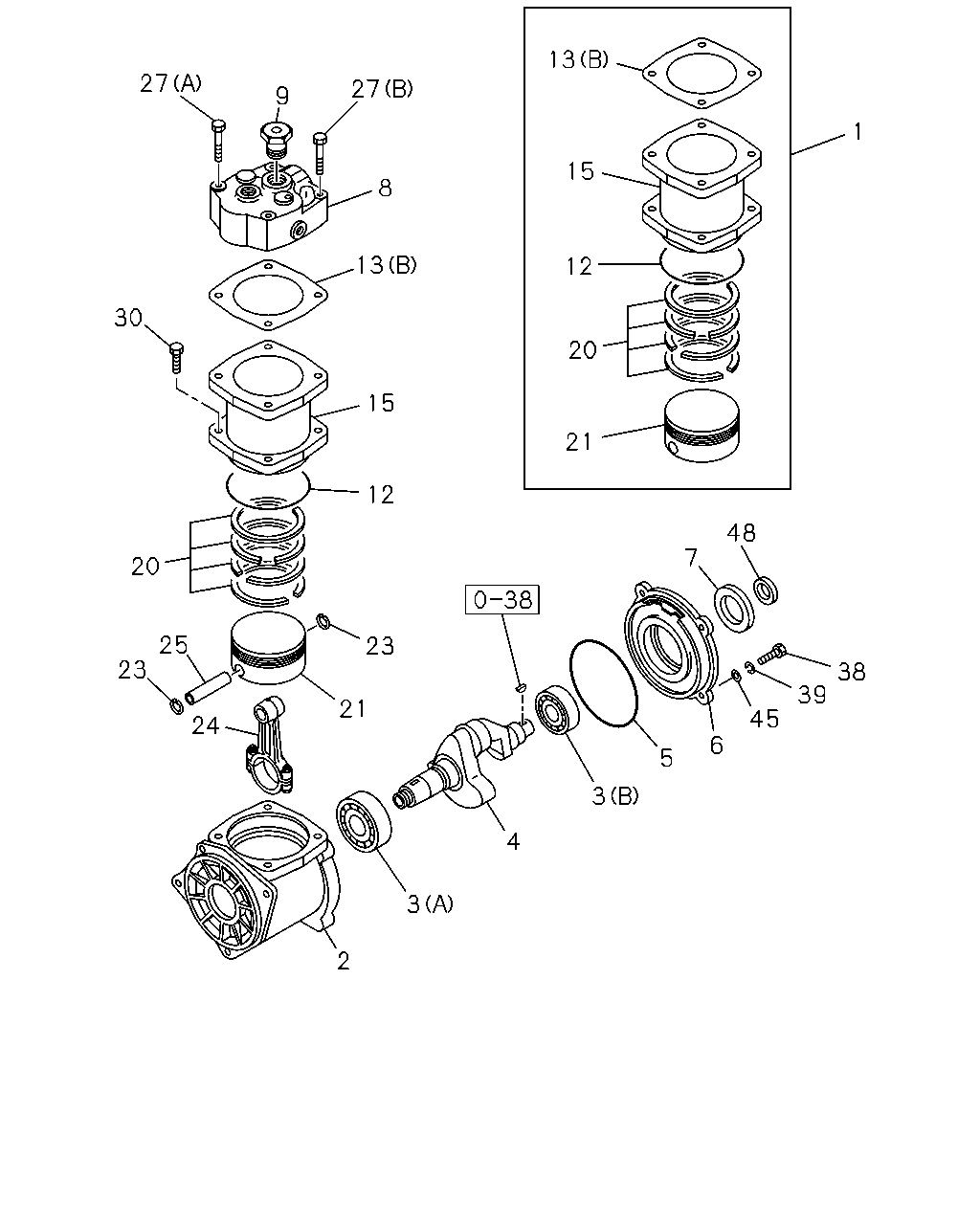

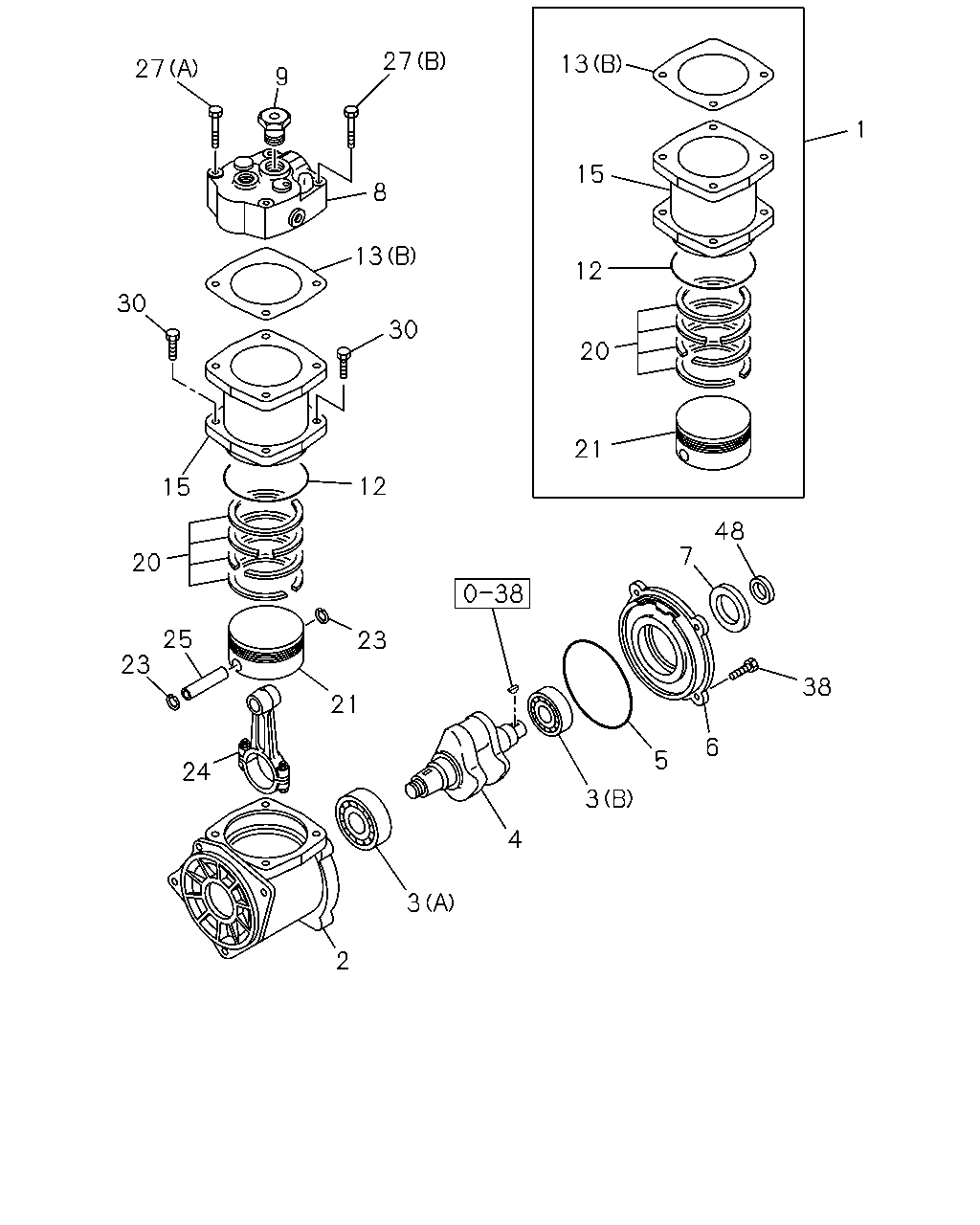

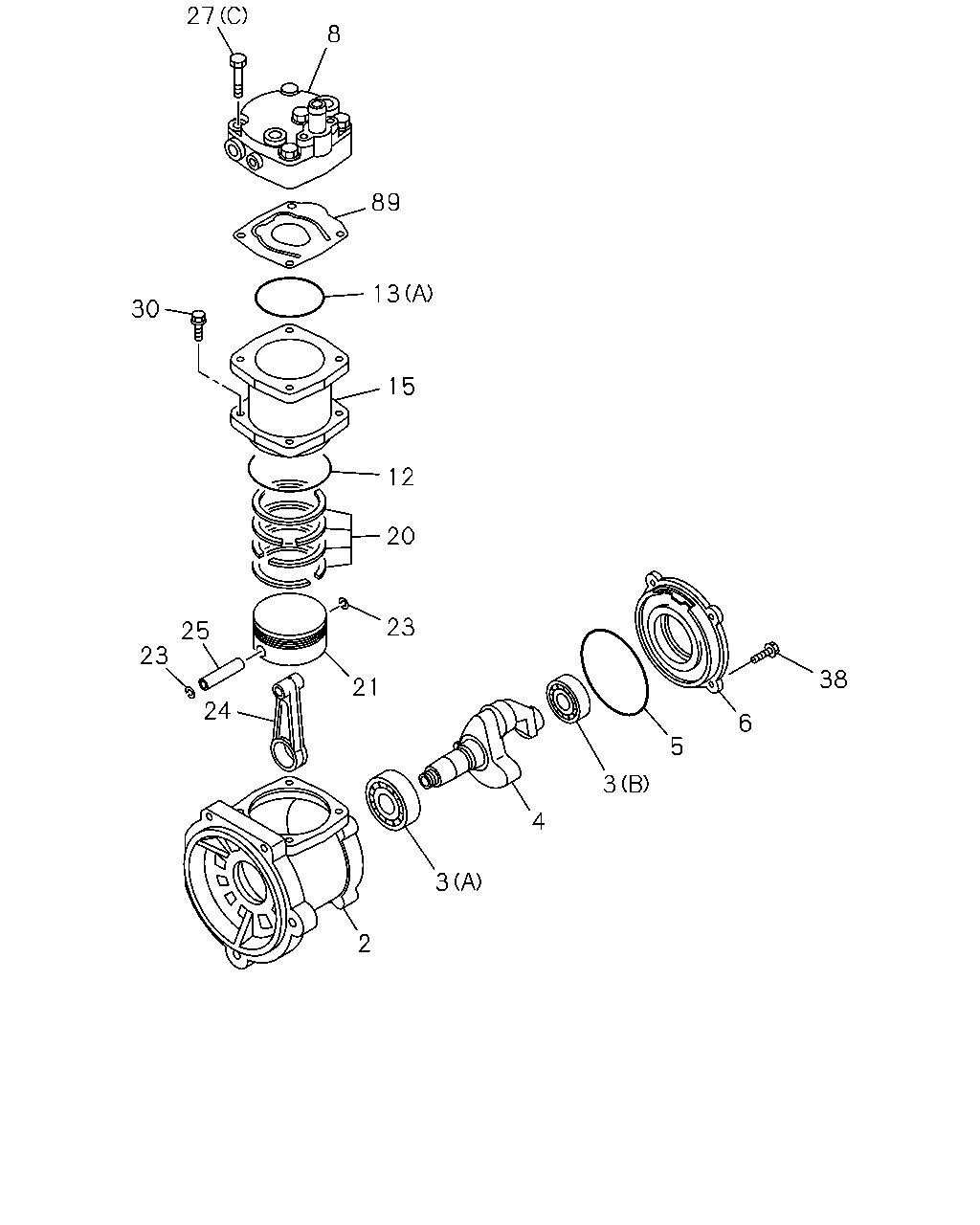

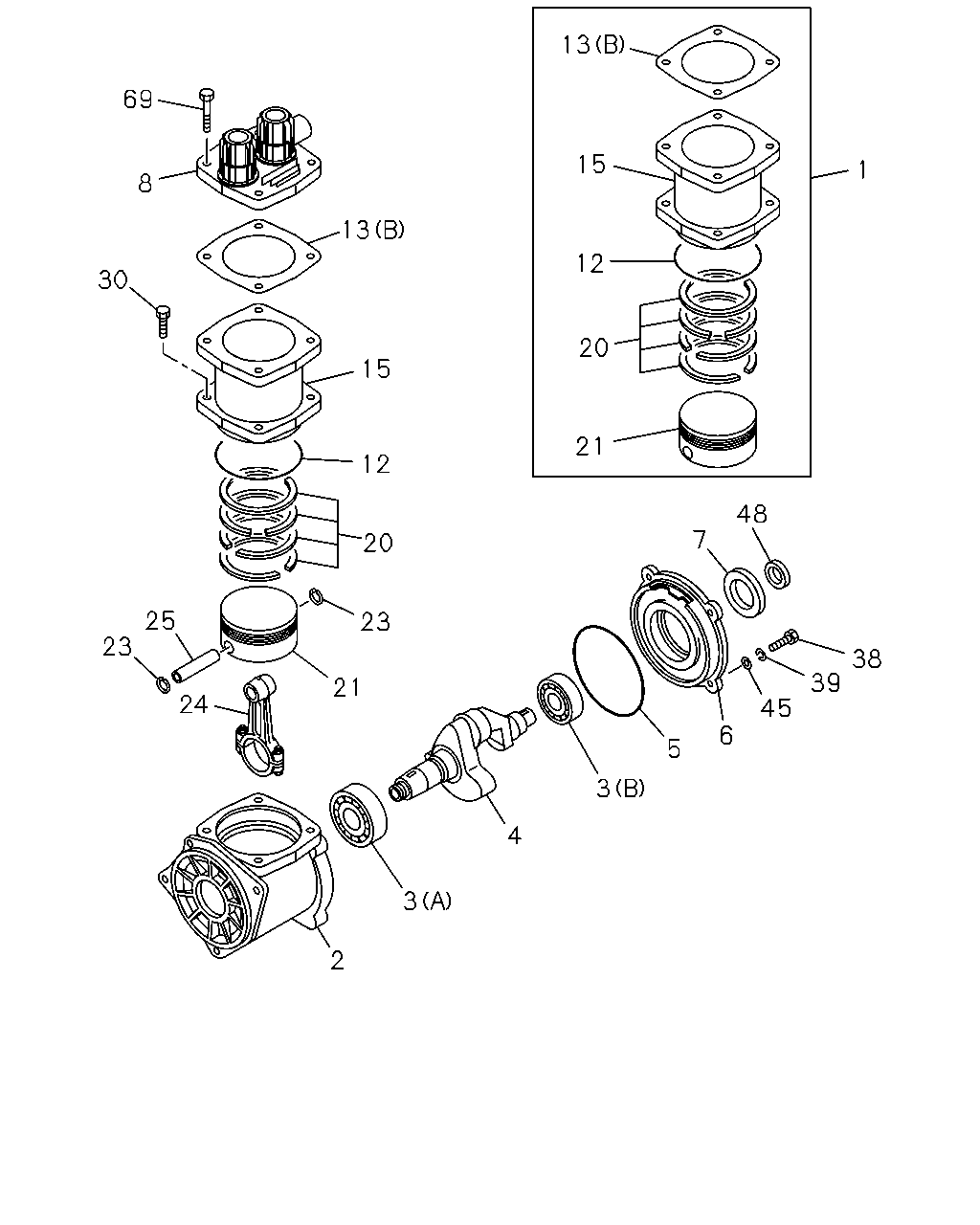

0-39 — AIR COMPRESSOR; BRAKE (#5678) — 418 parça

27 8 89 13 30 15 12 20 23 25 23 8 21 24 6 5 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9811-9906	●
2	CRANKCASE; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19151-282-1	01	1	9907-9907		●
2	CRANKCASE; AIR CMPR	1-19151-282-2	01	1	9907-0610		●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	0611-			●	●
2	CRANKCASE; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19151-292-0	01	1	9907-9907		●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9811-9906	●
3	BEARING; AIR CMPR (A)	1-19177-009-0	01	1	9907-0610		●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	0611-			●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9811-9906	●
3	BEARING; AIR CMPR (B)	1-19177-010-0	01	1	9907-0610		●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	0611-			●	●
4	CRANKSHAFT; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19171-047-1	01	1	9811-9906	●
4	CRANKSHAFT; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19171-077-1	01	1	9907-0610		●
4	CRANKSHAFT; AIR CMPR	1-19171-096-0	01	1	0611-			●	●
4	CRANKSHAFT; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19171-048-1	01	1	9811-9906	●
4	CRANKSHAFT; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19171-074-1	01	1	9907-0610		●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9811-9906	●
5	GASKET; AIR CMPR	1-09623-627-0	01	1	9907-0610		●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0611-			●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9811-9906	●
6	COVER ASM; BRG,AIR CMPR	1-19156-075-1	01	1	9907-0610		●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	0611-			●	●
8	HEAD ASM; CYL,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19110-019-0	01	1	9811-9906	●
8	HEAD ASM; CYL,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19110-019-0	01	1	9907-0610		●
8	HEAD ASM; CYL,AIR CMPR	8-98038-657-2	01	1	0611-			●	●
8	HEAD ASM; CYL,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19110-052-1	01	1	9811-9906	●
8	HEAD ASM; CYL,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19110-055-0	01	1	9907-0610		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9811-9906	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9907-0610		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0611-			●	●
13	GASKET; AIR CMPR FRR MIDDLE CHASSIS(FR****) (B)	1-19115-006-1	01	1	9811-9906	●
13	GASKET; AIR CMPR FRR MIDDLE CHASSIS(FR****) (B)	1-19115-006-1	01	1	9907-0610		●
13	GASKET; AIR CMPR (A)	1-09623-615-0	01	1	0611-			●	●
13	GASKET; AIR CMPR FVR MIDDLE CHASSIS(FV****) (B)	1-09623-626-0	01	1	9811-9906	●
13	GASKET; AIR CMPR FVR MIDDLE CHASSIS(FV****) (B)	1-09623-626-0	01	1	9907-0610		●
15	CYLINDER; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19151-250-0	01	1	9811-9906	●
15	CYLINDER; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19151-285-0	01	1	9907-0610		●
15	CYLINDER; AIR CMPR	8-98038-668-0	01	1	0611-			●	●
15	CYLINDER; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19151-219-0	01	1	9811-9906	●
15	CYLINDER; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19151-283-1	01	1	9907-0610		●
20	RING KIT; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19163-043-0	01	1	9811-9906	●
20	RING KIT; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19163-043-0	01	1	9907-0610		●
20	RING KIT; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19163-051-1	01	1	9811-9906	●
20	RING KIT; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19163-051-1	01	1	9907-0610		●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0611-			●	●
21	PISTON; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19161-021-0	01	1	9811-9906	●
21	PISTON; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19161-021-0	01	1	9907-0610		●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0611-			●	●
21	PISTON; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19161-016-0	01	1	9811-9906	●
21	PISTON; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19161-016-0	01	1	9907-0610		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9811-9906	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9907-0610		●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0611-			●	●
24	ROD ASM; CONN,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19173-017-0	01	1	9811-9906	●
24	ROD ASM; CONN,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19173-020-0	01	1	9907-0610		●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0611-			●	●
24	ROD ASM; CONN,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19173-010-0	01	1	9811-9906	●
24	ROD ASM; CONN,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19173-007-0	01	1	9907-0610		●
25	PIN; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	9-19167-006-0	01	1	9811-9906	●
25	PIN; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	9-19167-006-0	01	1	9907-0610		●
25	PIN; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	9-19167-003-0	01	1	9811-9906	●
25	PIN; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	9-19167-003-0	01	1	9907-0610		●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0611-0705			●	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0706-			●	●
27	BOLT; HD FVR MIDDLE CHASSIS(FV****) (A) M10X45	9-01066-045-0	02	1	9811-9906	●
27	BOLT; HD FVR MIDDLE CHASSIS(FV****) (B) M10X60	9-01066-060-0	02	1	9811-9906	●
27	BOLT; HD FVR MIDDLE CHASSIS(FV****) (A) M10X45	9-01066-045-0	02	1	9907-0610		●
27	BOLT; HD (C) M10X80	8-98038-666-0	04	1	0611-			●	●
27	BOLT; HD FVR MIDDLE CHASSIS(FV****) (B) M10X60	9-01066-060-0	02	1	9907-0610		●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9811-9906	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9907-0610		●
30	BOLT; CYL TO CRANKCASE M10X25	8-98038-763-0	04	1	0611-			●	●
89	VALVE; SUCTION	1-19119-045-0	01	1	0611-			●	●
89	VALVE; SUCTION	1-19119-045-0	01	1	0611-			●	●

13 69 15 1 8 13 12 30 20 15 21 12 48 7 20 25 23 23 38 39 21 24 45 6 5 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LINER KIT; CYL,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19163-050-1	01	1	9811-9906	●
1	LINER KIT; CYL,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19163-063-0	01	1	9907-0610		●
1	LINER KIT; CYL,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19163-053-2	01	1	9811-9906	●
1	LINER KIT; CYL,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19163-062-1	01	1	9907-0610		●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9811-9906	●
2	CRANKCASE; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19151-282-1	01	1	9907-9907		●
2	CRANKCASE; AIR CMPR	1-19151-282-2	01	1	9907-0610		●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	0611-			●	●
2	CRANKCASE; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19151-292-0	01	1	9907-9907		●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9811-9906	●
3	BEARING; AIR CMPR (A)	1-19177-009-0	01	1	9907-0610		●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	0611-			●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9811-9906	●
3	BEARING; AIR CMPR (B)	1-19177-010-0	01	1	9907-0610		●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	0611-			●	●
4	CRANKSHAFT; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19171-047-1	01	1	9811-9906	●
4	CRANKSHAFT; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19171-077-1	01	1	9907-0610		●
4	CRANKSHAFT; AIR CMPR	1-19171-096-0	01	1	0611-			●	●
4	CRANKSHAFT; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19171-048-1	01	1	9811-9906	●
4	CRANKSHAFT; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19171-074-1	01	1	9907-0610		●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9811-9906	●
5	GASKET; AIR CMPR	1-09623-627-0	01	1	9907-0610		●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0611-			●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9811-9906	●
6	COVER ASM; BRG,AIR CMPR	1-19156-075-1	01	1	9907-0610		●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	0611-			●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9811-9906	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9907-0610		●
8	HEAD ASM; CYL,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19110-019-0	01	1	9811-9906	●
8	HEAD ASM; CYL,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19110-019-0	01	1	9907-0610		●
8	HEAD ASM; CYL,AIR CMPR	8-98038-657-2	01	1	0611-			●	●
8	HEAD ASM; CYL,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19110-052-1	01	1	9811-9906	●
8	HEAD ASM; CYL,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19110-055-0	01	1	9907-0610		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9811-9906	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9907-0610		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0611-			●	●
13	GASKET; AIR CMPR FRR MIDDLE CHASSIS(FR****) (B)	1-19115-006-1	01	1	9811-9906	●
13	GASKET; AIR CMPR FRR MIDDLE CHASSIS(FR****) (B)	1-19115-006-1	01	1	9907-0610		●
13	GASKET; AIR CMPR (A)	1-09623-615-0	01	1	0611-			●	●
13	GASKET; AIR CMPR FVR MIDDLE CHASSIS(FV****) (B)	1-09623-626-0	01	1	9811-9906	●
13	GASKET; AIR CMPR FVR MIDDLE CHASSIS(FV****) (B)	1-09623-626-0	01	1	9907-0610		●
15	CYLINDER; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19151-250-0	01	1	9811-9906	●
15	CYLINDER; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19151-285-0	01	1	9907-0610		●
15	CYLINDER; AIR CMPR	8-98038-668-0	01	1	0611-			●	●
15	CYLINDER; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19151-219-0	01	1	9811-9906	●
15	CYLINDER; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19151-283-1	01	1	9907-0610		●
20	RING KIT; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19163-043-0	01	1	9811-9906	●
20	RING KIT; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19163-043-0	01	1	9907-0610		●
20	RING KIT; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19163-051-1	01	1	9811-9906	●
20	RING KIT; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19163-051-1	01	1	9907-0610		●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0611-			●	●
21	PISTON; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19161-021-0	01	1	9811-9906	●
21	PISTON; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19161-021-0	01	1	9907-0610		●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0611-			●	●
21	PISTON; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19161-016-0	01	1	9811-9906	●
21	PISTON; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19161-016-0	01	1	9907-0610		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9811-9906	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9907-0610		●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0611-			●	●
24	ROD ASM; CONN,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19173-017-0	01	1	9811-9906	●
24	ROD ASM; CONN,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19173-020-0	01	1	9907-0610		●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0611-			●	●
24	ROD ASM; CONN,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19173-010-0	01	1	9811-9906	●
24	ROD ASM; CONN,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19173-007-0	01	1	9907-0610		●
25	PIN; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	9-19167-006-0	01	1	9811-9906	●
25	PIN; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	9-19167-006-0	01	1	9907-0610		●
25	PIN; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	9-19167-003-0	01	1	9811-9906	●
25	PIN; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	9-19167-003-0	01	1	9907-0610		●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0611-0705			●	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0706-			●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9811-9906	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9907-0610		●
30	BOLT; CYL TO CRANKCASE M10X25	8-98038-763-0	04	1	0611-			●	●
38	BOLT; COVER FIX M8X20	8-97617-895-0	02	1	0706-			●	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9811-9906	●
38	BOLT; COVER FIX	1-09100-018-0	02	1	9907-0610		●
38	BOLT; COVER FIX	8-98038-669-0	04	1	0611-0705			●	●
38	BOLT; COVER FIX	8-97617-894-0	02	1	0706-			●	●
39	WASHER; LK,COVER FIX	8-97617-893-0	02	1	0706-			●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9811-9906	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9811-9906	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9811-9906	●
48	SLEEVE; CR/SHF	1-19179-024-0	01	1	9907-0610		●
69	BOLT ASM; AIR COMP FRR MIDDLE CHASSIS(FR****)	1-19119-031-0	04	1	9811-9906	●
69	BOLT ASM; AIR COMP FRR MIDDLE CHASSIS(FR****)	1-19119-031-0	04	1	9907-0610		●

13 27 27 9 1 15 8 13 12 30 20 15 21 12 48 7 20 25 23 23 38 39 21 45 24 6 5 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LINER KIT; CYL,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19163-050-1	01	1	9811-9906	●
1	LINER KIT; CYL,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19163-063-0	01	1	9907-0610		●
1	LINER KIT; CYL,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19163-053-2	01	1	9811-9906	●
1	LINER KIT; CYL,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19163-062-1	01	1	9907-0610		●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9811-9906	●
2	CRANKCASE; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19151-282-1	01	1	9907-9907		●
2	CRANKCASE; AIR CMPR	1-19151-282-2	01	1	9907-0610		●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	0611-			●	●
2	CRANKCASE; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19151-292-0	01	1	9907-9907		●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9811-9906	●
3	BEARING; AIR CMPR (A)	1-19177-009-0	01	1	9907-0610		●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	0611-			●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9811-9906	●
3	BEARING; AIR CMPR (B)	1-19177-010-0	01	1	9907-0610		●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	0611-			●	●
4	CRANKSHAFT; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19171-047-1	01	1	9811-9906	●
4	CRANKSHAFT; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19171-077-1	01	1	9907-0610		●
4	CRANKSHAFT; AIR CMPR	1-19171-096-0	01	1	0611-			●	●
4	CRANKSHAFT; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19171-048-1	01	1	9811-9906	●
4	CRANKSHAFT; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19171-074-1	01	1	9907-0610		●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9811-9906	●
5	GASKET; AIR CMPR	1-09623-627-0	01	1	9907-0610		●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0611-			●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9811-9906	●
6	COVER ASM; BRG,AIR CMPR	1-19156-075-1	01	1	9907-0610		●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	0611-			●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9811-9906	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9907-0610		●
8	HEAD ASM; CYL,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19110-019-0	01	1	9811-9906	●
8	HEAD ASM; CYL,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19110-019-0	01	1	9907-0610		●
8	HEAD ASM; CYL,AIR CMPR	8-98038-657-2	01	1	0611-			●	●
8	HEAD ASM; CYL,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19110-052-1	01	1	9811-9906	●
8	HEAD ASM; CYL,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19110-055-0	01	1	9907-0610		●
9	VALVE ASM; UNLOADER,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19120-017-1	01	1	9811-9906	●
9	VALVE ASM; UNLOADER,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19120-017-1	01	1	9907-0610		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9811-9906	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9907-0610		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0611-			●	●
13	GASKET; AIR CMPR FRR MIDDLE CHASSIS(FR****) (B)	1-19115-006-1	01	1	9811-9906	●
13	GASKET; AIR CMPR FRR MIDDLE CHASSIS(FR****) (B)	1-19115-006-1	01	1	9907-0610		●
13	GASKET; AIR CMPR (A)	1-09623-615-0	01	1	0611-			●	●
13	GASKET; AIR CMPR FVR MIDDLE CHASSIS(FV****) (B)	1-09623-626-0	01	1	9811-9906	●
13	GASKET; AIR CMPR FVR MIDDLE CHASSIS(FV****) (B)	1-09623-626-0	01	1	9907-0610		●
15	CYLINDER; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19151-250-0	01	1	9811-9906	●
15	CYLINDER; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19151-285-0	01	1	9907-0610		●
15	CYLINDER; AIR CMPR	8-98038-668-0	01	1	0611-			●	●
15	CYLINDER; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19151-219-0	01	1	9811-9906	●
15	CYLINDER; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19151-283-1	01	1	9907-0610		●
20	RING KIT; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19163-043-0	01	1	9811-9906	●
20	RING KIT; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19163-043-0	01	1	9907-0610		●
20	RING KIT; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19163-051-1	01	1	9811-9906	●
20	RING KIT; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19163-051-1	01	1	9907-0610		●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0611-			●	●
21	PISTON; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19161-021-0	01	1	9811-9906	●
21	PISTON; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19161-021-0	01	1	9907-0610		●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0611-			●	●
21	PISTON; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19161-016-0	01	1	9811-9906	●
21	PISTON; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19161-016-0	01	1	9907-0610		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9811-9906	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9907-0610		●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0611-			●	●
24	ROD ASM; CONN,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19173-017-0	01	1	9811-9906	●
24	ROD ASM; CONN,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19173-020-0	01	1	9907-0610		●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0611-			●	●
24	ROD ASM; CONN,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19173-010-0	01	1	9811-9906	●
24	ROD ASM; CONN,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19173-007-0	01	1	9907-0610		●
25	PIN; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	9-19167-006-0	01	1	9811-9906	●
25	PIN; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	9-19167-006-0	01	1	9907-0610		●
25	PIN; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	9-19167-003-0	01	1	9811-9906	●
25	PIN; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	9-19167-003-0	01	1	9907-0610		●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0611-0705			●	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0706-			●	●
27	BOLT; HD FVR MIDDLE CHASSIS(FV****) (A) M10X45	9-01066-045-0	02	1	9811-9906	●
27	BOLT; HD FVR MIDDLE CHASSIS(FV****) (B) M10X60	9-01066-060-0	02	1	9811-9906	●
27	BOLT; HD FVR MIDDLE CHASSIS(FV****) (A) M10X45	9-01066-045-0	02	1	9907-0610		●
27	BOLT; HD (C) M10X80	8-98038-666-0	04	1	0611-			●	●
27	BOLT; HD FVR MIDDLE CHASSIS(FV****) (B) M10X60	9-01066-060-0	02	1	9907-0610		●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9811-9906	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9907-0610		●
30	BOLT; CYL TO CRANKCASE M10X25	8-98038-763-0	04	1	0611-			●	●
38	BOLT; COVER FIX M8X20	8-97617-895-0	02	1	0706-			●	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9811-9906	●
38	BOLT; COVER FIX	1-09100-018-0	02	1	9907-0610		●
38	BOLT; COVER FIX	8-98038-669-0	04	1	0611-0705			●	●
38	BOLT; COVER FIX	8-97617-894-0	02	1	0706-			●	●
39	WASHER; LK,COVER FIX	8-97617-893-0	02	1	0706-			●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9811-9906	●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9811-9906	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9811-9906	●
48	SLEEVE; CR/SHF	1-19179-024-0	01	1	9907-0610		●

13 69 69 1 15 8 13 12 30 30 20 21 15 12 48 7 20 25 23 23 21 38 6 5 24 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LINER KIT; CYL,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19163-050-1	01	1	9811-9906	●
1	LINER KIT; CYL,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19163-063-0	01	1	9907-0610		●
1	LINER KIT; CYL,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19163-053-2	01	1	9811-9906	●
1	LINER KIT; CYL,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19163-062-1	01	1	9907-0610		●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9811-9906	●
2	CRANKCASE; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19151-282-1	01	1	9907-9907		●
2	CRANKCASE; AIR CMPR	1-19151-282-2	01	1	9907-0610		●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	0611-			●	●
2	CRANKCASE; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19151-292-0	01	1	9907-9907		●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9811-9906	●
3	BEARING; AIR CMPR (A)	1-19177-009-0	01	1	9907-0610		●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	0611-			●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9811-9906	●
3	BEARING; AIR CMPR (B)	1-19177-010-0	01	1	9907-0610		●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	0611-			●	●
4	CRANKSHAFT; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19171-047-1	01	1	9811-9906	●
4	CRANKSHAFT; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19171-077-1	01	1	9907-0610		●
4	CRANKSHAFT; AIR CMPR	1-19171-096-0	01	1	0611-			●	●
4	CRANKSHAFT; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19171-048-1	01	1	9811-9906	●
4	CRANKSHAFT; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19171-074-1	01	1	9907-0610		●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9811-9906	●
5	GASKET; AIR CMPR	1-09623-627-0	01	1	9907-0610		●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0611-			●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9811-9906	●
6	COVER ASM; BRG,AIR CMPR	1-19156-075-1	01	1	9907-0610		●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	0611-			●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9811-9906	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9907-0610		●
8	HEAD ASM; CYL,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19110-019-0	01	1	9811-9906	●
8	HEAD ASM; CYL,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19110-019-0	01	1	9907-0610		●
8	HEAD ASM; CYL,AIR CMPR	8-98038-657-2	01	1	0611-			●	●
8	HEAD ASM; CYL,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19110-052-1	01	1	9811-9906	●
8	HEAD ASM; CYL,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19110-055-0	01	1	9907-0610		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9811-9906	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9907-0610		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0611-			●	●
13	GASKET; AIR CMPR FRR MIDDLE CHASSIS(FR****) (B)	1-19115-006-1	01	1	9811-9906	●
13	GASKET; AIR CMPR FRR MIDDLE CHASSIS(FR****) (B)	1-19115-006-1	01	1	9907-0610		●
13	GASKET; AIR CMPR (A)	1-09623-615-0	01	1	0611-			●	●
13	GASKET; AIR CMPR FVR MIDDLE CHASSIS(FV****) (B)	1-09623-626-0	01	1	9811-9906	●
13	GASKET; AIR CMPR FVR MIDDLE CHASSIS(FV****) (B)	1-09623-626-0	01	1	9907-0610		●
15	CYLINDER; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19151-250-0	01	1	9811-9906	●
15	CYLINDER; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19151-285-0	01	1	9907-0610		●
15	CYLINDER; AIR CMPR	8-98038-668-0	01	1	0611-			●	●
15	CYLINDER; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19151-219-0	01	1	9811-9906	●
15	CYLINDER; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19151-283-1	01	1	9907-0610		●
20	RING KIT; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19163-043-0	01	1	9811-9906	●
20	RING KIT; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19163-043-0	01	1	9907-0610		●
20	RING KIT; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19163-051-1	01	1	9811-9906	●
20	RING KIT; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19163-051-1	01	1	9907-0610		●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0611-			●	●
21	PISTON; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19161-021-0	01	1	9811-9906	●
21	PISTON; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19161-021-0	01	1	9907-0610		●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0611-			●	●
21	PISTON; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19161-016-0	01	1	9811-9906	●
21	PISTON; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19161-016-0	01	1	9907-0610		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9811-9906	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9907-0610		●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0611-			●	●
24	ROD ASM; CONN,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19173-017-0	01	1	9811-9906	●
24	ROD ASM; CONN,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19173-020-0	01	1	9907-0610		●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0611-			●	●
24	ROD ASM; CONN,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19173-010-0	01	1	9811-9906	●
24	ROD ASM; CONN,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19173-007-0	01	1	9907-0610		●
25	PIN; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	9-19167-006-0	01	1	9811-9906	●
25	PIN; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	9-19167-006-0	01	1	9907-0610		●
25	PIN; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	9-19167-003-0	01	1	9811-9906	●
25	PIN; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	9-19167-003-0	01	1	9907-0610		●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0611-0705			●	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0706-			●	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9811-9906	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9907-0610		●
30	BOLT; CYL TO CRANKCASE M10X25	8-98038-763-0	04	1	0611-			●	●
38	BOLT; COVER FIX M8X20	8-97617-895-0	02	1	0706-			●	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9811-9906	●
38	BOLT; COVER FIX	1-09100-018-0	02	1	9907-0610		●
38	BOLT; COVER FIX	8-98038-669-0	04	1	0611-0705			●	●
38	BOLT; COVER FIX	8-97617-894-0	02	1	0706-			●	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9811-9906	●
48	SLEEVE; CR/SHF	1-19179-024-0	01	1	9907-0610		●
69	BOLT ASM; AIR COMP FRR MIDDLE CHASSIS(FR****)	1-19119-031-0	04	1	9811-9906	●
69	BOLT ASM; AIR COMP FRR MIDDLE CHASSIS(FR****)	1-19119-031-0	04	1	9907-0610		●

27 13 27 9 1 15 8 13 12 30 30 20 21 12 15 48 7 20 25 23 23 38 21 6 5 24 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LINER KIT; CYL,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19163-050-1	01	1	9811-9906	●
1	LINER KIT; CYL,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19163-063-0	01	1	9907-0610		●
1	LINER KIT; CYL,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19163-053-2	01	1	9811-9906	●
1	LINER KIT; CYL,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19163-062-1	01	1	9907-0610		●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9811-9906	●
2	CRANKCASE; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19151-282-1	01	1	9907-9907		●
2	CRANKCASE; AIR CMPR	1-19151-282-2	01	1	9907-0610		●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	0611-			●	●
2	CRANKCASE; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19151-292-0	01	1	9907-9907		●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9811-9906	●
3	BEARING; AIR CMPR (A)	1-19177-009-0	01	1	9907-0610		●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	0611-			●	●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9811-9906	●
3	BEARING; AIR CMPR (B)	1-19177-010-0	01	1	9907-0610		●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	0611-			●	●
4	CRANKSHAFT; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19171-047-1	01	1	9811-9906	●
4	CRANKSHAFT; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19171-077-1	01	1	9907-0610		●
4	CRANKSHAFT; AIR CMPR	1-19171-096-0	01	1	0611-			●	●
4	CRANKSHAFT; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19171-048-1	01	1	9811-9906	●
4	CRANKSHAFT; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19171-074-1	01	1	9907-0610		●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9811-9906	●
5	GASKET; AIR CMPR	1-09623-627-0	01	1	9907-0610		●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0611-			●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9811-9906	●
6	COVER ASM; BRG,AIR CMPR	1-19156-075-1	01	1	9907-0610		●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	0611-			●	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9811-9906	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-534-0	01	1	9907-0610		●
8	HEAD ASM; CYL,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19110-019-0	01	1	9811-9906	●
8	HEAD ASM; CYL,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19110-019-0	01	1	9907-0610		●
8	HEAD ASM; CYL,AIR CMPR	8-98038-657-2	01	1	0611-			●	●
8	HEAD ASM; CYL,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19110-052-1	01	1	9811-9906	●
8	HEAD ASM; CYL,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19110-055-0	01	1	9907-0610		●
9	VALVE ASM; UNLOADER,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19120-017-1	01	1	9811-9906	●
9	VALVE ASM; UNLOADER,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19120-017-1	01	1	9907-0610		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9811-9906	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9907-0610		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0611-			●	●
13	GASKET; AIR CMPR FRR MIDDLE CHASSIS(FR****) (B)	1-19115-006-1	01	1	9811-9906	●
13	GASKET; AIR CMPR FRR MIDDLE CHASSIS(FR****) (B)	1-19115-006-1	01	1	9907-0610		●
13	GASKET; AIR CMPR (A)	1-09623-615-0	01	1	0611-			●	●
13	GASKET; AIR CMPR FVR MIDDLE CHASSIS(FV****) (B)	1-09623-626-0	01	1	9811-9906	●
13	GASKET; AIR CMPR FVR MIDDLE CHASSIS(FV****) (B)	1-09623-626-0	01	1	9907-0610		●
15	CYLINDER; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19151-250-0	01	1	9811-9906	●
15	CYLINDER; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19151-285-0	01	1	9907-0610		●
15	CYLINDER; AIR CMPR	8-98038-668-0	01	1	0611-			●	●
15	CYLINDER; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19151-219-0	01	1	9811-9906	●
15	CYLINDER; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19151-283-1	01	1	9907-0610		●
20	RING KIT; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19163-043-0	01	1	9811-9906	●
20	RING KIT; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19163-043-0	01	1	9907-0610		●
20	RING KIT; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19163-051-1	01	1	9811-9906	●
20	RING KIT; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19163-051-1	01	1	9907-0610		●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0611-			●	●
21	PISTON; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19161-021-0	01	1	9811-9906	●
21	PISTON; AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19161-021-0	01	1	9907-0610		●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0611-			●	●
21	PISTON; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19161-016-0	01	1	9811-9906	●
21	PISTON; AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19161-016-0	01	1	9907-0610		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9811-9906	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9907-0610		●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0611-			●	●
24	ROD ASM; CONN,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19173-017-0	01	1	9811-9906	●
24	ROD ASM; CONN,AIR CMPR FRR MIDDLE CHASSIS(FR****)	1-19173-020-0	01	1	9907-0610		●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0611-			●	●
24	ROD ASM; CONN,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19173-010-0	01	1	9811-9906	●
24	ROD ASM; CONN,AIR CMPR FVR MIDDLE CHASSIS(FV****)	1-19173-007-0	01	1	9907-0610		●
25	PIN; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	9-19167-006-0	01	1	9811-9906	●
25	PIN; PISTON,AIR CMPR FRR MIDDLE CHASSIS(FR****)	9-19167-006-0	01	1	9907-0610		●
25	PIN; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	9-19167-003-0	01	1	9811-9906	●
25	PIN; PISTON,AIR CMPR FVR MIDDLE CHASSIS(FV****)	9-19167-003-0	01	1	9907-0610		●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0611-0705			●	●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0706-			●	●
27	BOLT; HD FVR MIDDLE CHASSIS(FV****) (A) M10X45	9-01066-045-0	02	1	9811-9906	●
27	BOLT; HD FVR MIDDLE CHASSIS(FV****) (B) M10X60	9-01066-060-0	02	1	9811-9906	●
27	BOLT; HD FVR MIDDLE CHASSIS(FV****) (A) M10X45	9-01066-045-0	02	1	9907-0610		●
27	BOLT; HD (C) M10X80	8-98038-666-0	04	1	0611-			●	●
27	BOLT; HD FVR MIDDLE CHASSIS(FV****) (B) M10X60	9-01066-060-0	02	1	9907-0610		●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9811-9906	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9907-0610		●
30	BOLT; CYL TO CRANKCASE M10X25	8-98038-763-0	04	1	0611-			●	●
38	BOLT; COVER FIX M8X20	8-97617-895-0	02	1	0706-			●	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9811-9906	●
38	BOLT; COVER FIX	1-09100-018-0	02	1	9907-0610		●
38	BOLT; COVER FIX	8-98038-669-0	04	1	0611-0705			●	●
38	BOLT; COVER FIX	8-97617-894-0	02	1	0706-			●	●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9811-9906	●
48	SLEEVE; CR/SHF	1-19179-024-0	01	1	9907-0610		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
