Sayfa 0-38 - Isuzu EPC

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#5677) — 242 parça

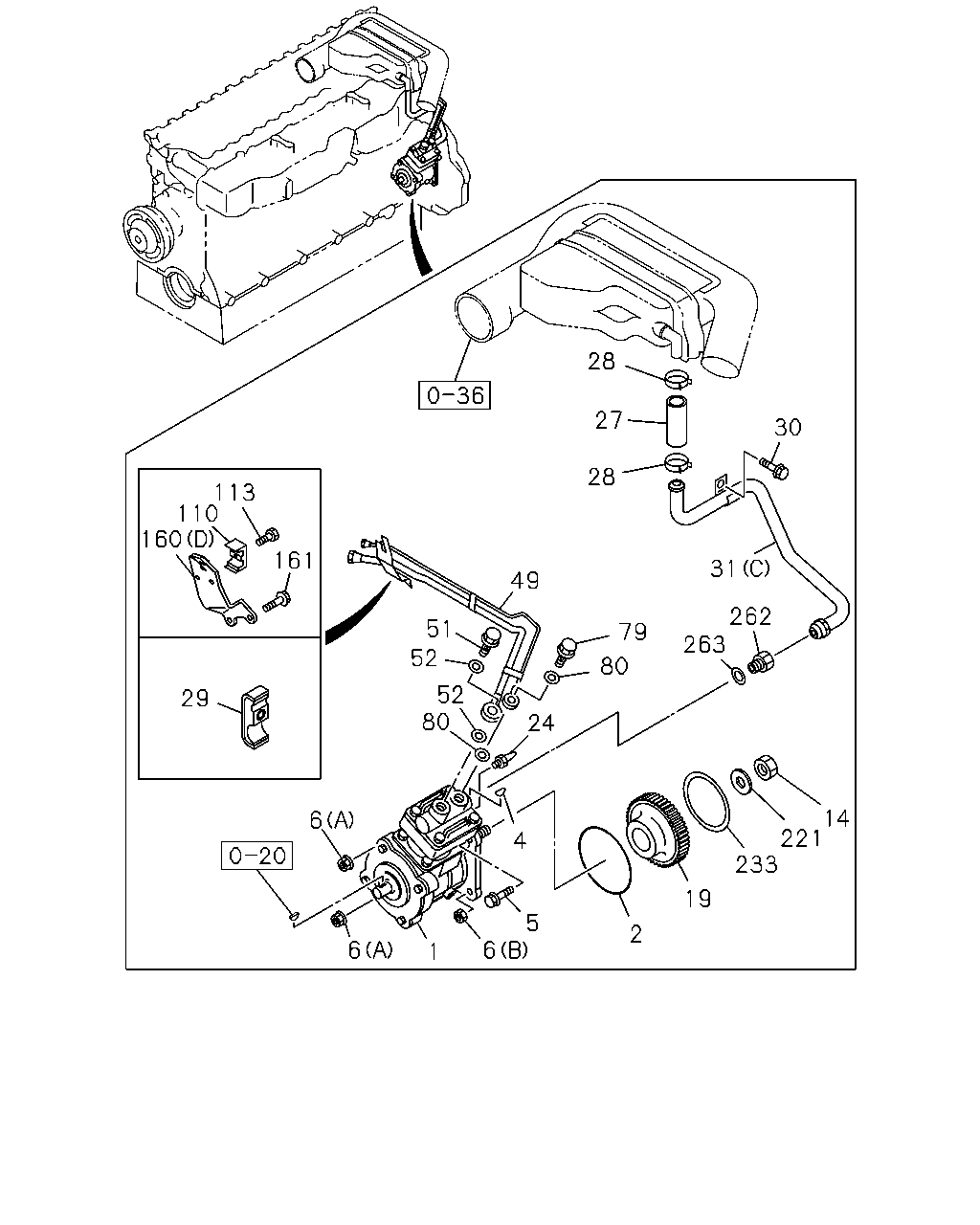

28 27 30 28 113 110 160 161 31 49 262 263 51 79 52 80 52 80 29 24 14 221 233 6 4 19 5 6 2 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR MIDDLE CHASSIS(FR****)	8-94396-891-4	01	1	9811-9906	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR MIDDLE CHASSIS(FR****)	8-94391-485-1	01	1	9907-9907		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR MIDDLE CHASSIS(FR****)	8-97600-700-1	01	1	9907-0610		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98038-656-0	01	1	0611-0705			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98055-879-2	01	1	0706-			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FVR MIDDLE CHASSIS(FV****)	8-94396-892-8	01	1	9811-9906	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FVR MIDDLE CHASSIS(FV****)	8-97600-697-0	01	1	9907-9907		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FVR MIDDLE CHASSIS(FV****)	8-97600-704-1	01	1	9907-0610		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9811-9906	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9907-0610		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0611-			●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9811-9906	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	9907-0610		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0611-			●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9811-9906	●
5	BOLT; AIR CMPR FIX M12X110	0-28186-211-0	01	1	9907-0512		●
5	BOLT; AIR CMPR FIX M12X110 FLANGE	0-28156-211-0	01	1	0601-0610		●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	03	1	0611-			●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9811-9906	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9907-0602		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-0610		●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0611-			●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9811-9906	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9907-0602		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-0610		●
14	NUT; GEAR M20 TAI	9-99110-520-0	01	1	9811-9906	●
14	NUT; GEAR M24	9-99110-524-0	01	1	9907-0512		●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-0610		●
14	NUT; GEAR M20	0-91110-520-0	01	1	0611-			●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9811-9906	●
19	GEAR; INJ PUMP Z=35	8-94390-998-2	01	1	9907-0610		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9811-9906	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9907-0610		●
27	HOSE; AIR CMPR,SUCTION	8-94394-515-0	01	1	9811-9906	●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9907-0610		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9811-9906	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9907-0610		●
29	CLIP; AIR PIPE	1-09701-210-0	02	1	9907-0610		●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9907-0512		●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-0610		●
31	PIPE; AIR,AIR CMPR SUCTION FRR MIDDLE CHASSIS(FR****) (A)	8-94390-516-0	01	1	9811-9906	●
31	PIPE; AIR,AIR CMPR SUCTION FRR MIDDLE CHASSIS(FR****) (C)	8-94391-629-1	01	1	9907-0610		●
31	PIPE; AIR,AIR CMPR SUCTION FVR MIDDLE CHASSIS(FV****) (B)	8-94393-655-1	01	1	9811-9906	●
31	PIPE; AIR,AIR CMPR SUCTION FVR MIDDLE CHASSIS(FV****) (C)	8-94390-859-1	01	1	9907-0610		●
49	PIPE; AIR,CHARGE FRR MIDDLE CHASSIS(FR****)	8-94390-063-0	01	1	9811-9906	●
49	PIPE; AIR,CHARGE FRR MIDDLE CHASSIS(FR****)	8-94391-630-1	01	1	9907-0610		●
49	PIPE; AIR,CHARGE	8-98042-002-0	01	1	0611-			●	●
49	PIPE; AIR,CHARGE FVR MIDDLE CHASSIS(FV****)	8-94395-087-2	01	1	9811-9906	●
49	PIPE; AIR,CHARGE FVR MIDDLE CHASSIS(FV****)	8-94391-118-1	01	1	9907-0610		●
51	BOLT; EYE,AIR PIPE TO CMPR FRR MIDDLE CHASSIS(FR****) M20X38	1-09675-133-0	01	1	9811-9906	●
51	BOLT; EYE,AIR PIPE TO CMPR FRR MIDDLE CHASSIS(FR****) M20X38	1-09675-133-0	01	1	9907-0610		●
51	BOLT; EYE,AIR PIPE TO CMPR FVR MIDDLE CHASSIS(FV****) M24X39	1-09675-132-0	01	1	9811-9906	●
51	BOLT; EYE,AIR PIPE TO CMPR FVR MIDDLE CHASSIS(FV****) M24X39	1-09675-132-0	01	1	9907-0610		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0611-			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR MIDDLE CHASSIS(FR****) ID=20.5 OD=28.0	9-09571-420-0	02	1	9811-9906	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR MIDDLE CHASSIS(FR****) ID=20.5 OD=28.0	9-09571-420-0	02	1	9907-0610		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FVR MIDDLE CHASSIS(FV****) ID=24.5 OD=32	9-09571-424-0	02	1	9811-9906	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FVR MIDDLE CHASSIS(FV****) ID=24.5 OD=32	9-09571-424-0	02	1	9907-0610		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0611-			●	●
79	BOLT; EYE,AIR PIPE TO CMPR FRR MIDDLE CHASSIS(FR****) M18X33	1-09675-058-0	01	1	9811-9906	●
79	BOLT; EYE,AIR PIPE TO CMPR FRR MIDDLE CHASSIS(FR****) M18X33	1-09675-058-0	01	1	9907-0610		●
79	BOLT; EYE,AIR PIPE TO CMPR FVR MIDDLE CHASSIS(FV****) M14X27 FLANGE	1-09675-086-0	01	1	9811-9906	●
79	BOLT; EYE,AIR PIPE TO CMPR FVR MIDDLE CHASSIS(FV****) M14X27 FLANGE	1-09675-086-0	01	1	9907-0610		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR MIDDLE CHASSIS(FR****) ID=18.2 OD=24.4	1-09630-087-0	02	1	9811-9906	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR MIDDLE CHASSIS(FR****) ID=18.2 OD=24.4	1-09630-087-0	02	1	9907-0610		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FVR MIDDLE CHASSIS(FV****) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	9811-9906	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FVR MIDDLE CHASSIS(FV****) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	9907-0610		●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9811-9906	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9907-0610		●
110	CLIP; AIR PIPE	1-09701-284-0	06	1	0611-			●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9811-9906	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9907-0512		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-0610		●
113	BOLT; CLIP,AIR PIPE M8X45 FLANGE	0-28050-845-0	03	1	0611-			●	●
160	BRACKET; AIR PIPE (B)	8-98042-844-1	01	1	0611-			●	●
160	BRACKET; AIR PIPE (C)	8-94394-406-0	01	1	9811-9906	●
160	BRACKET; AIR PIPE (D)	8-94392-031-0	01	1	9907-0610		●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	0611-			●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9907-0512		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-0610		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0611-			●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9811-9906	●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	9907-0610		●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0611-			●	●
233	RING; FRICTION	8-94390-562-0	01	1	9907-0311		●
233	RING; FRICTION	8-97603-297-0	01	1	0312-0610		●
262	ADAPTER; AIR SUCTION PIPE FRR MIDDLE CHASSIS(FR****)	8-97600-060-0	01	1	9907-0610		●
263	GASKET; ADAPTER FRR MIDDLE CHASSIS(FR****) ID=24.5 OD=32	9-09571-424-0	01	1	9907-0610		●

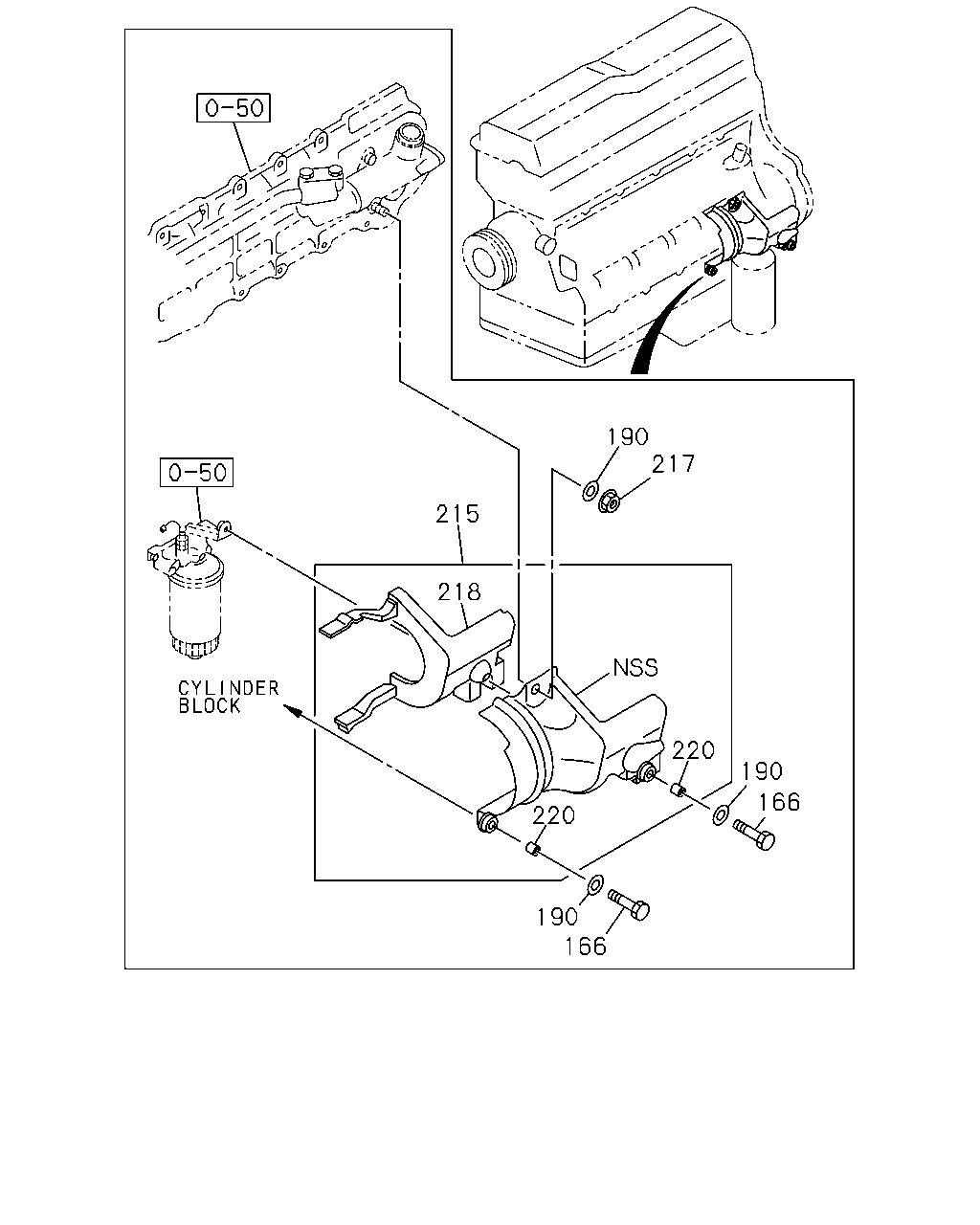

190 217 215 218 220 190 166 220 190 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
166	BOLT; COVER FIX M10X25 FLANGE	0-28781-025-0	02	1	9811-9906	●
190	WASHER; PL,COVER ID=10.5 OD=26	9-09160-710-0	03	1	9811-9906	●
215	COVER; AIR CMPR	8-94390-408-0	01	1	9811-9906	●
217	NUT; COVER M10	9-09110-410-0	01	1	9811-9906	●
218	INSULATOR; COVER	8-94394-995-2	01	1	9811-9906	●
220	TUBE; DIST OD=13 T=9.5	8-94140-427-1	03	1	9811-9906	●

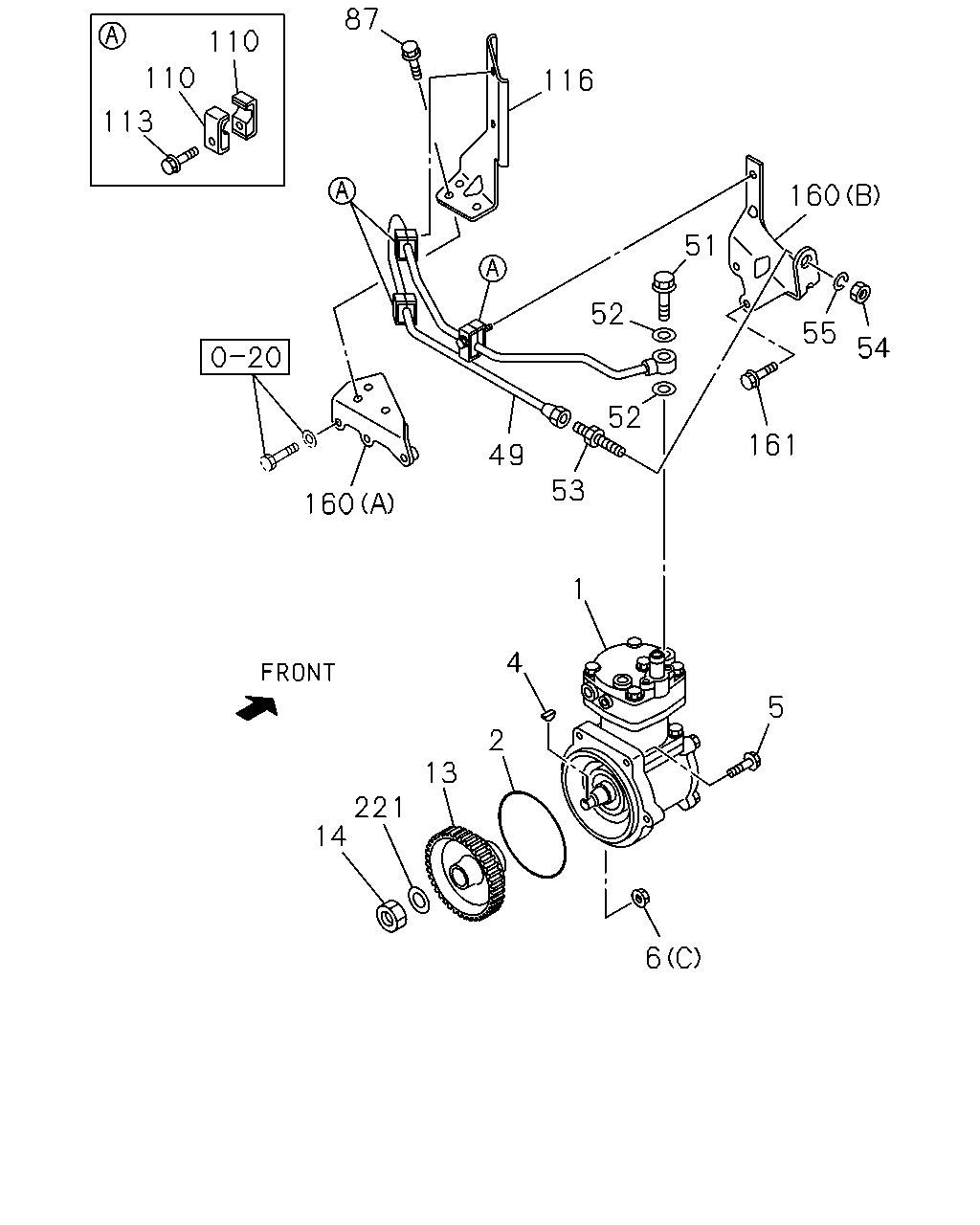

87 110 110 116 113 160 51 52 55 54 52 161 49 53 160 1 4 5 2 13 221 14 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR MIDDLE CHASSIS(FR****)	8-94396-891-4	01	1	9811-9906	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR MIDDLE CHASSIS(FR****)	8-94391-485-1	01	1	9907-9907		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR MIDDLE CHASSIS(FR****)	8-97600-700-1	01	1	9907-0610		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98038-656-0	01	1	0611-0705			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98055-879-2	01	1	0706-			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FVR MIDDLE CHASSIS(FV****)	8-94396-892-8	01	1	9811-9906	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FVR MIDDLE CHASSIS(FV****)	8-97600-697-0	01	1	9907-9907		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FVR MIDDLE CHASSIS(FV****)	8-97600-704-1	01	1	9907-0610		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9811-9906	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9907-0610		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0611-			●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9811-9906	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	9907-0610		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0611-			●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9811-9906	●
5	BOLT; AIR CMPR FIX M12X110	0-28186-211-0	01	1	9907-0512		●
5	BOLT; AIR CMPR FIX M12X110 FLANGE	0-28156-211-0	01	1	0601-0610		●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	03	1	0611-			●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9811-9906	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9907-0602		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-0610		●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0611-			●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9811-9906	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9907-0602		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-0610		●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0611-			●	●
14	NUT; GEAR M20 TAI	9-99110-520-0	01	1	9811-9906	●
14	NUT; GEAR M24	9-99110-524-0	01	1	9907-0512		●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-0610		●
14	NUT; GEAR M20	0-91110-520-0	01	1	0611-			●	●
49	PIPE; AIR,CHARGE FRR MIDDLE CHASSIS(FR****)	8-94390-063-0	01	1	9811-9906	●
49	PIPE; AIR,CHARGE FRR MIDDLE CHASSIS(FR****)	8-94391-630-1	01	1	9907-0610		●
49	PIPE; AIR,CHARGE	8-98042-002-0	01	1	0611-			●	●
49	PIPE; AIR,CHARGE FVR MIDDLE CHASSIS(FV****)	8-94395-087-2	01	1	9811-9906	●
49	PIPE; AIR,CHARGE FVR MIDDLE CHASSIS(FV****)	8-94391-118-1	01	1	9907-0610		●
51	BOLT; EYE,AIR PIPE TO CMPR FRR MIDDLE CHASSIS(FR****) M20X38	1-09675-133-0	01	1	9811-9906	●
51	BOLT; EYE,AIR PIPE TO CMPR FRR MIDDLE CHASSIS(FR****) M20X38	1-09675-133-0	01	1	9907-0610		●
51	BOLT; EYE,AIR PIPE TO CMPR FVR MIDDLE CHASSIS(FV****) M24X39	1-09675-132-0	01	1	9811-9906	●
51	BOLT; EYE,AIR PIPE TO CMPR FVR MIDDLE CHASSIS(FV****) M24X39	1-09675-132-0	01	1	9907-0610		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0611-			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR MIDDLE CHASSIS(FR****) ID=20.5 OD=28.0	9-09571-420-0	02	1	9811-9906	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR MIDDLE CHASSIS(FR****) ID=20.5 OD=28.0	9-09571-420-0	02	1	9907-0610		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FVR MIDDLE CHASSIS(FV****) ID=24.5 OD=32	9-09571-424-0	02	1	9811-9906	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FVR MIDDLE CHASSIS(FV****) ID=24.5 OD=32	9-09571-424-0	02	1	9907-0610		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0611-			●	●
53	UNION; CHARGE PIPE	1-09654-318-1	01	1	0611-			●	●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0611-			●	●
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0611-			●	●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28050-820-0	03	1	0611-			●	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9811-9906	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9907-0610		●
110	CLIP; AIR PIPE	1-09701-284-0	06	1	0611-			●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9811-9906	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9907-0512		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-0610		●
113	BOLT; CLIP,AIR PIPE M8X45 FLANGE	0-28050-845-0	03	1	0611-			●	●
116	BRACKET; AIR PIPE	8-97614-183-1	01	1	0611-			●	●
160	BRACKET; AIR PIPE (B)	8-98042-844-1	01	1	0611-			●	●
160	BRACKET; AIR PIPE (C)	8-94394-406-0	01	1	9811-9906	●
160	BRACKET; AIR PIPE (D)	8-94392-031-0	01	1	9907-0610		●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	0611-			●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9907-0512		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-0610		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0611-			●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9811-9906	●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	9907-0610		●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0611-			●	●

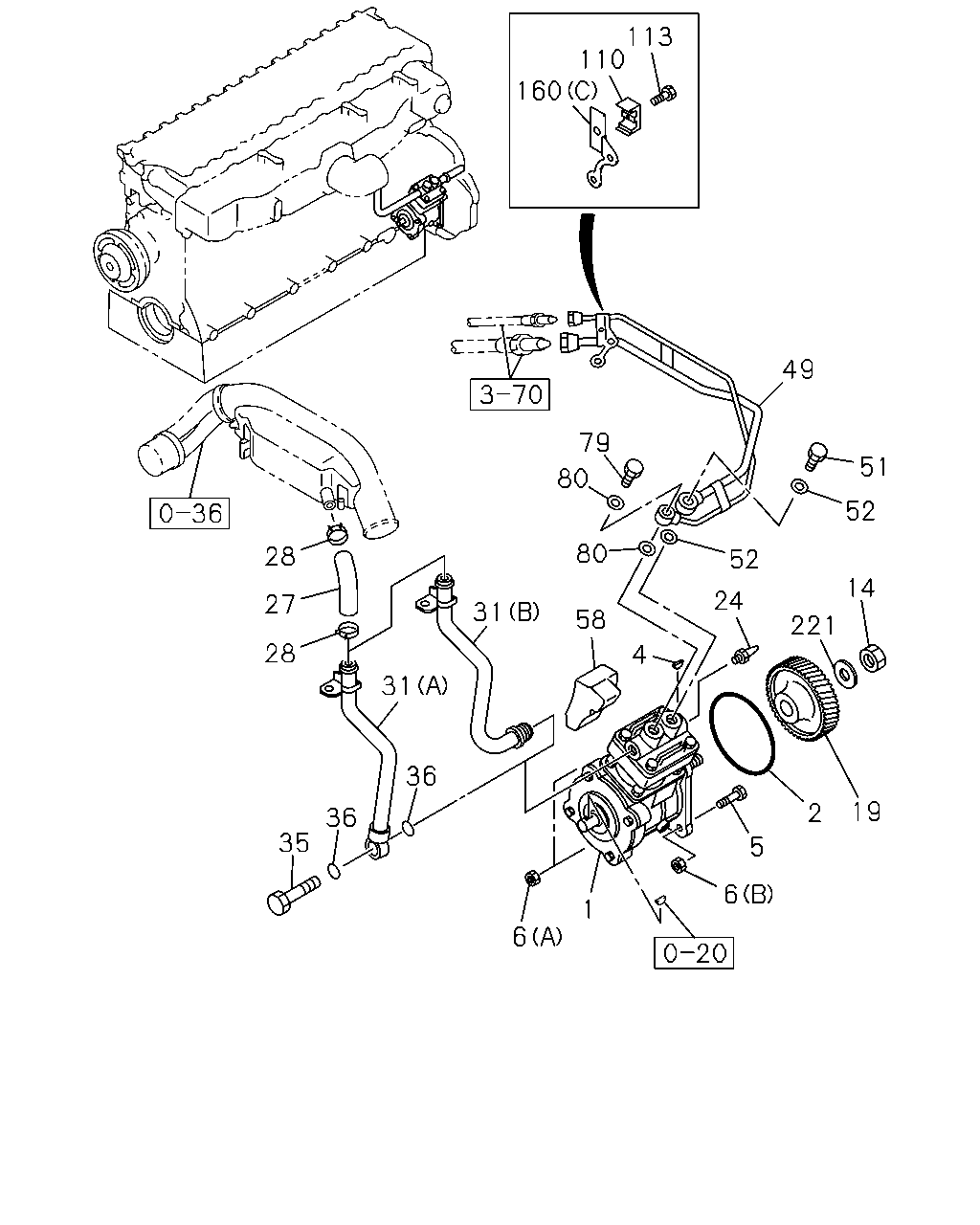

113 110 160 49 79 51 80 52 80 28 52 14 24 27 31 58 221 28 4 31 36 19 2 36 35 5 6 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR MIDDLE CHASSIS(FR****)	8-94396-891-4	01	1	9811-9906	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR MIDDLE CHASSIS(FR****)	8-94391-485-1	01	1	9907-9907		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FRR MIDDLE CHASSIS(FR****)	8-97600-700-1	01	1	9907-0610		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98038-656-0	01	1	0611-0705			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98055-879-2	01	1	0706-			●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FVR MIDDLE CHASSIS(FV****)	8-94396-892-8	01	1	9811-9906	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FVR MIDDLE CHASSIS(FV****)	8-97600-697-0	01	1	9907-9907		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. FVR MIDDLE CHASSIS(FV****)	8-97600-704-1	01	1	9907-0610		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9811-9906	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9907-0610		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0611-			●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9811-9906	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	9907-0610		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0611-			●	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9811-9906	●
5	BOLT; AIR CMPR FIX M12X110	0-28186-211-0	01	1	9907-0512		●
5	BOLT; AIR CMPR FIX M12X110 FLANGE	0-28156-211-0	01	1	0601-0610		●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	03	1	0611-			●	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9811-9906	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9907-0602		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-0610		●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0611-			●	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9811-9906	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9907-0602		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-0610		●
14	NUT; GEAR M20 TAI	9-99110-520-0	01	1	9811-9906	●
14	NUT; GEAR M24	9-99110-524-0	01	1	9907-0512		●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-0610		●
14	NUT; GEAR M20	0-91110-520-0	01	1	0611-			●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9811-9906	●
19	GEAR; INJ PUMP Z=35	8-94390-998-2	01	1	9907-0610		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9811-9906	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9907-0610		●
27	HOSE; AIR CMPR,SUCTION	8-94394-515-0	01	1	9811-9906	●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9907-0610		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9811-9906	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9907-0610		●
31	PIPE; AIR,AIR CMPR SUCTION FRR MIDDLE CHASSIS(FR****) (A)	8-94390-516-0	01	1	9811-9906	●
31	PIPE; AIR,AIR CMPR SUCTION FRR MIDDLE CHASSIS(FR****) (C)	8-94391-629-1	01	1	9907-0610		●
31	PIPE; AIR,AIR CMPR SUCTION FVR MIDDLE CHASSIS(FV****) (B)	8-94393-655-1	01	1	9811-9906	●
31	PIPE; AIR,AIR CMPR SUCTION FVR MIDDLE CHASSIS(FV****) (C)	8-94390-859-1	01	1	9907-0610		●
35	BOLT; EYE,AIR PIPE FRR MIDDLE CHASSIS(FR****) M24X39	1-09675-132-0	01	1	9811-9906	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). FRR MIDDLE CHASSIS(FR****) ID=24.5 OD=32	9-09571-424-0	02	1	9811-9906	●
49	PIPE; AIR,CHARGE FRR MIDDLE CHASSIS(FR****)	8-94390-063-0	01	1	9811-9906	●
49	PIPE; AIR,CHARGE FRR MIDDLE CHASSIS(FR****)	8-94391-630-1	01	1	9907-0610		●
49	PIPE; AIR,CHARGE	8-98042-002-0	01	1	0611-			●	●
49	PIPE; AIR,CHARGE FVR MIDDLE CHASSIS(FV****)	8-94395-087-2	01	1	9811-9906	●
49	PIPE; AIR,CHARGE FVR MIDDLE CHASSIS(FV****)	8-94391-118-1	01	1	9907-0610		●
51	BOLT; EYE,AIR PIPE TO CMPR FRR MIDDLE CHASSIS(FR****) M20X38	1-09675-133-0	01	1	9811-9906	●
51	BOLT; EYE,AIR PIPE TO CMPR FRR MIDDLE CHASSIS(FR****) M20X38	1-09675-133-0	01	1	9907-0610		●
51	BOLT; EYE,AIR PIPE TO CMPR FVR MIDDLE CHASSIS(FV****) M24X39	1-09675-132-0	01	1	9811-9906	●
51	BOLT; EYE,AIR PIPE TO CMPR FVR MIDDLE CHASSIS(FV****) M24X39	1-09675-132-0	01	1	9907-0610		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0611-			●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR MIDDLE CHASSIS(FR****) ID=20.5 OD=28.0	9-09571-420-0	02	1	9811-9906	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FRR MIDDLE CHASSIS(FR****) ID=20.5 OD=28.0	9-09571-420-0	02	1	9907-0610		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FVR MIDDLE CHASSIS(FV****) ID=24.5 OD=32	9-09571-424-0	02	1	9811-9906	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). FVR MIDDLE CHASSIS(FV****) ID=24.5 OD=32	9-09571-424-0	02	1	9907-0610		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0611-			●	●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	9811-9906	●
79	BOLT; EYE,AIR PIPE TO CMPR FRR MIDDLE CHASSIS(FR****) M18X33	1-09675-058-0	01	1	9811-9906	●
79	BOLT; EYE,AIR PIPE TO CMPR FRR MIDDLE CHASSIS(FR****) M18X33	1-09675-058-0	01	1	9907-0610		●
79	BOLT; EYE,AIR PIPE TO CMPR FVR MIDDLE CHASSIS(FV****) M14X27 FLANGE	1-09675-086-0	01	1	9811-9906	●
79	BOLT; EYE,AIR PIPE TO CMPR FVR MIDDLE CHASSIS(FV****) M14X27 FLANGE	1-09675-086-0	01	1	9907-0610		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR MIDDLE CHASSIS(FR****) ID=18.2 OD=24.4	1-09630-087-0	02	1	9811-9906	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FRR MIDDLE CHASSIS(FR****) ID=18.2 OD=24.4	1-09630-087-0	02	1	9907-0610		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FVR MIDDLE CHASSIS(FV****) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	9811-9906	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FVR MIDDLE CHASSIS(FV****) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	9907-0610		●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9811-9906	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9907-0610		●
110	CLIP; AIR PIPE	1-09701-284-0	06	1	0611-			●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9811-9906	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9907-0512		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-0610		●
113	BOLT; CLIP,AIR PIPE M8X45 FLANGE	0-28050-845-0	03	1	0611-			●	●
160	BRACKET; AIR PIPE (B)	8-98042-844-1	01	1	0611-			●	●
160	BRACKET; AIR PIPE (C)	8-94394-406-0	01	1	9811-9906	●
160	BRACKET; AIR PIPE (D)	8-94392-031-0	01	1	9907-0610		●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	0611-			●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9811-9906	●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	9907-0610		●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0611-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
