◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10775 - FRR/FVR(TAIWAN) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-36 - TURBOCHARGER SYSTEM ▶
0-36 — TURBOCHARGER SYSTEM (#5675) — 211 parça

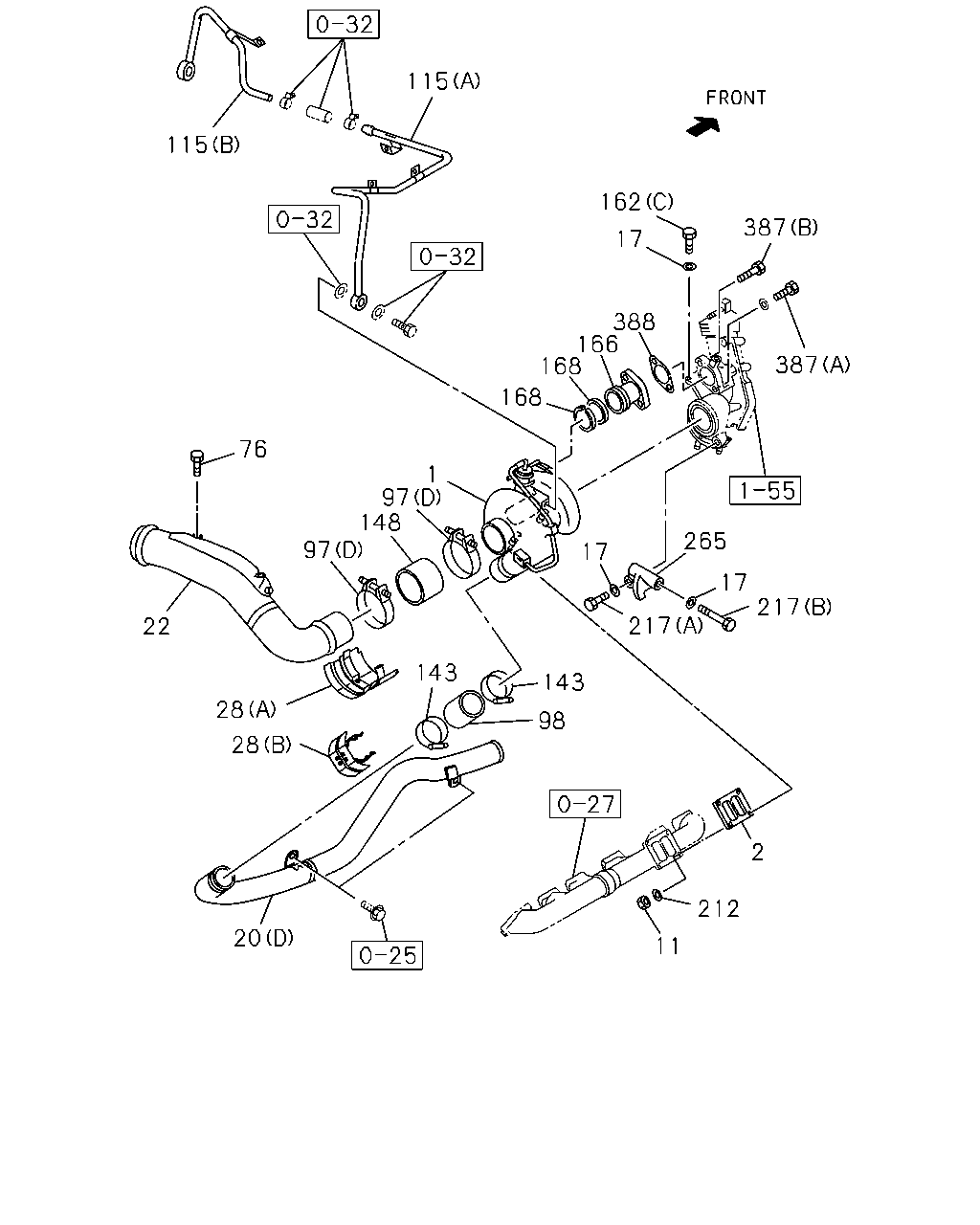

çizim 25265
115 115 162 387 17 388 166 168 387 168 76 1 97 148 97 265 17 17 217 217 22 143 143 28 98 28 2 212 20 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-94394-457-2 01 1 9811-9906 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-94390-639-2 01 1 9907-0302 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-809-0 01 1 0303-0610 ●
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0611- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-121-0 01 1 9811-9906 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 9907-0610 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0611- ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9811-9906 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9907-0610 ●
17 WASHER; PL,ADAPTER
ID=12.2 		9-09851-933-0 04 1 9811-9906 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 9907-0610 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0611- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(B) 		8-98046-168-1 01 1 0611- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(C) 		8-98046-169-2 01 1 0611- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(D) 		8-94394-399-1 01 1 9811-9906 ●
20 PIPE; INL,TURBOCHARGER OUT
(E) 		8-97600-383-1 01 1 9907-0610 ●
20 PIPE; INL,TURBOCHARGER OUT
(A) 		8-98046-167-4 01 1 0611- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-94394-401-1 01 1 9811-9906 ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-97600-071-1 01 1 9907-0610 ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-881-1 01 1 0611- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(B) 		1-14181-220-0 01 1 9811-9906 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		8-94393-182-0 01 1 9811-9906 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		8-94393-182-0 01 1 9907-0610 ●
76 BOLT; AIR DUCT
M8X50 FLANGE 		0-28080-850-0 02 1 9811-9906 ●
76 BOLT; AIR DUCT
M8X35 FLANGE 		0-28680-835-0 02 1 9907-0512 ●
76 BOLT; AIR DUCT
M8X35 FLANGE 		0-28650-835-0 02 1 0601-0610 ●
97 CLIP; HOSE,TURBOCHARGER,INL
(D) ID=86 		9-09915-592-0 02 1 9811-9906 ●
97 CLIP; HOSE,TURBOCHARGER,INL
(A) ID=100 		9-09915-599-0 01 1 9907-0211 ●
97 CLIP; HOSE,TURBOCHARGER,INL
(C) ID=87-116 		1-09707-144-0 02 1 0212-0306 ●
97 CLIP; HOSE,TURBOCHARGER,INL
(C) ID=87-113 		1-09707-199-0 02 1 0307-0610 ●
97 CLIP; HOSE,TURBOCHARGER,INL
(B) ID=112 		9-09915-605-0 01 1 9907-0211 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-797-1 01 1 9811-9906 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 8-94392-854-0 01 1 9907-0610 ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-97615-877-0 01 1 0611- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-94394-691-0 01 1 9811-9906 ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94395-454-4 01 1 9811-9906 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 9811-9906 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 9907-0306 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-76 		1-09707-203-0 02 1 0307-0610 ●
148 HOSE; TURBOCHARGER,INL 1-09360-600-0 01 1 9811-9906 ●
148 HOSE; TURBOCHARGER,INL 8-94392-853-0 01 1 9907-0610 ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0611- ● ●
162 BOLT; ADAPTER
(C) M12X30 		8-94394-324-0 02 1 9811-9906 ●
162 BOLT; ADAPTER
(D) M8X57 		5-09000-275-0 05 1 9907-0610 ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0611- ● ●
166 PIPE; EXH 8-94393-151-0 01 1 9811-9906 ●
168 RING; SEAL,EXH PIPE 1-14149-083-1 02 1 9811-9906 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 9811-9906 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 9907-0610 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0611- ● ●
217 BOLT; BRKT
(D) M10X25 FLANGE 		0-28751-025-0 01 1 0611- ● ●
217 BOLT; BRKT
(A) M12X30 		8-94394-324-0 01 1 9811-9906 ●
217 BOLT; BRKT
(A) M12X30 		8-94394-324-0 03 1 9907-0610 ●
217 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0611- ● ●
217 BOLT; BRKT
(B) M12X85 		8-94394-514-0 01 1 9811-9906 ●
265 BRACKET; EXH PIPE 8-94394-373-0 01 1 9811-9906 ●
265 BRACKET; EXH PIPE 8-94395-764-2 01 1 9907-0610 ●
265 BRACKET; EXH PIPE 8-97609-517-1 01 1 0611- ● ●
387 BOLT; EXH PIPE
(A) M10X40 		8-94393-700-0 01 1 9811-9906 ●
387 BOLT; EXH PIPE
(B) M10X70 		8-94394-698-0 01 1 9811-9906 ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-139-0 01 1 9811-9906 ●

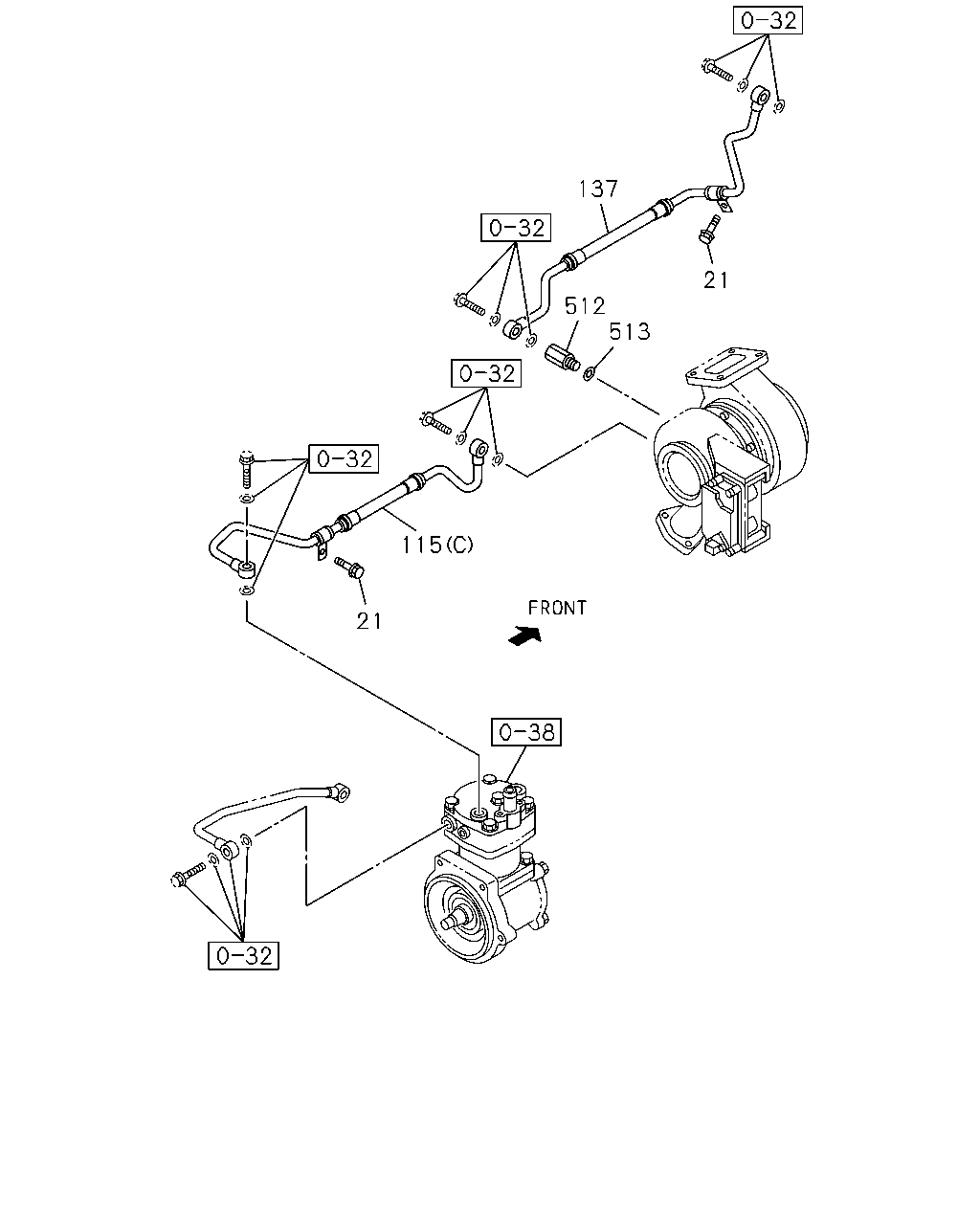

çizim 25700
137 21 512 513 115 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0611- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-97615-877-0 01 1 0611- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-94394-691-0 01 1 9811-9906 ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94395-454-4 01 1 9811-9906 ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 0611- ● ●
512 CONNECTOR; TURBO 8-98031-856-0 01 1 0611- ● ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 TAI 		1-09630-085-0 01 1 0611- ● ●

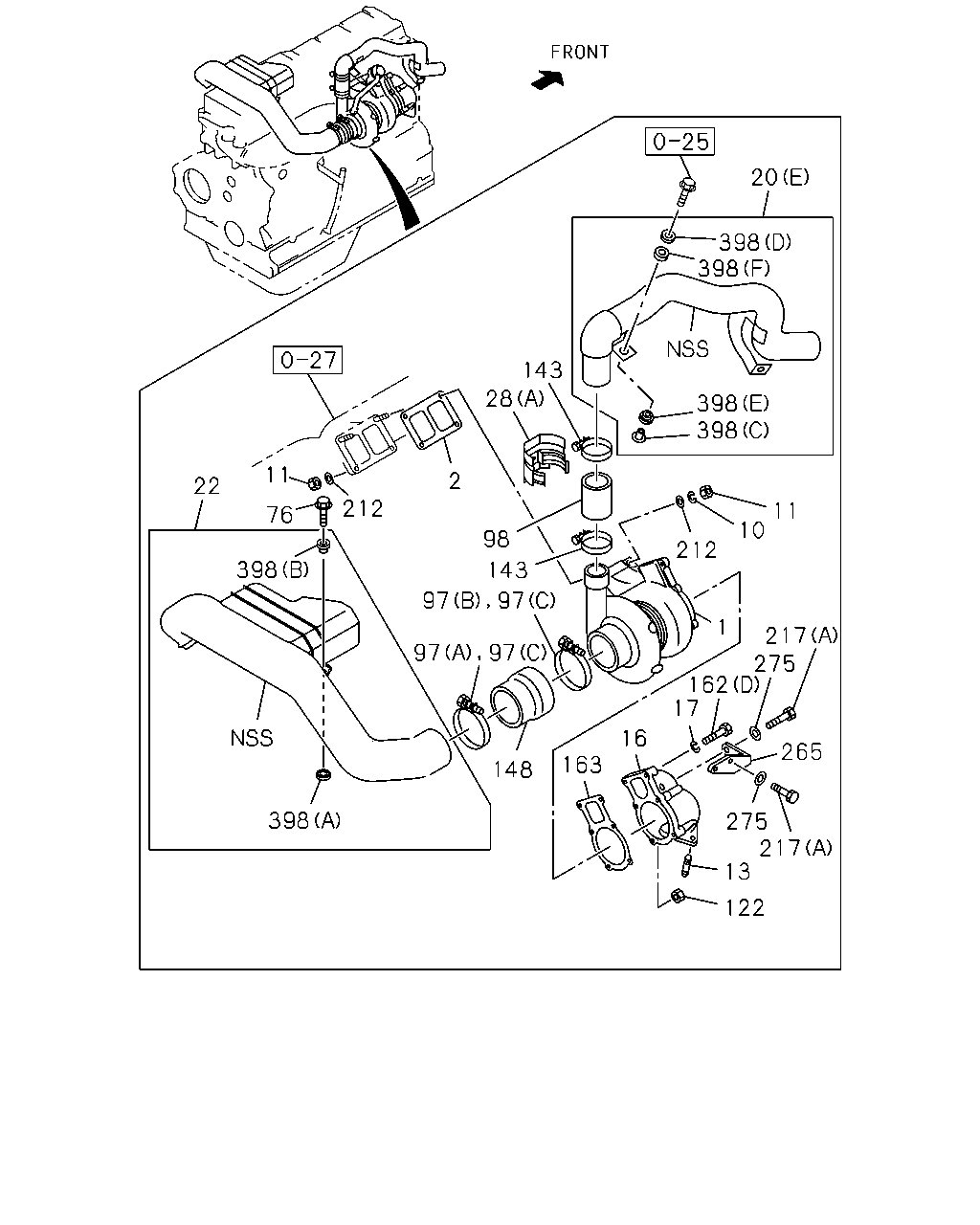

çizim 99231
20 398 398 143 28 398 398 11 2 22 212 11 76 10 98 212 398 143 1 217 275 162 17 97 97 16 265 163 148 398 275 217 13 122 97 97
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-94394-457-2 01 1 9811-9906 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-94390-639-2 01 1 9907-0302 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-809-0 01 1 0303-0610 ●
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0611- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-121-0 01 1 9811-9906 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 9907-0610 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0611- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 9907-0610 ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0611- ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9811-9906 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9907-0610 ●
13 STUD; EXH PIPE
M12X140 L=160 		1-09302-163-0 02 1 9907-9909 ●
13 STUD; EXH PIPE
M12X123 L=141 		1-09302-012-0 02 1 9910-0610 ●
16 ADAPTER; EXH PIPE 8-94392-852-1 01 1 9907-9909 ●
16 ADAPTER; EXH PIPE 8-97600-283-0 01 1 9910-0610 ●
16 ADAPTER; EXH PIPE 8-98018-241-1 01 1 0611- ● ●
17 WASHER; PL,ADAPTER
ID=12.2 		9-09851-933-0 04 1 9811-9906 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 9907-0610 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0611- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(B) 		8-98046-168-1 01 1 0611- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(C) 		8-98046-169-2 01 1 0611- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(D) 		8-94394-399-1 01 1 9811-9906 ●
20 PIPE; INL,TURBOCHARGER OUT
(E) 		8-97600-383-1 01 1 9907-0610 ●
20 PIPE; INL,TURBOCHARGER OUT
(A) 		8-98046-167-4 01 1 0611- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-94394-401-1 01 1 9811-9906 ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-97600-071-1 01 1 9907-0610 ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-881-1 01 1 0611- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(B) 		1-14181-220-0 01 1 9811-9906 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		8-94393-182-0 01 1 9811-9906 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		8-94393-182-0 01 1 9907-0610 ●
76 BOLT; AIR DUCT
M8X50 FLANGE 		0-28080-850-0 02 1 9811-9906 ●
76 BOLT; AIR DUCT
M8X35 FLANGE 		0-28680-835-0 02 1 9907-0512 ●
76 BOLT; AIR DUCT
M8X35 FLANGE 		0-28650-835-0 02 1 0601-0610 ●
97 CLIP; HOSE,TURBOCHARGER,INL
(D) ID=86 		9-09915-592-0 02 1 9811-9906 ●
97 CLIP; HOSE,TURBOCHARGER,INL
(A) ID=100 		9-09915-599-0 01 1 9907-0211 ●
97 CLIP; HOSE,TURBOCHARGER,INL
(C) ID=87-116 		1-09707-144-0 02 1 0212-0306 ●
97 CLIP; HOSE,TURBOCHARGER,INL
(C) ID=87-113 		1-09707-199-0 02 1 0307-0610 ●
97 CLIP; HOSE,TURBOCHARGER,INL
(B) ID=112 		9-09915-605-0 01 1 9907-0211 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-797-1 01 1 9811-9906 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 8-94392-854-0 01 1 9907-0610 ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 9907-0610 ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0611- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 9811-9906 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 9907-0306 ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-76 		1-09707-203-0 02 1 0307-0610 ●
148 HOSE; TURBOCHARGER,INL 1-09360-600-0 01 1 9811-9906 ●
148 HOSE; TURBOCHARGER,INL 8-94392-853-0 01 1 9907-0610 ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0611- ● ●
162 BOLT; ADAPTER
(C) M12X30 		8-94394-324-0 02 1 9811-9906 ●
162 BOLT; ADAPTER
(D) M8X57 		5-09000-275-0 05 1 9907-0610 ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0611- ● ●
163 GASKET; ADAPTER TO EXH PIPE 1-14145-162-0 01 1 9907-0610 ●
163 GASKET; ADAPTER TO EXH PIPE 8-94392-553-2 01 1 0611- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 9811-9906 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 9907-0610 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0611- ● ●
217 BOLT; BRKT
(D) M10X25 FLANGE 		0-28751-025-0 01 1 0611- ● ●
217 BOLT; BRKT
(A) M12X30 		8-94394-324-0 01 1 9811-9906 ●
217 BOLT; BRKT
(A) M12X30 		8-94394-324-0 03 1 9907-0610 ●
217 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0611- ● ●
217 BOLT; BRKT
(B) M12X85 		8-94394-514-0 01 1 9811-9906 ●
265 BRACKET; EXH PIPE 8-94394-373-0 01 1 9811-9906 ●
265 BRACKET; EXH PIPE 8-94395-764-2 01 1 9907-0610 ●
265 BRACKET; EXH PIPE 8-97609-517-1 01 1 0611- ● ●
275 WASHER; PL
ID=12.2 		9-09851-933-0 03 1 9907-9907 ●
275 WASHER; PL
ID=12.2 		1-09503-008-0 03 1 9907-0610 ●
398 MOUNTING
(F) 		8-94160-177-0 01 1 9907-0610 ●
398 MOUNTING
(F) 		8-94160-177-0 01 1 0611- ● ●
398 MOUNTING
(A) ID=19.5 		8-94202-456-3 02 1 9907-0610 ●
398 MOUNTING
(H) OD=23 		8-97105-689-6 01 1 0611- ● ●
398 MOUNTING
(C) 		8-94390-551-0 01 1 9907-0610 ●
398 MOUNTING
(C) 		8-94390-551-1 01 1 0611- ● ●
398 MOUNTING
(D) 		8-94394-504-0 01 1 9907-0610 ●
398 MOUNTING
(D) 		8-94394-504-0 01 1 0611- ● ●
398 MOUNTING
(E) 		8-94394-529-0 01 1 9907-0610 ●
398 MOUNTING
(E) 		8-94394-529-0 01 1 0611- ● ●
398 MOUNTING
(B) 		8-97600-053-0 02 1 9907-0610 ●
398 MOUNTING
(G) 		8-94395-766-0 01 1 0611- ● ●

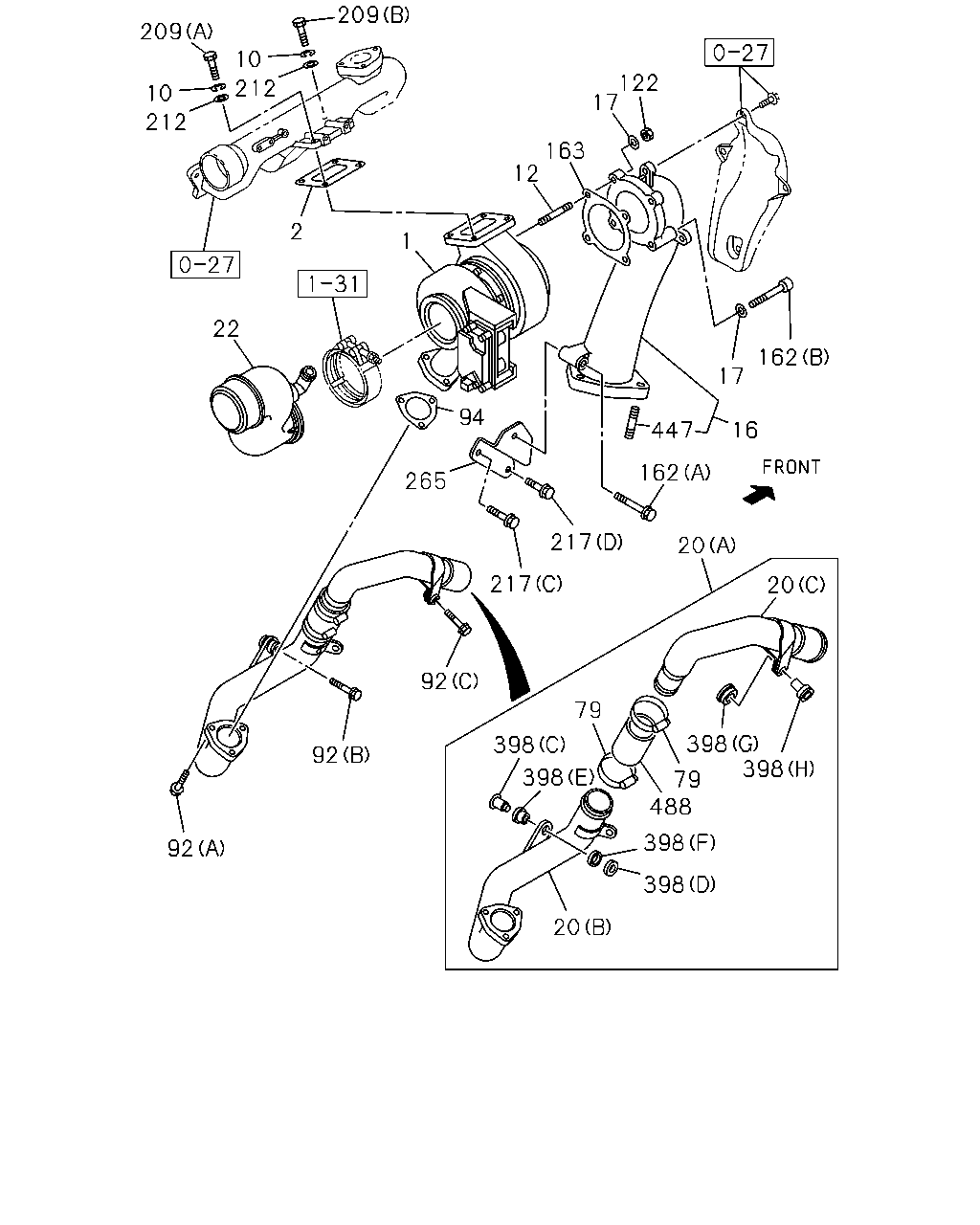

çizim 99287
209 209 10 122 17 212 10 212 163 12 2 1 22 162 17 94 447 16 162 265 217 20 217 20 92 79 398 398 398 92 398 79 488 398 92 398 20
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-94394-457-2 01 1 9811-9906 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-94390-639-2 01 1 9907-0302 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-809-0 01 1 0303-0610 ●
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0611- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-121-0 01 1 9811-9906 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 9907-0610 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0611- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 9907-0610 ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0611- ● ●
12 STUD; TURBOCHARGER
M8X25 L=36 		8-94476-282-0 02 1 0611- ● ●
16 ADAPTER; EXH PIPE 8-94392-852-1 01 1 9907-9909 ●
16 ADAPTER; EXH PIPE 8-97600-283-0 01 1 9910-0610 ●
16 ADAPTER; EXH PIPE 8-98018-241-1 01 1 0611- ● ●
17 WASHER; PL,ADAPTER
ID=12.2 		9-09851-933-0 04 1 9811-9906 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 9907-0610 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0611- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(B) 		8-98046-168-1 01 1 0611- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(C) 		8-98046-169-2 01 1 0611- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(D) 		8-94394-399-1 01 1 9811-9906 ●
20 PIPE; INL,TURBOCHARGER OUT
(E) 		8-97600-383-1 01 1 9907-0610 ●
20 PIPE; INL,TURBOCHARGER OUT
(A) 		8-98046-167-4 01 1 0611- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-94394-401-1 01 1 9811-9906 ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-97600-071-1 01 1 9907-0610 ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-881-1 01 1 0611- ● ●
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0611- ● ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0611- ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0611- ● ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0611- ● ●
94 GASKET; INL PIPE 8-98053-830-0 01 1 0611- ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 9907-0610 ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0611- ● ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0611- ● ●
162 BOLT; ADAPTER
(C) M12X30 		8-94394-324-0 02 1 9811-9906 ●
162 BOLT; ADAPTER
(D) M8X57 		5-09000-275-0 05 1 9907-0610 ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0611- ● ●
163 GASKET; ADAPTER TO EXH PIPE 1-14145-162-0 01 1 9907-0610 ●
163 GASKET; ADAPTER TO EXH PIPE 8-94392-553-2 01 1 0611- ● ●
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-97602-009-0 02 1 0611-0702 ● ●
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 0703- ● ●
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-0 02 1 0611- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 9811-9906 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 9907-0610 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0611- ● ●
217 BOLT; BRKT
(D) M10X25 FLANGE 		0-28751-025-0 01 1 0611- ● ●
217 BOLT; BRKT
(A) M12X30 		8-94394-324-0 01 1 9811-9906 ●
217 BOLT; BRKT
(A) M12X30 		8-94394-324-0 03 1 9907-0610 ●
217 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0611- ● ●
217 BOLT; BRKT
(B) M12X85 		8-94394-514-0 01 1 9811-9906 ●
265 BRACKET; EXH PIPE 8-94394-373-0 01 1 9811-9906 ●
265 BRACKET; EXH PIPE 8-94395-764-2 01 1 9907-0610 ●
265 BRACKET; EXH PIPE 8-97609-517-1 01 1 0611- ● ●
398 MOUNTING
(F) 		8-94160-177-0 01 1 9907-0610 ●
398 MOUNTING
(F) 		8-94160-177-0 01 1 0611- ● ●
398 MOUNTING
(A) ID=19.5 		8-94202-456-3 02 1 9907-0610 ●
398 MOUNTING
(H) OD=23 		8-97105-689-6 01 1 0611- ● ●
398 MOUNTING
(C) 		8-94390-551-0 01 1 9907-0610 ●
398 MOUNTING
(C) 		8-94390-551-1 01 1 0611- ● ●
398 MOUNTING
(D) 		8-94394-504-0 01 1 9907-0610 ●
398 MOUNTING
(D) 		8-94394-504-0 01 1 0611- ● ●
398 MOUNTING
(E) 		8-94394-529-0 01 1 9907-0610 ●
398 MOUNTING
(E) 		8-94394-529-0 01 1 0611- ● ●
398 MOUNTING
(B) 		8-97600-053-0 02 1 9907-0610 ●
398 MOUNTING
(G) 		8-94395-766-0 01 1 0611- ● ●
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 0611- ● ●
488 HOSE; RUBBER 8-98046-356-0 01 1 0611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
