Isuzu WW
▶
TRUCKS
▶
FSR
▶
11237 - FSR-R(EU)EU5 EXC.SPA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#56746) — 65 parça
◀

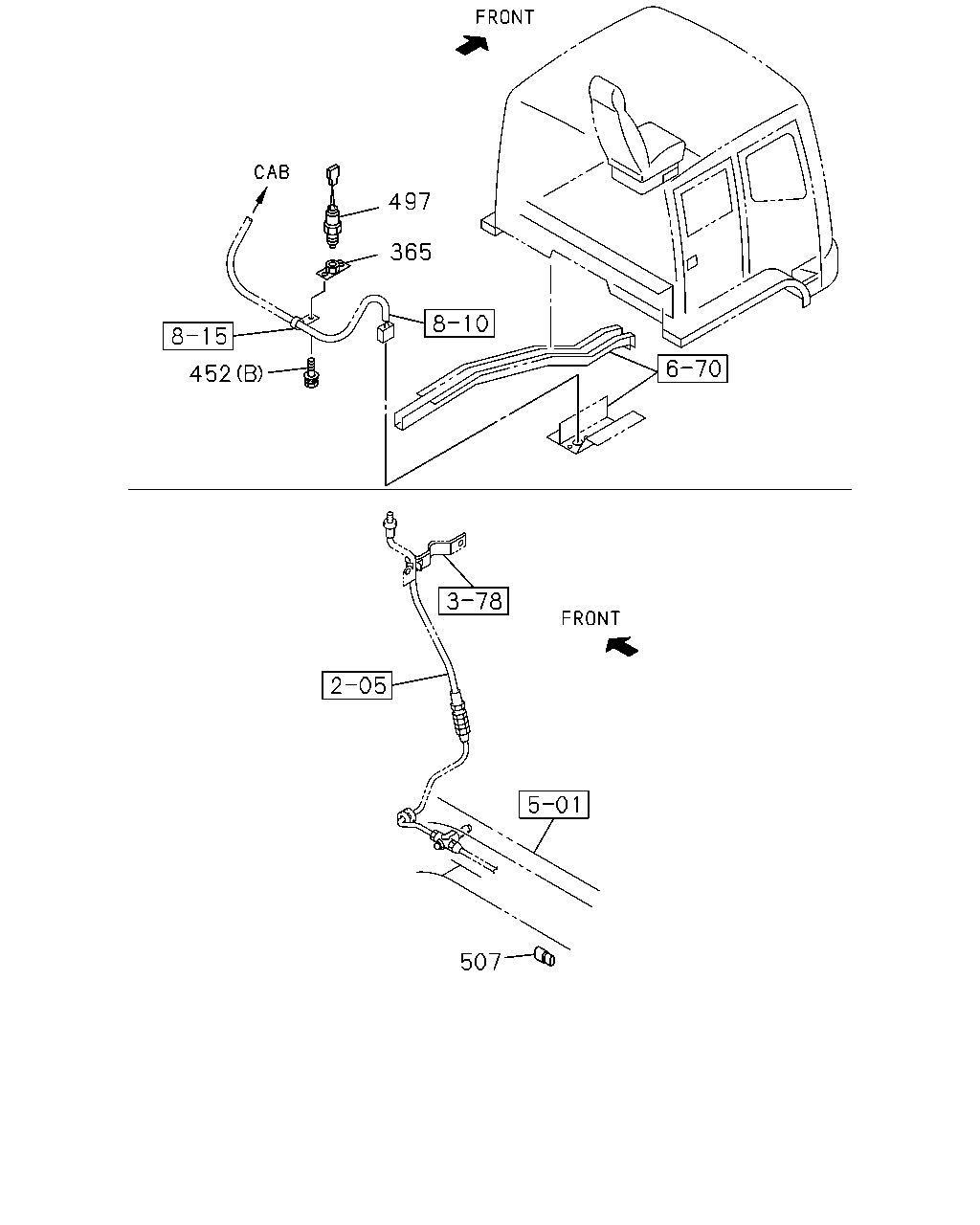

[826A] FRONT SIDE NO.3 (7 parça)

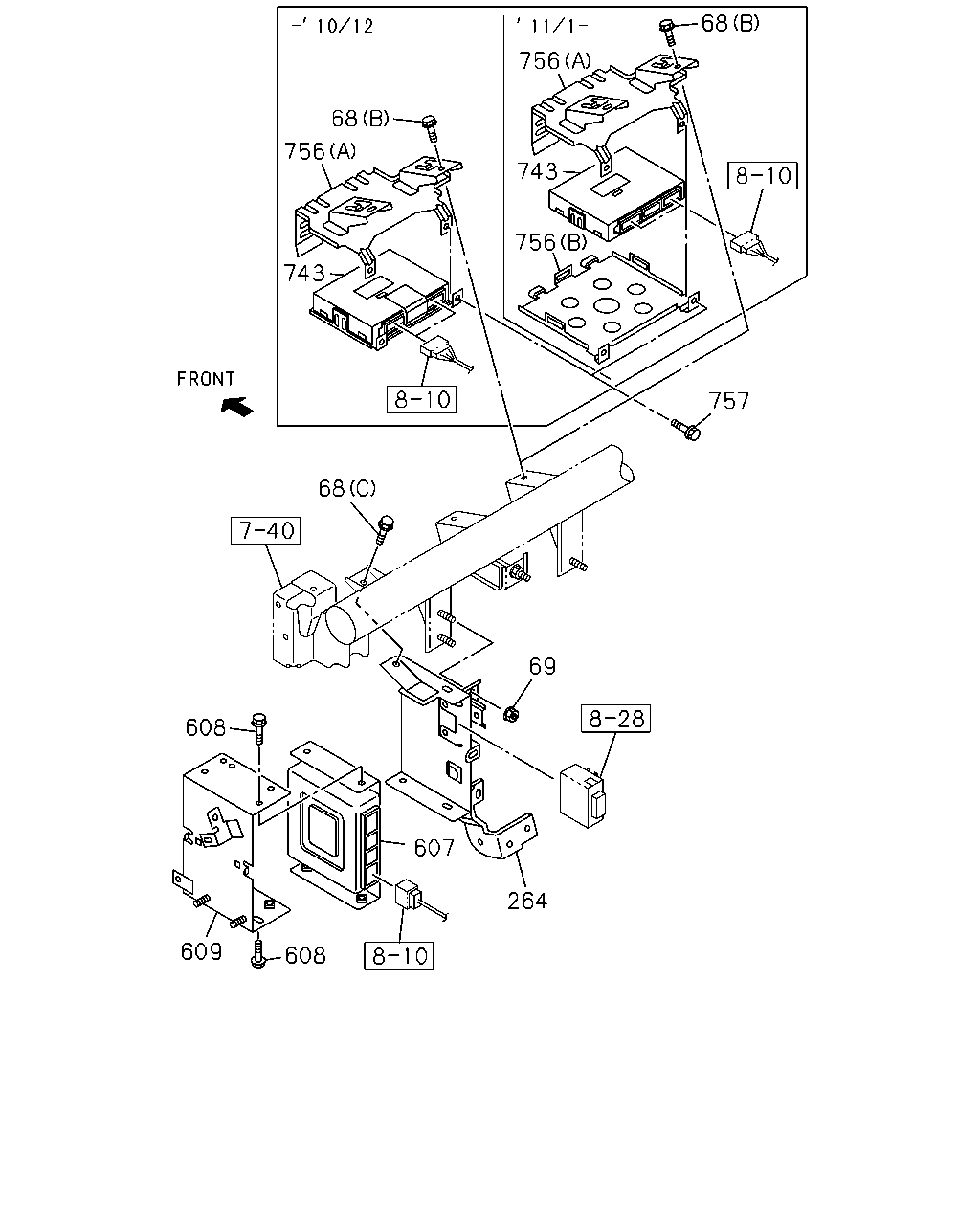

[826A] FRONT SIDE NO.2 (17 parça)
[826A] FRONT SIDE NO.5 (5 parça)

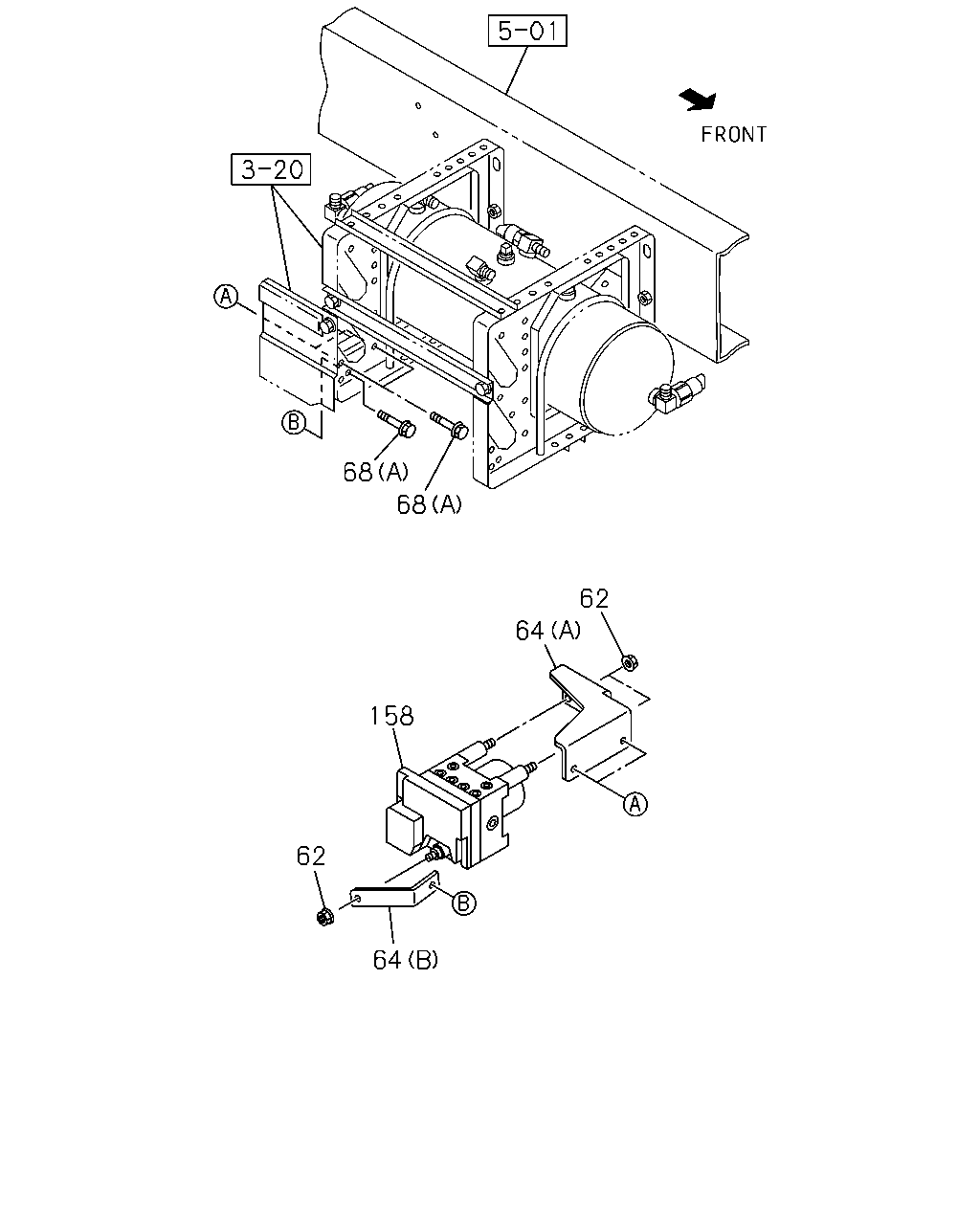

[826A] AIR TANK SIDE (8 parça)

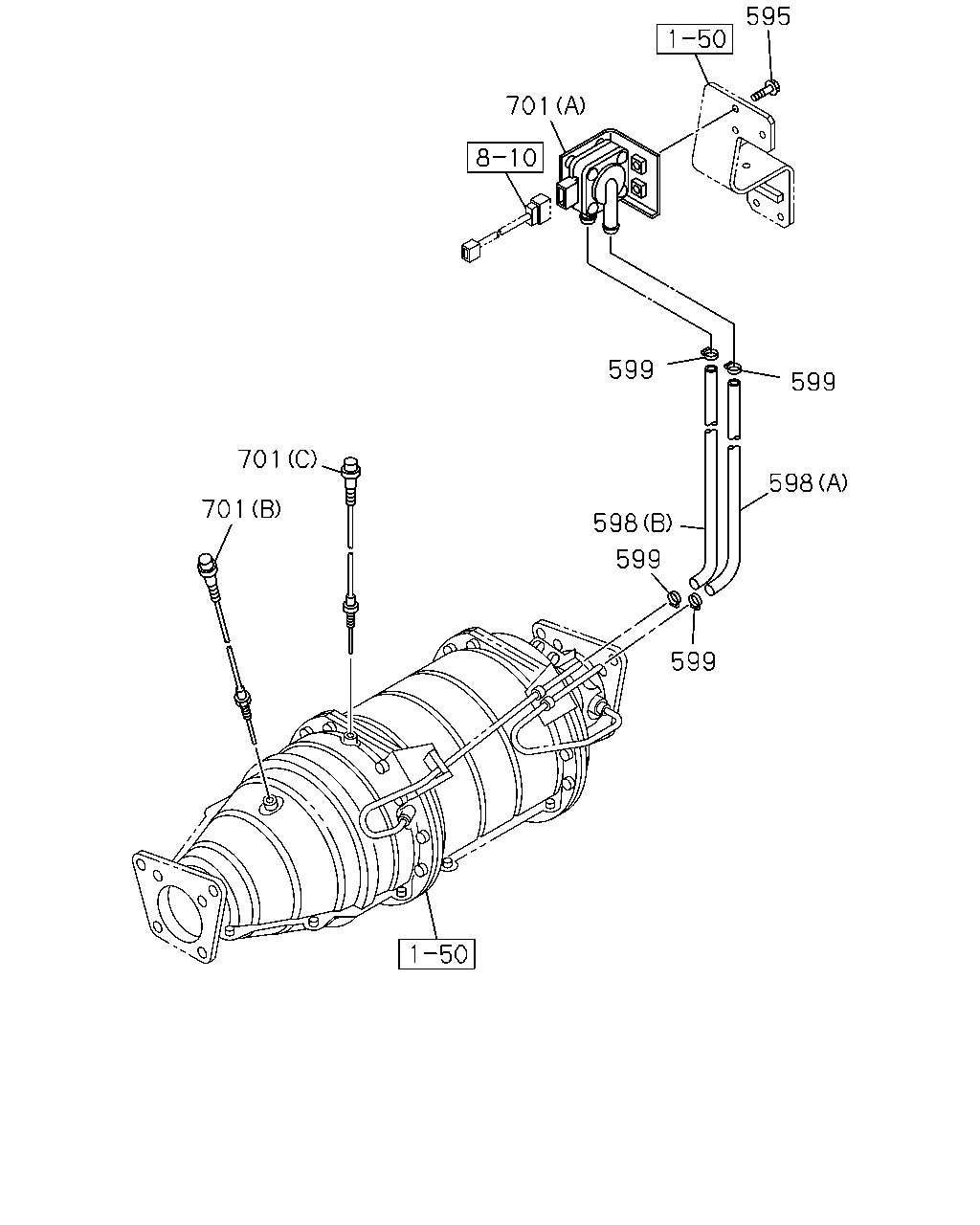

[826A] SENSOR;DPD (7 parça)

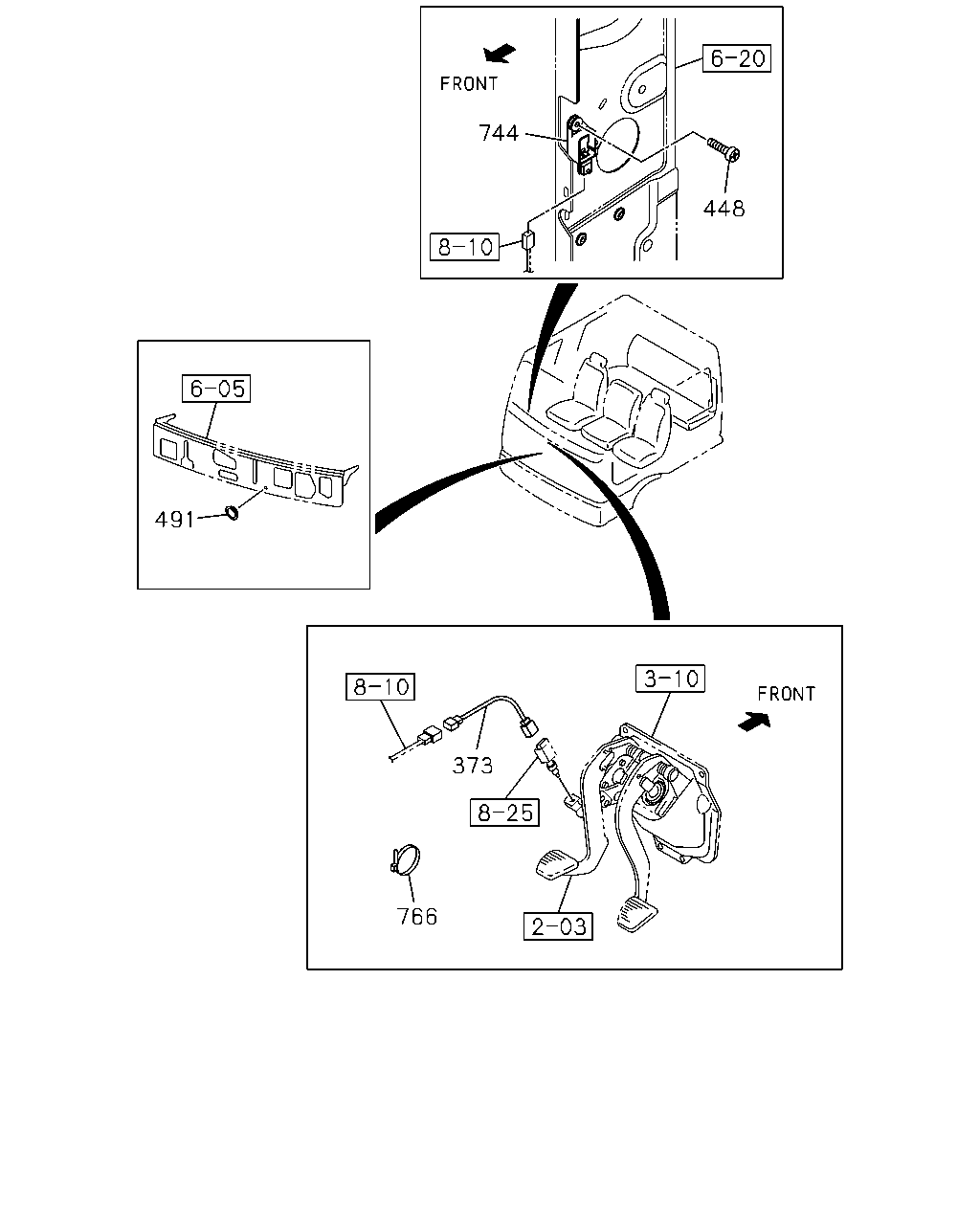

[826A] FRONT SIDE NO.1 (11 parça)

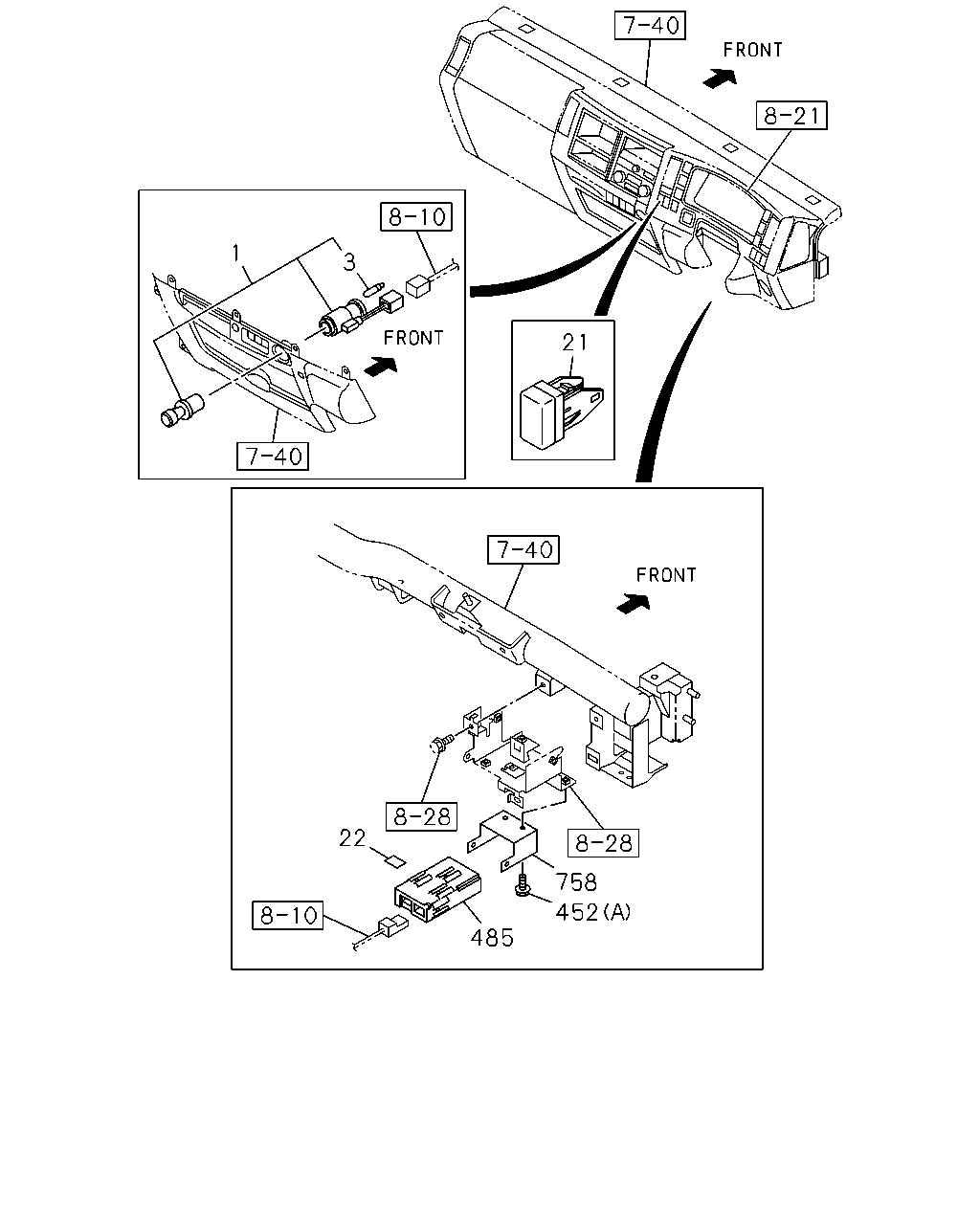

[826A] FRONT SIDE NO.4 (6 parça)

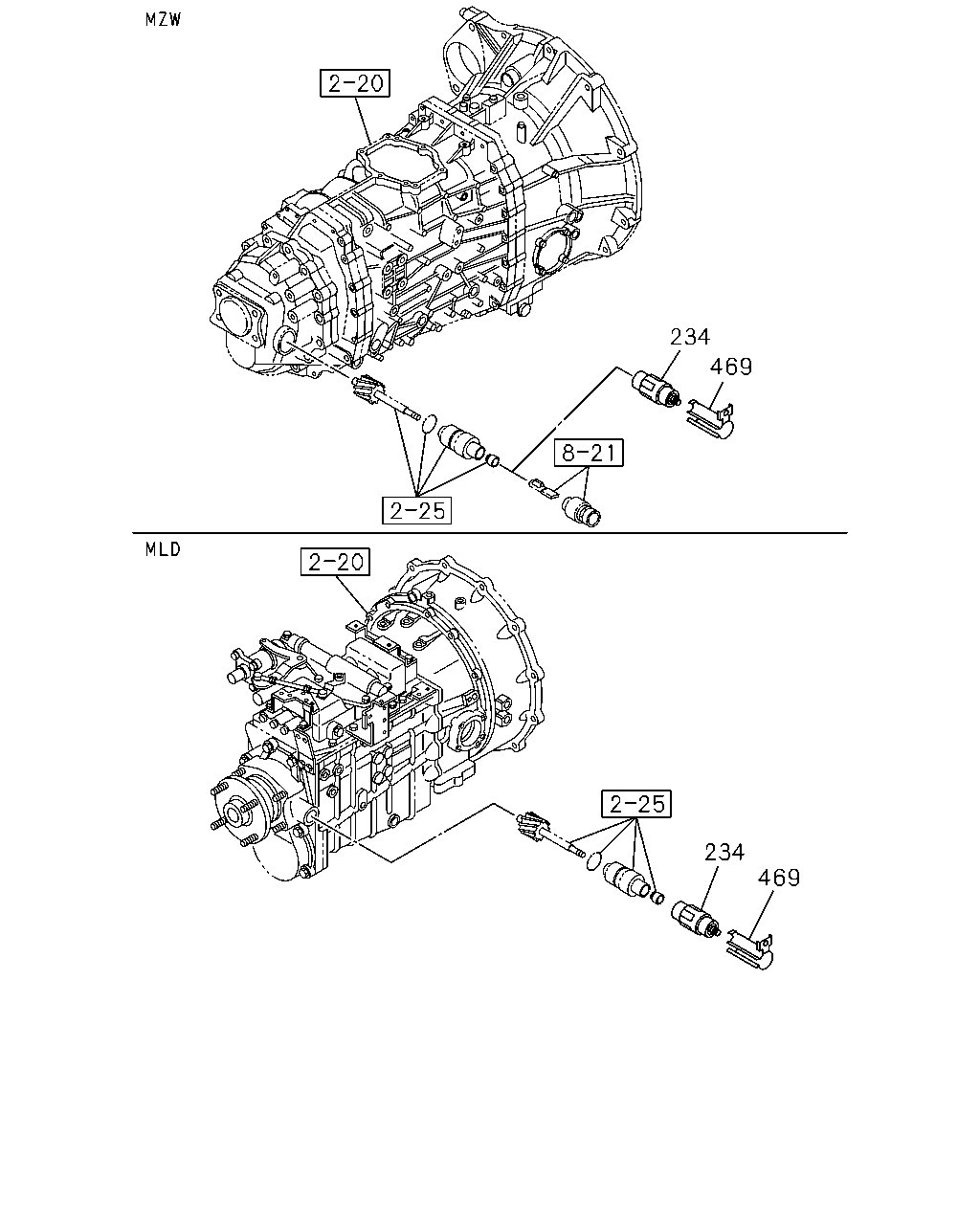

[826A] VEHICLE SPEED SENSOR (4 parça)
▶
744
448
491
373
766
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
373
HARNESS; CLU SWITCH
8-98059-419-2
01
1
0906-
448
BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER
8-97105-796-1
02
1
0906-
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
0906-
744
SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)
8-97386-841-2
01
1
0906-
766
BAND; CLIP
L=140
5-09707-031-1
01
1
0906-1112
766
BAND; CLIP
L=140
5-09707-031-1
01
1
1201-1205
766
BAND; CLIP
EXC. VIN MODEL YEAR 2012<VZC> L=140
5-09707-031-1
01
1
1206-
68
756
68
756
743
756
743
757
68
69
608
607
264
609
608
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
(C) M6X16 FLANGE
0-28650-616-0
01
1
0906-
68
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
03
1
0906-
68
BOLT; BRKT
(B) M6X16 W/LK&PL WASHER
1-09980-492-0
02
1
0906-
69
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
0906-
264
BRACKET; CONT UNIT
8-97609-985-9
01
1
0906-
607
CONTROL UNIT; AIR SUSPENSION
8-98081-298-1
01
1
0906-
608
BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE
0-28650-616-0
04
1
0906-
608
BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE
0-28650-616-0
05
1
0906-
609
BRACKET ASM; ELEC UNIT,AIR SUS
8-98095-337-0
01
1
0906-1308
609
BRACKET ASM; ELEC UNIT,AIR SUS
8-98169-737-1
01
1
1309-
743
CONTROL UNIT; BCM
8-98125-904-0
01
1
0906-1005
743
CONTROL UNIT; BCM
8-98155-169-1
01
1
1006-1007
743
CONTROL UNIT; BCM
8-98176-213-0
01
1
1008-1012
743
CONTROL UNIT; BCM
8-98182-026-2
01
1
1101-
756
BRACKET; ECU,BCM
(B)
8-98111-836-1
01
1
1101-
756
BRACKET; ECU,BCM
(A)
8-98056-411-3
01
1
0906-
757
BOLT; BRKT,BCM
M6X16 FLANGE
0-28650-616-0
02
1
0906-
497
365
452
507
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
365
PLATE ASM; SW,CAB TILT
1-71998-393-1
01
1
0906-
452
BOLT; BRKT
(A) M6X16 FLANGE
0-28650-616-0
02
1
0906-
452
BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0906-
497
SWITCH; CAB TILT
STAMP NC
1-82380-125-1
01
1
0906-
507
CONNECTOR
1-82690-666-0
01
1
1011-
68
68
62
64
158
62
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
62
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
0906-
64
BRACKET; CONTROLLER
(A)
8-98044-238-2
01
1
0906-
64
BRACKET; CONTROLLER
(B)
8-98044-239-1
01
1
0906-
68
BOLT; BRKT
(C) M6X16 FLANGE
0-28650-616-0
01
1
0906-
68
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
03
1
0906-
68
BOLT; BRKT
(B) M6X16 W/LK&PL WASHER
1-09980-492-0
02
1
0906-
158
CONTROLLER; ABS
8-98062-820-1
01
1
0906-1006
158
CONTROLLER; ABS
8-98157-996-1
01
1
1007-
595
701
599
599
701
598
701
598
599
599
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
595
BOLT; SENSOR
M8X20 FLANGE
0-28650-820-0
02
1
0906-
598
HOSE; RUBBER,SENSOR
(B)
8-98060-178-1
01
1
0906-
598
HOSE; RUBBER,SENSOR
(A)
8-98080-054-0
01
1
0906-
599
CLIP; HOSE
ID=13
8-97329-627-0
04
1
0906-
701
SENSOR; DPD
(B)
8-97359-987-5
01
1
0906-
701
SENSOR; DPD
(C)
8-97359-989-5
01
1
0906-
701
SENSOR; DPD
(A)
8-97360-368-2
01
1
0906-
1
3
21
22
758
452
485
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-98076-255-0
01
1
0906-0908
1
LIGHTER; CIGAR
8-98142-962-0
01
1
0909-
3
BULB; CIGAR LIGHTER
28V 1.8W
8-97173-159-0
01
1
0906-0908
21
COVER; HOLE
8-98025-954-1
01
1
0906-
22
SEAL; TAPE
1-80199-006-0
02
1
0906-1212
22
SEAL; TAPE
8-98166-639-0
02
1
1301-
452
BOLT; BRKT
(A) M6X16 FLANGE
0-28650-616-0
02
1
0906-
452
BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0906-
485
CONTROL UNIT; SPEED SENSOR
1-80190-061-0
01
1
0906-1205
485
CONTROL UNIT; SPEED SENSOR
1-80190-061-0
01
1
1206-
758
BRACKET; ELEC CONT UNIT,SPEED SENSOR
8-98048-743-1
01
1
0906-
611
525
613
612
380
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
BOLT; BRKT FIX
M8X20 FLANGE
0-28650-820-0
02
1
0906-
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
0906-1004
525
HOLDER; SW
1-82389-018-0
01
1
0906-

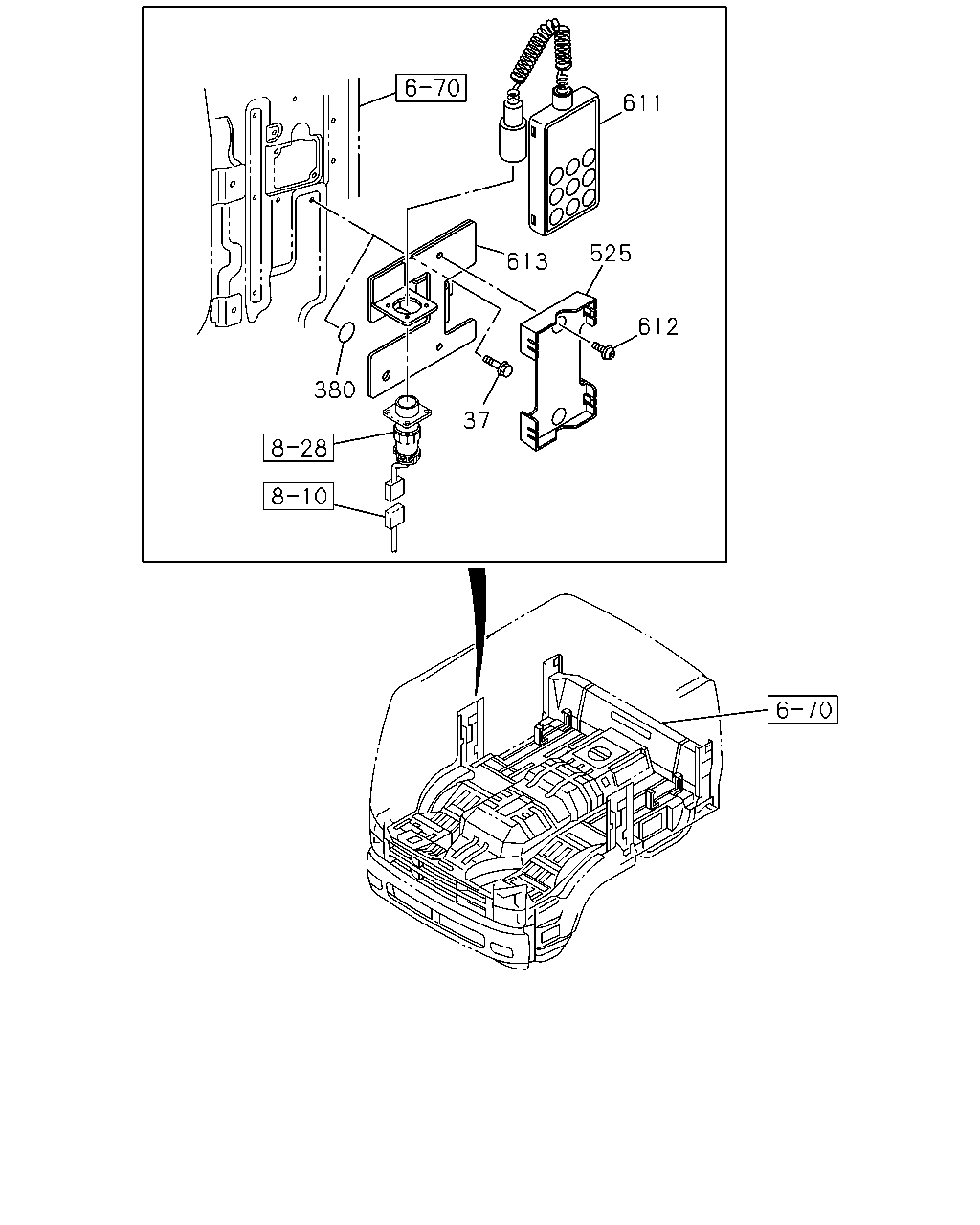

611
SWITCH ASM; AIR SUS
1-82380-162-0
01
1
0906-
612
SCREW; HOLDER
M6X14 W/PL WASHER
0-36210-614-0
02
1
0906-
613
BRACKET; HOLDER,SW
8-97624-099-0
01
1
0906-
234
469
234
469
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EECREGULATIONS<8PM> 25 PULSE ALUMINUM
8-97328-058-1
01
1
1206-
234
SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
0906-1109
469
PROTECTOR; SPEED SENSOR
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EECREGULATIONS<8PM>
8-98119-901-0
01
1
1206-
469
PROTECTOR; SPEED SENSOR
8-98119-901-0
01
1
0906-1109
