◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11237 - FSR-R(EU)EU5 EXC.SPA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#56741) — 205 parça
çizim 165504
1 2 2 314 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> 		8-98187-900-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98187-900-0 01 1 1204-1205
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> 		8-98187-900-0 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> 		8-98187-901-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98187-901-0 01 1 1204-1205
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> 		8-98187-901-0 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) VIN MODEL YEAR 2012<VZC> 		8-98206-527-1 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) VIN MODEL YEAR 2012<VZC> 		8-98206-528-1 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98108-071-0 01 1 0906-1109
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-071-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98108-070-0 01 1 0906-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-070-0 01 1 1110-1203
2 DIODE; CABLE HARNESS
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (B) BLACK 2P-1.5A 		8-94422-639-1 02 1 1206-
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 0906-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 02 1 0906-1205
2 DIODE; CABLE HARNESS
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) VIN MODEL YEAR 2012<VZC> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1206-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 0906-1205
314 RESISTOR; HARNESS
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> BLUE 		1-82691-204-0 01 1 1206-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0906-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0906-1205
431 CONNECTOR; JOINT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (C) 10P BLUE 		1-82699-598-0 01 1 1206-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0906-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0906-1205
431 CONNECTOR; JOINT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (G) 10P GREEN 		1-82699-599-0 01 1 1206-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0906-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0906-1205
431 CONNECTOR; JOINT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (D) 10P BROWN 		1-82699-601-0 09 1 1206-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0906-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0906-1205
431 CONNECTOR; JOINT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (E) 10P 		8-97077-943-0 02 1 1206-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 0906-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0906-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0906-

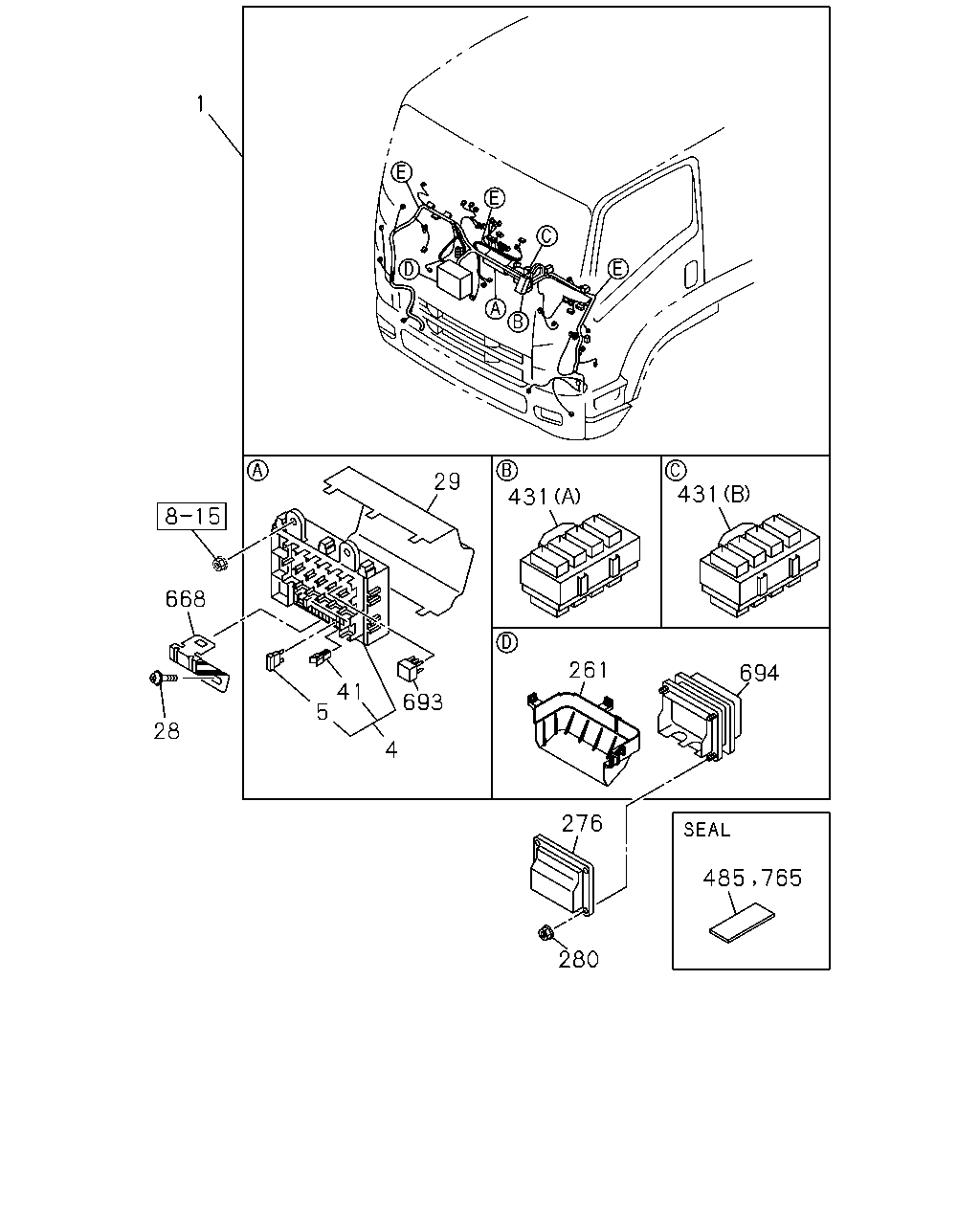

çizim 165519
1 668 28 5 4 41 693 29 431 261 276 280 431 694 485 765
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> 		8-98187-900-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98187-900-0 01 1 1204-1205
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> 		8-98187-900-0 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> 		8-98187-901-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98187-901-0 01 1 1204-1205
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> 		8-98187-901-0 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) VIN MODEL YEAR 2012<VZC> 		8-98206-527-1 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) VIN MODEL YEAR 2012<VZC> 		8-98206-528-1 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98108-071-0 01 1 0906-1109
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-071-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98108-070-0 01 1 0906-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-070-0 01 1 1110-1203
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 0906-
5 FUSE; FACIA HARNESS
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> 25A WHITE 		8-98062-982-0 01 1 1206-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0906-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0906-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0906-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 01 1 0906-1205
5 FUSE; FACIA HARNESS
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) VIN MODEL YEAR 2012<VZC> 25A WHITE 		8-98062-982-0 AR 1 1206-
28 SCREW; FUSE BOX
T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 0906-
29 COVER; FUSE BOX 8-98056-968-0 01 1 0906-
41 PULLER; FUSE 8-98054-260-0 01 1 0906-
261 COVER; CONNECTOR BOX
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) VIN MODEL YEAR 2012<VZC> 		8-98065-986-1 01 1 1206-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 0906-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 0906-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0906-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0906-1205
431 CONNECTOR; JOINT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (C) 10P BLUE 		1-82699-598-0 01 1 1206-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0906-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0906-1205
431 CONNECTOR; JOINT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (G) 10P GREEN 		1-82699-599-0 01 1 1206-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0906-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0906-1205
431 CONNECTOR; JOINT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (D) 10P BROWN 		1-82699-601-0 09 1 1206-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0906-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0906-1205
431 CONNECTOR; JOINT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (E) 10P 		8-97077-943-0 02 1 1206-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 0906-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0906-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0906-
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 0909-1205
485 SEAL; CONNECTOR
EXC. VIN MODEL YEAR 2012<VZC> 180X40 		1-72498-019-1 01 1 1206-
668 BRACKET; HARNESS 8-98095-653-2 01 1 0906-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 0906-
694 BOX ASM; CONNECTOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) VIN MODEL YEAR 2012<VZC> 		8-98057-771-0 01 1 1206-
694 BOX ASM; CONNECTOR 8-98063-269-0 01 1 0906-1205
694 BOX ASM; CONNECTOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> 		8-98063-269-0 01 1 1206-
765 TAPE
100X40 		1-72498-022-1 01 1 1409-

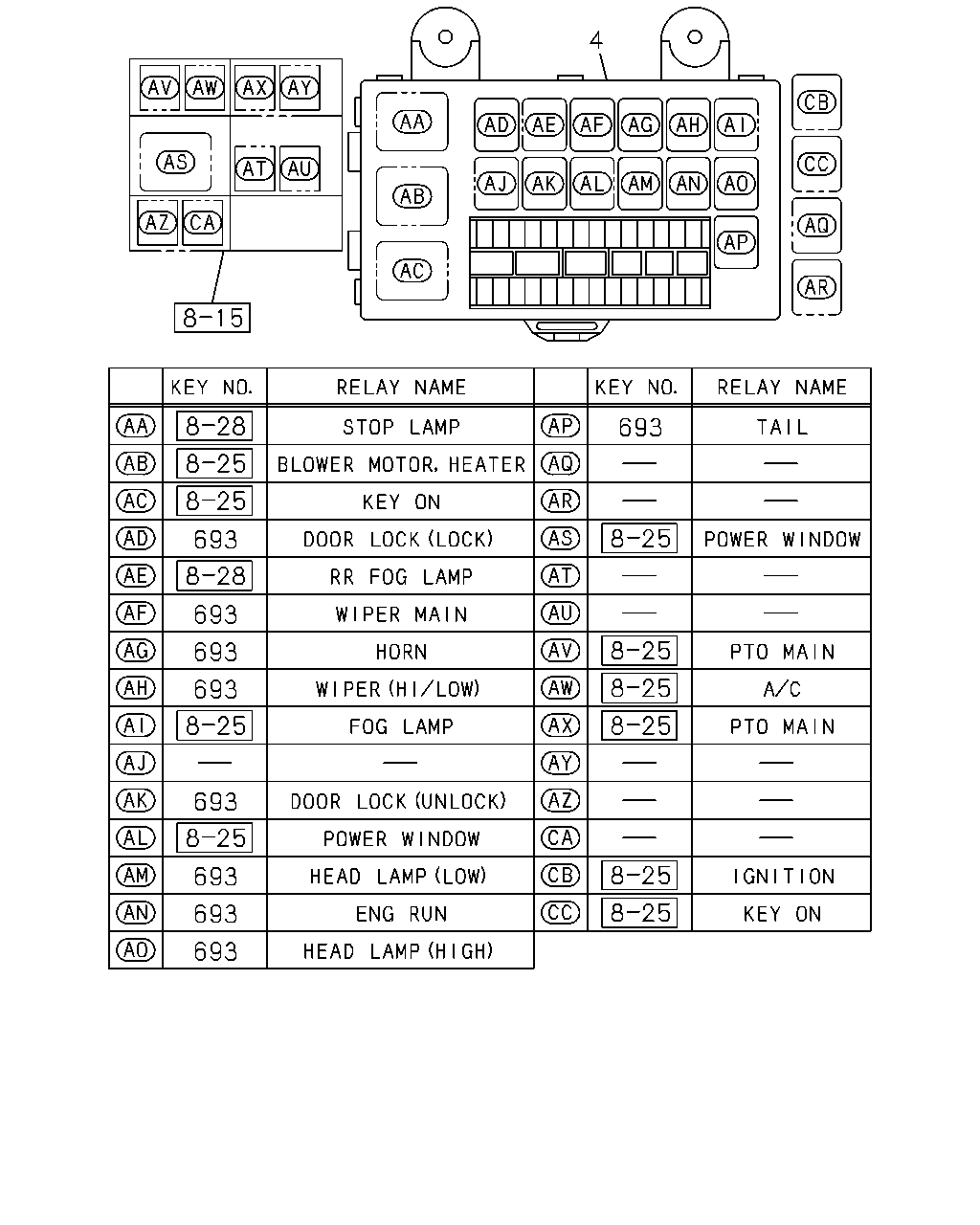

çizim 165521
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 0906-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 0906-

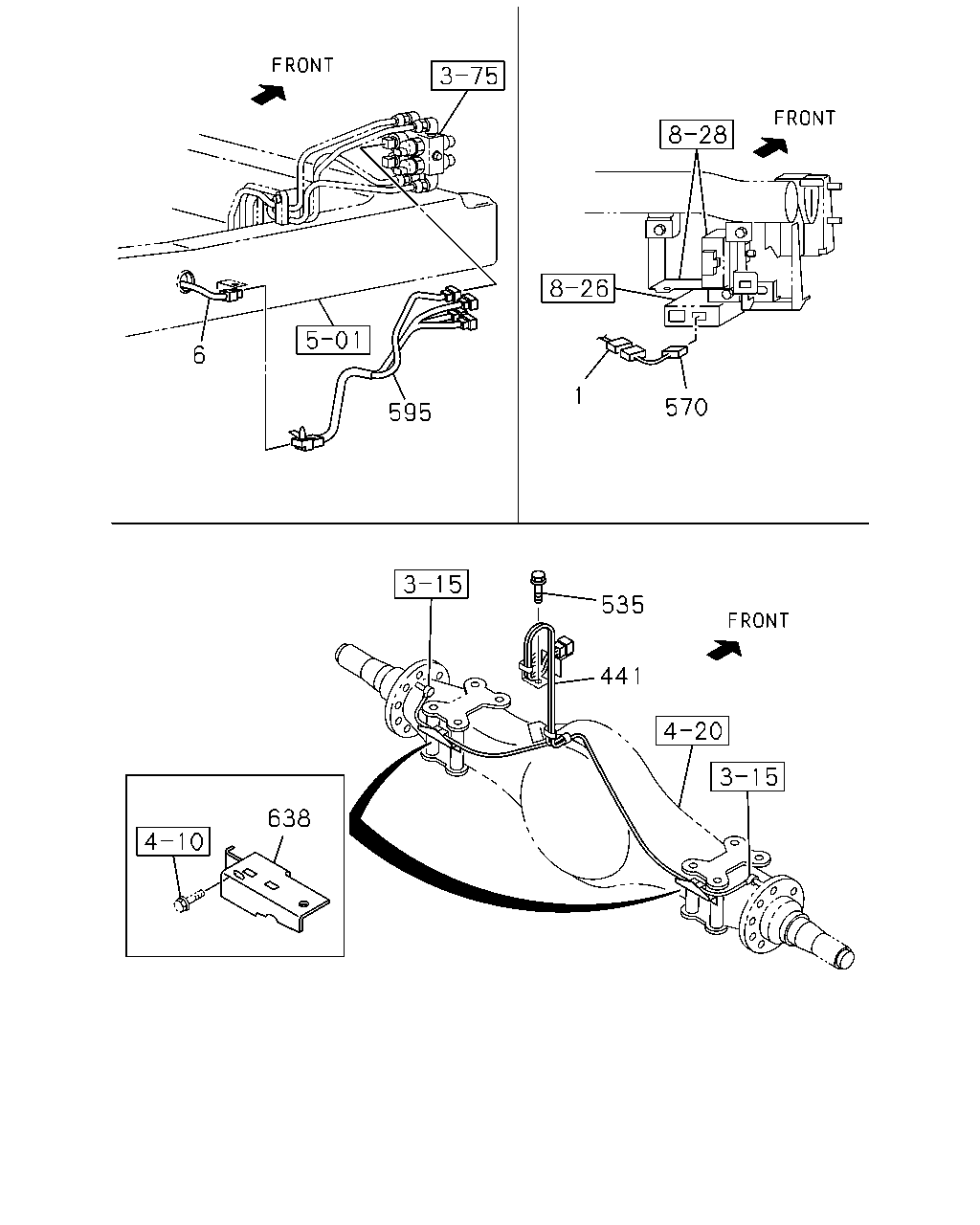

çizim 165522
6 1 570 595 535 441 638
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> 		8-98187-900-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98187-900-0 01 1 1204-1205
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> 		8-98187-900-0 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> 		8-98187-901-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98187-901-0 01 1 1204-1205
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> 		8-98187-901-0 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) VIN MODEL YEAR 2012<VZC> 		8-98206-527-1 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) VIN MODEL YEAR 2012<VZC> 		8-98206-528-1 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98108-071-0 01 1 0906-1109
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-071-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98108-070-0 01 1 0906-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-070-0 01 1 1110-1203
6 HARNESS; FRAME 8-98139-630-3 01 1 0906-
441 HARNESS; CABLE,SPEED SENSOR 8-98061-652-0 01 1 0906-
535 BOLT; BRKT FIX
M8X10 W/LK WASHER 		8-98029-928-0 02 1 0906-
570 HARNESS; SPEED SENSOR 8-98058-327-1 01 1 0906-1109
570 HARNESS; SPEED SENSOR 8-98091-562-0 01 1 1206-
595 HARNESS; WARNING,BRK 8-97621-003-3 01 1 0906-
638 BRACKET; SPD SENSOR 8-98012-540-0 01 1 0906-
638 BRACKET; SPD SENSOR 8-98012-539-0 01 1 0906-

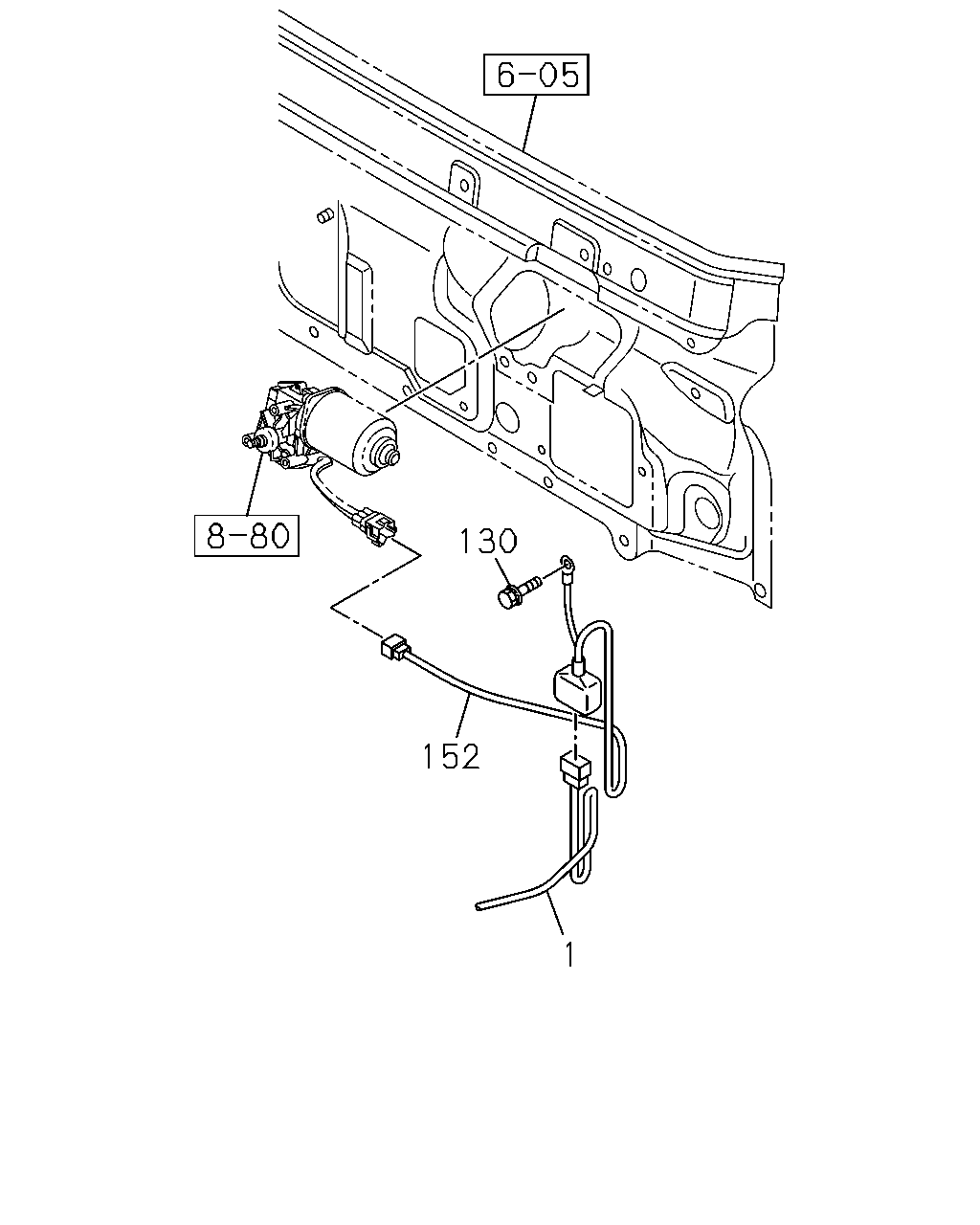

çizim 165523
130 152 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> 		8-98187-900-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98187-900-0 01 1 1204-1205
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> 		8-98187-900-0 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> 		8-98187-901-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98187-901-0 01 1 1204-1205
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> 		8-98187-901-0 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) VIN MODEL YEAR 2012<VZC> 		8-98206-527-1 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) VIN MODEL YEAR 2012<VZC> 		8-98206-528-1 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98108-071-0 01 1 0906-1109
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-071-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98108-070-0 01 1 0906-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-070-0 01 1 1110-1203
130 BOLT; HARNESS EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0906-1205
130 BOLT; HARNESS EARTH
EXC. VIN MODEL YEAR 2012<VZC> M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 1206-1309
130 BOLT; HARNESS EARTH
EXC. VIN MODEL YEAR 2012<VZC> M8X14 W/PL WASHER 		8-98164-837-0 01 1 1310-
152 HARNESS; WIPER 8-98148-961-0 01 1 0906-1205
152 HARNESS; WIPER
EXC. VIN MODEL YEAR 2012<VZC> 		8-98148-961-0 01 1 1206-

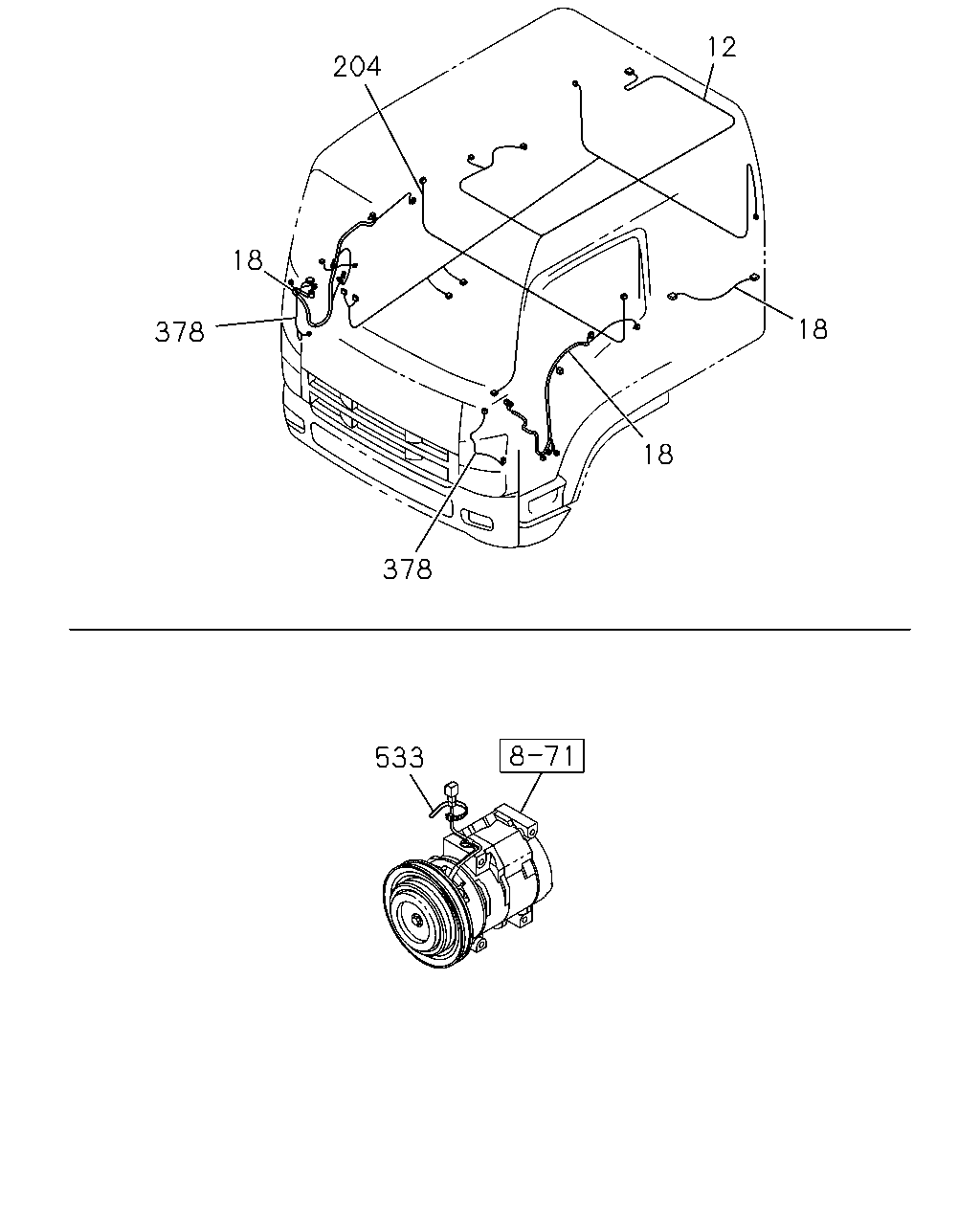

çizim 165526
12 204 18 18 378 18 378 533
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98085-265-0 01 1 0906-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98085-264-0 01 1 0906-
18 HARNESS; DOOR
REAR 		8-98056-047-1 02 1 0906-
18 HARNESS; DOOR
FRONT 		8-98084-283-3 01 1 0906-
18 HARNESS; DOOR
FRONT 		8-98084-288-3 01 1 0906-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-256-1 01 1 0906-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) 		8-98085-254-0 01 1 0906-
378 HARNESS; EXT,MIRROR
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98125-653-0 02 1 0906-
378 HARNESS; EXT,MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWEXTENDED LONG ARM<8MV> 		8-98125-654-0 02 1 0906-
533 CLIP
L=180 		1-09707-162-1 01 1 0906-1206
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 1207-

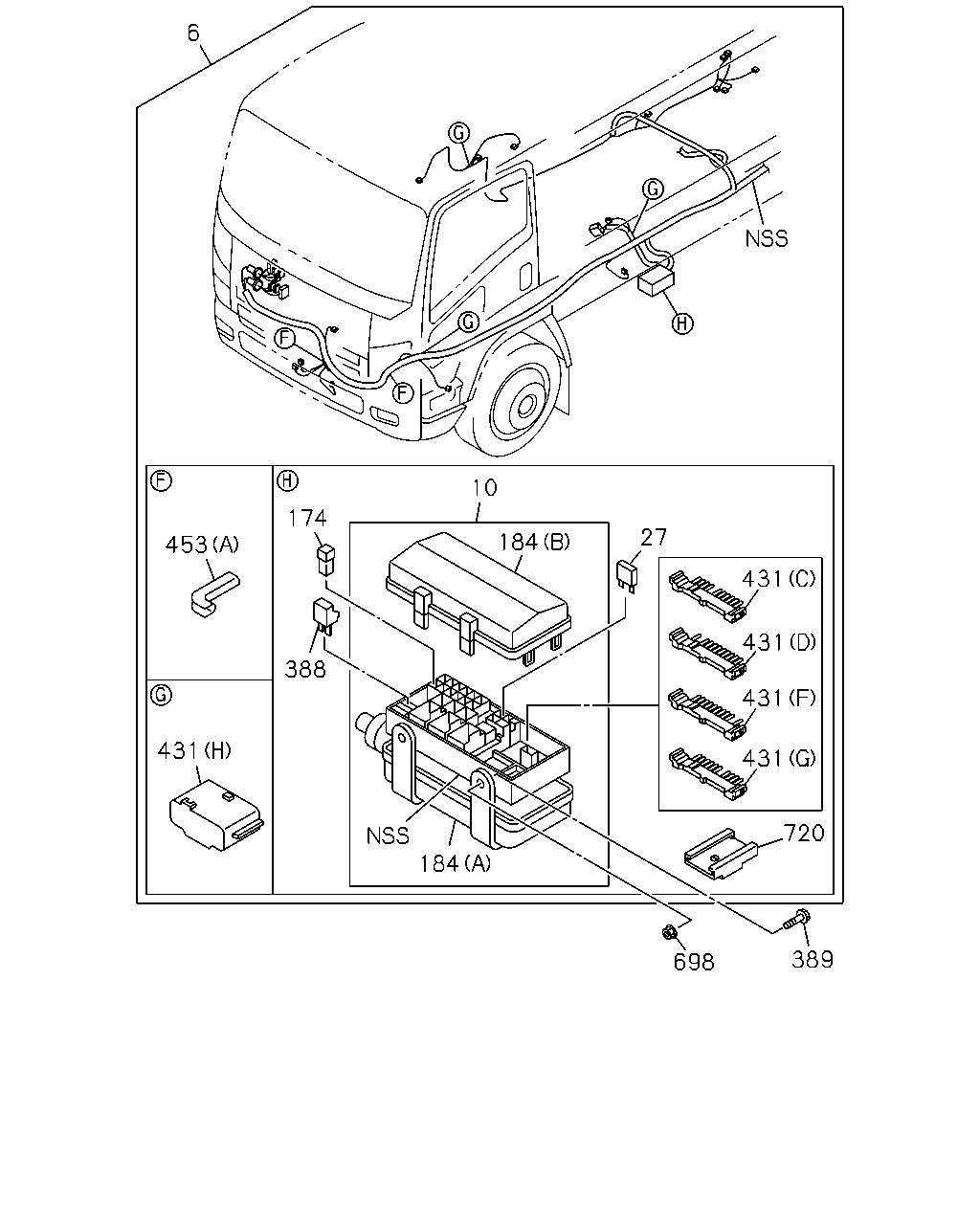

çizim 165529
6 10 174 27 184 453 431 431 388 431 431 431 720 184 389 698
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98139-630-3 01 1 0906-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 0906-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 0906-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 0906-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 0906-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 02 1 0906-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 0906-
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 03 1 0906-1106
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1107-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 0906-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 0906-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 0906-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 0906-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0906-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0906-1205
431 CONNECTOR; JOINT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (C) 10P BLUE 		1-82699-598-0 01 1 1206-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0906-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0906-1205
431 CONNECTOR; JOINT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (G) 10P GREEN 		1-82699-599-0 01 1 1206-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0906-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0906-1205
431 CONNECTOR; JOINT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (D) 10P BROWN 		1-82699-601-0 09 1 1206-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0906-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0906-1205
431 CONNECTOR; JOINT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> (E) 10P 		8-97077-943-0 02 1 1206-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 0906-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0906-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0906-
453 PROTECTOR; HARNESS
(A) 		1-82699-709-0 02 1 0906-
453 PROTECTOR; HARNESS
(B) 		8-98042-155-0 01 1 0906-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 0906-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 0906-

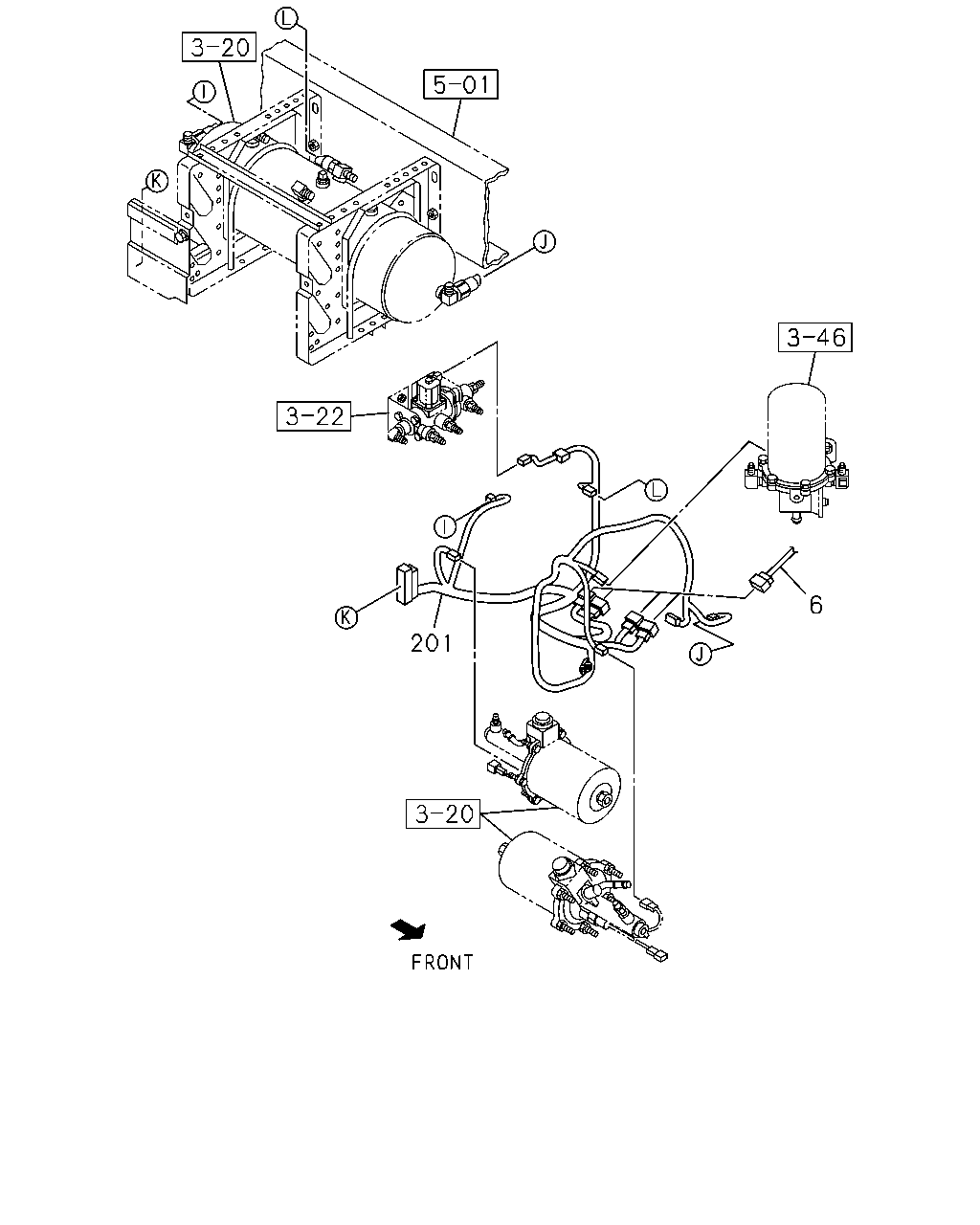

çizim 165534
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98139-630-3 01 1 0906-
201 HARNESS; AIR TANK 8-98085-546-2 01 1 0906-

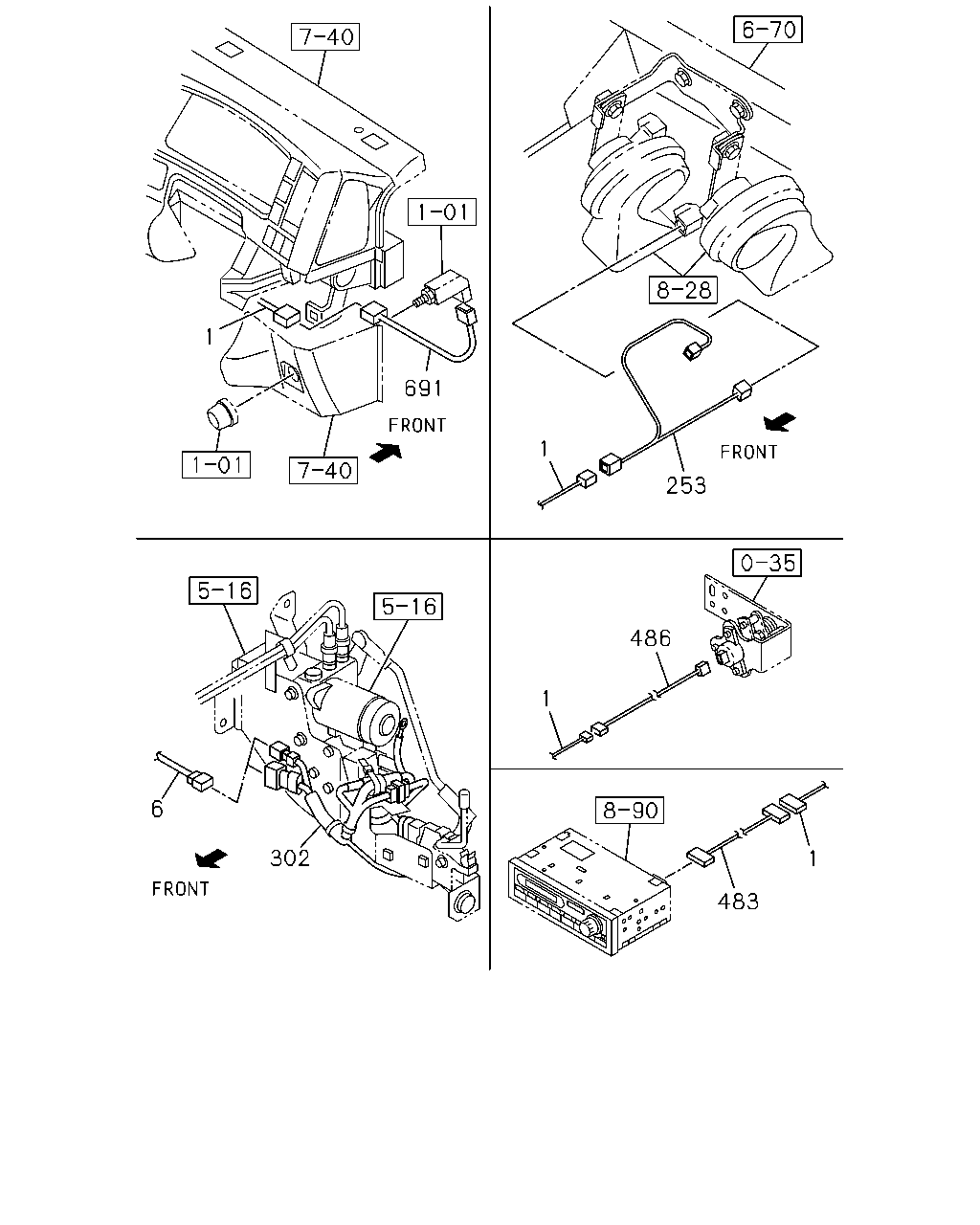

çizim 165536
1 691 1 253 486 1 6 302 1 483
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> 		8-98187-900-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98187-900-0 01 1 1204-1205
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> 		8-98187-900-0 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> 		8-98187-901-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98187-901-0 01 1 1204-1205
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. VIN MODEL YEAR 2012<VZC> 		8-98187-901-0 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) VIN MODEL YEAR 2012<VZC> 		8-98206-527-1 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) VIN MODEL YEAR 2012<VZC> 		8-98206-528-1 01 1 1206-
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98108-071-0 01 1 0906-1109
1 HARNESS; CAB
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-071-0 01 1 1110-1203
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98108-070-0 01 1 0906-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF> 		8-98108-070-0 01 1 1110-1203
6 HARNESS; FRAME 8-98139-630-3 01 1 0906-
253 HARNESS; EXT,HORN 8-98074-081-2 01 1 0906-
302 HARNESS; POWER CAB TILT 8-97622-116-0 01 1 0906-
483 HARNESS; EXT,RADIO 8-98116-875-0 01 1 0906-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 0906-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 0906-

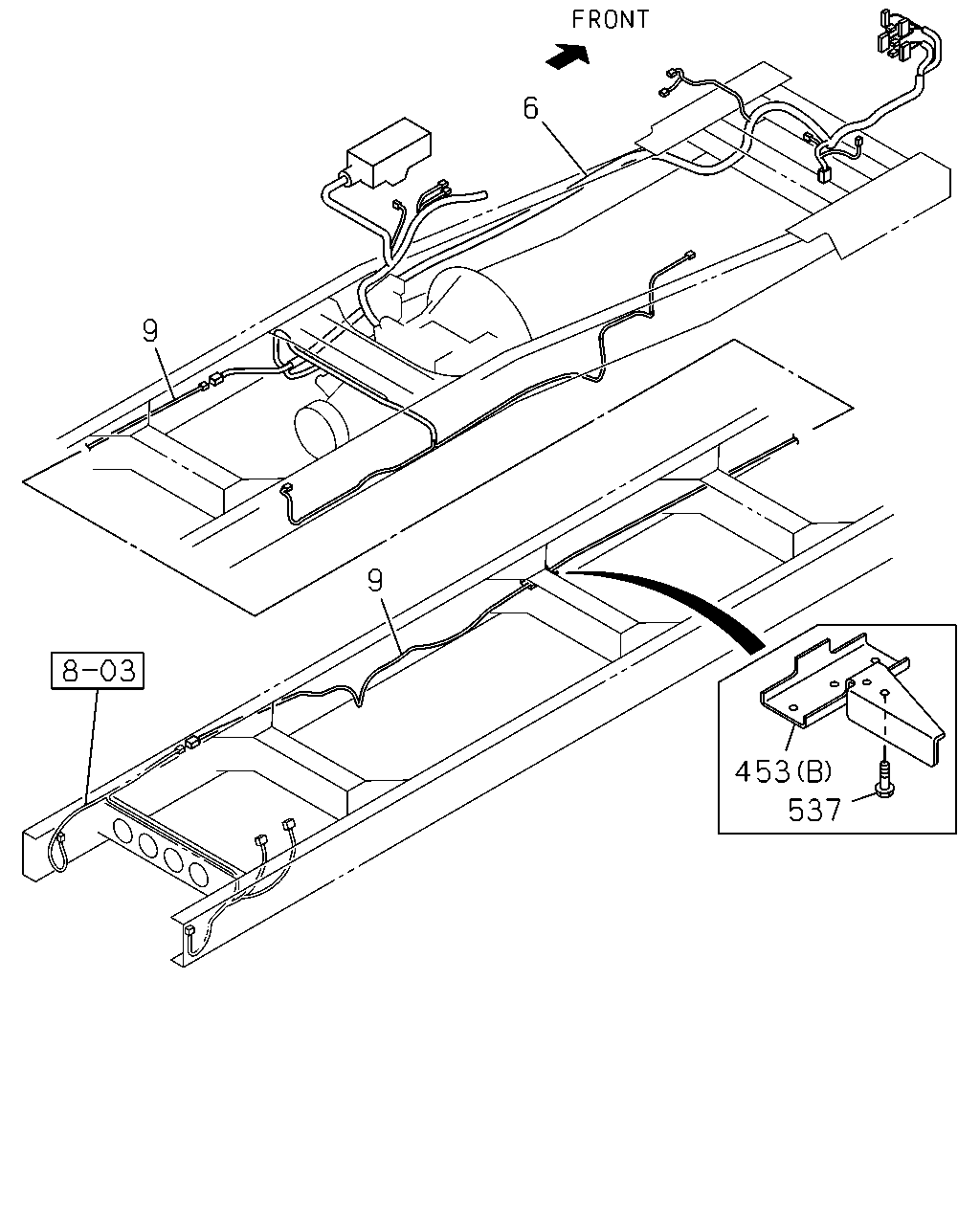

çizim 165537
6 9 9 453 537
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98139-630-3 01 1 0906-
9 HARNESS; FRAME,RR 8-98114-798-3 01 1 0906-1007
9 HARNESS; FRAME,RR 8-98168-619-0 01 1 1008-
453 PROTECTOR; HARNESS
(A) 		1-82699-709-0 02 1 0906-
453 PROTECTOR; HARNESS
(B) 		8-98042-155-0 01 1 0906-
537 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0906-

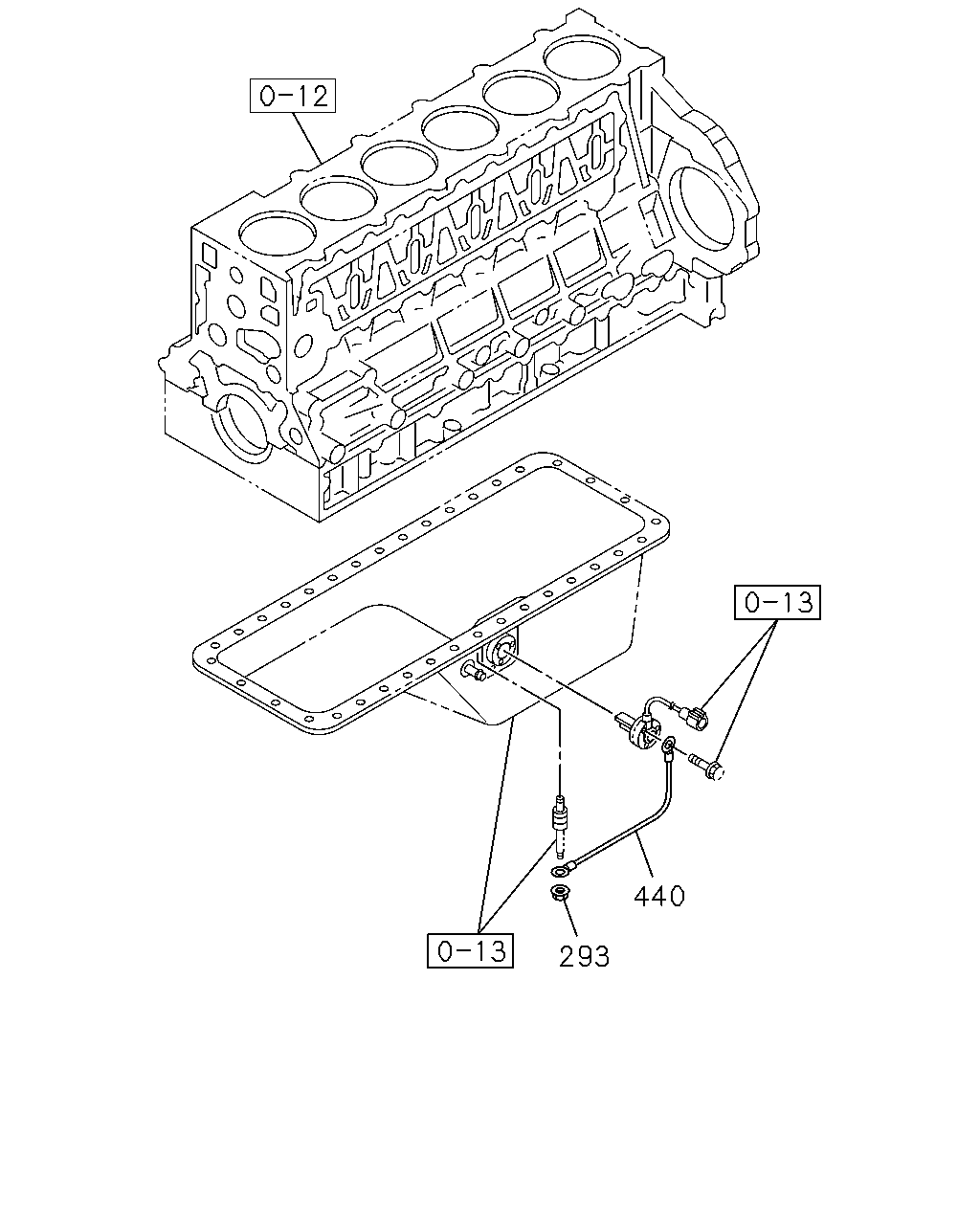

çizim 165539
440 293
BalonParca AdiParca NoAdetTipApplied Date
293 NUT
M8 FLANGE 		0-91180-108-0 01 1 0906-
440 CABLE; EARTH 8-97606-639-0 01 1 0906-

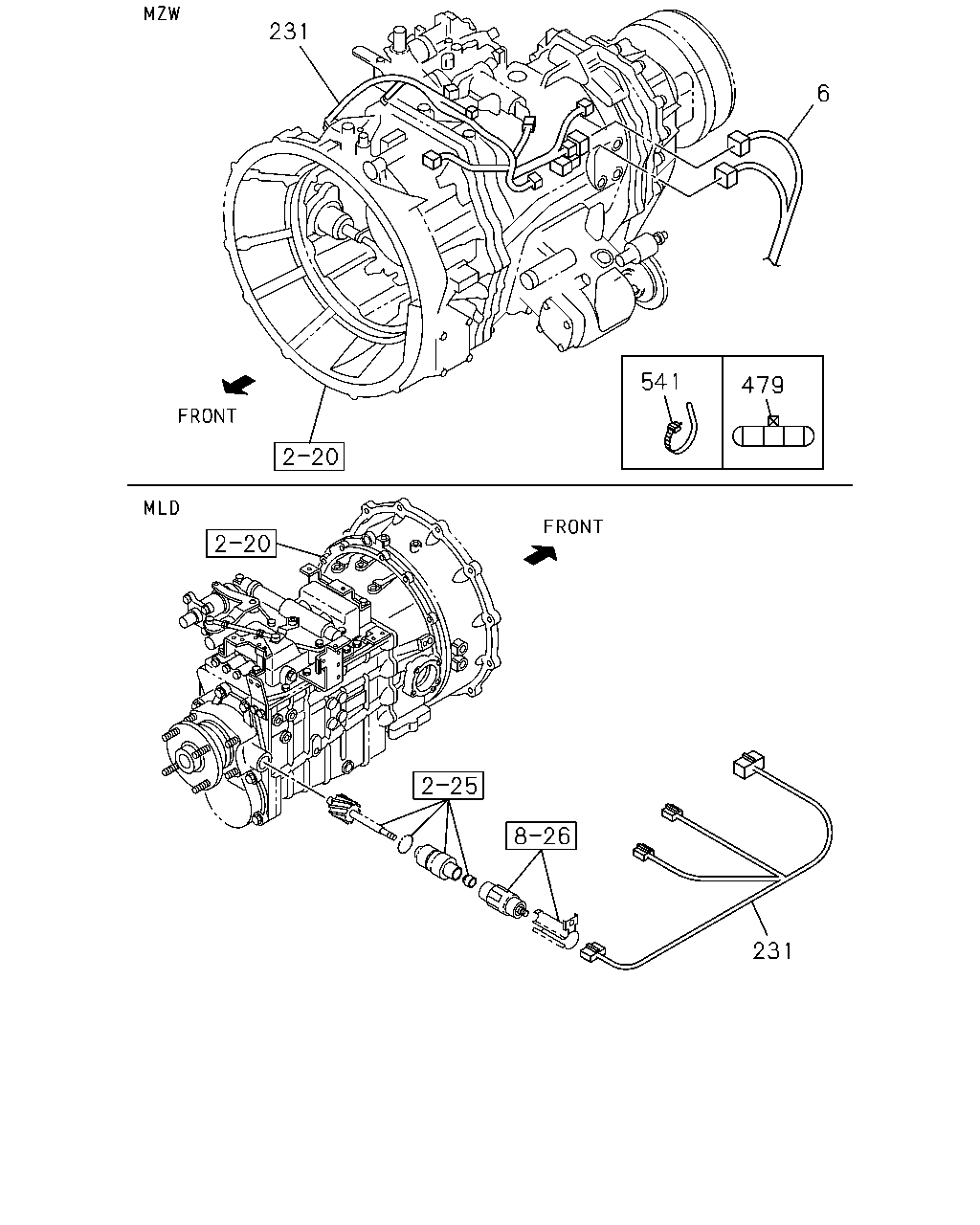

çizim 165542
231 6 541 479 231
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98139-630-3 01 1 0906-
231 HARNESS; TRANS
MLD6W M/T(Y2C) 		8-97626-769-1 01 1 0906-
231 HARNESS; TRANS
MZW6P M/T(RSZ) 		8-97618-932-1 01 1 0906-0908
231 HARNESS; TRANS
MZW6P M/T(RSZ) 		8-98151-321-1 01 1 0909-
479 CAP; CONNECTOR
MZW6P M/T(RSZ) 		1-82690-667-0 01 1 0909-1205
479 CAP; CONNECTOR
MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		1-82690-667-0 01 1 1206-
541 CLIP
MZW6P M/T(RSZ) L=180 		1-09707-162-1 01 1 0909-1205
541 CLIP
MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> L=180 		1-09707-162-1 01 1 1206-

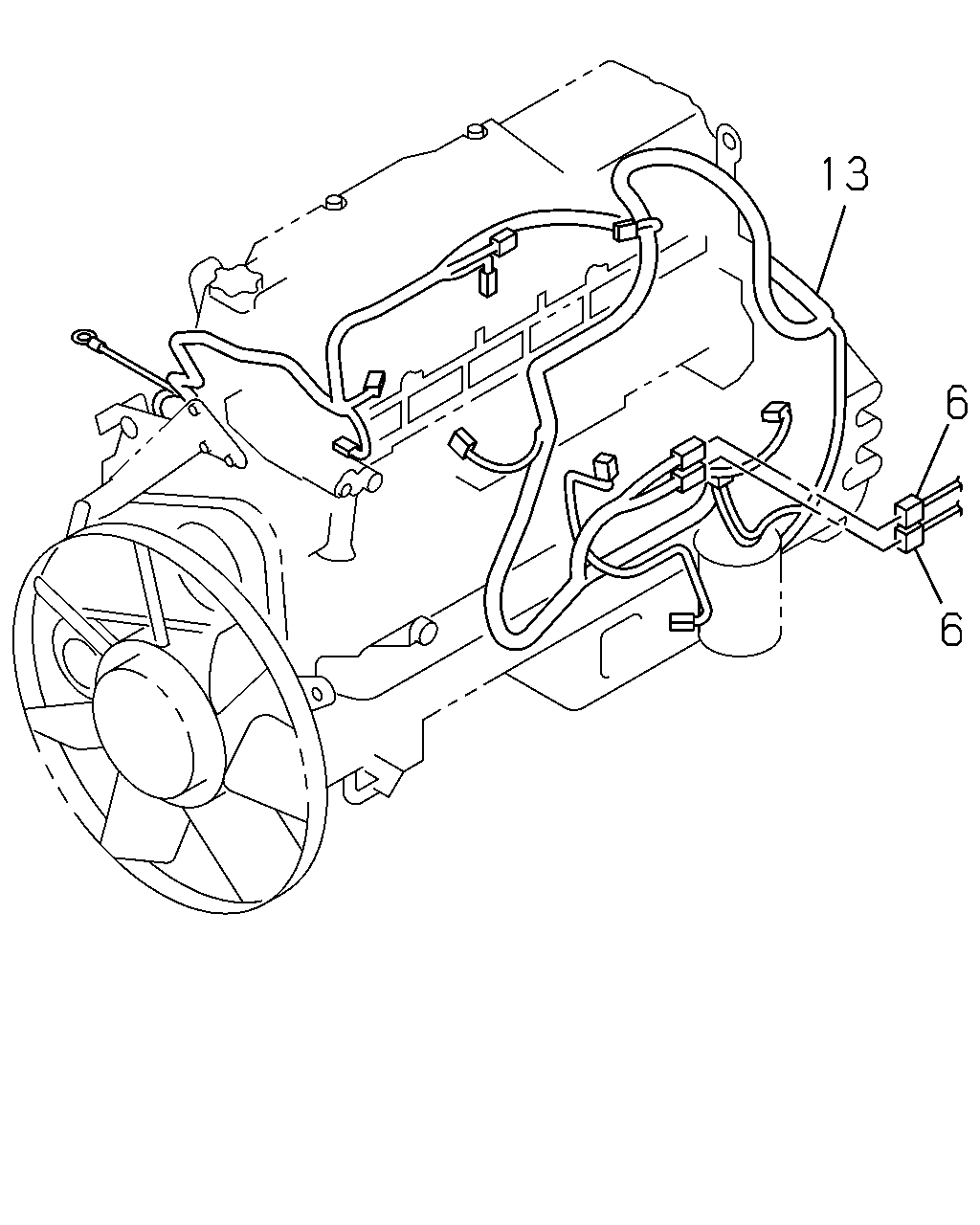

çizim 165546
13 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98139-630-3 01 1 0906-
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-98088-066-1 01 1 0906-1010
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-98177-206-0 01 1 1011-
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-98088-067-1 01 1 0906-1010
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-98177-207-0 01 1 1011-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
