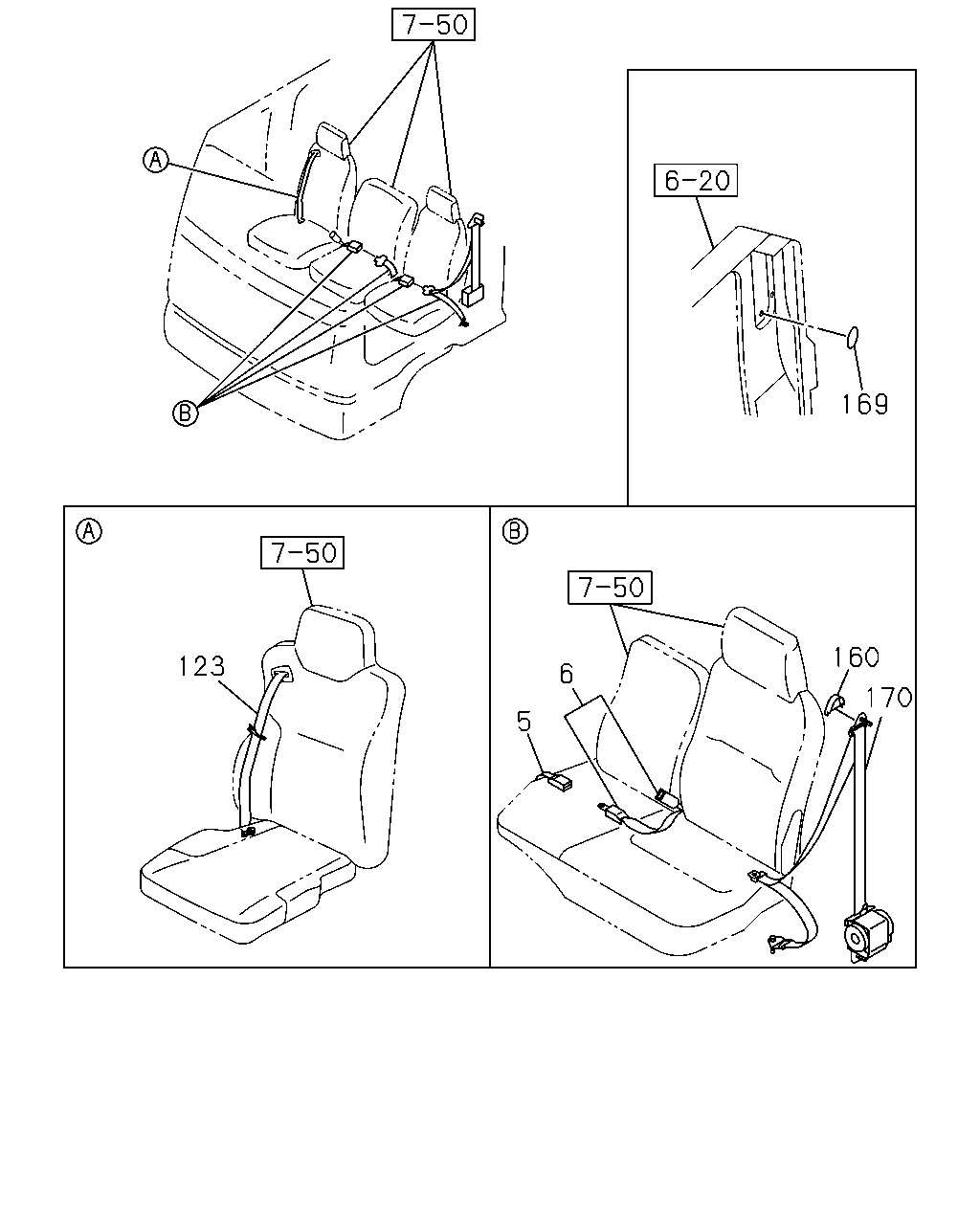

7-60 — SEAT BELT (#56736) — 26 parça

169 160 123 6 170 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	BELT; CENTER SEAT,BUCKLE SIDE GRAY	8-97407-377-1	01	1	0906-
6	BELT; CENTER SEAT,TONGUE SIDE GRAY	8-97409-768-3	01	1	0906-1209
6	BELT; CENTER SEAT,TONGUE SIDE GRAY	8-97423-515-1	01	1	1210-
123	BELT ASM; SEAT DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-971-0	01	1	0906-
123	BELT ASM; SEAT EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-969-0	01	1	0906-
160	COVER; THROUGH ANCHOR GRAY	8-97405-991-0	01	1	0906-
160	COVER; THROUGH ANCHOR GRAY	8-97405-991-0	02	1	0906-
169	SEAL BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BO DY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0906-
169	SEAL BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=36	8-94271-620-1	02	1	0906-
170	BELT; PASSENGER SEAT,TONGUE SIDE AIR BAG DRIVER & PASSENGER(AK5) GRAY	8-97407-771-5	01	1	0906-1209
170	BELT; PASSENGER SEAT,TONGUE SIDE AIR BAG DRIVER & PASSENGER(AK5) GRAY	8-97423-521-2	01	1	1210-1407
170	BELT; PASSENGER SEAT,TONGUE SIDE AIR BAG DRIVER & PASSENGER(AK5) GRAY	8-97428-394-0	01	1	1408-
170	BELT; PASSENGER SEAT,TONGUE SIDE EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY	8-97407-770-4	01	1	0906-1209
170	BELT; PASSENGER SEAT,TONGUE SIDE EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY	8-97423-516-1	01	1	1210-1407
170	BELT; PASSENGER SEAT,TONGUE SIDE EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY	8-97428-435-0	01	1	1408-

160 18 19 160 20 20 18 19 21 12 21 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SCREW; RETRACTOR COVER,SEAT BELT M4X14 TAPPING	0-74360-414-0	04	1	0906-
18	BELT; SEAT,RR GRAY	8-97405-185-8	02	1	0906-
19	BELT; RR SEAT,BUCKLE SIDE GRAY	8-97407-379-0	02	1	0906-
20	BELT; RR SEAT CTR,TONGUE SIDE GRAY	8-97409-771-2	01	1	0906-1209
20	BELT; RR SEAT CTR,TONGUE SIDE GRAY	8-97423-710-1	01	1	1210-
20	BELT; RR SEAT CTR,TONGUE SIDE GRAY	8-97409-770-2	01	1	0906-1209
20	BELT; RR SEAT CTR,TONGUE SIDE GRAY	8-97423-709-1	01	1	1210-
21	BELT; RR SEAT CTR,BUCKLE SIDE GRAY	8-97407-381-1	01	1	0906-
21	BELT; RR SEAT CTR,BUCKLE SIDE GRAY	8-97407-380-0	01	1	0906-
160	COVER; THROUGH ANCHOR GRAY	8-97405-991-0	01	1	0906-
160	COVER; THROUGH ANCHOR GRAY	8-97405-991-0	02	1	0906-
