◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11237 - FSR-R(EU)EU5 EXC.SPA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#56728) — 123 parça

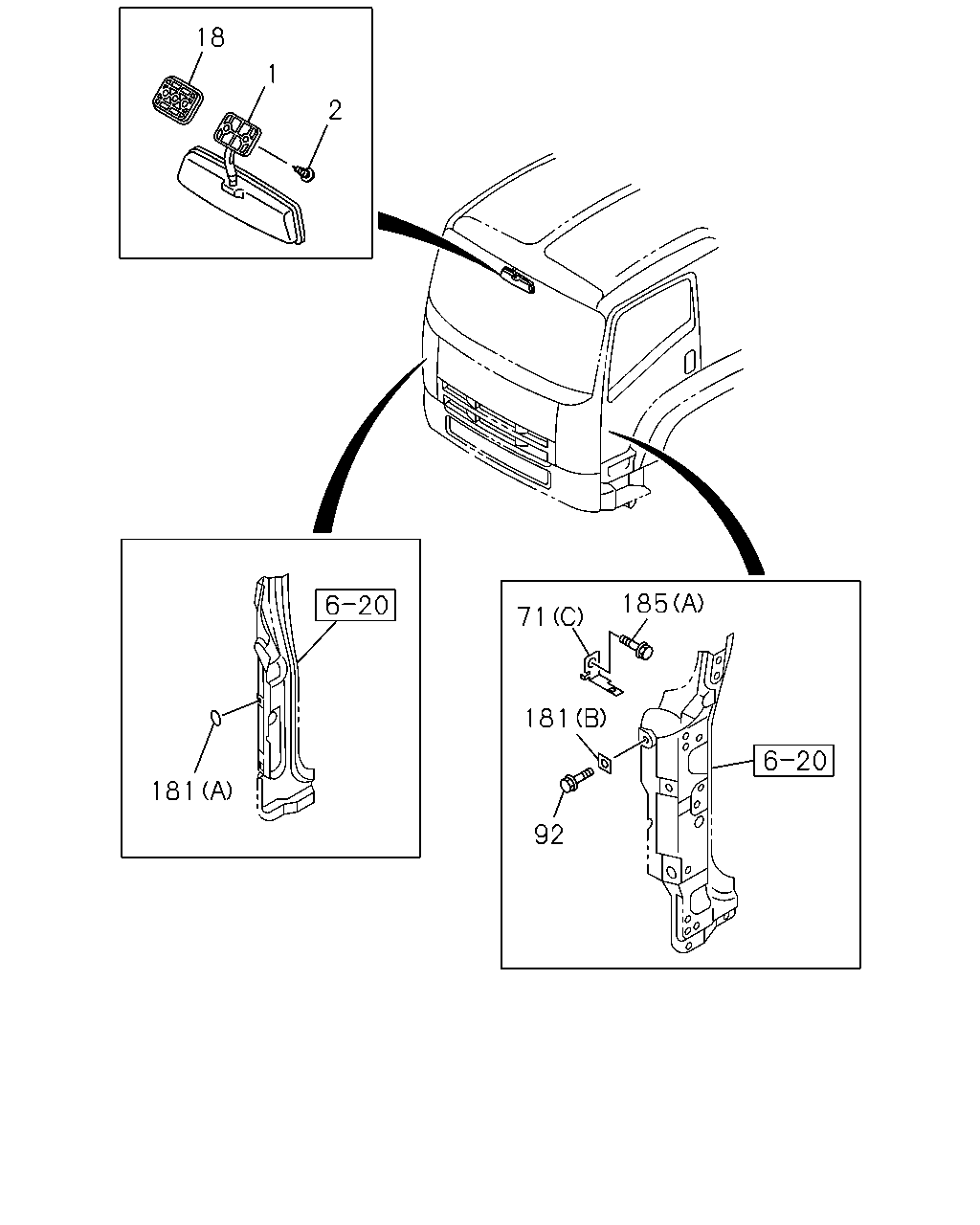

çizim 165477
18 1 2 185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 0906-
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0906-
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0906-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0906-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0906-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0906-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 0906-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 0906-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0906-
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 0906-
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0906-
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 0906-
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0906-
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 0906-

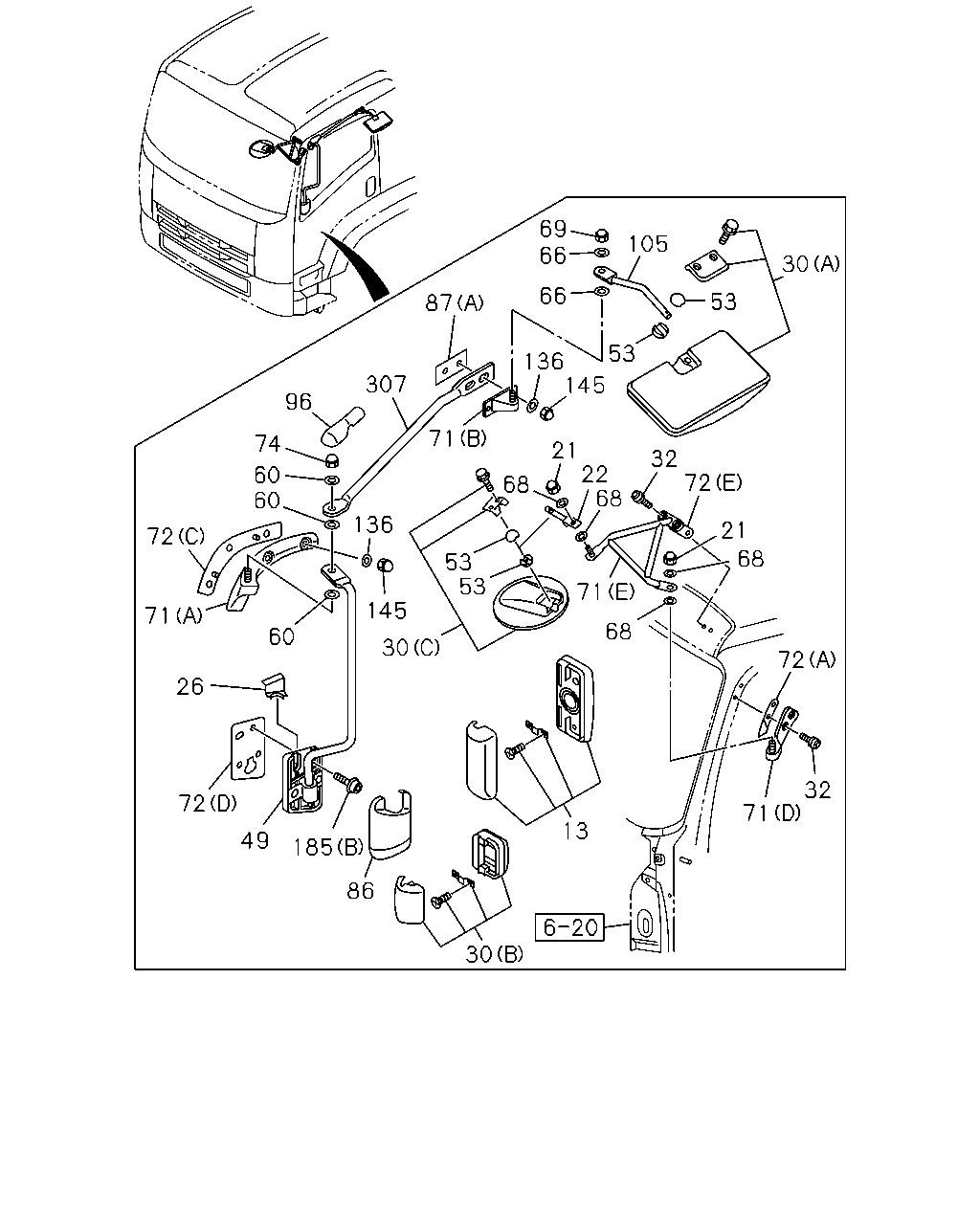

çizim 165486
69 66 105 30 66 53 87 53 136 145 307 96 71 74 21 22 68 32 72 60 60 68 136 21 72 68 53 53 71 145 71 68 60 30 72 26 32 71 72 13 49 185 86 30
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 0906-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 0906-
21 NUT; MIRROR
M10 CAP NUT 		1-09984-134-0 02 1 0906-
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 0906-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0906-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0906-
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 0906-
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 0906-
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 0906-
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 0906-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98095-546-1 01 1 0906-1202
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1203-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98112-263-0 01 1 0906-1202
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-781-1 01 1 0906-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-780-1 01 1 0906-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-053-1 01 1 0906-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-189-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-052-1 01 1 0906-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-188-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-067-1 01 1 0906-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-066-1 01 1 0906-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1203-
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 0906-
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 0906-
60 WASHER; PL,OUTSIDE MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0906-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 0906-
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0906-
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 0906-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0906-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0906-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0906-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 0906-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 0906-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0906-
72 SHEET
(C) 		8-98031-797-0 01 1 0906-
72 SHEET
(E) 		8-98060-245-1 01 1 0906-
72 SHEET
(A) 		8-98064-776-0 01 1 0906-
72 SHEET
(D) 		8-98101-865-0 01 1 0906-
72 SHEET
(B) 		8-98031-796-0 01 1 0906-
72 SHEET
(D) 		8-98101-864-0 01 1 0906-
74 NUT
M10 CAP NUT 		1-09984-134-0 02 1 0906-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0906-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0906-
87 SPACER
(A) 		8-98063-786-0 02 1 0906-
87 SPACER
(B) 		8-98063-789-0 01 1 0906-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0906-
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 0906-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 0906-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 06 1 0906-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 04 1 0906-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 06 1 0906-
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0906-
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 0906-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0906-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0906-

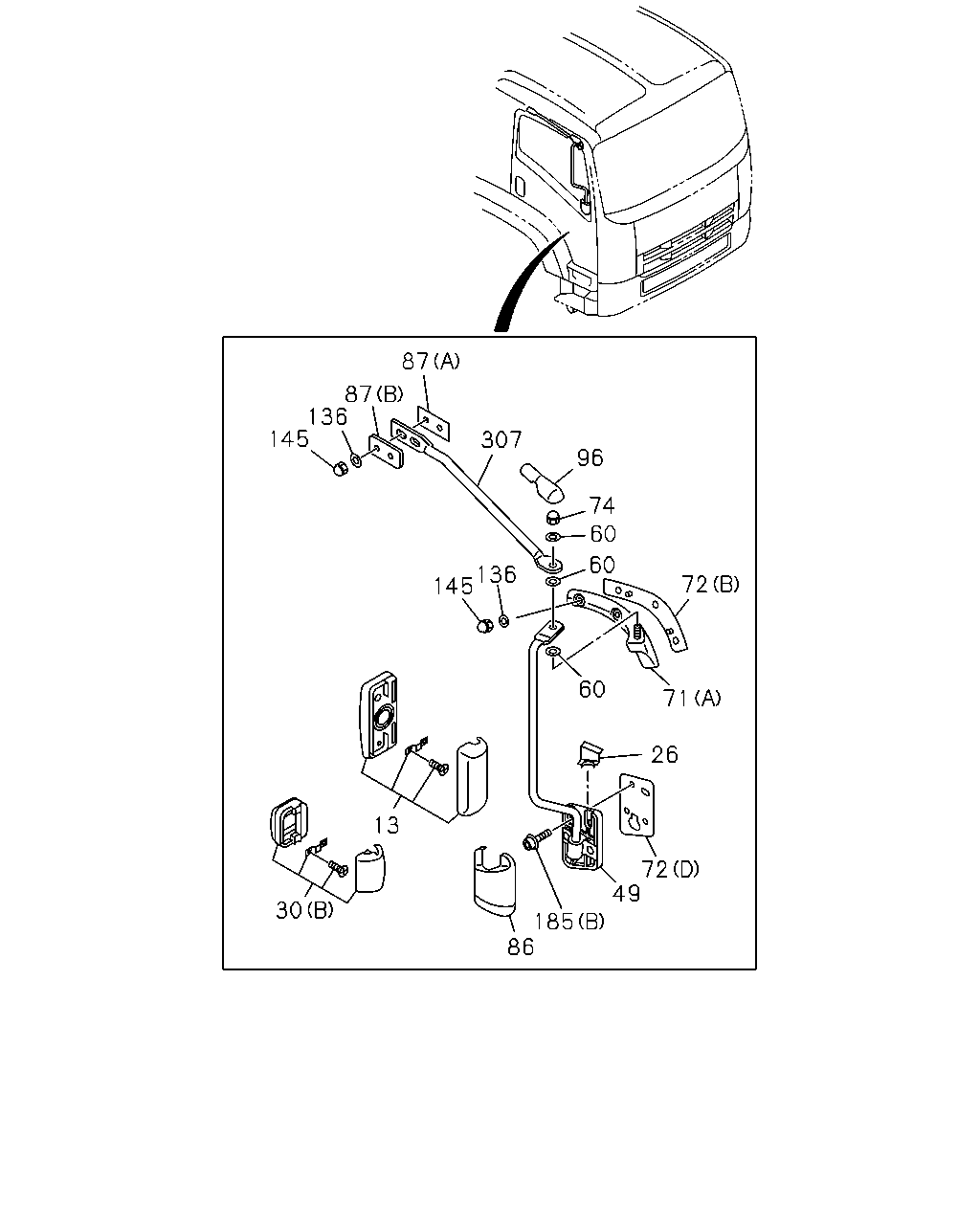

çizim 165488
87 87 136 145 307 96 74 60 60 136 145 72 60 71 26 13 72 49 30 185 86
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-176-1 01 1 0906-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-060-1 01 1 0906-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0906-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0906-
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 0906-
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 0906-
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 0906-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98095-546-1 01 1 0906-1202
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-193-0 01 1 1203-
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98112-263-0 01 1 0906-1202
49 STAY; MIRROR SIDE
MIR O/S RR VIEW EXTENDED LONG ARM<8MV> 		8-98166-192-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-781-1 01 1 0906-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-780-1 01 1 0906-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-053-1 01 1 0906-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-189-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98075-052-1 01 1 0906-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW LONG ARM<DH2> 		8-98166-188-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-067-1 01 1 0906-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1203-
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-066-1 01 1 0906-1202
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1203-
60 WASHER; PL,OUTSIDE MIRROR
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0906-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0906-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0906-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0906-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 0906-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 0906-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0906-
72 SHEET
(C) 		8-98031-797-0 01 1 0906-
72 SHEET
(E) 		8-98060-245-1 01 1 0906-
72 SHEET
(A) 		8-98064-776-0 01 1 0906-
72 SHEET
(D) 		8-98101-865-0 01 1 0906-
72 SHEET
(B) 		8-98031-796-0 01 1 0906-
72 SHEET
(D) 		8-98101-864-0 01 1 0906-
74 NUT
M10 CAP NUT 		1-09984-134-0 02 1 0906-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0906-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0906-
87 SPACER
(A) 		8-98063-786-0 02 1 0906-
87 SPACER
(B) 		8-98063-789-0 01 1 0906-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0906-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 04 1 0906-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 06 1 0906-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 04 1 0906-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 06 1 0906-
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0906-
185 BOLT; BRKT
(B) M8X23 		8-97310-216-1 08 1 0906-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0906-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0906-
