◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11237 - FSR-R(EU)EU5 EXC.SPA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#56727) — 15 parça

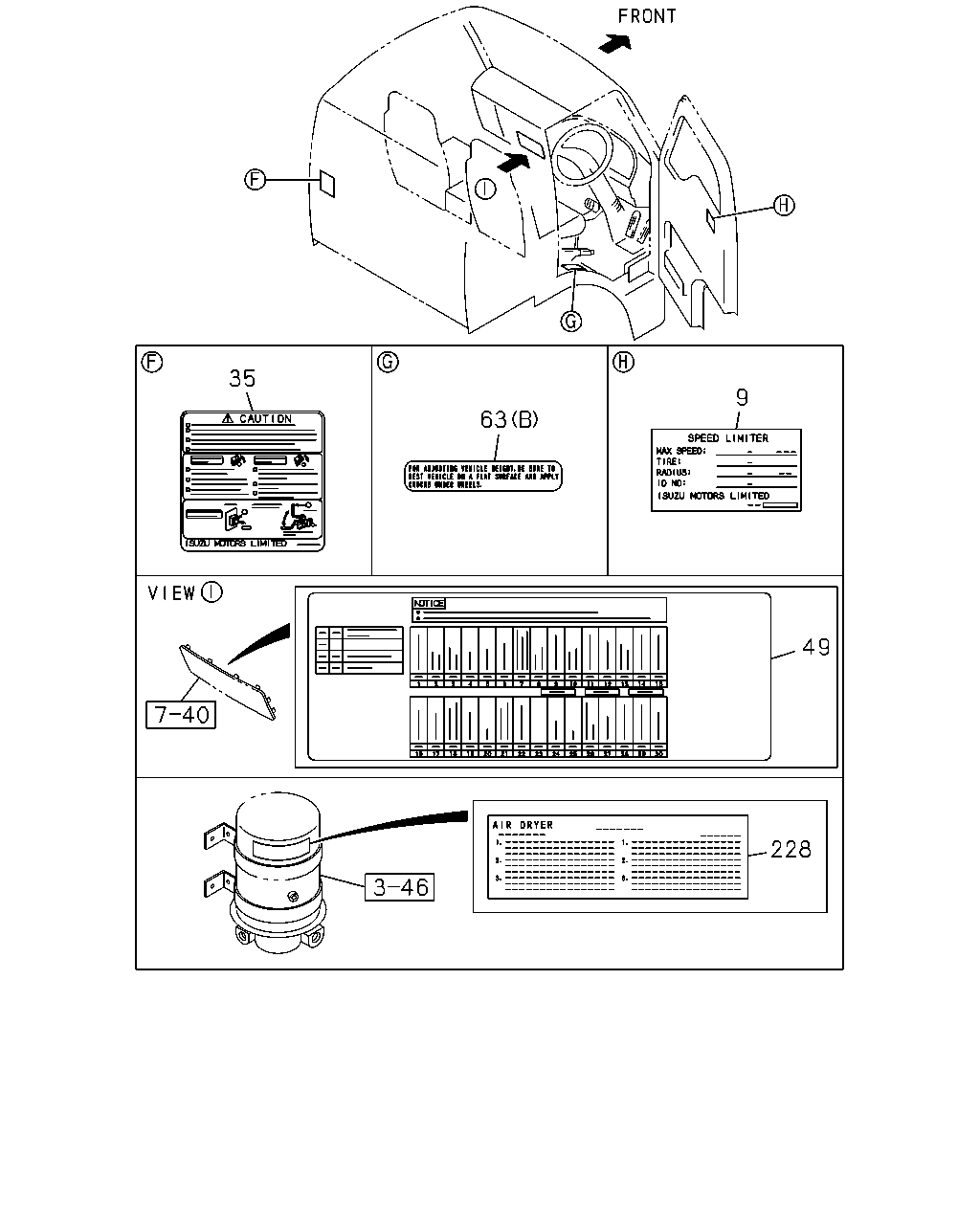

çizim 165480
35 9 63 49 228
BalonParca AdiParca NoAdetTipApplied Date
9 PLATE; NAME,SPD RANGE
AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-985-0 01 1 0906-1201
9 PLATE; NAME,SPD RANGE
6 PER 1 SHEET 		8-98142-985-0 01 1 1202-
9 PLATE; NAME,SPD RANGE
EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-984-0 01 1 0906-1201
35 PLATE; CAUTION,CAB 8-98069-325-0 01 1 0906-
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 0906-
63 PLATE; CAUTION,SEAT AIR
(B) 		1-85881-823-0 01 1 0906-
63 PLATE; CAUTION,SEAT AIR
(A) 		1-85881-861-0 01 1 0906-
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0906-1001

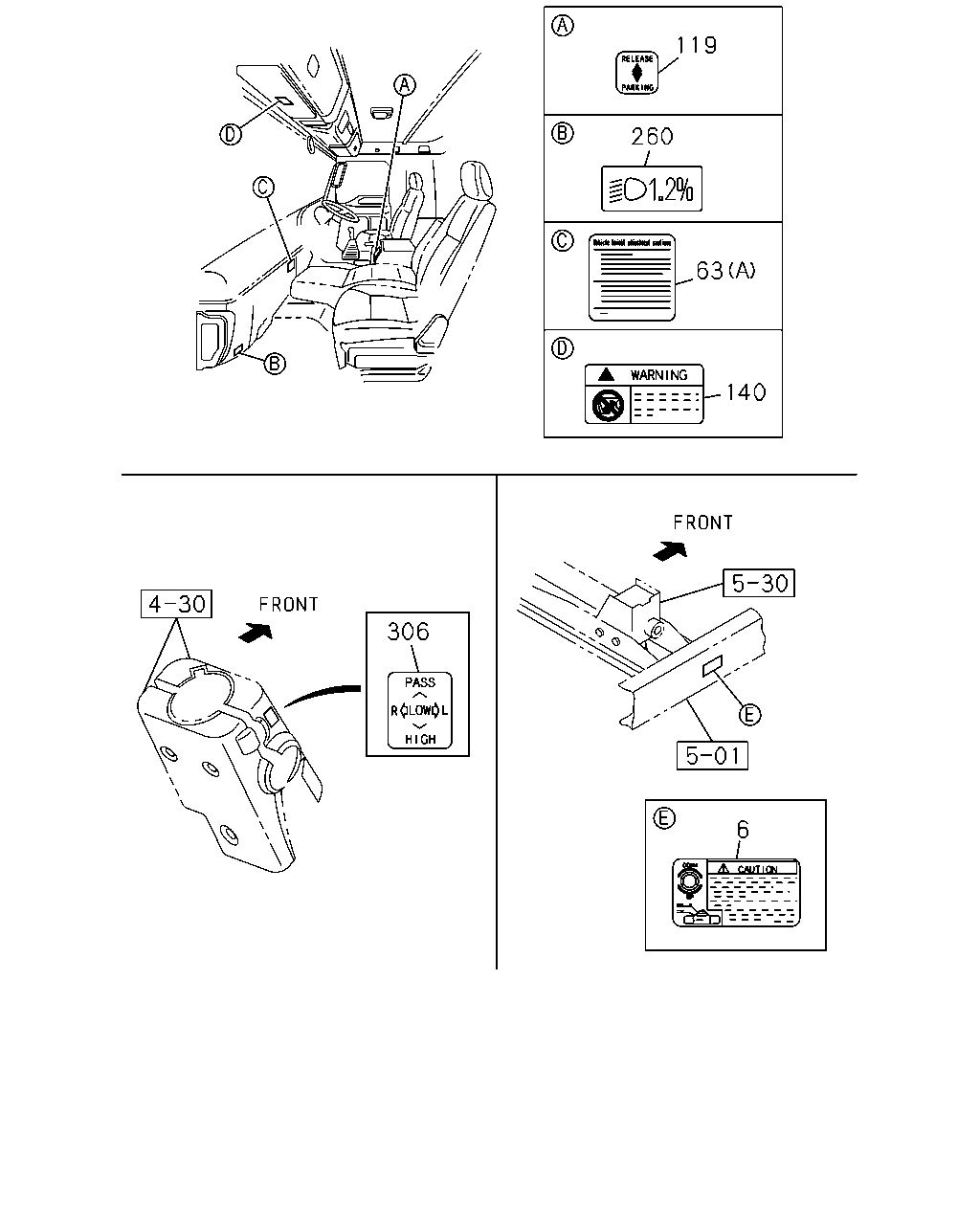

çizim 165497
119 260 63 140 306 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		8-98082-437-0 01 1 0906-
63 PLATE; CAUTION,SEAT AIR
(B) 		1-85881-823-0 01 1 0906-
63 PLATE; CAUTION,SEAT AIR
(A) 		1-85881-861-0 01 1 0906-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0906-
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 0906-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0906-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
