Isuzu WW
▶
TRUCKS
▶
FSR
▶
11237 - FSR-R(EU)EU5 EXC.SPA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-78 - FLOOR HOLE PLUG
▶

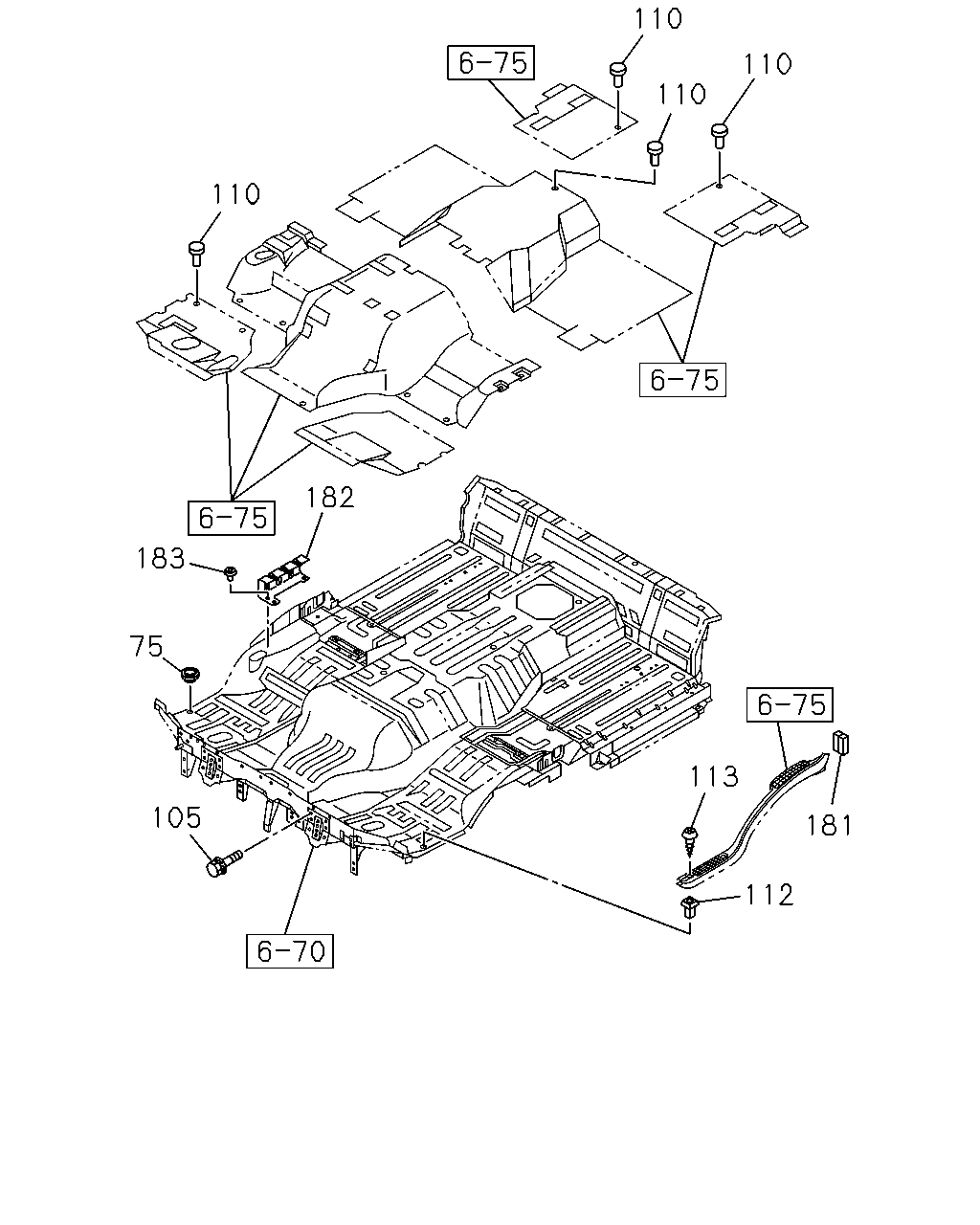

6-78 — FLOOR HOLE PLUG
(#56722) — 10 parça
110
110
110
110
182
183
75
113
105
181
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
75
PLUG; RUBBER,FLOOR
OD=23.5
1-09983-101-0
06
1
0906-
105
BOLT; FLOOR
M10X30 FLANGE
0-28661-030-0
16
1
0906-
110
FASTENER; FLOOR MAT
BLACK
8-94279-089-0
12
1
0906-
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
0906-
113
SCREW; TRIM COVER
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
08
1
0906-
181
SEAL; SILL SIDE
8-98044-044-1
02
1
0906-
182
REINFORCEMENT; SILL SIDE
8-98056-072-1
01
1
0906-
182
REINFORCEMENT; SILL SIDE
EXC. DUMP CONTROL LEVER<RC4>
8-98056-071-1
01
1
0906-
183
SCREW; SILL SIDE
DUMP CONTROL LEVER<RC4> T40 M8X16.5 HEXALOBULAR
8-98066-813-0
03
1
0906-
183
SCREW; SILL SIDE
EXC. DUMP CONTROL LEVER<RC4> T40 M8X16.5 HEXALOBULAR
8-98066-813-0
06
1
0906-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
