Isuzu WW
▶
TRUCKS
▶
FSR
▶
11237 - FSR-R(EU)EU5 EXC.SPA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

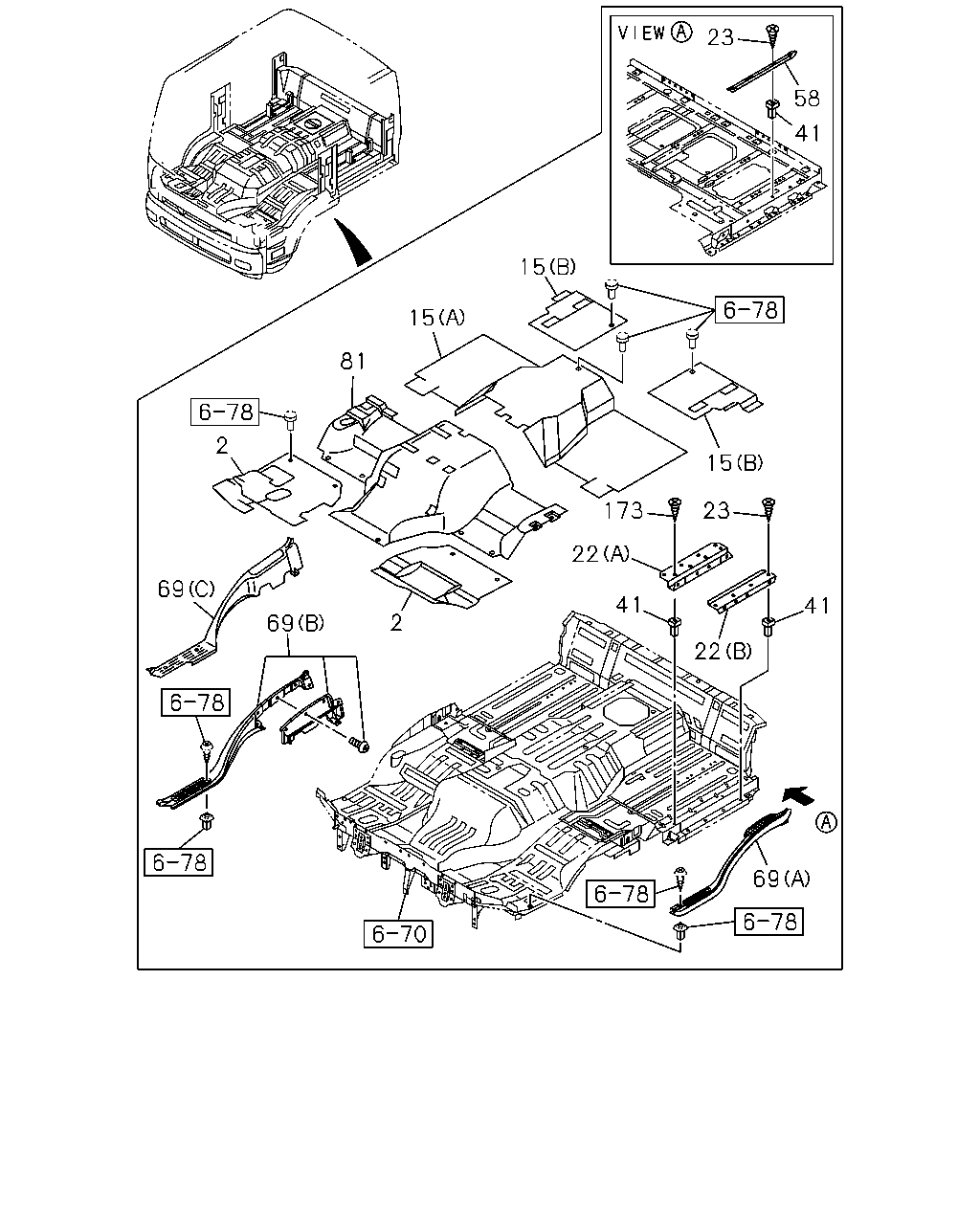

6-75 — MAT AND CARPET
(#56720) — 16 parça
23
58
41
15
15
81
2
15
173
23
22
69
41
41
2
69
22
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MAT; FLOOR
GRAY
8-97407-747-1
01
1
0906-0906
2
MAT; FLOOR
GRAY
8-97407-745-2
01
1
0907-
2
MAT; FLOOR
GRAY
8-97412-936-2
01
1
0906-
15
MAT; FLOOR REAR
(A)
8-97414-505-1
01
1
0906-
15
MAT; FLOOR REAR
(B)
8-97414-507-1
01
1
0906-
15
MAT; FLOOR REAR
(B)
8-97414-506-1
01
1
0906-
22
PLATE; SILL,RR
(A)
8-98092-663-1
02
1
0906-
22
PLATE; SILL,RR
(B)
8-98092-670-1
02
1
0906-
23
SCREW; SILL PLATE
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
16
1
0906-
41
GROMMET; SCREW,SILL PLATE
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
32
1
0906-
58
PLATE; GUARD,RR FLOOR MAT
GRAY
8-97405-981-1
02
1
0906-
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY
8-97412-927-0
01
1
0906-
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (B) GRAY
8-97412-928-0
01
1
0906-
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (C) GRAY
8-97412-926-0
01
1
0906-
81
MAT; FLOOR,CENTER
GRAY
8-97407-409-2
01
1
0906-
173
BOLT; PLATE
M5X20 TAPPING HEXALOBULAR
0-72180-520-0
16
1
0906-
