Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#5672) — 174 parça

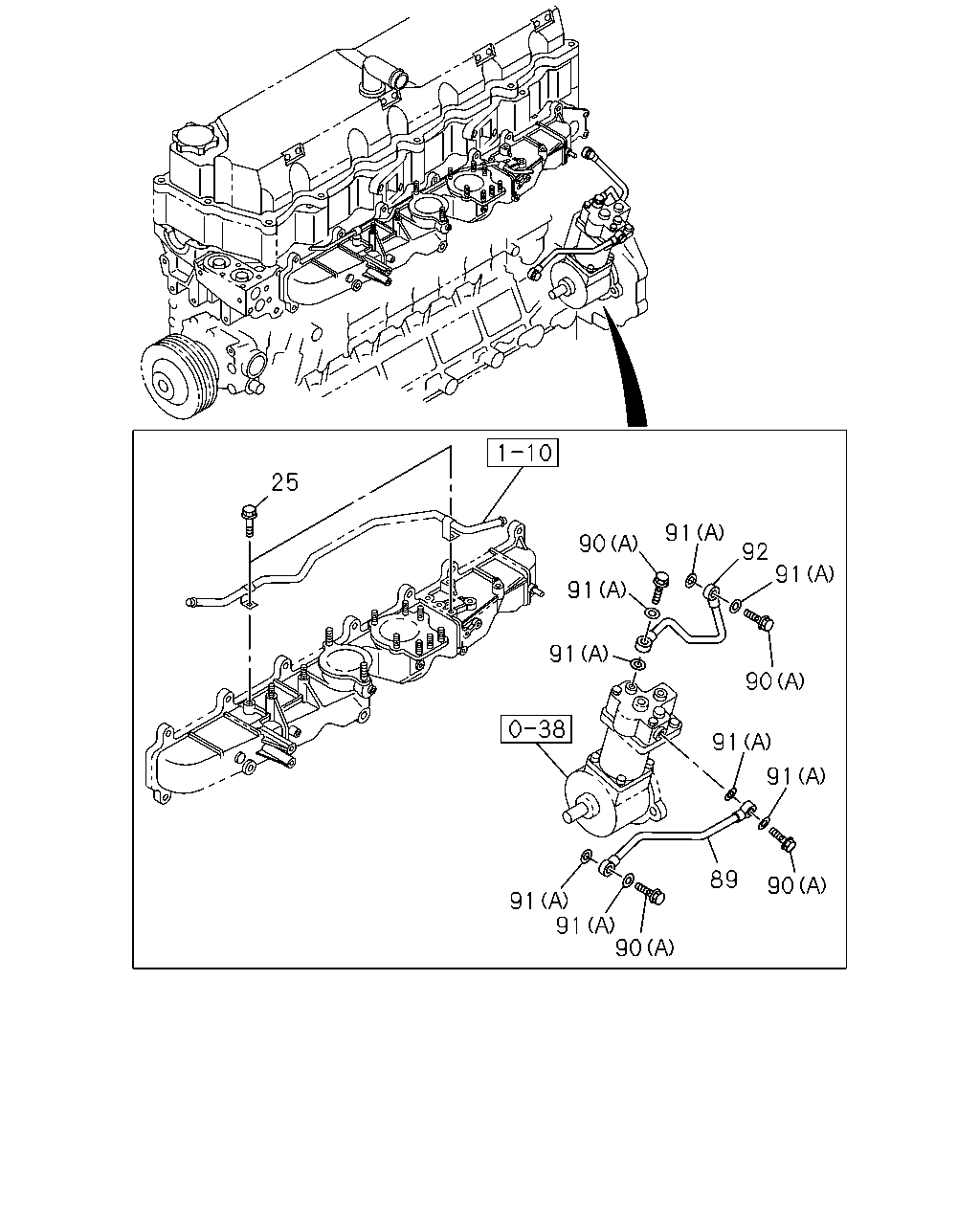

25 91 90 92 91 91 91 90 91 91 89 90 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	BOLT; WATER PIPE M8X12 FLANGE	0-28080-812-0	02	1	9907-0512	●
25	BOLT; WATER PIPE M8X12 FLANGE	0-28050-812-0	02	1	0601-0610	●
25	BOLT; WATER PIPE M8X12 FLANGE	0-28050-812-0	01	1	0611-		●	●
89	PIPE; WATER,AIR CMPR,IN FVR MIDDLE CHASSIS(FV****)	8-94397-035-1	01	1	9811-9906				●
89	PIPE; WATER,AIR CMPR,IN FVR MIDDLE CHASSIS(FV****)	8-94391-114-0	01	1	9907-0610	●
89	PIPE; WATER,AIR CMPR,IN	8-97611-095-0	01	1	0611-		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	0611-		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR FVR MIDDLE CHASSIS(FV****) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	9811-9906				●
90	BOLT; EYE,WATER PIPE,AIR CMPR FVR MIDDLE CHASSIS(FV****) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	9907-0610	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0611-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0611-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FVR MIDDLE CHASSIS(FV****) (A) ID=14.2 OD=19.2 TAI	1-09630-085-0	08	1	9811-9906				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FVR MIDDLE CHASSIS(FV****) (A) ID=14.2 OD=19.2 TAI	1-09630-085-0	08	1	9907-0610	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	0611-		●	●
92	PIPE; WATER,AIR CMPR,OUT FVR MIDDLE CHASSIS(FV****)	8-94397-036-2	01	1	9811-9906				●
92	PIPE; WATER,AIR CMPR,OUT FVR MIDDLE CHASSIS(FV****)	8-94391-115-0	01	1	9907-0306	●
92	PIPE; WATER,AIR CMPR,OUT FVR MIDDLE CHASSIS(FV****)	8-97603-477-0	01	1	0307-0610	●

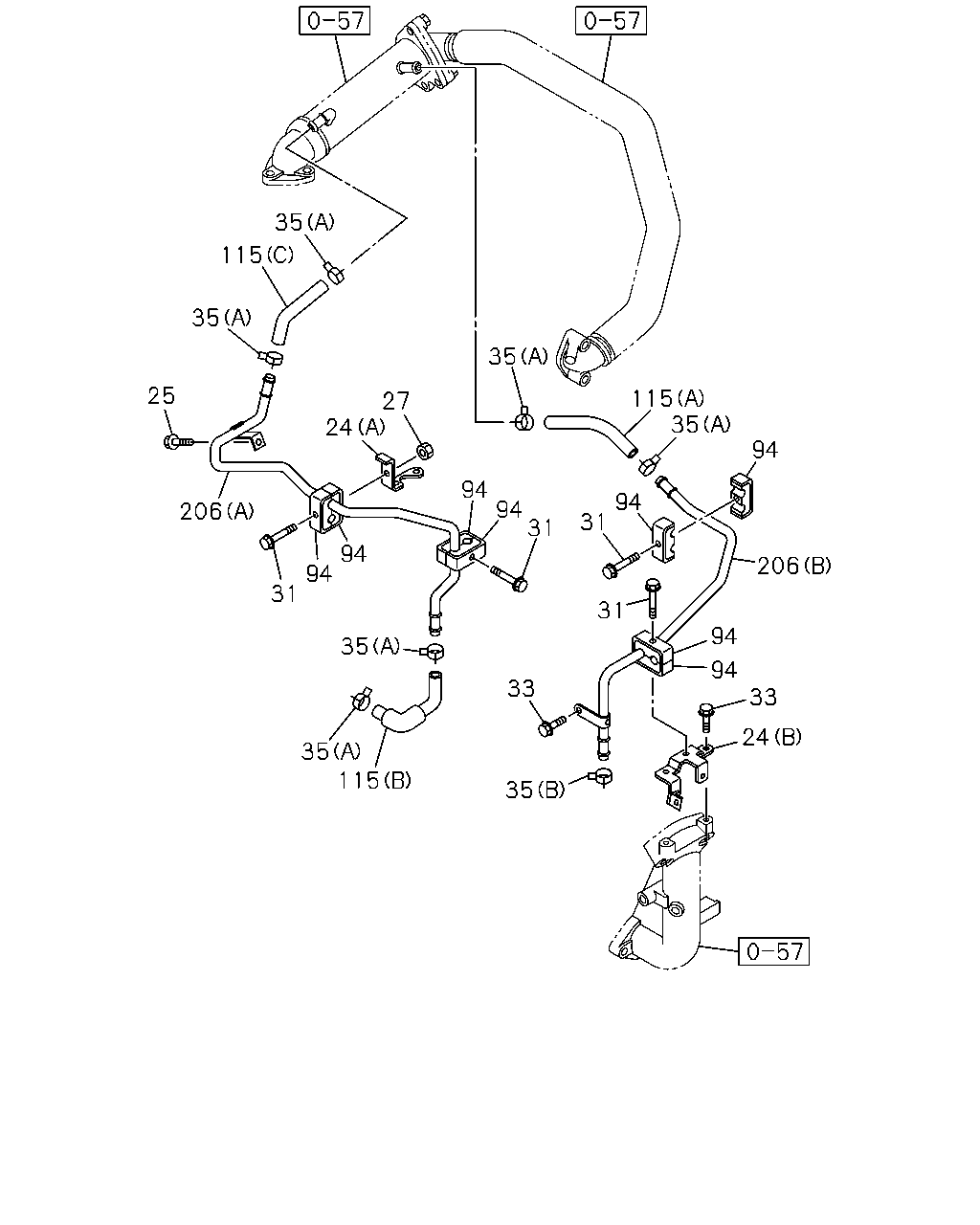

35 115 35 35 25 115 35 27 24 94 94 94 31 94 206 31 94 94 206 31 31 94 35 94 33 33 24 35 115 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	BRACKET; WATER PIPE (A)	8-98000-557-2	01	1	0611-		●	●
24	BRACKET; WATER PIPE (B)	8-98000-558-3	01	1	0611-		●	●
25	BOLT; WATER PIPE M8X12 FLANGE	0-28080-812-0	02	1	9907-0512	●
25	BOLT; WATER PIPE M8X12 FLANGE	0-28050-812-0	02	1	0601-0610	●
25	BOLT; WATER PIPE M8X12 FLANGE	0-28050-812-0	01	1	0611-		●	●
27	NUT; PIPE FIX M6 FLANGE	0-91180-106-0	01	1	0611-		●	●
31	BOLT; CLIP M6X45 FLANGE	0-28050-645-0	01	1	0611-		●	●
31	BOLT; CLIP M6X40 FLANGE	0-28650-640-0	03	1	0611-		●	●
33	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0611-		●	●
33	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	03	1	0611-		●	●
35	CLIP; RUBBER HOSE (A) ID=20	1-09707-084-1	05	1	0611-		●	●
35	CLIP; RUBBER HOSE (B) ID=20.8	8-94125-862-1	01	1	0611-		●	●
94	CLIP; WATER PIPE	8-97605-129-1	08	1	0611-		●	●
115	HOSE; RUBBER (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	0611-		●	●
115	HOSE; RUBBER (B)	8-97606-735-0	01	1	0611-		●	●
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	0611-		●	●
115	HOSE; RUBBER (D) L=60 SERVICED BY L=3000	0-03711-300-0	01	1	9811-9906				●
206	PIPE; WATER,EGR COOLER (A)	8-97604-928-2	01	1	0611-		●	●
206	PIPE; WATER,EGR COOLER (B)	8-98000-480-1	01	1	0611-		●	●

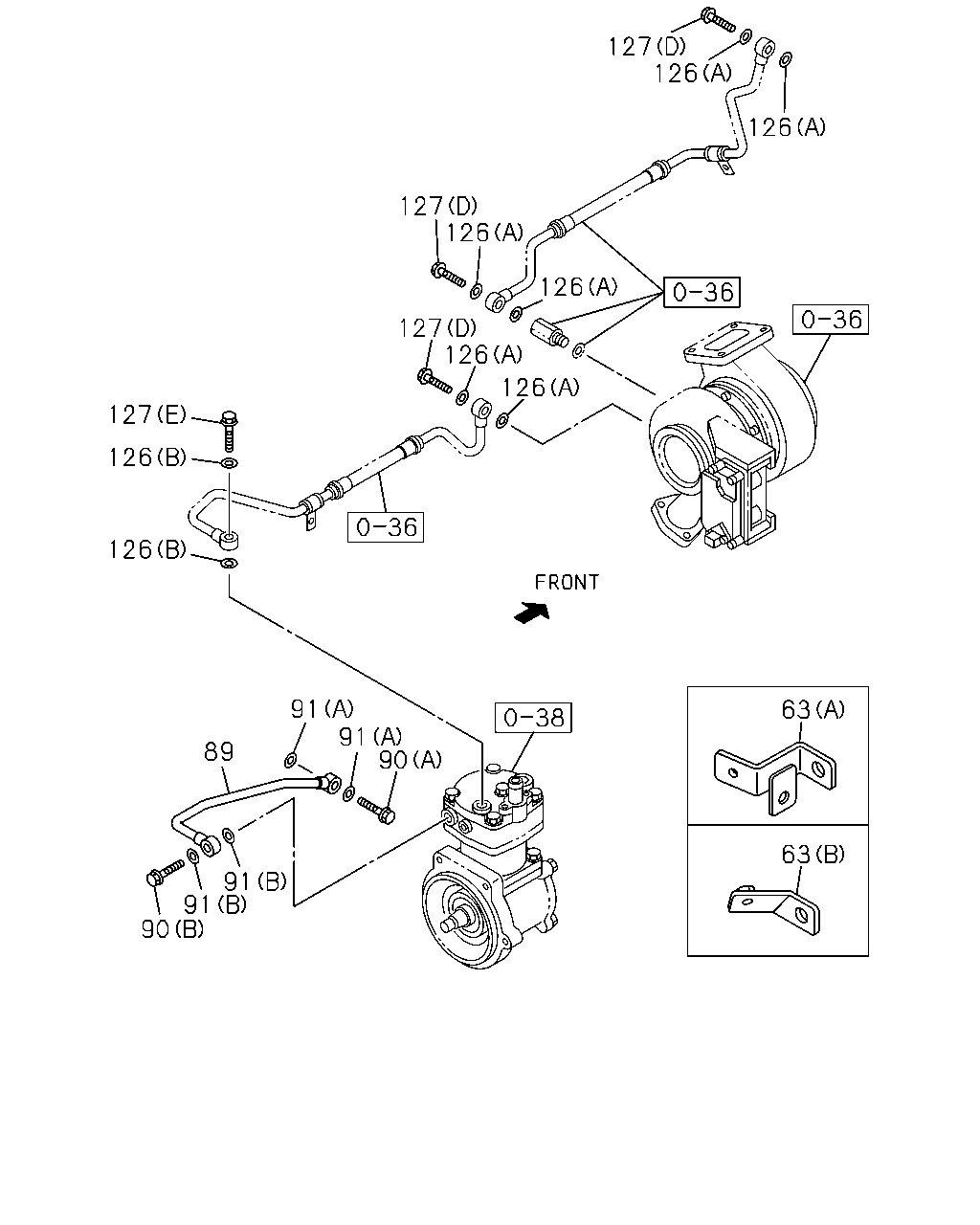

127 126 126 127 126 126 127 126 126 127 126 126 91 91 90 63 89 63 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
63	BRACKET; WATER PIPE (A)	8-97615-878-0	01	1	0611-		●	●
63	BRACKET; WATER PIPE (B)	8-98046-784-0	01	1	0611-		●	●
89	PIPE; WATER,AIR CMPR,IN FVR MIDDLE CHASSIS(FV****)	8-94397-035-1	01	1	9811-9906				●
89	PIPE; WATER,AIR CMPR,IN FVR MIDDLE CHASSIS(FV****)	8-94391-114-0	01	1	9907-0610	●
89	PIPE; WATER,AIR CMPR,IN	8-97611-095-0	01	1	0611-		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	0611-		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR FVR MIDDLE CHASSIS(FV****) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	9811-9906				●
90	BOLT; EYE,WATER PIPE,AIR CMPR FVR MIDDLE CHASSIS(FV****) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	9907-0610	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0611-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0611-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FVR MIDDLE CHASSIS(FV****) (A) ID=14.2 OD=19.2 TAI	1-09630-085-0	08	1	9811-9906				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FVR MIDDLE CHASSIS(FV****) (A) ID=14.2 OD=19.2 TAI	1-09630-085-0	08	1	9907-0610	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	0611-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 TAI	1-09630-085-0	06	1	0611-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0611-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 TAI	1-09630-085-0	06	1	9811-9906				●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	9811-9906				●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	03	1	0611-		●	●
127	BOLT; EYE (E) M16X28	8-94383-489-0	01	1	0611-		●	●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	9811-9906				●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	9811-9906				●
127	BOLT; EYE (C) M16X25	5-09675-028-2	01	1	9811-9906				●

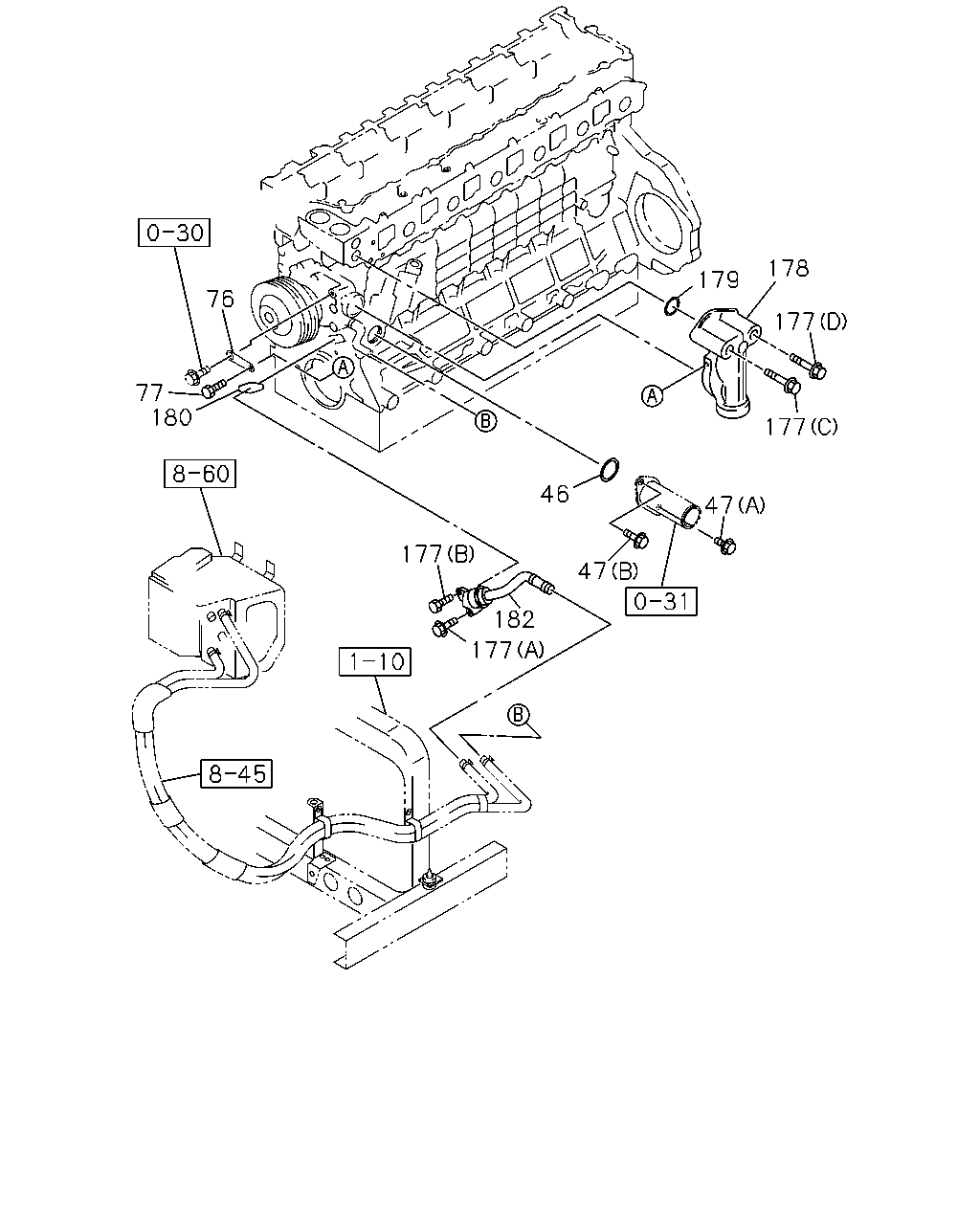

178 179 76 177 77 180 177 46 47 177 47 182 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9811-9906				●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9907-0610	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0611-		●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	0611-		●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28080-845-0	01	1	9811-9906				●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28080-845-0	03	1	9907-0512	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	03	1	0601-0610	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	0611-		●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28680-825-0	01	1	9811-9906				●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9811-9906				●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9907-0610	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0611-		●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9811-9906				●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9907-0512	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0601-0610	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0611-		●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9811-9906				●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9907-0512	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0601-0610	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0611-		●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9811-9906				●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9907-0512	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0611-		●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE USA	1-09044-072-1	01	1	9811-9906				●
177	BOLT; WATER DUCT (A) M8X65 FLANGE USA	1-09044-072-1	01	1	9907-0610	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE USA	1-09044-072-1	01	1	0611-		●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	9811-9906				●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	9907-0610	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0611-		●	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	9811-9906				●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	9907-0610	●
178	DUCT; WATER,BYPASS	8-94396-627-3	01	1	0611-		●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9811-9906				●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9907-0610	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0611-		●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9811-9906				●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9907-0610	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0611-		●	●
182	DUCT; WATER,HTR	8-94394-348-5	01	1	9811-9906				●
182	DUCT; WATER,HTR	8-94394-348-5	01	1	9907-0610	●
182	DUCT; WATER,HTR	8-94394-348-5	01	1	0611-		●	●

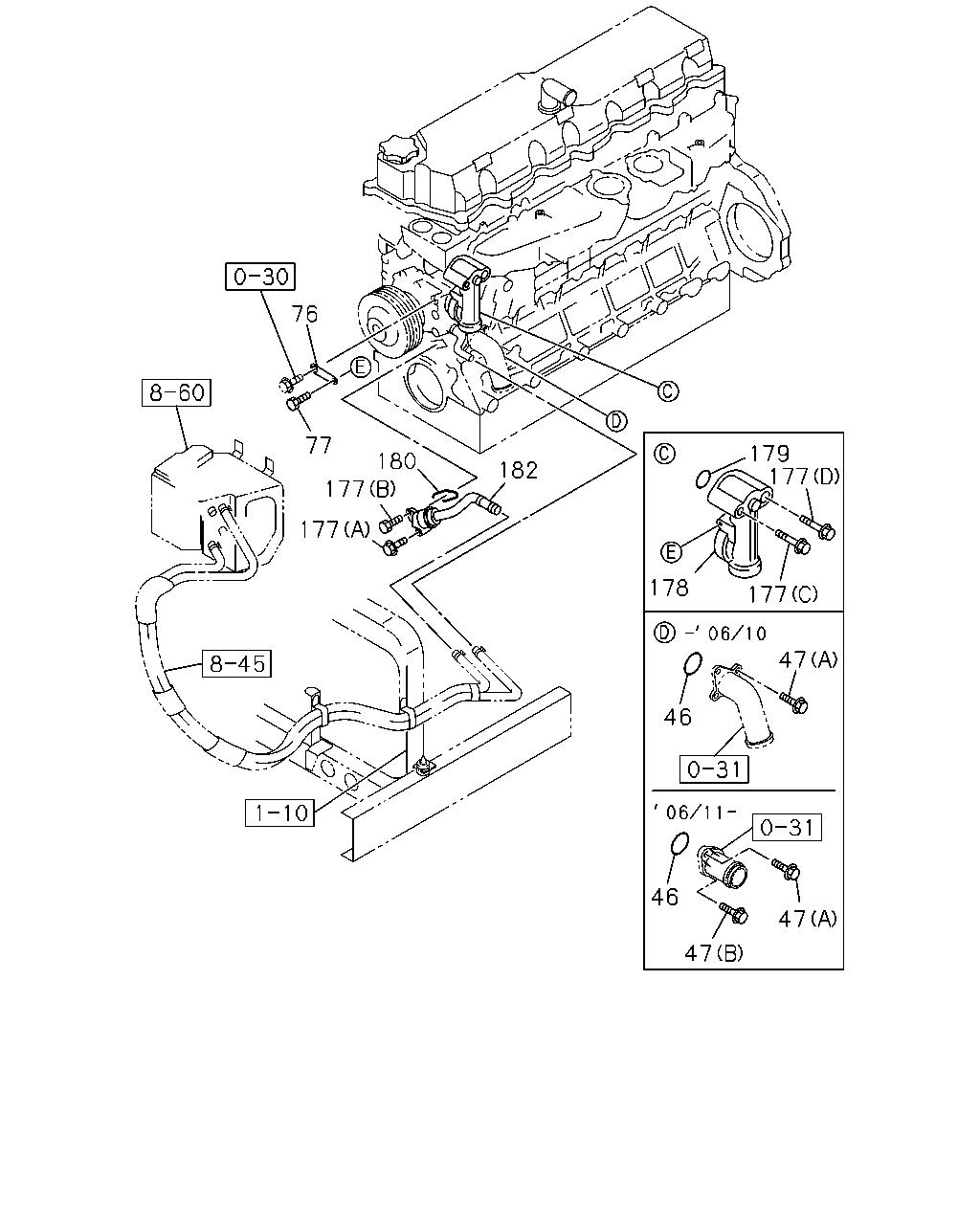

76 77 180 177 179 177 182 177 178 177 47 46 46 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9811-9906				●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9907-0610	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0611-		●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	0611-		●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28080-845-0	01	1	9811-9906				●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28080-845-0	03	1	9907-0512	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	03	1	0601-0610	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	0611-		●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28680-825-0	01	1	9811-9906				●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9811-9906				●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9907-0610	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0611-		●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9811-9906				●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9907-0512	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0601-0610	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0611-		●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9811-9906				●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9907-0512	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0601-0610	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0611-		●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9811-9906				●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9907-0512	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0610	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0611-		●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE USA	1-09044-072-1	01	1	9811-9906				●
177	BOLT; WATER DUCT (A) M8X65 FLANGE USA	1-09044-072-1	01	1	9907-0610	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE USA	1-09044-072-1	01	1	0611-		●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	9811-9906				●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	9907-0610	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0611-		●	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	9811-9906				●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	9907-0610	●
178	DUCT; WATER,BYPASS	8-94396-627-3	01	1	0611-		●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9811-9906				●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9907-0610	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0611-		●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9811-9906				●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9907-0610	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0611-		●	●
182	DUCT; WATER,HTR	8-94394-348-5	01	1	9811-9906				●
182	DUCT; WATER,HTR	8-94394-348-5	01	1	9907-0610	●
182	DUCT; WATER,HTR	8-94394-348-5	01	1	0611-		●	●

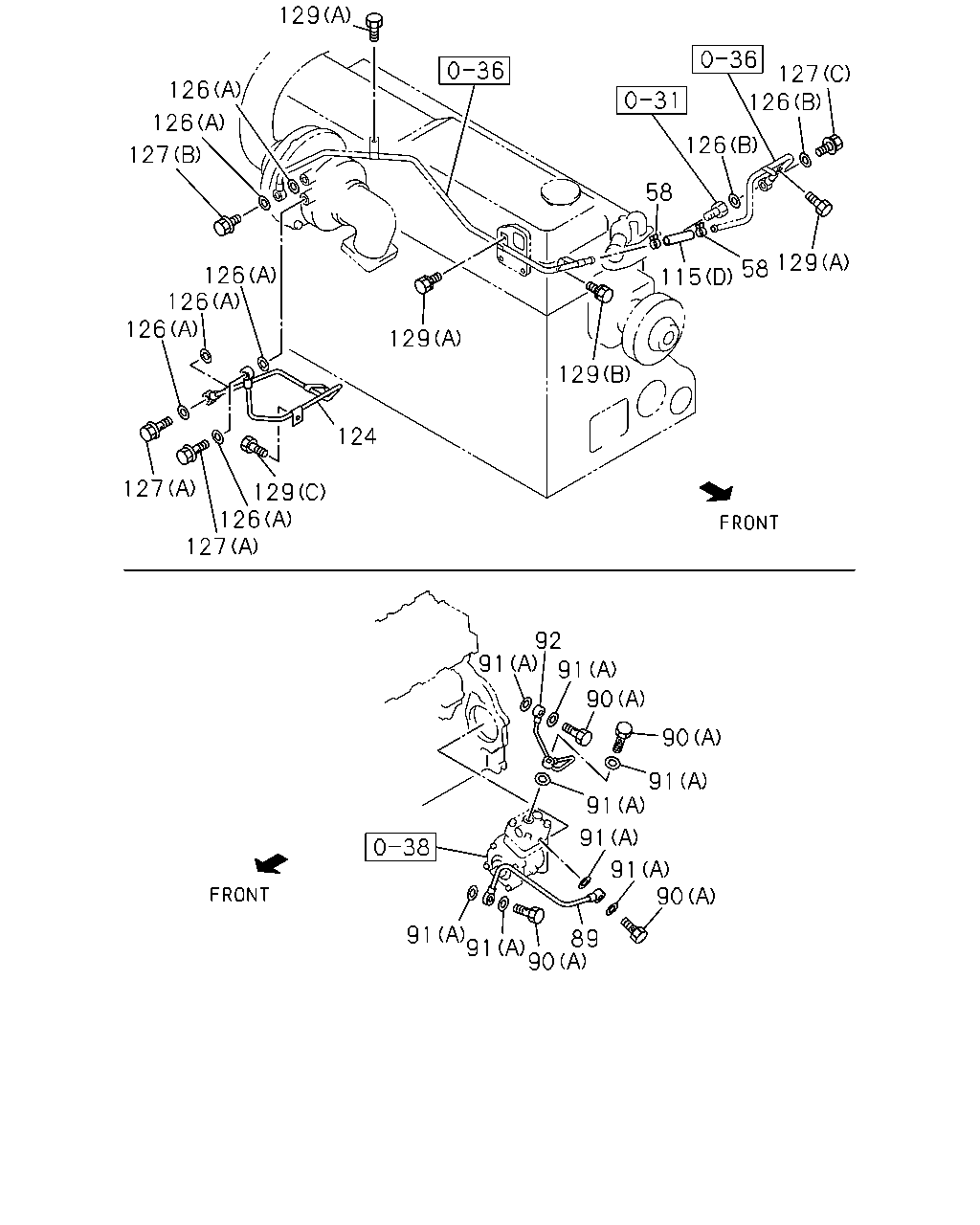

129 127 126 126 126 126 127 58 129 58 115 126 126 126 129 129 124 127 129 126 127 92 91 91 90 90 91 91 91 91 90 91 91 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	9811-9906				●
89	PIPE; WATER,AIR CMPR,IN FVR MIDDLE CHASSIS(FV****)	8-94397-035-1	01	1	9811-9906				●
89	PIPE; WATER,AIR CMPR,IN FVR MIDDLE CHASSIS(FV****)	8-94391-114-0	01	1	9907-0610	●
89	PIPE; WATER,AIR CMPR,IN	8-97611-095-0	01	1	0611-		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	0611-		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR FVR MIDDLE CHASSIS(FV****) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	9811-9906				●
90	BOLT; EYE,WATER PIPE,AIR CMPR FVR MIDDLE CHASSIS(FV****) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	9907-0610	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0611-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0611-		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FVR MIDDLE CHASSIS(FV****) (A) ID=14.2 OD=19.2 TAI	1-09630-085-0	08	1	9811-9906				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FVR MIDDLE CHASSIS(FV****) (A) ID=14.2 OD=19.2 TAI	1-09630-085-0	08	1	9907-0610	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 TAI	1-09630-085-0	02	1	0611-		●	●
92	PIPE; WATER,AIR CMPR,OUT FVR MIDDLE CHASSIS(FV****)	8-94397-036-2	01	1	9811-9906				●
92	PIPE; WATER,AIR CMPR,OUT FVR MIDDLE CHASSIS(FV****)	8-94391-115-0	01	1	9907-0306	●
92	PIPE; WATER,AIR CMPR,OUT FVR MIDDLE CHASSIS(FV****)	8-97603-477-0	01	1	0307-0610	●
115	HOSE; RUBBER (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	0611-		●	●
115	HOSE; RUBBER (B)	8-97606-735-0	01	1	0611-		●	●
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	0611-		●	●
115	HOSE; RUBBER (D) L=60 SERVICED BY L=3000	0-03711-300-0	01	1	9811-9906				●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	8-94394-534-1	01	1	9811-9906				●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 TAI	1-09630-085-0	06	1	0611-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0611-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 TAI	1-09630-085-0	06	1	9811-9906				●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	9811-9906				●
127	BOLT; EYE (D) M14X27 EYE-BOLT	1-09675-193-0	03	1	0611-		●	●
127	BOLT; EYE (E) M16X28	8-94383-489-0	01	1	0611-		●	●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	9811-9906				●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	9811-9906				●
127	BOLT; EYE (C) M16X25	5-09675-028-2	01	1	9811-9906				●
129	BOLT; WATER PIPE TO BRKT (C) M8X12 FLANGE	0-28080-812-0	01	1	9811-9906				●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	03	1	9811-9906				●
129	BOLT; WATER PIPE TO BRKT (B) M12X20 W/LK WASHER	0-50051-220-0	01	1	9811-9906				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
