Isuzu WW
▶
TRUCKS
▶
FSR
▶
11237 - FSR-R(EU)EU5 EXC.SPA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

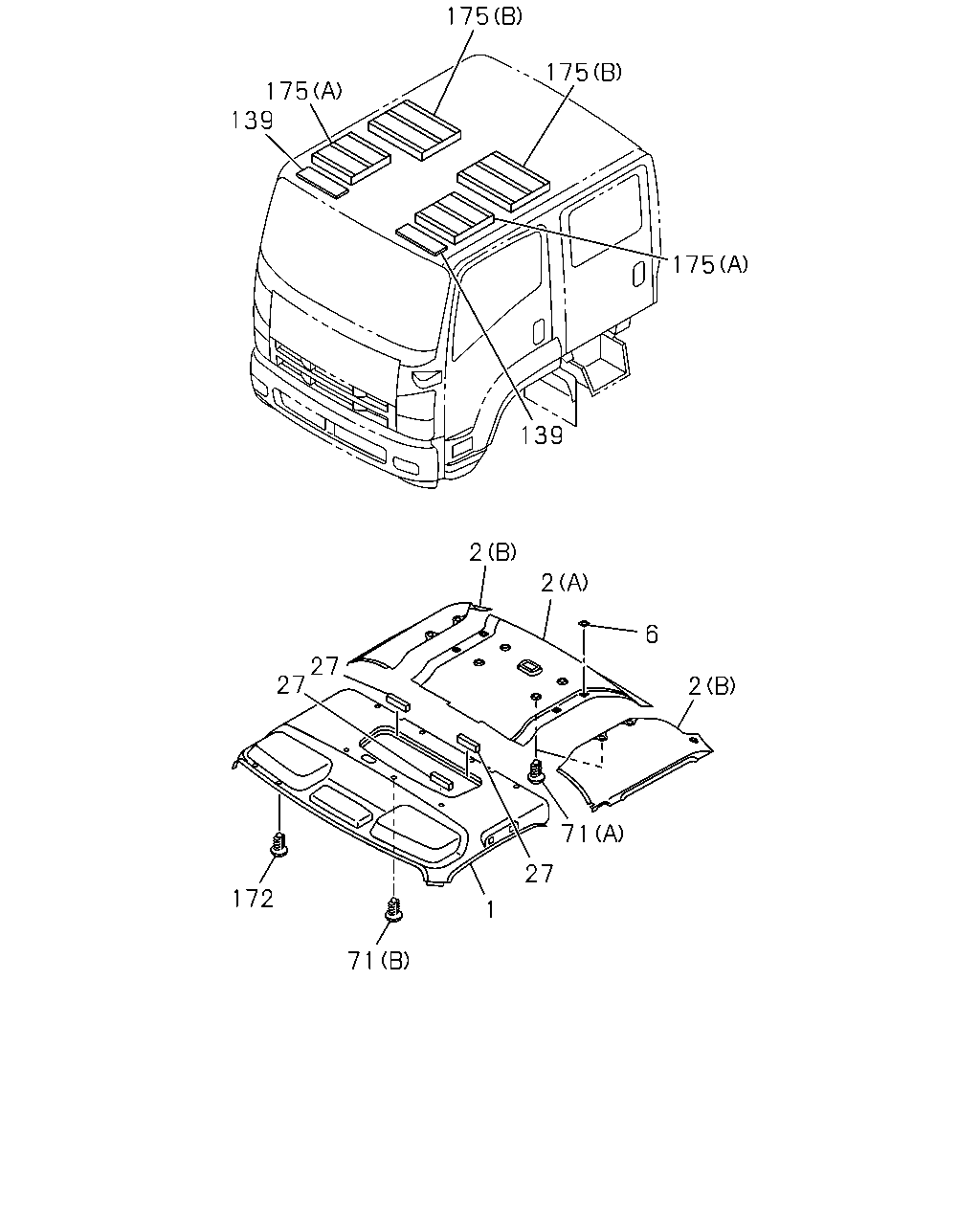

6-66 — HEAD LINING AND TRIM
(#56718) — 17 parça
175
175
175
139
175
139
2
2
6
27
27
2
71
27
172
1
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> DARK GRAY
8-97409-209-2
01
1
0906-1306
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> DARK GRAY
8-97426-682-0
01
1
1307-
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> DARK GRAY
8-97413-027-0
01
1
0906-1306
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> DARK GRAY
8-97426-693-0
01
1
1307-
2
LINING; HD,ROOF RR
(A) DARK GRAY
8-97407-454-1
01
1
0906-
2
LINING; HD,ROOF RR
(B) DARK GRAY
8-97408-557-1
01
1
0906-
2
LINING; HD,ROOF RR
(B) DARK GRAY
8-97408-555-1
01
1
0906-
6
SPACER; HD LINING
1 SET=20 PIECE
8-98100-429-0
04
1
0906-
27
INSULATION; ROOF
8-98046-638-1
03
1
0906-0911
27
INSULATION; ROOF
FLUORESCENT LAMP<6UC>
8-98046-638-2
03
1
0912-
71
FASTENER; HD LINING
(B) DARK GRAY
8-97405-282-0
03
1
0906-
71
FASTENER; HD LINING
(A) DARK GRAY
8-97411-797-0
14
1
0906-
139
SEAL; ROOF
8-98076-274-0
02
1
0906-1009
139
SEAL; ROOF
8-98169-116-0
02
1
1010-
172
RETAINER; HEAD LINING
DARK GRAY
8-97411-875-0
04
1
0906-
175
CUSHION; HEAD LINING
(A)
8-98030-965-2
02
1
0906-
175
CUSHION; HEAD LINING
(B)
8-98082-685-1
02
1
0906-
