◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11237 - FSR-R(EU)EU5 EXC.SPA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-51 - REAR DOOR GLASS AND REGULATOR ▶
6-51 — REAR DOOR GLASS AND REGULATOR (#56714) — 24 parça

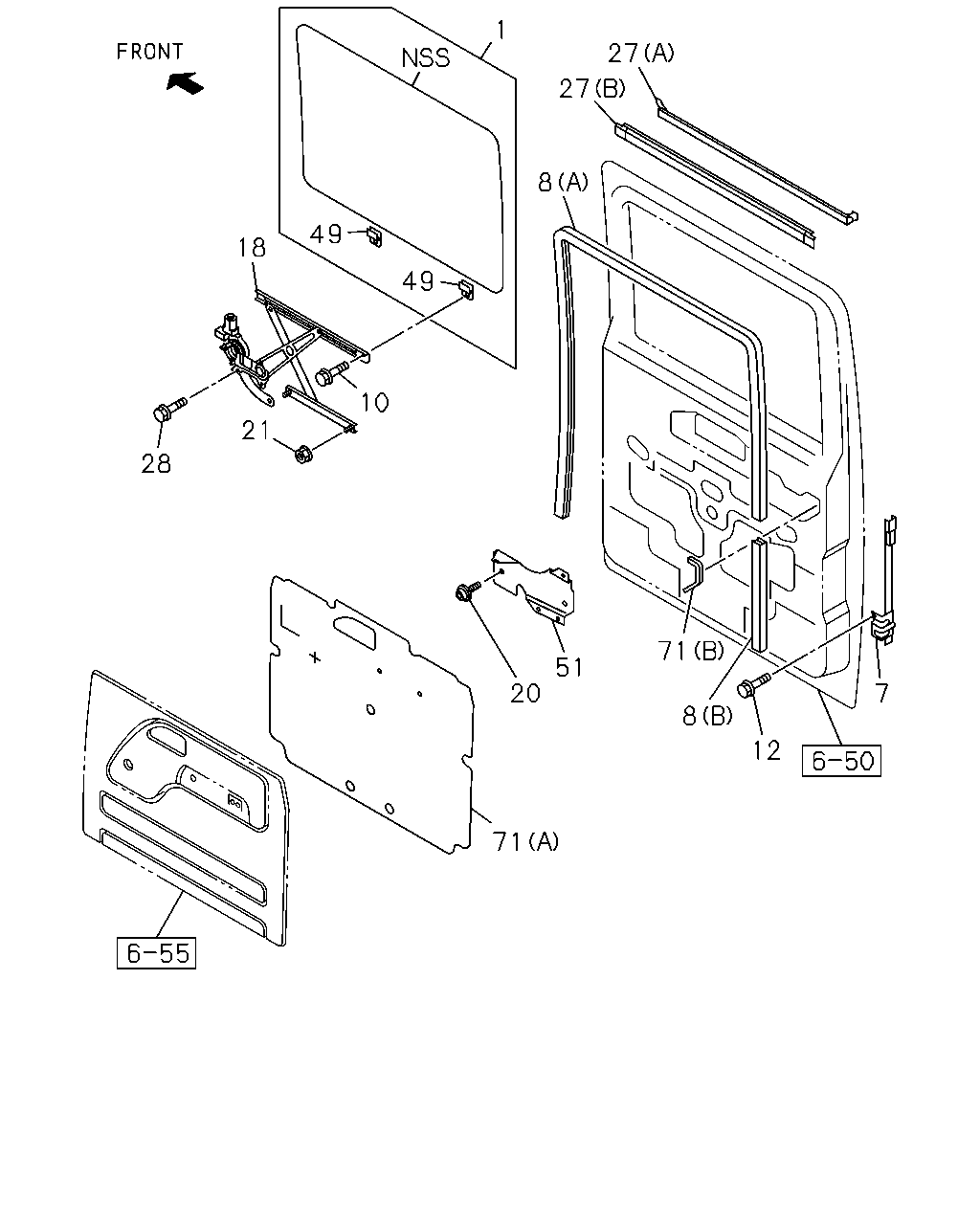

çizim 165468
1 27 27 8 49 18 49 10 21 28 71 51 20 7 8 12 71
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; RR DOOR 8-97587-681-2 01 1 0906-1204
1 GLASS; RR DOOR 8-98211-770-0 01 1 1205-
1 GLASS; RR DOOR 8-97587-680-2 01 1 0906-1204
1 GLASS; RR DOOR 8-98211-769-0 01 1 1205-
7 CHANNEL; GLASS RUN,RR DOOR 8-98032-138-2 01 1 0906-
7 CHANNEL; GLASS RUN,RR DOOR 8-98032-137-2 01 1 0906-
8 RUN; GLASS,RR DOOR
(B) 		8-98070-147-0 02 1 0906-
8 RUN; GLASS,RR DOOR
(A) 		8-97587-685-1 01 1 0906-
8 RUN; GLASS,RR DOOR
(A) 		8-98002-256-1 01 1 0906-
10 SCREW; GLASS
M6X10 FLANGE 		0-28050-610-0 04 1 0906-
12 SCREW; CHANNEL,GLASS RUN
M6X10 FLANGE 		0-28050-610-0 04 1 0906-
18 REGULATOR; WINDOW,RR DOOR 8-97587-696-3 01 1 0906-
18 REGULATOR; WINDOW,RR DOOR 8-97587-695-3 01 1 0906-
20 SCREW
M6X14 W/TORQUES 		8-98064-118-1 08 1 0906-
21 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 0906-
27 SEAL; WAIST,RR DOOR
(A) 		8-97587-691-1 02 1 0906-
27 SEAL; WAIST,RR DOOR
(B) 		8-97587-692-1 02 1 0906-
28 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 08 1 0906-
49 HOLDER; DOOR GLASS 8-98041-907-0 04 1 0906-1204
49 HOLDER; DOOR GLASS 8-98211-762-0 04 1 1205-
51 PATCH; RR DOOR 8-98089-526-0 01 1 0906-
51 PATCH; RR DOOR 8-98089-525-0 01 1 0906-
71 SEAL; WATER,RR DOOR
(A) 		8-97587-700-1 02 1 0906-
71 SEAL; WATER,RR DOOR
(B) 		8-98061-351-0 02 1 0906-
