Isuzu WW
▶
TRUCKS
▶
FSR
▶
11237 - FSR-R(EU)EU5 EXC.SPA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-43 - SIDE TRIM
▶

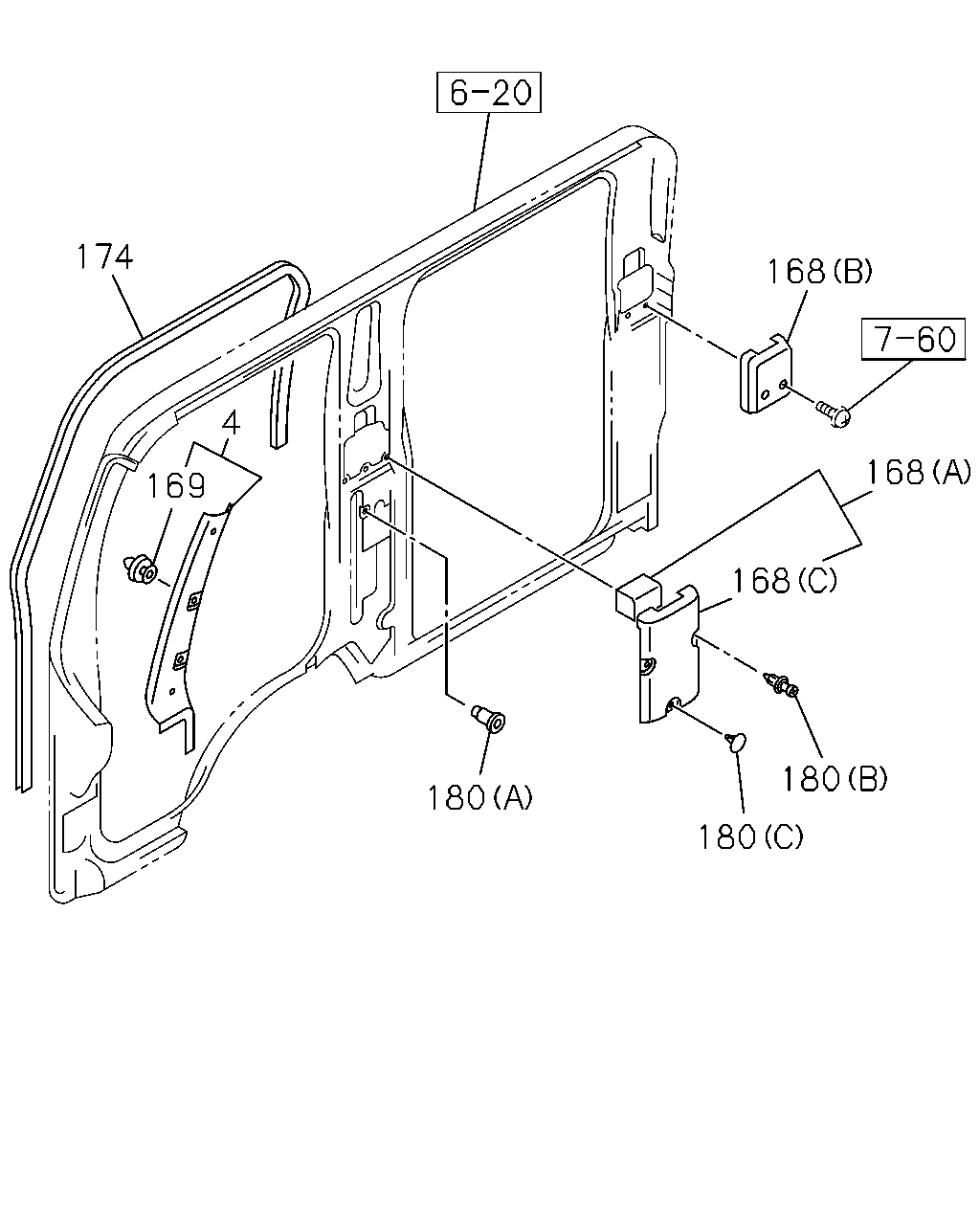

6-43 — SIDE TRIM
(#56711) — 13 parça
174
168
4
168
169
168
180
180
180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
COVER; TRIM,FRT SIDE
DARK GRAY
8-97407-416-1
01
1
0906-
4
COVER; TRIM,FRT SIDE
DARK GRAY
8-97407-415-1
01
1
0906-
168
COVER; SEAT BELT RETRACTOR
(A) GRAY
8-97405-191-2
01
1
0906-
168
COVER; SEAT BELT RETRACTOR
(B) GRAY
8-97405-192-3
02
1
0906-
168
COVER; SEAT BELT RETRACTOR
(C) GRAY
8-97413-008-1
01
1
0906-
169
CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK
8-94279-974-1
04
1
0906-
174
FINISHER; BODY SIDE
DARK GRAY
8-97407-357-2
01
1
0906-0912
174
FINISHER; BODY SIDE
8-98154-668-0
01
1
1001-
174
FINISHER; BODY SIDE
DARK GRAY
8-97407-356-2
01
1
0906-0912
174
FINISHER; BODY SIDE
8-98154-667-0
01
1
1001-
180
FASTENER; COVER
(A)
8-97319-495-0
02
1
0906-
180
FASTENER; COVER
(B) GRAY
8-97405-246-0
04
1
0906-
180
FASTENER; COVER
(C) GRAY
8-97405-247-0
02
1
0906-
