Isuzu WW
▶
TRUCKS
▶
FSR
▶
11237 - FSR-R(EU)EU5 EXC.SPA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-35 - FRONT DOOR TRIM
▶

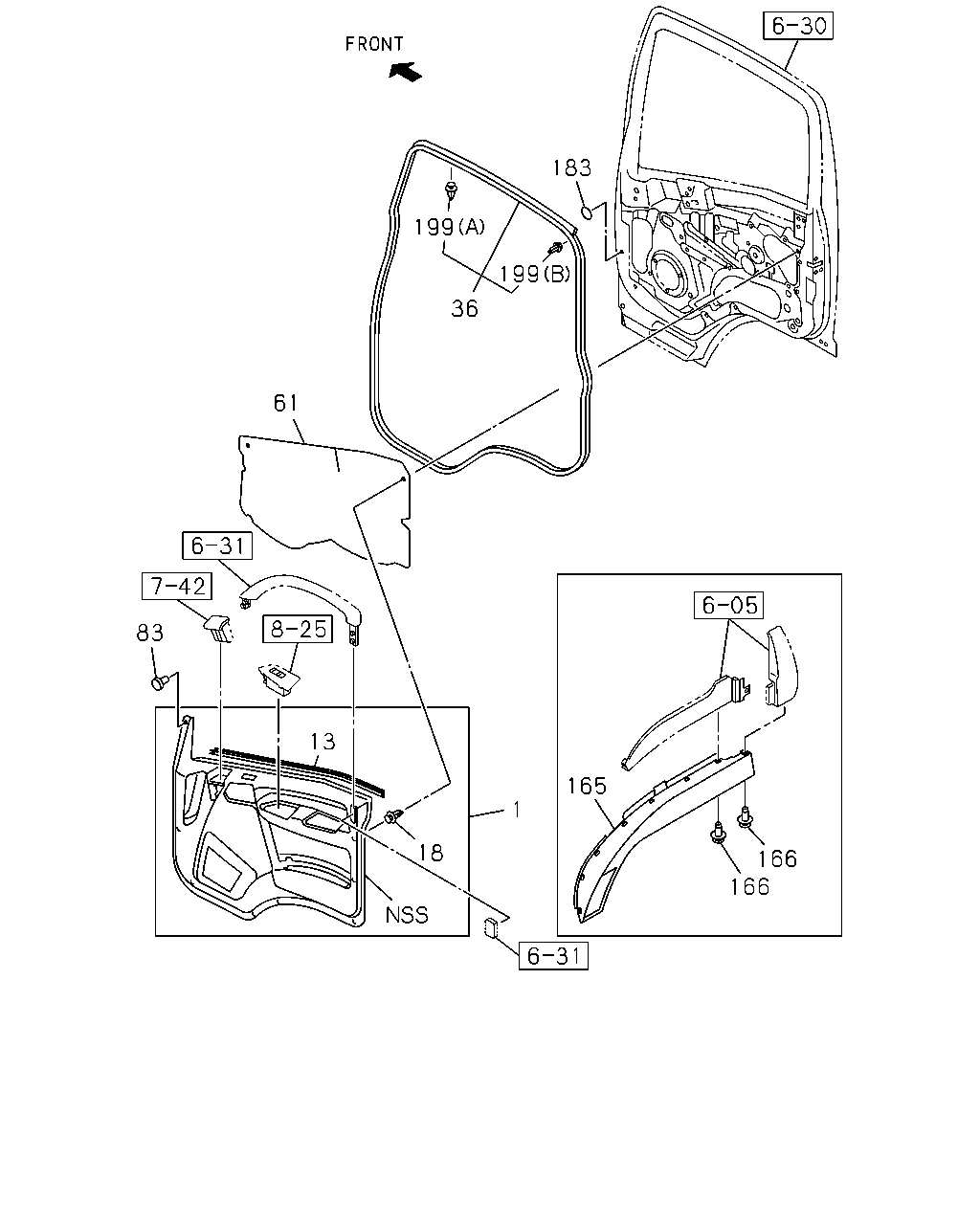

6-35 — FRONT DOOR TRIM
(#56710) — 21 parça
183
199
199
36
61
83
13
165
1
18
166
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,FRT DOOR
GRAY
8-97405-306-6
01
1
0906-
1
PAD; TRIM,FRT DOOR
GRAY
8-97405-304-6
01
1
0906-
13
SEAL; DOOR TRIM
8-98029-202-1
01
1
0906-
13
SEAL; DOOR TRIM
8-98029-201-1
01
1
0906-
18
CLIP; DOOR PAD
8-98004-025-0
14
1
0906-
36
SEAL; DOOR,MAIN,CAB SIDE
8-98029-199-3
01
1
0906-
36
SEAL; DOOR,MAIN,CAB SIDE
8-98029-198-3
01
1
0906-1009
36
SEAL; DOOR,MAIN,CAB SIDE
8-98077-429-0
01
1
1010-
61
SEAL; WATER,DOOR PAD
8-98029-395-2
01
1
0906-
61
SEAL; WATER,DOOR PAD
8-98029-394-2
01
1
0906-
83
CLIP; DOOR TRIM
GRAY
8-97405-308-0
02
1
0906-
165
LINER; DOOR LWR
8-97584-591-0
01
1
0906-
165
LINER; DOOR LWR
8-97584-590-0
01
1
0906-
166
PLUG; HOLE
D8X13.5
1-09987-248-1
08
1
0906-
183
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
02
1
0906-
199
CLIP; SEAL
(A) NATURAL
8-98062-270-0
40
1
0906-1009
199
CLIP; SEAL
(A) NATURAL
8-98062-270-0
40
1
0906-1009
199
CLIP; SEAL
(A) NATURAL
8-98062-270-0
80
1
1010-
199
CLIP; SEAL
(B) RED
8-98062-271-0
01
1
0906-1009
199
CLIP; SEAL
(B) RED
8-98062-271-0
01
1
0906-1009
199
CLIP; SEAL
(B) RED
8-98062-271-0
02
1
1010-
