6-20 — SIDE PANEL AND STEP (#56706) — 100 parça

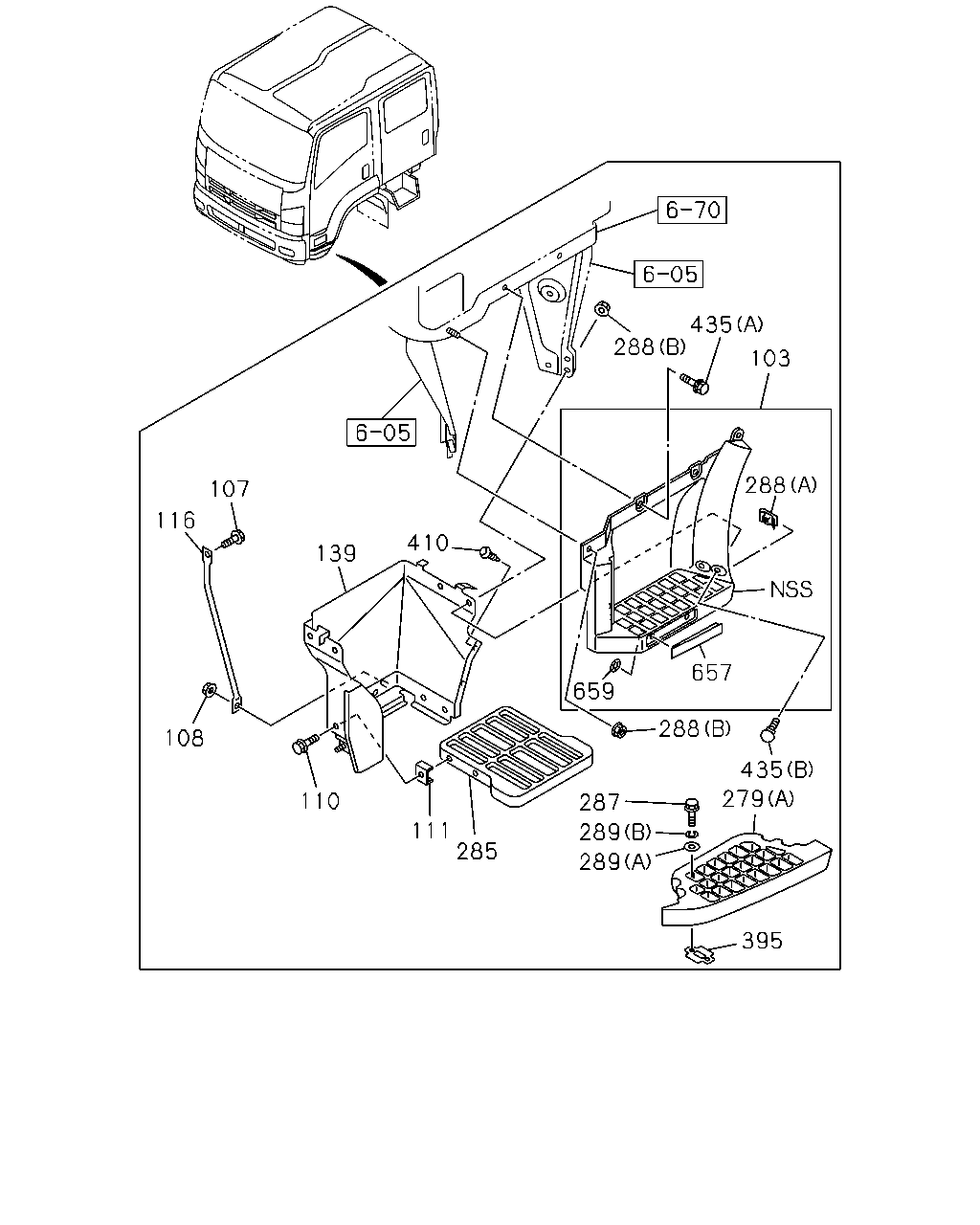

çizim 165461
435 288 103 288 107 116 410 139 657 659 288 108 435 279 110 287 111 285 289 289 395
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98037-329-3 01 1 0906-
103 PLATE; STEP 8-98037-327-3 01 1 0906-
107 BOLT; SIDE STEP
M8X20 FLANGE 		0-28650-820-0 02 1 0906-
108 NUT; SIDE STEP
M8 FLANGE 		0-91180-108-0 02 1 0906-
110 BOLT; 1ST STEP PLATE
M8X16 FLANGE 		0-28050-816-0 10 1 0906-
111 COVER; 1ST STEP 1-71998-153-0 10 1 0906-
116 STAY; 1ST STEP,FRT 8-98080-640-0 01 1 0906-
116 STAY; 1ST STEP,FRT 8-98080-639-0 01 1 0906-
139 CLOSING; 1ST STEP 8-98080-636-0 01 1 0906-
139 CLOSING; 1ST STEP 8-98080-635-0 01 1 0906-
279 BOARD; STEP 1ST
(A) 		8-98080-628-0 01 1 0906-
279 BOARD; STEP 1ST
(B) 		8-98115-499-0 01 1 0906-
279 BOARD; STEP 1ST
(A) 		8-98080-627-0 01 1 0906-
279 BOARD; STEP 1ST
(B) 		8-98115-501-0 01 1 0906-
285 PLATE; STEP,1ST STEP 1-71998-312-2 02 1 0906-
287 BOLT; BOARD STEP 8-98112-671-0 08 1 0906-1006
287 BOLT; BOARD STEP 8-98165-009-0 08 1 1007-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 0906-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0906-
289 WASHER; PL,STEP
(A) 		8-98112-672-1 08 1 0906-
289 WASHER; PL,STEP
(B) 		8-98112-673-1 08 1 0906-
395 BRACKET; SIDE STEP 8-98080-646-1 04 1 0906-
410 CLIP; COVER,STEP PLATE
OD=12 L=14.8 		8-94279-921-0 06 1 0906-
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0906-0907
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0906-
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 0906-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0906-

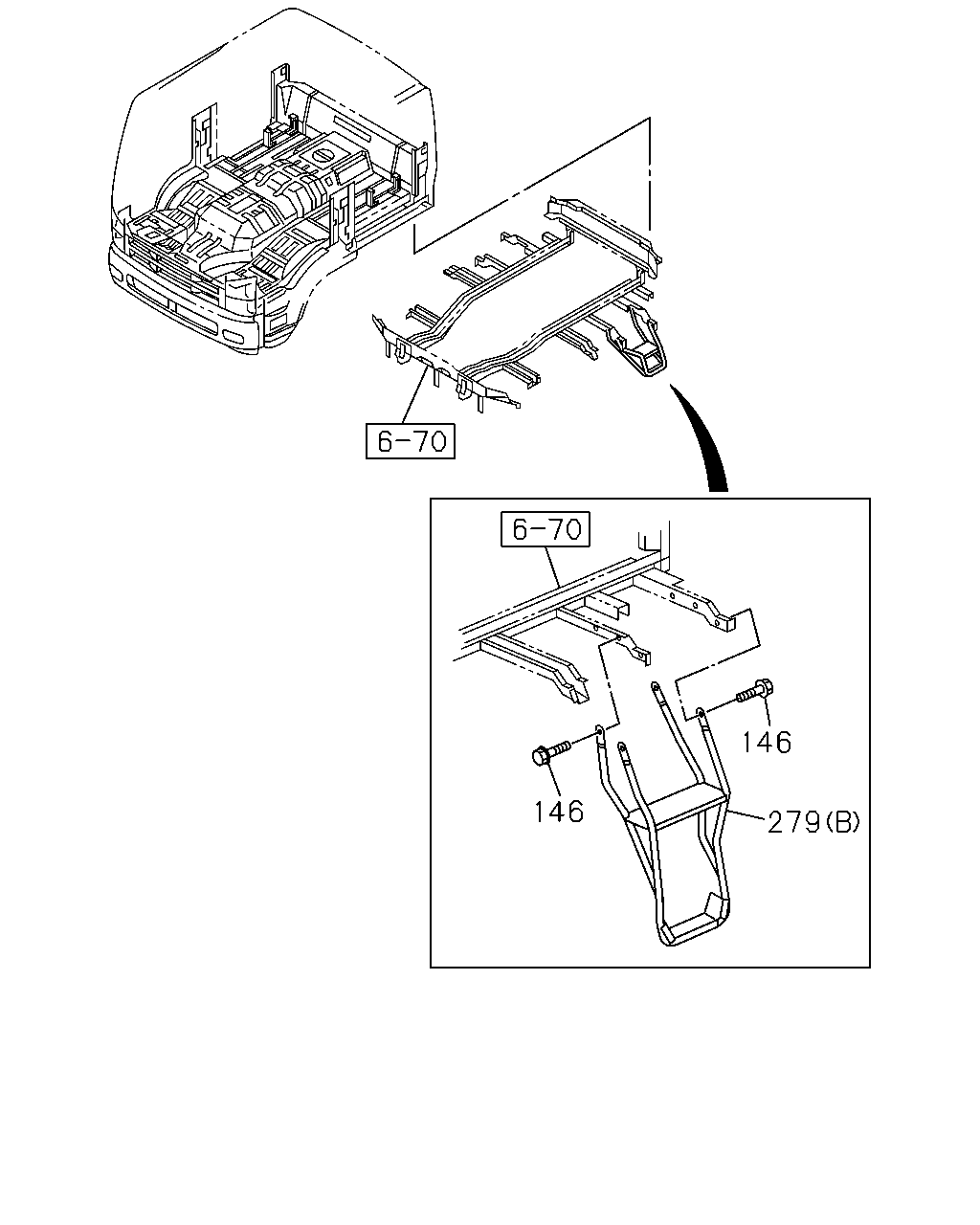

çizim 165463
146 146 279
BalonParca AdiParca NoAdetTipApplied Date
146 BOLT; STEP BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 0906-
279 BOARD; STEP 1ST
(A) 		8-98080-628-0 01 1 0906-
279 BOARD; STEP 1ST
(B) 		8-98115-499-0 01 1 0906-
279 BOARD; STEP 1ST
(A) 		8-98080-627-0 01 1 0906-
279 BOARD; STEP 1ST
(B) 		8-98115-501-0 01 1 0906-

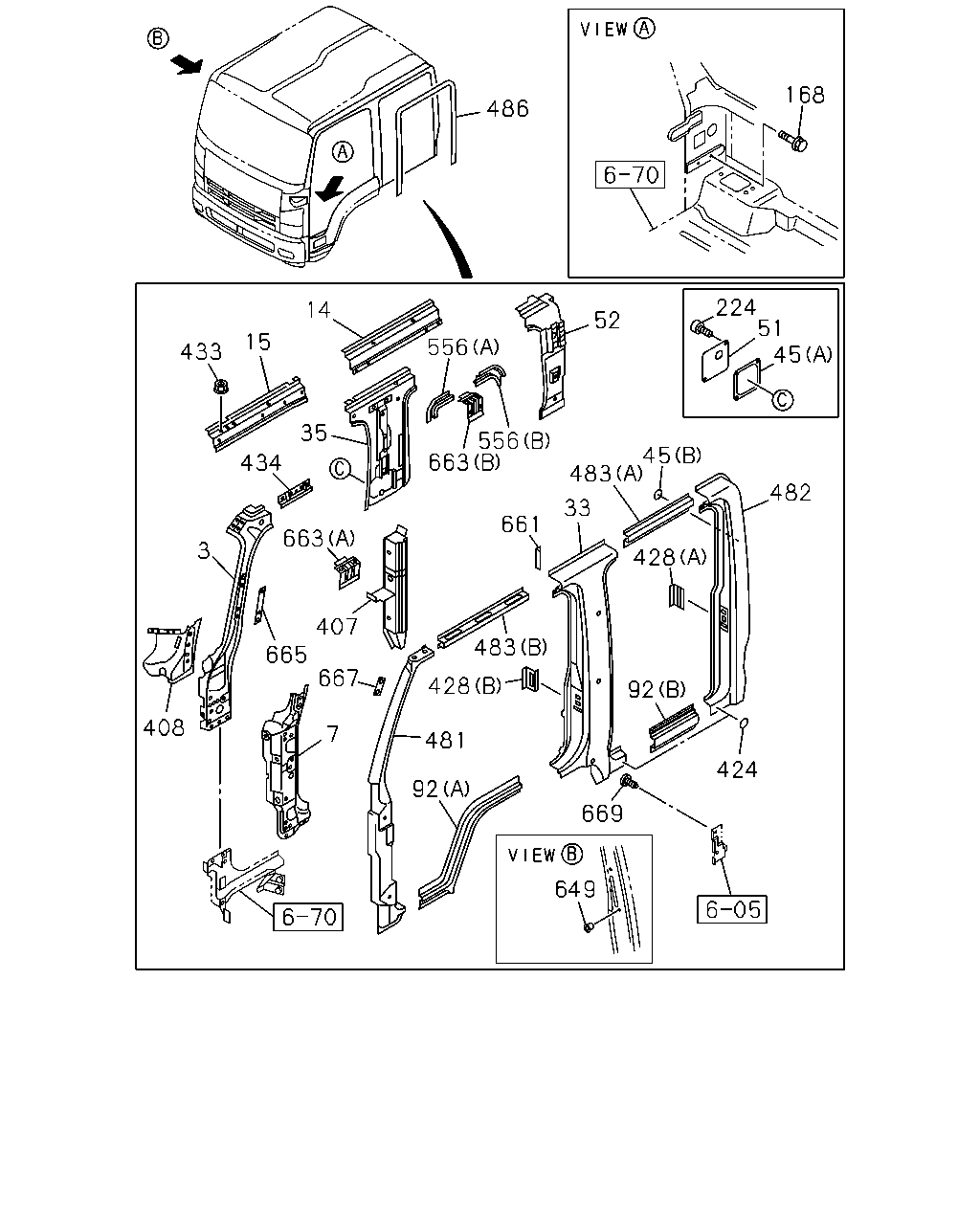

çizim 165478
168 486 224 51 45 14 52 15 556 433 35 556 663 45 434 483 482 33 661 663 3 428 407 665 483 667 428 92 408 7 481 424 92 669 649
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0906-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0906-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0906-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 0906-
14 PANEL; REINF,SIDE DRIP 8-97583-706-2 02 1 0906-1004
14 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 1005-
14 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 1005-
15 PANEL; CANT RAIL SIDE 8-97583-740-1 01 1 0906-
15 PANEL; CANT RAIL SIDE 8-97583-739-1 01 1 0906-
33 PANEL; CENTER PILLAR,OUTER 8-98069-091-0 01 1 0906-
33 PANEL; CENTER PILLAR,OUTER 8-98097-244-0 01 1 0906-
35 PANEL; CENTER PILLAR,INNER 8-98080-456-2 01 1 0906-
35 PANEL; CENTER PILLAR,INNER 8-98080-457-2 01 1 0906-
45 SEAL; B-C POST
(A) 		8-97853-731-2 02 1 0906-
45 SEAL; B-C POST
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BO DY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0906-
45 SEAL; B-C POST
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0906-
51 COVER; HOLE,B-C POST 8-94273-658-0 02 1 0906-
52 PANEL; D-POST UPR 8-98062-006-1 01 1 0906-
52 PANEL; D-POST UPR 8-98062-005-1 01 1 0906-
92 PANEL; SIDE SILL,CAB
(B) 		8-98069-113-0 02 1 0906-
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 0906-
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 0906-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0906-
224 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0906-
407 PILLAR; HINGE,RR DOOR 8-97410-824-2 01 1 0906-
407 PILLAR; HINGE,RR DOOR 8-97410-822-2 01 1 0906-
408 GUSSET; PILLAR 8-97586-194-2 01 1 0906-
408 GUSSET; PILLAR 8-97586-193-3 01 1 0906-
424 SEAL; CLOSING
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BO DY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0906-
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0906-
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97851-446-1 01 1 0906-
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-549-0 01 1 0906-
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97851-445-1 01 1 0906-
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-548-0 01 1 0906-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 0906-1004
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1005-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1005-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0906-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0906-
481 PANEL; SIDE FRT PILLAR 8-98092-915-0 01 1 0906-
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0906-
482 PANEL; SIDE RR PILLAR 8-98097-238-0 01 1 0906-
482 PANEL; SIDE RR PILLAR 8-98097-237-0 01 1 0906-
483 PANEL; SIDE CANTRAIL
(A) 		8-98069-095-0 02 1 0906-
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 0906-
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 0906-
486 SEAL; BODY SIDE
DARK GRAY 		8-97405-303-2 02 1 0906-0912
486 SEAL; BODY SIDE 8-98154-664-0 02 1 1001-
556 PATCH; ROOF SIDE
(A) 		8-98024-391-0 01 1 0906-
556 PATCH; ROOF SIDE
(B) 		8-98024-393-0 01 1 0906-
556 PATCH; ROOF SIDE
(A) 		8-98024-390-0 01 1 0906-
556 PATCH; ROOF SIDE
(B) 		8-98024-392-0 01 1 0906-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0906-
661 BRACKET; SIDE PANEL 8-98012-623-1 01 1 0906-
661 BRACKET; SIDE PANEL 8-98012-621-1 01 1 0906-
663 BRACKET; AIR
(B) 		8-98020-643-1 02 1 0906-1004
663 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1005-
663 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1005-
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 0906-
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 0906-
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 0906-1004
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1005-
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1005-
667 BRACKET; MIRROR 8-98109-948-0 01 1 0906-
669 STUD; FENDER
M6X12 		8-98013-112-0 02 1 0906-1004
669 STUD; FENDER
M6X12 		8-98013-112-0 01 1 1005-
669 STUD; FENDER
M6X12 		8-98013-112-0 01 1 1005-
