11237 - FSR-R(EU)EU5 EXC.SPA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

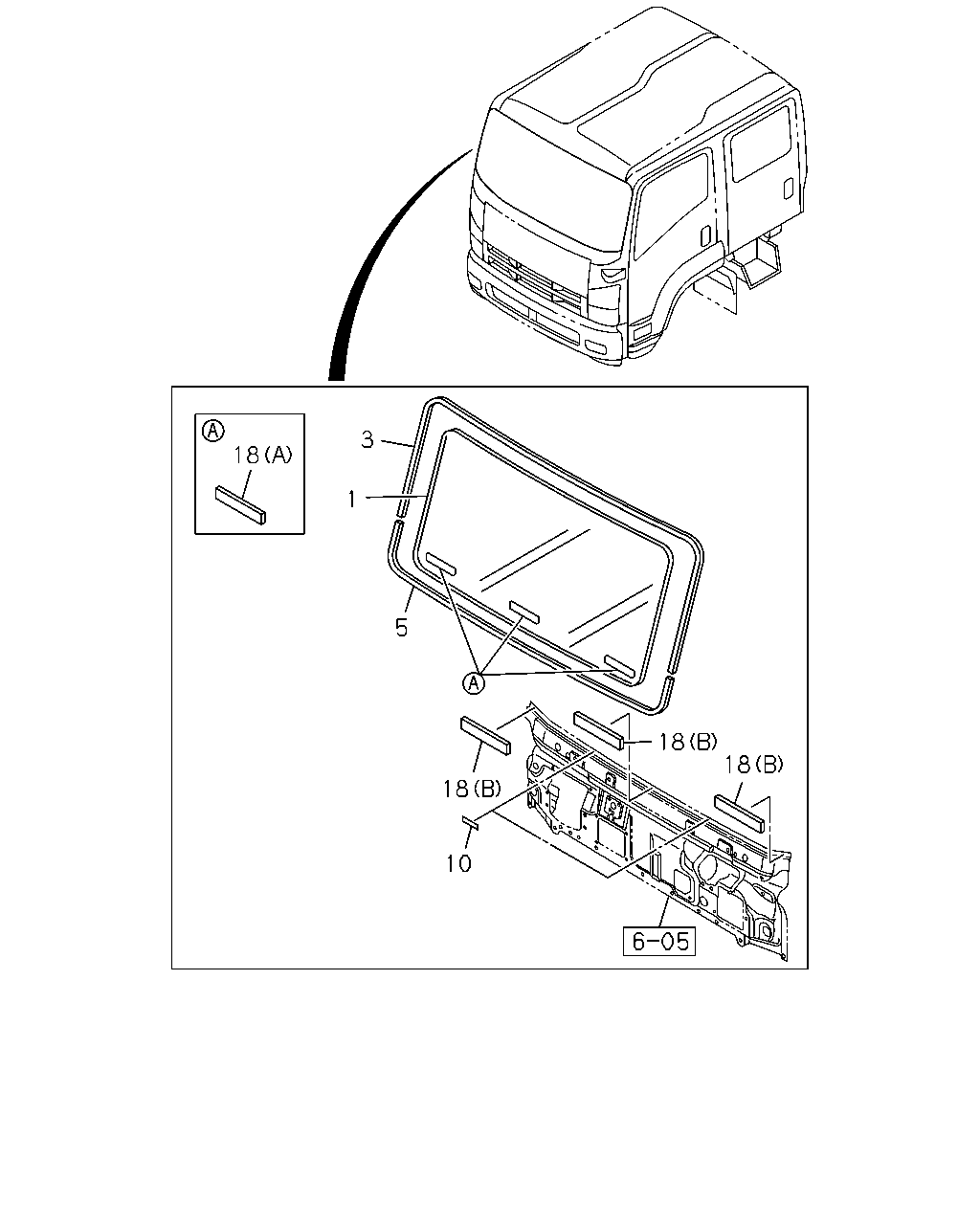

6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP
▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP
(#56705) — 11 parça
3
18
1
5
18
18
18
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; WINDSHIELD
8-98041-646-3
01
1
0906-
3
MOLDING; WINDSHIELD
8-98041-650-3
01
1
0906-
5
MOLDING; WINDSHIELD,LWR
8-98041-653-2
01
1
0906-1209
5
MOLDING; WINDSHIELD,LWR
8-98222-158-0
01
1
1210-
10
SPACER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> L=100 B=1.5
8-98095-044-0
02
1
0906-1008
18
SEAL; WINDSHIELD
KD PREPARATORY PACK VAR.4<7TV> (A) L=100 B=8
8-98029-086-1
10
1
0906-1008
18
SEAL; WINDSHIELD
KD PREPARATORY PACK VAR.4<7TV> (B) L=100 B=10
8-98083-198-1
10
1
0906-1008
18
SEAL; WINDSHIELD
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) L=100 B=8
8-98029-086-1
06
1
0906-1008
18
SEAL; WINDSHIELD
(A) L=100 B=8
8-98029-086-1
06
1
1009-
18
SEAL; WINDSHIELD
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) L=100 B=10
8-98083-198-1
06
1
0906-1008
18
SEAL; WINDSHIELD
(B) L=100 B=10
8-98083-198-1
06
1
1009-
