6-03 — RADIATOR GRILLE (#56702) — 80 parça

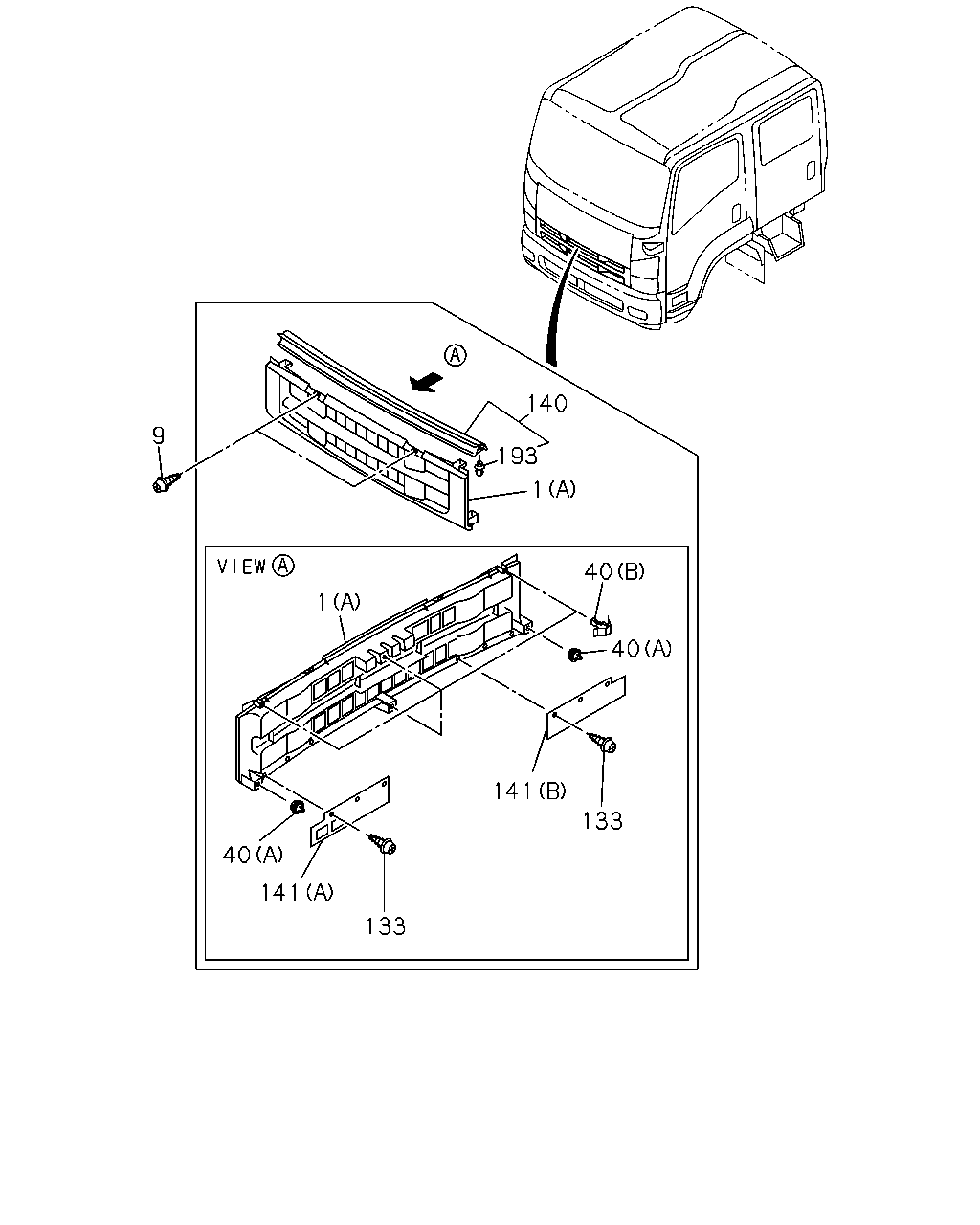

1 140 9 193 40 40 141 133 40 141 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GRILLE; RAD BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY	8-97413-918-5	01	1	0906-
1	GRILLE; RAD BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97407-867-5	01	1	0906-
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-380-5	01	1	0906-
1	GRILLE; RAD BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-927-5	01	1	0906-
1	GRILLE; RAD BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-383-5	01	1	0906-
1	GRILLE; RAD BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97413-926-5	01	1	0906-
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97411-384-5	01	1	0906-
1	GRILLE; RAD BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN	8-97413-933-5	01	1	0906-
1	GRILLE; RAD BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE	8-97413-931-5	01	1	0906-
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-930-5	01	1	0906-
1	GRILLE; RAD BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97417-984-5	01	1	0906-
1	GRILLE; RAD BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-919-5	01	1	0906-
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE	8-97411-381-5	01	1	0906-
1	GRILLE; RAD BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97411-385-5	01	1	0906-
1	GRILLE; RAD BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97413-929-5	01	1	0906-
1	GRILLE; RAD BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN	8-97413-928-5	01	1	0906-
1	GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE	8-98046-505-7	01	1	0906-
1	GRILLE; RAD EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY	8-98040-994-5	01	1	0906-
9	SCREW; RAD GRILLE M5X16 TAPPING W/PL WASHER	0-74160-516-0	02	1	0906-
40	CLIP; RAD GRILLE BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	0906-
40	CLIP; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	0906-
40	CLIP; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	0906-
40	CLIP; RAD GRILLE BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	0906-
40	CLIP; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	0906-
40	CLIP; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	0906-
133	SCREW; COVER BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	0906-
133	SCREW; COVER EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	0906-
133	SCREW; COVER BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	0906-
140	SEAL; RAD GRILLE BRIGHT RAD GRILLE<V22>	8-98060-339-0	01	1	0906-
140	SEAL; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22>	8-98060-339-0	01	1	0906-
140	SEAL; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>	8-98060-339-0	01	1	0906-
141	COVER; RAD GRILLE BRIGHT RAD GRILLE<V22> (B)	8-98041-012-1	01	1	0906-
141	COVER; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B)	8-98041-012-1	01	1	0906-
141	COVER; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B)	8-98041-012-1	01	1	0906-
141	COVER; RAD GRILLE BRIGHT RAD GRILLE<V22> (A)	8-98060-783-0	01	1	0906-
141	COVER; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A)	8-98060-783-0	01	1	0906-
141	COVER; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A)	8-98060-783-0	01	1	0906-
193	CLIP; SEAL BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	0906-
193	CLIP; SEAL EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	0906-
193	CLIP; SEAL BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	0906-

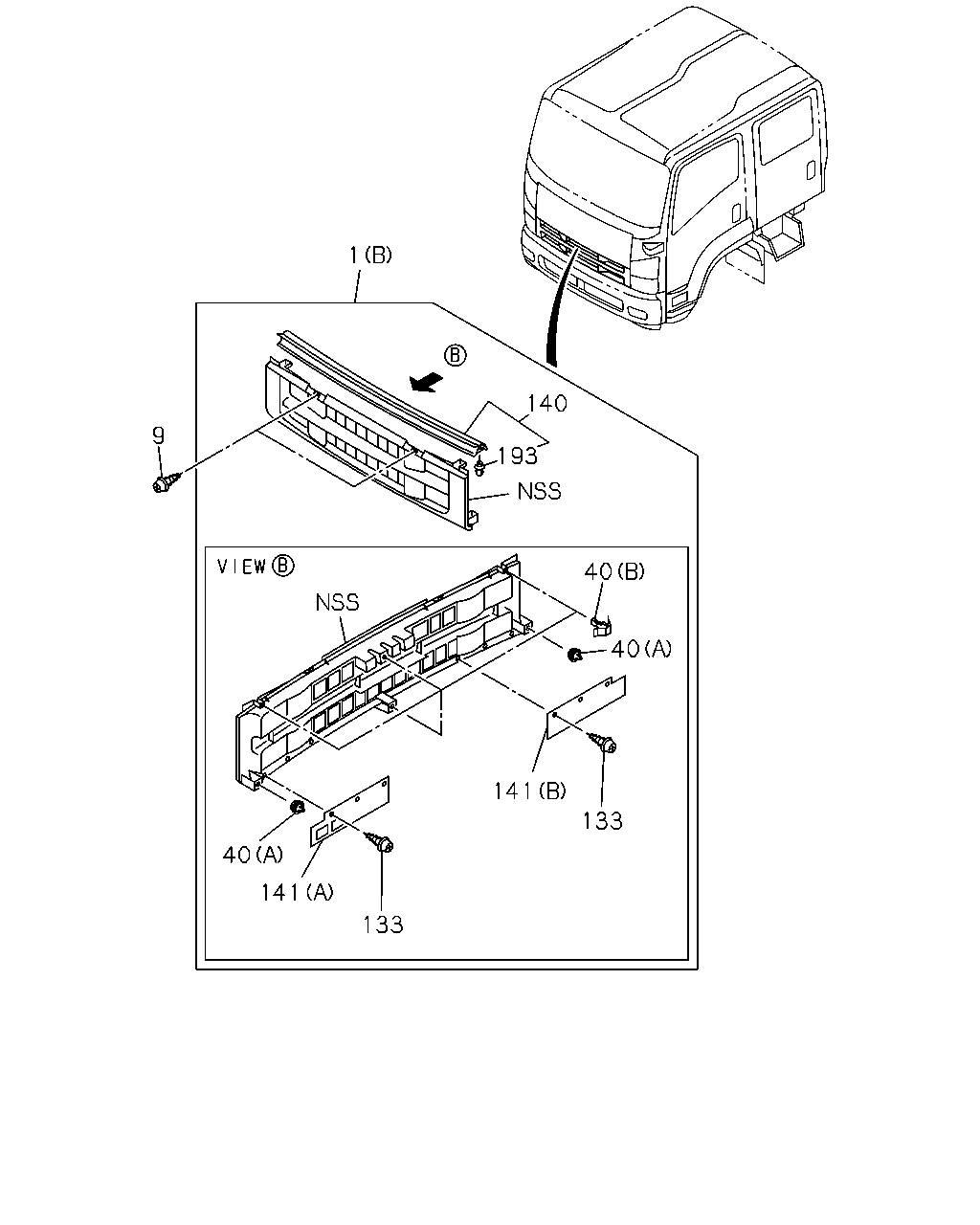

140 9 193 1 40 1 40 141 133 40 141 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GRILLE; RAD BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY	8-97413-918-5	01	1	0906-
1	GRILLE; RAD BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97407-867-5	01	1	0906-
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-380-5	01	1	0906-
1	GRILLE; RAD BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-927-5	01	1	0906-
1	GRILLE; RAD BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-383-5	01	1	0906-
1	GRILLE; RAD BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97413-926-5	01	1	0906-
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97411-384-5	01	1	0906-
1	GRILLE; RAD BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN	8-97413-933-5	01	1	0906-
1	GRILLE; RAD BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE	8-97413-931-5	01	1	0906-
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-930-5	01	1	0906-
1	GRILLE; RAD BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97417-984-5	01	1	0906-
1	GRILLE; RAD BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-919-5	01	1	0906-
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE	8-97411-381-5	01	1	0906-
1	GRILLE; RAD BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97411-385-5	01	1	0906-
1	GRILLE; RAD BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97413-929-5	01	1	0906-
1	GRILLE; RAD BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN	8-97413-928-5	01	1	0906-
1	GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE	8-98046-505-7	01	1	0906-
1	GRILLE; RAD EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY	8-98040-994-5	01	1	0906-
9	SCREW; RAD GRILLE M5X16 TAPPING W/PL WASHER	0-74160-516-0	02	1	0906-
40	CLIP; RAD GRILLE BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	0906-
40	CLIP; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	0906-
40	CLIP; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A)	8-97581-651-2	02	1	0906-
40	CLIP; RAD GRILLE BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	0906-
40	CLIP; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	0906-
40	CLIP; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B)	8-98025-698-0	04	1	0906-
133	SCREW; COVER BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	0906-
133	SCREW; COVER EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	0906-
133	SCREW; COVER BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	06	1	0906-
140	SEAL; RAD GRILLE BRIGHT RAD GRILLE<V22>	8-98060-339-0	01	1	0906-
140	SEAL; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22>	8-98060-339-0	01	1	0906-
140	SEAL; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>	8-98060-339-0	01	1	0906-
141	COVER; RAD GRILLE BRIGHT RAD GRILLE<V22> (B)	8-98041-012-1	01	1	0906-
141	COVER; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B)	8-98041-012-1	01	1	0906-
141	COVER; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B)	8-98041-012-1	01	1	0906-
141	COVER; RAD GRILLE BRIGHT RAD GRILLE<V22> (A)	8-98060-783-0	01	1	0906-
141	COVER; RAD GRILLE EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A)	8-98060-783-0	01	1	0906-
141	COVER; RAD GRILLE BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A)	8-98060-783-0	01	1	0906-
193	CLIP; SEAL BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	0906-
193	CLIP; SEAL EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	0906-
193	CLIP; SEAL BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> NATURAL	8-98027-457-0	13	1	0906-
