11237 - FSR-R(EU)EU5 EXC.SPA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

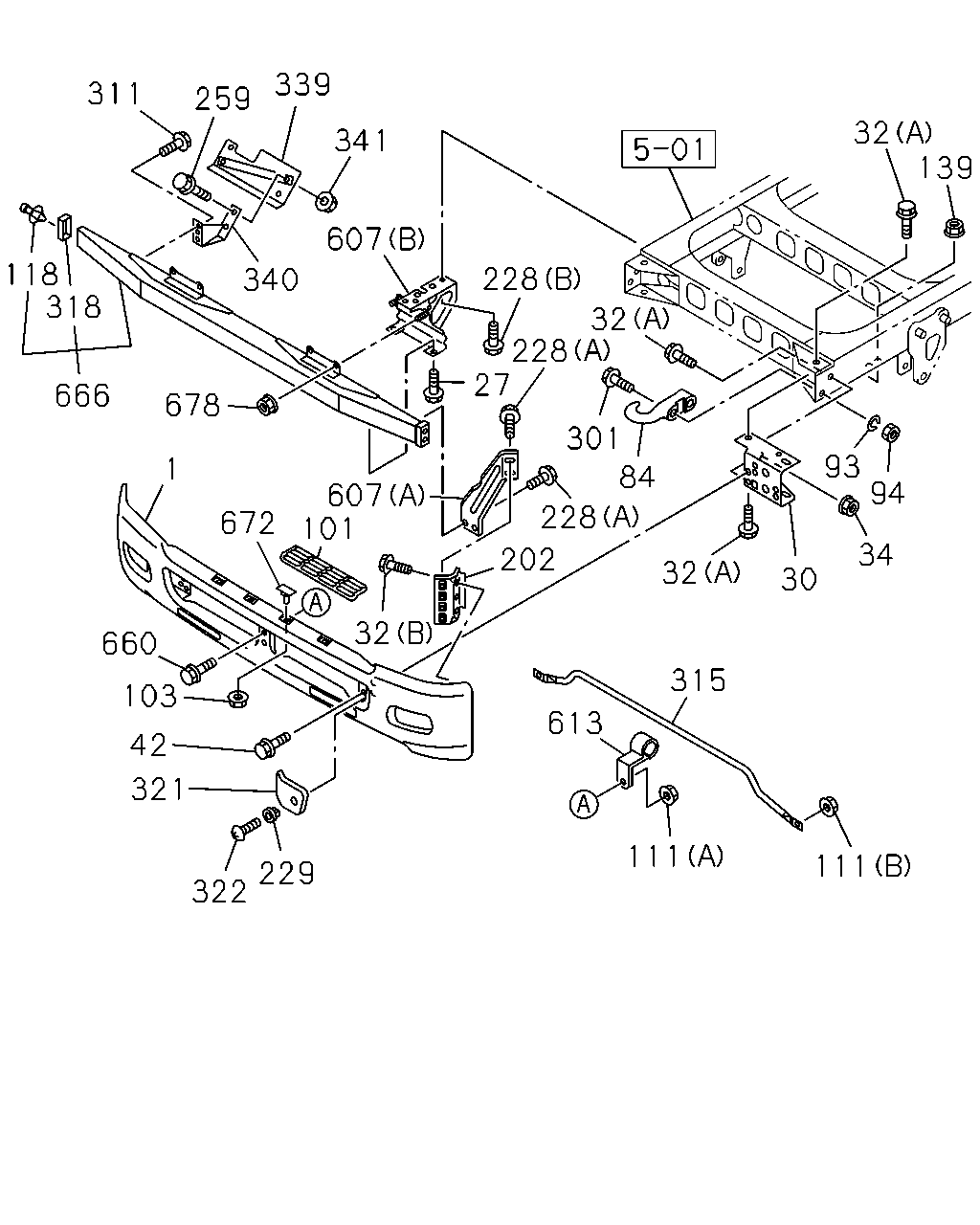

6-01 — FRONT BUMPER
(#56701) — 47 parça
311
259
339
341
607
340
118
666
318
678
1
672
101
202
32
228
301
84
228
27
228
32
93
34
94
32
139
315
111
111
613
229
322
321
42
103
660
607
32
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
WHITE
8-97412-930-0
01
1
0906-1301
1
BUMPER ASM; FRT
WHITE
8-97425-907-0
01
1
1302-
27
BOLT; BUMPER TO BACK BAR
M12X30 FLANGE
0-28051-230-0
04
1
0906-1009
27
BOLT; BUMPER TO BACK BAR
M12X35 FLANGE
0-28651-235-0
04
1
1010-
30
BRACKET; FRT BUMPER
8-97611-518-4
01
1
0906-
30
BRACKET; FRT BUMPER
8-97611-517-5
01
1
0906-
32
BOLT; BRKT,BUMPER
(B) M6X12 FLANGE
0-28050-612-0
06
1
0906-
32
BOLT; BRKT,BUMPER
(A) M10X35 FLANGE
0-28651-035-0
06
1
0906-
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91180-210-0
02
1
0906-
42
BOLT; BUMPER
M10X30
8-94324-205-0
06
1
0906-
84
HOOK
1-57181-003-5
01
1
0906-
93
WASHER; LK,HOOK
ID=14.2
0-91510-814-0
02
1
0906-
94
NUT; HOOK
M14
0-91110-514-0
02
1
0906-
101
STEP; BUMPER
8-97611-541-0
01
1
0906-
101
STEP; BUMPER
8-97611-540-0
01
1
0906-
103
NUT; BUMPER STEP
M6 FLANGE
0-91180-106-0
04
1
0906-
111
NUT; STAY
(A) M6 FLANGE
0-91180-106-0
01
1
0906-
111
NUT; STAY
(B) M8 FLANGE
0-91180-108-0
02
1
0906-
118
RETAINER; BUMPER SIDE
8-98232-279-0
04
1
1212-
139
NUT; BRKT FIX
M14 FLANGE
0-91180-214-0
04
1
0906-
202
BRACKET; BUMPER SIDE
8-97620-619-0
02
1
0906-
228
BOLT; BRKT
(A) M10X25 FLANGE
0-28651-025-0
08
1
0906-1009
228
BOLT; BRKT
(B) M14X45 FLANGE
0-28851-445-0
06
1
0906-
229
GROMMET
D=7X7 L=7.5
5-09983-007-0
02
1
0906-
259
BOLT; COVER
M8X25 FLANGE
0-28650-825-0
04
1
0906-
301
BOLT; HOOK TO FRAME
M14X60
0-10861-460-0
02
1
0906-
311
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
08
1
1010-
311
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
02
1
0906-
315
STAY; BUMPER
8-97611-512-0
01
1
0906-
318
CAP; BUMPER SIDE
8-98232-191-0
02
1
1212-
321
COVER; BUMPER FRT SIDE
8-97616-291-1
01
1
0906-
321
COVER; BUMPER FRT SIDE
8-97616-290-1
01
1
0906-
322
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
0906-
339
COVER; SNOW GUARD
8-98056-519-2
01
1
0906-1402
339
COVER; SNOW GUARD
8-98258-272-0
01
1
1403-
340
BRACKET; SNOW GUARD
8-98056-522-1
01
1
0906-1312
340
BRACKET; SNOW GUARD
8-98258-222-0
01
1
1401-
341
NUT; COVER
M8 FLANGE
0-91180-108-0
02
1
0906-
607
BRACKET
(A)
8-97620-616-0
01
1
0906-
607
BRACKET
(B)
8-98045-836-3
01
1
0906-
607
BRACKET
(A)
8-97620-615-0
01
1
0906-
607
BRACKET
(B)
8-98045-835-4
01
1
0906-
613
CLIP
8-97623-589-0
01
1
0906-
660
BOLT; STAY
M6X16 W/LK&PL WASHER
0-50640-616-0
01
1
0906-
666
PROTECTOR; UNDER
8-98045-817-1
01
1
0906-
672
STUD; STEP
M6X20
8-97611-666-0
04
1
0906-
678
NUT; BUMPER TO BACK BAR
M12 FLANGE
0-91180-212-0
04
1
0906-
