Sayfa 0-30 - Isuzu EPC

0-30 — WATER PUMP AND CORROSION RESISTOR (#5670) — 221 parça

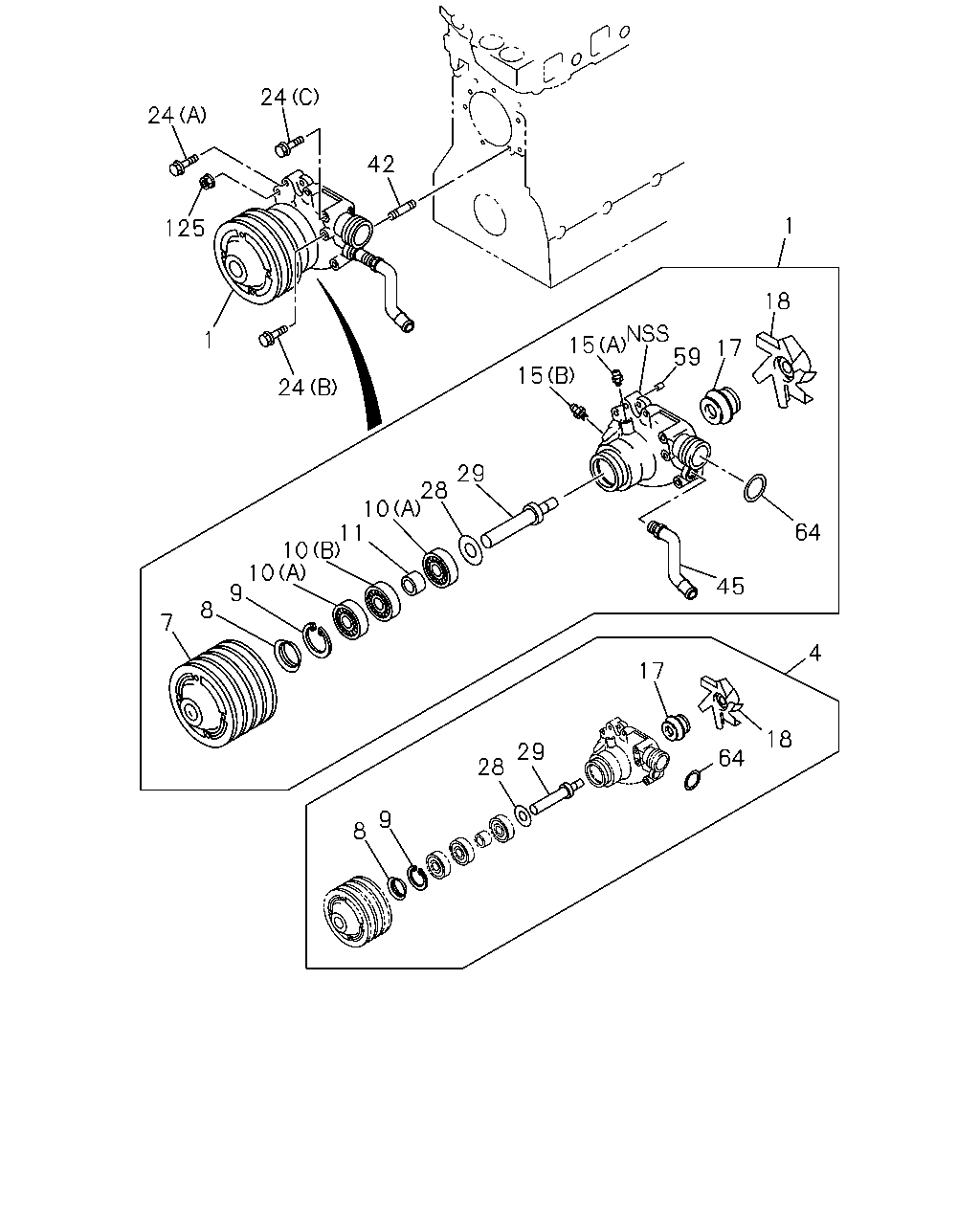

24 24 42 1 125 18 59 1 15 17 15 24 29 28 10 11 10 10 9 64 45 8 7 4 17 18 29 64 28 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; WATER,W/GASKET	8-94391-059-2	01	1	9811-9906	●
1	PUMP ASM; WATER,W/GASKET	8-94391-670-5	01	1	9907-0301		●
1	PUMP ASM; WATER,W/GASKET	8-97602-776-0	01	1	0302-0610		●
1	PUMP ASM; WATER,W/GASKET	8-98042-848-2	01	1	0611-			●	●
4	REPAIR KIT; WATER PUMP	1-87811-318-0	01	1	9811-9906	●
4	REPAIR KIT; WATER PUMP	1-87811-897-0	01	1	9907-9912		●
4	REPAIR KIT; WATER PUMP	1-87812-040-0	01	1	0001-0610		●
4	REPAIR KIT; WATER PUMP	1-87812-040-1	01	1	0611-			●	●
7	PULLEY; WATER PUMP 4-GROOVE	8-94394-927-0	01	1	9811-9906	●
7	PULLEY; WATER PUMP 4-GROOVE	8-94394-927-0	01	1	9907-0610		●
7	PULLEY; WATER PUMP	8-97616-657-0	01	1	0611-			●	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	9811-9906	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	9907-0610		●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	0611-			●	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9811-9906	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9907-0610		●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0611-			●	●
10	BEARING; WATER PUMP (A)	8-94391-298-0	02	1	9811-9906	●
10	BEARING; WATER PUMP (A)	8-94391-298-0	02	1	9907-0610		●
10	BEARING; WATER PUMP (A)	8-94391-298-0	02	1	0611-			●	●
10	BEARING; WATER PUMP (B)	8-94391-299-0	01	1	9811-9906	●
10	BEARING; WATER PUMP (B)	8-94391-299-0	01	1	9907-0610		●
10	BEARING; WATER PUMP (B)	8-94391-299-0	01	1	0611-			●	●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	9811-9906	●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	9907-0610		●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	0611-			●	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	9811-9906	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	9907-0610		●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0611-			●	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9811-9906	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9907-0512		●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-0610		●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	0-90301-410-0	01	1	0611-			●	●
17	SEAL UNIT; WATER PUMP	8-94395-036-0	01	1	9811-9906	●
17	SEAL UNIT; WATER PUMP	8-94395-036-0	01	1	9907-9912		●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0001-0610		●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0611-			●	●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	9811-9906	●
18	IMPELLER; WATER PUMP	8-94392-922-0	01	1	9907-0610		●
18	IMPELLER; WATER PUMP	8-94392-922-0	01	1	0611-			●	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	9811-9906	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	9907-0512		●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28050-880-0	01	1	0601-0610		●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28050-880-0	01	1	0611-			●	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	9811-9906	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	9907-0610		●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	0611-			●	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	9811-9906	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	9907-0610		●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	0611-			●	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	9811-9906	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	9907-0610		●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	0611-			●	●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	9811-9906	●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	9907-0610		●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	0611-			●	●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	9811-9906	●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	9907-0604		●
42	STUD; WATER PUMP M8X30 L=46	0-40110-830-0	01	1	0605-0610		●
42	STUD; WATER PUMP M8X30 L=46	0-40110-830-0	01	1	0611-			●	●
45	JOINT; HTR HOSE,WATER PUMP	8-94394-389-0	01	1	9811-9906	●
45	JOINT; HTR HOSE,WATER PUMP	8-94394-389-0	01	1	9907-0610		●
45	JOINT; HTR HOSE,WATER PUMP	8-94396-180-0	01	1	0611-			●	●
59	DOWEL; WATER PUMP OD=12 L=9	1-13119-003-0	02	1	9811-9906	●
59	DOWEL; WATER PUMP OD=12 L=9	1-13119-003-0	02	1	9907-0610		●
59	DOWEL; WATER PUMP OD=12 L=9	1-13119-003-0	02	1	0611-			●	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	9811-9906	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	9907-0610		●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	0611-			●	●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	9811-9906	●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	9907-0602		●
125	NUT; WATER PUMP M8 FLANGE	0-91180-108-0	04	1	0603-0610		●
125	NUT; WATER PUMP M8 FLANGE	0-91180-108-0	04	1	0611-			●	●

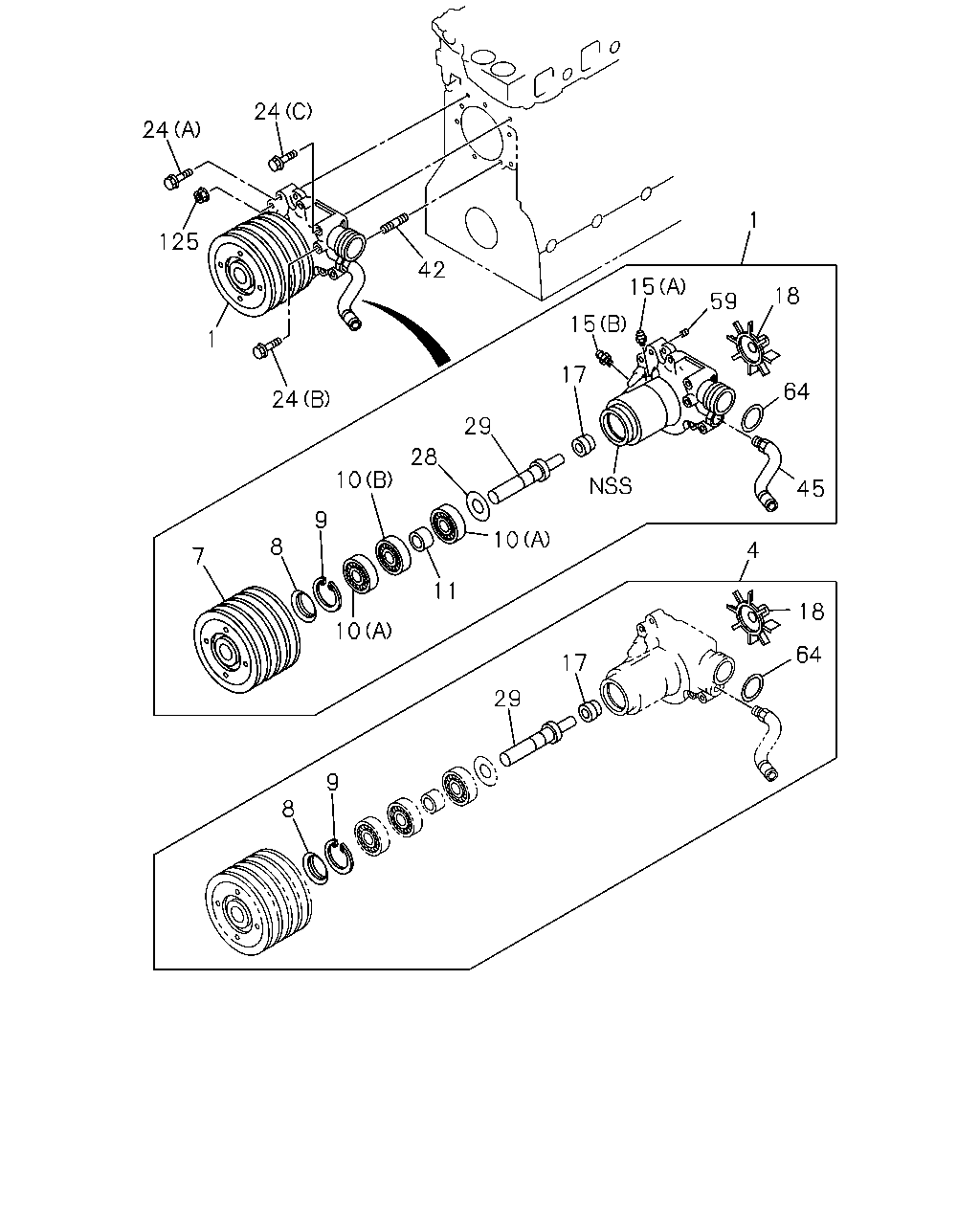

24 24 1 125 42 1 18 59 15 1 17 64 24 29 28 10 45 9 10 8 4 7 11 18 10 64 17 29 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; WATER,W/GASKET	8-94391-059-2	01	1	9811-9906	●
1	PUMP ASM; WATER,W/GASKET	8-94391-670-5	01	1	9907-0301		●
1	PUMP ASM; WATER,W/GASKET	8-97602-776-0	01	1	0302-0610		●
1	PUMP ASM; WATER,W/GASKET	8-98042-848-2	01	1	0611-			●	●
4	REPAIR KIT; WATER PUMP	1-87811-318-0	01	1	9811-9906	●
4	REPAIR KIT; WATER PUMP	1-87811-897-0	01	1	9907-9912		●
4	REPAIR KIT; WATER PUMP	1-87812-040-0	01	1	0001-0610		●
4	REPAIR KIT; WATER PUMP	1-87812-040-1	01	1	0611-			●	●
7	PULLEY; WATER PUMP 4-GROOVE	8-94394-927-0	01	1	9811-9906	●
7	PULLEY; WATER PUMP 4-GROOVE	8-94394-927-0	01	1	9907-0610		●
7	PULLEY; WATER PUMP	8-97616-657-0	01	1	0611-			●	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	9811-9906	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	9907-0610		●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	0611-			●	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9811-9906	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9907-0610		●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0611-			●	●
10	BEARING; WATER PUMP (A)	8-94391-298-0	02	1	9811-9906	●
10	BEARING; WATER PUMP (A)	8-94391-298-0	02	1	9907-0610		●
10	BEARING; WATER PUMP (A)	8-94391-298-0	02	1	0611-			●	●
10	BEARING; WATER PUMP (B)	8-94391-299-0	01	1	9811-9906	●
10	BEARING; WATER PUMP (B)	8-94391-299-0	01	1	9907-0610		●
10	BEARING; WATER PUMP (B)	8-94391-299-0	01	1	0611-			●	●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	9811-9906	●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	9907-0610		●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	0611-			●	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	9811-9906	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	9907-0610		●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0611-			●	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9811-9906	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9907-0512		●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-0610		●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	0-90301-410-0	01	1	0611-			●	●
17	SEAL UNIT; WATER PUMP	8-94395-036-0	01	1	9811-9906	●
17	SEAL UNIT; WATER PUMP	8-94395-036-0	01	1	9907-9912		●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0001-0610		●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0611-			●	●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	9811-9906	●
18	IMPELLER; WATER PUMP	8-94392-922-0	01	1	9907-0610		●
18	IMPELLER; WATER PUMP	8-94392-922-0	01	1	0611-			●	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	9811-9906	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	9907-0512		●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28050-880-0	01	1	0601-0610		●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28050-880-0	01	1	0611-			●	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	9811-9906	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	9907-0610		●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	0611-			●	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	9811-9906	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	9907-0610		●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	0611-			●	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	9811-9906	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	9907-0610		●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	0611-			●	●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	9811-9906	●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	9907-0610		●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	0611-			●	●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	9811-9906	●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	9907-0604		●
42	STUD; WATER PUMP M8X30 L=46	0-40110-830-0	01	1	0605-0610		●
42	STUD; WATER PUMP M8X30 L=46	0-40110-830-0	01	1	0611-			●	●
45	JOINT; HTR HOSE,WATER PUMP	8-94394-389-0	01	1	9811-9906	●
45	JOINT; HTR HOSE,WATER PUMP	8-94394-389-0	01	1	9907-0610		●
45	JOINT; HTR HOSE,WATER PUMP	8-94396-180-0	01	1	0611-			●	●
59	DOWEL; WATER PUMP OD=12 L=9	1-13119-003-0	02	1	9811-9906	●
59	DOWEL; WATER PUMP OD=12 L=9	1-13119-003-0	02	1	9907-0610		●
59	DOWEL; WATER PUMP OD=12 L=9	1-13119-003-0	02	1	0611-			●	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	9811-9906	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	9907-0610		●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	0611-			●	●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	9811-9906	●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	9907-0602		●
125	NUT; WATER PUMP M8 FLANGE	0-91180-108-0	04	1	0603-0610		●
125	NUT; WATER PUMP M8 FLANGE	0-91180-108-0	04	1	0611-			●	●

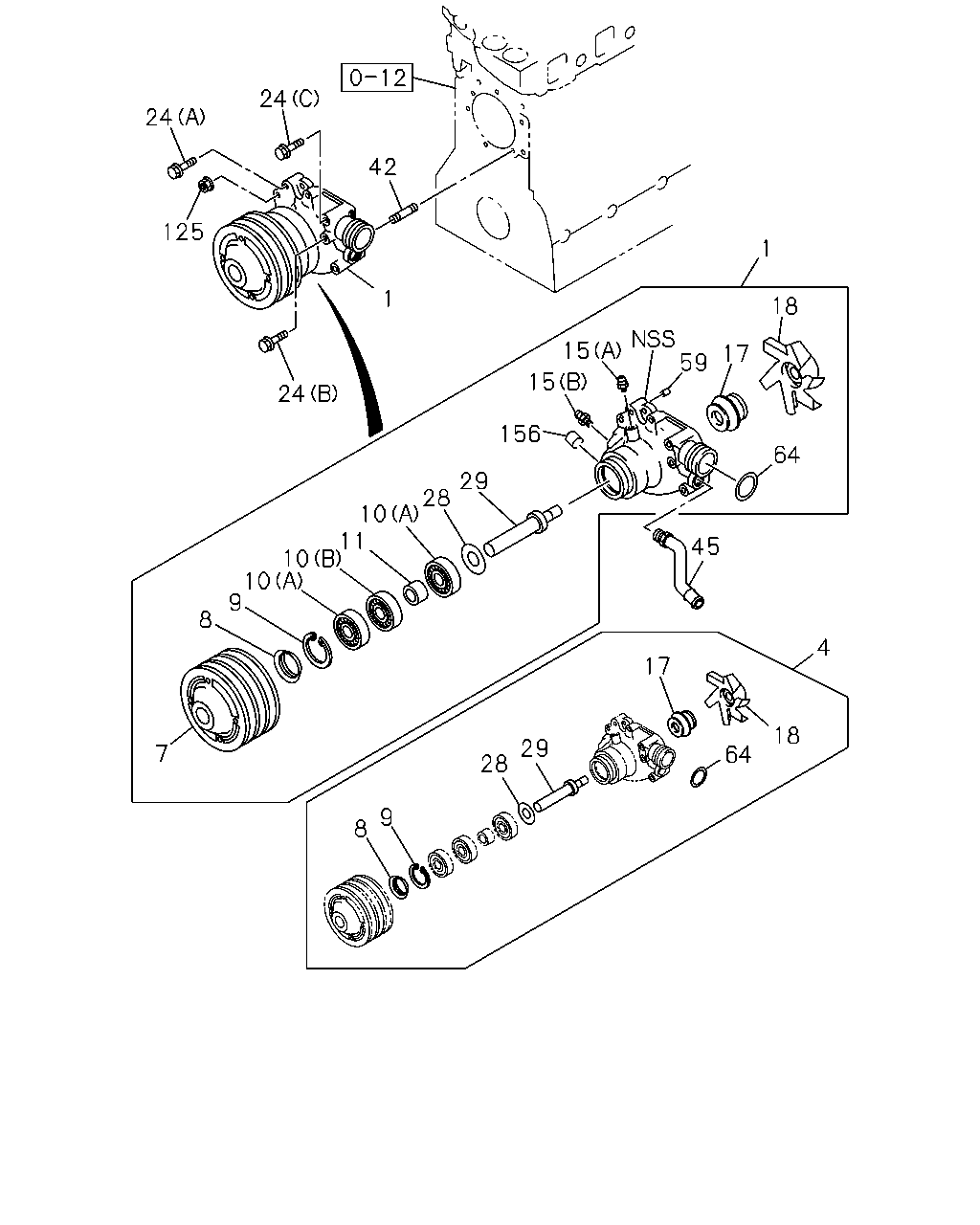

24 24 42 125 1 1 18 59 15 17 15 24 156 64 29 28 10 11 10 10 9 45 8 4 17 18 29 7 64 28 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; WATER,W/GASKET	8-94391-059-2	01	1	9811-9906	●
1	PUMP ASM; WATER,W/GASKET	8-94391-670-5	01	1	9907-0301		●
1	PUMP ASM; WATER,W/GASKET	8-97602-776-0	01	1	0302-0610		●
1	PUMP ASM; WATER,W/GASKET	8-98042-848-2	01	1	0611-			●	●
4	REPAIR KIT; WATER PUMP	1-87811-318-0	01	1	9811-9906	●
4	REPAIR KIT; WATER PUMP	1-87811-897-0	01	1	9907-9912		●
4	REPAIR KIT; WATER PUMP	1-87812-040-0	01	1	0001-0610		●
4	REPAIR KIT; WATER PUMP	1-87812-040-1	01	1	0611-			●	●
7	PULLEY; WATER PUMP 4-GROOVE	8-94394-927-0	01	1	9811-9906	●
7	PULLEY; WATER PUMP 4-GROOVE	8-94394-927-0	01	1	9907-0610		●
7	PULLEY; WATER PUMP	8-97616-657-0	01	1	0611-			●	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	9811-9906	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	9907-0610		●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	0611-			●	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9811-9906	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9907-0610		●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0611-			●	●
10	BEARING; WATER PUMP (A)	8-94391-298-0	02	1	9811-9906	●
10	BEARING; WATER PUMP (A)	8-94391-298-0	02	1	9907-0610		●
10	BEARING; WATER PUMP (A)	8-94391-298-0	02	1	0611-			●	●
10	BEARING; WATER PUMP (B)	8-94391-299-0	01	1	9811-9906	●
10	BEARING; WATER PUMP (B)	8-94391-299-0	01	1	9907-0610		●
10	BEARING; WATER PUMP (B)	8-94391-299-0	01	1	0611-			●	●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	9811-9906	●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	9907-0610		●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	0611-			●	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	9811-9906	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	9907-0610		●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0611-			●	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9811-9906	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9907-0512		●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-0610		●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	0-90301-410-0	01	1	0611-			●	●
17	SEAL UNIT; WATER PUMP	8-94395-036-0	01	1	9811-9906	●
17	SEAL UNIT; WATER PUMP	8-94395-036-0	01	1	9907-9912		●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0001-0610		●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0611-			●	●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	9811-9906	●
18	IMPELLER; WATER PUMP	8-94392-922-0	01	1	9907-0610		●
18	IMPELLER; WATER PUMP	8-94392-922-0	01	1	0611-			●	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	9811-9906	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	9907-0512		●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28050-880-0	01	1	0601-0610		●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28050-880-0	01	1	0611-			●	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	9811-9906	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	9907-0610		●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	0611-			●	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	9811-9906	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	9907-0610		●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	0611-			●	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	9811-9906	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	9907-0610		●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	0611-			●	●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	9811-9906	●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	9907-0610		●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	0611-			●	●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	9811-9906	●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	9907-0604		●
42	STUD; WATER PUMP M8X30 L=46	0-40110-830-0	01	1	0605-0610		●
42	STUD; WATER PUMP M8X30 L=46	0-40110-830-0	01	1	0611-			●	●
45	JOINT; HTR HOSE,WATER PUMP	8-94394-389-0	01	1	9811-9906	●
45	JOINT; HTR HOSE,WATER PUMP	8-94394-389-0	01	1	9907-0610		●
45	JOINT; HTR HOSE,WATER PUMP	8-94396-180-0	01	1	0611-			●	●
59	DOWEL; WATER PUMP OD=12 L=9	1-13119-003-0	02	1	9811-9906	●
59	DOWEL; WATER PUMP OD=12 L=9	1-13119-003-0	02	1	9907-0610		●
59	DOWEL; WATER PUMP OD=12 L=9	1-13119-003-0	02	1	0611-			●	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	9811-9906	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	9907-0610		●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	0611-			●	●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	9811-9906	●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	9907-0602		●
125	NUT; WATER PUMP M8 FLANGE	0-91180-108-0	04	1	0603-0610		●
125	NUT; WATER PUMP M8 FLANGE	0-91180-108-0	04	1	0611-			●	●
156	CUP; SEALING OD=25	1-09600-016-0	01	1	0004-0610		●
156	CUP; SEALING OD=25	1-09600-016-0	01	1	0611-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
