5-20 — BATTERY CARRIER (#56699) — 24 parça

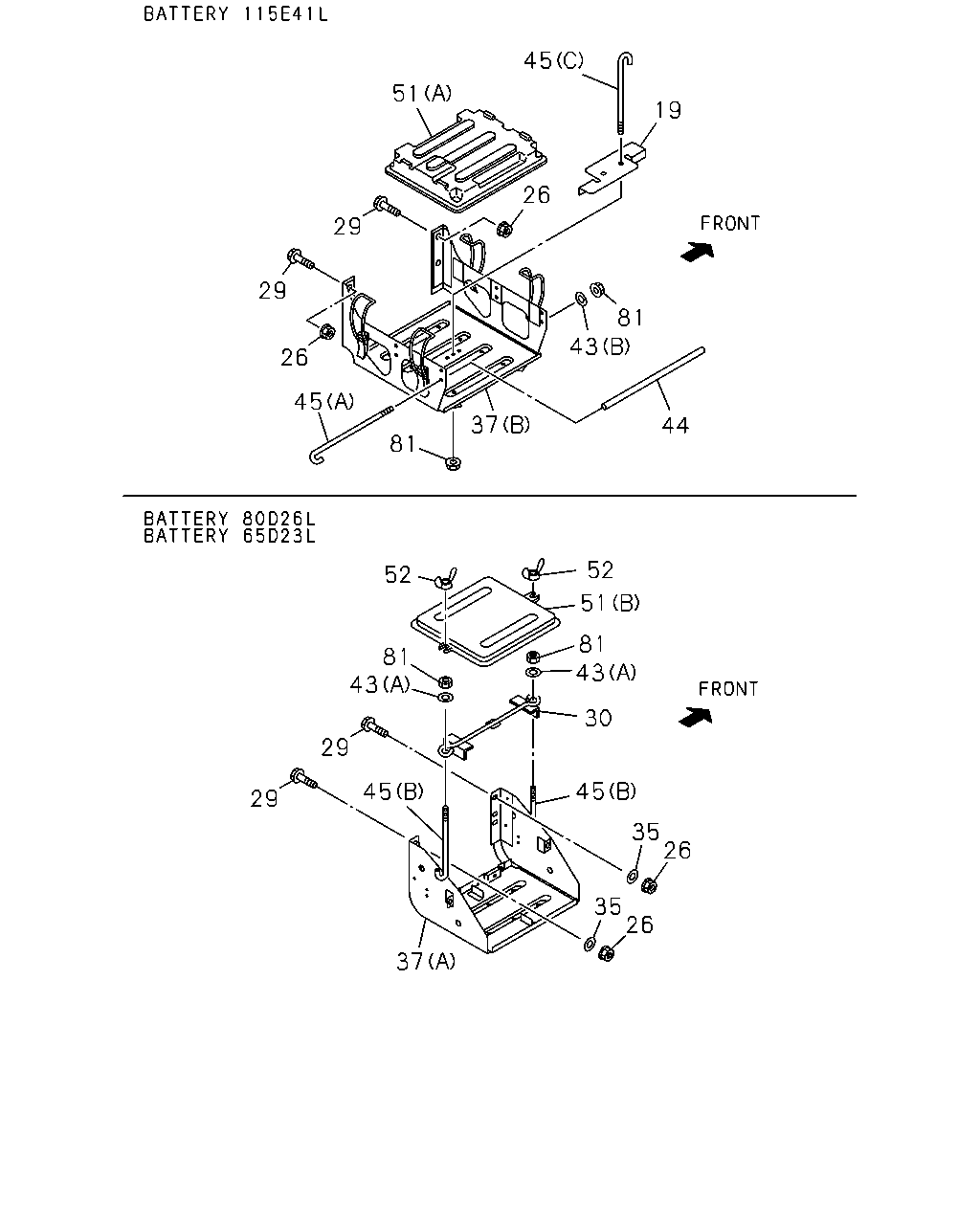

çizim 165436
45 51 19 26 29 29 81 43 26 45 37 44 81 52 52 51 81 43 81 43 30 29 45 45 29 35 26 35 26 37
BalonParca AdiParca NoAdetTipApplied Date
19 STAY; BATTERY
BATTERY 115E41L<8MA> 		8-98120-443-0 01 1 0906-
26 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0906-
29 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 04 1 0906-
30 PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		5-53615-004-1 01 1 0906-
35 WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22 		0-91614-610-0 04 1 0906-
37 BRACKET; BATTERY
BATTERY 115E41L<8MA> (B) 		8-98120-393-0 01 1 0906-
37 BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A) 		8-97384-068-2 01 1 0906-
37 BRACKET; BATTERY
BATTERY 80D26L<TM1> (A) 		8-97384-067-2 01 1 0906-
43 WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16 		0-91610-508-0 01 1 0906-
43 WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22 		0-91614-708-0 02 1 0906-
44 SPACER; BATTERY
BATTERY 115E41L<8MA> 		8-98120-442-0 01 1 0906-
45 ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) 		8-97134-740-0 01 1 0906-
45 ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> EXC. ITALY COUNTRY(CT6) (C) L=250 		1-53616-081-0 02 1 0906-1003
45 ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> EXC. ITALY COUNTRY(CT6) (C) L=250 		1-53616-108-0 02 1 1004-1004
45 ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) 		9-53616-615-0 02 1 0906-
45 ROD; TENSION,BATTERY
ITALY COUNTRY(CT6) BATTERY 115E41L<8MA> (C) 		8-98120-478-0 02 1 0906-1004
45 ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (C) 		8-98120-478-0 02 1 1005-
51 COVER; BATTERY
BATTERY 115E41L<8MA> EXC. ITALY COUNTRY(CT6) (A) 		1-53612-037-2 01 1 0906-1004
51 COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) 		8-97120-747-0 01 1 0906-
51 COVER; BATTERY
ITALY COUNTRY(CT6) BATTERY 115E41L<8MA> (A) 		8-98124-443-0 01 1 0906-1004
51 COVER; BATTERY
BATTERY 115E41L<8MA> (A) 		8-98124-443-0 01 1 1005-
52 NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT 		0-91118-408-0 02 1 0906-
81 NUT; BATTERY
BATTERY 115E41L<8MA> M8 FLANGE 		0-91180-108-0 03 1 0906-
81 NUT; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE 		0-91180-108-0 02 1 0906-
