Isuzu WW
▶
TRUCKS
▶
FSR
▶
11237 - FSR-R(EU)EU5 EXC.SPA
▶
5 - Frame, Cab Mounting
▶
5-17 - CYLINDER; CAB TILT
▶
5-17 — CYLINDER; CAB TILT
(#56698) — 30 parça
◀
[517A] REPAIR KIT RH (2 parça)

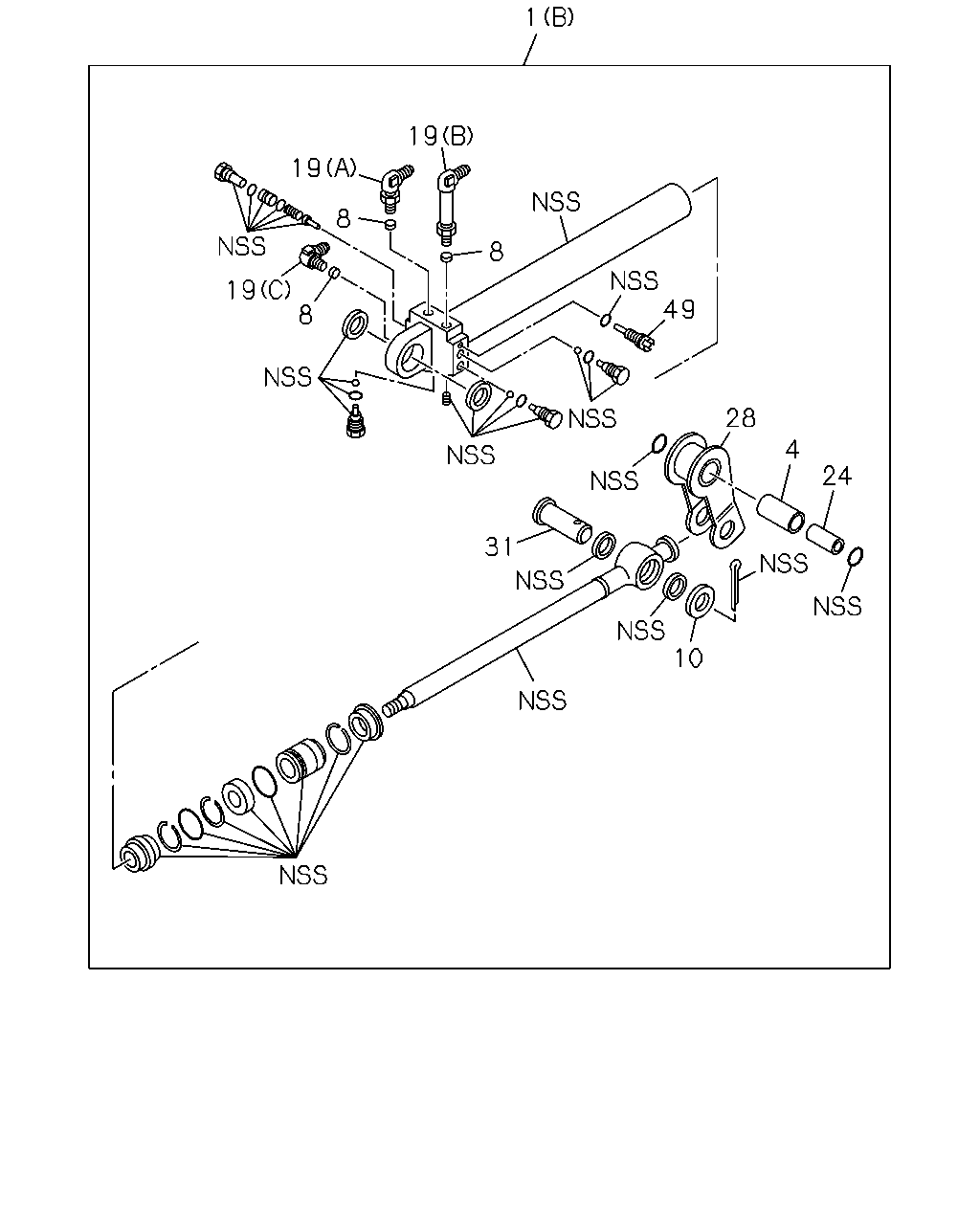

[517A] COMPONENT RH (12 parça)
[517A] COMPONENT LH (12 parça)

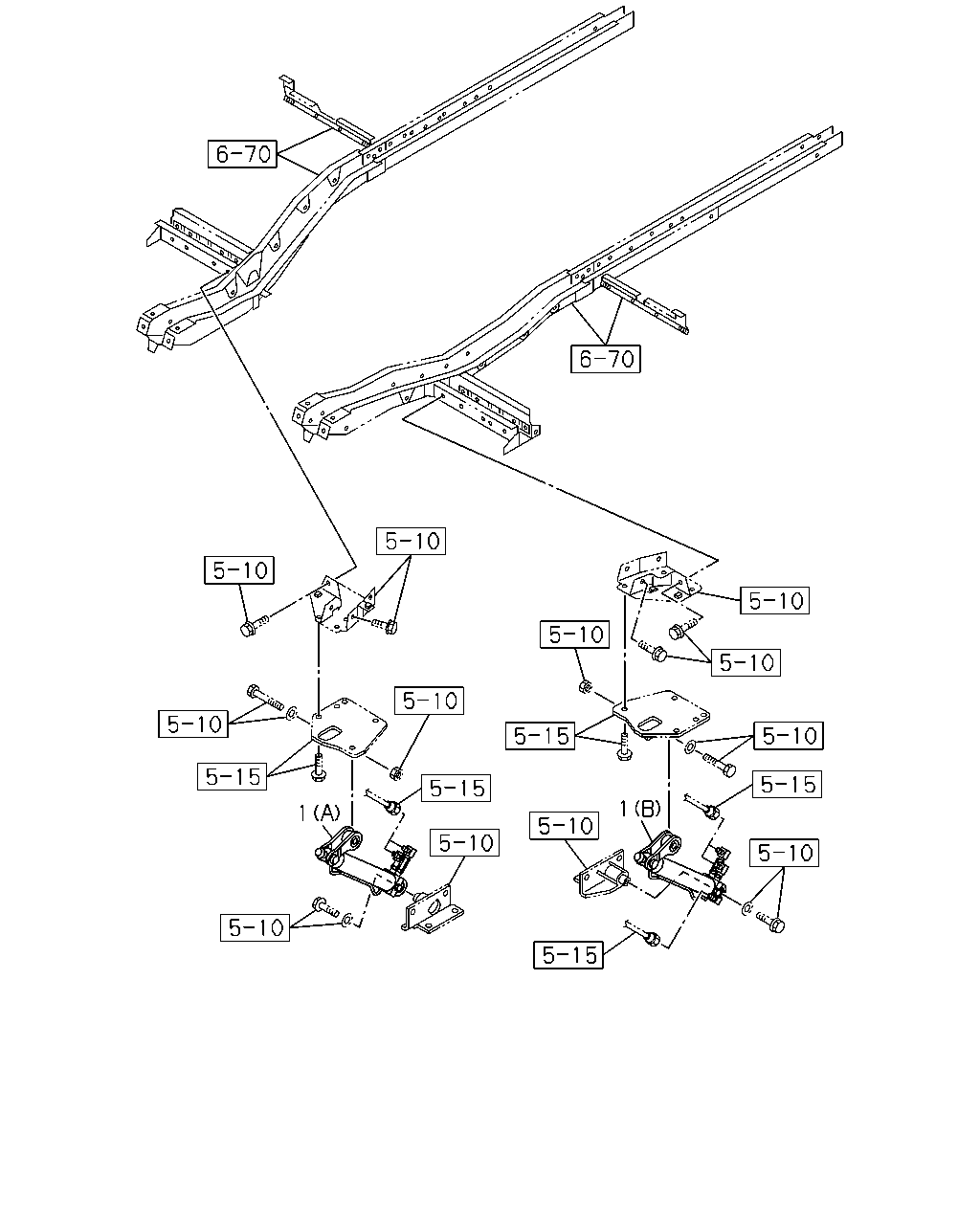

[517A] FIXING (2 parça)
[517A] REPAIR KIT LH (2 parça)
▶
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; OIL CYL
(B)
1-85579-070-0
01
1
0906-
2
REPAIR KIT; OIL CYL
(A)
1-85579-071-0
01
1
0906-
1
19
19
8
8
49
28
4
24
31
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER; OIL,CAB TILT
(B)
8-98037-734-0
01
1
0906-
1
CYLINDER; OIL,CAB TILT
(A)
8-98037-733-0
01
1
0906-
4
BUSHING; OIL CYL
1-53458-405-0
02
1
0906-
8
FILTER; OIL CYL
1-53458-102-0
05
1
0906-
10
WASHER; OIL CYL
1-53458-401-0
02
1
0906-
19
NIPPLE; OIL CYL
(A)
1-53457-221-0
02
1
0906-
19
NIPPLE; OIL CYL
(B)
1-53457-222-0
02
1
0906-
19
NIPPLE; OIL CYL
(C)
1-53457-225-0
01
1
0906-
24
COLLAR; LEVER
1-53458-398-0
02
1
0906-
28
LEVER; OIL CYL
1-53457-223-0
02
1
0906-
31
PIN; OIL CYL
1-53457-224-0
02
1
0906-
49
VALVE; OIL CYL
1-53457-220-0
02
1
0906-
1
19
19
8
8
49
19
8
28
4
24
31
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER; OIL,CAB TILT
(B)
8-98037-734-0
01
1
0906-
1
CYLINDER; OIL,CAB TILT
(A)
8-98037-733-0
01
1
0906-
4
BUSHING; OIL CYL
1-53458-405-0
02
1
0906-
8
FILTER; OIL CYL
1-53458-102-0
05
1
0906-
10
WASHER; OIL CYL
1-53458-401-0
02
1
0906-
19
NIPPLE; OIL CYL
(A)
1-53457-221-0
02
1
0906-
19
NIPPLE; OIL CYL
(B)
1-53457-222-0
02
1
0906-
19
NIPPLE; OIL CYL
(C)
1-53457-225-0
01
1
0906-
24
COLLAR; LEVER
1-53458-398-0
02
1
0906-
28
LEVER; OIL CYL
1-53457-223-0
02
1
0906-
31
PIN; OIL CYL
1-53457-224-0
02
1
0906-
49
VALVE; OIL CYL
1-53457-220-0
02
1
0906-
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER; OIL,CAB TILT
(B)
8-98037-734-0
01
1
0906-
1
CYLINDER; OIL,CAB TILT
(A)
8-98037-733-0
01
1
0906-
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; OIL CYL
(B)
1-85579-070-0
01
1
0906-
2
REPAIR KIT; OIL CYL
(A)
1-85579-071-0
01
1
0906-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
