Isuzu WW
▶
TRUCKS
▶
FSR
▶
11237 - FSR-R(EU)EU5 EXC.SPA
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#56694) — 44 parça
◀

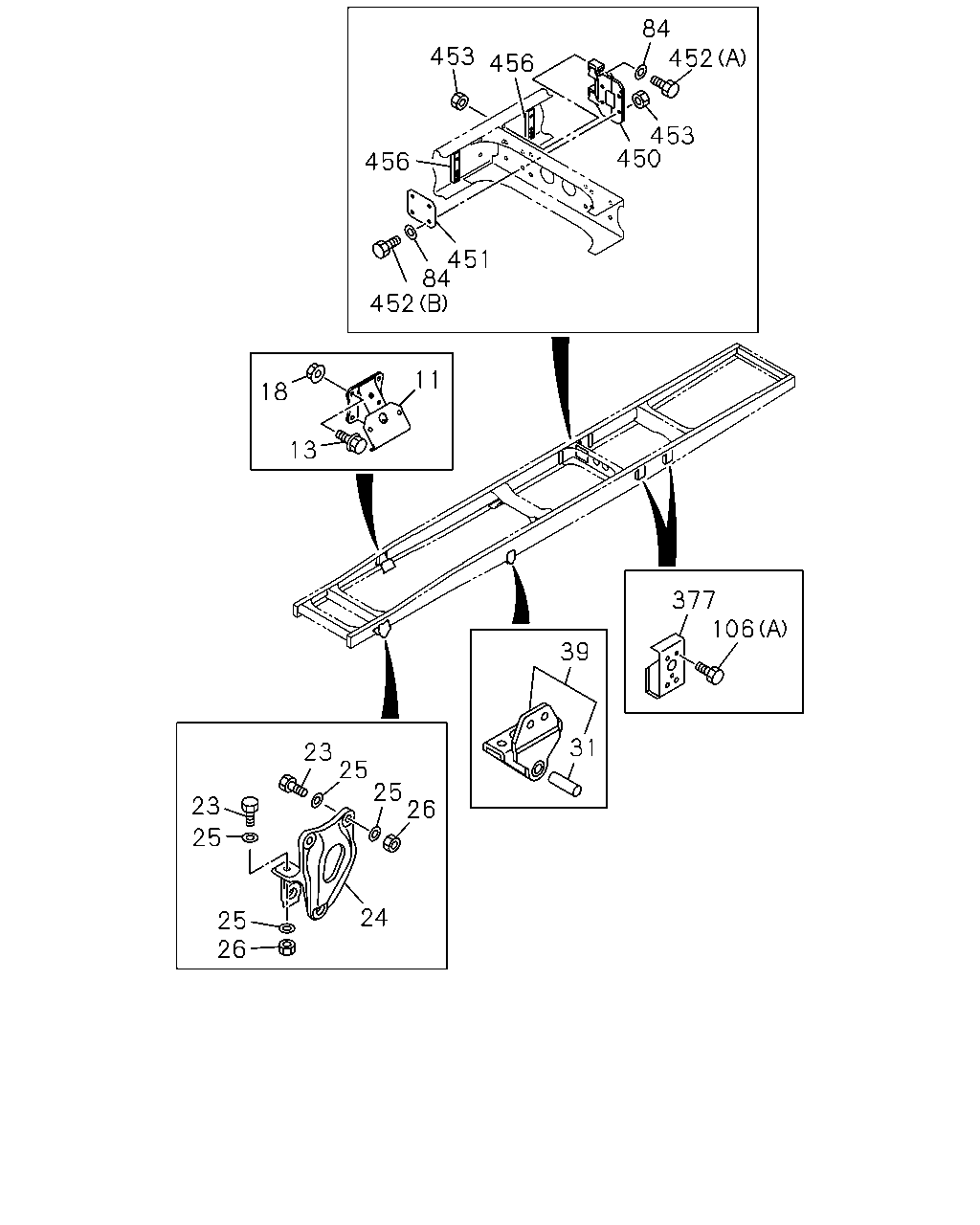

[501A] BRACKET AND OTHER PARTS (21 parça)

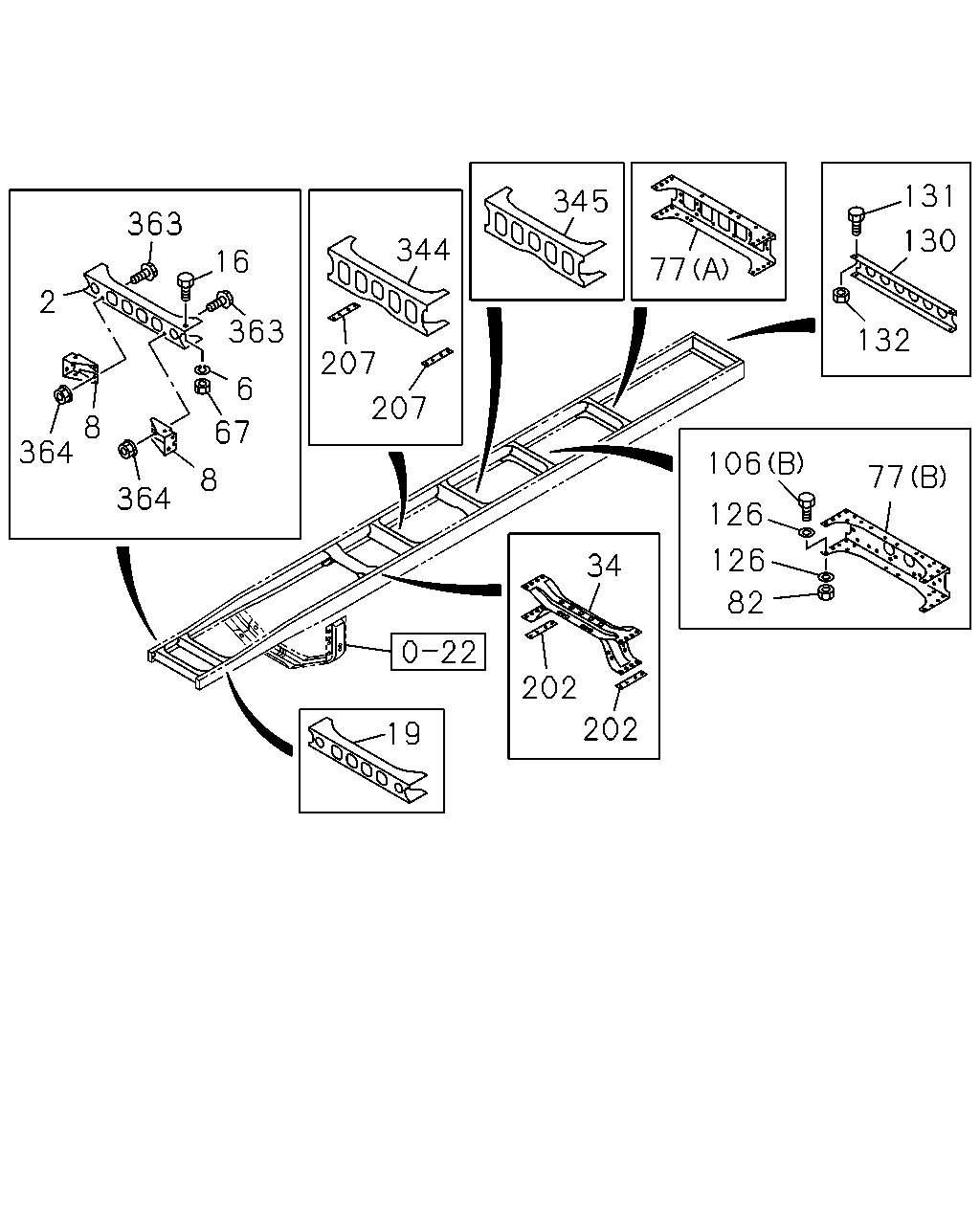

[501A] CROSS MEMBER (23 parça)
▶
84
452
453
456
453
450
456
451
84
452
11
18
13
377
106
39
31
23
25
25
26
23
25
24
25
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
8-97609-502-0
02
1
0906-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
0906-
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
0906-
23
BOLT; BRKT,SPR
M14X50
0-20951-450-0
08
1
0906-
24
BRACKET; FRT SPR,FRT
8-98018-983-0
01
1
0906-
24
BRACKET; FRT SPR,FRT
8-98018-984-0
01
1
0906-
25
WASHER; PL,BRKT
ID=15
8-98010-627-1
16
1
0906-
26
NUT; BRKT,SPR
M14
0-91110-514-0
08
1
0906-
31
BUSHING; FRT SPR,RR
ID=25
8-98082-176-0
02
1
0906-
39
BRACKET; FRT SPR,RR
1-53352-126-2
02
1
0906-
84
WASHER; PL,BRKT
ID=16.2
1-09503-316-0
12
1
0906-
106
BOLT; BRKT
(B) M10X35
0-10961-035-0
04
1
0906-
106
BOLT; BRKT
(A) M14X35 FLANGE
0-28661-435-0
12
1
0906-
377
BRACKET; TOP PLATE
8-98061-350-0
04
1
0906-
450
BRACKET; V ROD
1-53353-121-0
02
1
0906-
451
GUSSET; V ROD
8-97610-436-0
02
1
0906-
452
BOLT; V ROD
(A) M16X120
1-09000-677-0
04
1
0906-0908
452
BOLT; V ROD
(A) M16X110
1-09000-738-0
04
1
0909-
452
BOLT; V ROD
(B) M16X50
1-09000-679-0
08
1
0906-
453
NUT; V ROD
M16 FLANGE
1-09440-066-0
12
1
0906-
456
PATCH; STOPPER
8-97610-437-1
04
1
0906-
131
345
363
130
344
16
77
2
363
132
207
6
207
8
364
67
106
77
8
364
126
126
34
82
202
202
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97609-462-8
01
1
0906-
6
WASHER; LK,1ST C/MBR
ID=12.2
0-91510-512-0
02
1
0906-
8
GUSSET; 1ST C/MBR
8-97609-759-1
01
1
0906-
8
GUSSET; 1ST C/MBR
8-97609-760-2
01
1
0906-
16
BOLT; 1ST C/MBR TO S/MBR
M12X30
0-20851-230-0
02
1
0906-
19
MEMBER; CROSS,2ND
8-97609-463-7
01
1
0906-
34
MEMBER; CROSS,3RD
8-97609-755-0
01
1
0906-
67
NUT; C/MBR
M12
0-91110-512-0
02
1
0906-
77
MEMBER; CROSS,TRUNNION RR
(A)
8-97609-481-4
01
1
0906-
77
MEMBER; CROSS,TRUNNION RR
(B)
8-97609-483-0
01
1
0906-
82
NUT; BRKT
M10
0-91110-510-0
04
1
0906-
106
BOLT; BRKT
(B) M10X35
0-10961-035-0
04
1
0906-
106
BOLT; BRKT
(A) M14X35 FLANGE
0-28661-435-0
12
1
0906-
126
WASHER; PL,BRKT
ID=10.5 OD=22
0-91614-610-0
08
1
0906-
130
MEMBER; CROSS,END
8-97609-470-0
01
1
0906-
131
BOLT; END C/MBR
M10X25 W/LK WASHER
0-50541-025-0
04
1
0906-
132
NUT; END C/MBR
M10
0-91110-510-0
04
1
0906-
202
SPACER; 3RD C/MBR
8-97609-757-0
02
1
0906-
207
SPACER; 4TH C/MBR
8-97609-758-0
02
1
0906-
344
MEMBER; CROSS,4TH
8-97609-473-2
01
1
0906-
345
MEMBER; CROSS,5TH
8-97609-472-2
01
1
0906-
363
BOLT; GUSSET
M12X25 FLANGE
0-28661-225-0
04
1
0906-
364
NUT; GUSSET
M12 FLANGE
0-91180-212-0
04
1
0906-
